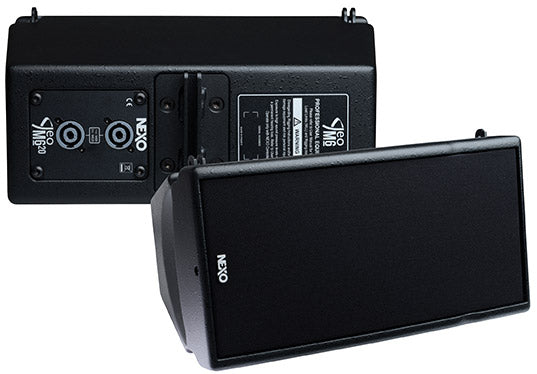

NEXO GEO M6-20 6.5-inch 2-Way Loudspeaker

The NEXO GEO M6-20 is a compact 6.5-inch two-way point source loudspeaker cabinet designed for professional touring and fixed installation applications where flexible coverage and full-range sound are required.

The cabinet combines a 6.5-inch LF long-excursion driver with a 1-inch HF throat driver mounted on NEXO's HR Wavesource waveguide, delivering a frequency response of 80 Hz – 19 kHz ±3 dB, 95 dB sensitivity and up to 127 dB maximum SPL. Horizontal dispersion is switchable between 80° and 120°, with 20° vertical coverage, allowing the cabinet to be configured for a wide range of venues.

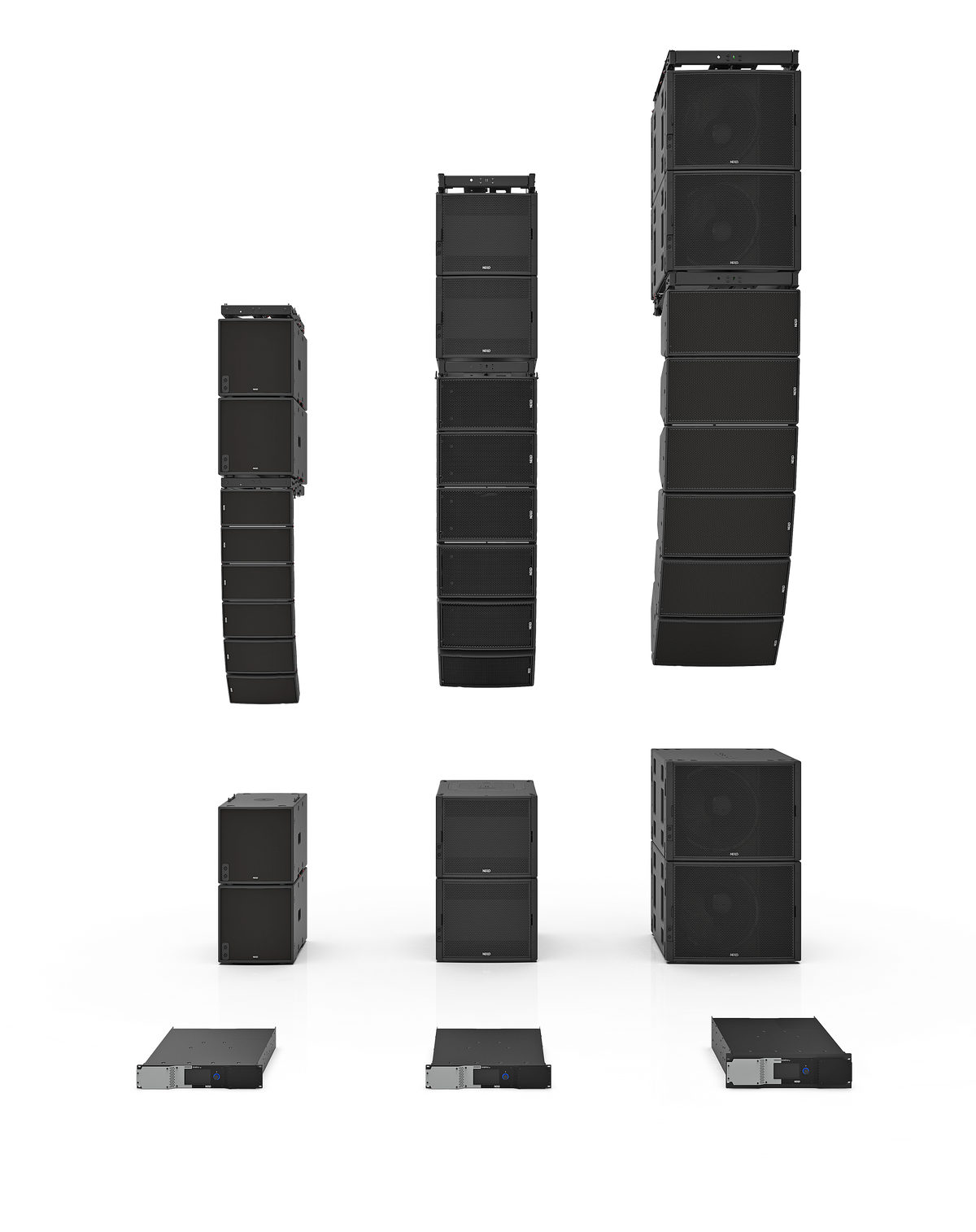

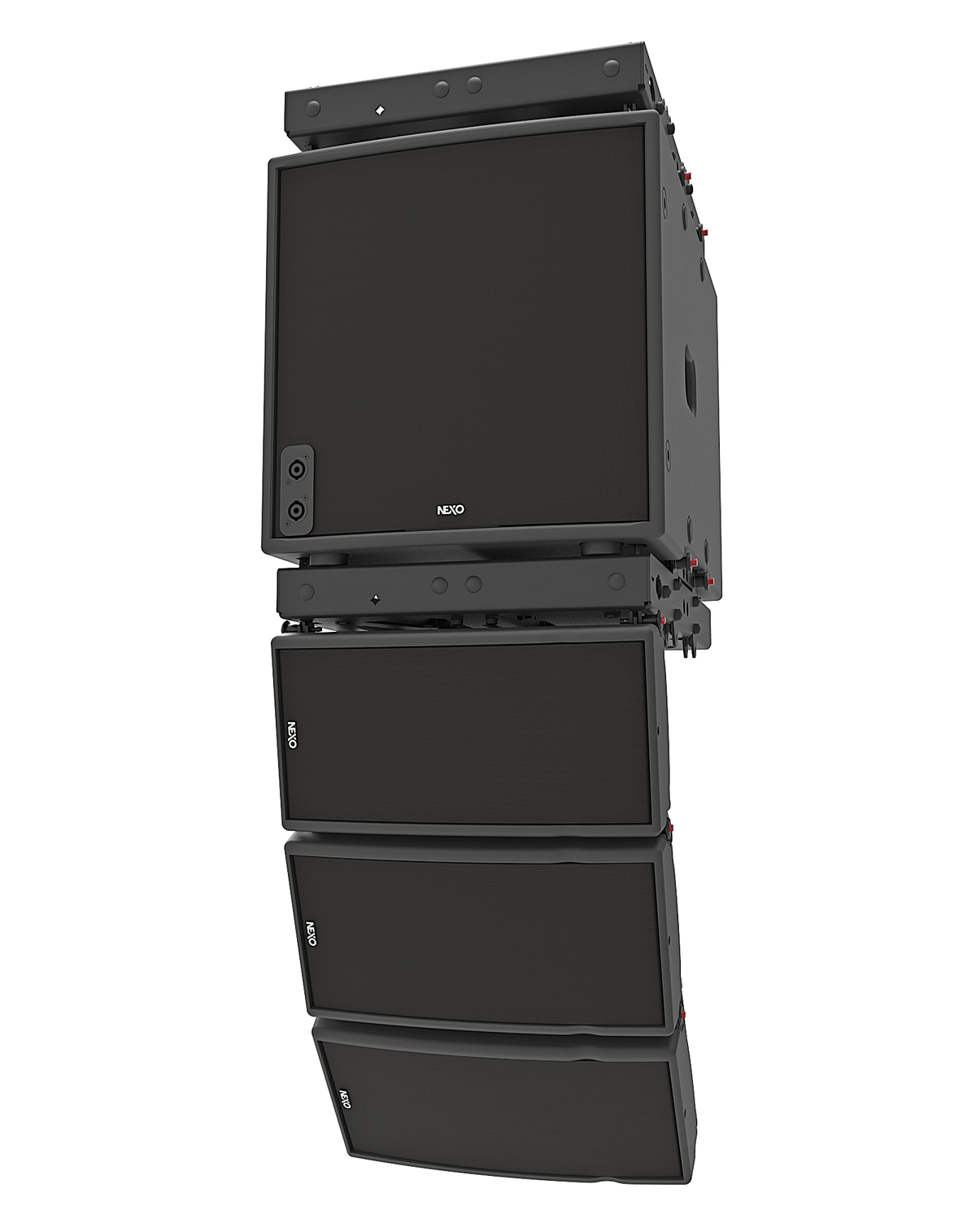

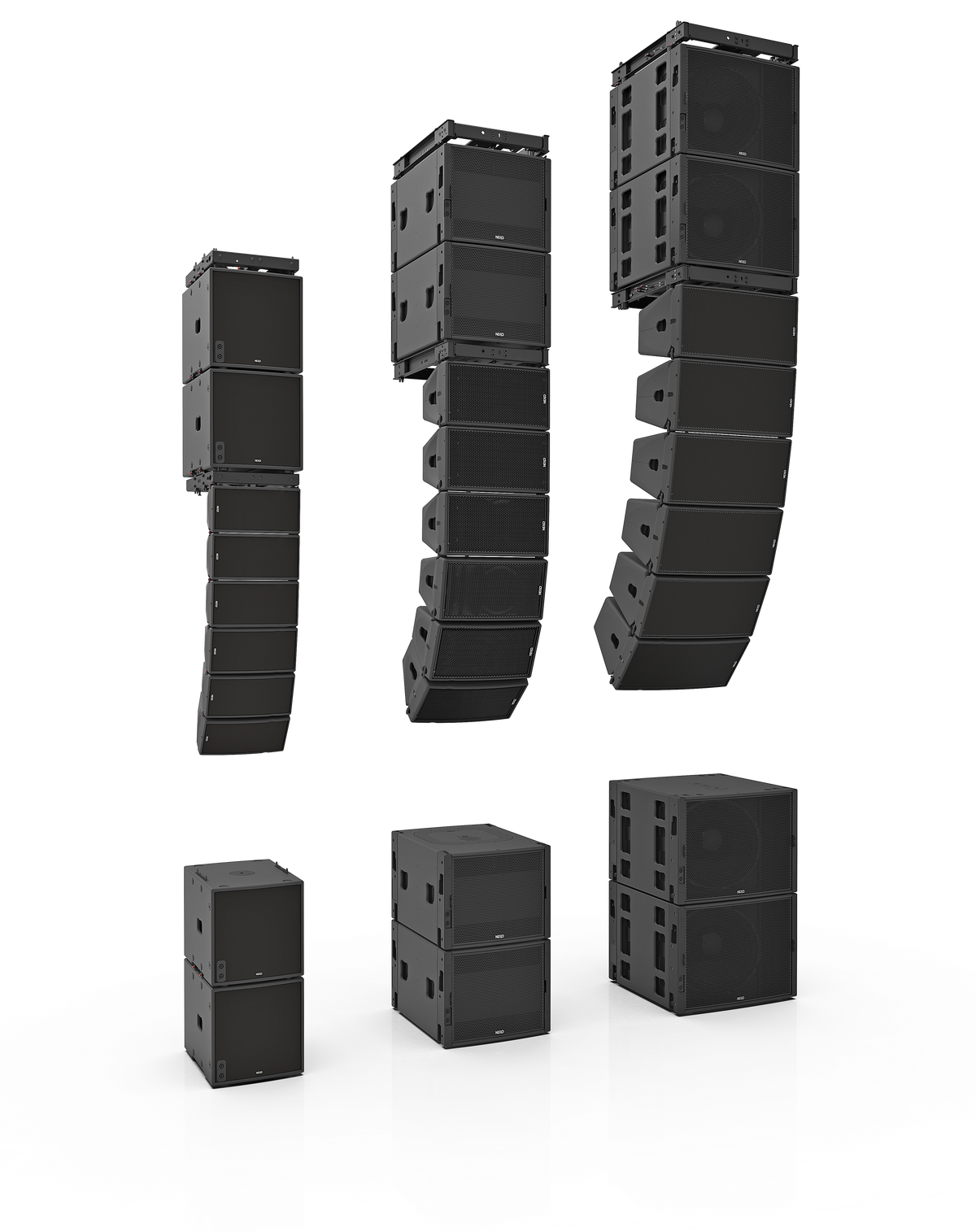

Built from lightweight polyurethane composite with an acoustic fabric front grille and side handles, the GEO M6-20 can be flown, groundstacked or pole-mounted on subs, and is part of an identically-sized range alongside the GEO M6B bass extension cabinet. It connects via 2x NL4 Speakon 4-pole inputs and can be driven by NEXO's NXAMP powered TDController, with a single unit able to power up to 12 GEO M6 cabinets. The system is TÜV-certified and carries a 2-year warranty.

• Frequency response: 80 Hz – 19 kHz ±3 dB
• Sensitivity: 95 dB / Max SPL: 127 dB
• Nominal impedance: 8 Ω, recommended power 450 W
• Dimensions: 373 x 191 x 260 mm, weight 9.7 kg
• Switchable 80°/120° horizontal x 20° vertical dispersion
