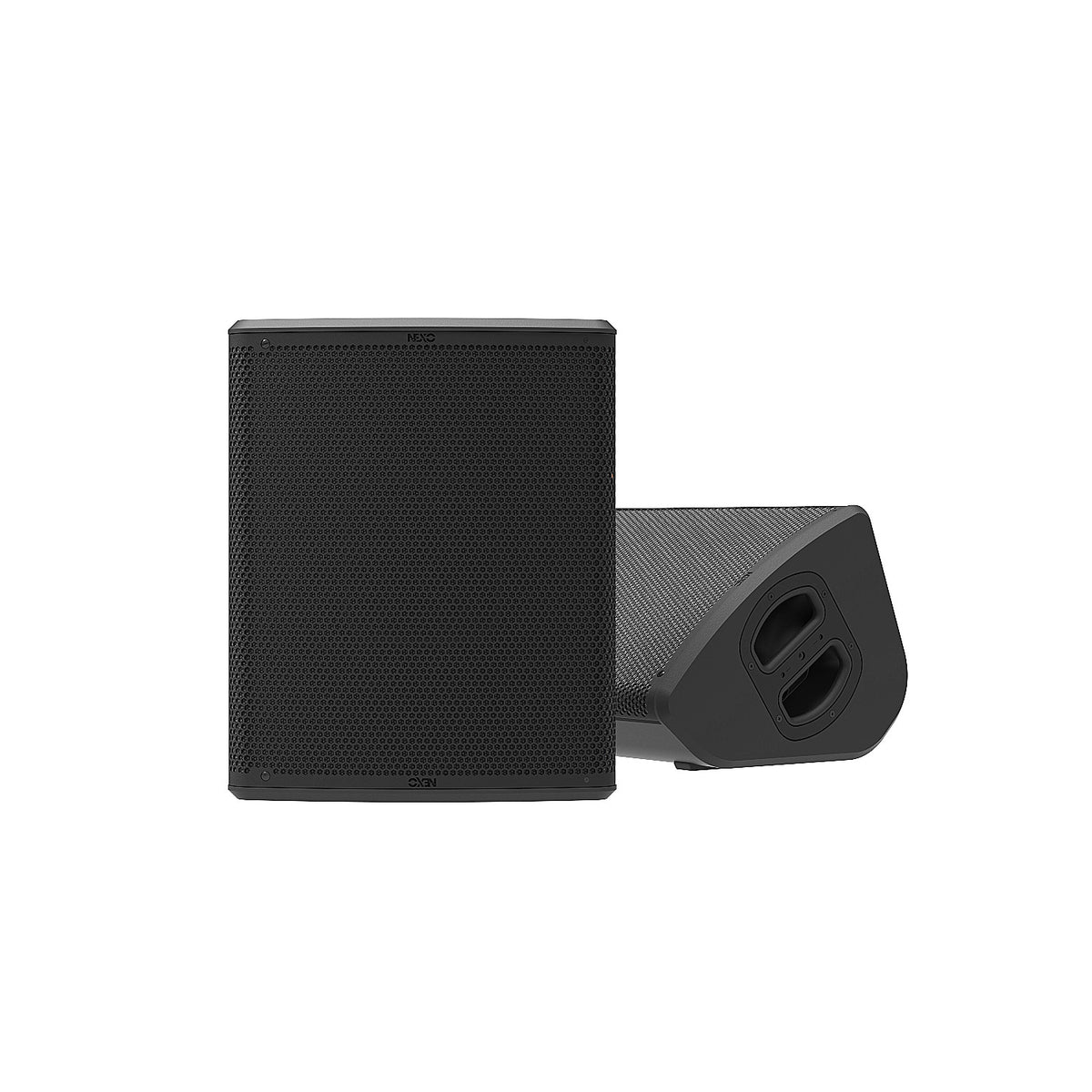

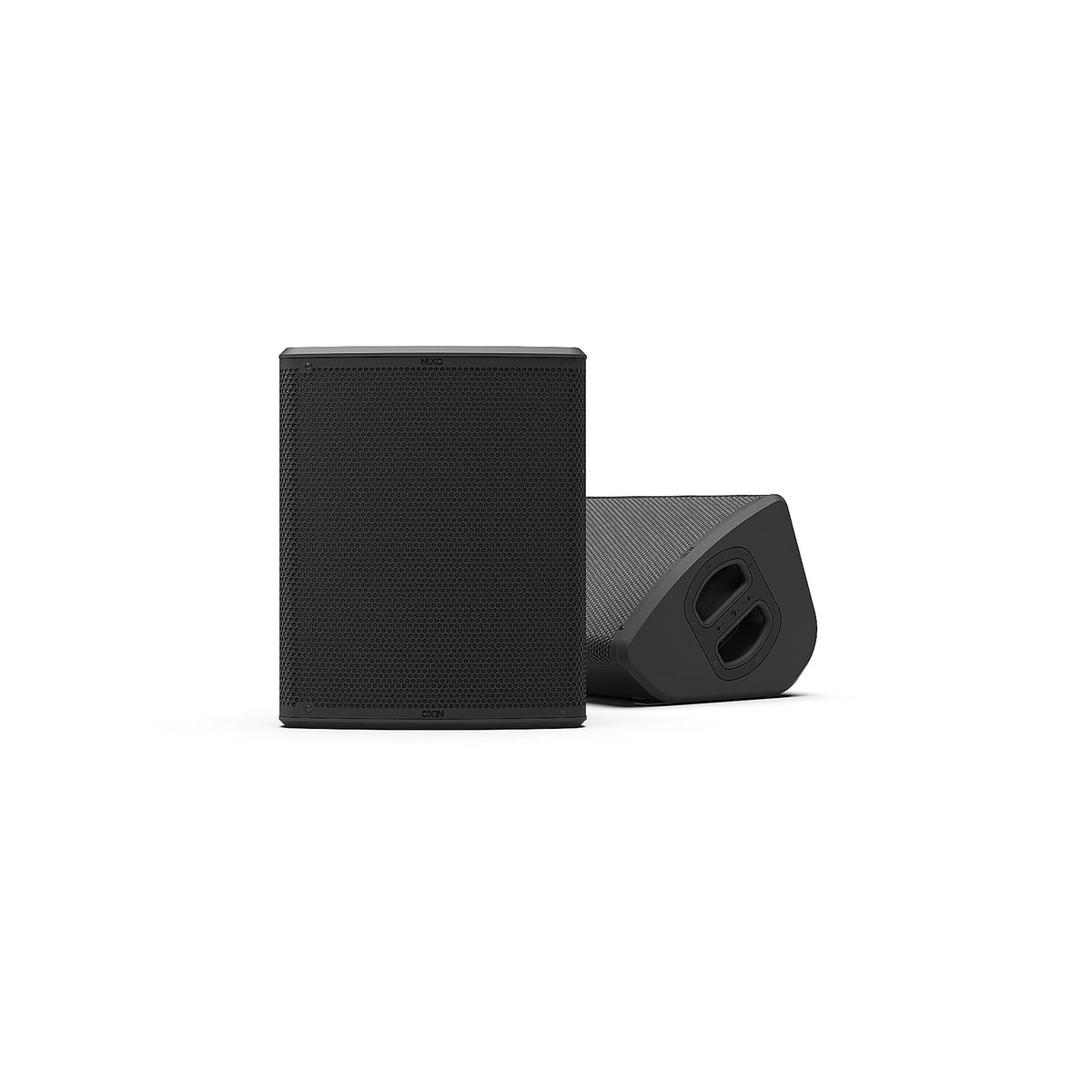

NEXO P12 12-inch Coaxial 2-Way Loudspeaker, Touring Version, Black

The NEXO P12 is a 12-inch coaxial point-source loudspeaker combining a long-excursion LF driver with a 3-inch HF diaphragm in a single horn-loaded enclosure. Available in active or passive configurations, it suits both front-of-house and monitor applications in touring and live event production.

The P12 delivers up to 140 dB peak SPL with a sensitivity of 107 dB and a frequency response of 60 Hz to 20 kHz. Its modular directivity allows the default 60°x60° horn to be rotated to a 90°x40° pattern or fitted with a PS flange for an asymmetric 60°~100°x40° coverage, giving engineers flexibility across venue shapes.

This Touring version is fitted with 4x NL4 four-pole connectors for fast rigging, while the Install version uses a cable gland with two-core cable. The cabinet is built from custom bent Baltic birch and poplar plywood, keeping weight to 20 kg, and is finished in black with a quick-release Magnelis steel grille for access to the horn flanges.

• 12-inch coaxial neodymium LF + 3-inch HF driver
• 140 dB peak SPL, 107 dB sensitivity
• 60 Hz–20 kHz frequency response
• Recommended amplifier power: 1,270 W
• 5-year warranty
