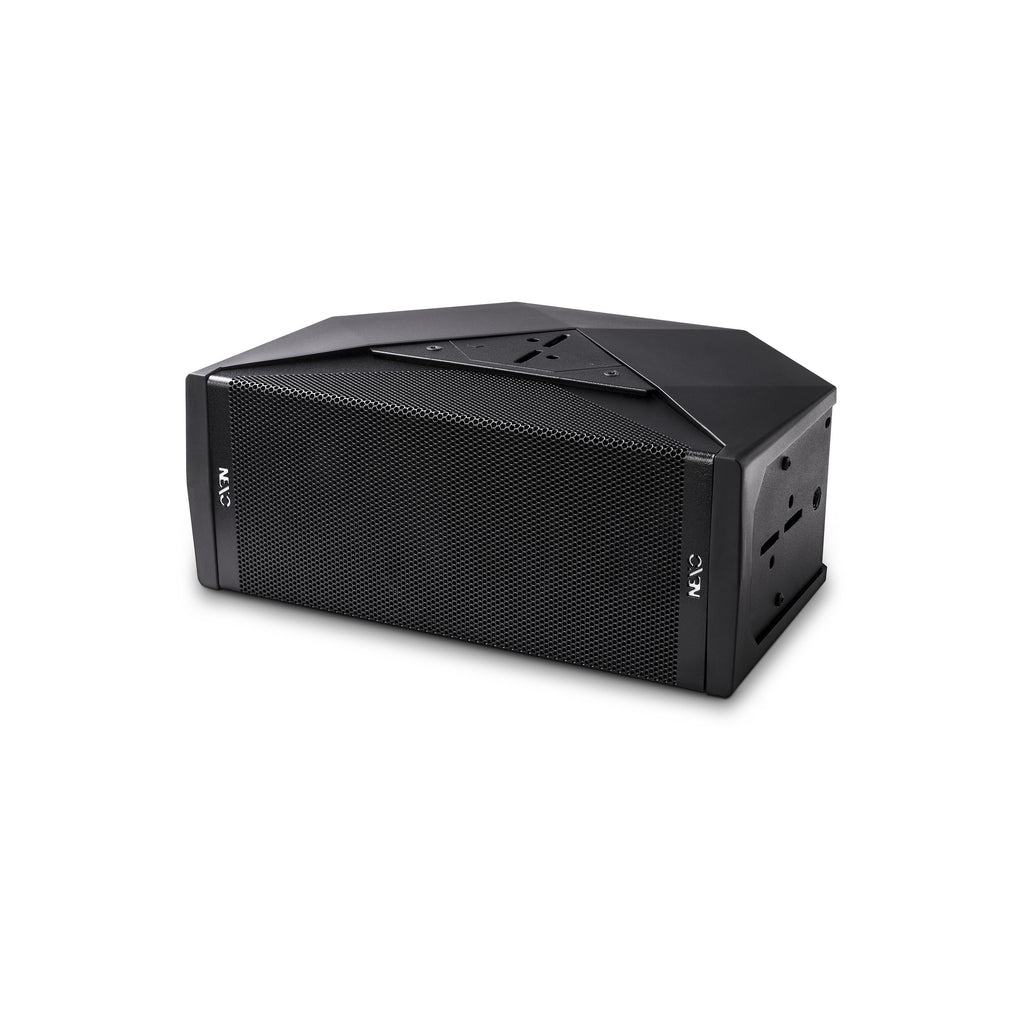

  • NEXO ID24 compact speaker, touring version in black, angled front view

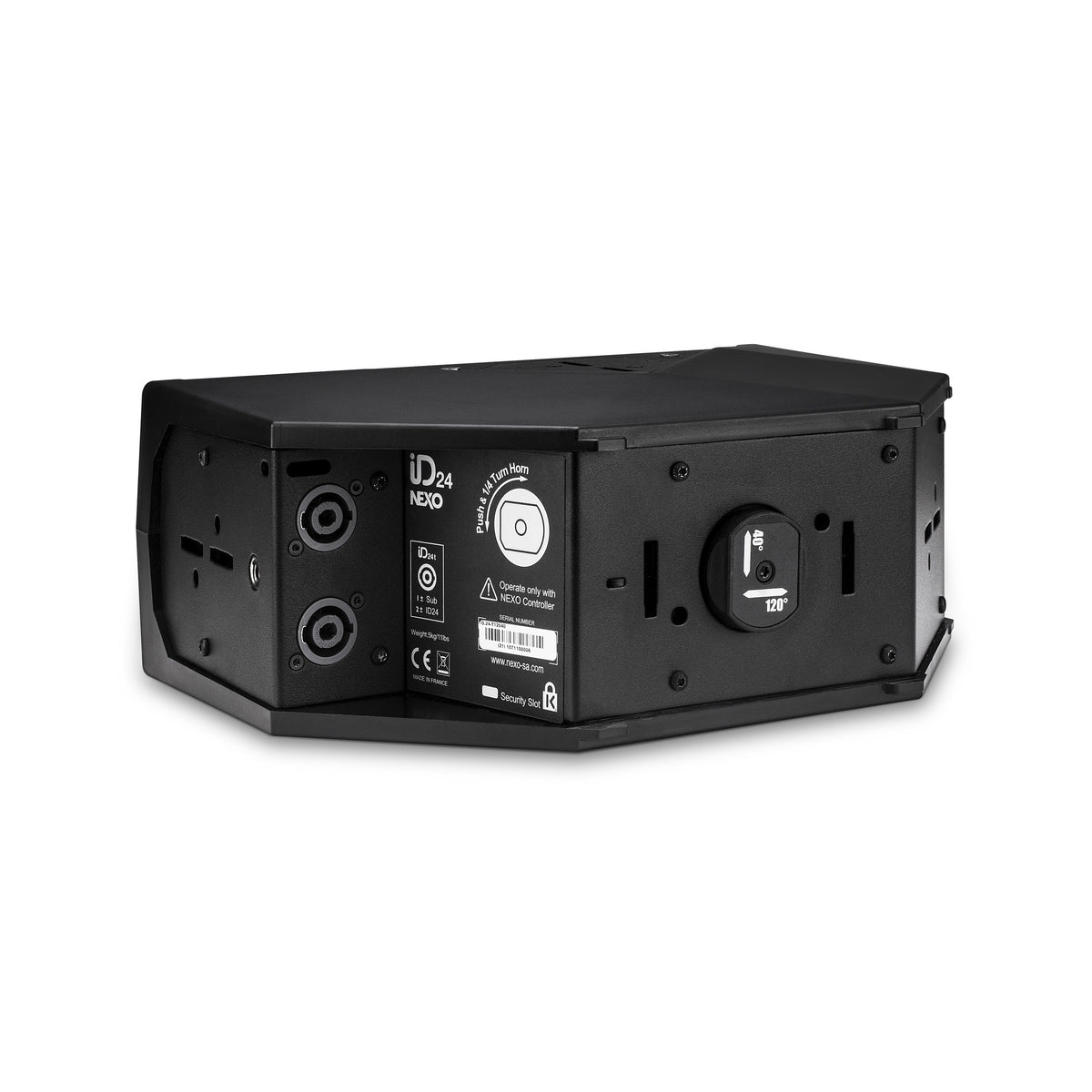

  • NEXO ID24 compact speaker, touring version in black, rear view with connectors

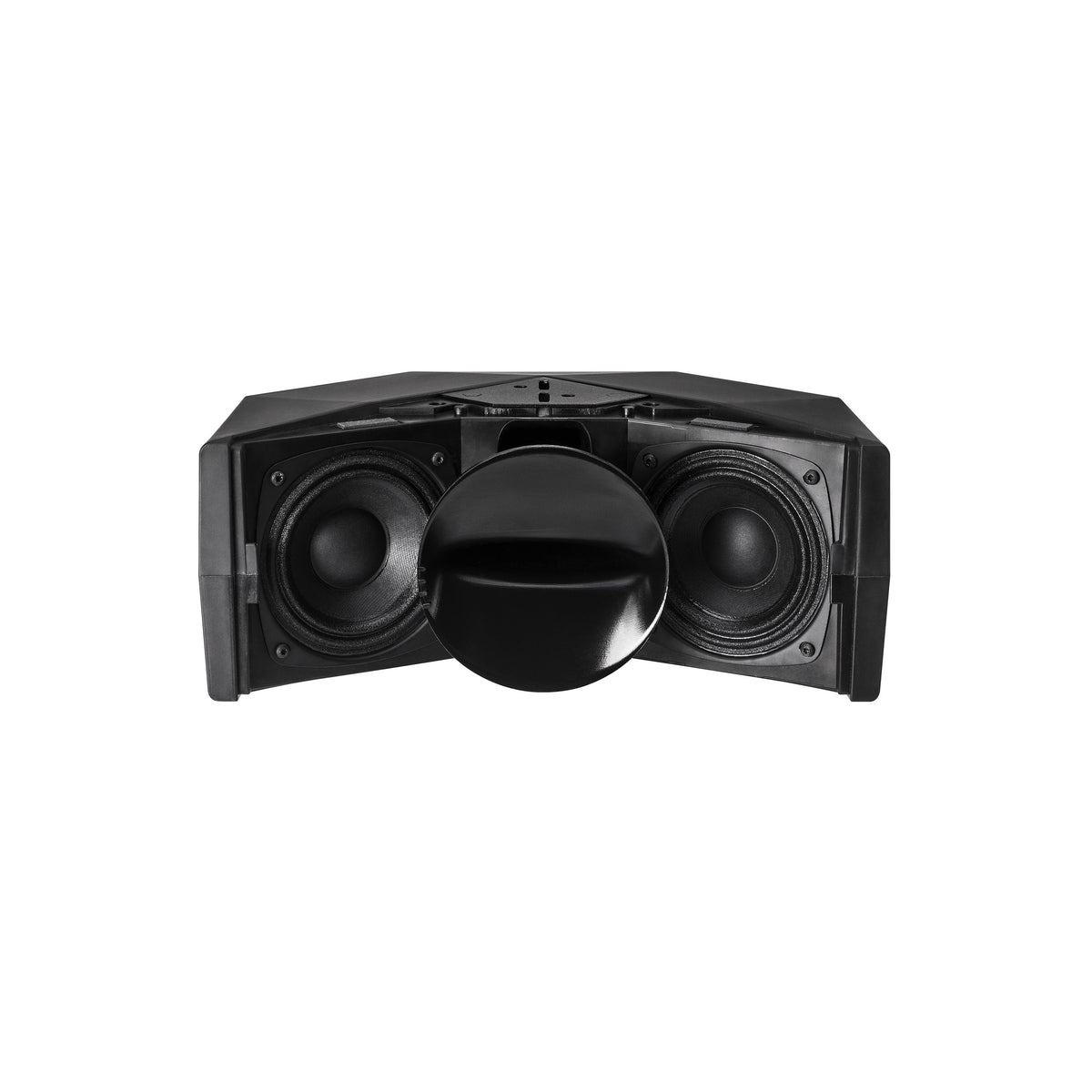

  • NEXO ID24 without grille, showing the two woofers and the rotatable horn set horizontally

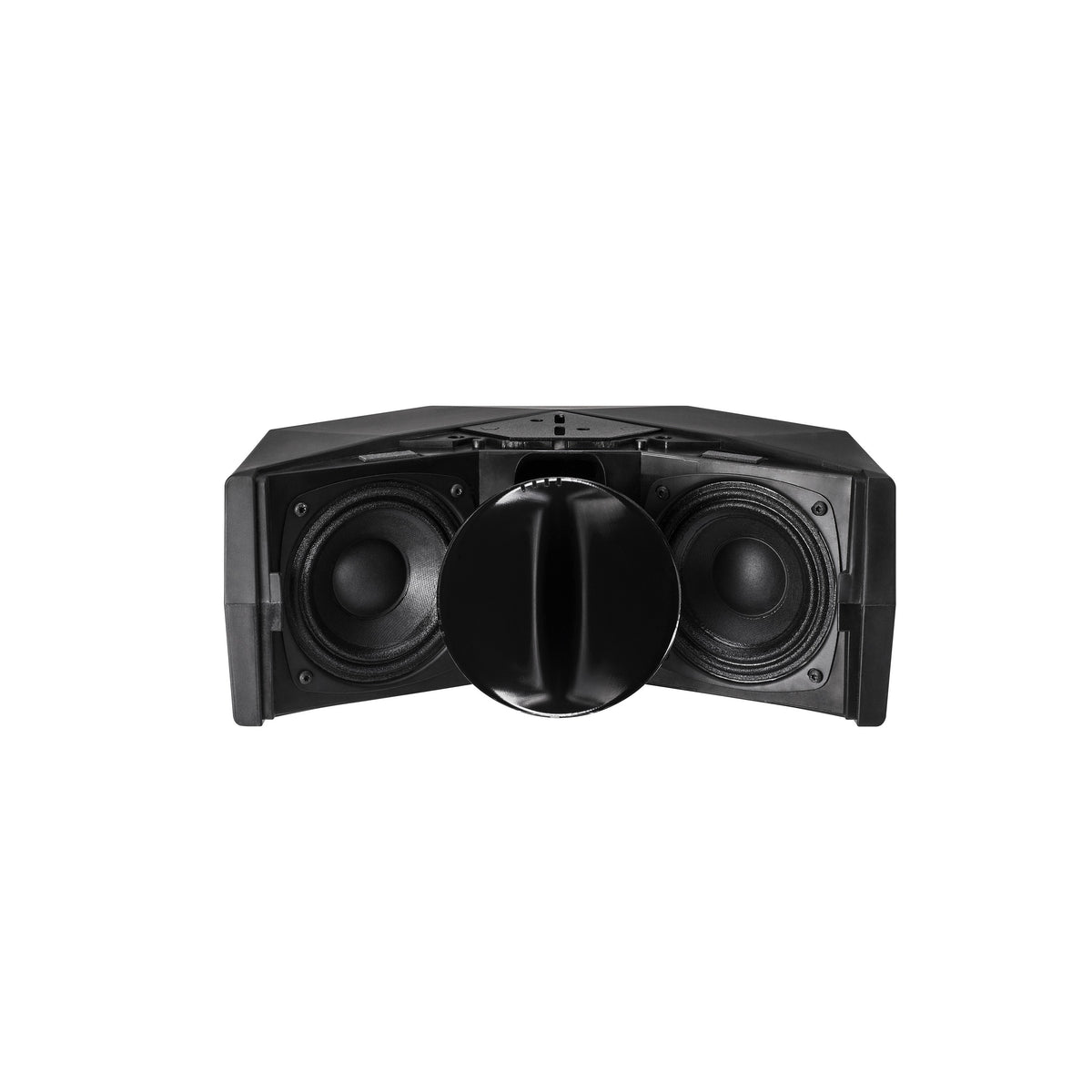

  • NEXO ID24 without grille, showing the two woofers and the rotatable horn set vertically

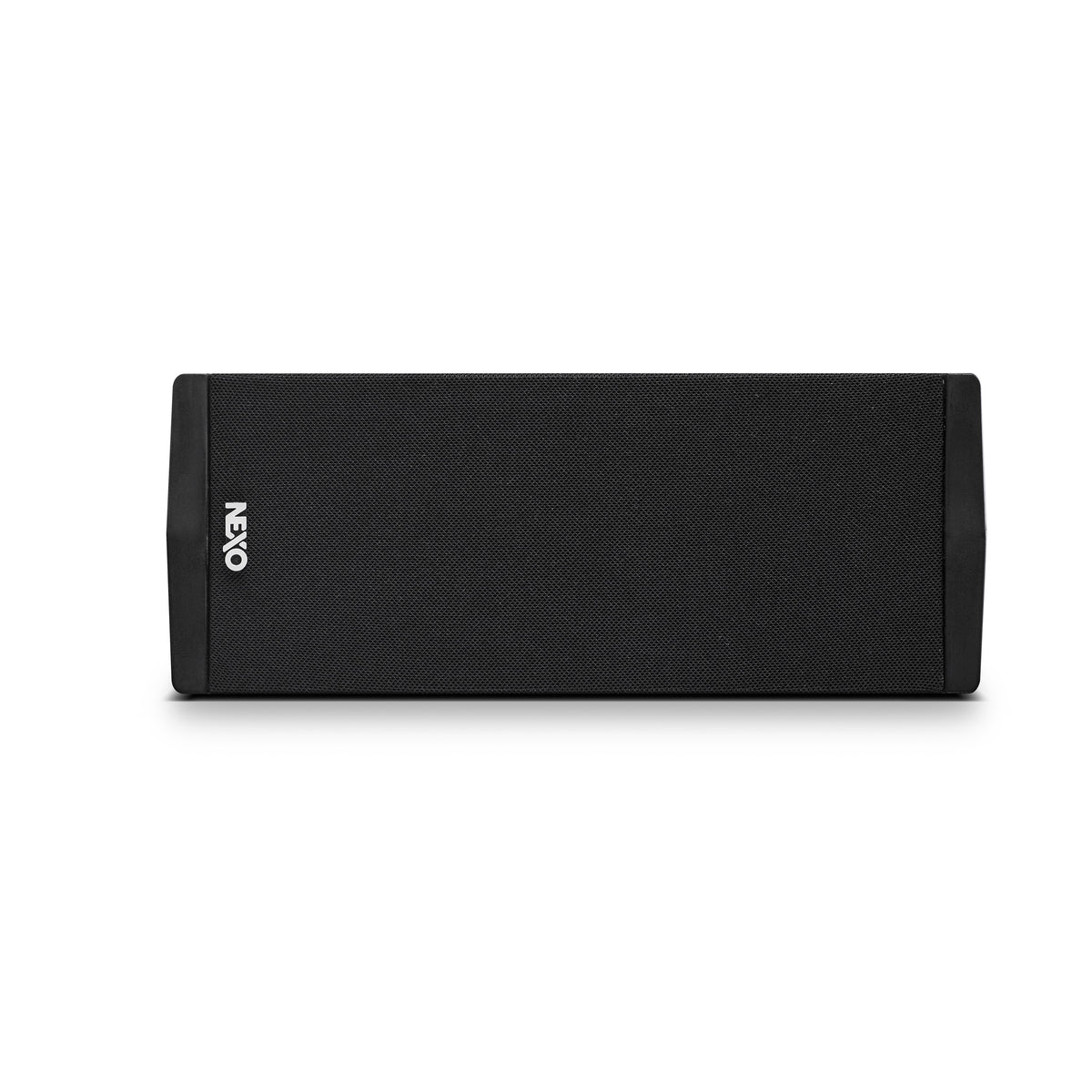

  • NEXO ID24 compact speaker, installation version in black, front view in horizontal orientation

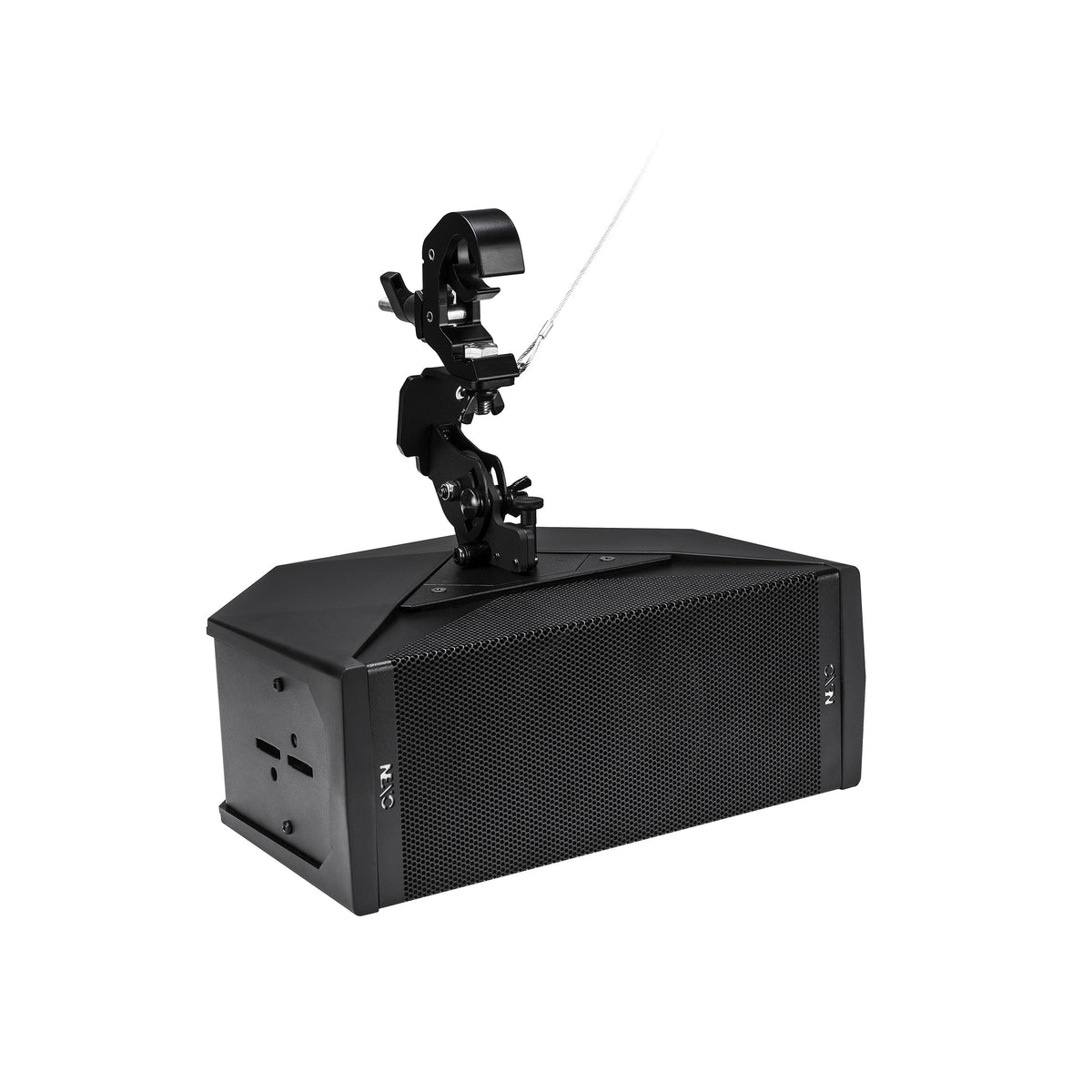

  • NEXO ID24 compact speaker, touring version, hung horizontally from a clamp for under-balcony use

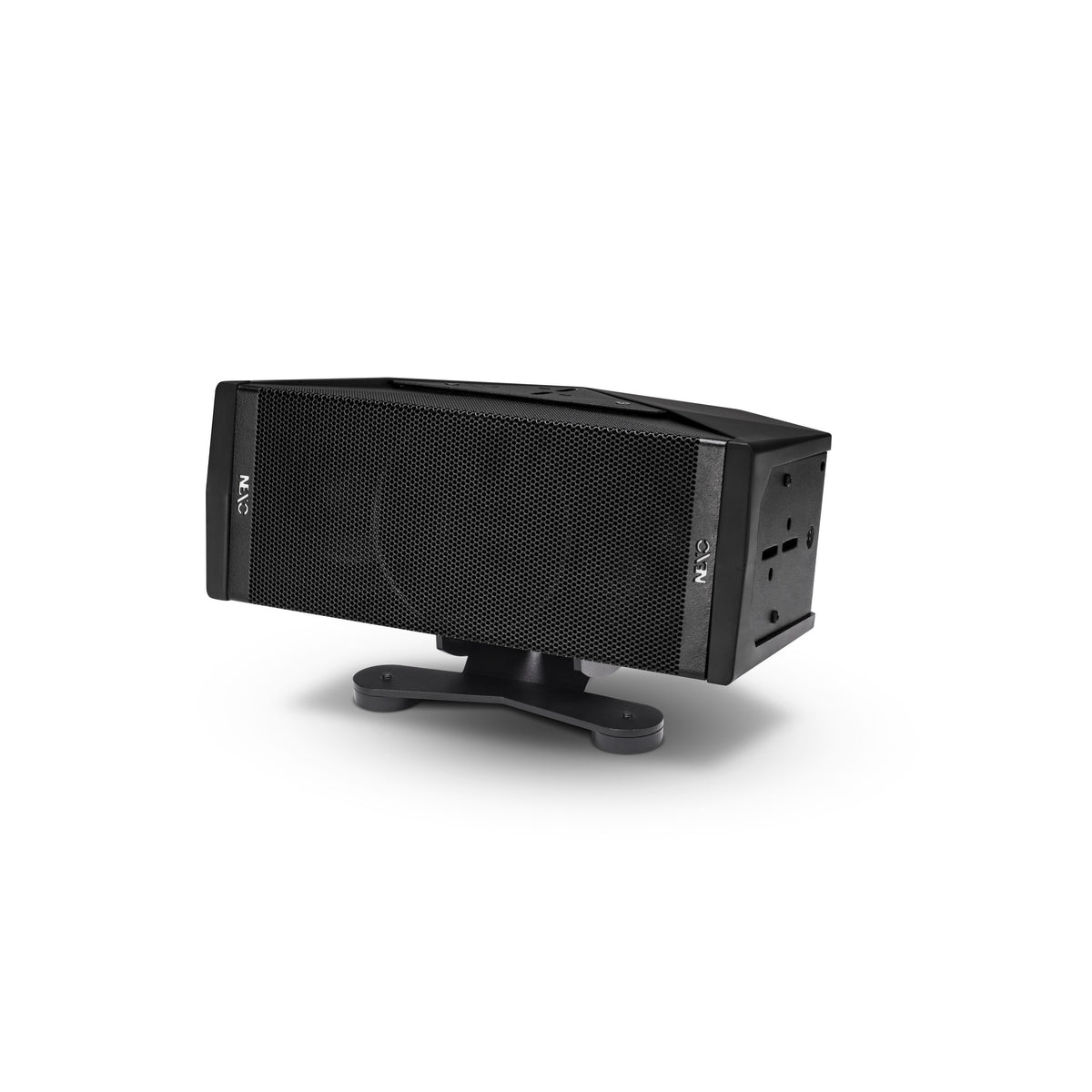

  • NEXO ID24 compact speaker, touring version, on a low stand as a stage front fill

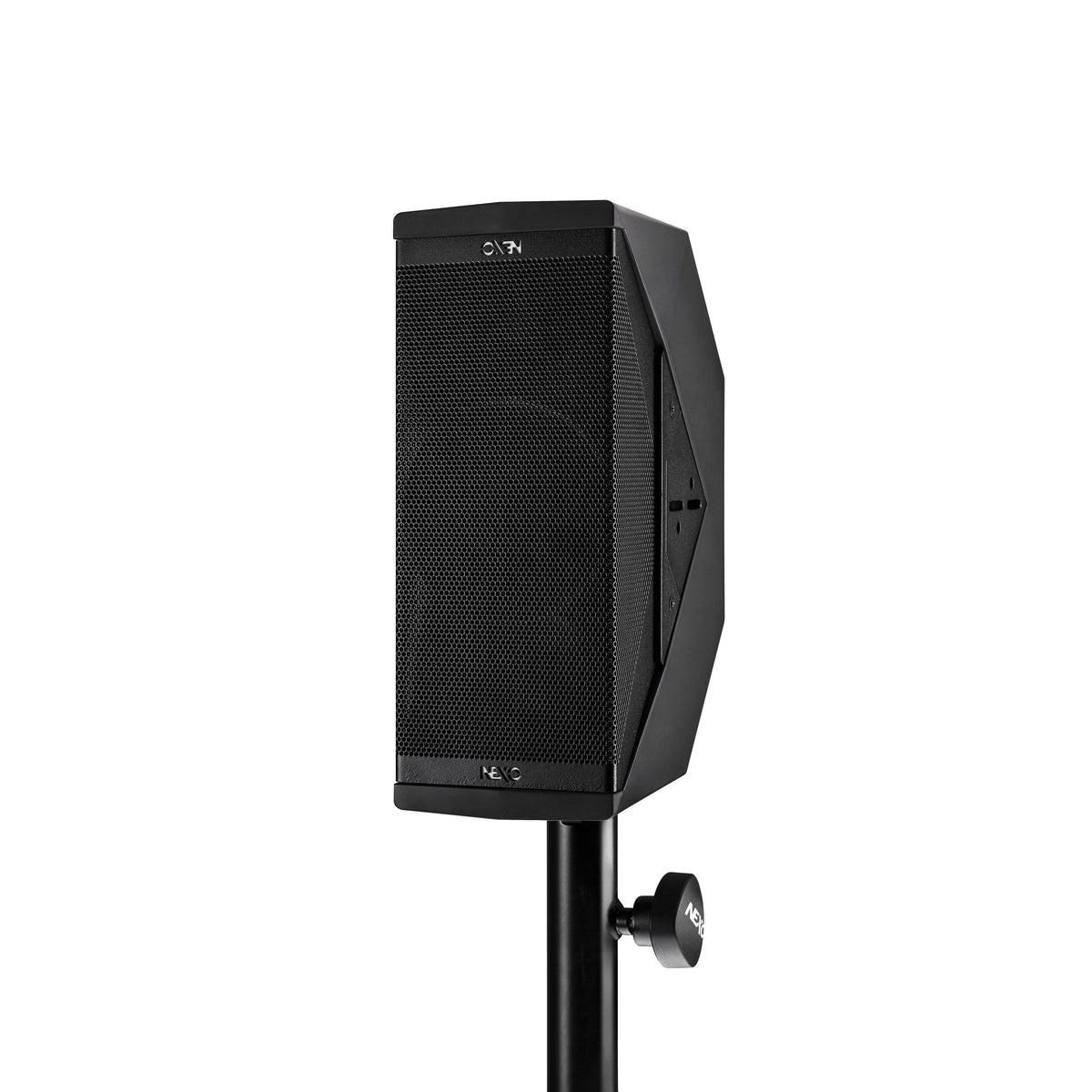

  • NEXO ID24 compact speaker, touring version, on a pole mount

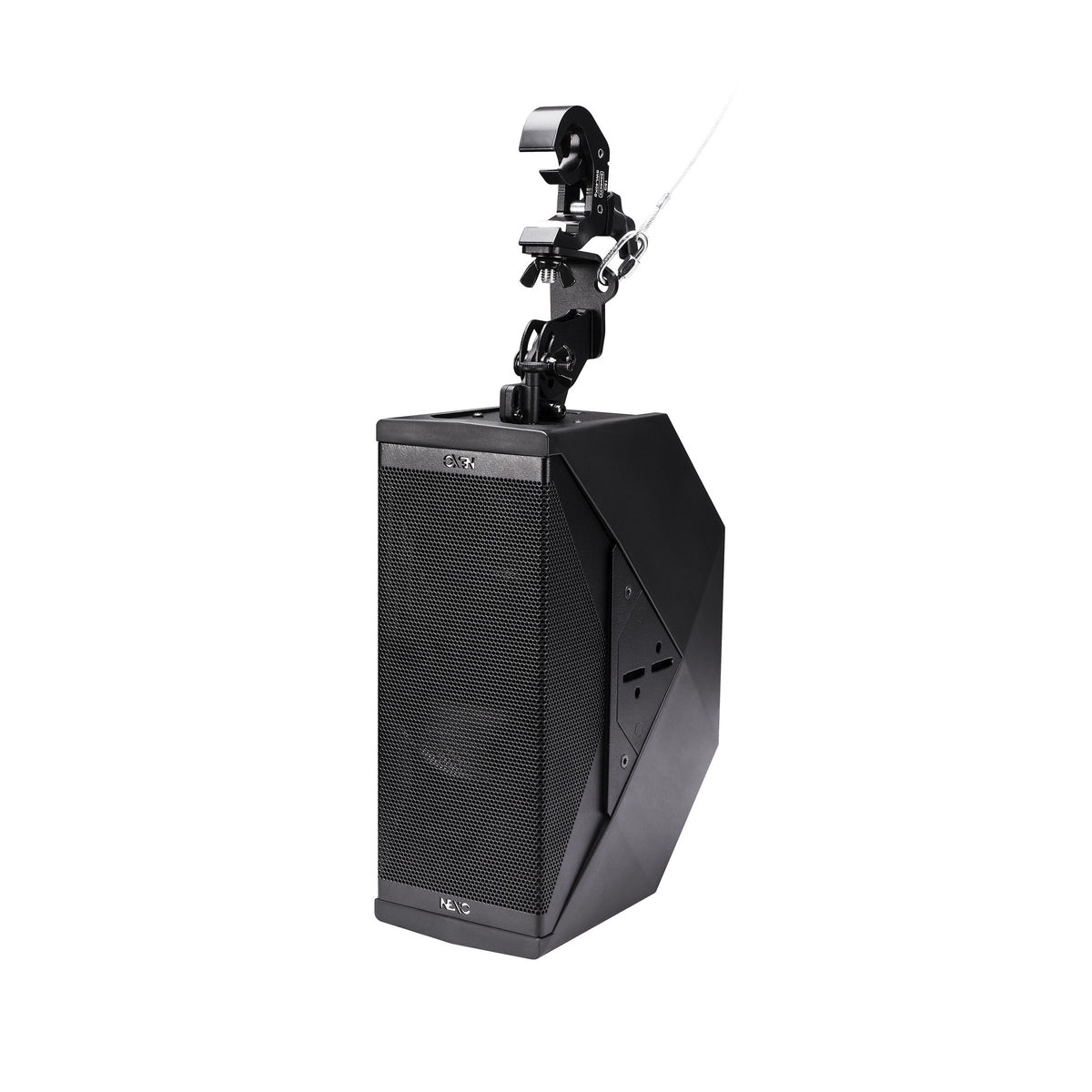

  • NEXO ID24 compact speaker, touring version, flown vertically from a clamp

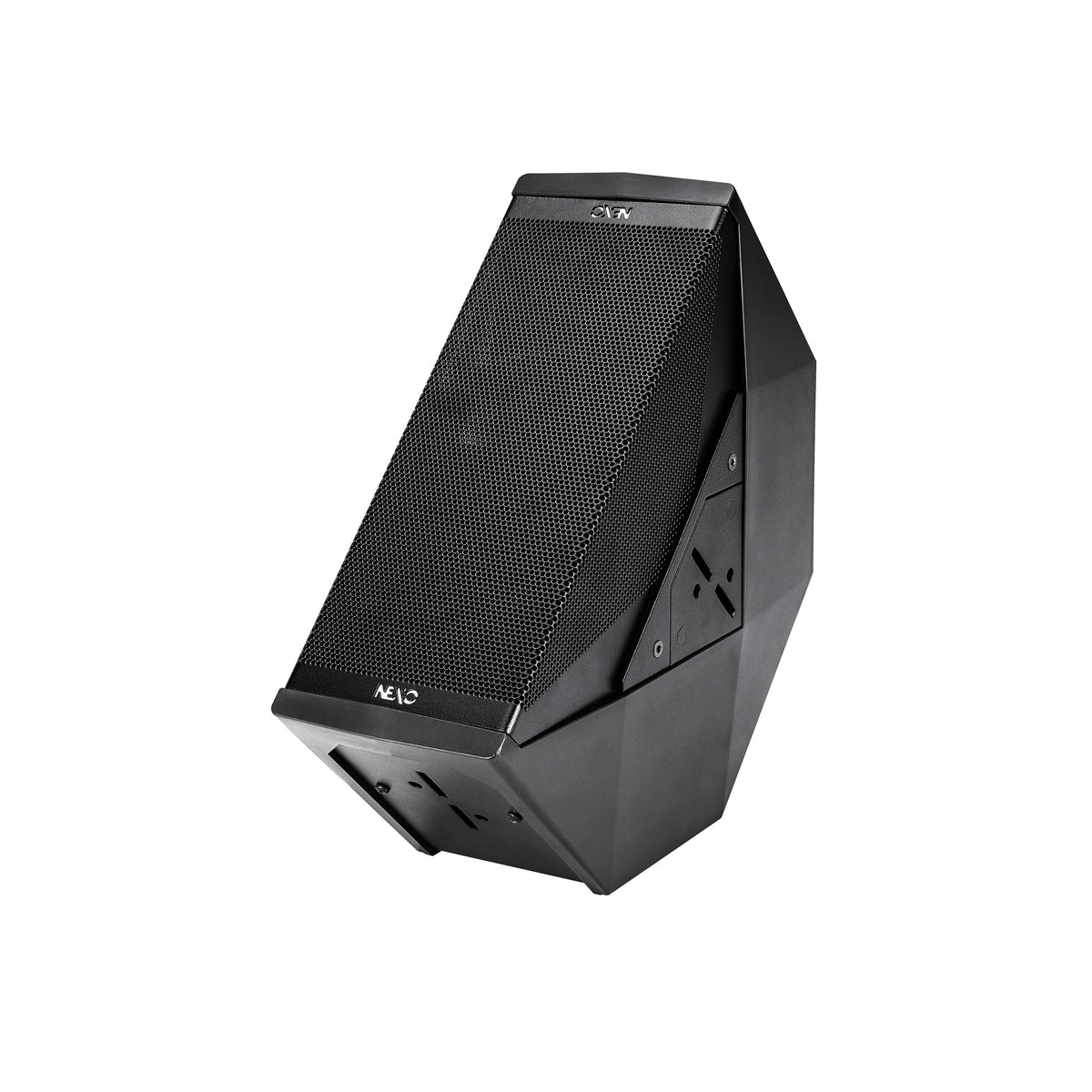

  • NEXO ID24 compact speaker, touring version, used as a wedge monitor

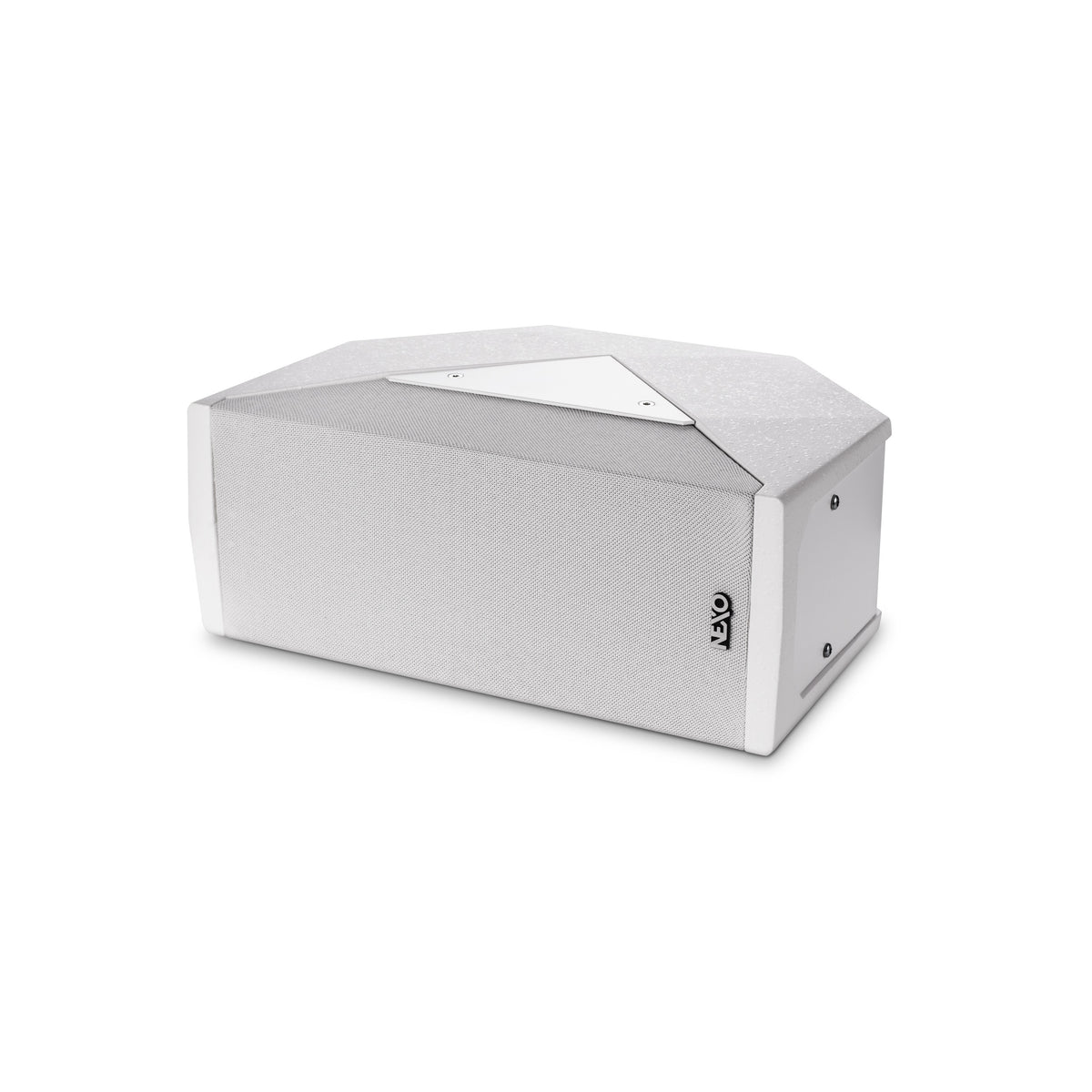

  • NEXO ID24 compact speaker, installation version in white, angled front view

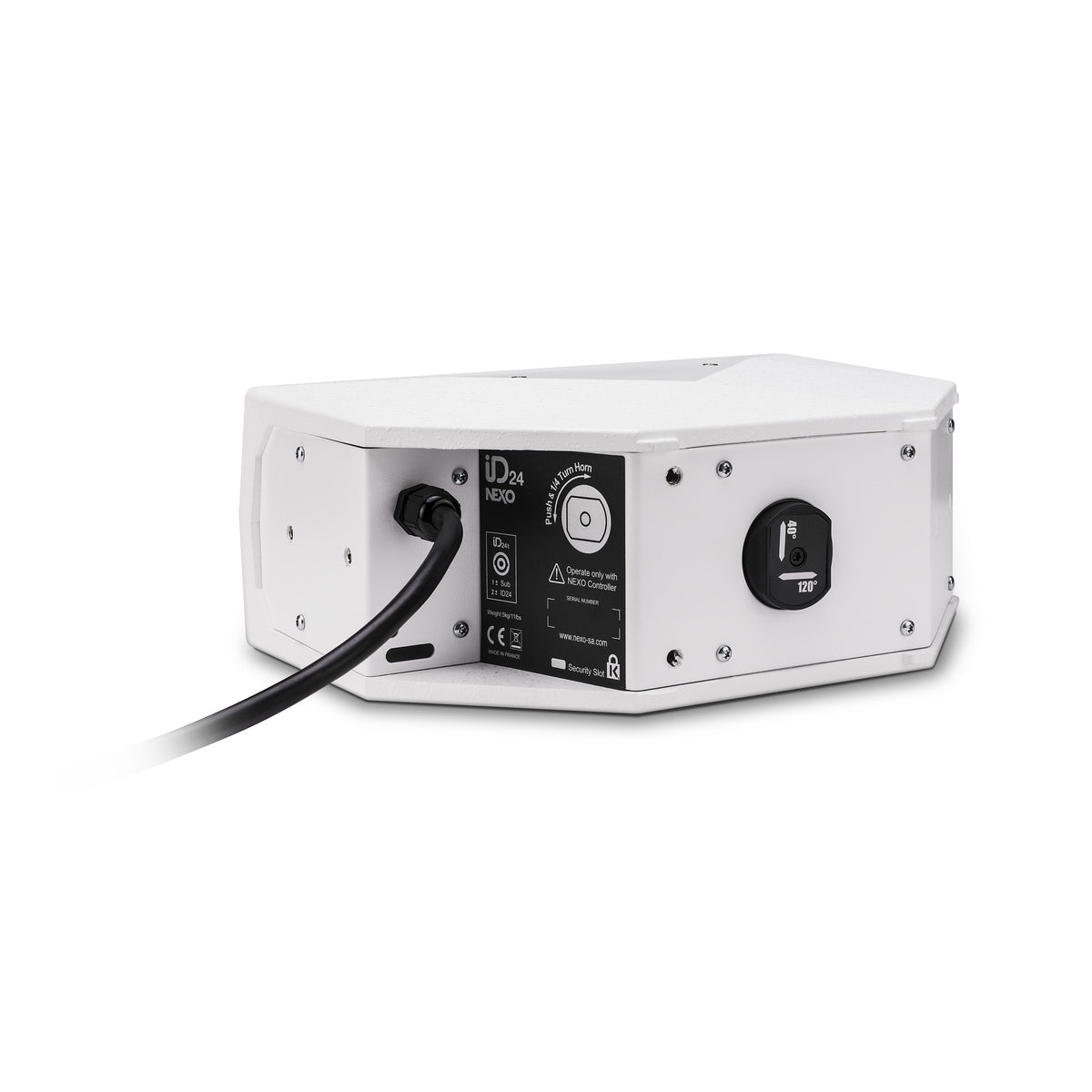

  • NEXO ID24 compact speaker, installation version in white, rear view with cable gland

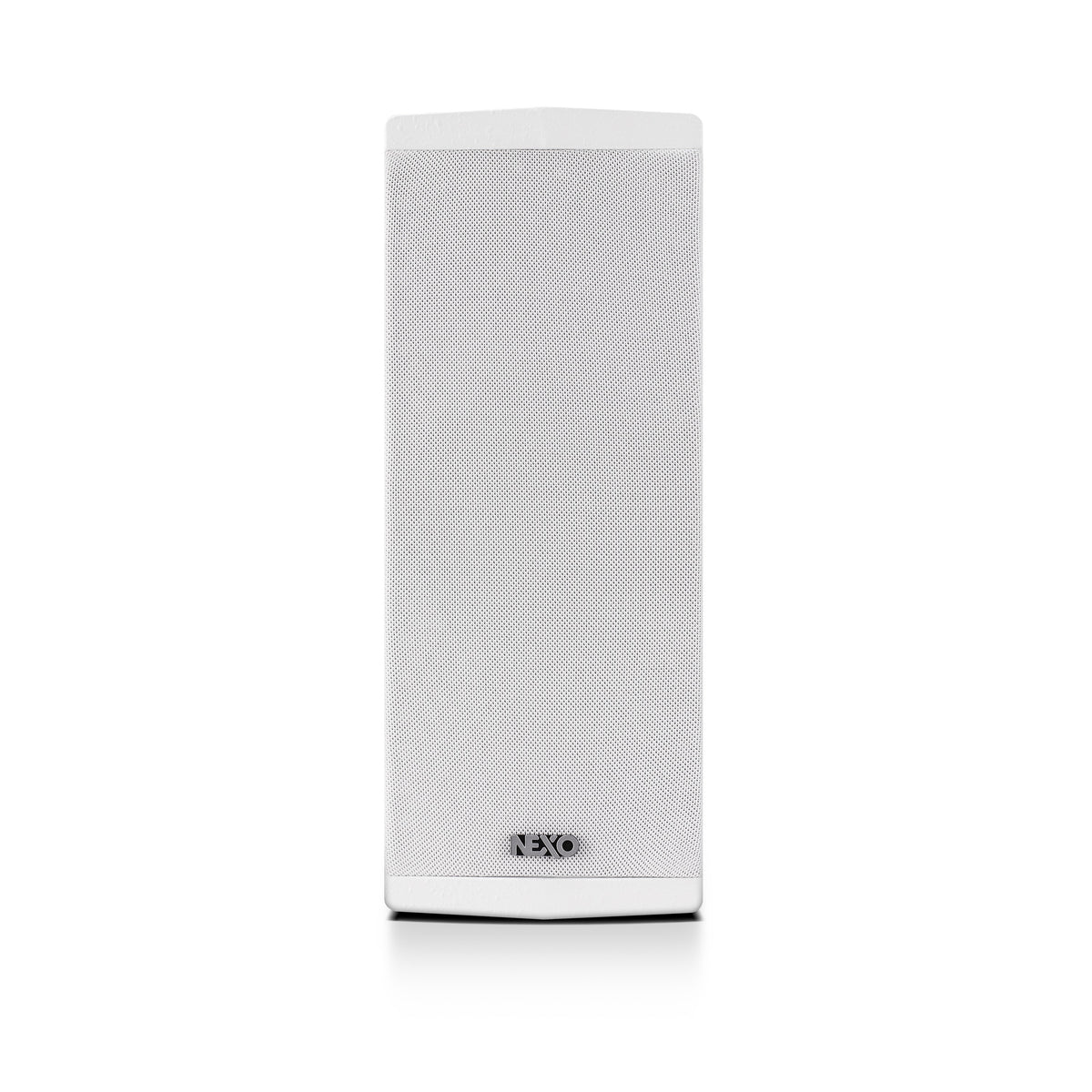

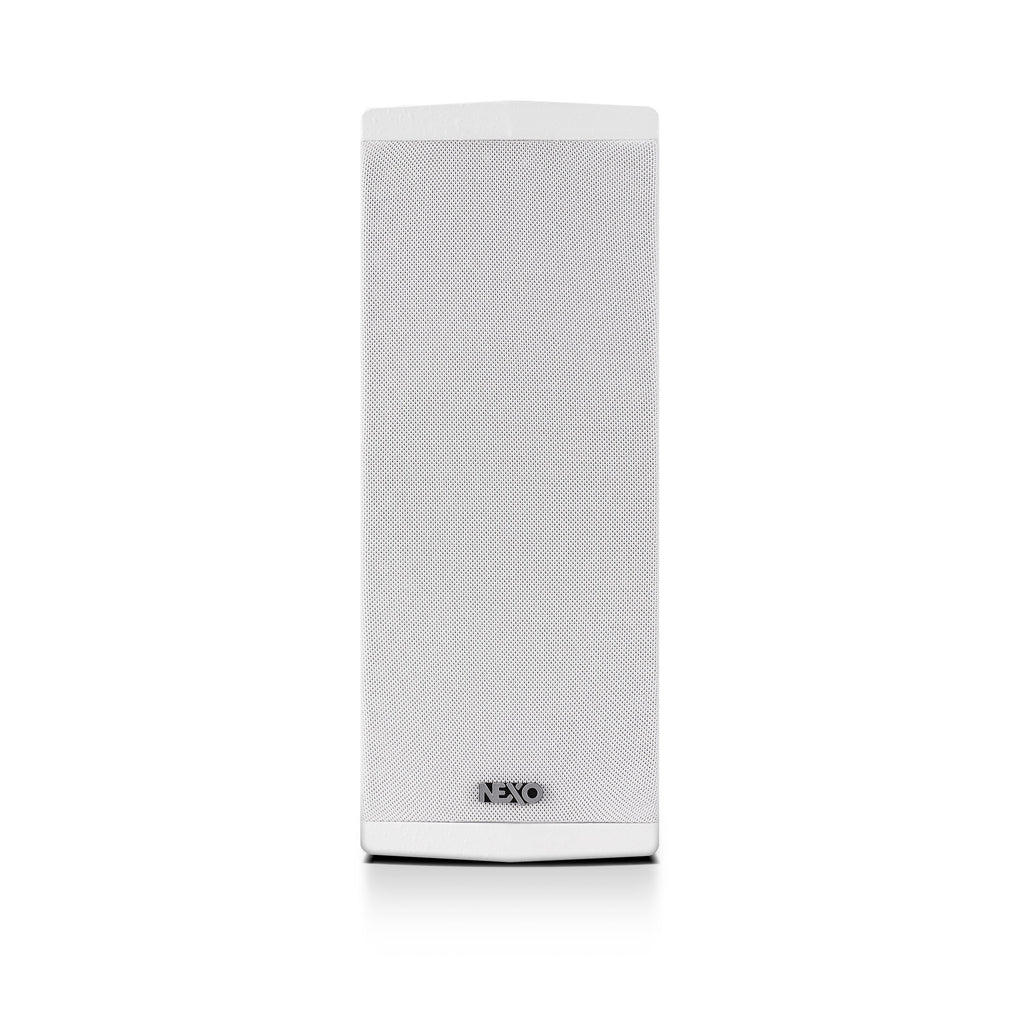

  • NEXO ID24 compact speaker, installation version in white, front view in vertical orientation

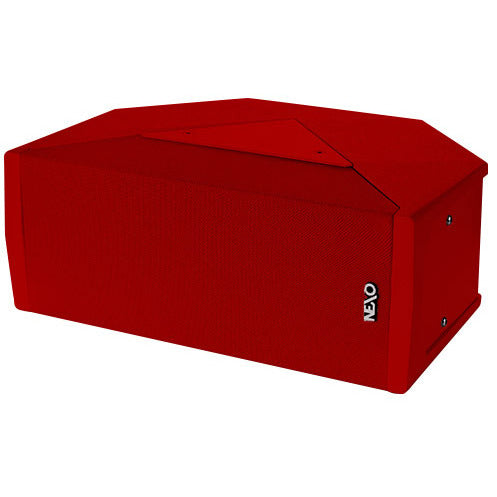

  • NEXO ID24 compact speaker in a red custom colour, angled view
NEXO ID24 4-inch Horn-Loaded 2-Way Loudspeaker, Black

NEXO

NEXO ID24 4-inch Horn-Loaded 2-Way Loudspeaker, Black

Manufacturer Part No.: 01ID.24-C12040SKU: 29476

Contact us about this product

The NEXO ID24 is a compact two-way horn-loaded loudspeaker built for sound reinforcement in touring and fixed installation applications. Its user-rotatable horn delivers 120° x 40° or 40° x 120° coverage, allowing the enclosure to be adapted to wide or narrow throw requirements without changing cabinets.

The cabinet houses 2x 4-inch LF neodymium long-excursion woofers alongside a 1-inch voice coil / ½-inch throat HF neodymium compression driver, producing a frequency response of 95 Hz – 20 kHz (±6 dB), 100 dB sensitivity and up to 126 dB maximum SPL. Nominal impedance is 16 Ω, with a recommended amplifier power of 200–500 W.

The water-resistant polyurethane cabinet is finished in black and measures 309 x 132 x 233 mm at 6 kg, suiting discreet corporate, retail or live event installations. The ID24 range also offers dedicated Touring and Installation versions, plus 'a la carte' options for HF directivity, mounting type, connectivity and grille finish.

  • Frequency response: 95 Hz – 20 kHz (±6 dB)
  • Sensitivity: 100 dB
  • Maximum SPL: 126 dB
  • Nominal impedance: 16 Ω
  • Dimensions: 309 x 132 x 233 mm, 6 kg
