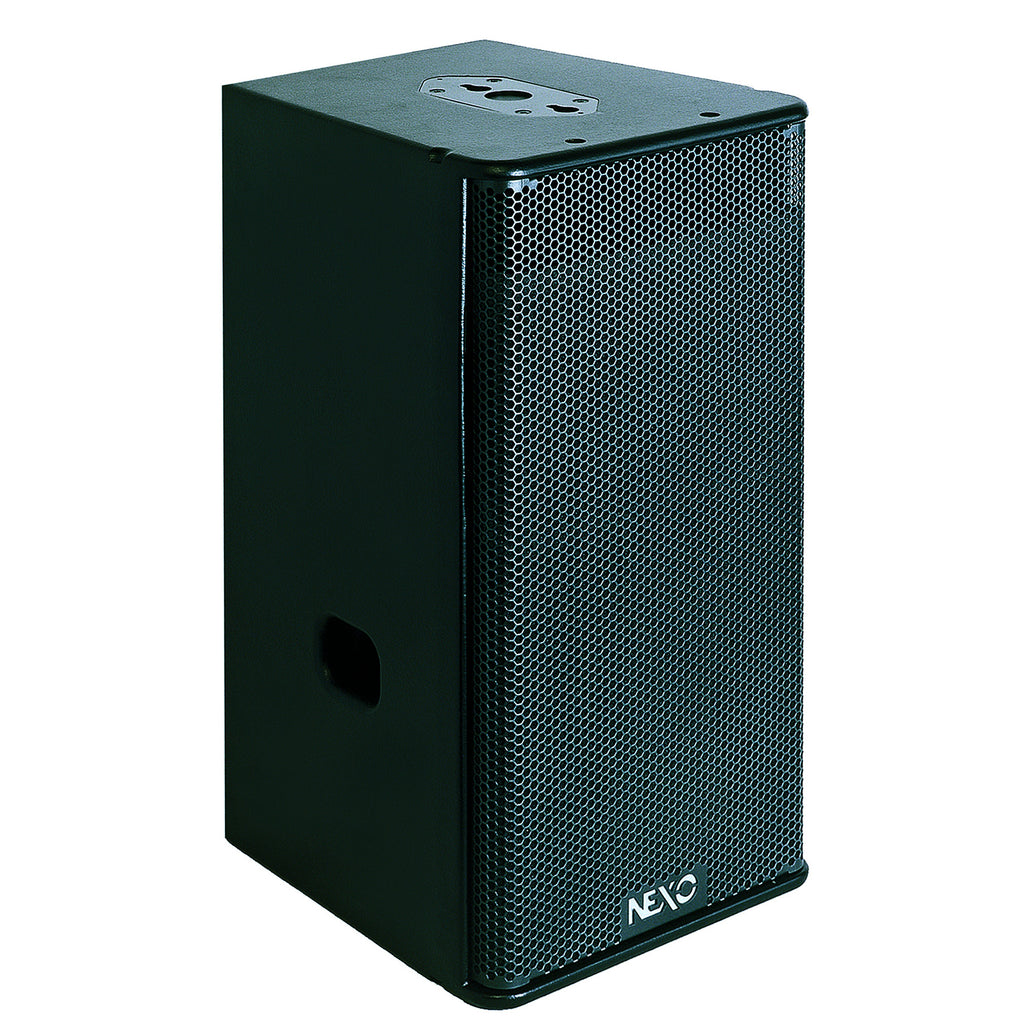

NEXO GEO S1210-ST 12-inch 2-Way Horn-Loaded Line Array Loudspeaker, Black

The NEXO GEO S1210-ST is a compact, 2-way loudspeaker cabinet designed as a high-output, long-throw version of the standard GEO S1210, purpose-built for stadium installations and other large-venue live sound applications.

It combines a 3-inch voice coil, 1.4-inch throat neodymium HF driver mounted on a 5° hyperboloid reflective wavesource with a 12-inch high-excursion neodymium LF driver, delivering coherent wave propagation and enhanced speech intelligibility across long throw distances. Non-coupling plane dispersion is configurable between 80° and 120° to suit a range of installation layouts.

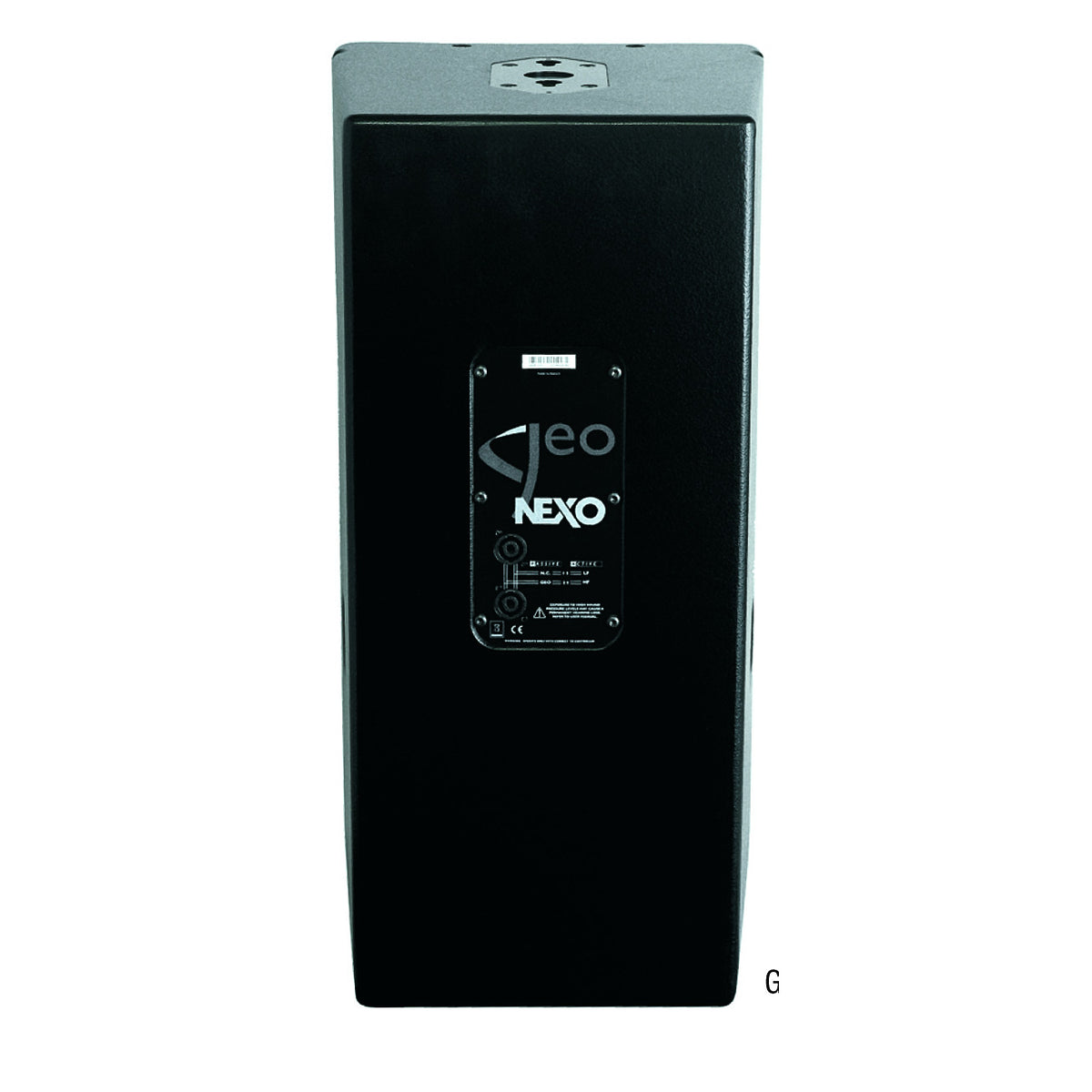

Connectivity is via 2x NL4MP Speakon 4-pole In & Through connectors, with system control handled by the NX242 TD controller over an EtherSound network. The cabinet is built from Baltic Birch ply with a structured black coating and is backed by a 2-year warranty.

• Frequency response: 53 Hz – 19 kHz ±3 dB
• Sensitivity: 105 dB
• Recommended amplifier power: 1,550 W
• Dimensions: 675 x 344 x 378 mm, 28.05 kg
• Nominal impedance: HF 16Ω / LF 16Ω
