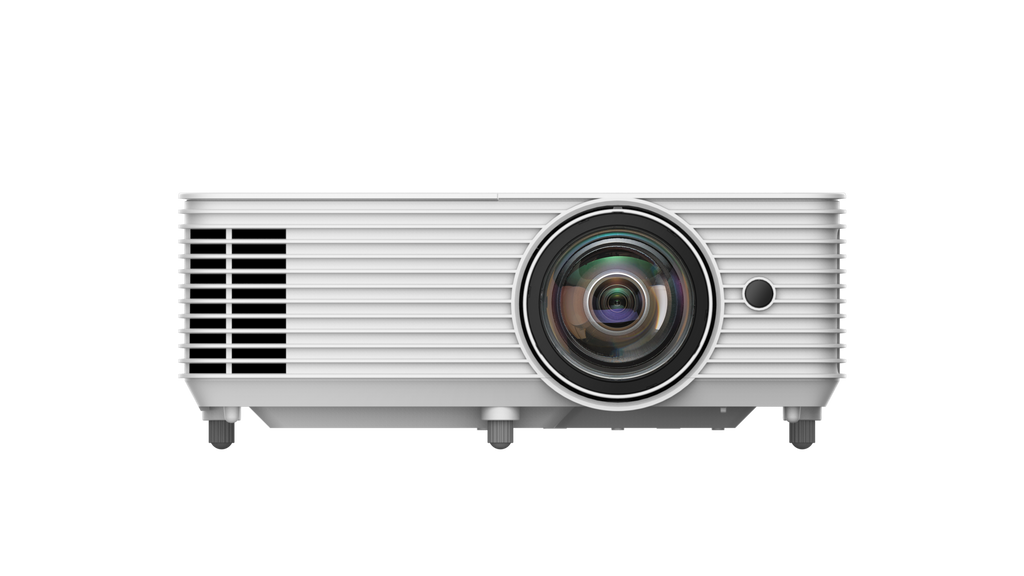

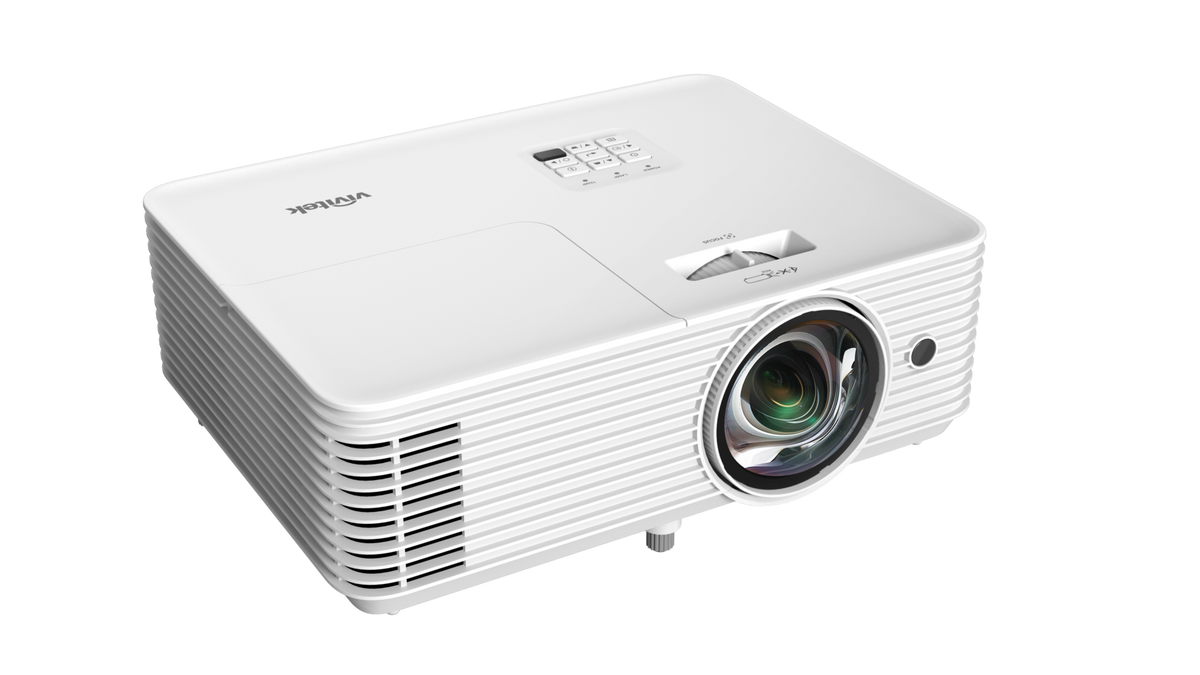

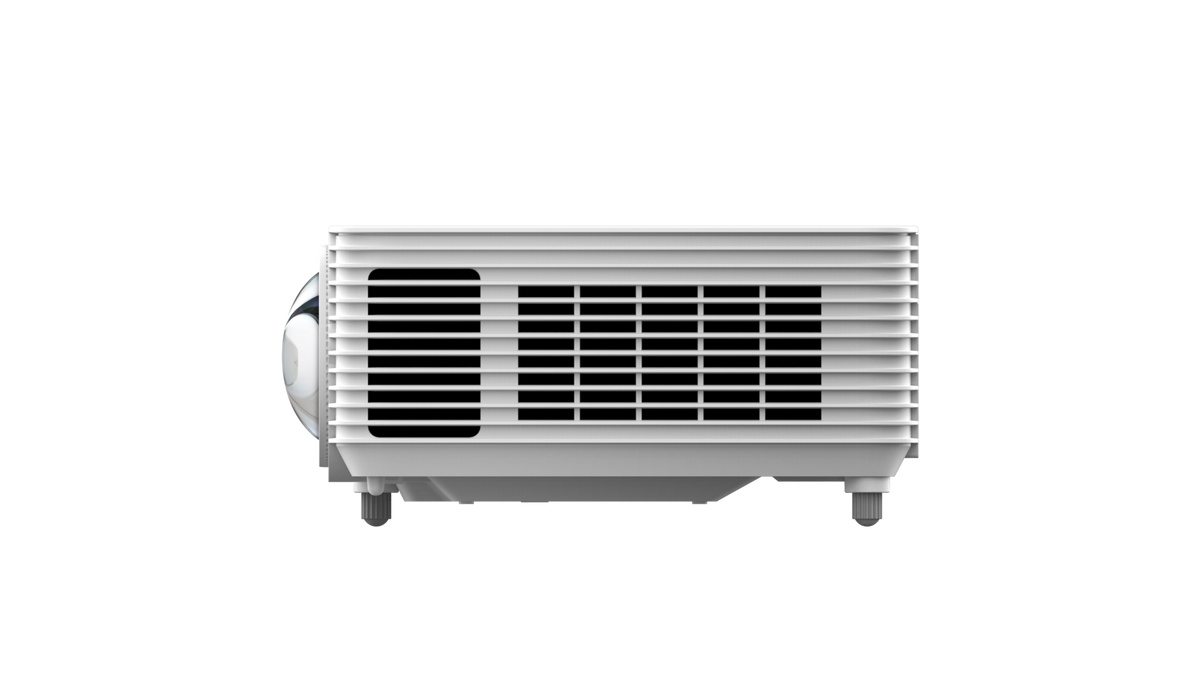

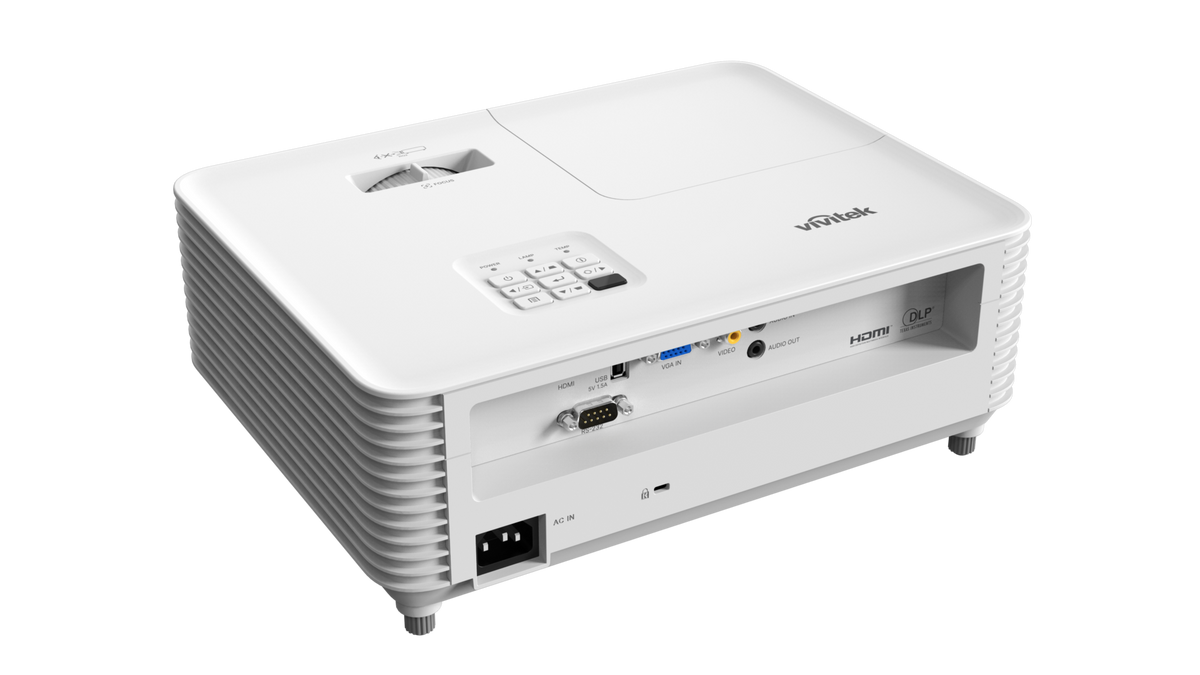

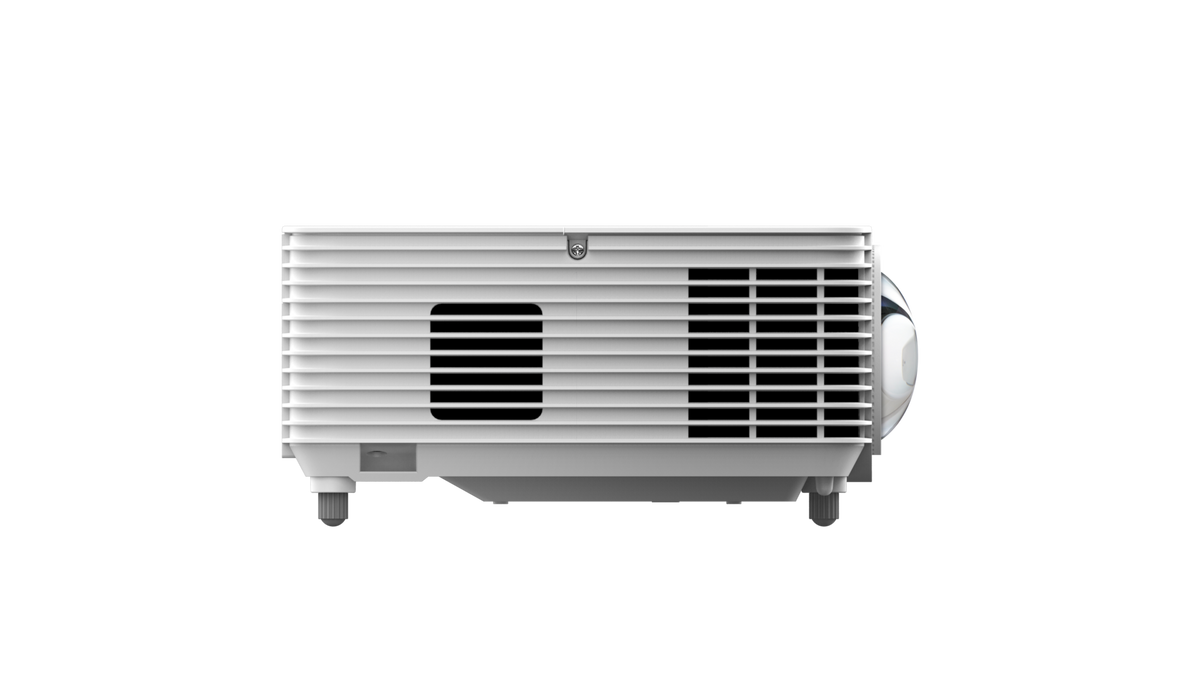

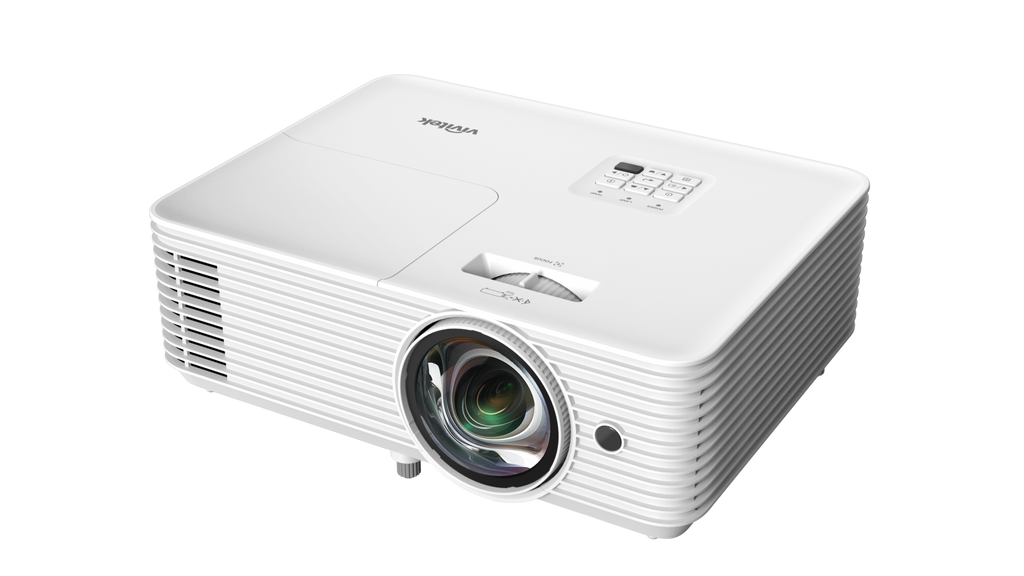

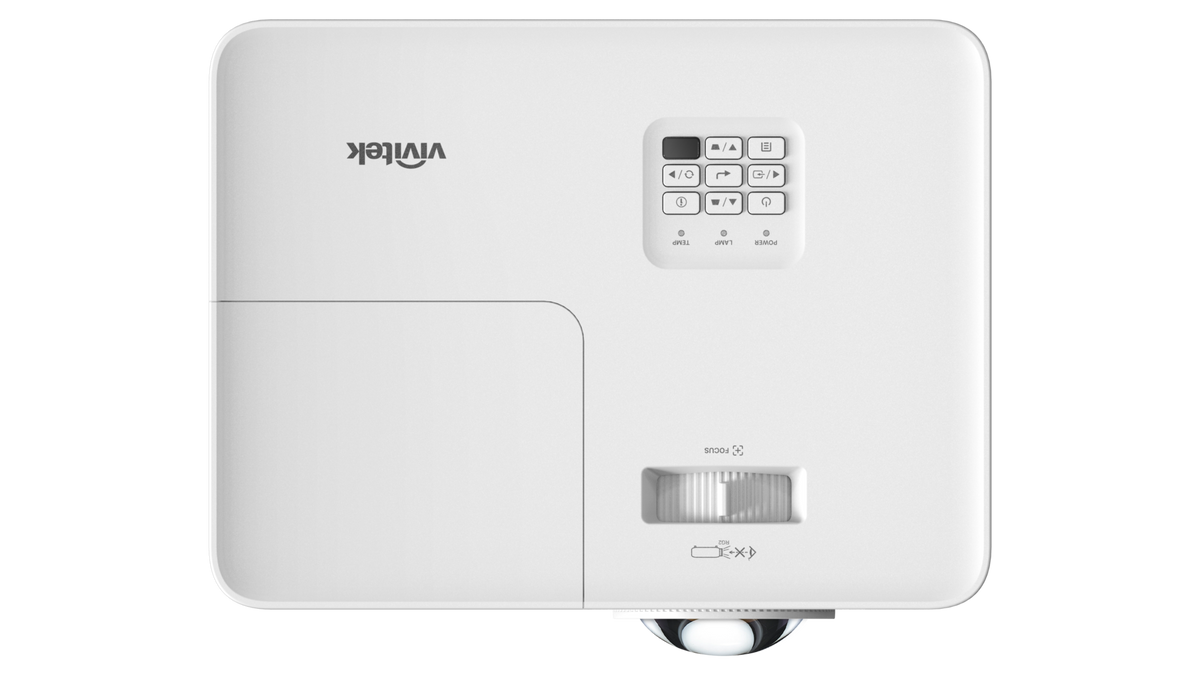

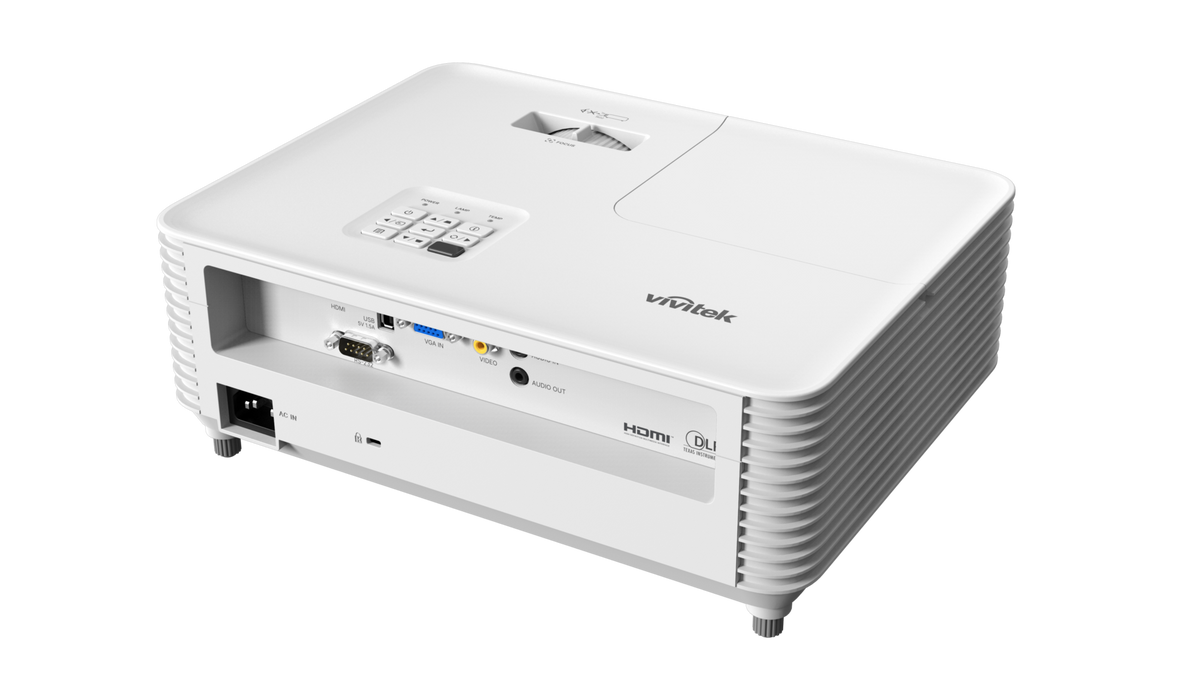

Vivitek DW355-ST WXGA Projector

From meeting rooms to on-the-road presentations

The DW355-ST is a native XGA digital projector from Vivitek. It features DLP® and BrilliantColor™ technologies to display distinct, vibrant images in a widescreen format. The Vivitek DW355-ST features numerous connectivity options including HDMI v1.4, a brightness level of 3800 Lumens and a 30,000:1 contrast ratio. With its light weight and compact form, the DW355-ST projector is easy to install and will fit into any budget.

Key features

• DLP® technology with BrilliantColor™ for vibrant and rich picture quality.
• 3800 Lumens of brightness and 30,000:1 contrast ratio for clear, crisp and bright presentations.
• WXGA (1280 x 900) native resolution scalable up to a maximum WUXGA (1920 x 1200) resolution.
• A long lamp life up to 10,000 hours for low Total Cost of Ownership (TCO).
• 6 segment (RYGCWB) colour wheel for vivid colour reproduction.
• HDMI inputs for high definition content with the same high quality.
• 3D Ready for for creating immersive, interactive, and visually stunning experiences across various applications.
• The USB-A power provides for seamless integration with multimedia devices.
• Audio ready with built-in 10 watt audio speaker, audio-in and audio-out ports.
• Compact and lightweight at 2.7kg for easy portability.

Specifications

• Native Resolution: WXGA (1280 x 800)
• Brightness: 3800 ANSI Lumens
• Contrast Ratio: 30,000:1
• Max. Supported Resolution: WUXGA (1920 x1200) @60Hz
• Native Aspect Ratio: 16:10
• Lamp Life and Type: 5,000 / 6,000 / 10,000 Hours (Normal / Eco. / Long Eco. Mode), 203W
• Display Type: Single chip DLP® Technology by Texas Instruments
• Chip Size: 0.65” DMD
• Throw Ratio: 0.617 : 1
• Image Size (Diagonal): 35.6"~303.0"
• Projection Distance: 0.4~3.4m
• Zoom Ratio: 1.1x
• Offset: 1.15
• Keystone Correction: Vertical: +/-15°
• Speakers: 10W
• I/O Connection Ports: VGA-In (15pin D-Sub) (x1), HDMI Number of Ports 1.4b (x1), Composite Video, Audio-In (Mini-Jack), Audio-Out (Mini-Jack), RS-232, USB A x1 (power 5V/1.5A), USB miniB (Service)
• Dimensions (W x D x H): 313 x 236 x 114mm
• Noise Level: 31dB / 27dB (Normal / Eco. Mode)
• Power: Supply: AC 100-240V, 50/60Hz Consumption: 203W (Eco. Mode), 240W (Normal Mode), <0.5W (Standby)
• Remote Control P/N: SS-45-76U01G023-VV
• Standard Accessories: Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
• Optional Accessories: Spare Lamp P/N (XX5810005600 ), Remote Control P/N (SS-45-76U01G023-VV), 3D Ready(DLP link, PC+Video), Direct 3D (HDMI 1.4a), 3D Mandatory Formats supported (top/bottom, right/left, frame sequential)
• Warranty: Entry Warranty: 2 years projector / 1 year on lamp or 1.000 hours whichever comes first, Education Warranty: 5 years projector / 3 years on lamp or 2.000 hours whichever comes first
