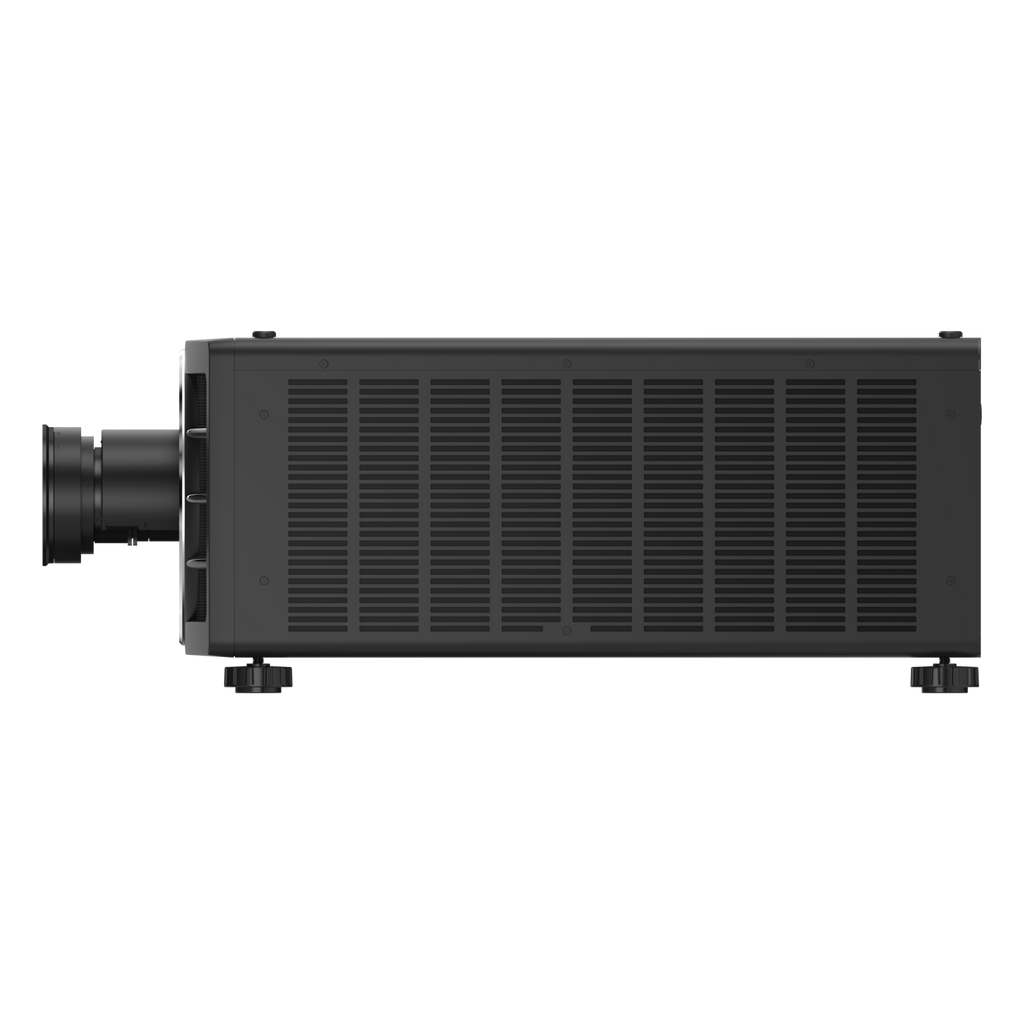

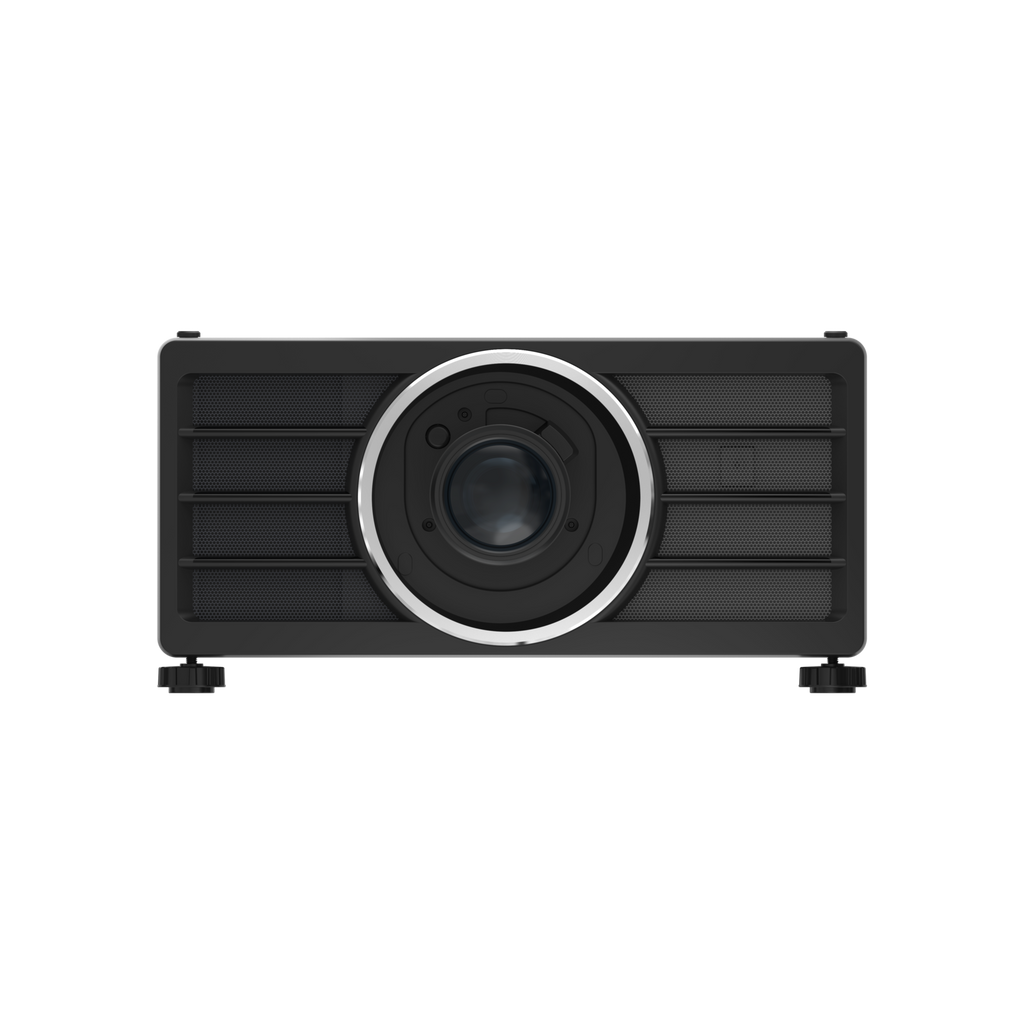

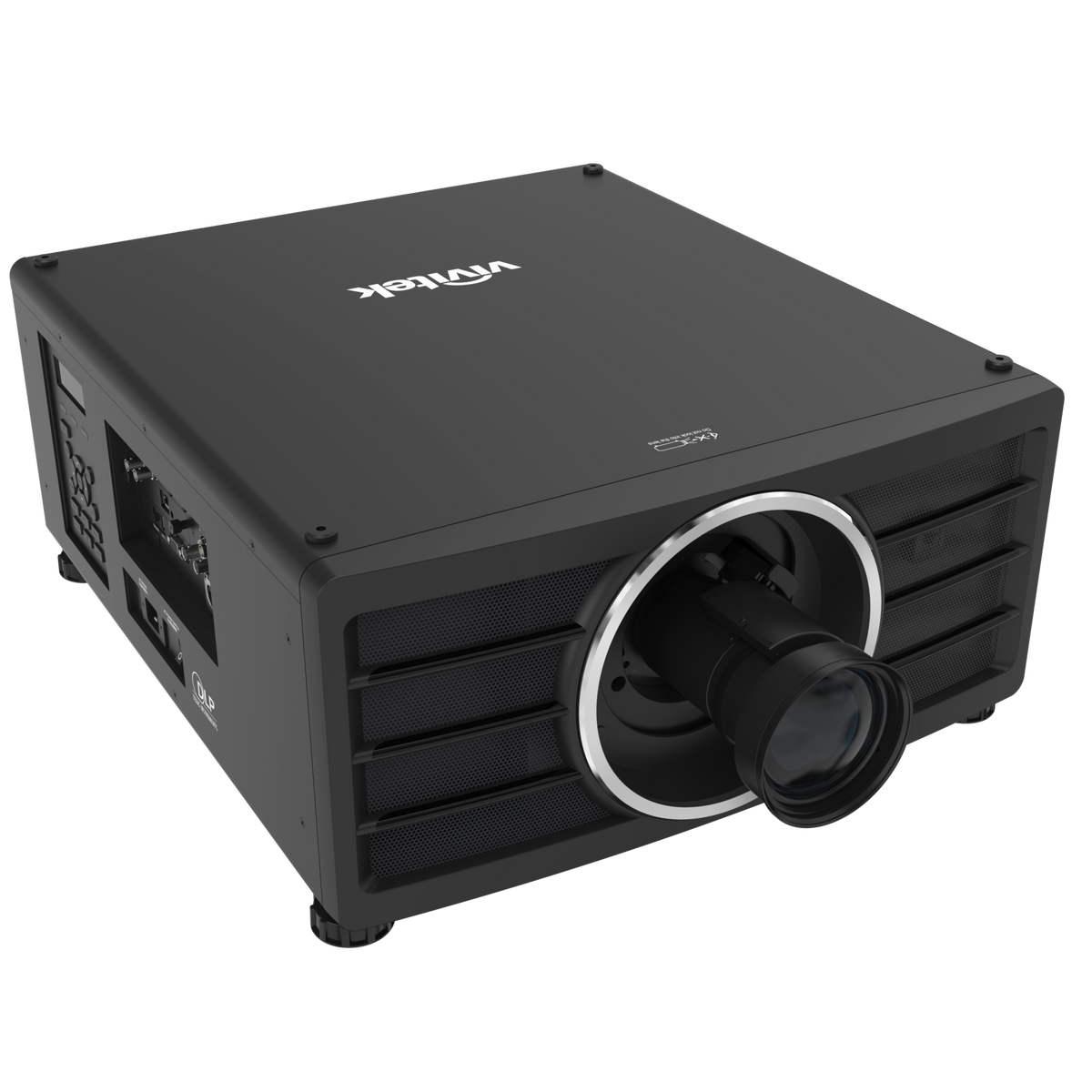

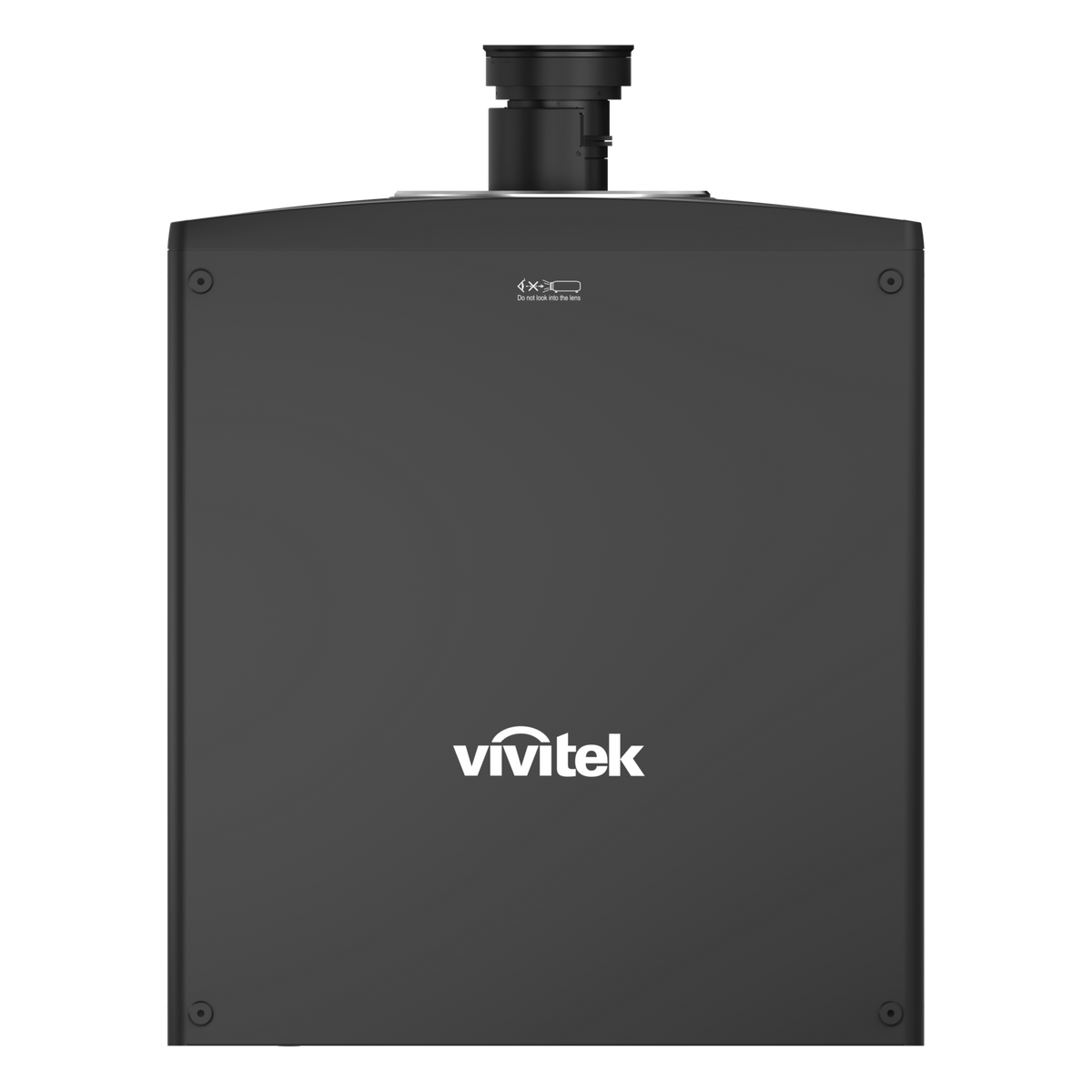

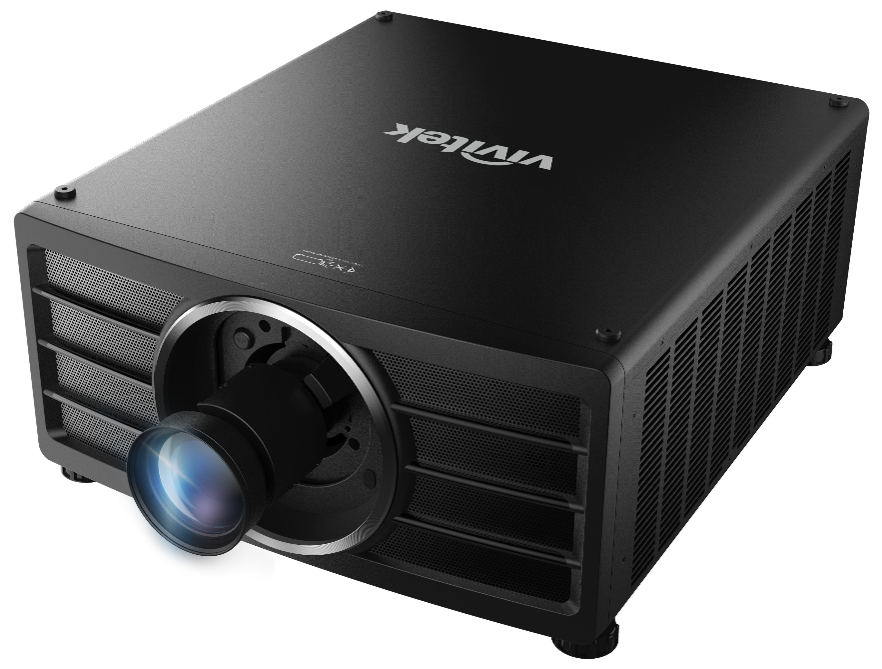

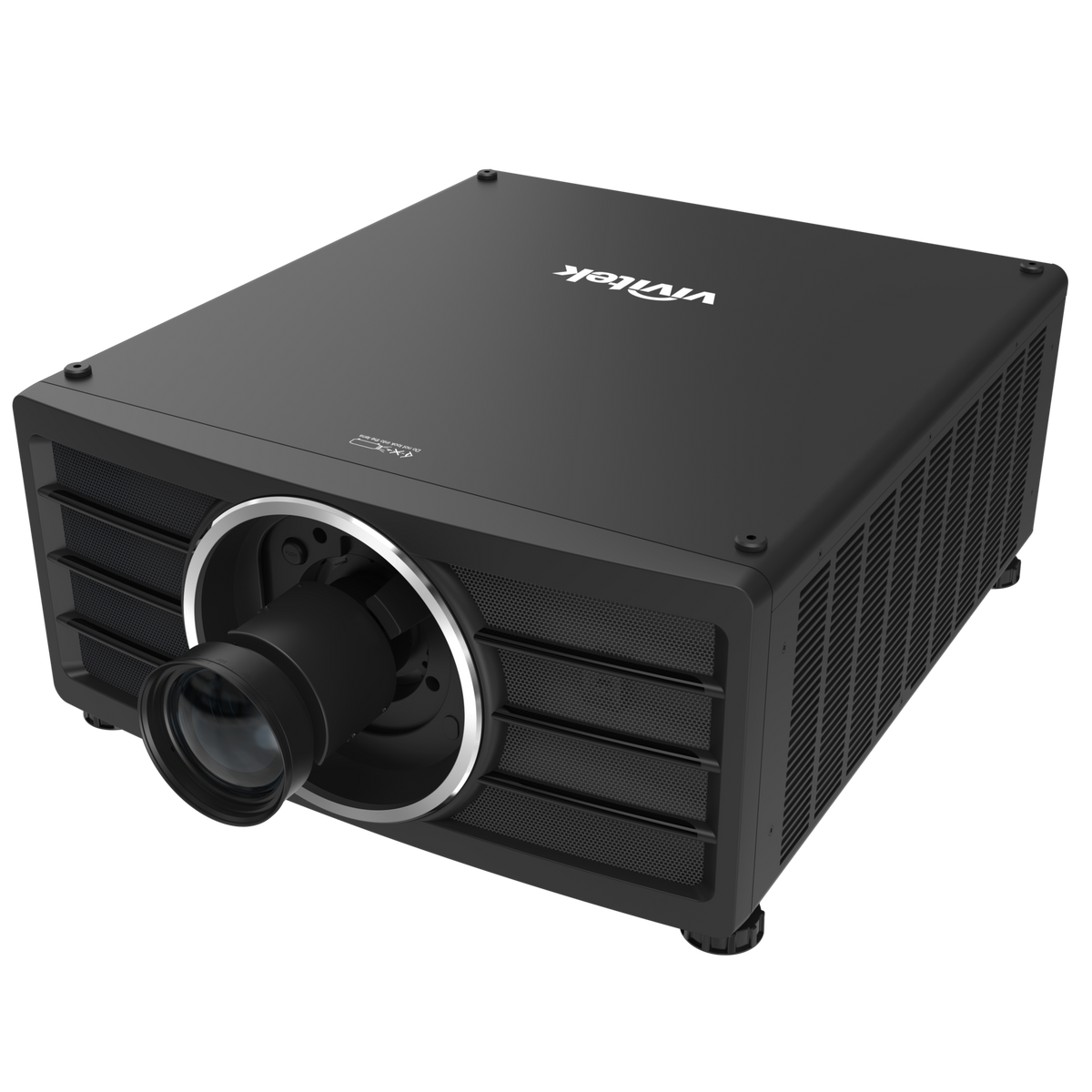

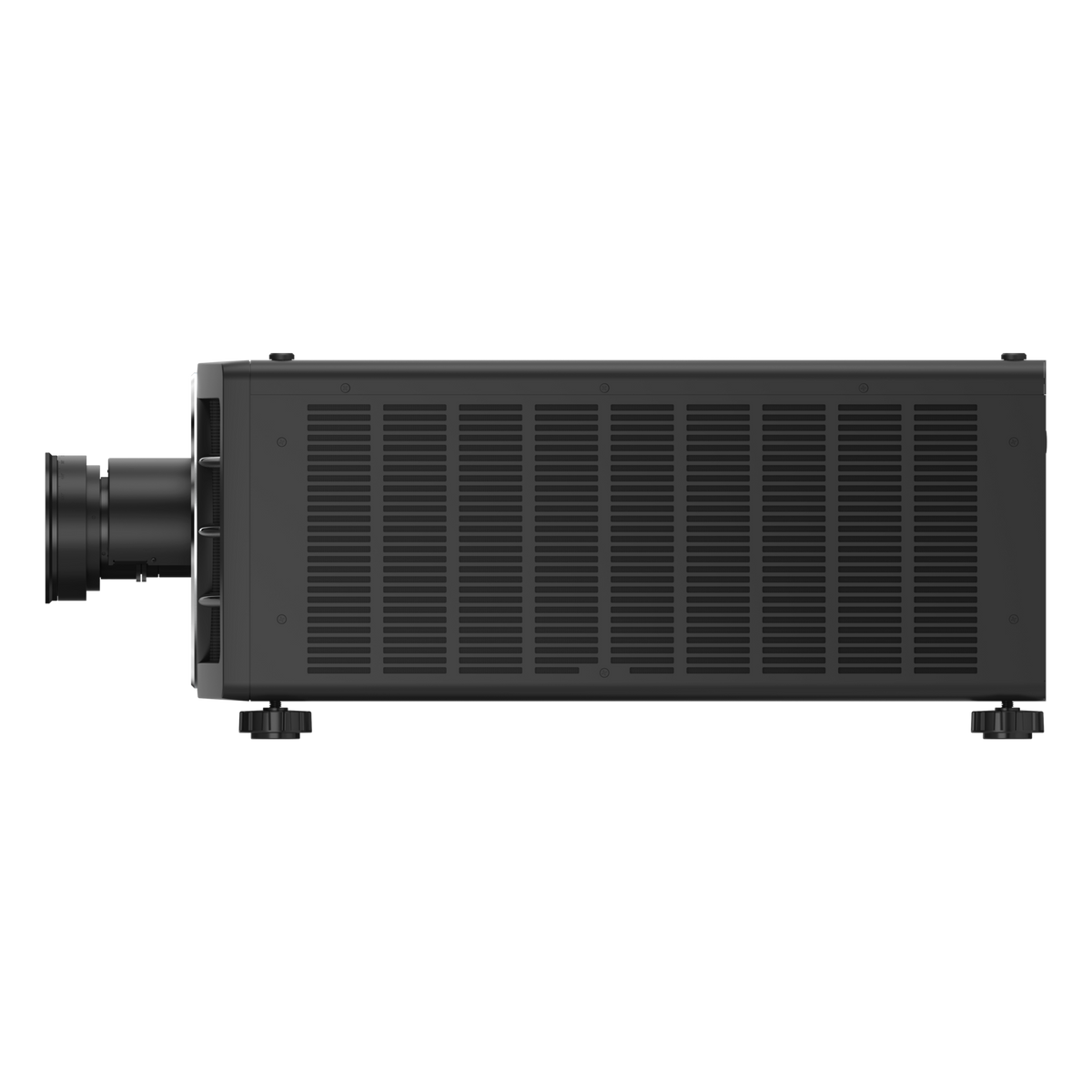

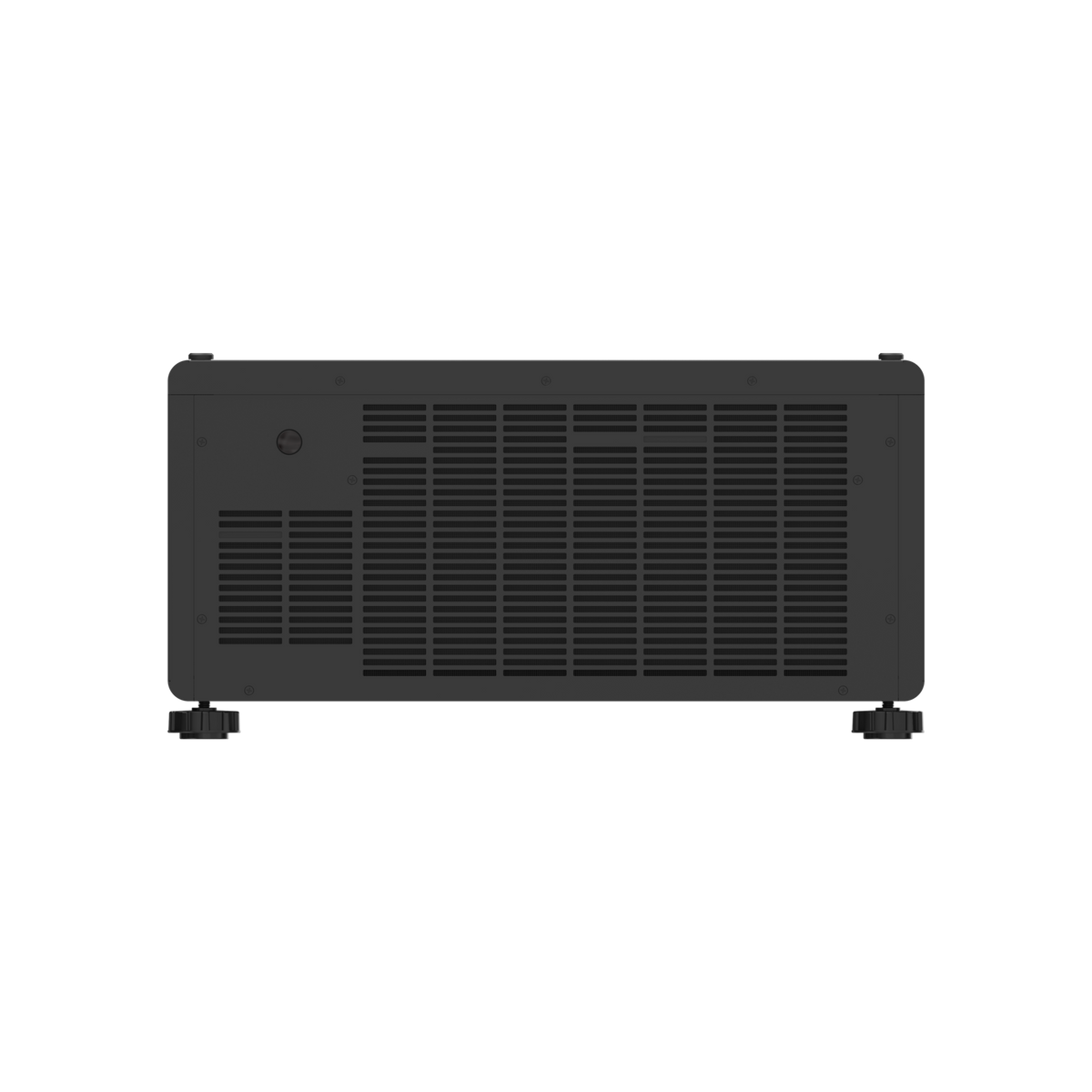

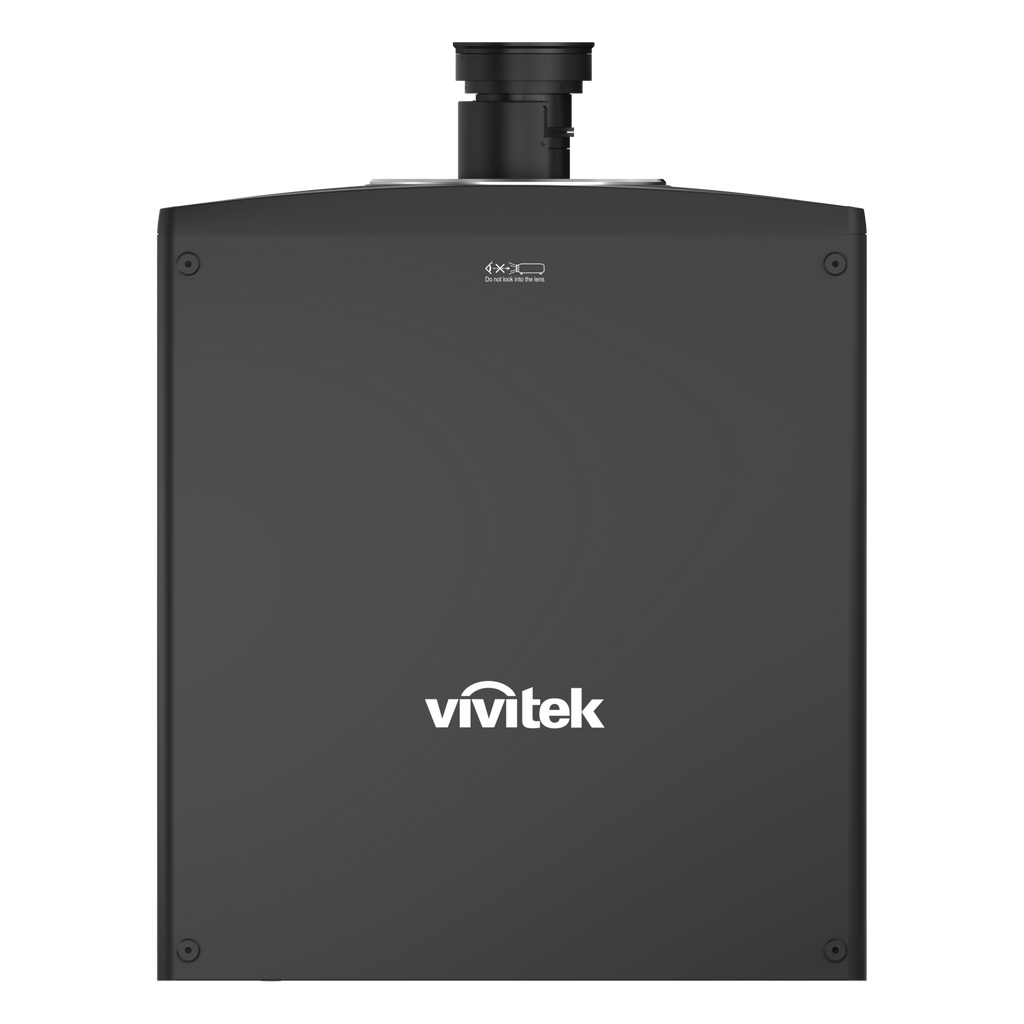

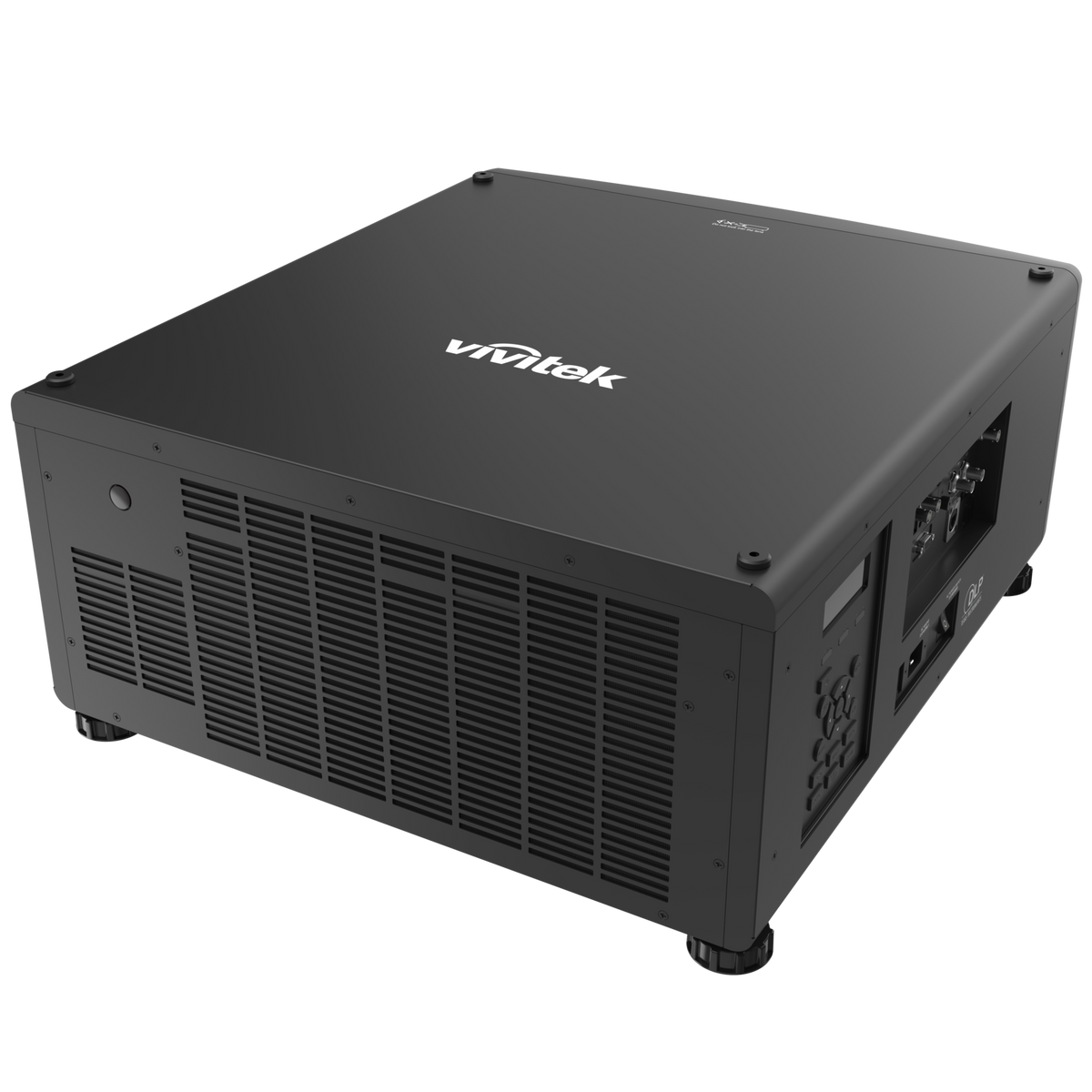

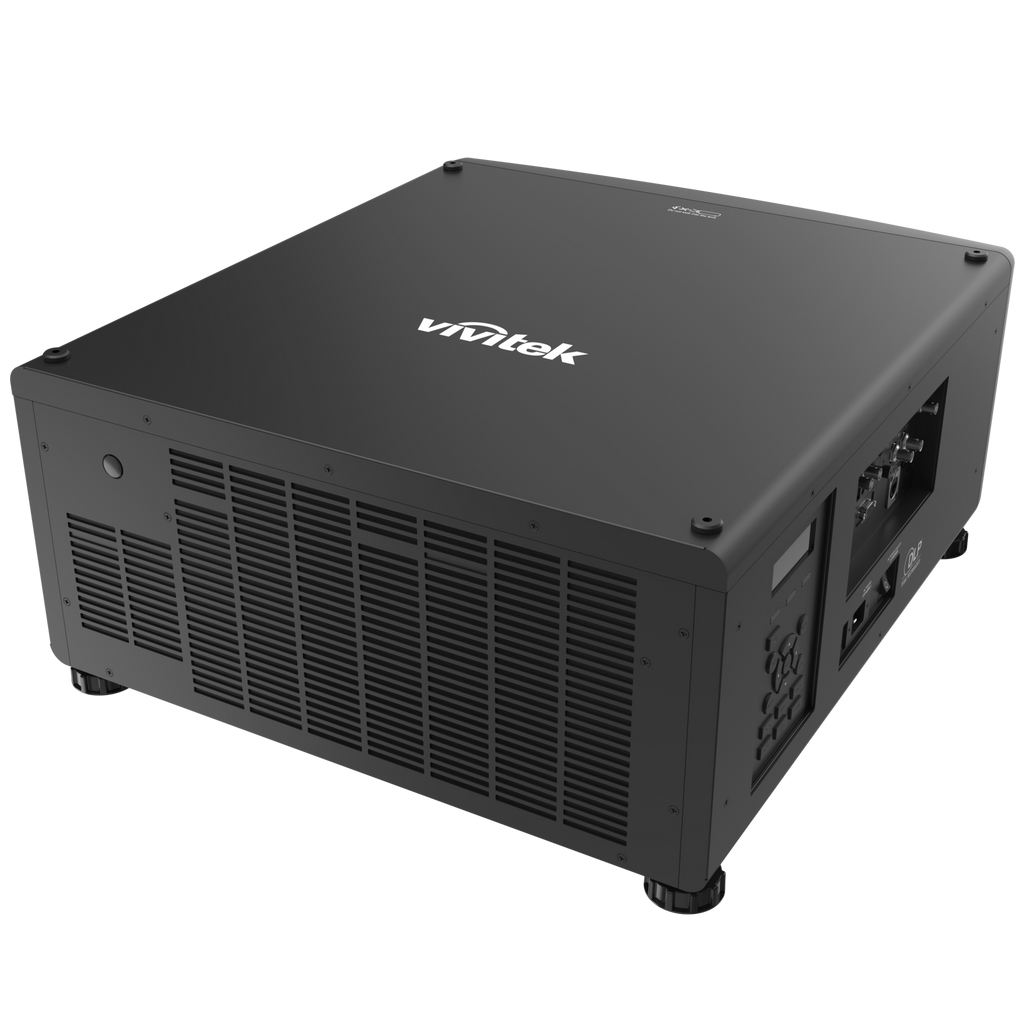

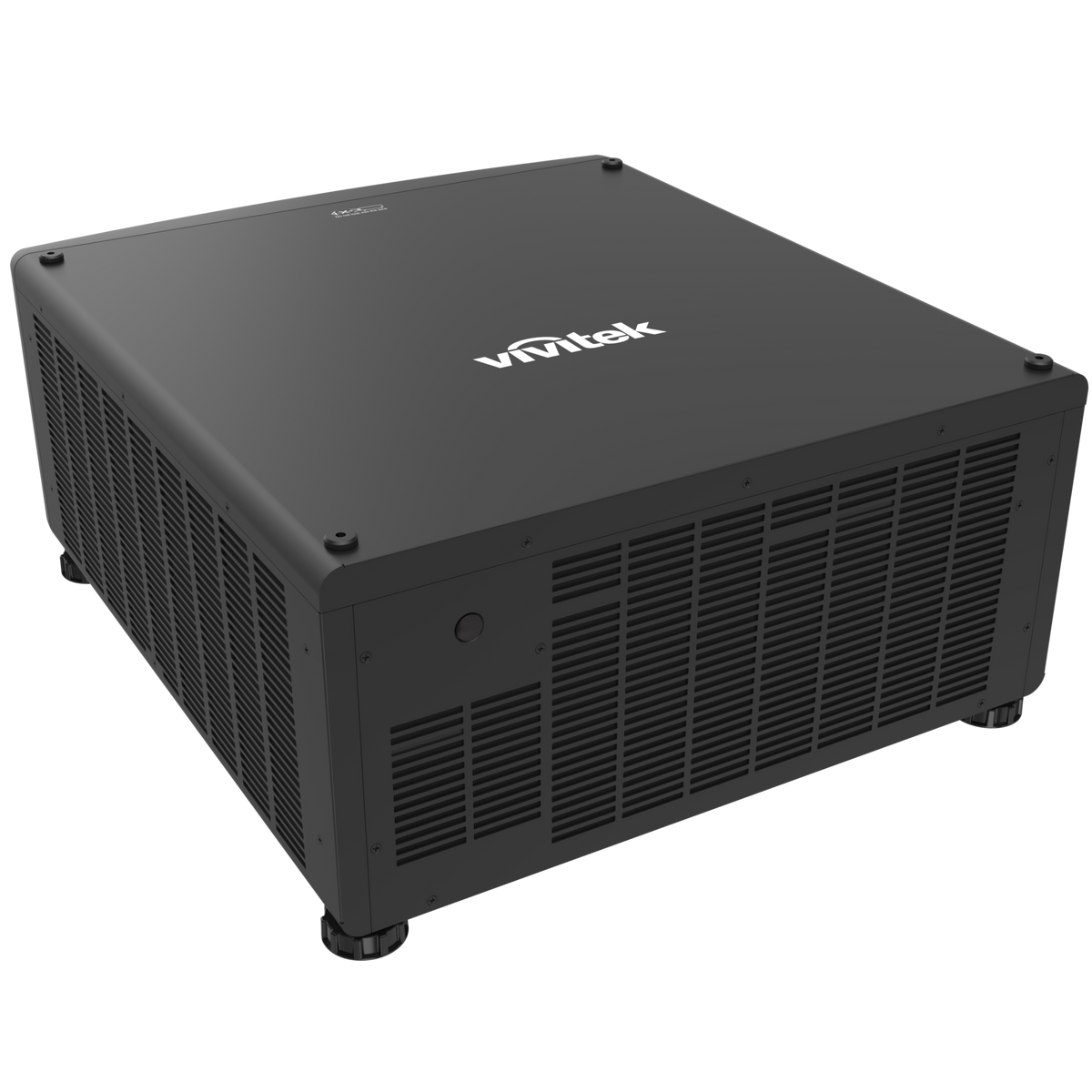

Vivitek DU9057Z WUXGA Projector, Black

Single-chip DLP laser projector with 27,000 lumens high brightness

The DU9057Z is designed for ProAV rental, staging and large venue applications. The Single Chip WUXGA laser projector offers a constant light output of 27,000 lumens and a 3,000,000:1 dynamic contrast ratio. The Constant Brightness feature helps reduce blending maintenance with a smart sensor continuously measuring and adjusting the illumination output. The projector can run continuously for 30,000 hours in Eco Mode, guaranteeing 24/7 operation with low user intervention.

Key features

• 27,000 ANSI lumens with with only one Single DLP® DarkChip3™ technology
• WUXGA resolution and 3,000,000:1 dynamic contrast ratio
• Long lasting laser light source for 30,000 hours in Eco mode
• Installation flexibility is ensured with 7 optional lenses from TR.0.38:1 to TR.10.30:1 tthrow ratio range
• Motorized and wide lens shift range with Lens Positioning Memory
• Designed for heavy duty 24/7 operations with 360° portrait installation angle flexibility
• 3G-SDI & HDBaseTinterface for long signal transmission distribution with HD video (4K-UHD) and digital audio content
• Seamless control with industry-standard Art-Net, simplifying setup and offering efficient data flow.
• Built-in multi-screen edge-blending and warping features
• "Rental Mode" ready! To enhanced the rental experience, protect the equipment, and potentially increase the profitability of rental operations.
• Supported Projector installation Tool- PJ-Control V3.0 and Auto- Calibration features.

Specifications

• Native Resolution: WUXGA (1920 x 1200)
• Brightness: 27000 ANSI Lumens
• Contrast Ratio: 3 000 000:1 (Dynamic)
• Max. Supported Resolution: 4K UHD (3840×2160) @60Hz
• Native Aspect Ratio: 16:10
• Display Type: DLP Technology by TI
• Chip Size: Single Chip 0.96'' DMD
• Throw Ratio: 7 optional lenses from 0.38:1 to 10.3:1 throw ratio range
• Image Size (Diagonal): Depending on lens selection
• Projection Distance: Depending on lens selection
• Zoom Ratio: Motorized Zoom & Focus
• Offset: Motorized Lens Shift
• Keystone Correction: Vertical: +/-40 Steps; Horizontal: +/-45 Steps
• Lens Shift Range: Lens Shift Range (Vertical: +/-50%; Horizontal: +/-15%)
• Video Compatibility: SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p, 4K-UHD)

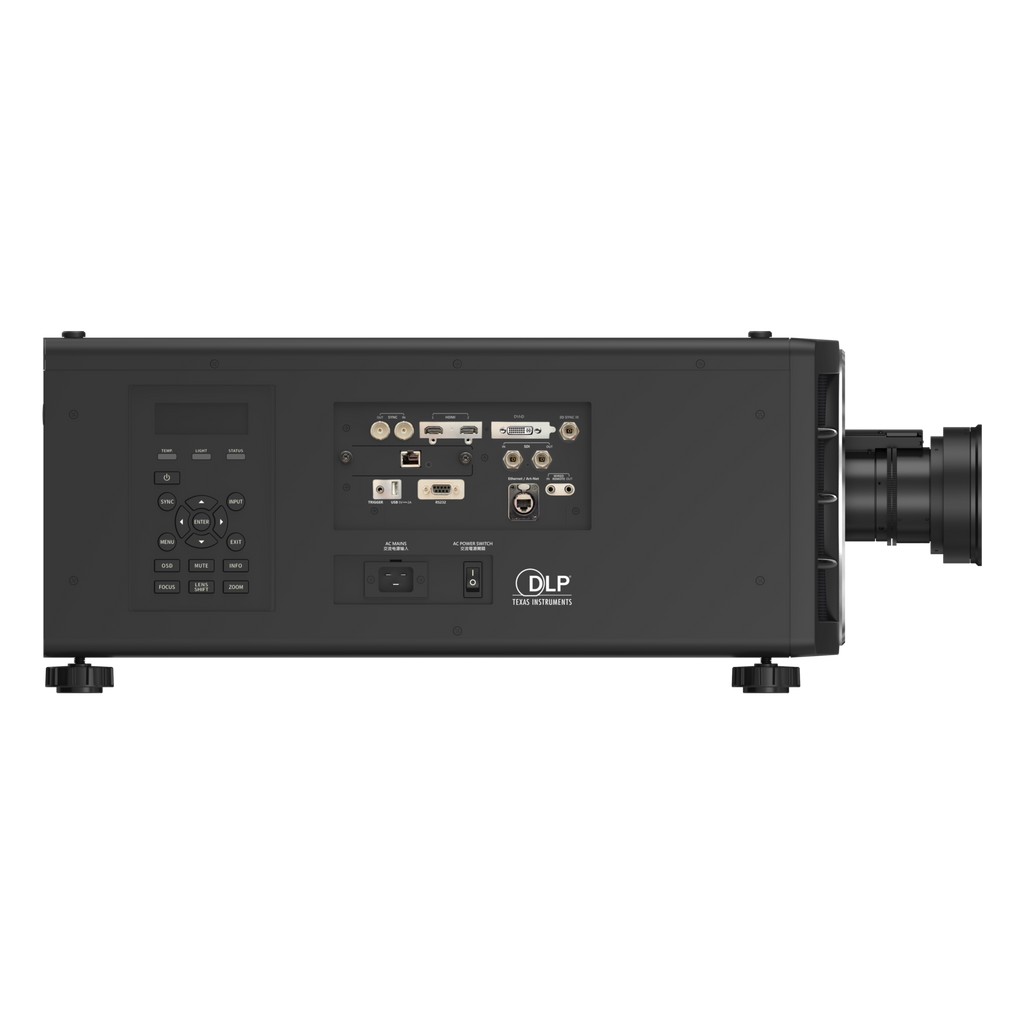

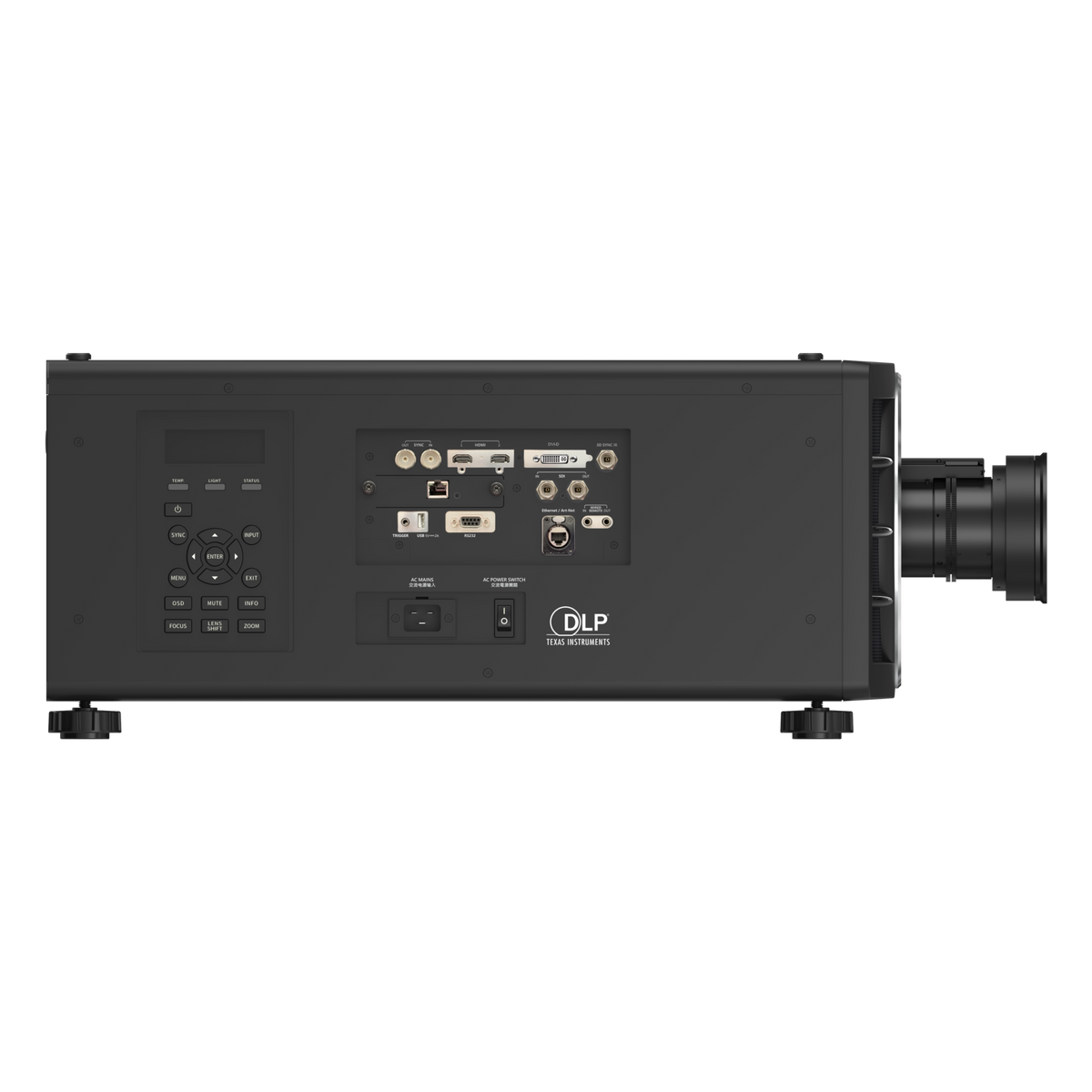

• I/O Connection Ports: HDMI Number of Ports (2x), Display Port, DVI-D, Component (5 BNC) (RGBHV), RJ45 (1x: HDBaseT/LAN), RS-232, USB A (x1 with Power ), Remote Jack(wire remote), 3G-SDI (2x: In and Out)
• Dimensions (W x D x H): 676.6 x 598.8 x 270mm
• Weight: 45.4 kg
• Noise Level: 43dB / 40dB (Normal / Eco)
• Power: Supply: AC 100-240V, 50/60Hz Consumption: 1500W (Normal Mode) <0.5W (Standby)
• Remote Control P/N: 5042221900
• Optional Accessories: Remote Control P/N (5042221900)
• Warranty: Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first)
