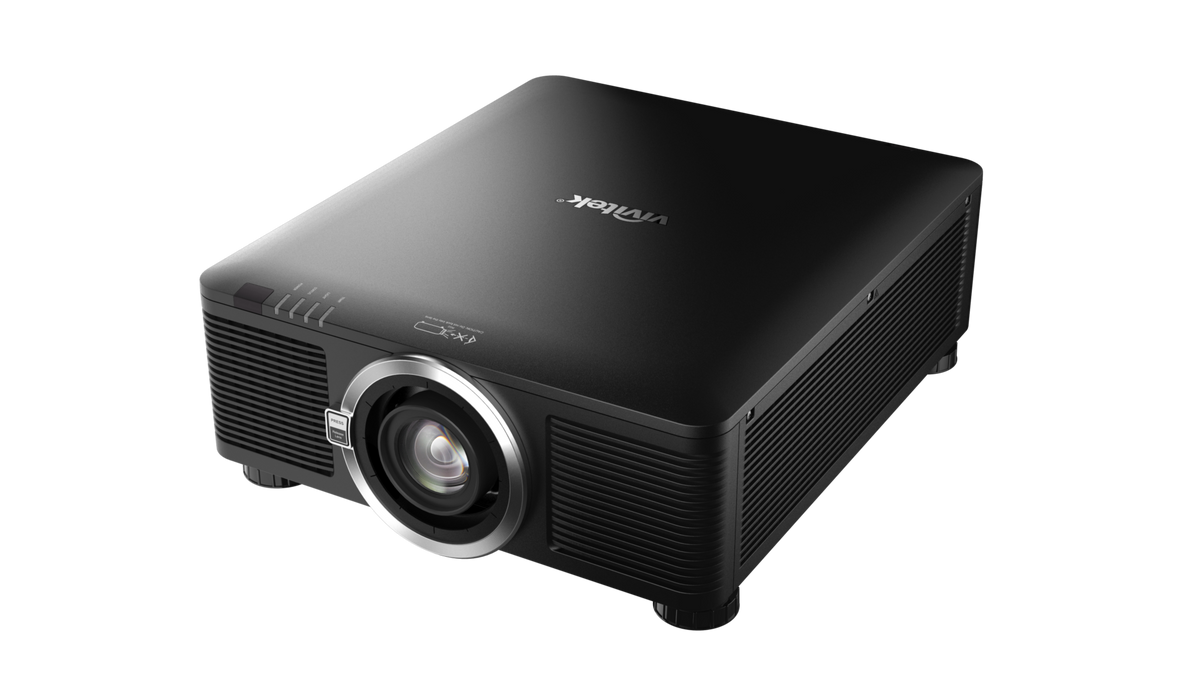

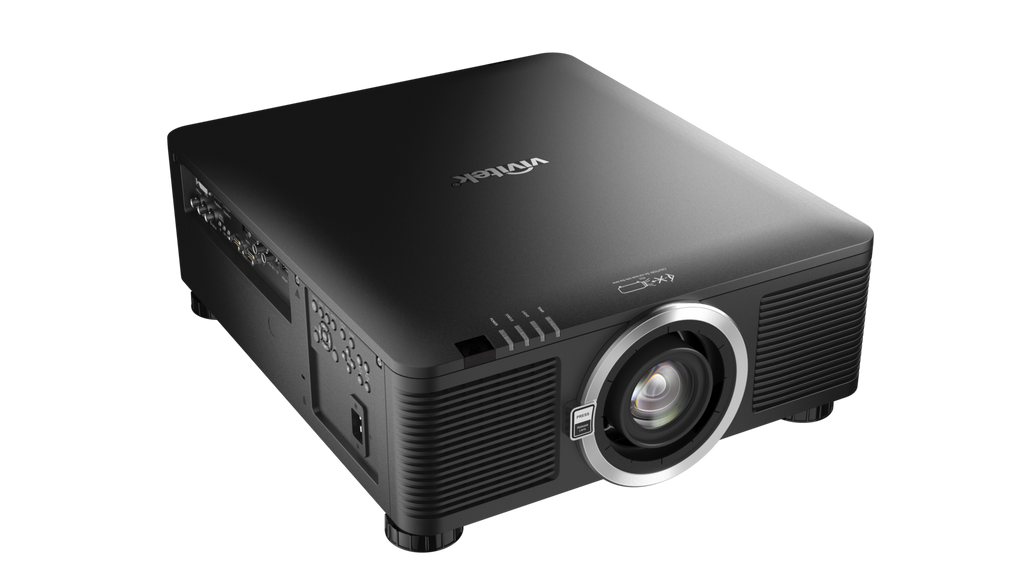

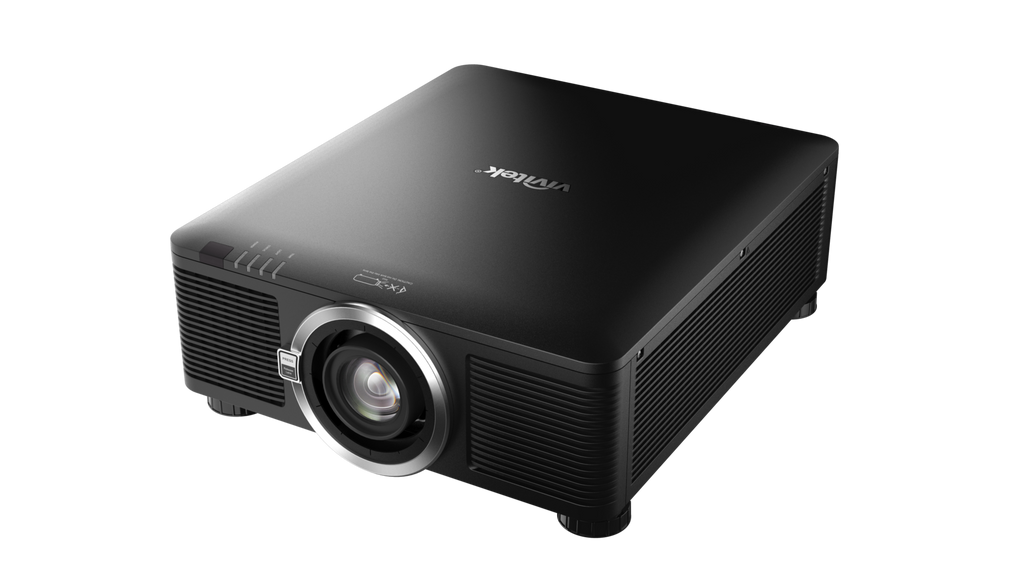

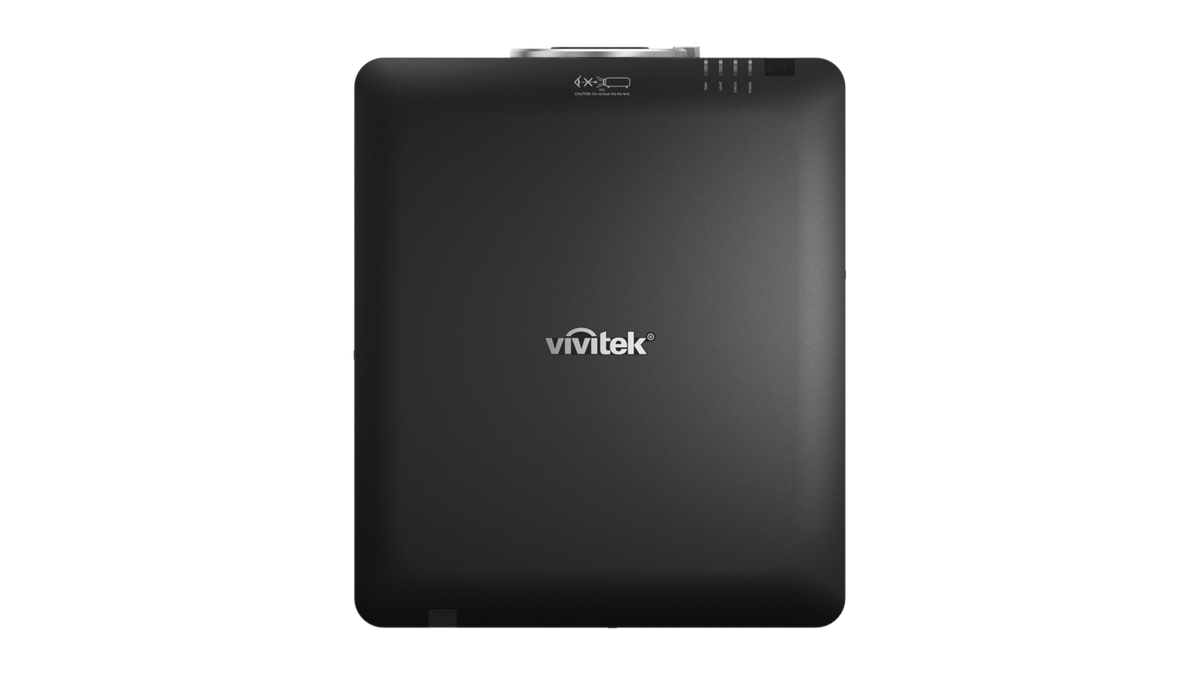

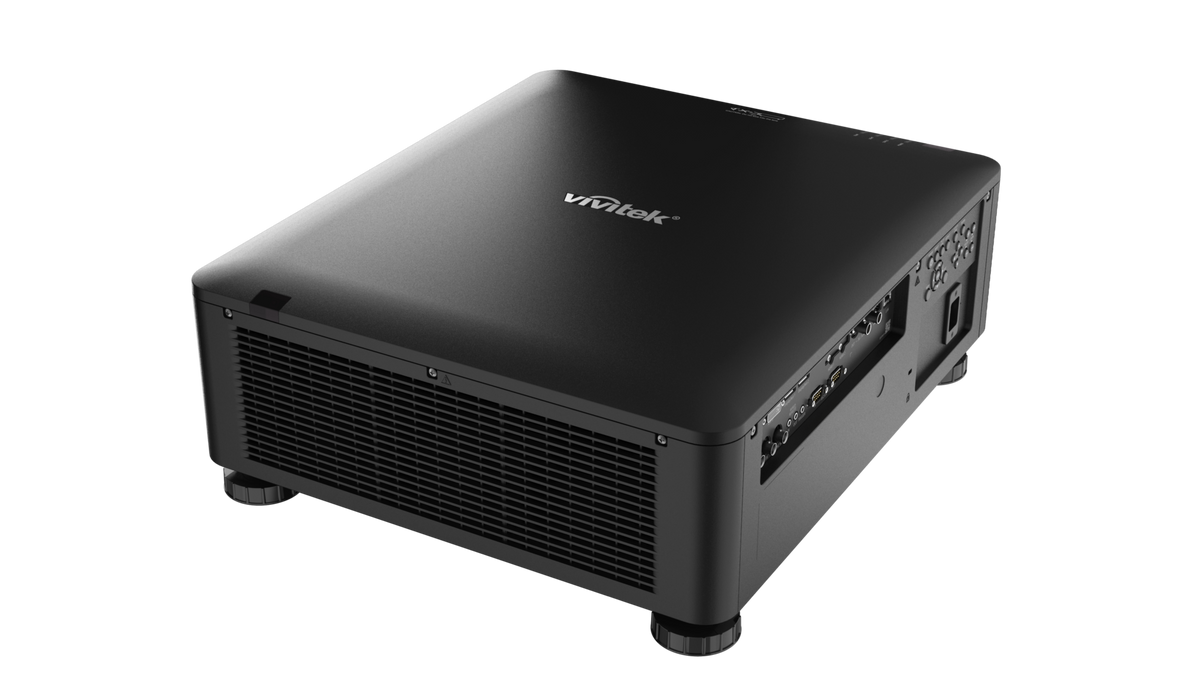

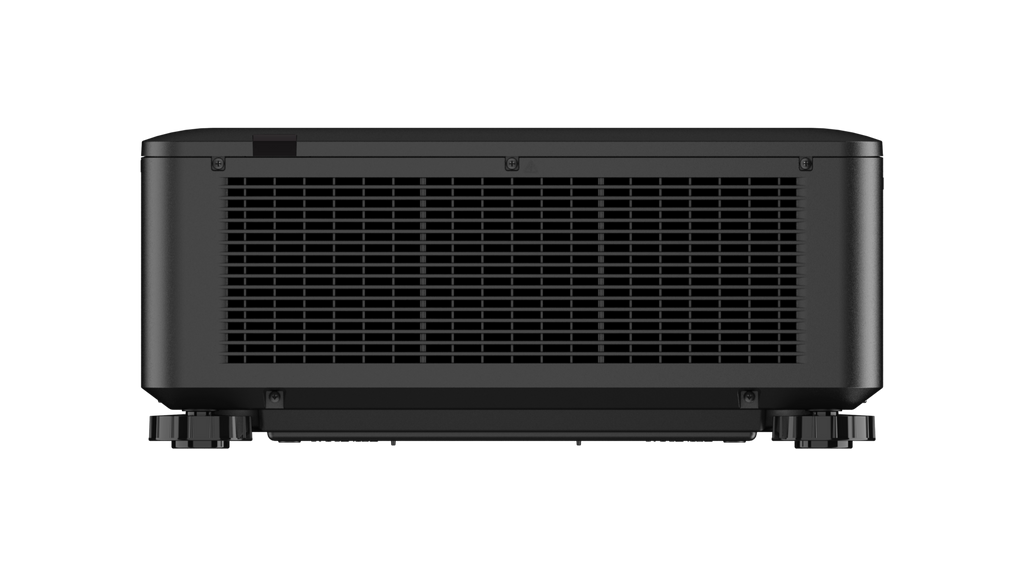

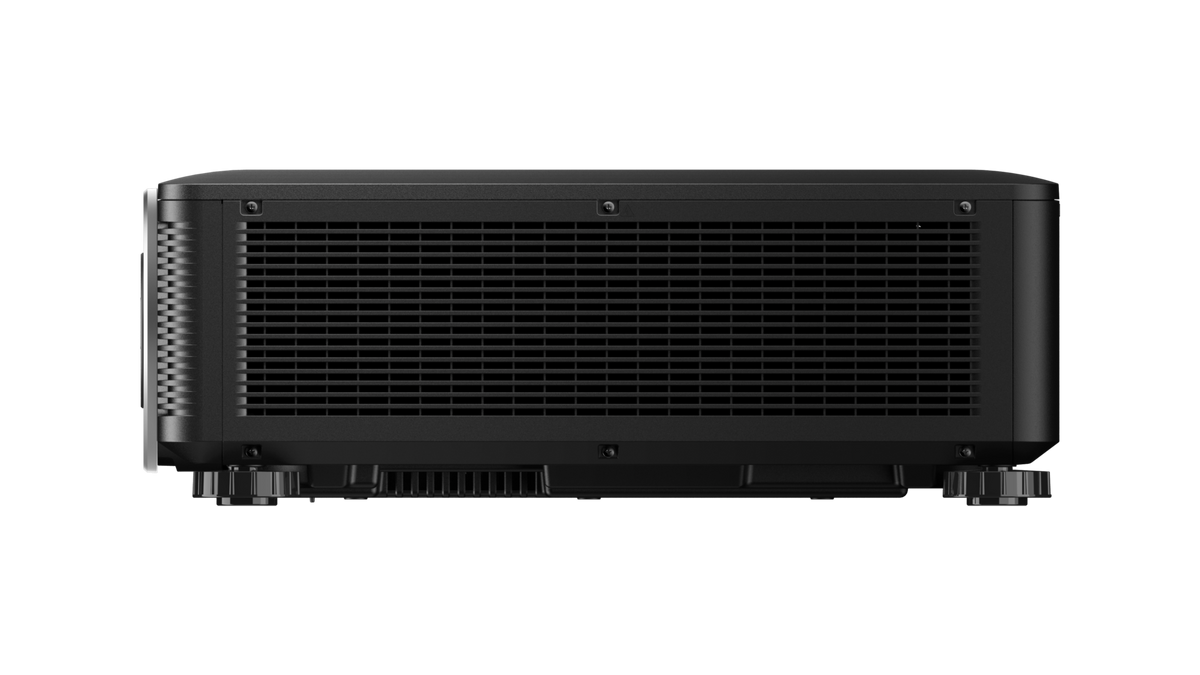

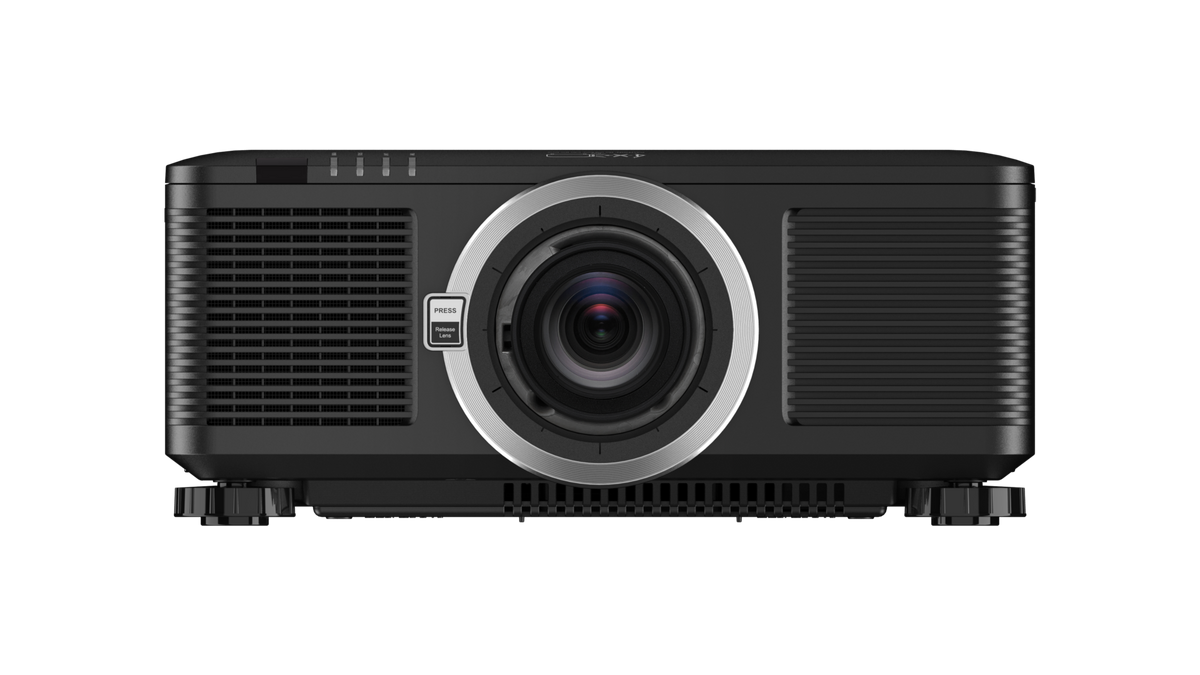

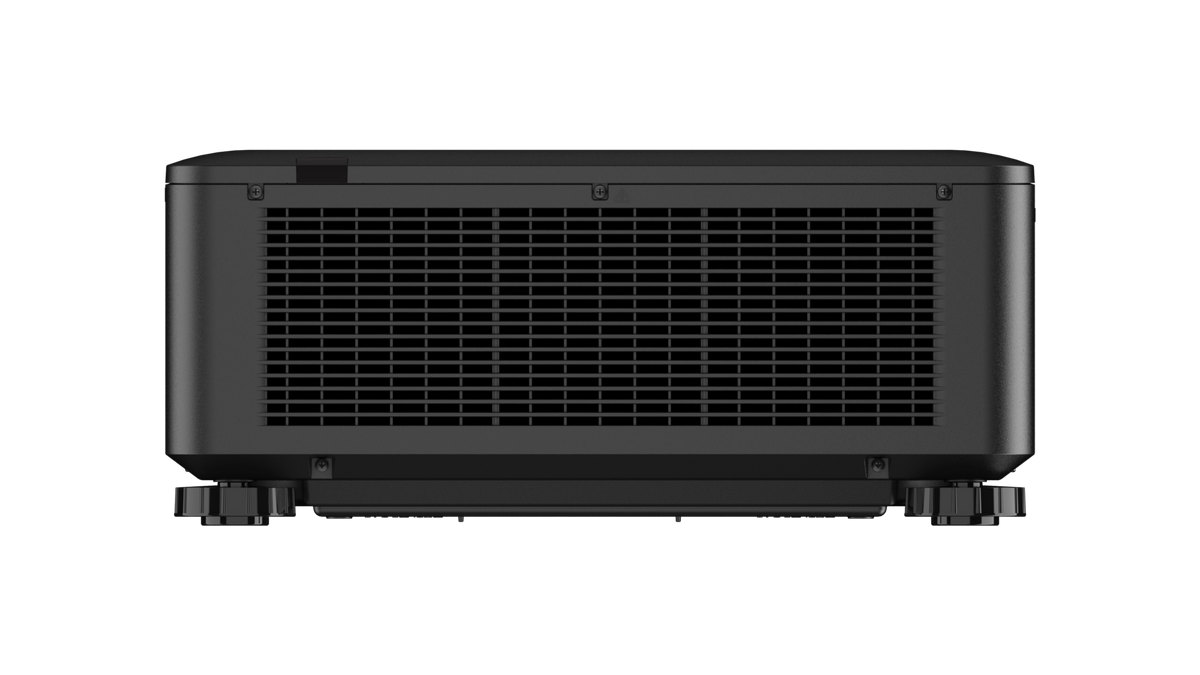

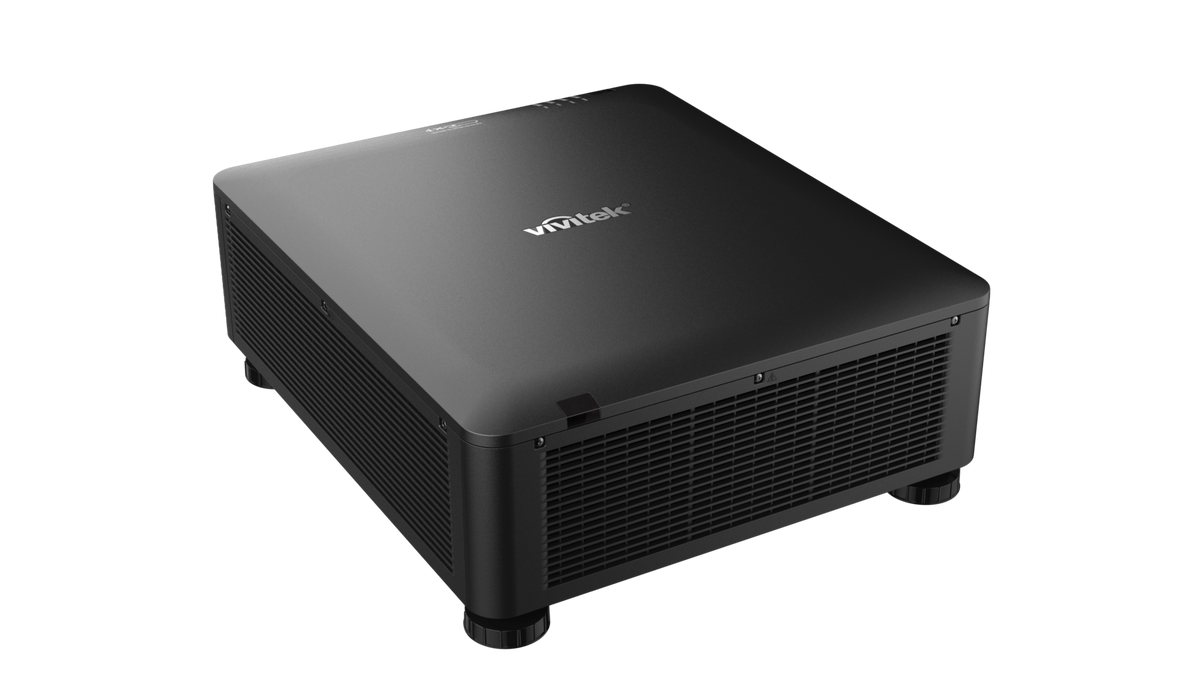

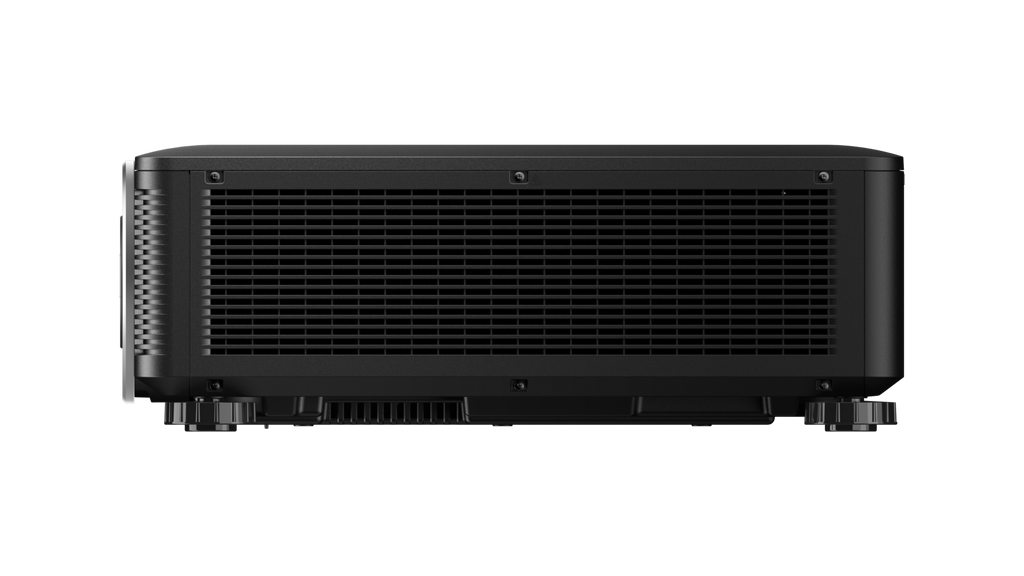

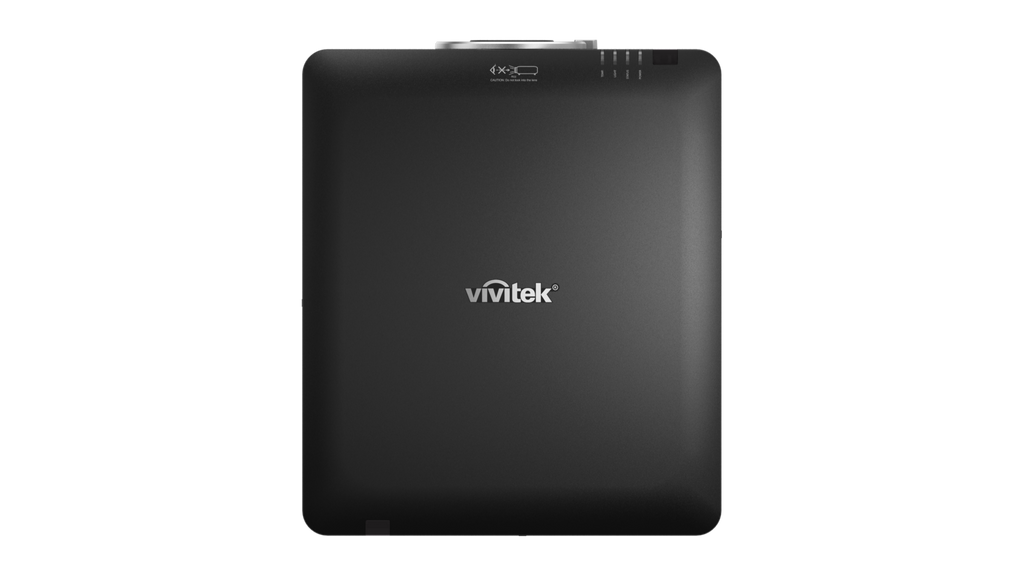

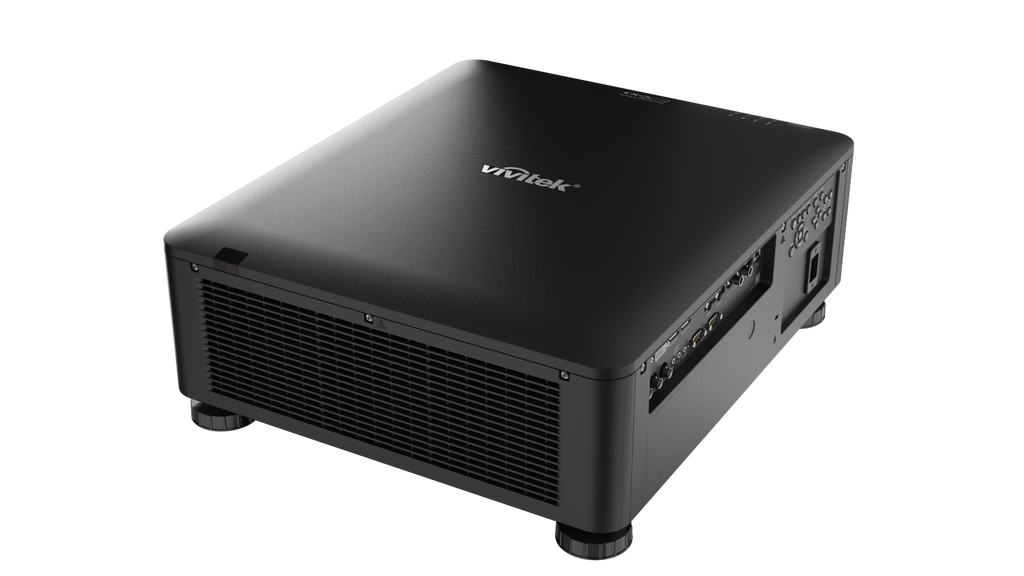

Vivitek DU8053Z WUXGA Projector, Black

The Vivitek DU8053Z is a next-generation platform that redefines the capabilities of large venue projection. With HEP DMD, dual-laser technology and industry-leading features, it delivers brilliant visuals, flexible installation, and operational excellence, making it the go-to solution for professional environments.

Key features

• DLP® DarkChip3™ and BrilliantColor™; Enhanced black levels and vibrant colors
• 14000 ANSI Lumen with >30,000 hrs. laser life (Eco mode)
• Compatible with 4K-UHD input source for exceptional Image Clarity and Detail
• Excellent color performance – DIPC3, Rec709, EBU, SMPTE, Dynamic Black Settings
• Integrated Edge Blending and Warping for seamless projection alignment
• Constant Brightness for extend light source life & easy blending
• Supported flexible installation, including 360° rotation and portrait mode
• Instant On/Off: No pre-heating or post-cooling needed
• Supported 3G-SDI / HDBaseT™ interface for distribution of HD video and digital audio content
• Network Ready; Easy integration and management with RJ45 connectivity
• Offers eight optional motorized interchangeable lenses with Lens Positioning Memory (LPS)

Specifications

• Native Resolution: WUXGA(1920 x 1200)
• Brightness: 14000 ANSI Lumens
• Contrast Ratio: 3,000,000:1 (Full On/Off)
• Max. Supported Resolution: 4K-UHD (3840 x 2160)
• Native Aspect Ratio: 16:10
• Lamp Life and Type: 30,000 hours / Dual Laser Technology
• Display Type: Single chip DLP® Technology by Texas Instruments
• Chip Size: 0.8" DMD
• Throw Ratio: 9 optional lenses from 0.31:1 to 6.94:1 throw ratio range
• Zoom Ratio: Motorized
• Offset: Motorized Lens Shift
• Keystone Correction: Horizontal ±60°, Vertical ±40°
• Lens Shift Range: Lens Shift Range (Vertical: ±60%, Horizontal: ±20%)
• Video Compatibility: SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p, 4K UHD)

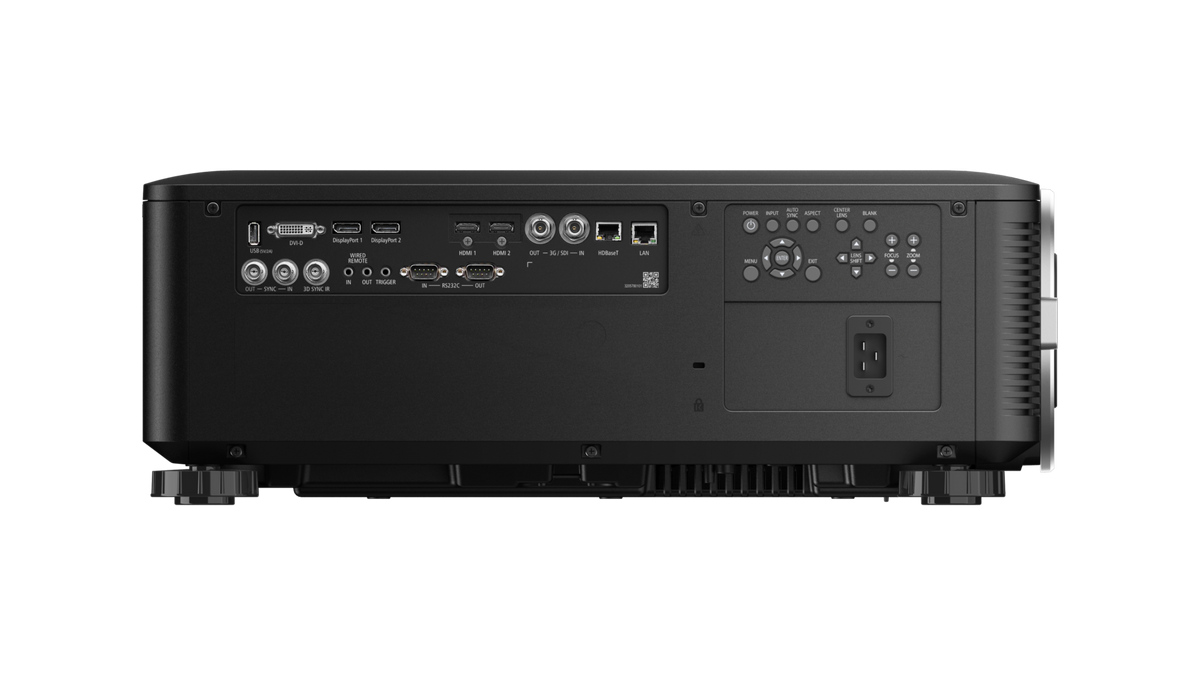

• I/O Connection Ports: HDMI Number of Ports 2 (x2), Display Port (x2), DVI-D, RJ45 (LANx1, HDBaseTx1), RS-232 (x2: In and Out), 3D-Sync (x2: In and Out), USB A x1 (Power Only-5V/2A), USB B (Service), Remote Jack(wire remote), 3G-SDI
• Dimensions (W x D x H): 500 x 591 x 216 mm
• Weight: 29.4 kg
• Noise Level: 39dB / 36dB (Normal / Eco Mode)
• Power: AC 100-240V, 50/60Hz Consumption: 830W240Vac (Normal), <0.5W (Standby)
• Remote Control P/N: 5042221900
• Standard Accessories: Lens Cap, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
• Optional Accessories: Remote Control P/N (5042221900), 3D Ready(DLP link, PC+Video), Direct 3D (HDMI 1.4a), 3D Mandatory Formats supported (top/bottom, right/left, frame sequential), Keypad lock
• Warranty: Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first)
