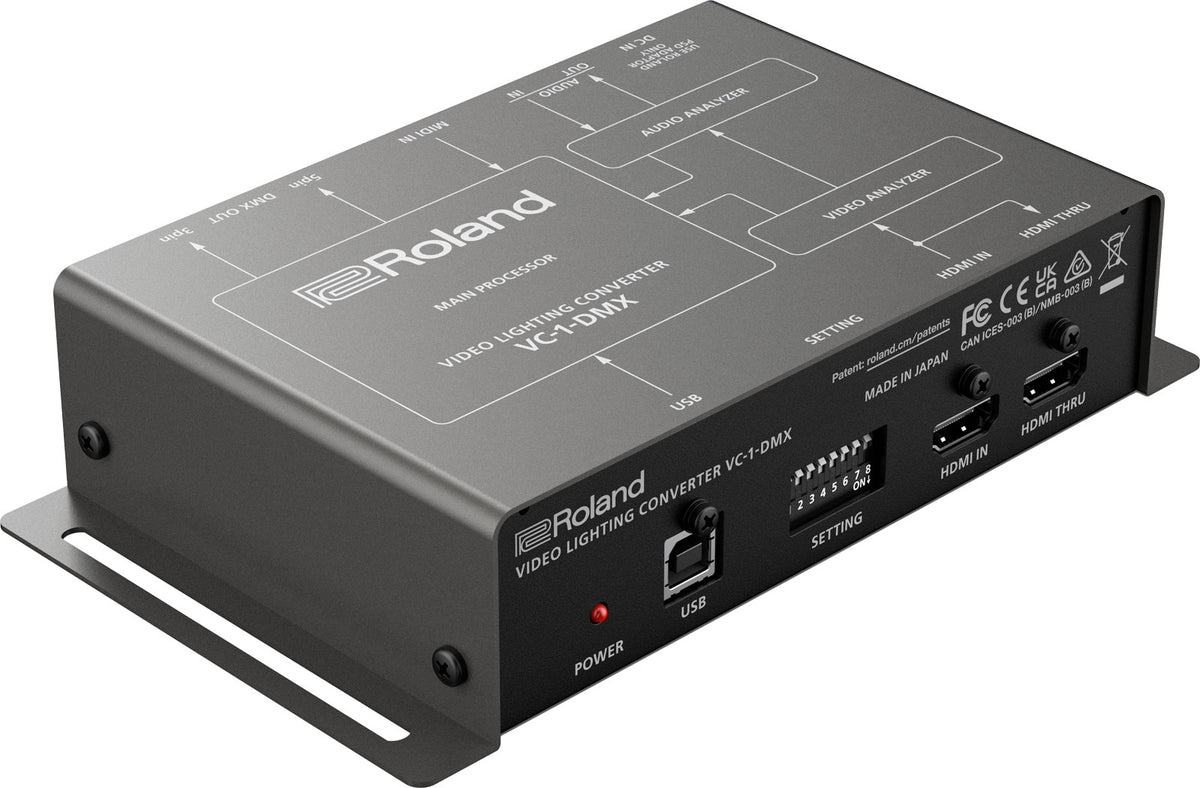

Roland VC-1-DMX Video Lighting Converter

VC-1-DMX | Video Lighting Converter

Dynamic Light Shows—No Operator Needed

Dynamic lighting elevates the energy and excitement of any interactive event, from music concerts and dance clubs to house parties and the local karaoke bar. With the VC-1-DMX Video Lighting Converter, it’s never been easier to bring the impact of a pro light show to any event you put on.

The VC-1-DMX automatically generates control commands for your DMX lighting setup based on input from video and audio sources, eliminating the need for a dedicated lighting operator. Color and brightness change based on the current video image, and lights and mirror balls operate in sync with the music tempo. And if you want to dive deeper, the VC-1-DMX supports external MIDI operation from hardware control surfaces, electronic musical instruments, and computer-based production software.

Automatically generates dynamic lighting effects to enhance any event

Outputs a DMX signal synchronized with incoming video and audio signals

Real-time analysis and lightning-fast processing with advanced Roland technology

Connect your A/V source to the HDMI input for analysis and distribute the unprocessed signal to a monitor or switcher via HDMI thru

Analog audio also supported with stereo I/O

Supports external MIDI control via dedicated MIDI input and USB MIDI

Customize DMX settings with dedicated software for macOS and Windows

Remotely choose maps with the default settings of the BOSS FS-1-WL MIDI footswitch (a TRS to 5-pin MIDI cable such as the BOSS BMIDI-5-35 is required for connection)

Version 2.1 Expanded Audio and Video Control

The VC-1-DMX Version 2.1 update introduces powerful enhancements for more lighting control, including a new Color Enhance function. Audio Link and Audio Input Sensitivity functions have also been added, allowing you to elevate presentations by synchronizing the lighting brightness with the audio input level.

Demonstration Video -->

True Synchronized Lighting Made Easy

Connect video, audio, and MIDI sources to the VC-1-DMX for automatic conversion and distribution to all your DMX gear. It’s even possible to daisy-chain multiple lighting devices and control them at once. Four channel maps are available via dip switches to control 512 DMX signal channels, and you can customize them all from a computer using the VC-1-DMX Setup Tool.

Advanced Video Analysis

HDMI video signals* are analyzed in up to 32 color areas and converted into luminance information for each color. You can then assign the colors to DMX channels for synchronized control. For example, if the video image is divided horizontally into eight segments and assigned to eight DMX lighting devices lined up horizontally, the lighting will track the horizontal movement of the video image perfectly. *HDCP compliant.

Lighting That Moves with the Music

The VC-1-DMX also analyzes sound information received at the HDMI and analog audio inputs. Add flash effects along with the beat, change the rotation speed of a mirror ball or other device to match the music tempo, or automatically turn off the lights when there is no sound. A powerful 15-band audio filter added with Version 2.0 allows you to set lighting controls to specific audio frequency ranges for deep synchronization between the lights and music. Using the VC-1-DMX Setup Tool, you can define the bandwidth and gain level of each band for precise command of your DMX rig.

Go Further with MIDI Control

If you want extended control over your system, the VC-1-DMX has you covered with integrated MIDI-to-DMX conversion. Connect a hardware MIDI controller and use MIDI control change messages to switch DMX maps* and adjust DMX parameters such as global dimming, tilt, pan, and more. Or use MIDI note information from keyboards, electronic drums, and other instruments to create lighting effects that follow live music performances. USB MIDI is also supported, allowing you to control your DMX setup from lighting or music production software on your computer.

*The default MIDI control change settings of the BOSS FS-1-WL provide direct support for VC-1-DMX map selection (wired MIDI cable connection required).

Customize Your Rig

Using the VC-1-DMX Setup Tool software for macOS and Windows, you can quickly configure the VC-1-DMX for all your DMX lighting hardware. Freely change assignments across 512 DMX channels to match the control needs of your specific gear and easily share settings with multiple VC-1-DMX units.

APPLICATIONS

Party Spaces

Energize the environment in bars, nightclubs, banquet halls, and other party spaces with lighting that’s automatically synchronized to any video source.

Business Events and Presentations

Create more impact at business events with dynamic lighting that follows slides and video content from presentation software.

Band and DJ Performances

During live music performances, drive the VC-1-DMX and the house lighting system from MIDI-equipped gear like keyboards, electronic drums, and DJ controllers.

Karaoke

Give karaoke singers and audience members the feel of a concert performance with dynamic lighting that matches the music.

Panel Design

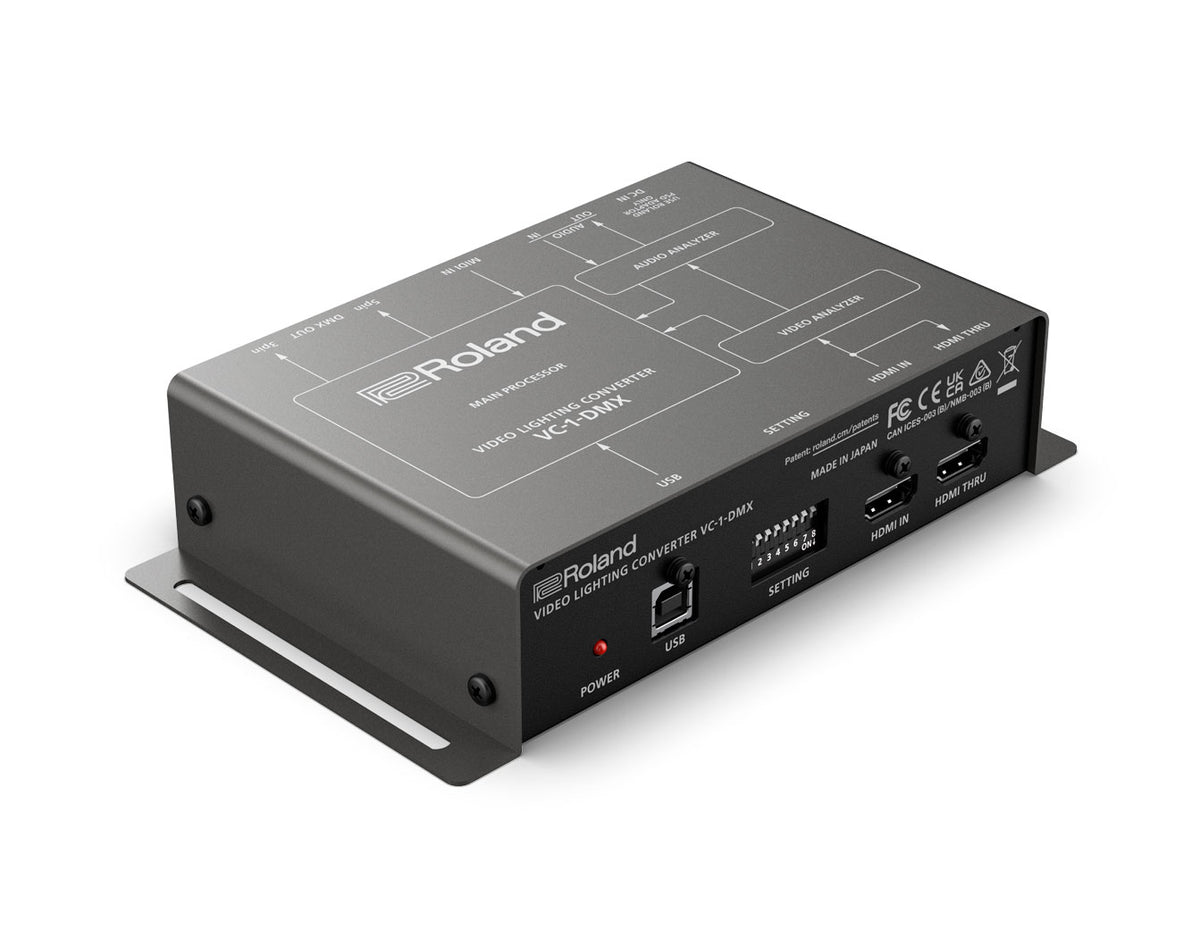

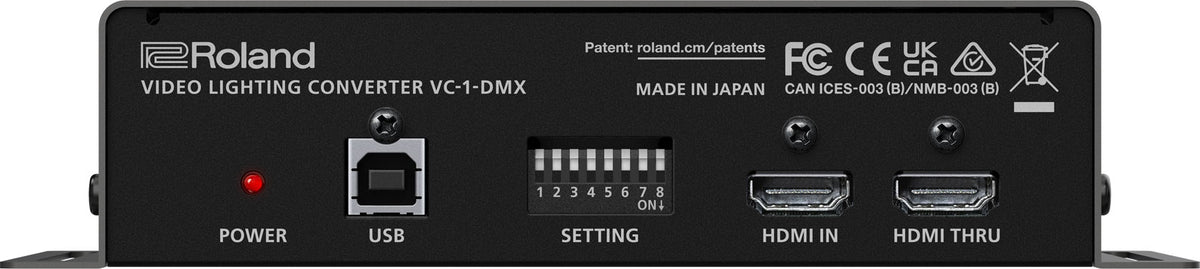

Front

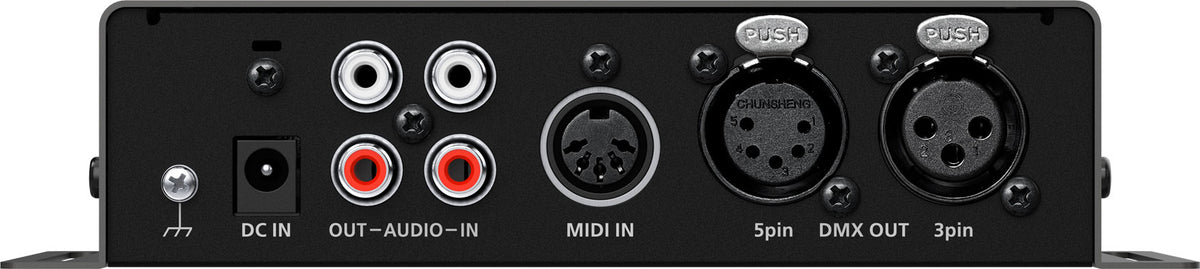

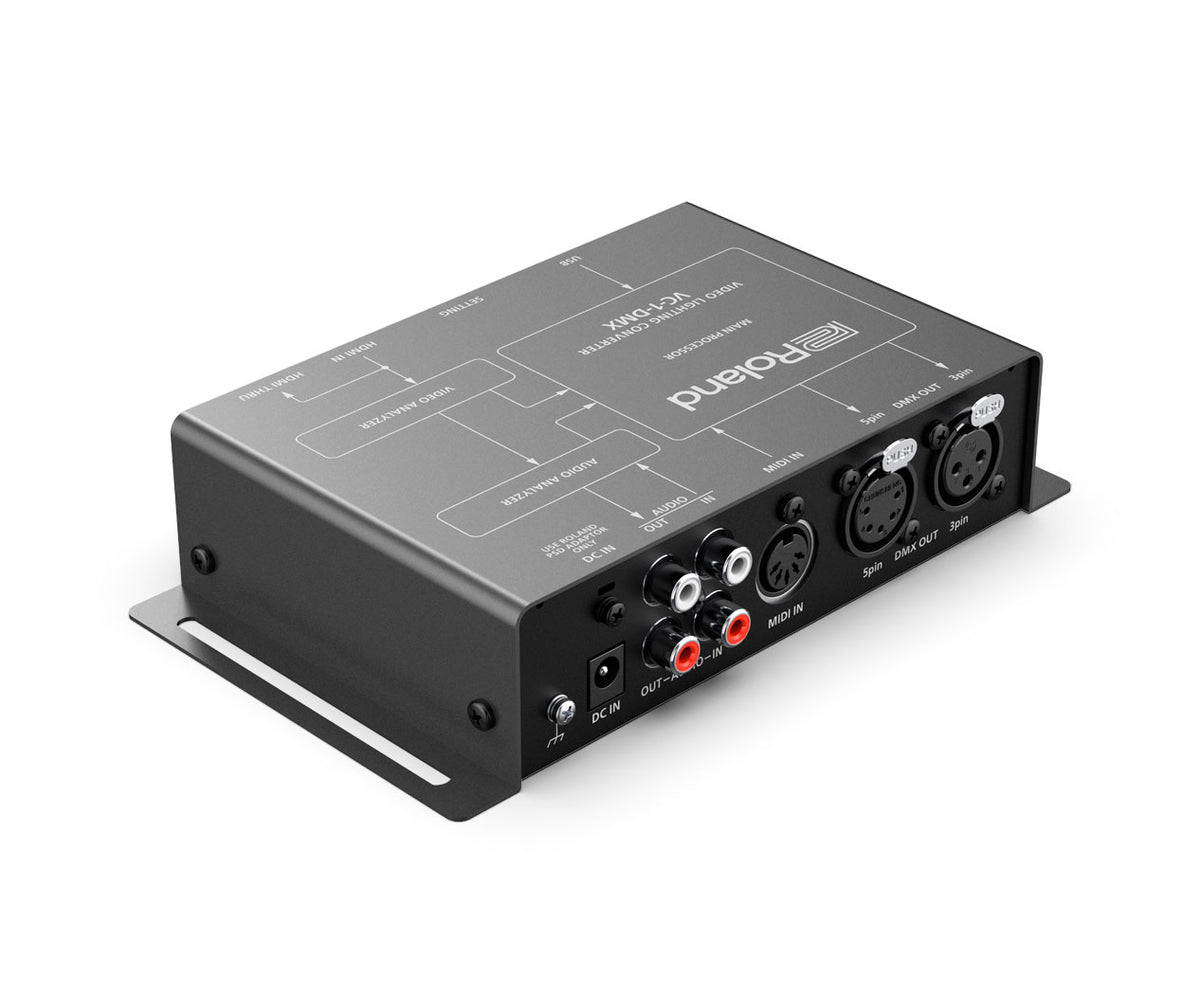

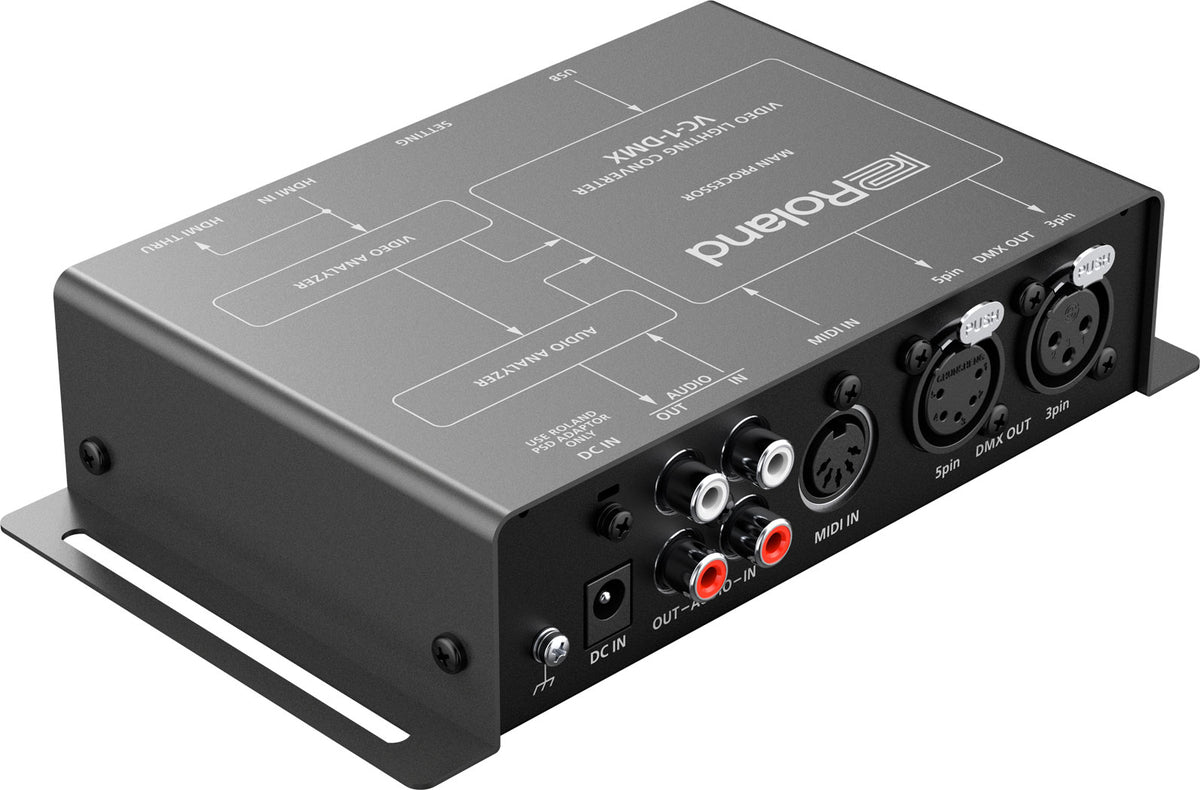

Rear

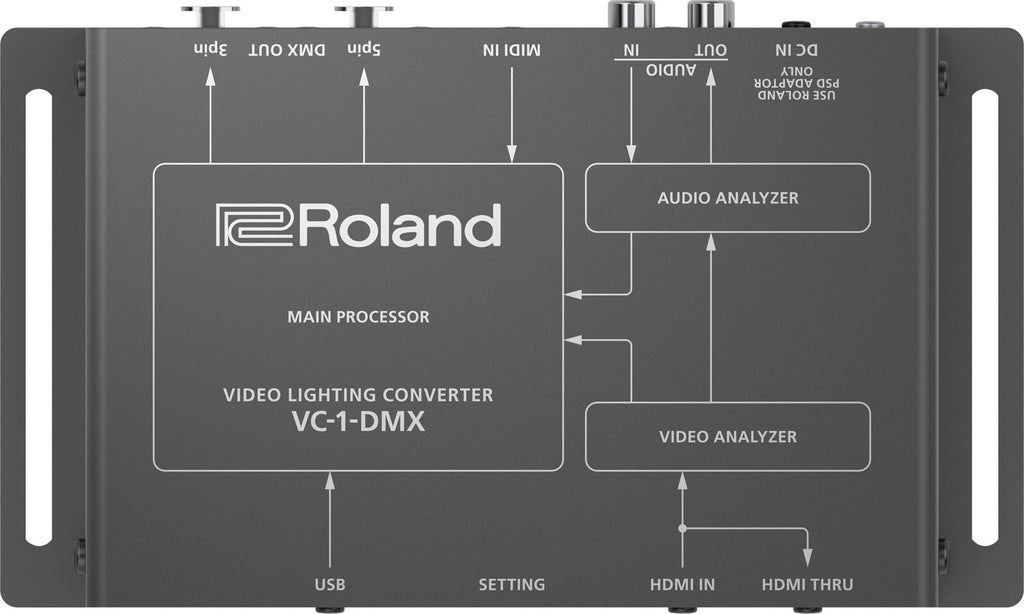

Block diagram

Dimensions

Video

Input Connector

HDMI IN connector : HDMI type A

* HDCP Supported

* Multi-format Supported

Output Connector

HDMI THRU connector : HDMI type A

Video Formats

480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p,

720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,

VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz),

HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz),

FWXGA (1366 x 768/ 60 Hz), SXGA+ (1400 x 1050/60 Hz),

UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz)

* The refresh rate is the maximum value of each resolution.

* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.

Audio

Input Connectors

AUDIO IN jacks : RCA phono type

HDMI IN connector : HDMI type A

Output Connectors

AUDIO OUT jacks : RCA phono type

HDMI THRU connector : HDMI type A

Digital Audio Format

Linear PCM, 48 kHz, 24 bits, stereo

Audio Processing

Sample rate : 48 kHz, 24 bits

Nominal Input Level

AUDIO IN jacks : -10 dBu (Maximum input level : +8 dBu)

Nominal Output Level

AUDIO OUT jacks : -10 dBu (Maximum input level : +8 dBu)

Input Impedance

AUDIO IN jacks : 15 k ohms

Output Impedance

AUDIO OUT jacks : 1 k ohms

DMX

Output Connectors

DMX OUT 3 pin jack : XLR type (3 pins)

DMX OUT 5 pin jack : XLR type (5 pins)

DMX channel

512 channels (1 universe)

Others

Control Terminal

MIDI IN jack

USB port

Switches

SETTING switch : 8 terminals

Indicator

POWER indicator

Functions

Video Synchronized Lighting Control

Audio Synchronized Lighting Control

MIDI Synchronized Lighting Control

Lighting Speed Control

HDMI Audio De-embedder

Power Supply

AC Adaptor

Current Draw

1,000 mA

Current Consumption

5.7 W

Operation Temperature

+0 to +40 degrees Celsius

+32 to +104 degrees Fahrenheit

Dimensions

180 (W) x 115 (D) x 41 (H) mm

7-1/8 (W) x 4-9/16 (D) x 1-5/8 (H) inches

Weight (excluding AC adaptor)

570 g

1 lb 5 oz

Leaflet "USING THE UNIT SAFELY"

Owner's Manual

AC Adaptor

Plug Holder

Rubber Feet

*0 dBu = 0.775 Vrms
