Roland UVC-02 USB Video Interface for HDMI Cameras and Microphones Livestreaming

UVC-02 | Web Presentation Dock

Look and Sound Your Best

in Video Meetings and Presentations

Video streaming for business and pleasure has become a regular part of life. But you’ll never look and sound your best with the webcam and microphone in your average computer. The Roland UVC-02 Web Presentation Dock helps you bridge the gap, providing a simple and affordable way to level up your video presentations with higher quality audio/visual gear and more control.

Present with Confidence

The UVC-02 is a compact broadcast control center that fits comfortably on your desktop. It allows you to connect a high-quality HDMI camera, pro microphone, and other audio sources and send them directly to meeting and streaming platforms on your computer via a single USB cable. And with an array of hands-on knobs and switches at your fingertips, you can easily control the action without ever touching your mouse or computer keyboard.

Convenient and affordable desktop docking station to upgrade your business streaming with pro-level audio and video

Inputs for a DSLR or other high-quality camera, an XLR microphone, and stereo audio sources

HDMI video input supports embedded sound and features automatic scaling for different video resolutions

Studio-grade sound with Roland’s acclaimed digital audio technology

Plug and play operation—automatically appears as a webcam and audio source in your favorite streaming software

Enhance your streams with professional audio processing, sound effects, and the unique Voice Change effect

Hands-on control of volume levels plus audio and video muting

Assignable buttons for customizable control, configurable with free UVC-02 software for macOS and Windows

Version 2.0 New adaptive noise suppression option for improved sound in challenging environments

Plug In and Play

Once connected to your computer via USB, the UVC-02 is instantly recognized as a webcam and audio source, with no drivers or set up required. That means it’s ready to go with popular web meeting software such as Zoom, Microsoft Teams, Webex by Cisco, or any application that uses a webcam as an A/V source for streaming or recording.

The Ultimate Webcam Upgrade

Connect just about any HDMI-compatible camera and instantly elevate the image quality over your built-in or USB webcam. Many standalone cameras offer HDMI output, from action and point-and-shoot cameras to higher-grade mirrorless and DSLR models. They have much better lenses than any webcam and often include zoom capability to frame your perfect shot.

Superior Image Quality

Improve color, sharpness, and focus to get a cinematic look.

Fast, No-Fuss Setup

Shows up like a webcam—no special software required.

Now You See Me,

Now You Don’t

Need a break? Turn off your camera feed with the push of a button.

Get Ready to Sound Great

There’s nothing worse than bad audio quality in an online meeting. The UVC-02 ensures your sound starts off strong and stays that way. With a tiny studio-grade mixer and four inputs backed by Roland’s pro audio technology, you have a whole new range of sonic superpowers at your command.

Works with

Professional Mics

Pro broadcast and recording studios choose a specific microphone to get the best out of a performer’s voice. Now, you can choose the mic type that’s right for you and connect it via the XLR input on the UVC-02. Phantom power is also available, allowing you to use a studio-grade condenser mic for the very best sound quality.

Sound Monitoring

Made Simple

The UVC-02 has a dedicated headphones jack, as well as a stereo monitor output for connecting to external speakers or a recorder. And both have dedicated panel knobs that allow you to reach out and control the listening level with a quick twist. The headphones jack also supports the inline mic on a standard set of earbuds, and there’s a dedicated level knob for this as well.

Bring Your Music

to the Meeting

Hate that awkward silence while waiting for everyone to join the meeting? Then connect your phone or other media player to the Aux In and play some background music while everyone gets online.

One-Touch Audio Mute

Don’t scramble for the un-mute switch in your software as everyone chants, “You’re on mute.” Just press the large Talk button to instantly turn your audio on or off. And with the button’s bright backlight, you’ll always know when your sound is live.

Love the Sound of Your Voice

Just like a broadcast studio, the UVC-02 includes a pro-quality equalizer and audio effects to make your voice sound great. Convenient templates are included to get you started, complete with easy controls to tweak the sound until it’s just right.

UVC-02 Setup Tool Version 2.0

Sound Proofing

as Standard

With advanced echo cancellation and noise suppression on board, the focus is always on you—and not on distracting background sounds like domestic bustle and traffic. Version 2.0 adds a powerful option to improve the sound in challenging environments with a lot of ambient noise.

Who Said Meetings

Are Boring?

Bring the fun by transforming your voice to male/female, a robot, or even a ghost using the onboard Voice Change effect. You can also trigger applause, chimes, buzzers, or your own custom sound samples for fresh reactions to ideas shared in your meetings.

Customizable Control

Streamline your sessions even further with dedicated UVC-02 software for macOS and Windows. Choose two functions that you use most often—such as PowerPoint and Keynote slide advance* or a sound effect trigger—and assign them to the A1 and A2 buttons for one-touch operation.

*PowerPoint slide control is only available for Windows. Keynote slide control is only available for macOS.

CGM-30 Gooseneck Microphone

The optional CGM-30 is the perfect partner for the UVC-02, providing a high-quality desktop solution that eliminates the need for an external mic and stand. The length is just right to capture your voice and makes for a super-clean desk setup.

Wireless Multi-Camera Magic

The AeroCaster Switcher app for iPad—available for free with your UVC-02 purchase—allows you to create a wireless multi-camera streaming setup with mobile devices. Connect and switch up to four smartphone or tablet cameras and send the combined signal into the UVC-02’s HDMI input for direct streaming to your favorite platform.

AeroCaster Switcher app

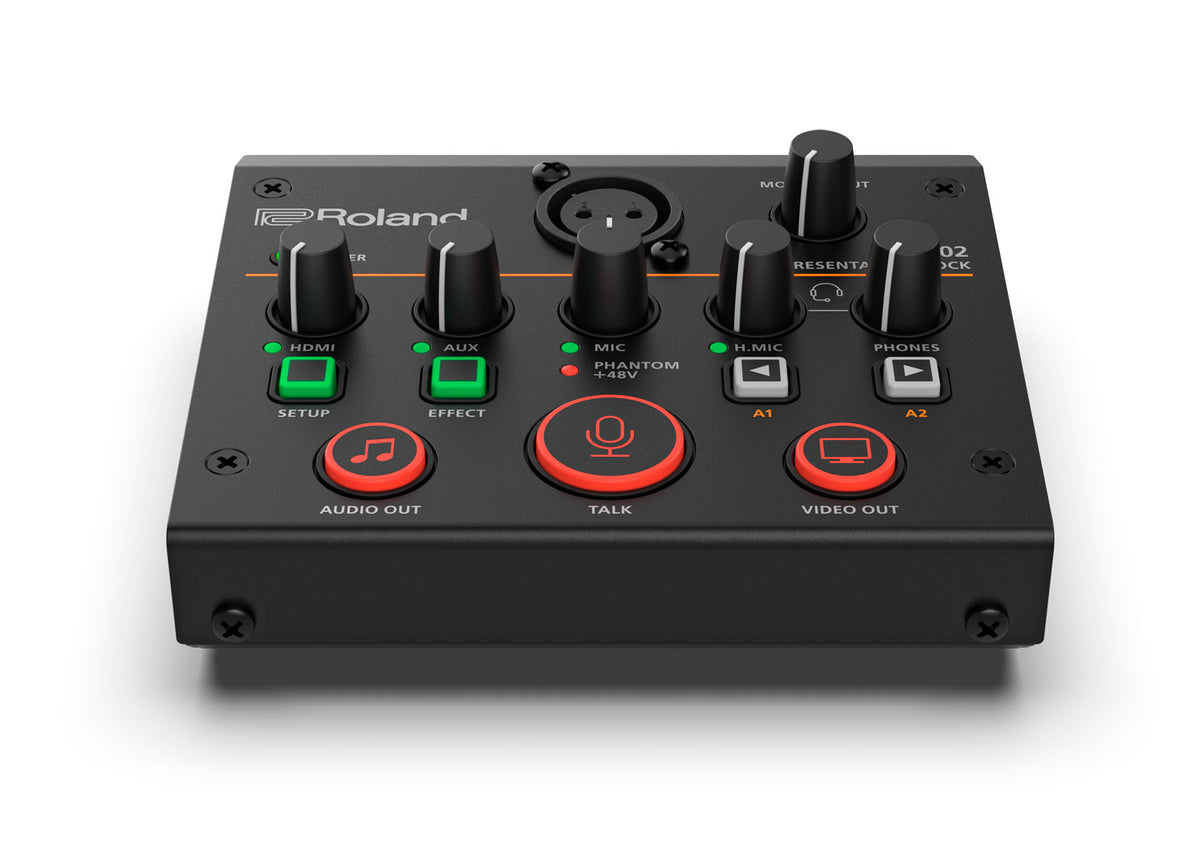

Panel Design

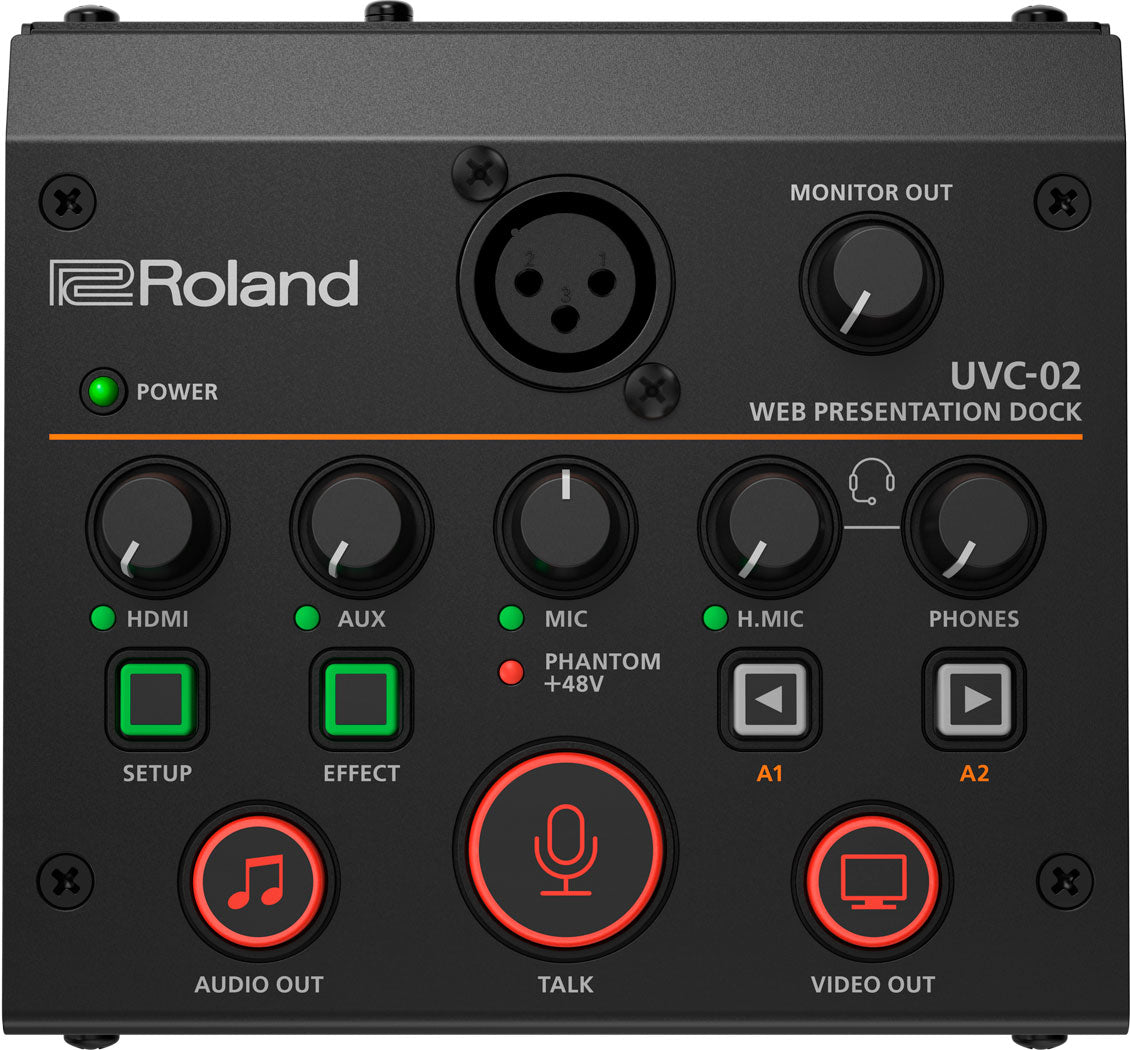

Front

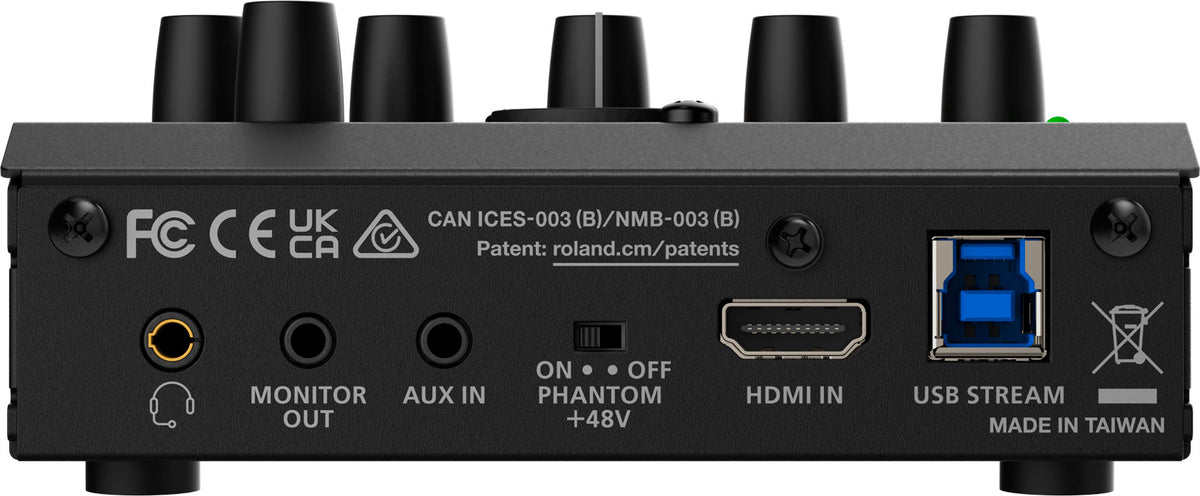

Rear

Block diagram

Dimensions

Company names and product names appearing on this page are registered trademarks or trademarks of their respective owners. Microsoft and Microsoft Teams are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Zoom and the Zoom logo are trademarks of Zoom Video Communications, Inc. ©2021 Cisco Systems, Inc. All rights reserved. Cisco, the Cisco logo, Webex by Cisco, and Webex are registered trademarks or trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries.

Video

Input Connector

HDMI IN : HDMI type A

* HDCP not Supported

* Multi-format Supported

Input Formats

480/59.94p, 576/50p, 720/59.94p, 720/50p,

1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p,

SVGA (800 x 600) 60 Hz / 75 Hz, XGA (1024 x 768) 6 0Hz / 75 Hz,

WXGA (1280 x 800)60 Hz / 75 Hz, HD (1280 x 720) 60 Hz / 75 Hz,

SXGA (1280 x 1024) 60 Hz / 75 Hz, FWXGA (1366 x 768) 60 Hz / 75 Hz,

SXGA+ (1400 x 1050) 60 Hz / 75 Hz, UXGA (1600 x 1200) 60 Hz,

FHD (1920 x 1080) 60 Hz

* The refresh rate is the maximum value of each resolution.

* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.

Output Connectors

USB STREAM : USB 3.0 Type-B

USB Video Output Format

YUY2 (Uncompressed), Motion JPEG (Compressed)

USB Video Output Resolution

1920 x 1080, 1280 x 720, 640 x 480

* Maximum frame rate is 60 fps.

Audio

Audio Processing

Sample Rate 48 kHz, 24 bits

Analog Connectors

MIC : XLR type (Balanced, Phantom power DC 48V, 14 mA Max)

HEADSET : Stereo miniature phone type (CTIA, PLUG-IN power)

AUX IN : Stereo miniature phone type

MONITOR OUT : Stereo miniature phone type

Digital Connectors

HDMI IN : HDMI Type A

USB STREAM : USB 3.0 Type-B

Nominal Input Level

MIC IN : -54 to -14 dBu (Maximum input level : +4 dBu)

HEADSET : -20 dBu (Maximum input level : -2 dBu)

AUX IN : -10 dBu (Maximum input level : +8 dBu)

Nominal Output Level

MONITOR OUT : -10 dBu

HEADSET : 9 mW + 9 mW (32 ohms load)

Input Impedance

MIC IN : 5.8 k ohms

AUX IN : 10 k ohms

HEADSET : 1 k ohms

Output Impedance

MONITOR OUT : 1 k ohms

HEADSET : 22 ohms

Digital Audio Format

HDMI IN : Linear PCM, 48 kHz / 44.1 kHz, 24 / 20 / 16 bits, Stereo

USB STREAM : Linear PCM, 48 kHz, 16 bits, Stereo

Audio Effects

Anti-Feedback, Echo Canceller, Ducker, Voice Changer, Reverb, Noise Suppressor, Equalizer, Expander, Compressor, Delay

Audio File Player

Number of tracks : 2

Data Formats : WAV (Linear PCM, 48 kHz, 16 bits, stereo / mono)

Maximum Time : 5 seconds / track

Others

Other Functions

MIC Mute (TALK button)

Audio Mute (AUDIO OUT button)

Video Off (VIDEO OUT button)

Slideshow Control

Power Supply

Supplied from the computer via USB

Current Draw

900 mA (4.5 W)

Operation Temperature

+0 to +40 degrees Celsius

+32 to +104 degrees Fahrenheit

Dimensions

124 (W) x 117 (D) x 52 (H) mm

4-15/16 (W) x 4-5/8 (D) x 2-1/16 (H) inches

Weight (excluding cables)

460 g

1 lb 0.3 oz

Leaflet "Read Me First"

USB 3.0 Cable

* 0 dBu = 0.775 Vrms
