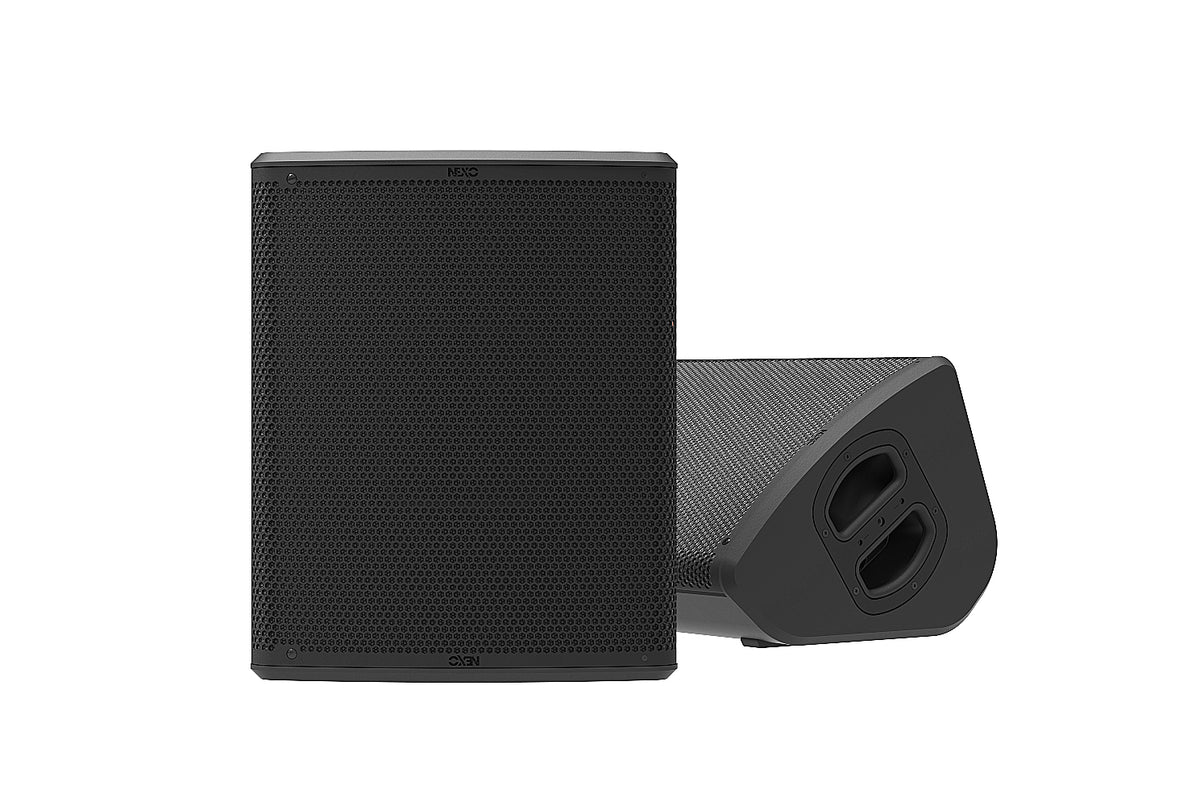

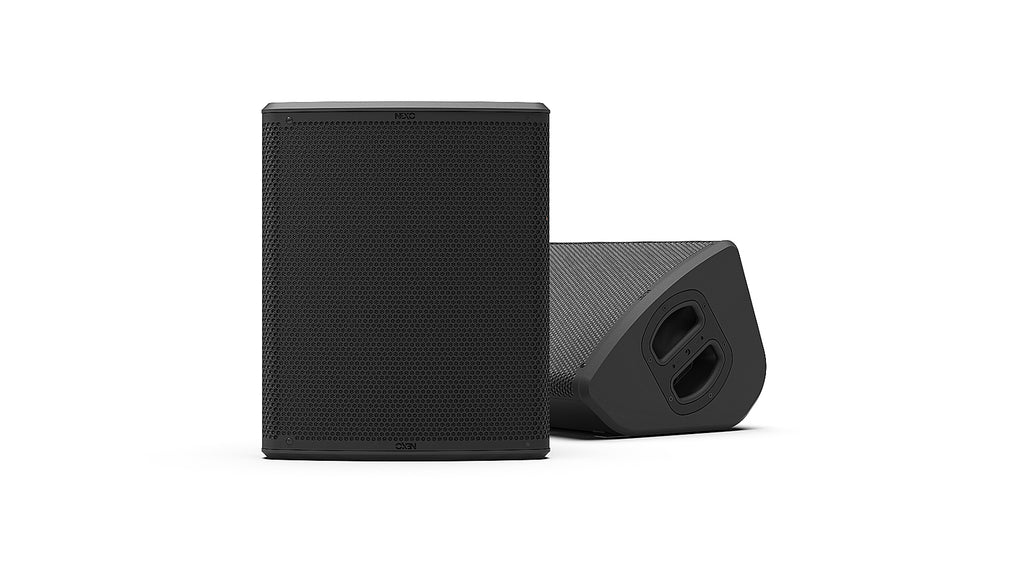

NEXO P12 12-inch Coaxial 2-Way Loudspeaker, Touring Version, Black

The NEXO P12 is a coaxial 2-way point source loudspeaker designed for touring and fixed installation applications, combining a 12-inch neodymium long-excursion LF driver with a 3-inch HF compression driver in a single coaxial point source.

Delivering up to 140 dB peak SPL with a frequency response of 60 Hz to 20 kHz, the P12 can be switched between passive and active 2-way operation via a recessed control switch, offering flexibility for front-of-house or monitor use. Modular dispersion options allow the standard 60°x60° horn to be switched to a 90°x40° or asymmetric 60°–100°x40° pattern using optional flanges.

The Touring Version features 4x NL4 4-pole connectors for fast signal distribution and rigging in live sound environments. The enclosure is built from custom bent plywood using Baltic birch and poplar, keeping weight to 20 kg, with a quick-release Magnelis steel grille for access to the horn flanges.

• Coaxial 12-inch LF and 3-inch HF point source design
• 140 dB peak SPL, 107 dB sensitivity
• 60 Hz to 20 kHz frequency response
• Recommended power 1,270 W, 55 Vrms input
• Dimensions 432 x 534 x 314 mm, weight 20 kg
