NEXO P10 10-inch Coaxial 2-Way Loudspeaker, Installation Version, Black

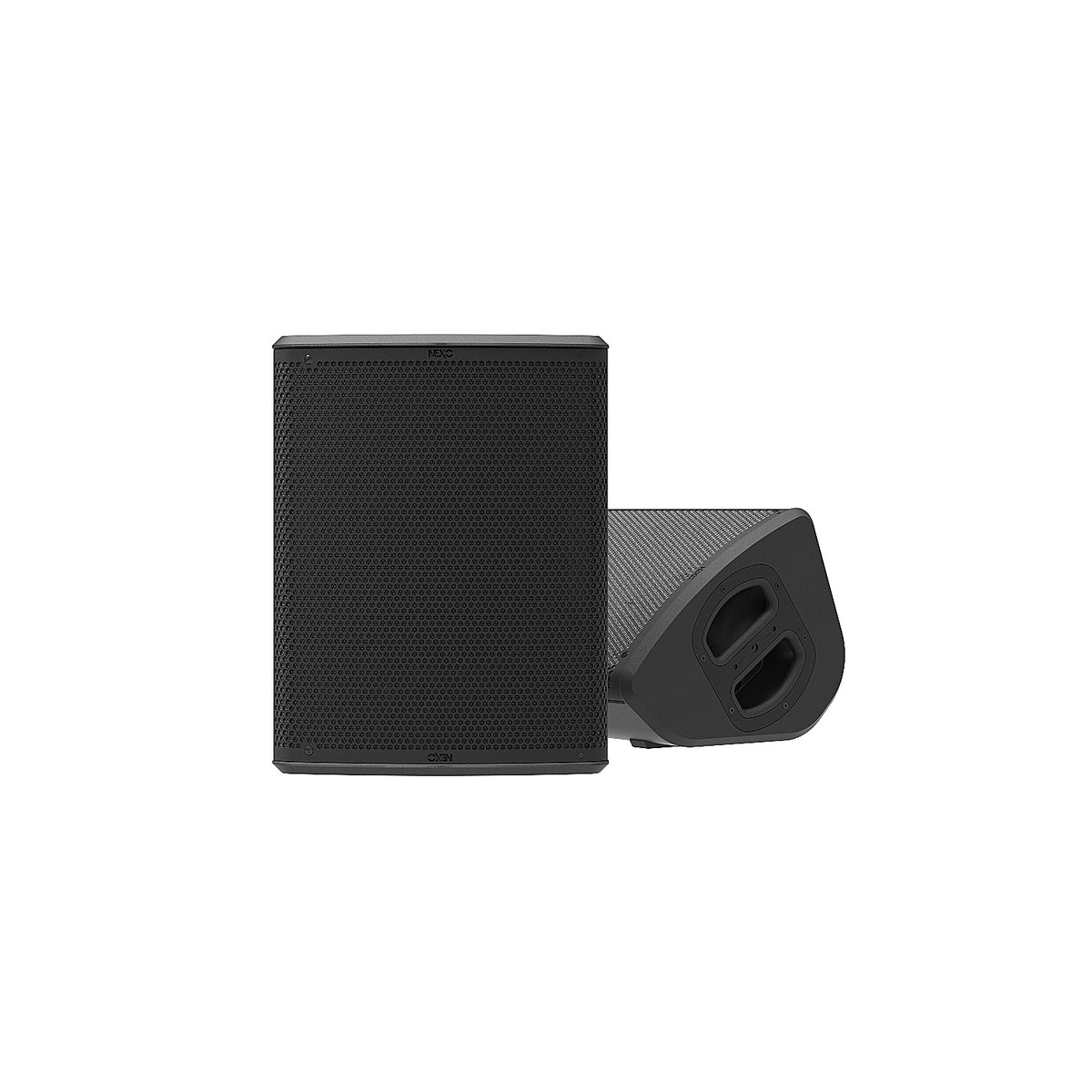

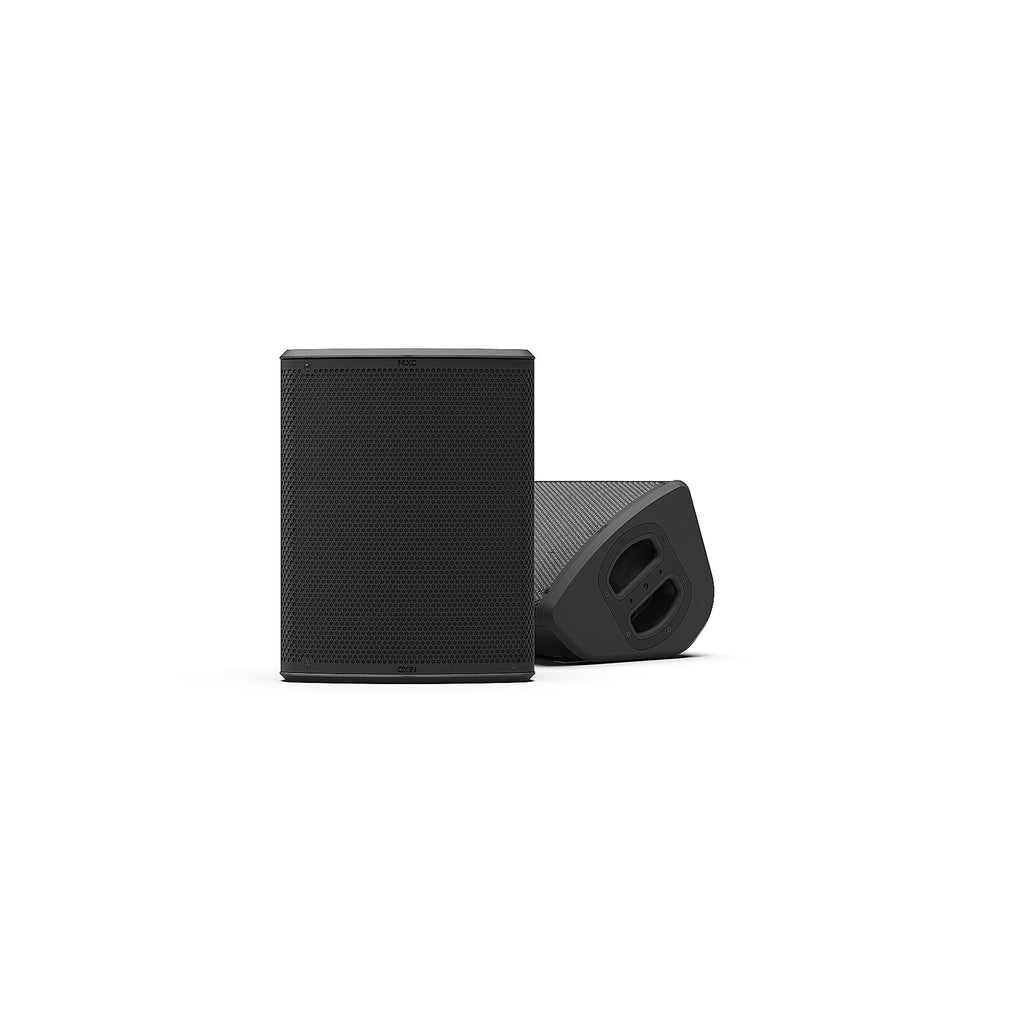

The NEXO P10 is a 2-way passive coaxial point source loudspeaker built around a 10-inch low-frequency driver and a 1.7-inch high-frequency diaphragm, suited to both touring and fixed installation use.

It delivers up to 136 dB peak SPL with a sensitivity of 107 dB, covering a frequency range of 63 Hz to 20 kHz (+6 dB). Dispersion can be switched from a standard 100°x100° pattern to a narrower 110°x60° configuration with an optional horn, allowing the enclosure to be adapted to different venues without changing the cabinet.

This Installation version is fitted with a cable gland input accepting a 2-core cable, designed for 50 Vrms (150 Vpeak) line-level operation, and recommends an amplifier power of 870 W into its 8 ohm nominal impedance. The cabinet is made from custom bent plywood of Baltic birch and poplar, finished in black, and fitted with a quick-release Magnelis steel grille for access to the magnetic horns.

• 10-inch coaxial LF driver with 1.7-inch HF diaphragm
• 136 dB peak SPL, 107 dB sensitivity
• 63 Hz – 20 kHz (+6 dB) frequency response
• 8 ohm nominal impedance, 870 W recommended power
• Operating temperature 0°C to 40°C, weight 15 kg
