NEXO NXAMP4x1MK2 4x1300W Network Powered Digital Amplifier Controller

The NEXO NXAMP4x1MK2 is a network-powered digital amplifier controller designed for touring and installed loudspeaker systems that require integrated digital signal processing and amplification in a single 2U chassis.

It delivers 4x1300 W of amplification with a frequency response of ±1 dB from 10 Hz to 20 kHz, suitable for driving multiple loudspeaker channels with consistent performance across the audio band.

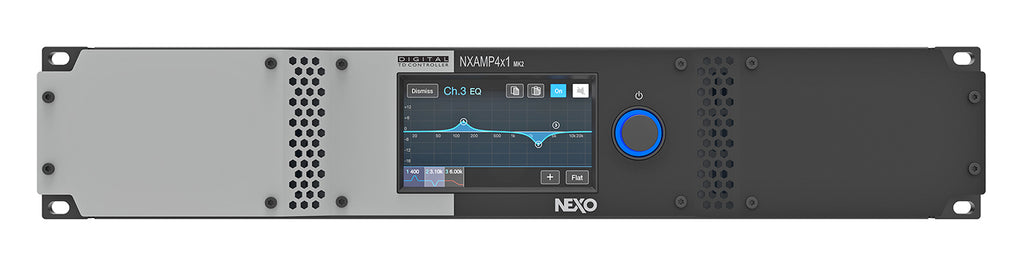

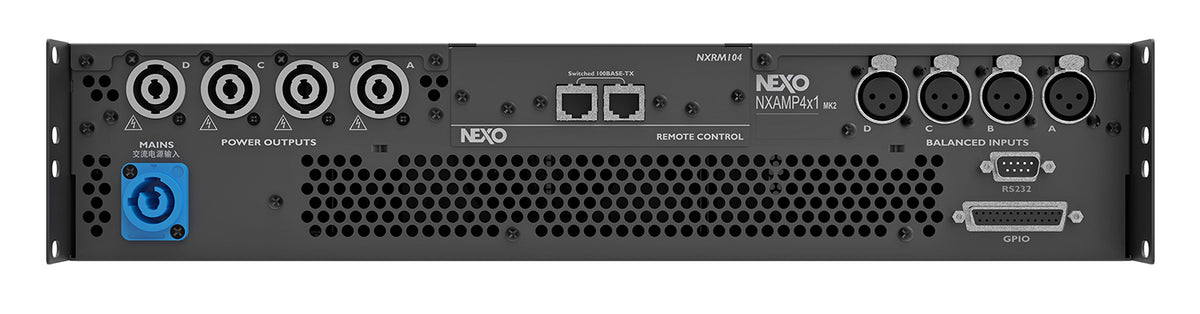

Connectivity includes 4x balanced analogue inputs on XLR3, a dedicated DB-9 connector for DPU connection, and a DB-25 connector offering 5 inputs and 8 outputs or DMU connection, alongside an expansion slot for networking and digital audio cards. Control is handled via a rotary encoder with push and backlight, a 4.3-inch WQVGA colour touchscreen (480 x 272), and an RS232 port.

• 4x1300 W network-powered digital amplifier controller
• ±1 dB frequency response, 10 Hz–20 kHz
• 4x XLR3 inputs, DB-9 and DB-25 connectivity for DPU/DMU
• 4.3-inch WQVGA colour touchscreen with rotary encoder
• 2U rack chassis, 483 x 89 x 502 mm, 15.7 kg

The unit runs from a universal power supply with active PFC (100–240 V, 50/60 Hz), consuming 200 W nominally and up to 1,900 W maximum, and is backed by a 2-year warranty.
