NEXO nanoNXAMP4-D 4-Channel Powered Installation Amplifier, Dante

The NEXO nanoNXAMP4-D is a compact 4-channel Class-D power amplifier and TD speaker controller designed for small installation sound systems. It combines four channels of amplification with Dante networked audio input, making it suited to installations that require flexible, networked loudspeaker control in a 1U footprint.

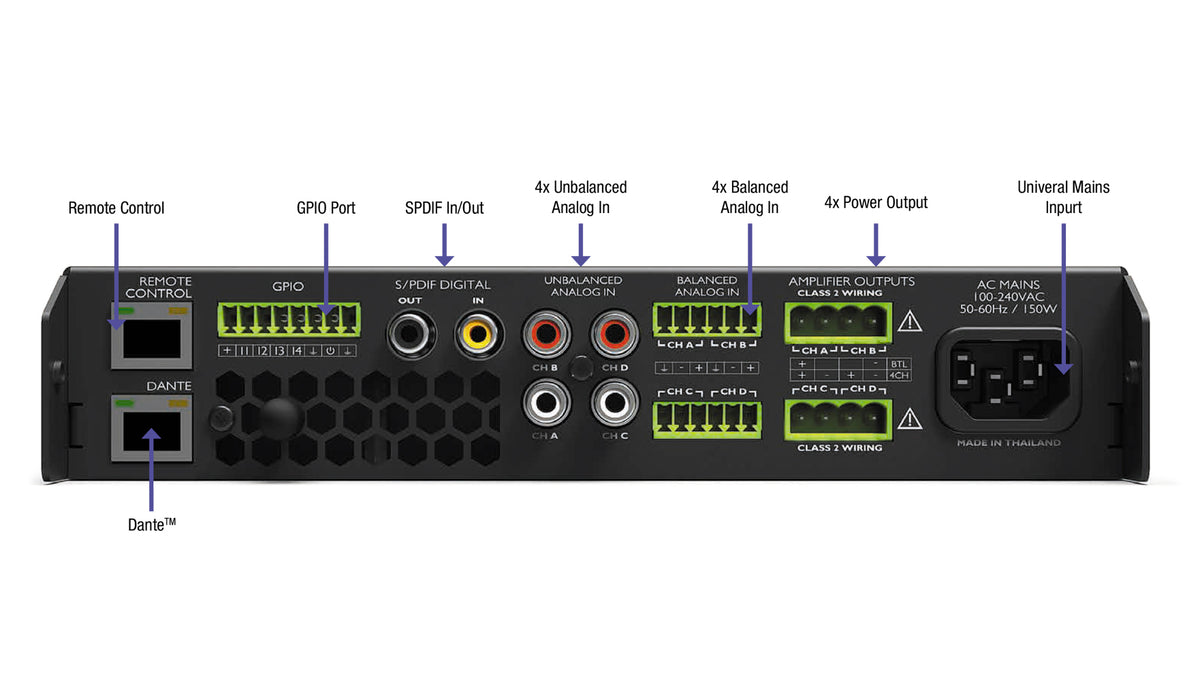

Each of the four channels delivers up to 250 W into 4 ohms, covering a 20 Hz to 20 kHz frequency range. Four balanced analogue inputs on Euroblock 3.5 mm connectors (also usable unbalanced via RCA) are joined by SPDIF digital input/output and a 4-channel Dante input, giving installers multiple signal routing options from a single chassis.

Control is handled through an integrated web server and WiFi access point, an 8-pin GPIO connector, and support for up to eight wall controllers per unit. API drivers are available for AMX, Crestron, Crestron Home, Control4, ELAN, Q-SYS, RTI and Symetrix, allowing integration into third-party control ecosystems. A universal 100-240 V power supply with PFC technology ensures efficient operation.

• 4 x 250 W at 4 ohms, Class-D amplification
• Dante 4-channel networked audio input
• Integrated web server and WiFi access point
• 1U, 44 x 220 x 319 mm, 2.0 kg
• 2-year warranty
