NEXO ID24 120° x 40° Complete Horn Assembly

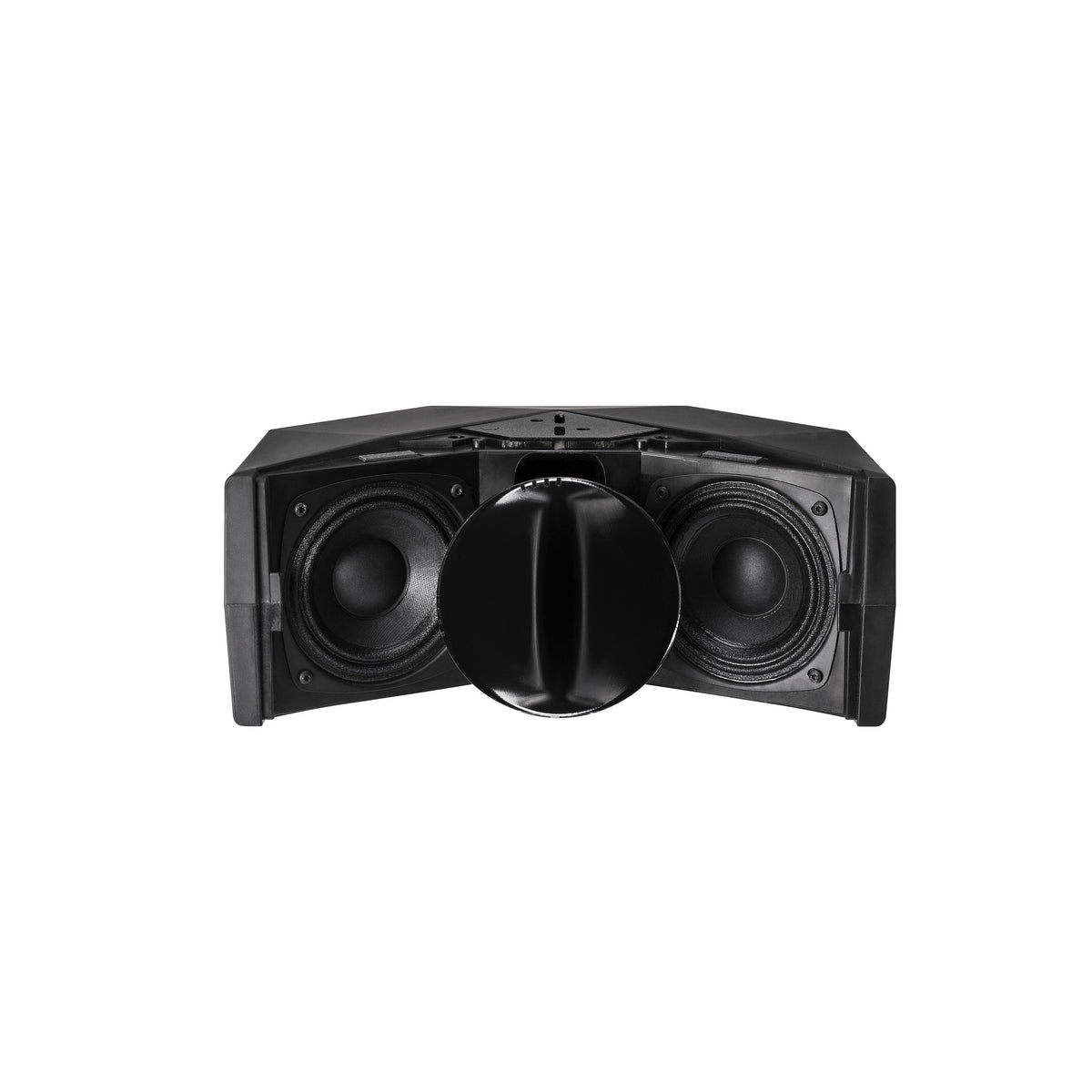

The NEXO 04IDU-PAV12040 is a complete horn assembly designed for the ID24 compact loudspeaker, providing a 120° x 40° HF dispersion pattern that can be user-rotated on site to 40° x 120° to suit the coverage requirements of the venue.

The horn is one of several directivity options available across the ID24 'a la carte' range, which also includes 60° x 60° and 120° x 60° patterns, allowing specifiers to tailor HF coverage, mounting type, connectivity, cabinet colour and grille finish to each installation or touring application.

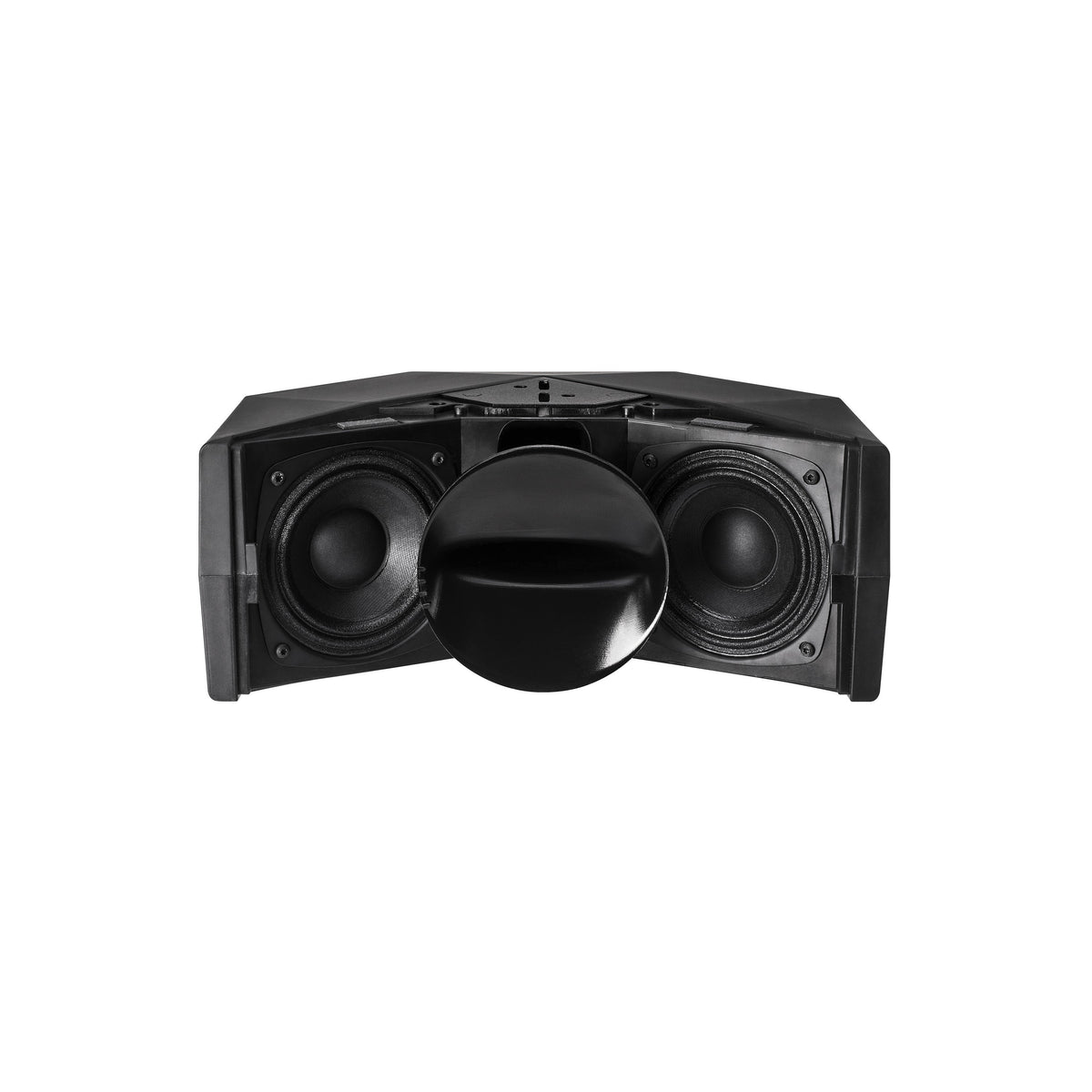

The ID24 cabinet this horn is designed for combines 2x 4-inch LF neodymium drivers with a 1-inch voice coil, ½-inch throat HF neodymium driver, delivering a frequency response of 95Hz–20kHz (+/- 6dB), 100dB sensitivity and up to 126dB max SPL at 16Ω nominal impedance, with a recommended power handling of 200–500W.

• Dispersion: 120° x 40°, rotatable to 40° x 120°
• Designed for the NEXO ID24 compact coaxial loudspeaker
• Part of the ID24 'a la carte' directivity and finish options

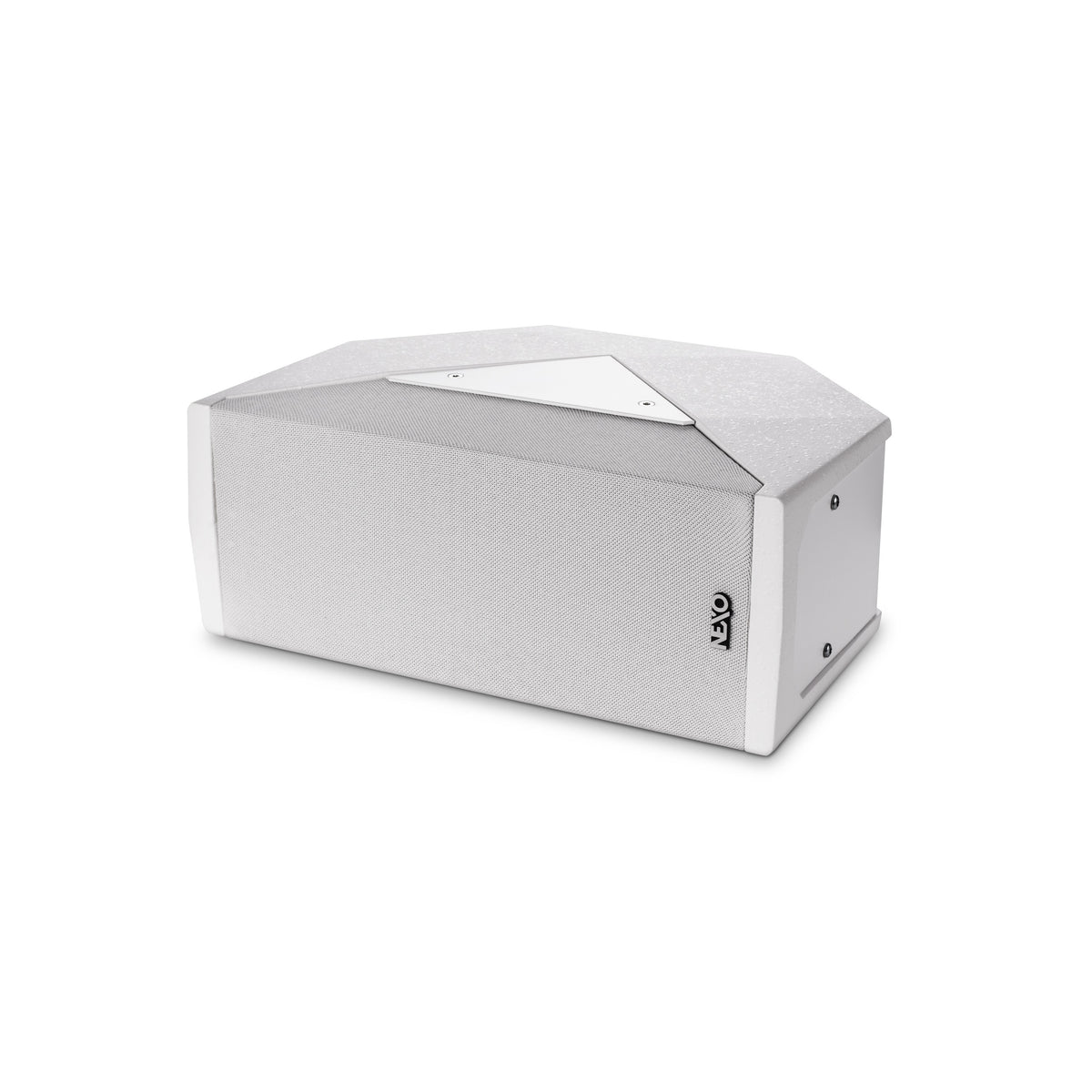

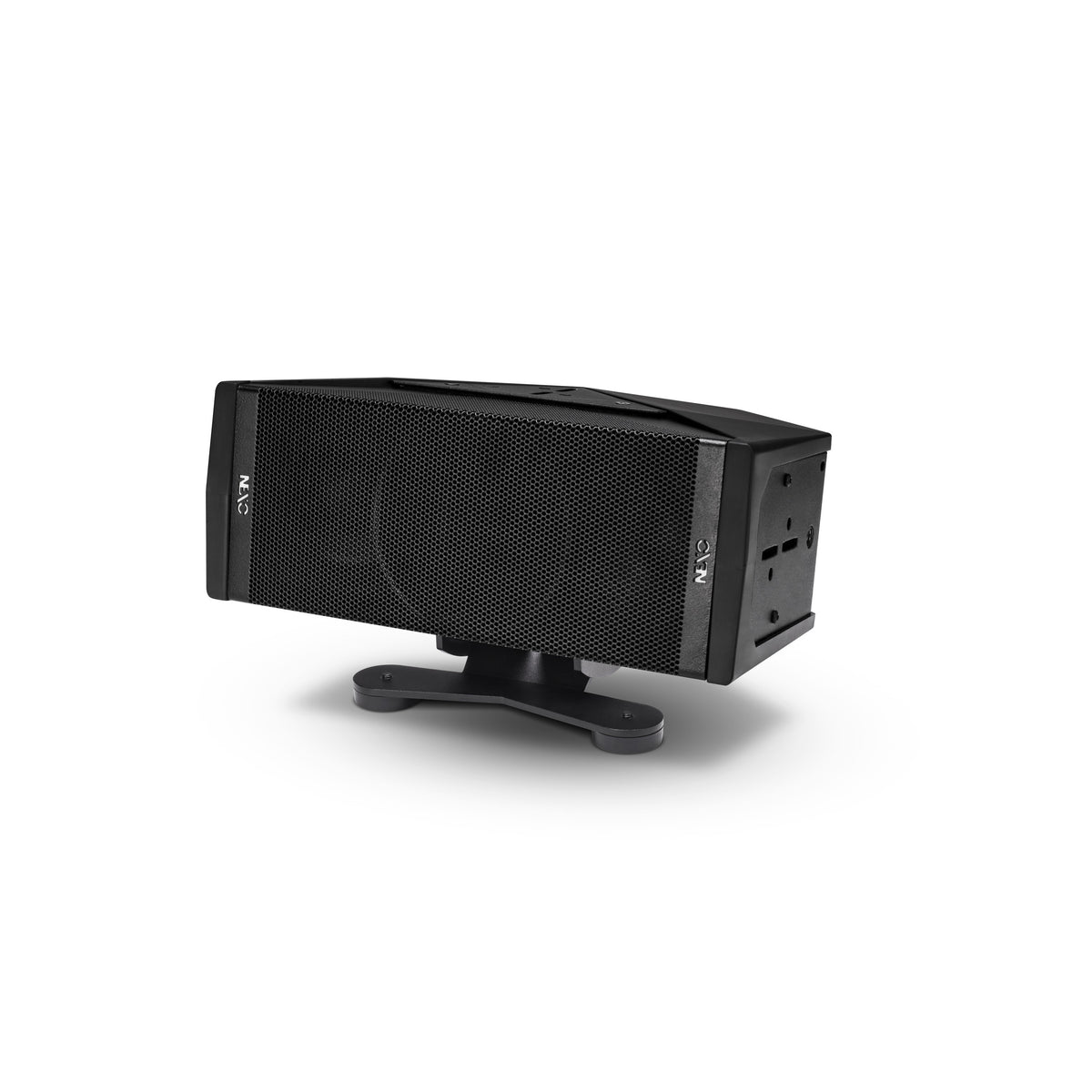

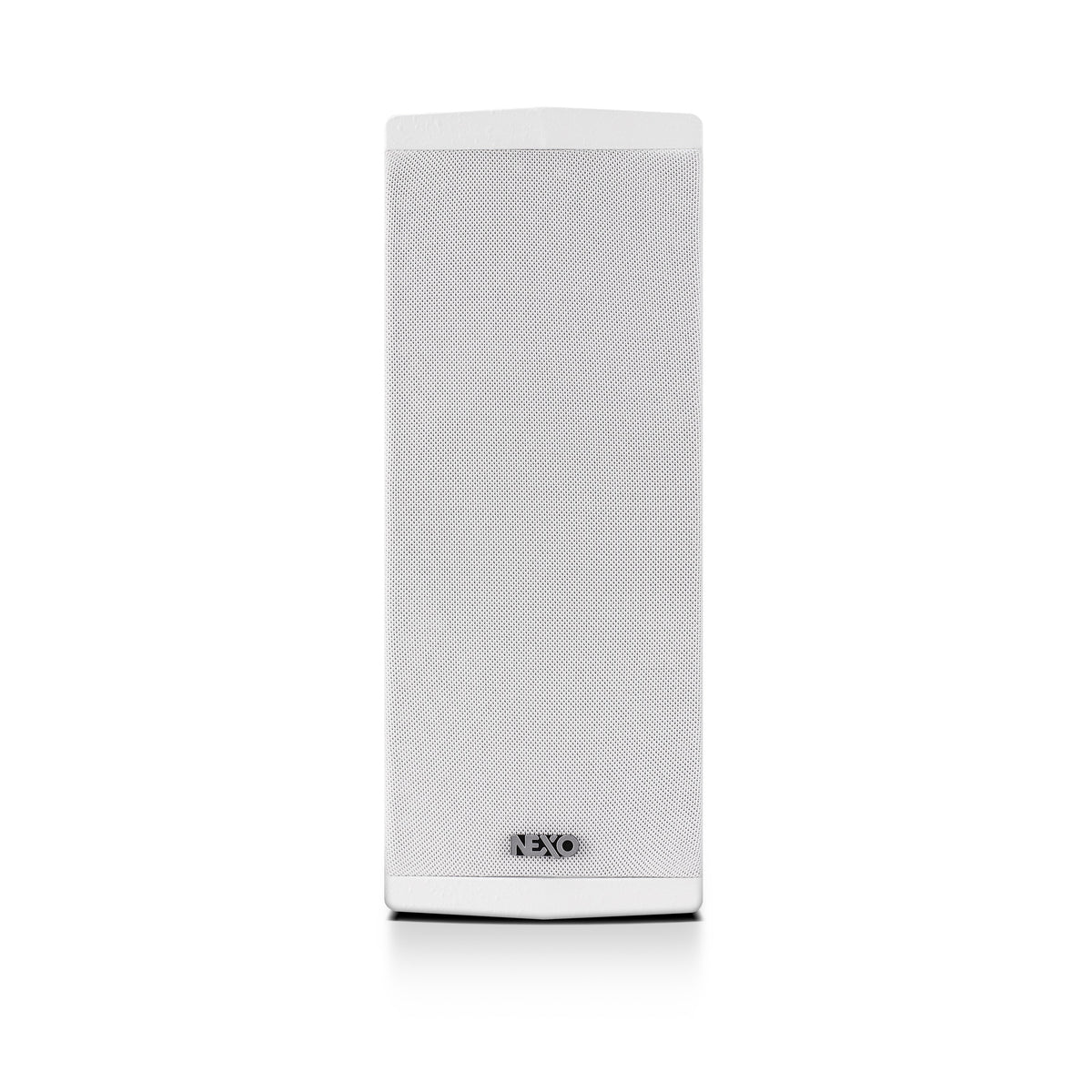

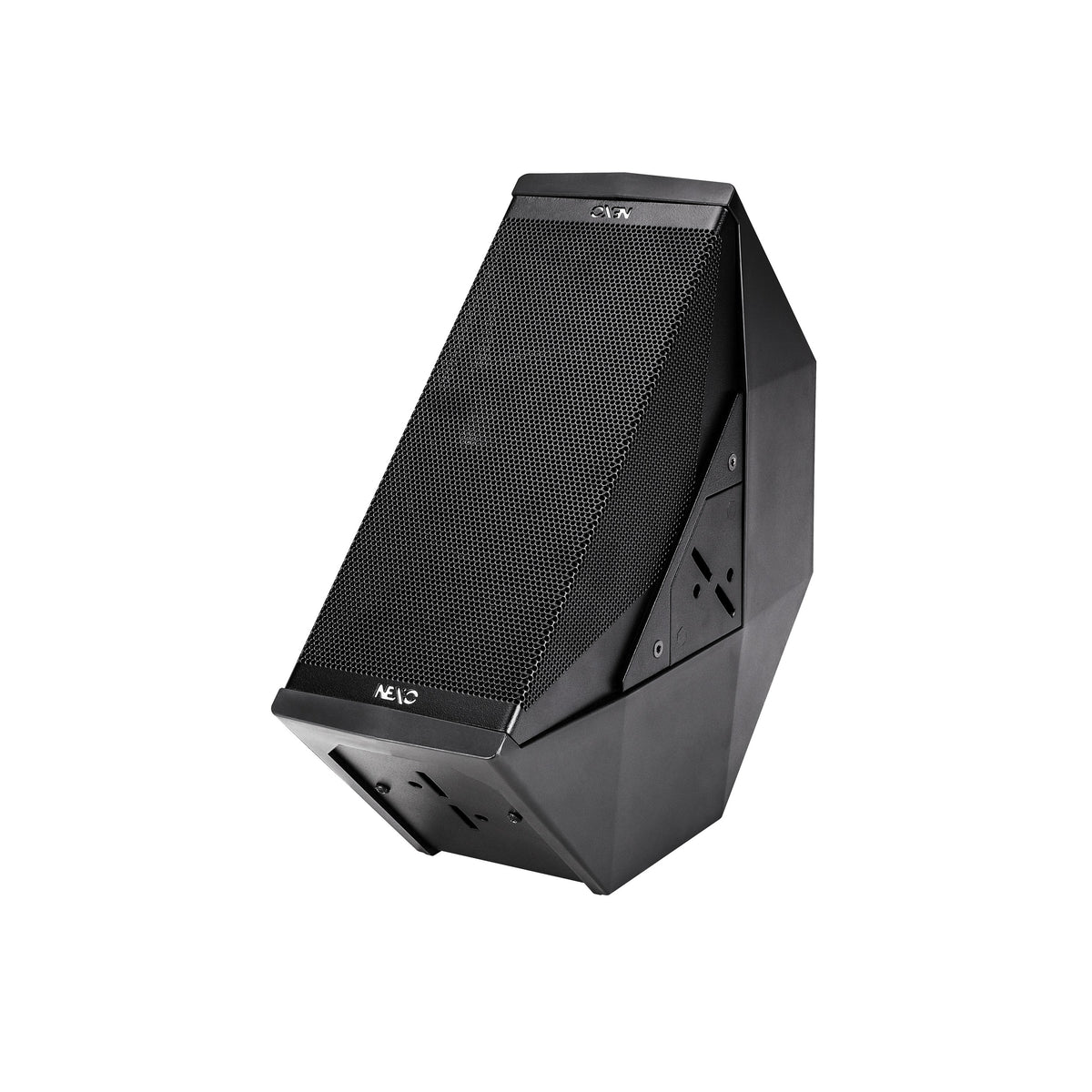

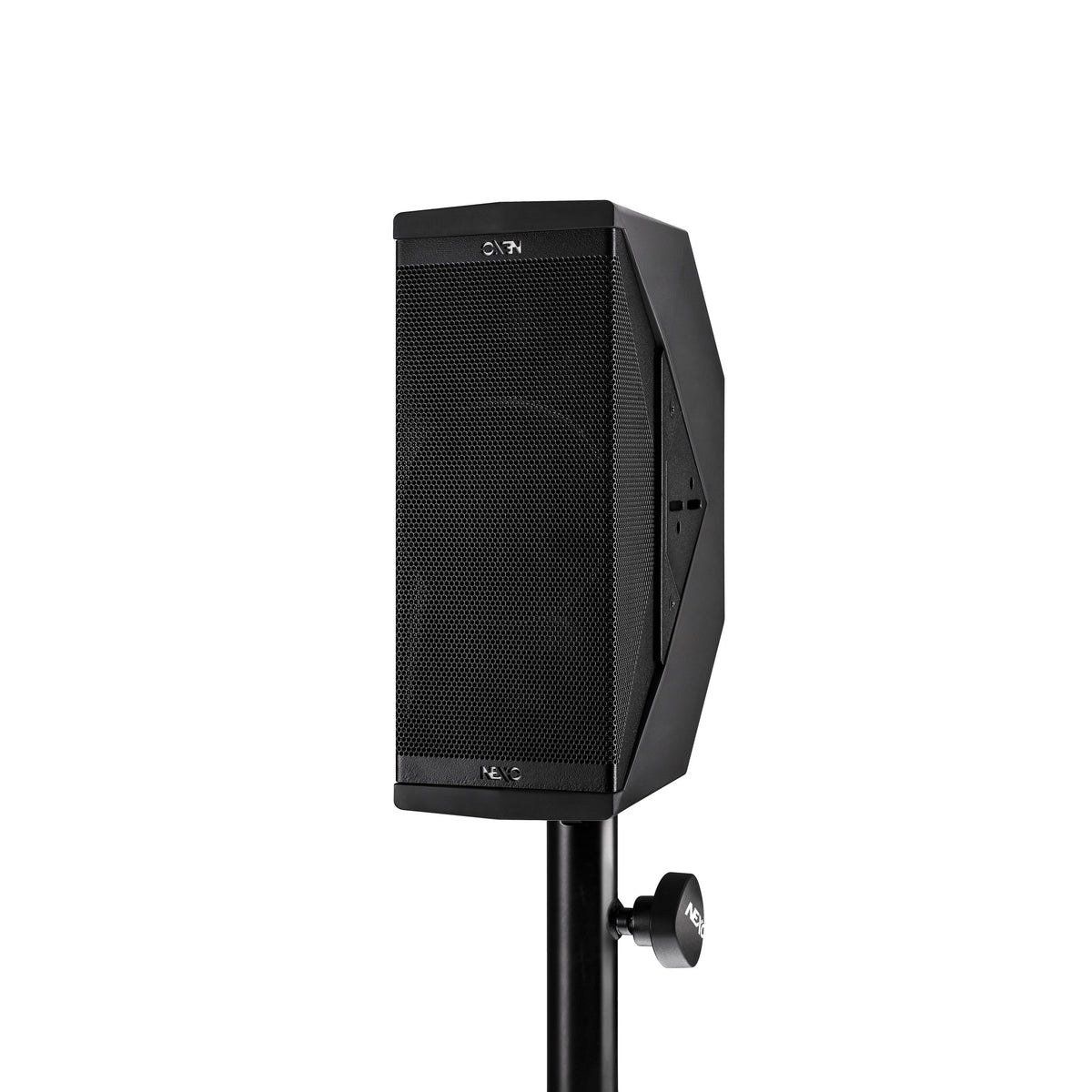

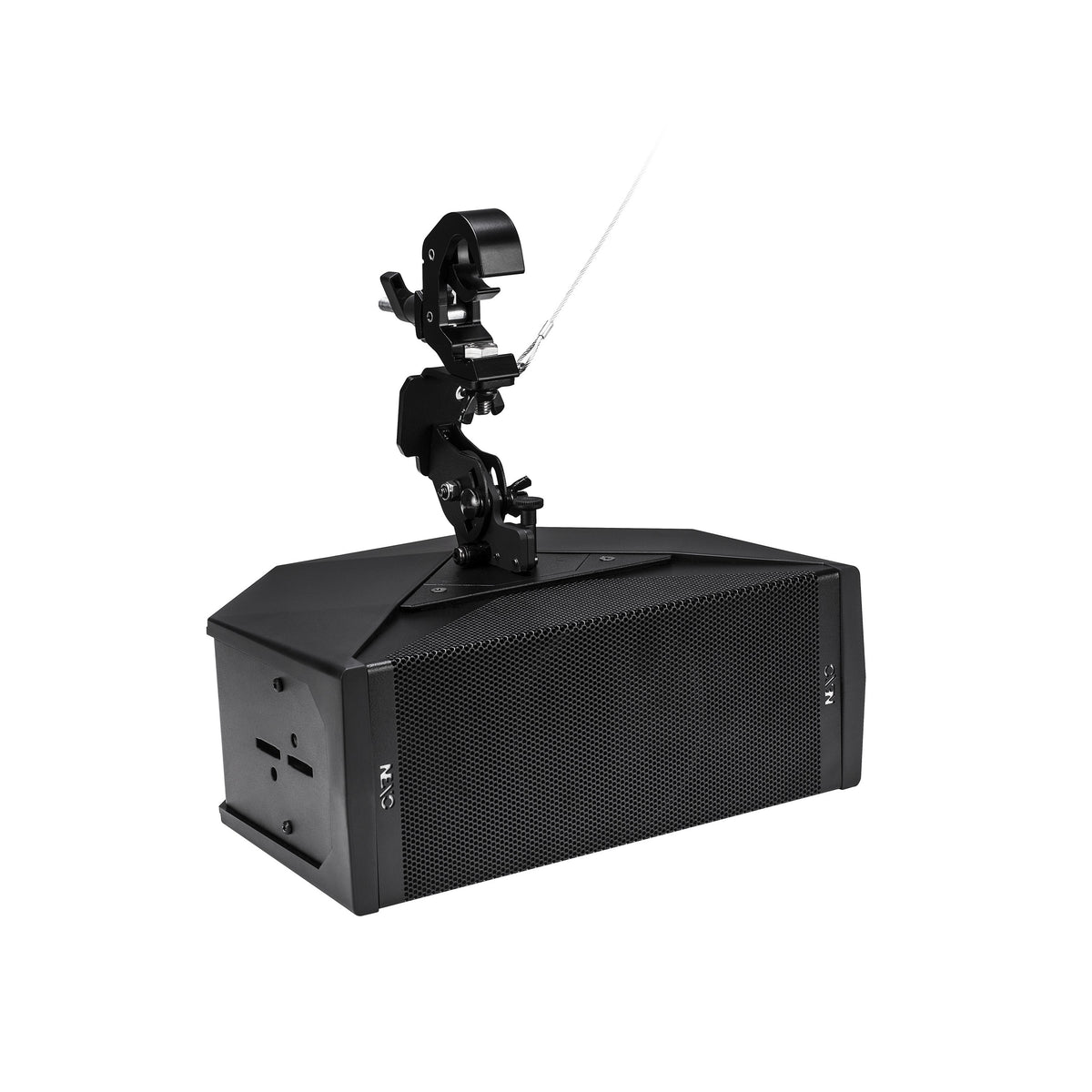

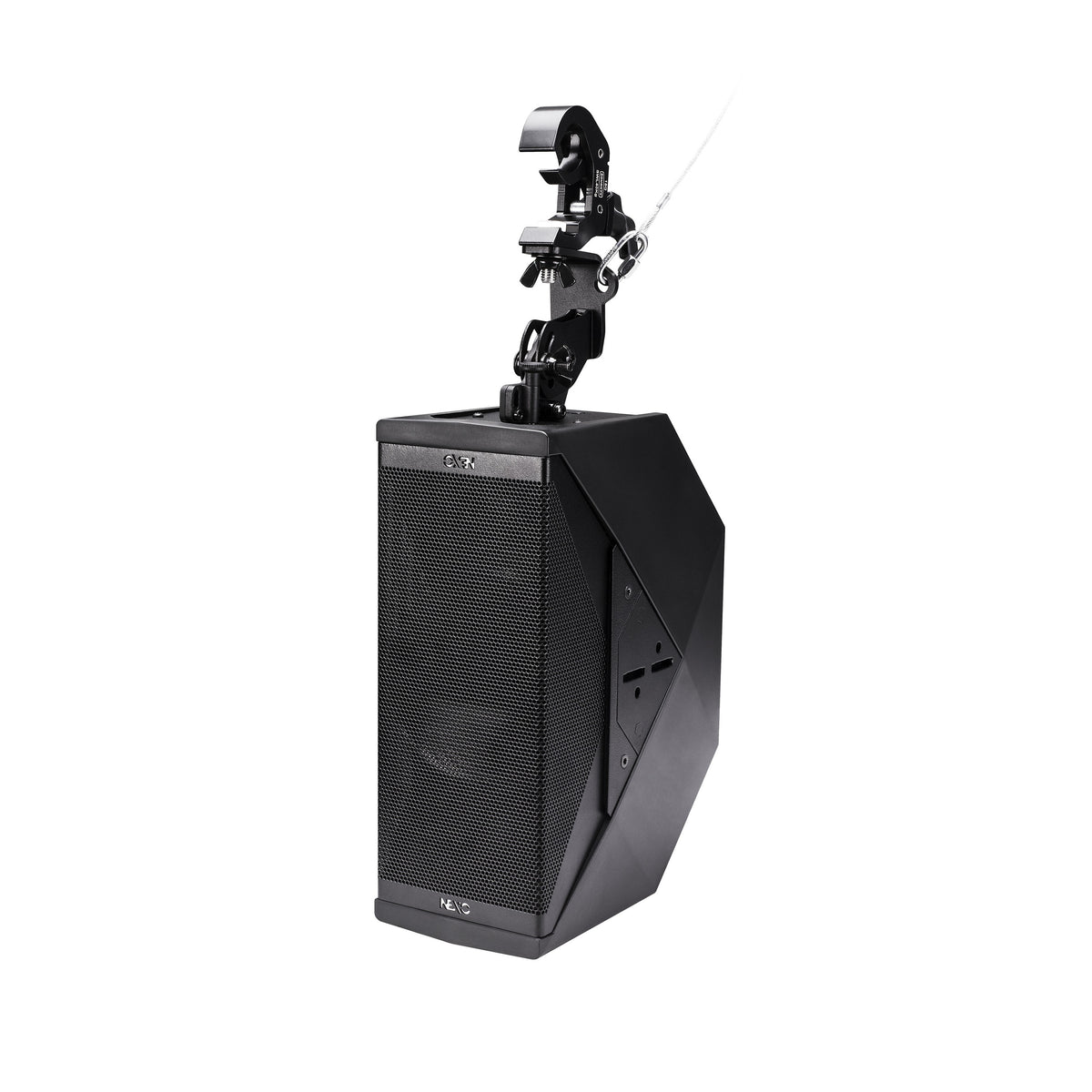

• Available for dedicated Install and Touring ID24 versions
• 2-year manufacturer warranty
