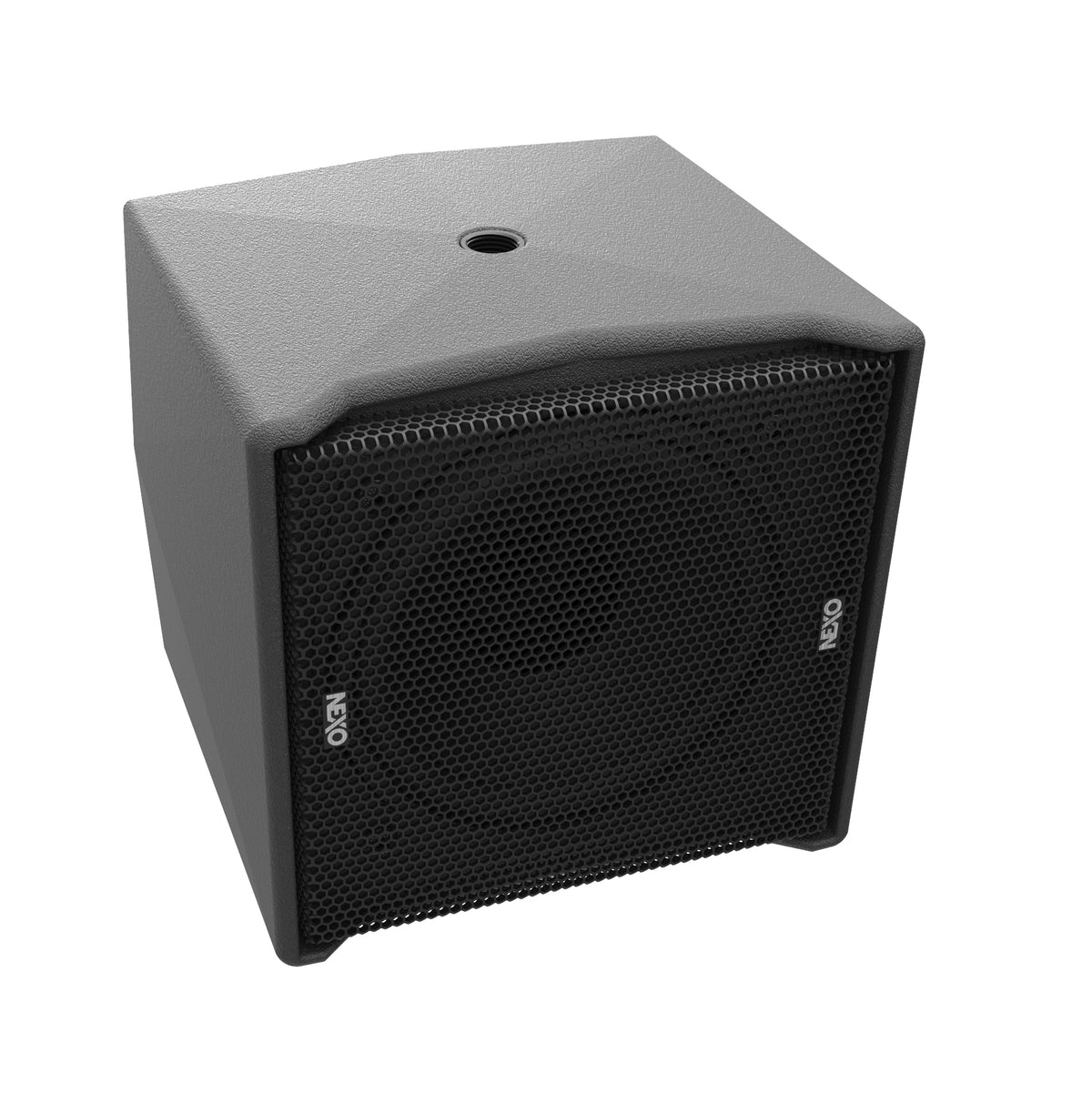

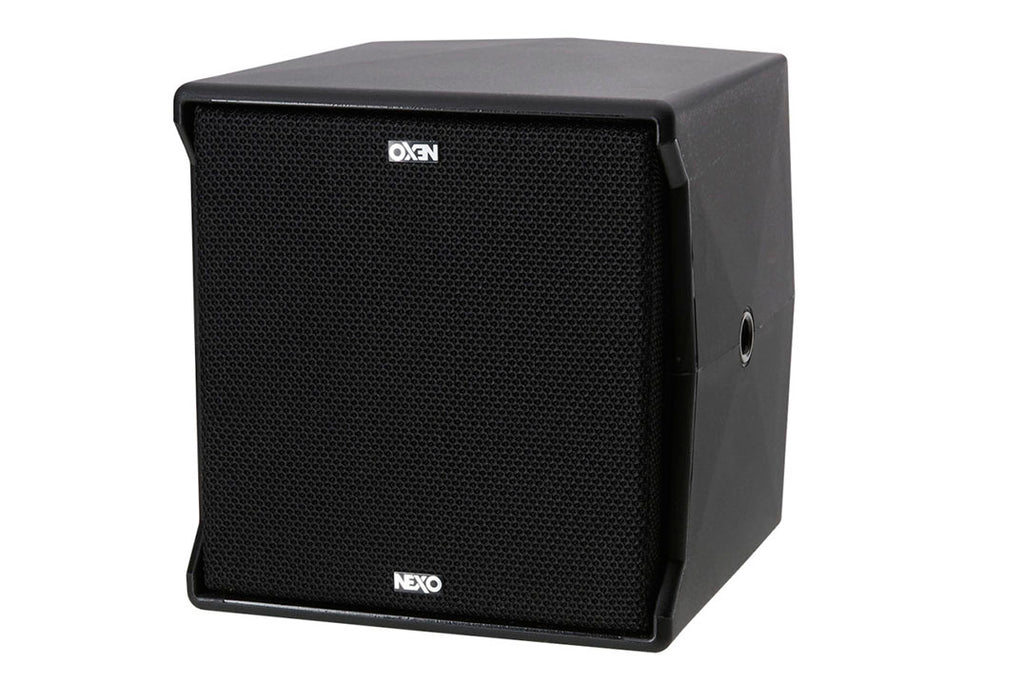

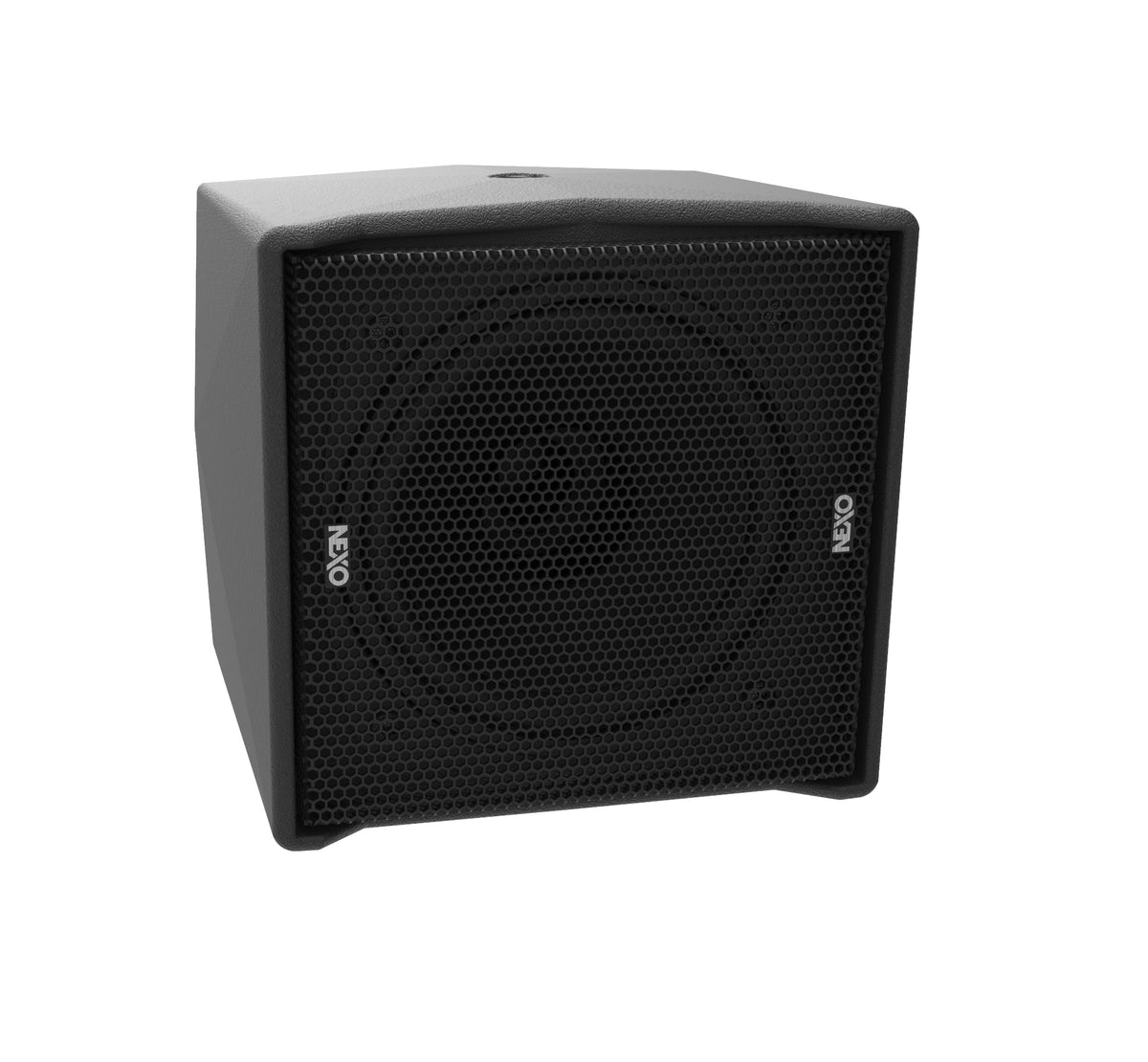

NEXO ID14 4-inch Coaxial Point Source Loudspeaker, Installation Version

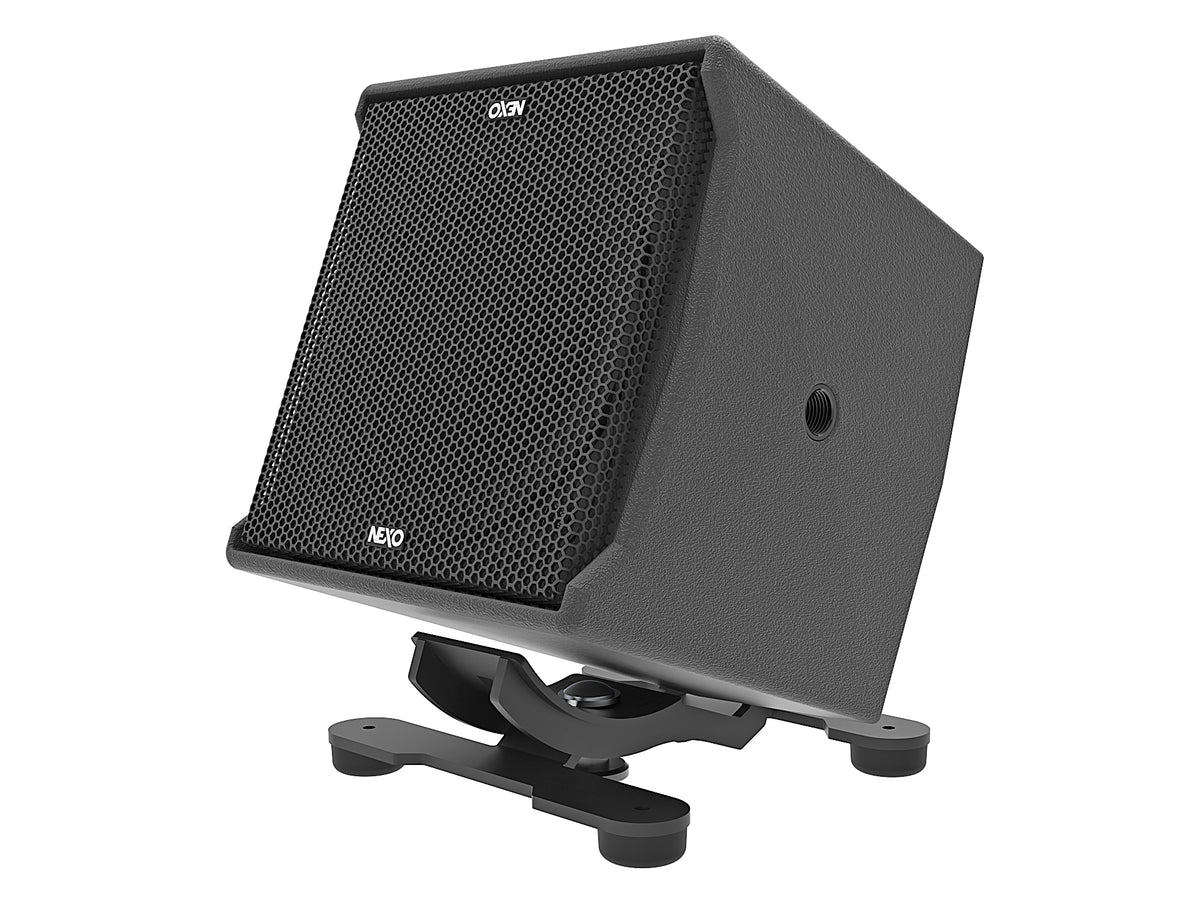

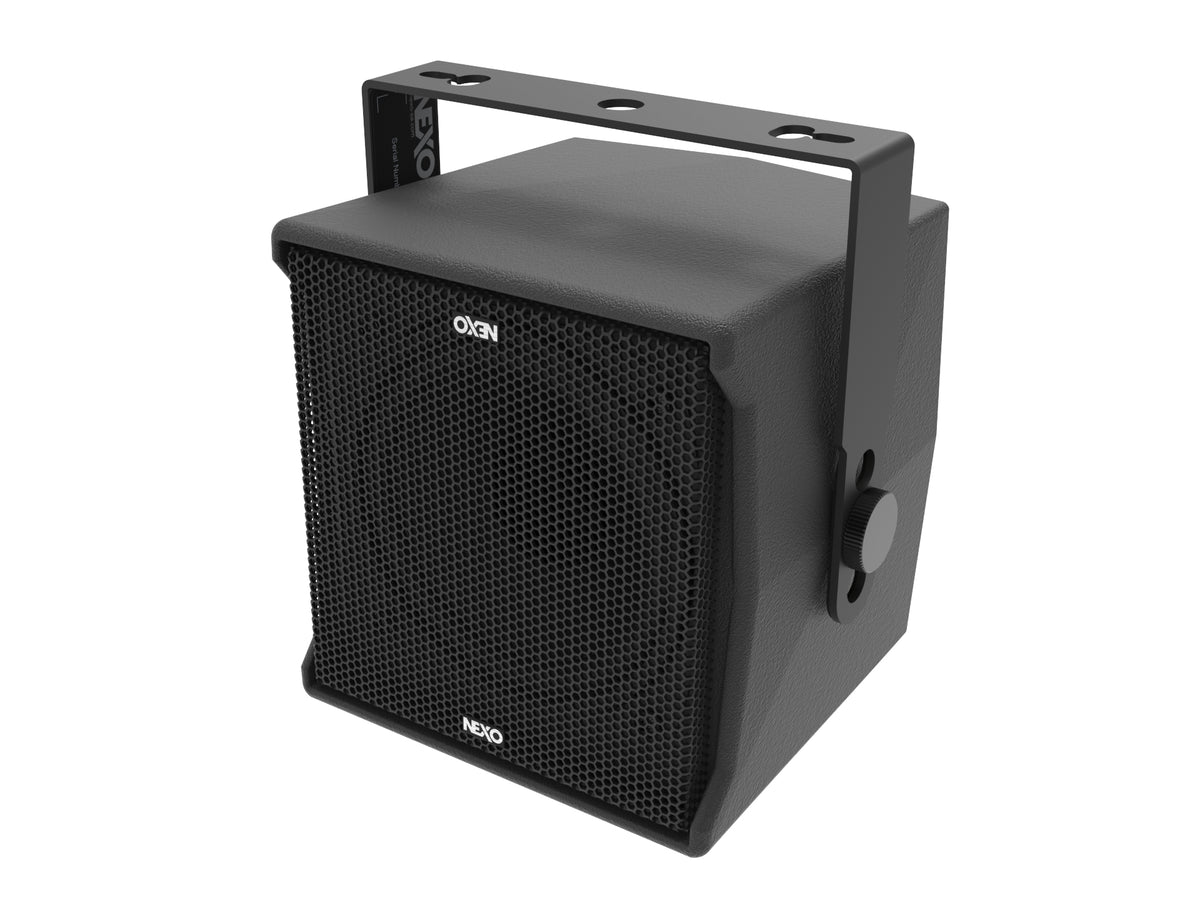

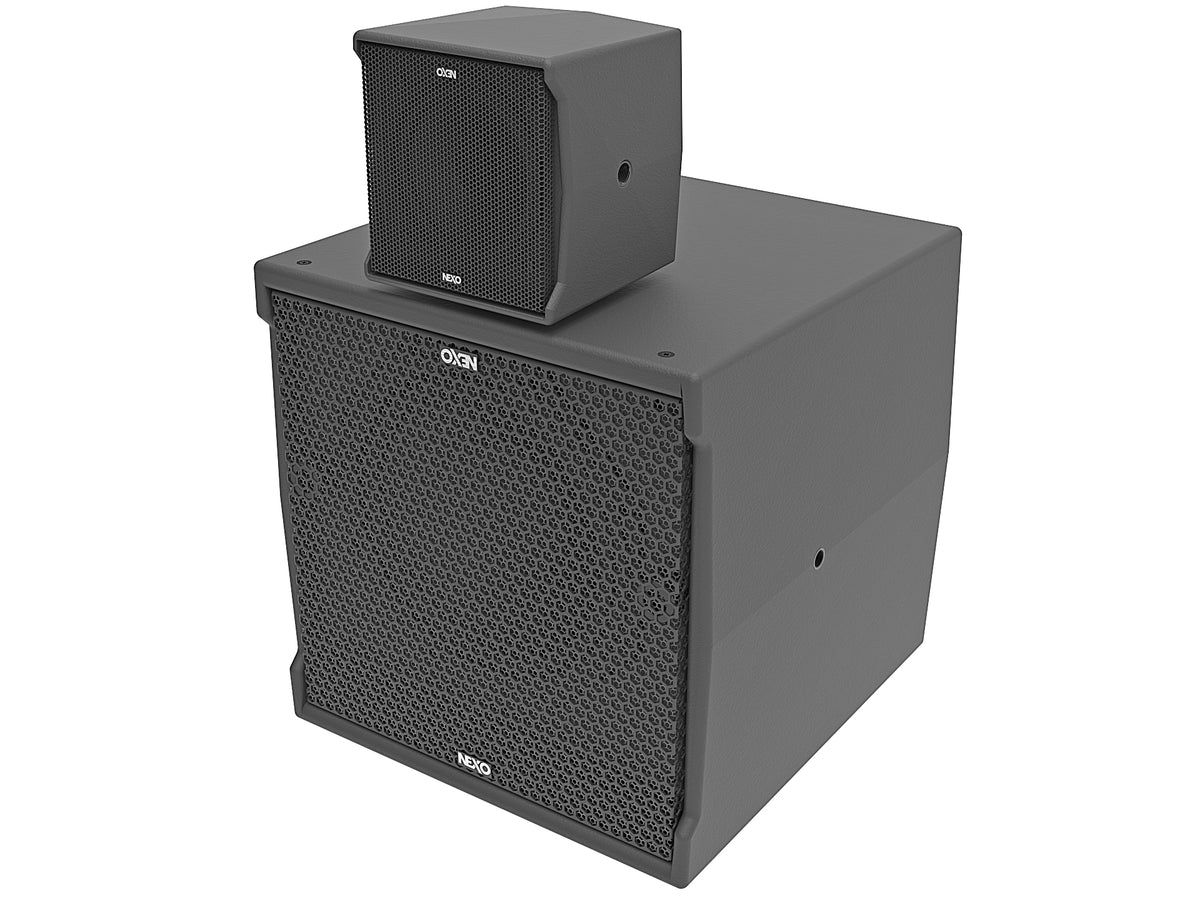

The NEXO ID14 is a compact coaxial point source loudspeaker designed for the installation version of the ID14 range, combining a 4-inch long-excursion neodymium LF driver with a 1.4-inch HF diaphragm in a single coaxial unit. Its 100° x 100° dispersion pattern and IP55-rated polyurethane enclosure make it suitable for standalone use, distributed systems, or as front-fill, in-fill, or delay elements within a larger main system.

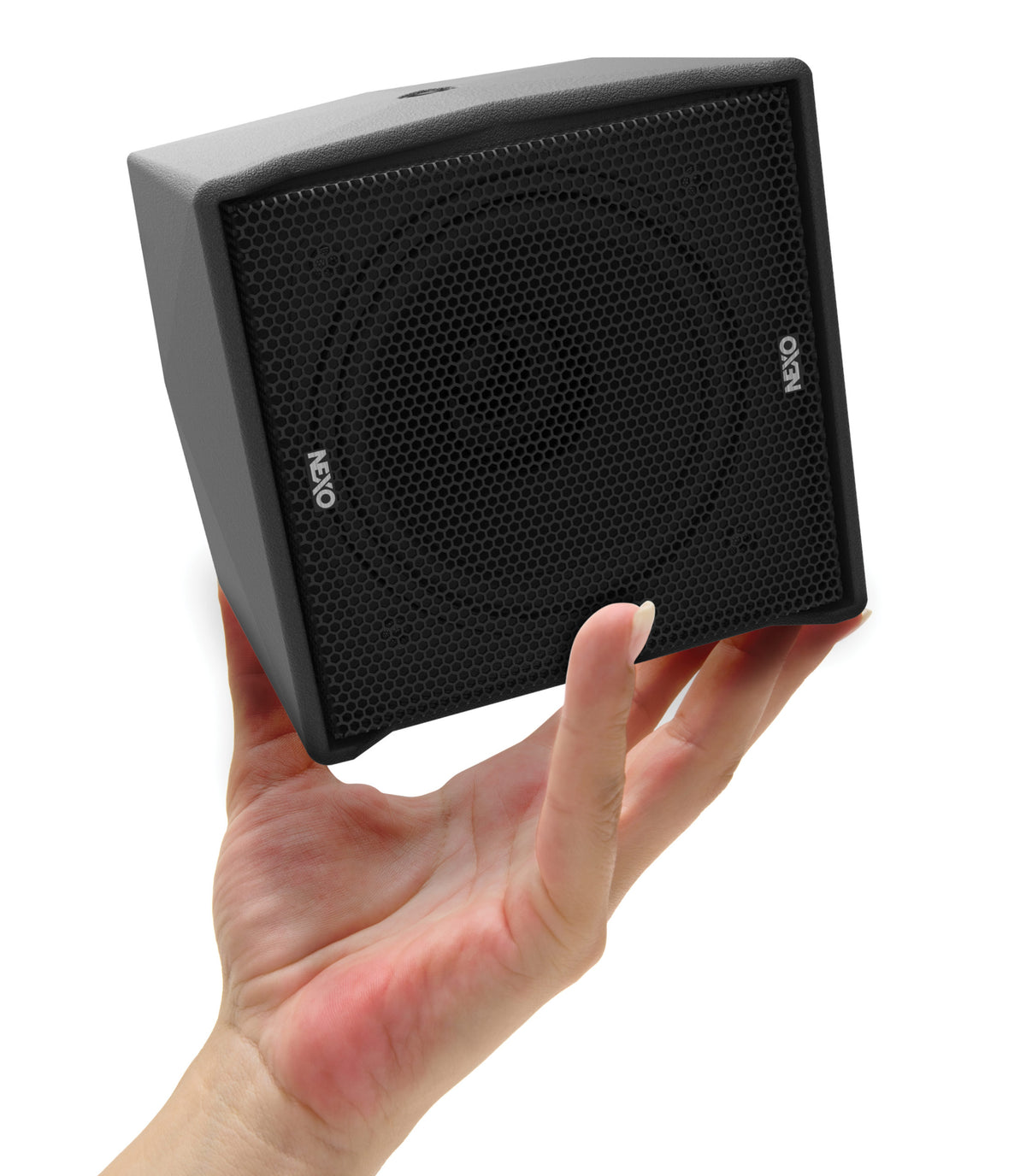

Despite its lightweight 1.7 kg design, the ID14 delivers up to 116 dB peak SPL with a sensitivity of 95 dB, operating across a frequency response of 120 Hz – 20 kHz (-6 dB) at 16 ohm nominal impedance and a recommended power of up to 180 W.

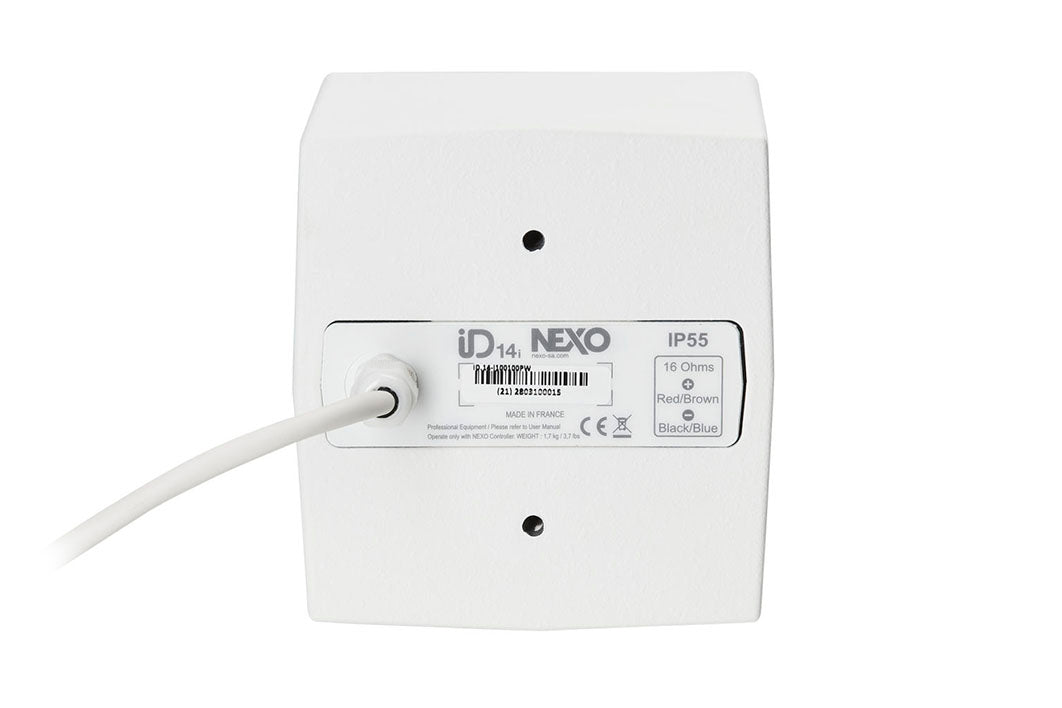

The installation version connects via a single cable gland with 2-core cable and is compatible with NXAMP4x1 mk2 Powered TDcontroller or DTDcontroller with DTDAMP amplifiers for flexible system control. The unit is backed by a 5-year warranty and rated for operation between 0°C and 40°C.

• 116 dB max SPL, 95 dB sensitivity
• 100° x 100° dispersion
• IP55-rated polyurethane enclosure
• 1.7 kg, 130 x 130 x 120 mm
• 5-year warranty
