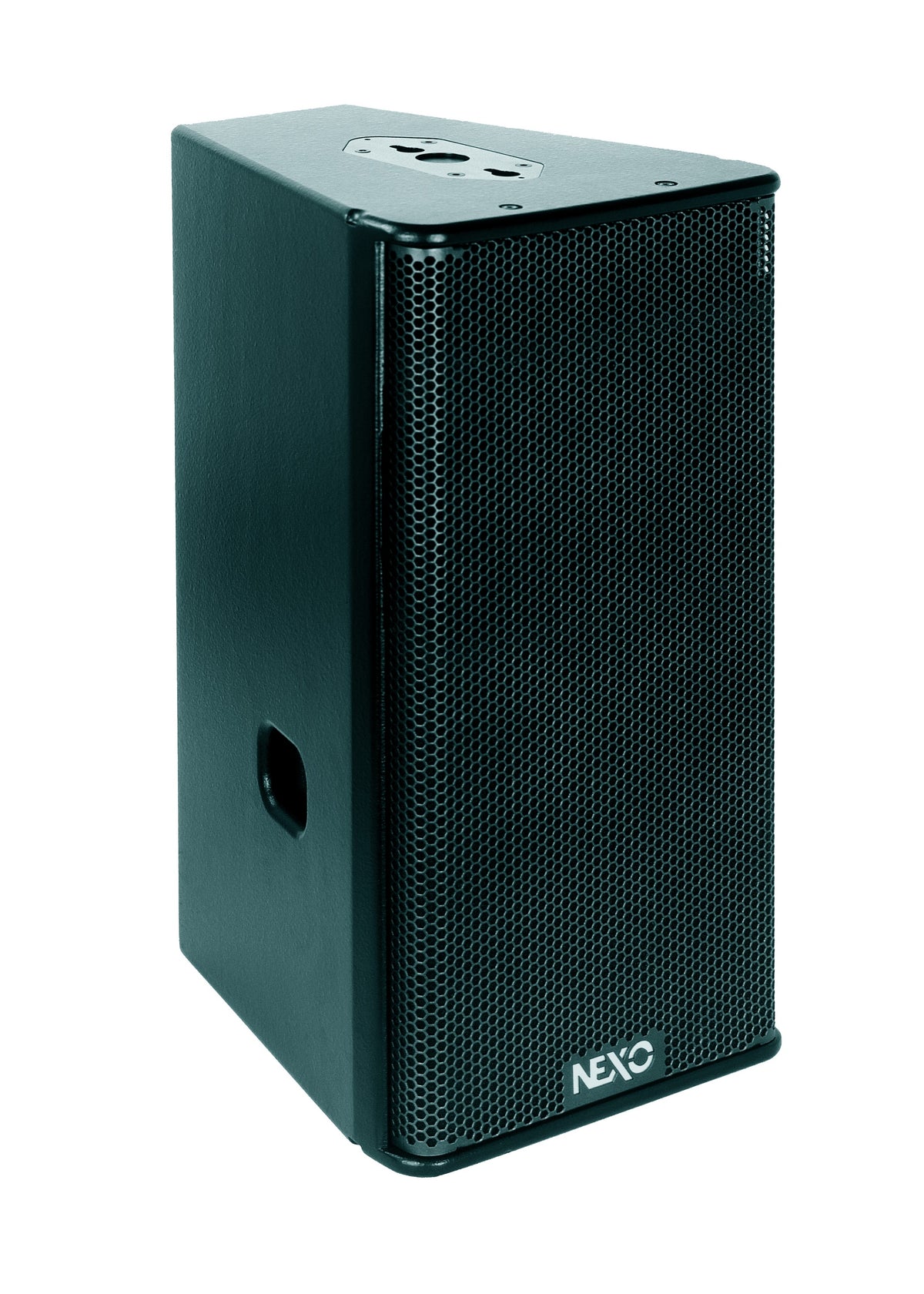

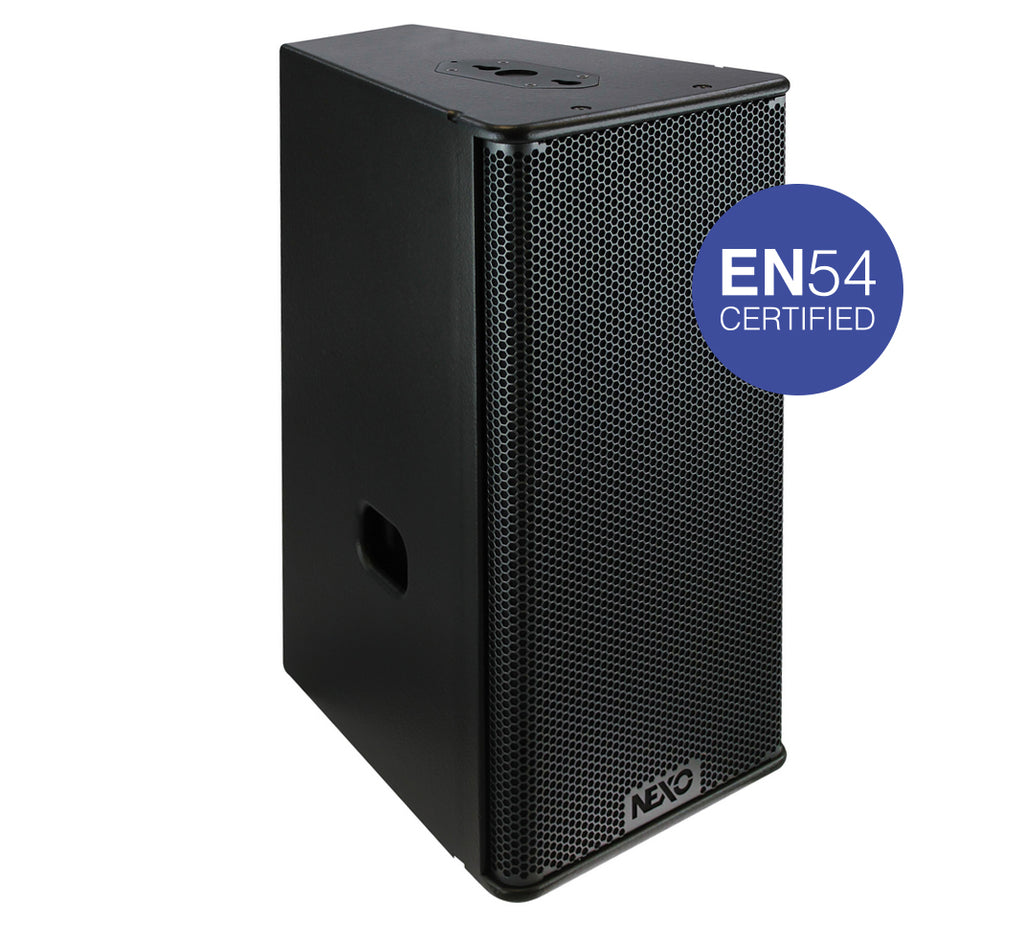

NEXO GEOS1230-EN54 12-inch 2-Way Horn-Loaded Loudspeaker, Black

The NEXO GEOS1230-EN54 is a 12-inch, 2-way horn-loaded loudspeaker cabinet built to EN54 specifications, designed for high-output, long-throw applications such as stadiums and other large-scale venues.

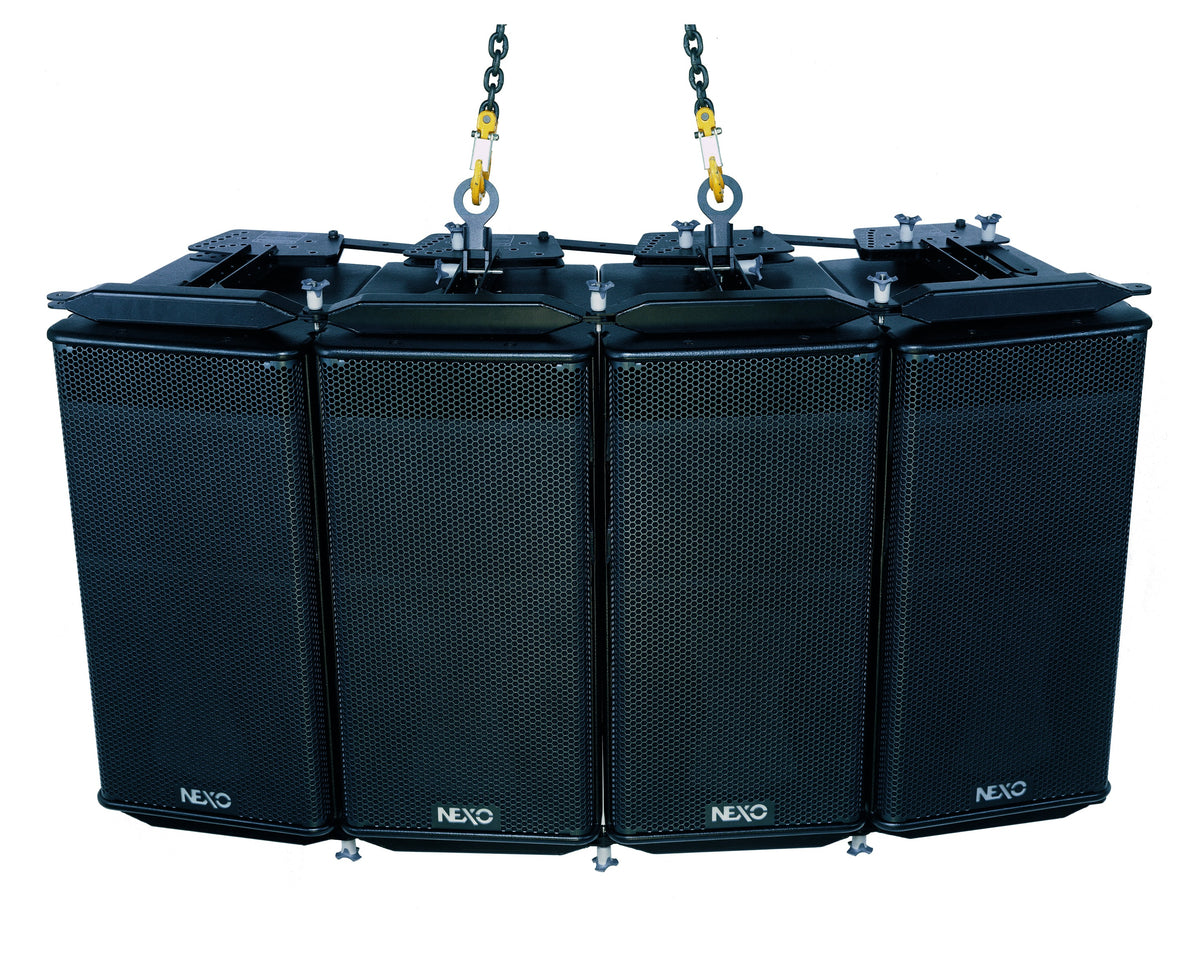

The cabinet combines a 3-inch voice coil, 1.4-inch throat 16Ω neodymium compression driver mounted on a 5° hyperboloid reflective wavesource with a 12-inch (30cm) high-excursion neodymium woofer, delivering a frequency response of 53Hz – 19kHz ±3dB, 105dB sensitivity and a maximum SPL of 135dB. Horizontal dispersion is configurable between 80° and 120°, with a 28.5° coupling plane for coherent wave propagation across multiple cabinets.

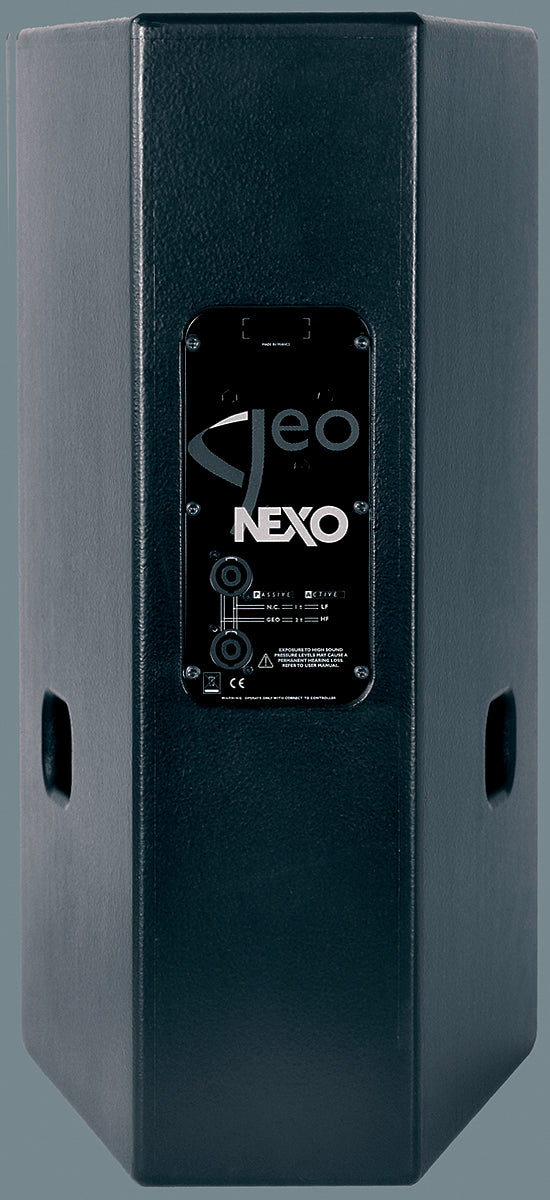

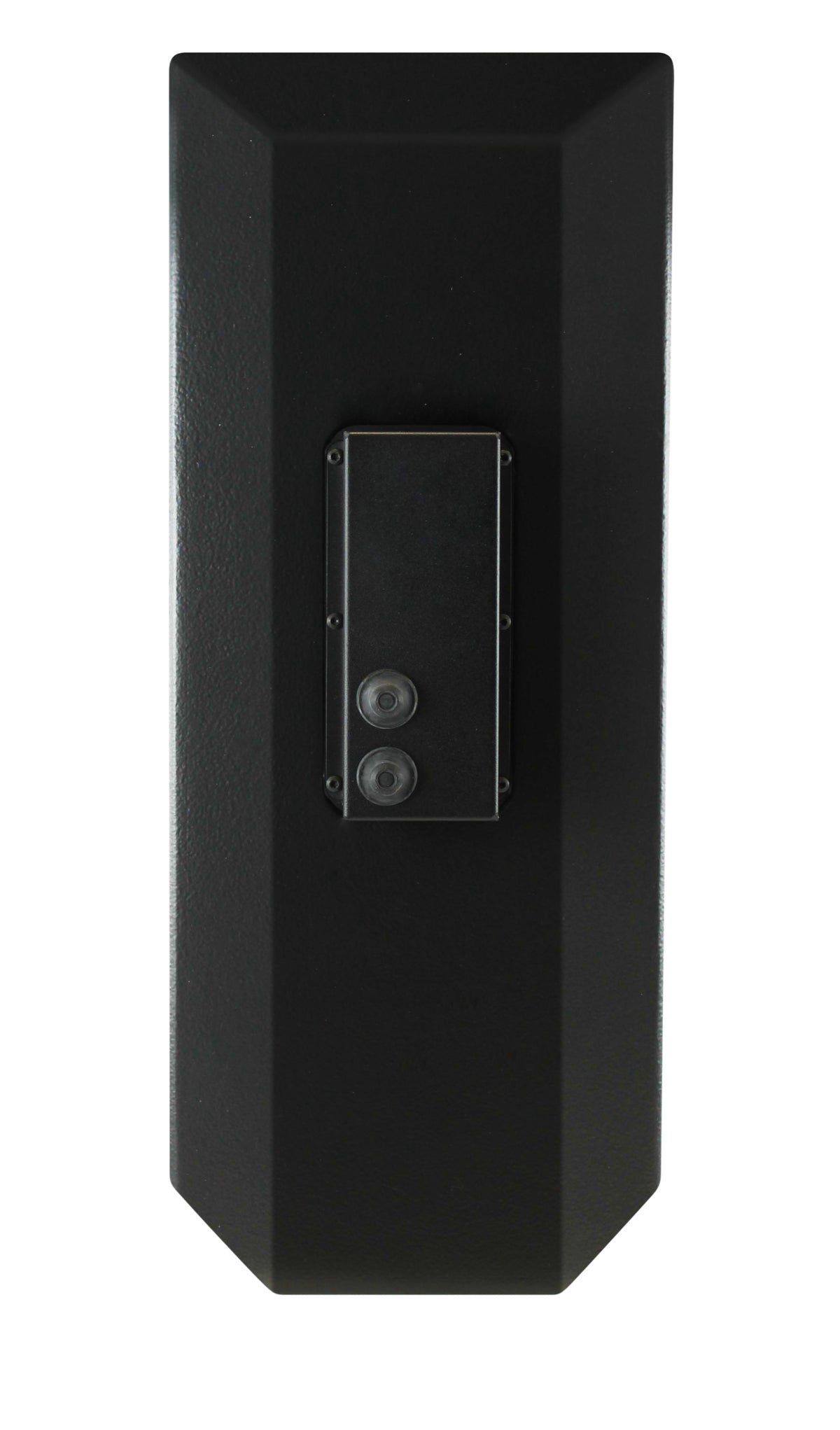

Connectivity is via 2x NL4MP Speakon 4-pole connectors (in and through), with EtherSound network control through NEXO's N242 TDcontroller for system management. The 16Ω cabinet is rated for 1550W recommended power.

Built from Baltic Birch ply with a structured black coating, the GEOS1230-EN54 weighs 26.8kg and measures 675 x 344 x 400mm. It is backed by a 2-year warranty.
