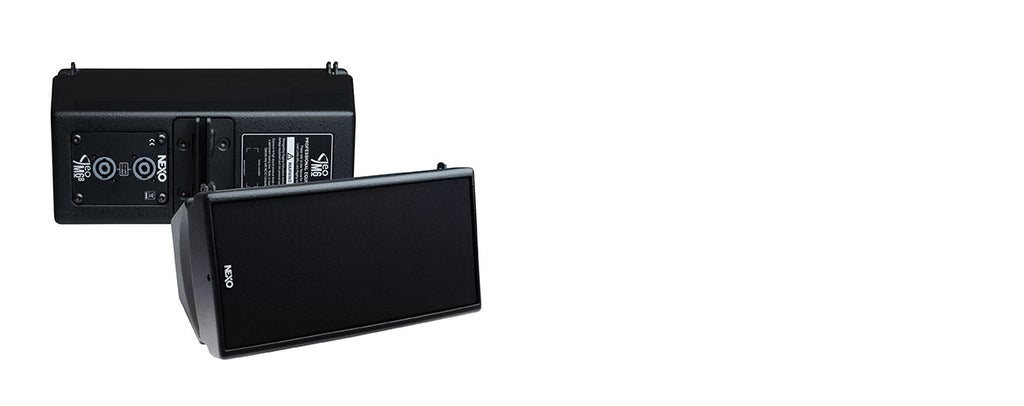

NEXO GEO M6B 6.5-inch Line Array Bass Module

The NEXO GEO M6B is a low and mid-frequency bass module designed as a partner enclosure to the GEO M620, built for applications that demand more powerful reinforcement such as live music and touring sound.

Fitted with a single 6.5-inch 8Ω long-excursion driver, the M6B delivers a usable range of 75Hz–120Hz (±3dB, preset-dependent), a sensitivity of 94dB SPL and a maximum output of 125dB. A flare-shaped port tube increases low-frequency efficiency and linearity at high power.

Weighing just 7.6kg, the M6B shares the same physical footprint as the GEO M620, allowing the two cabinets to be arrayed together in the same column for flexible system design. Connectivity is provided via 2x NL4 Speakon 4-pole inputs, and the cabinet is constructed from a lightweight polyurethane composite.

• 1 x 6.5-inch 8Ω long-excursion driver
• Frequency response: 75Hz–120Hz ±3dB
• Max SPL: 125dB
• Recommended power: 450W, 8Ω nominal impedance
• Dimensions: 373 x 191 x 260 mm, 7.6kg

Backed by a 2-year manufacturer warranty.
