NEXO GEO M620 6.5-inch Horn-Loaded 2-Way Loudspeaker

The NEXO GEO M620 is a compact full-range loudspeaker designed for stand-alone use, curved arrays or line array configurations, suited to both fixed installations and mobile touring applications.

It combines a 6.5-inch neodymium long-excursion LF driver with a 1-inch HF throat driver mounted on NEXO's patented HR Wavesource horn, delivering a frequency response of 80 Hz – 19 kHz ±3 dB and a maximum SPL of 127 dB. Horizontal dispersion is switchable between 80° and 120°, with 20° vertical coverage, and enclosures can be arrayed with 0° to 20° splay.

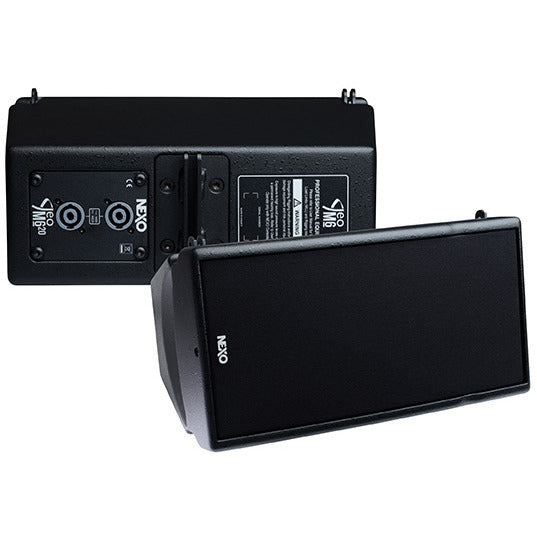

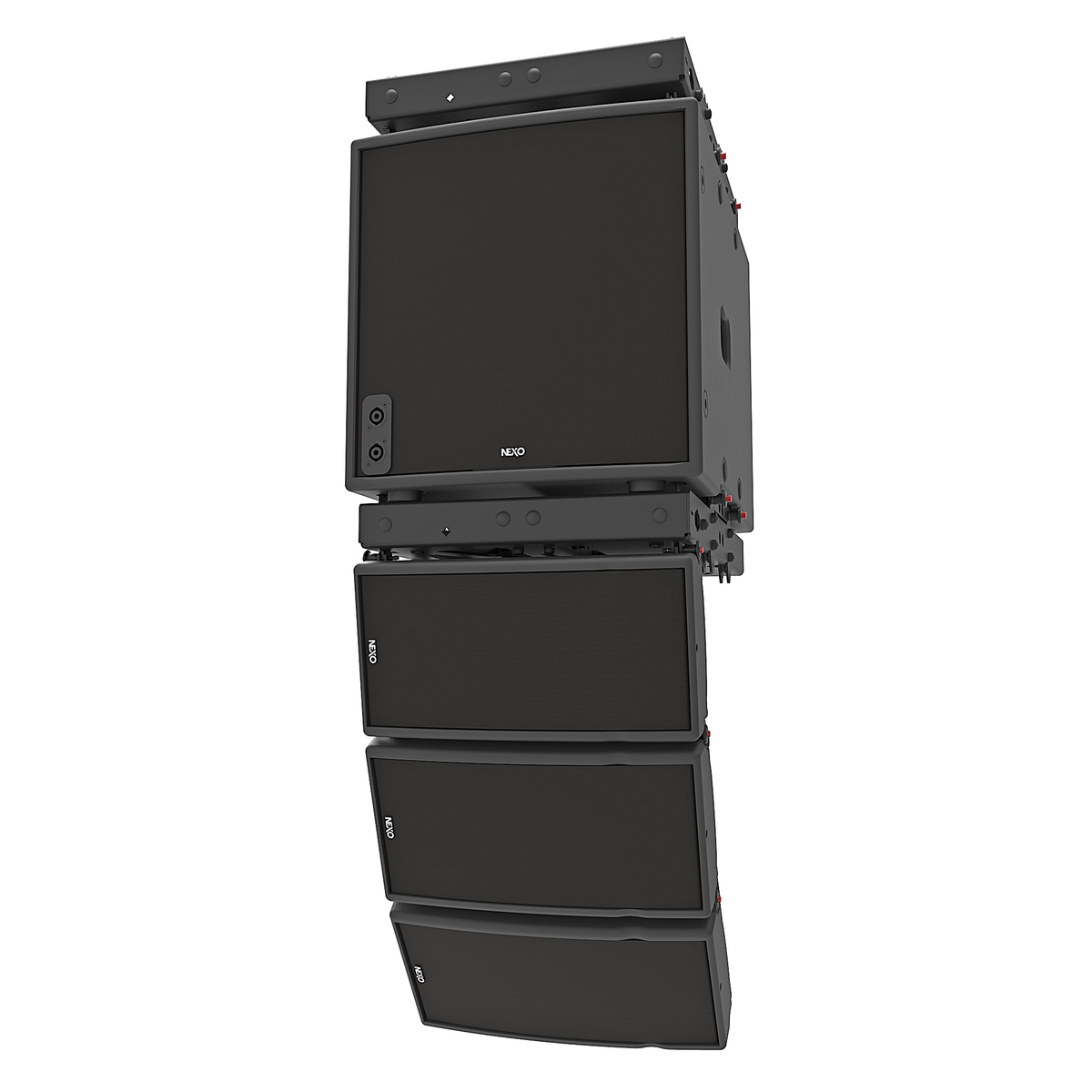

The cabinet connects via 2x NL4 Speakon 4-pole inputs and is managed through the NEXO TDController system, offering channel-by-channel preset selection. A fully-integrated 3-point rigging system allows the GEO M620 to be flown, ground-stacked or pole-mounted on subwoofers.

• 6.5-inch neodymium LF driver with 1-inch HF throat driver on HR Wavesource
• Frequency response 80 Hz – 19 kHz ±3 dB, 127 dB max SPL
• 80° or 120° horizontal, 20° vertical dispersion
• 2x NL4 Speakon inputs, 8 Ω nominal impedance, 450 W recommended power
• Lightweight polyurethane composite enclosure, 9.7 kg, 2-year warranty
