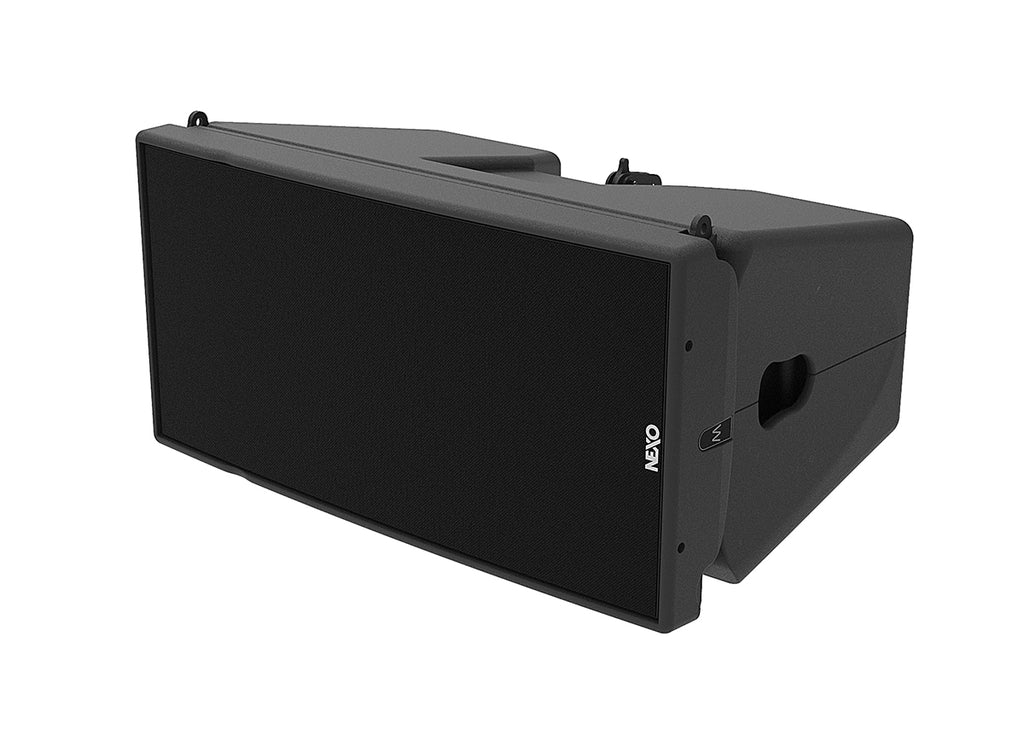

NEXO GEO M1220 12-inch 2-Way Horn-Loaded Line Array Element, Installation Version, White

The NEXO GEO M1220 is a 12-inch, 2-way line array element from the GEO M12 series, designed for permanent installation in venues that need consistent, long-throw sound coverage. This Installation version features an IP54-rated enclosure and is finished in white to suit visible architectural installs.

The cabinet combines a 12-inch 8 Ω long-excursion Neodymium LF driver with PDD and a 3-inch voice coil, 1.4-inch throat HF compression driver mounted on a BEA/FEA optimized HRWavesource waveguide, delivering a sensitivity of 105 dB and a maximum SPL of 140 dB across a 50 Hz to 20 kHz frequency response. Dispersion is 20° vertical and 80° horizontal, extending to 120° horizontal with the optional CDD accessory.

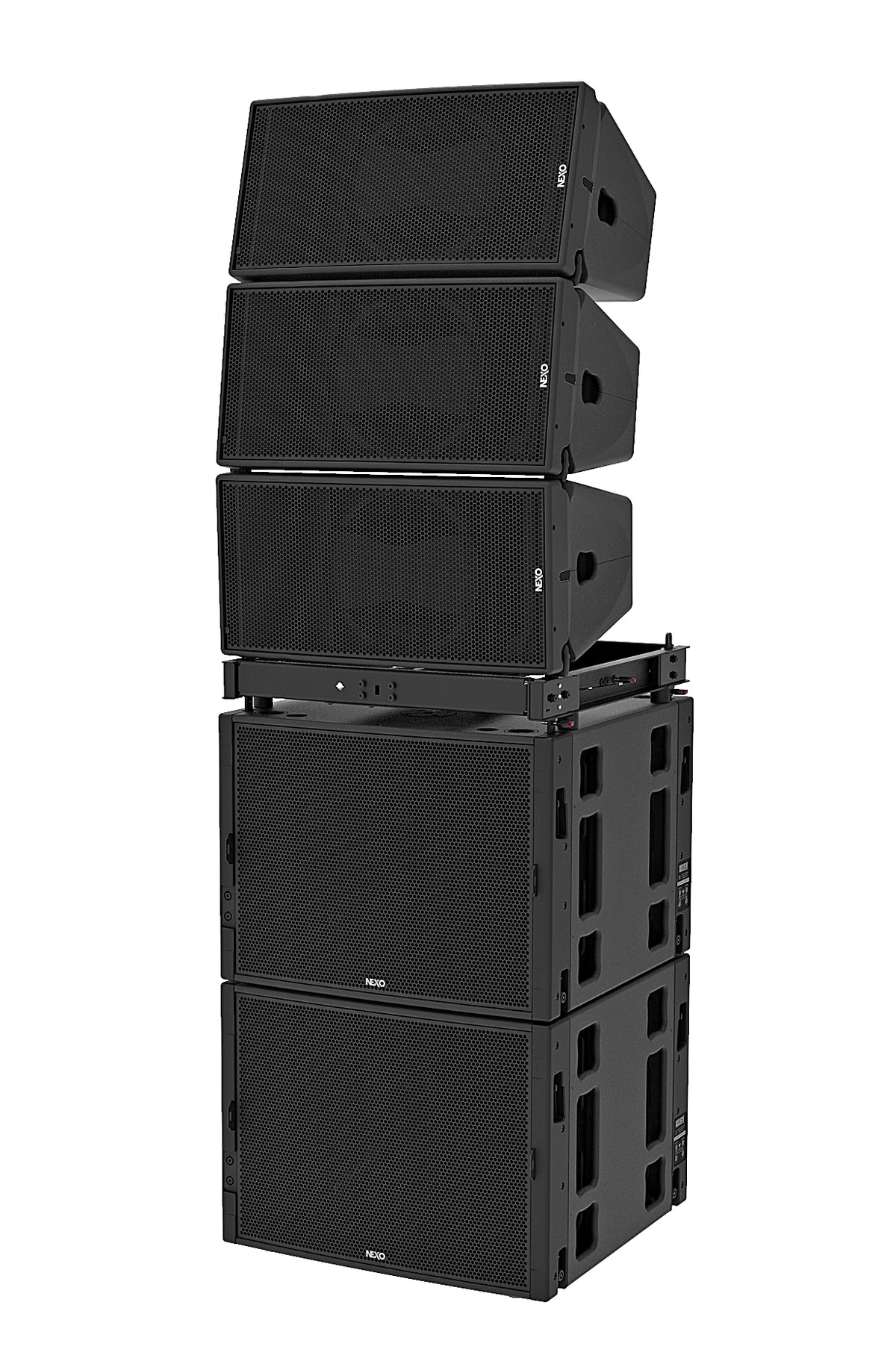

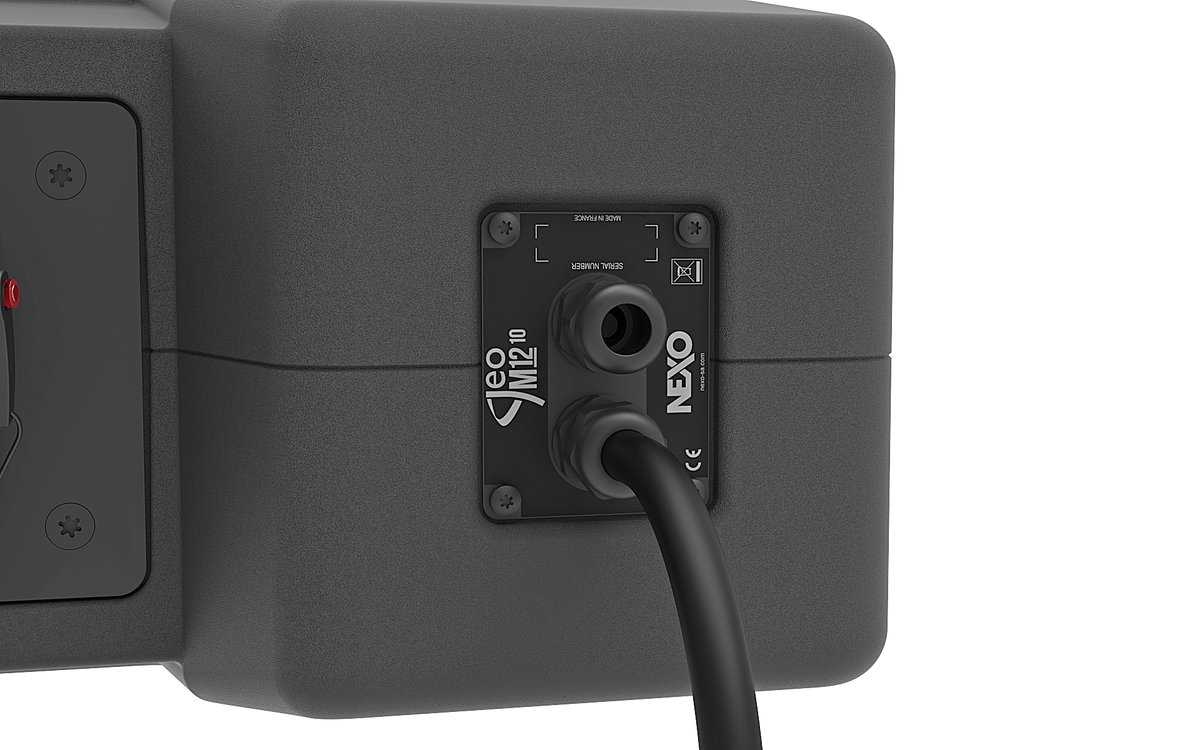

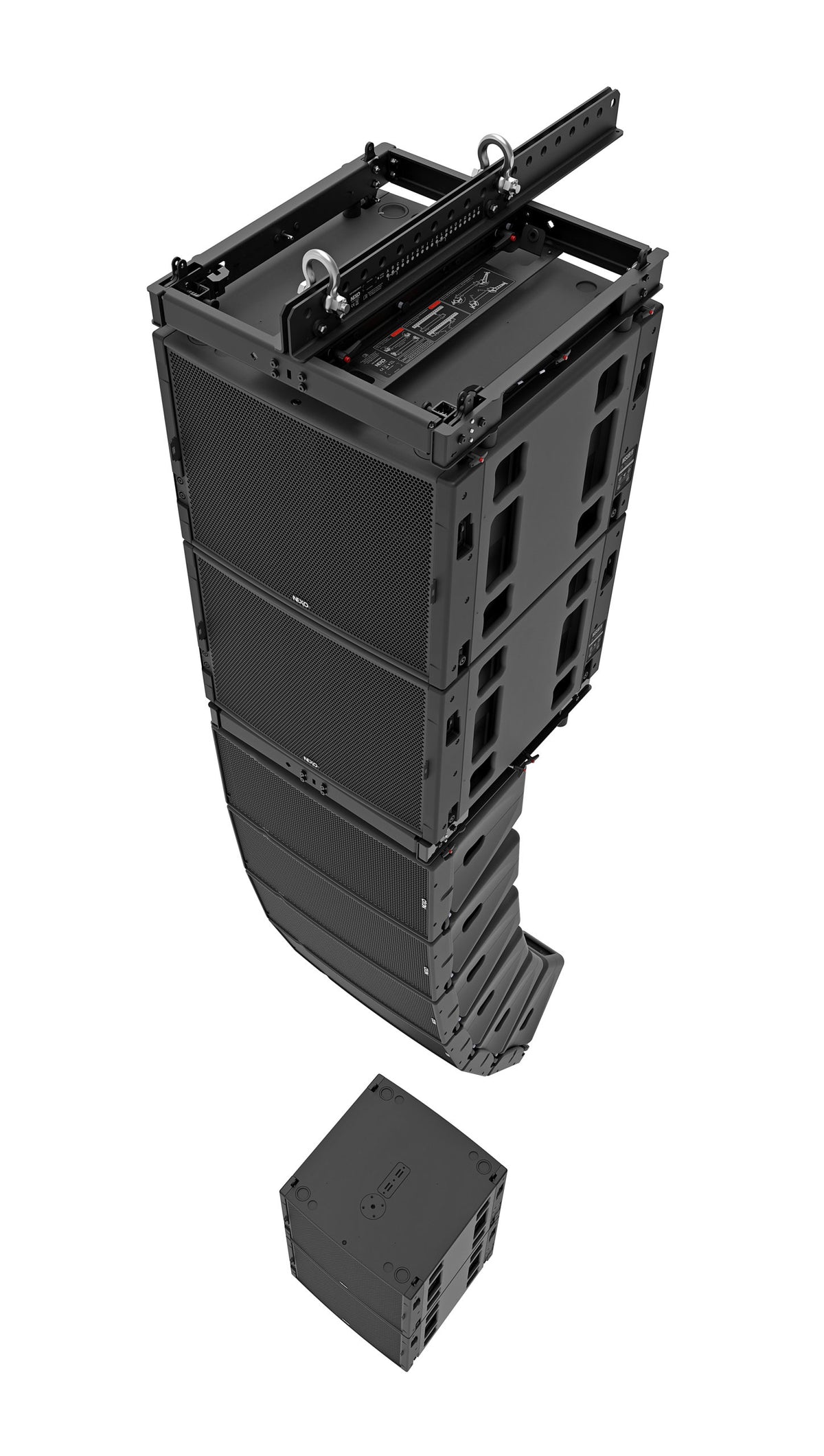

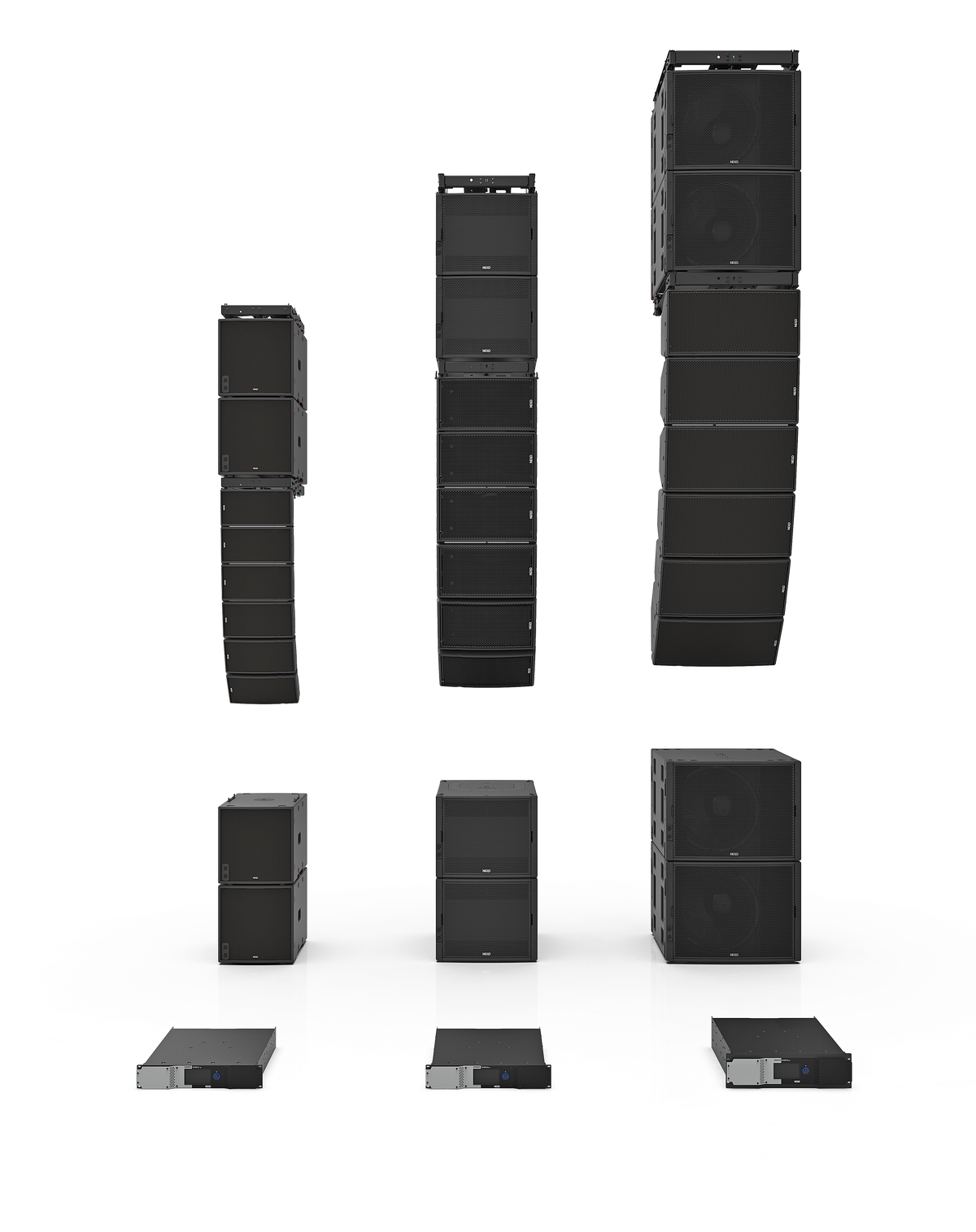

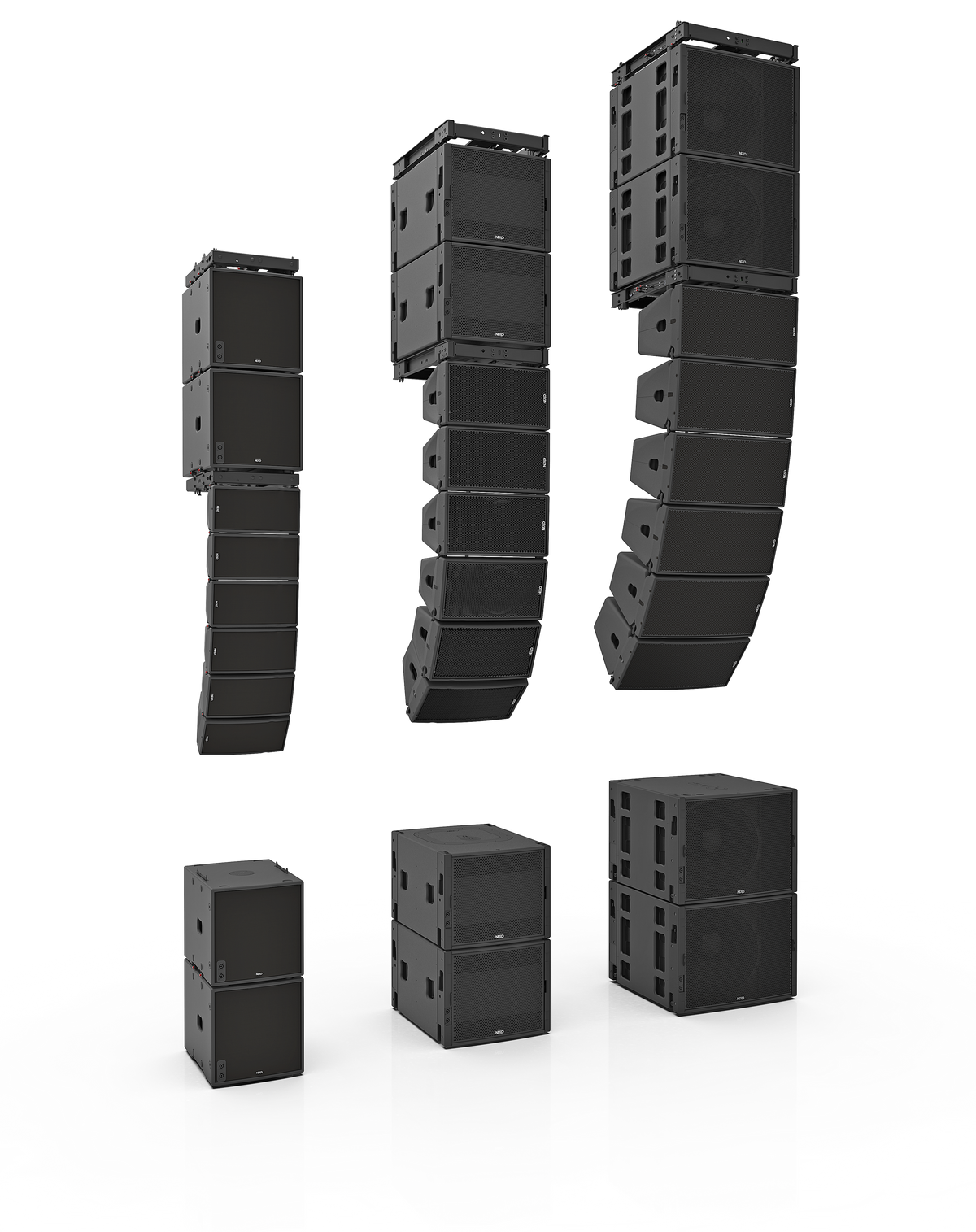

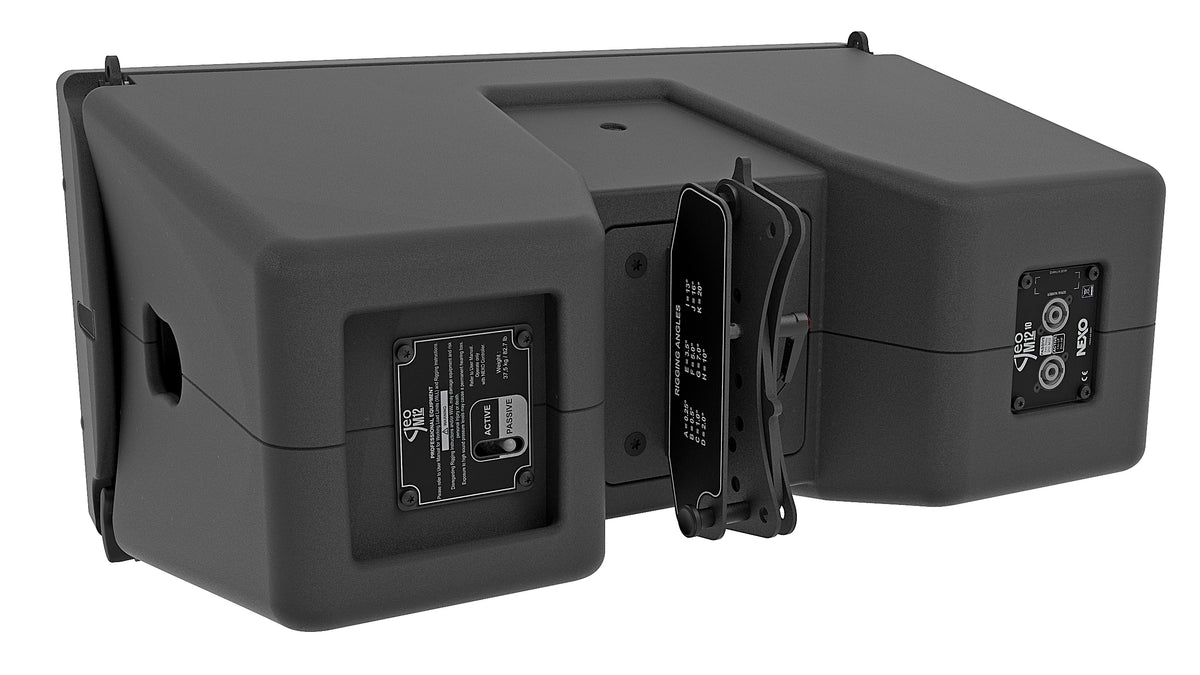

The GEO M1220 can run in active or passive mode, selected via a ruggedized, recessed, waterproof switch, with 2x cable gland connections for Installation-version wiring. Integrated rigging hardware with AutoRig allows the element to be flown or stacked, alone or paired with the companion MSUB18 subwoofer, and the lightweight polyurethane composite enclosure is rated for 0°C to 40°C operation.

• 12-inch Neodymium LF driver + 3-inch voice coil / 1.4-inch throat HF compression driver
• 105 dB sensitivity, 140 dB max SPL
• 20° vertical / 80° (or 120° with CDD) horizontal dispersion
• Active or passive operation, IP54-rated Installation version
• 700 x 370 x 446 mm, 34 kg, 5-year warranty
