NEXO GEO M1210 12-inch 2-Way Line Array Element, Installation Version, White

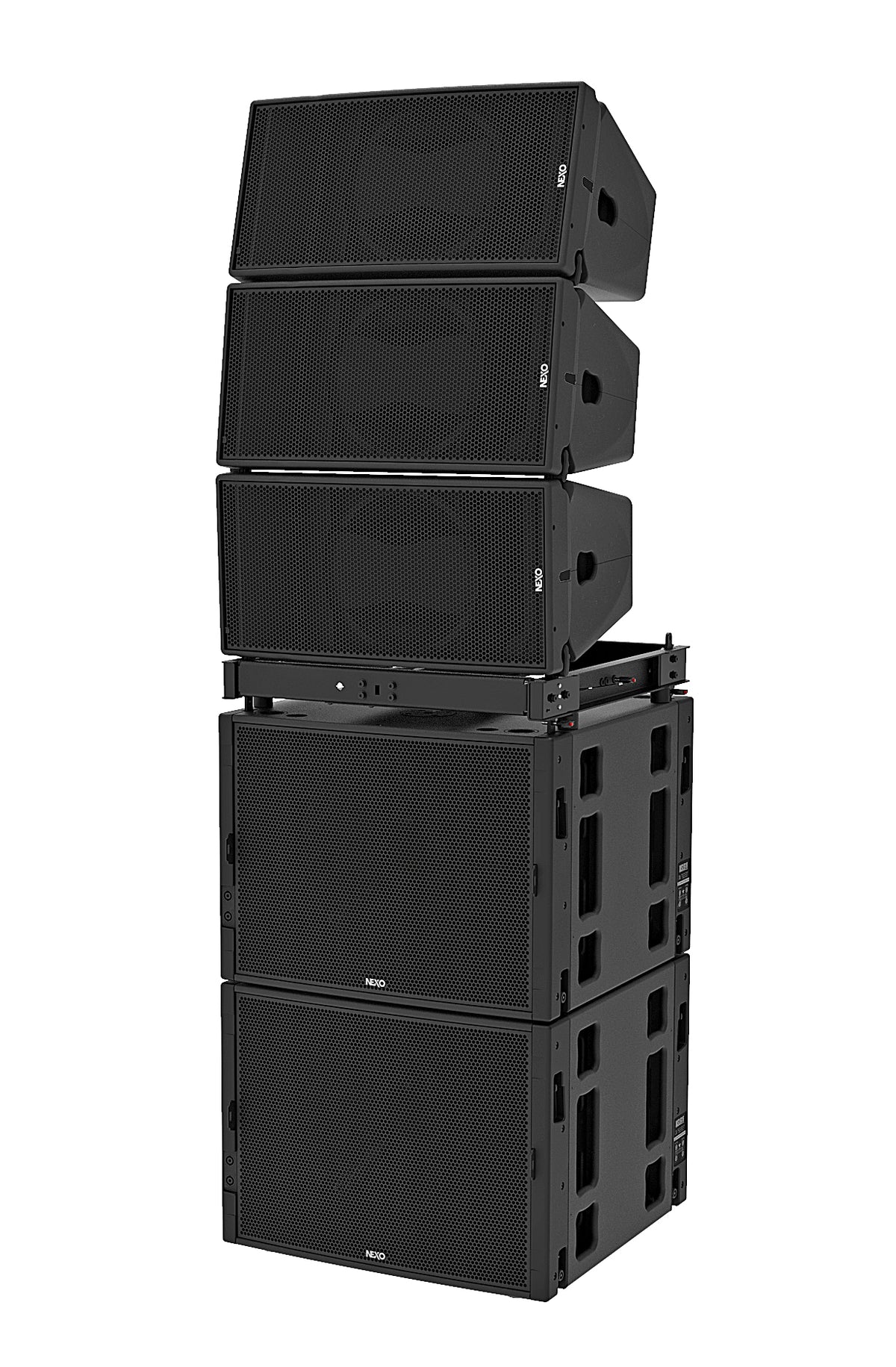

The NEXO GEO M1210 is a 12-inch neodymium line array element designed for passive or active operation, combining a long-excursion LF driver with a 3-inch voice coil, 1.4-inch throat HF compression driver. This Installation version, finished in white, is built for fixed deployment in venues that require flown or stacked loudspeaker arrays.

With a sensitivity of 105 dB and a maximum SPL of 140 dB, the GEO M1210 delivers high output across a 50 Hz – 20 kHz frequency response. Vertical dispersion is 10°, with 80° horizontal coverage, expandable to 120° with the optional CDDTM, giving installers control over pattern shaping.

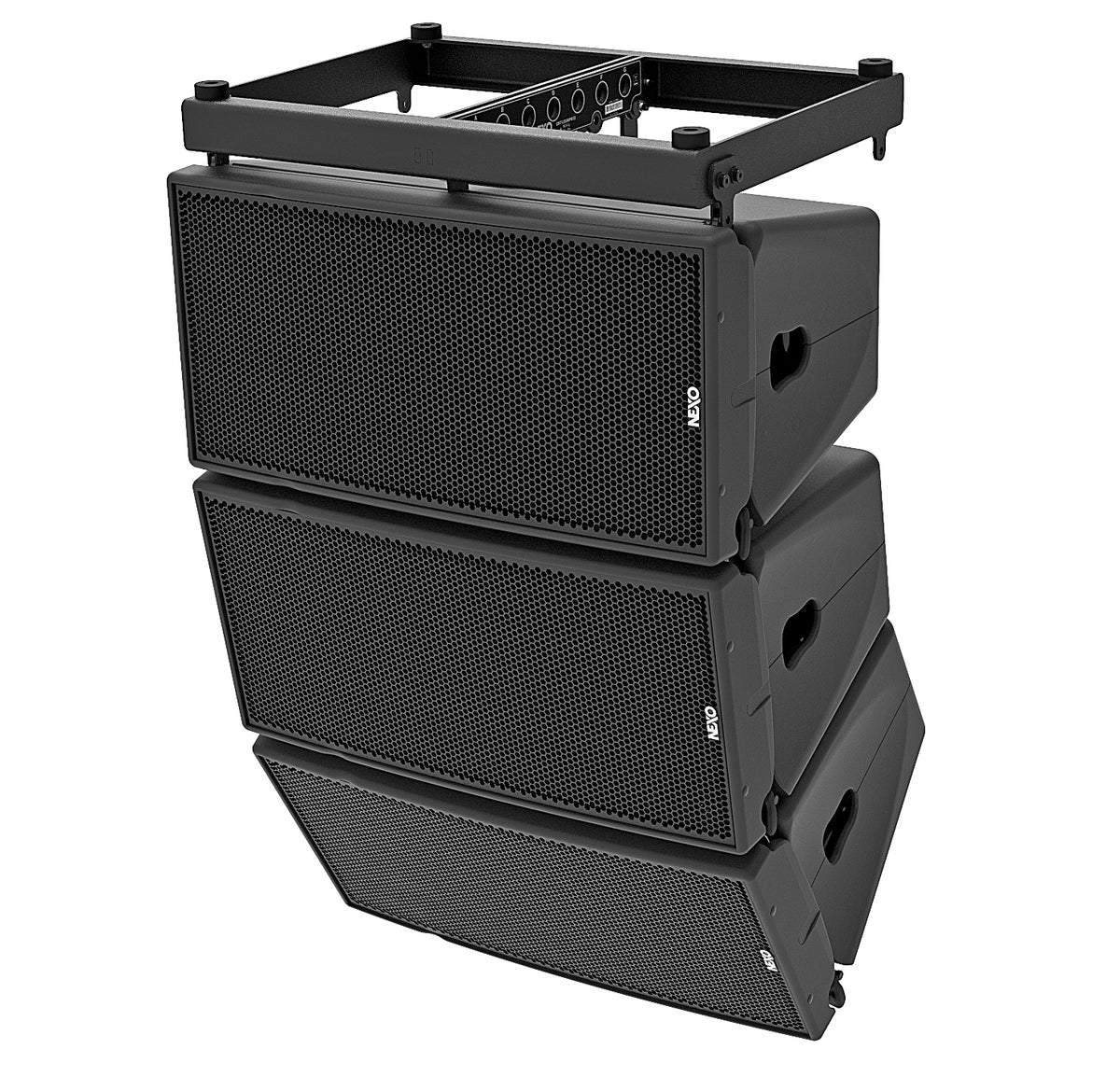

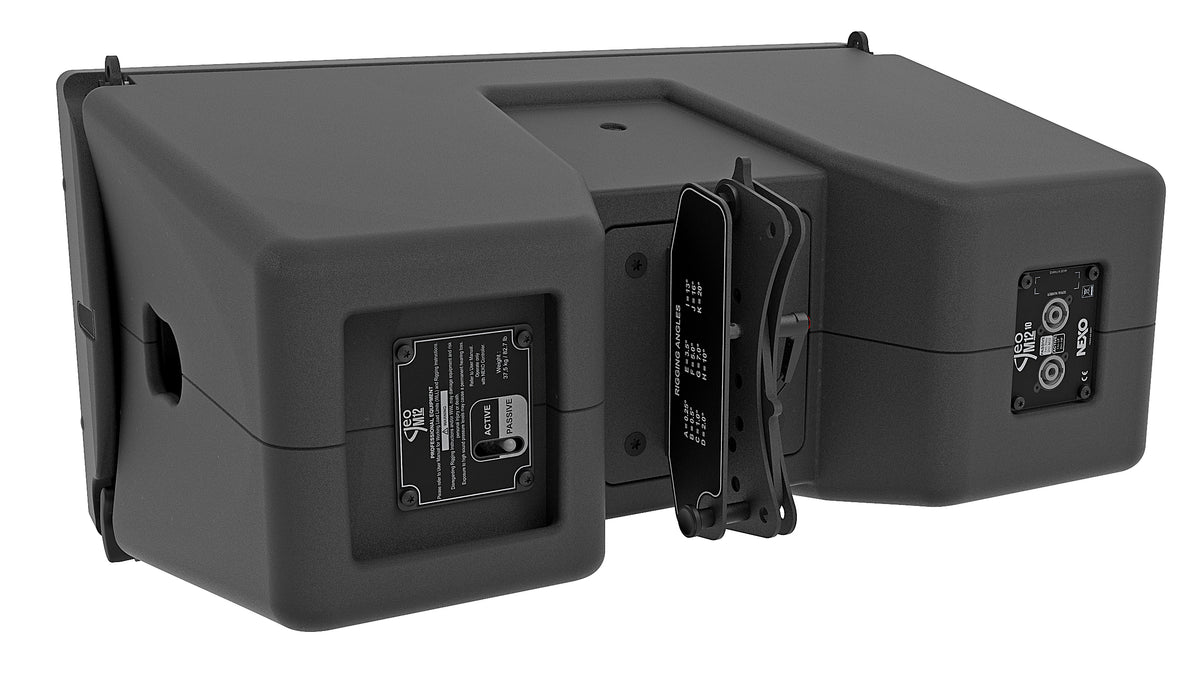

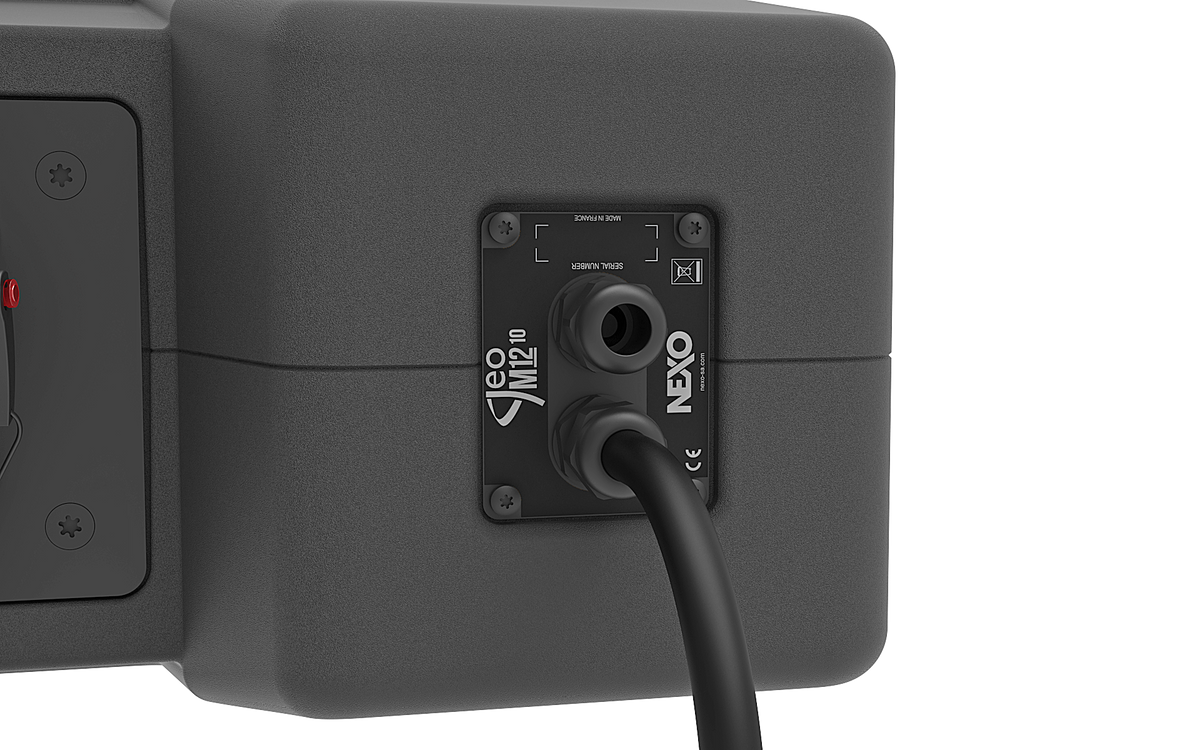

Connection is made via cable gland connectors with 4-core cables, and a ruggedized, recessed, waterproof switch selects between active and passive modes. The enclosure uses a lightweight polyurethane composite construction, integrated rigging hardware with AutoRig, and is rated for operation from 0°C to 40°C.

• 12-inch Neodymium LF driver with PDDTM
• 140 dB maximum SPL / 105 dB sensitivity
• 10° vertical x 80° horizontal dispersion
• Active or passive operation via waterproof switch
• 5-year warranty
