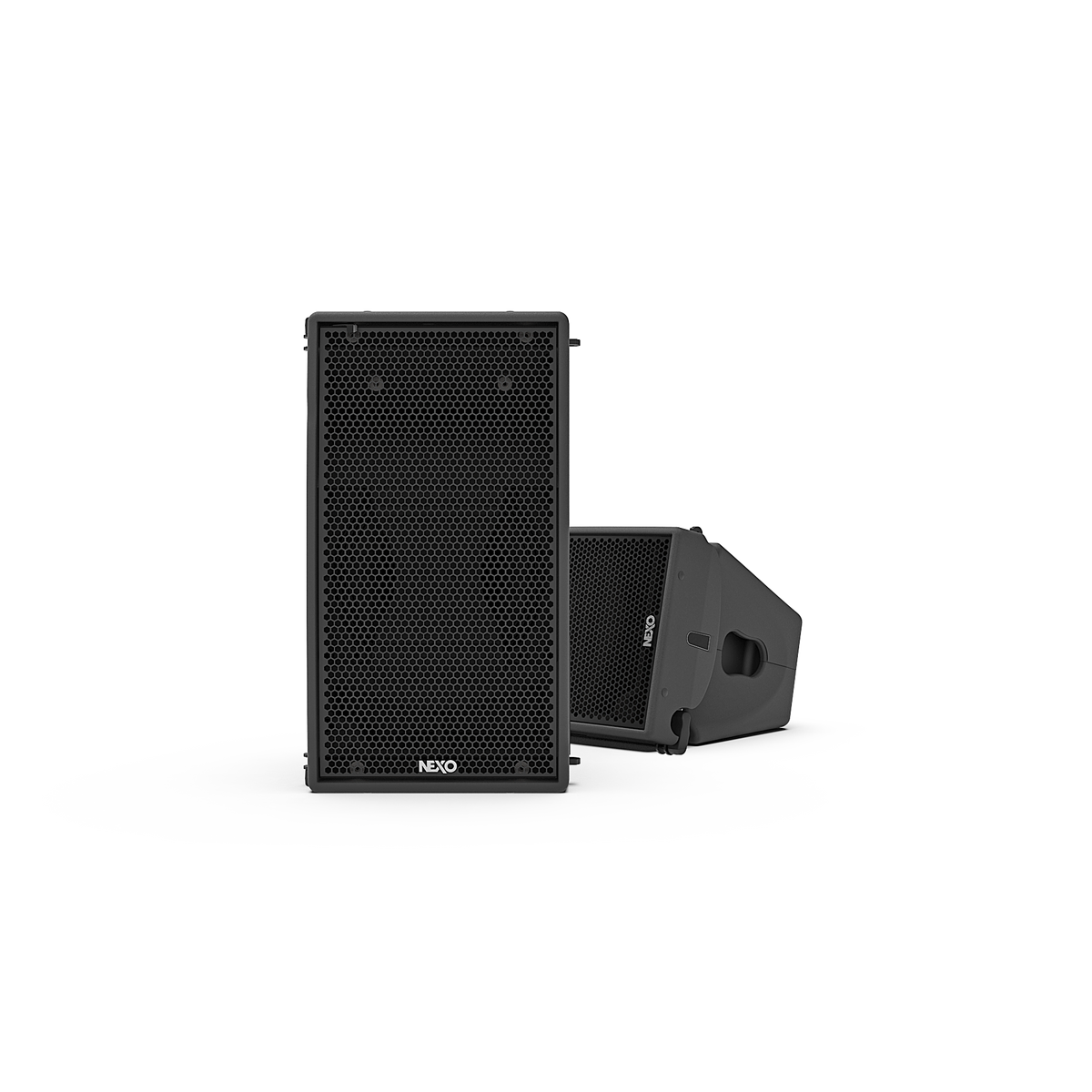

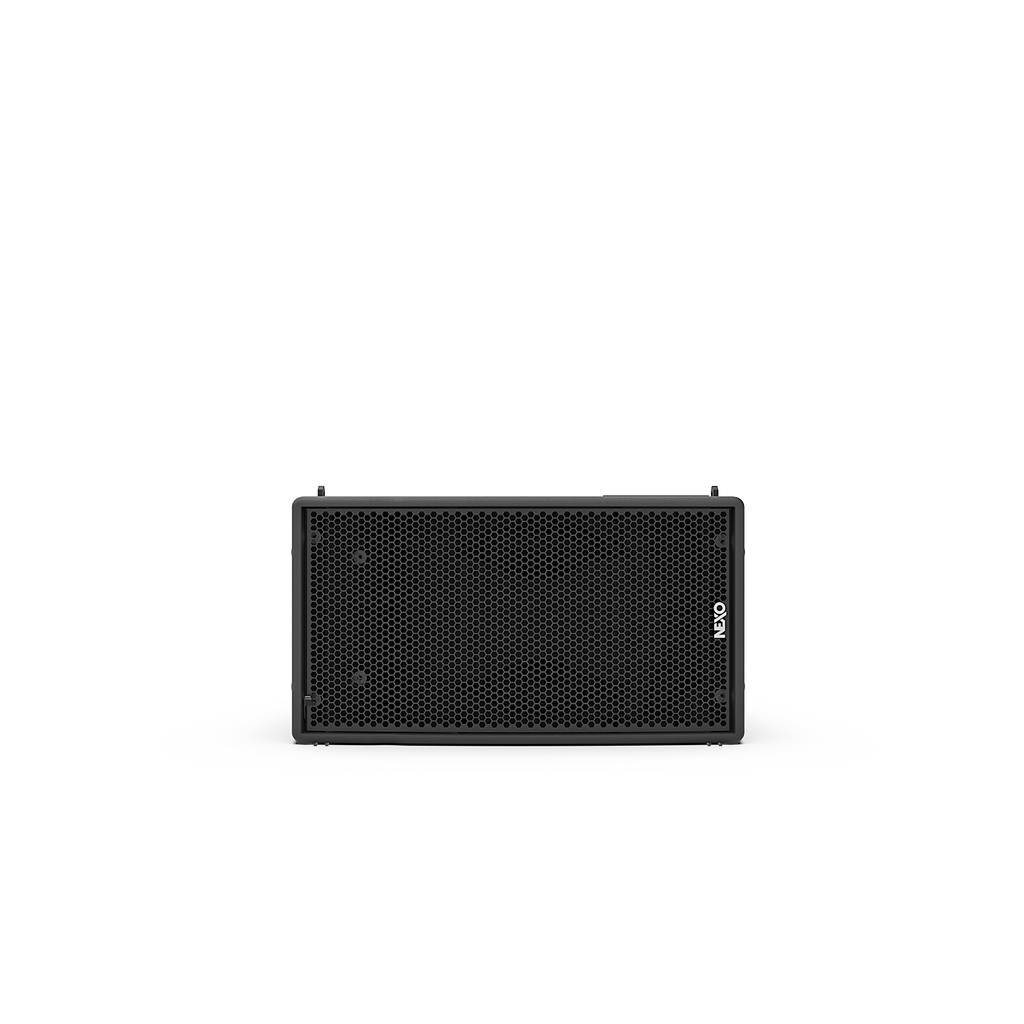

NEXO GEO M1025 10-inch 2-Way Line Array Element, Touring Version

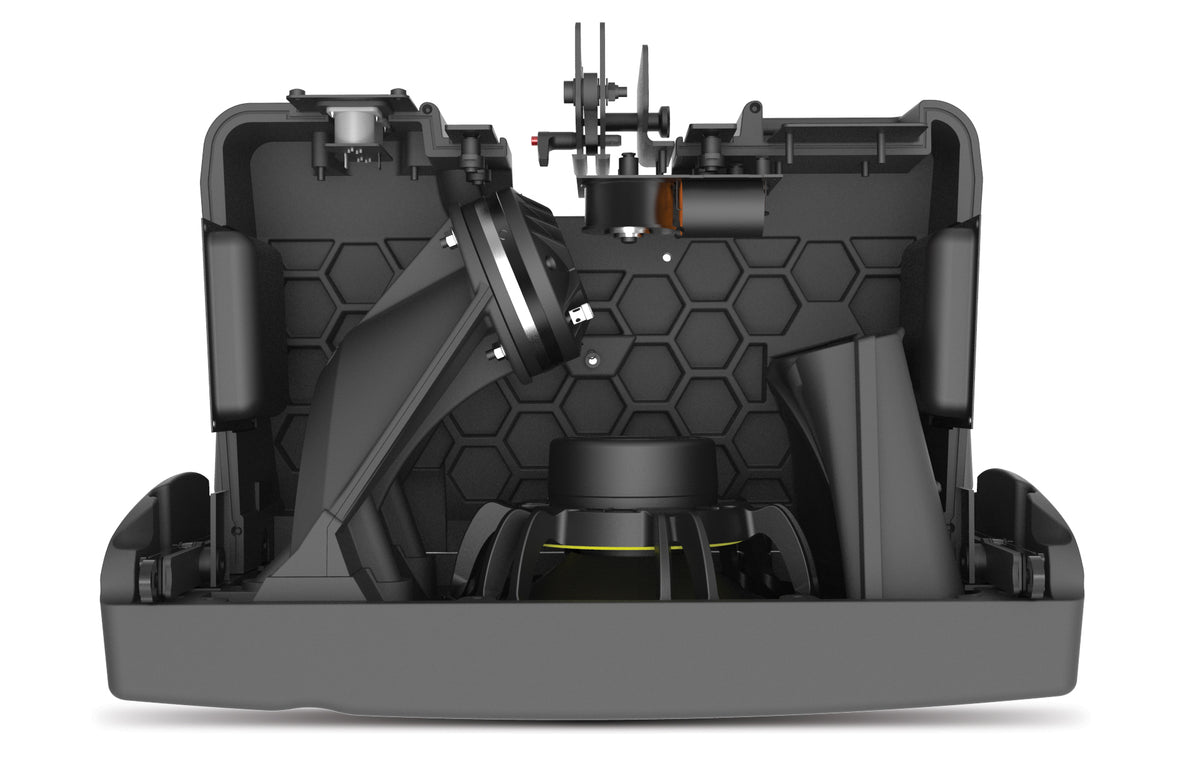

The NEXO GEO M1025 is a compact line array element featuring a 10-inch Neodymium LF driver with PDD and a 1.4-inch throat driver mounted on NEXO's HR Wavesource waveguide. Designed for touring and live event applications, this Touring version offers 25° vertical dispersion and 80° horizontal dispersion, expandable to 120° with an optional CDD accessory.

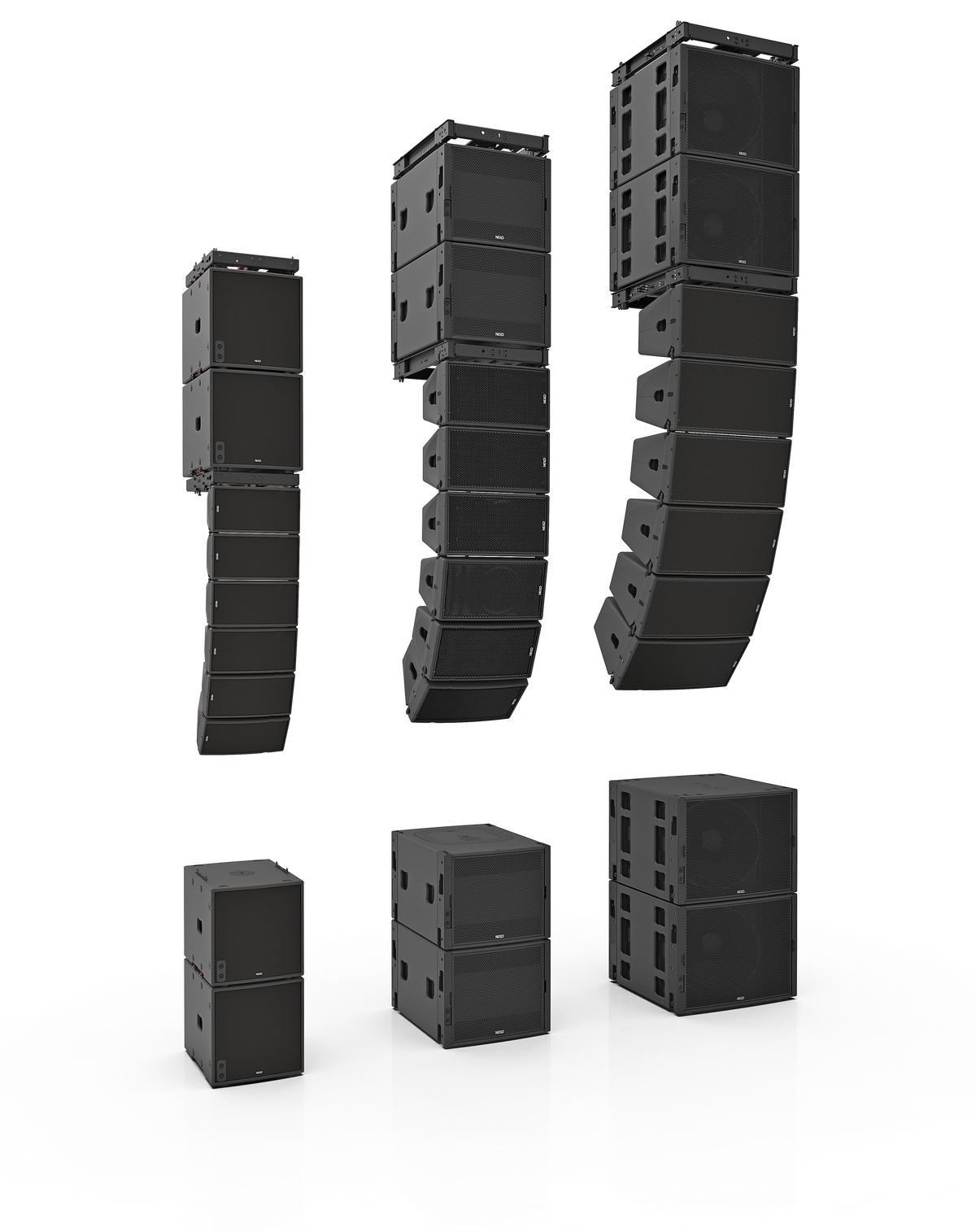

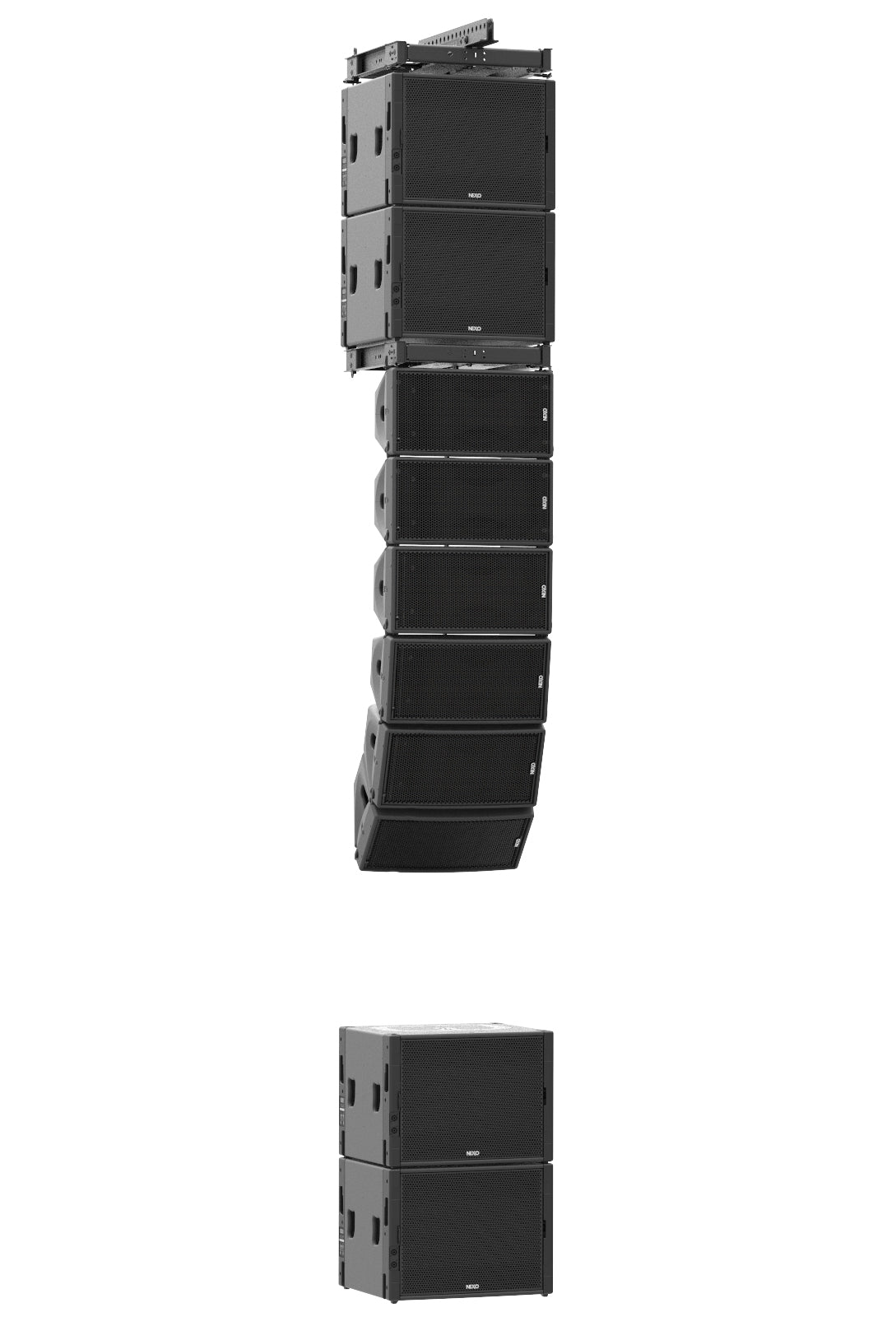

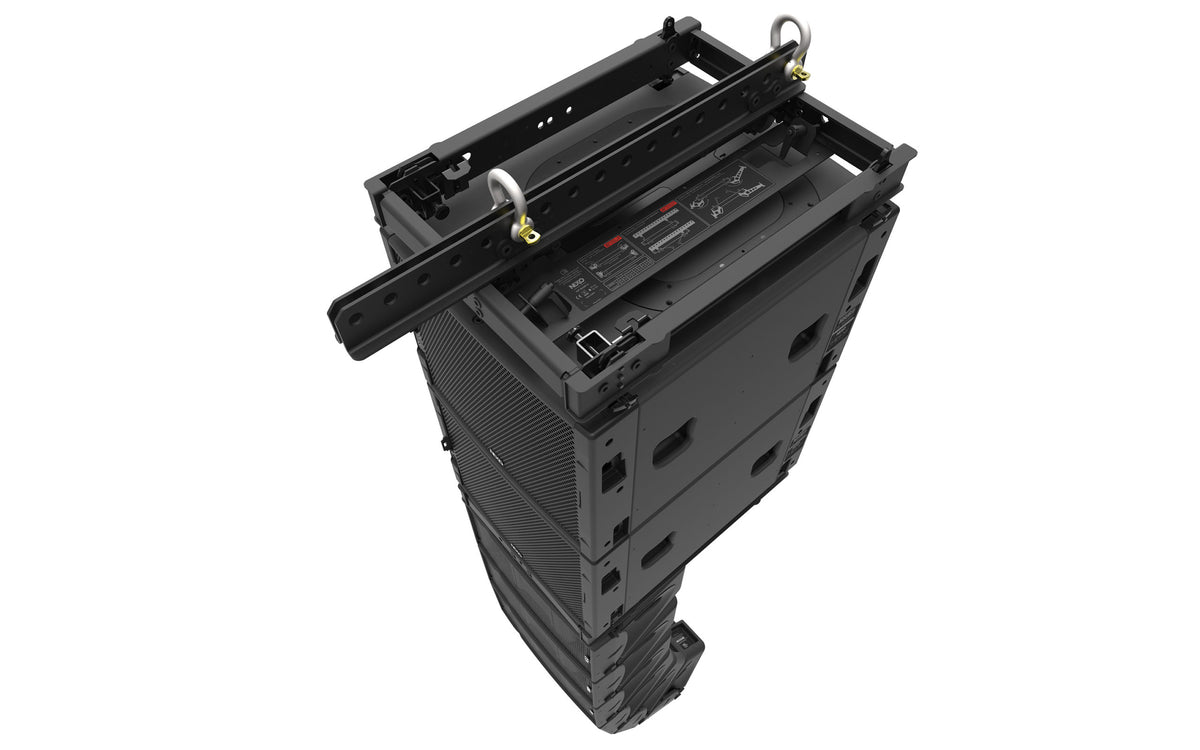

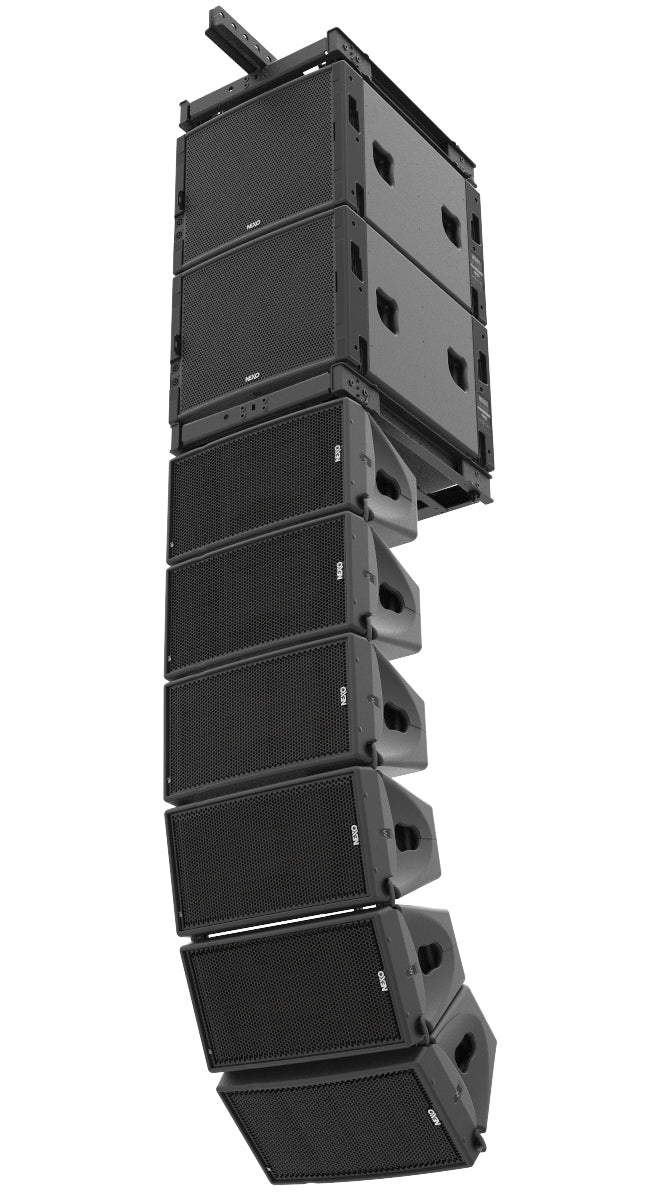

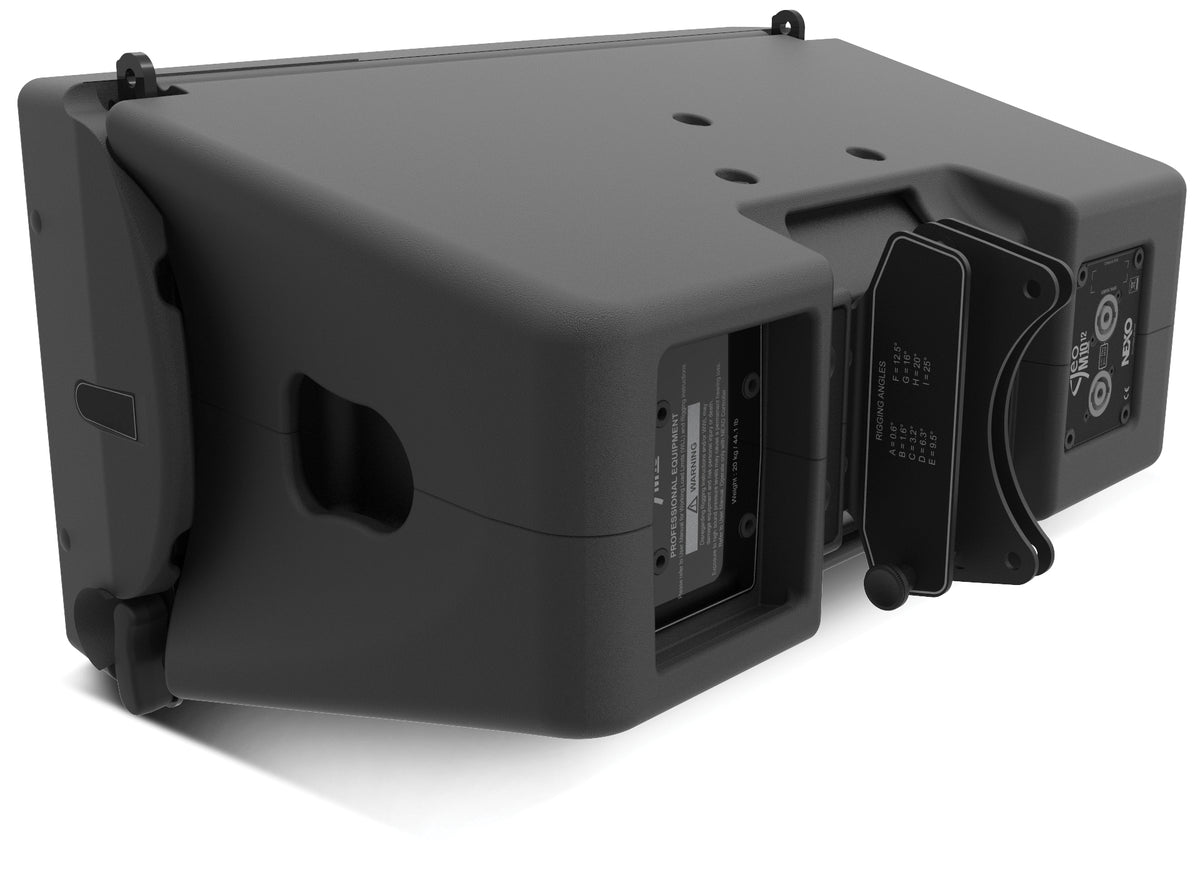

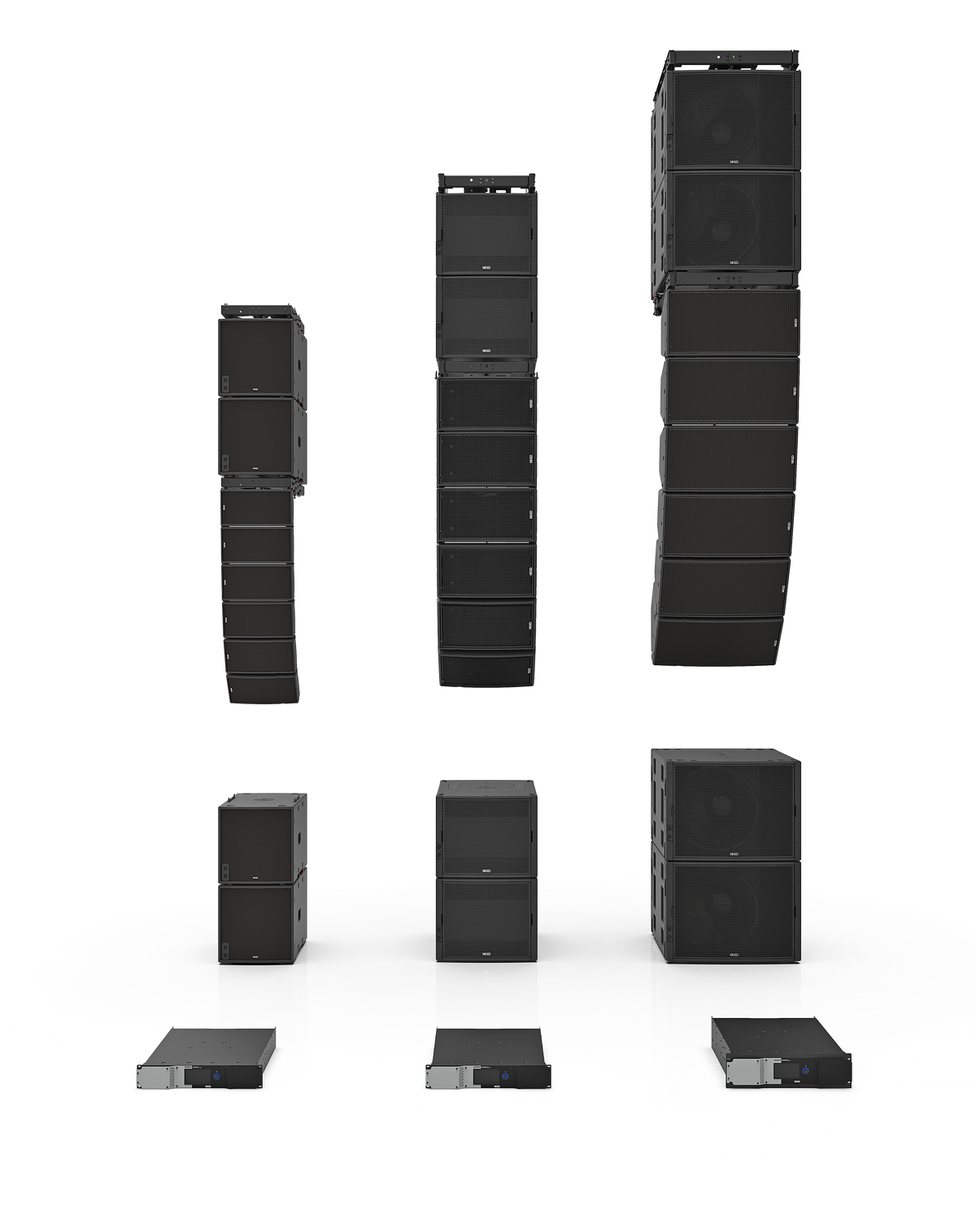

Built on technology derived from the flagship STM series, the GEO M1025 delivers a maximum SPL of 136 dB with a sensitivity of 100 dB and a frequency response from 59 Hz to 20 kHz. It can be stacked or flown, individually or alongside its companion subwoofer, the MSUB15, and features integrated rigging hardware with no loose parts, including NEXO's AutoRig system for fast, safe deployment.

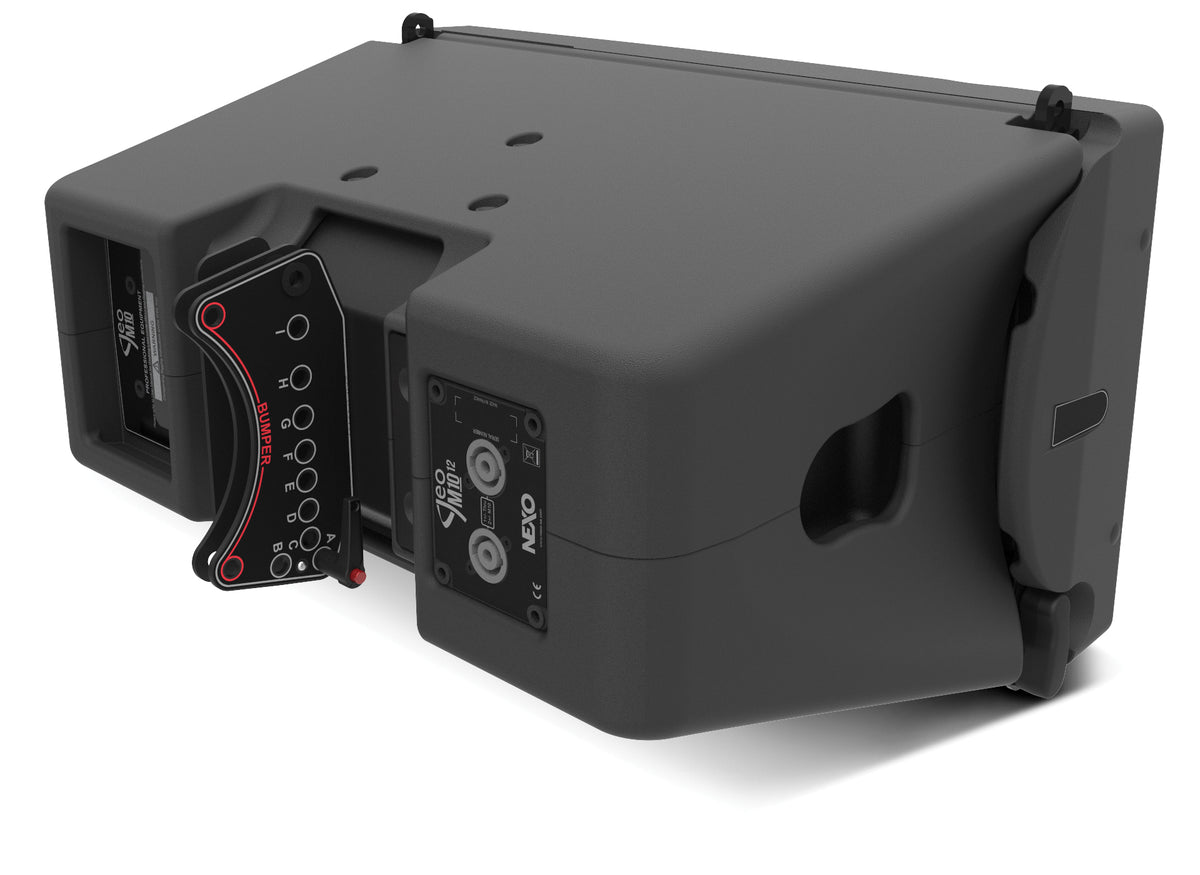

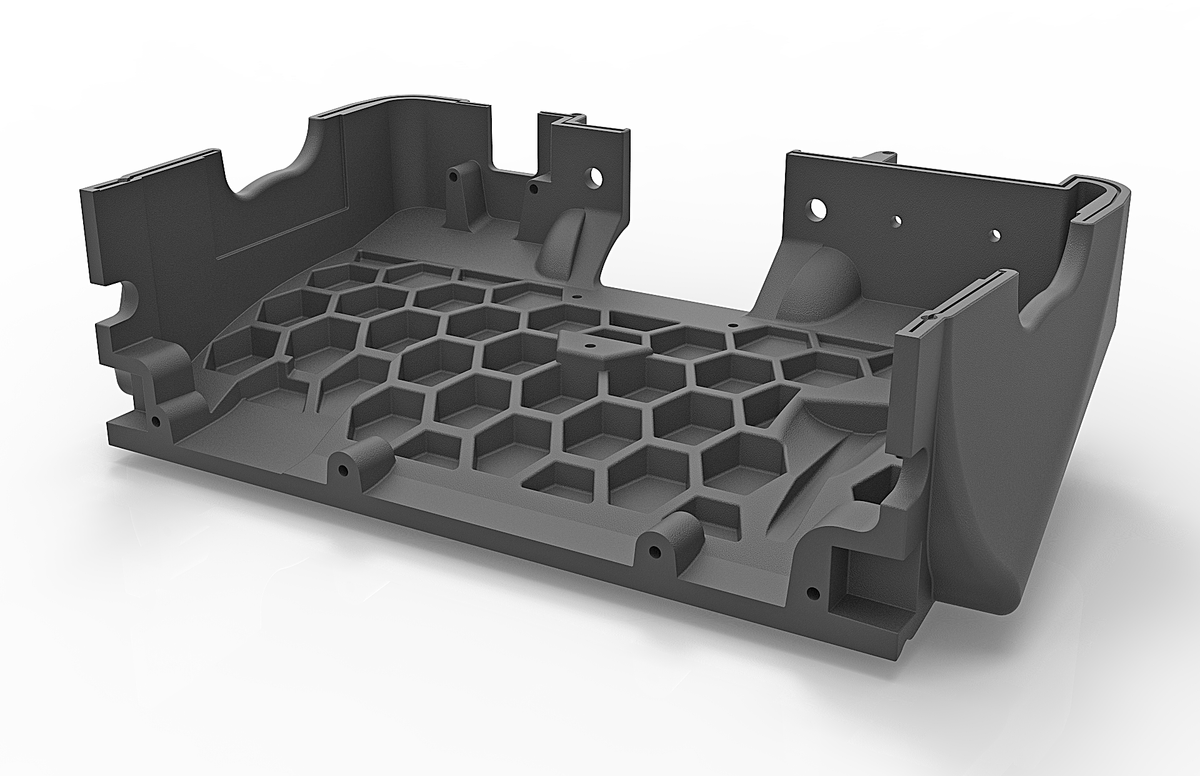

The enclosure is built from a lightweight polyurethane composite with a honeycomb structure, measuring 531 x 288 x 355 mm and weighing 21 kg. The Touring version is fitted with 2x NL4 4-pole connectors, operates at 8 ohm nominal impedance with a recommended amplifier power of 750 W, and is rated for operation between 0°C and 40°C. It is covered by a 2-year warranty.

• 10-inch Neodymium LF driver + 1.4-inch HF driver
• 136 dB maximum SPL, 100 dB sensitivity
• 59 Hz – 20 kHz frequency response
• 25° vertical / 80° horizontal dispersion
• 531 x 288 x 355 mm, 21 kg
