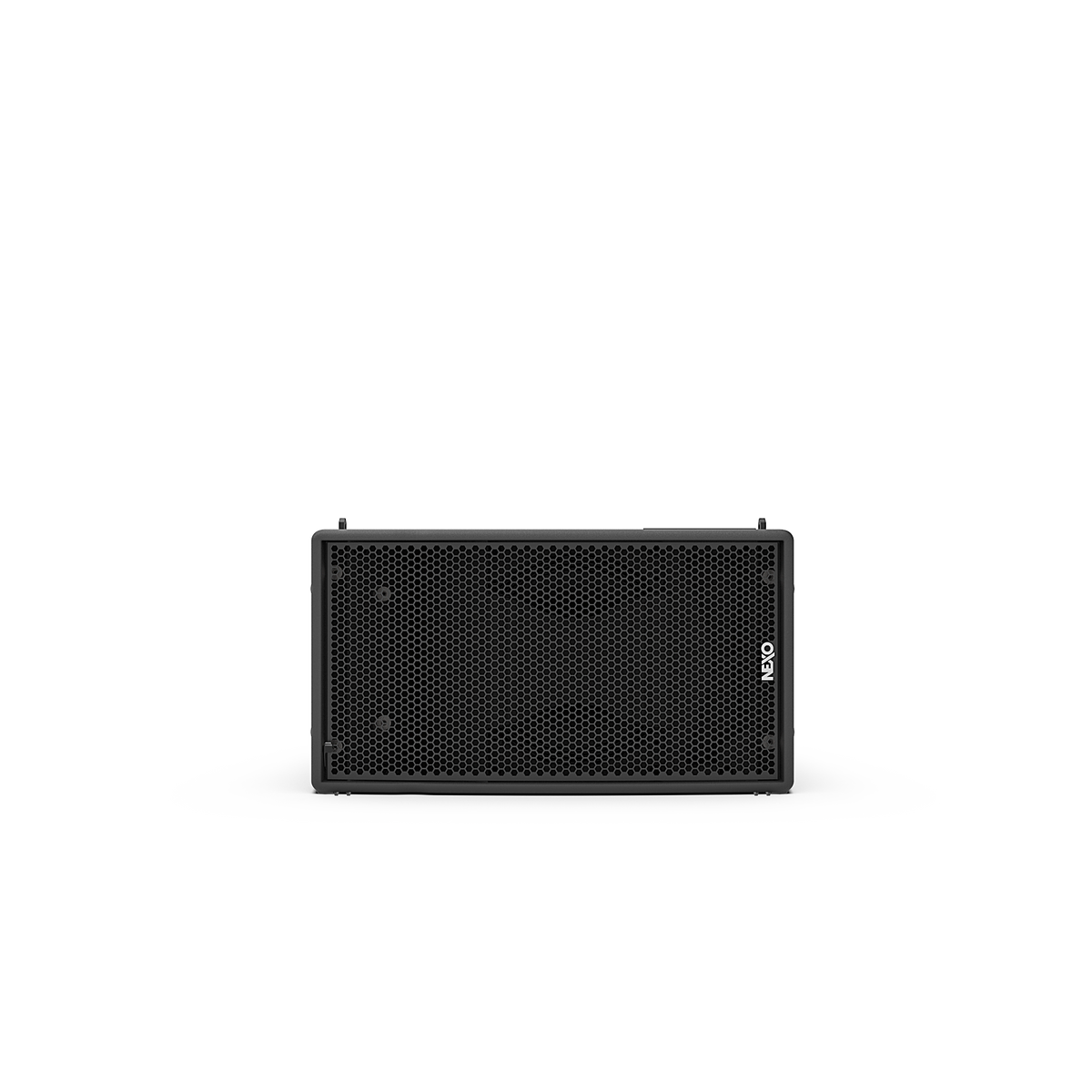

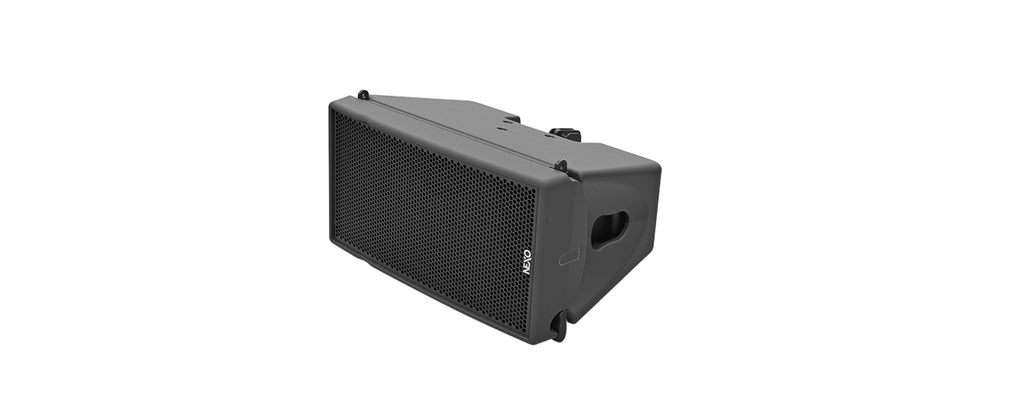

NEXO GEO M1012 10-inch 2-Way Line Array Element, Touring Version

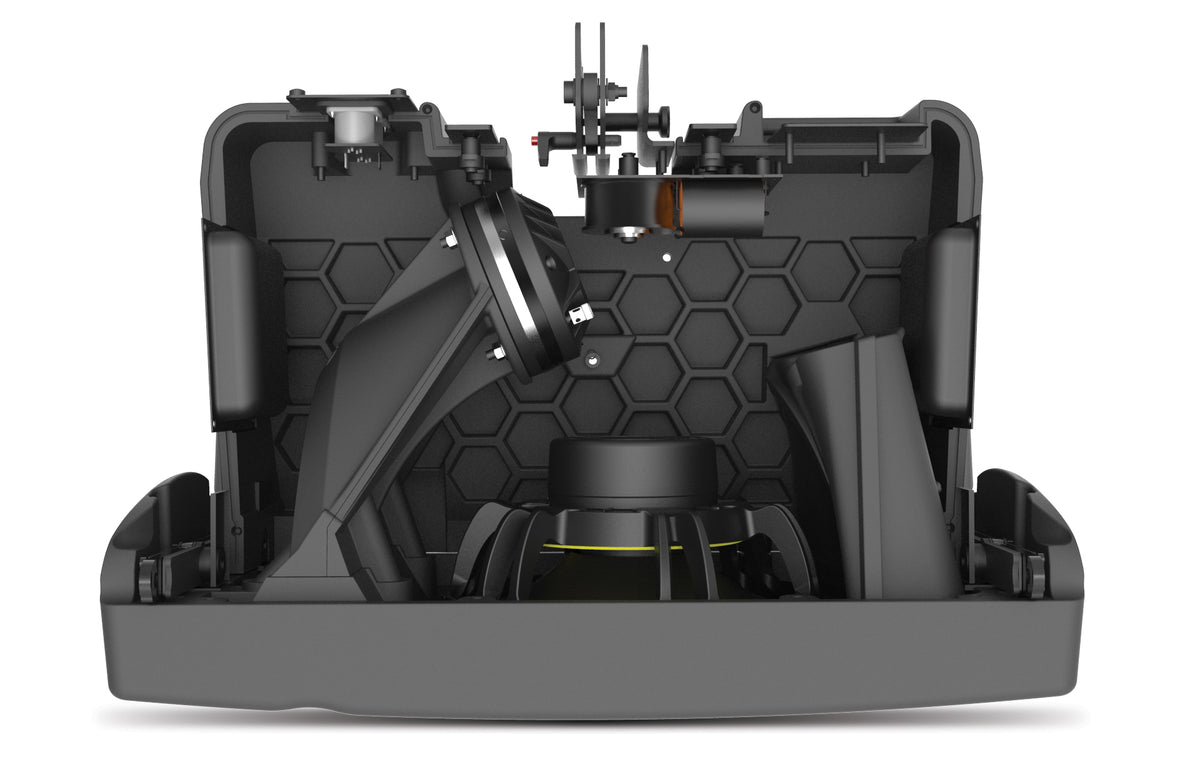

The NEXO GEO M1012 is a compact 2-way passive line array element built for touring and live sound reinforcement. It combines a 10-inch Neodymium LF driver with PDDTM and a 1.4-inch HF throat driver on NEXO's HR Wavesource waveguide, delivering 12° vertical dispersion and 80° horizontal coverage (120° with optional CDDTM) for precise, long-throw arrays.

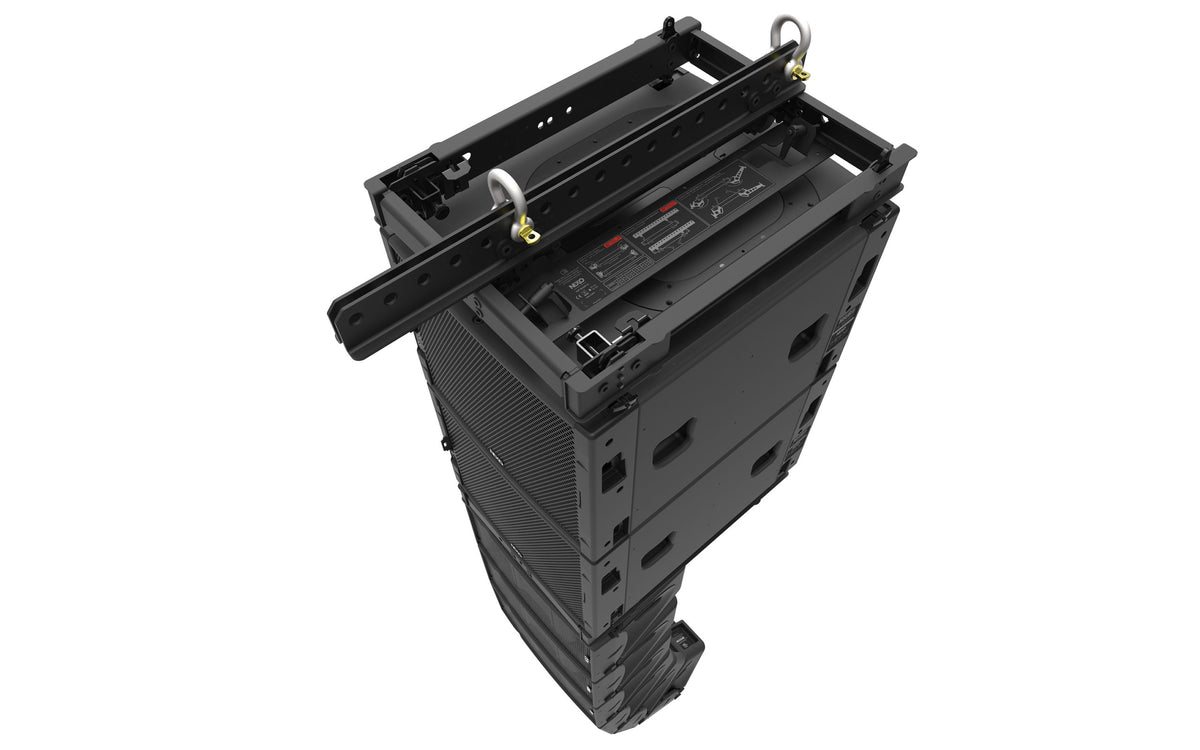

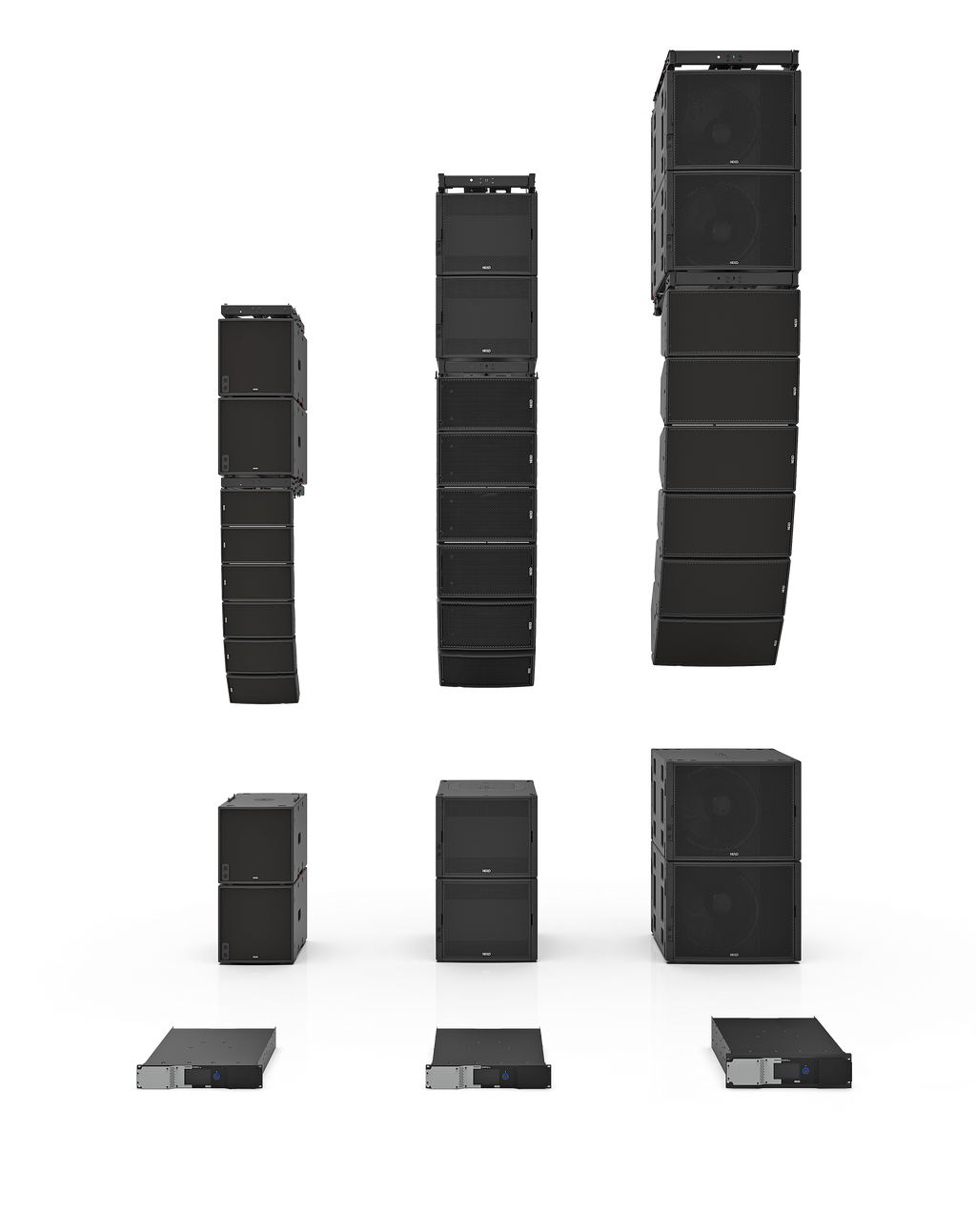

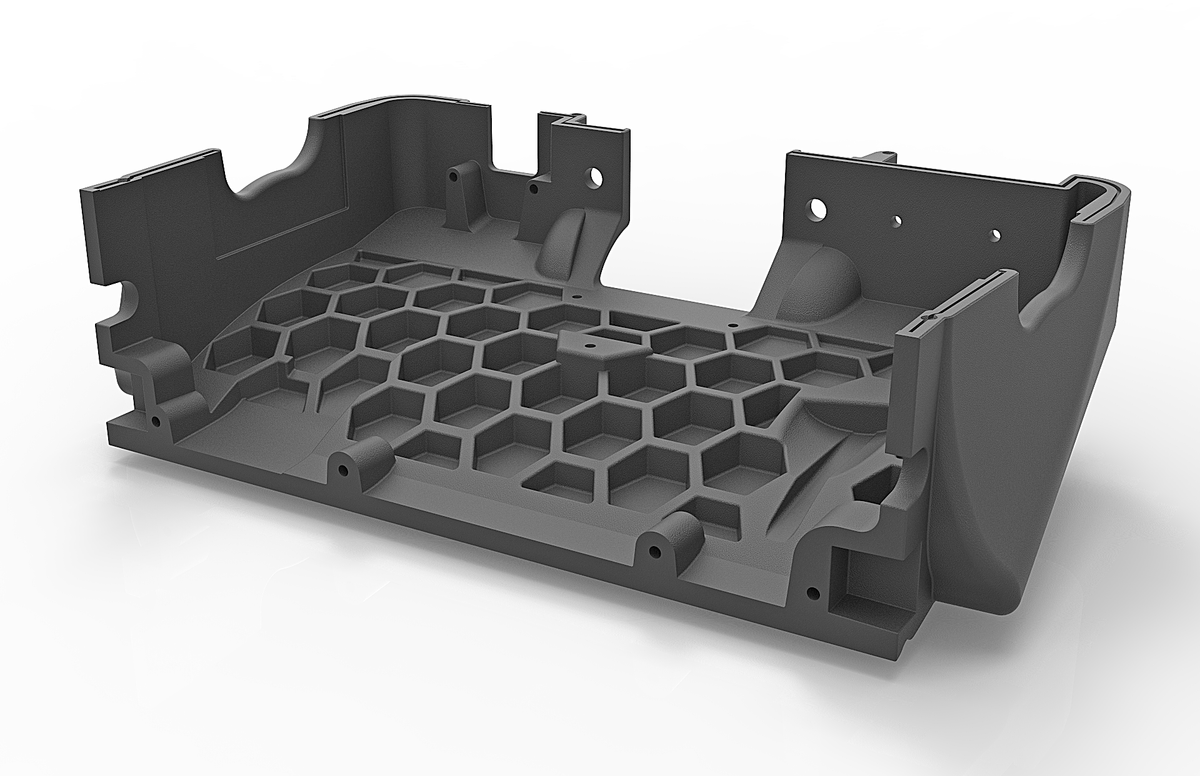

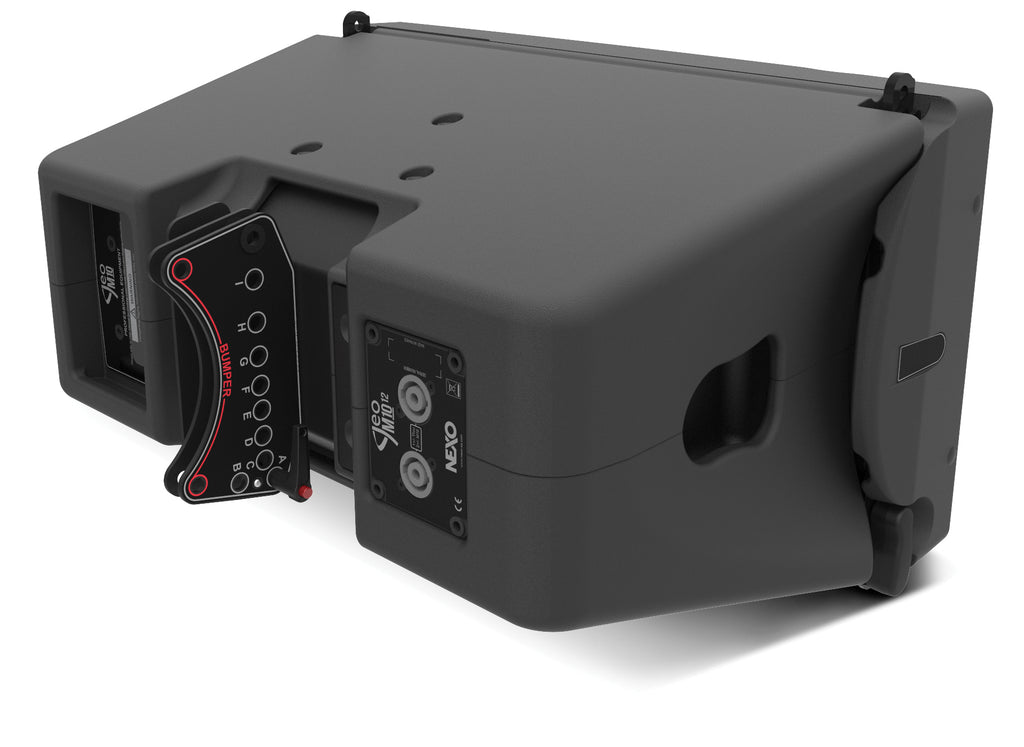

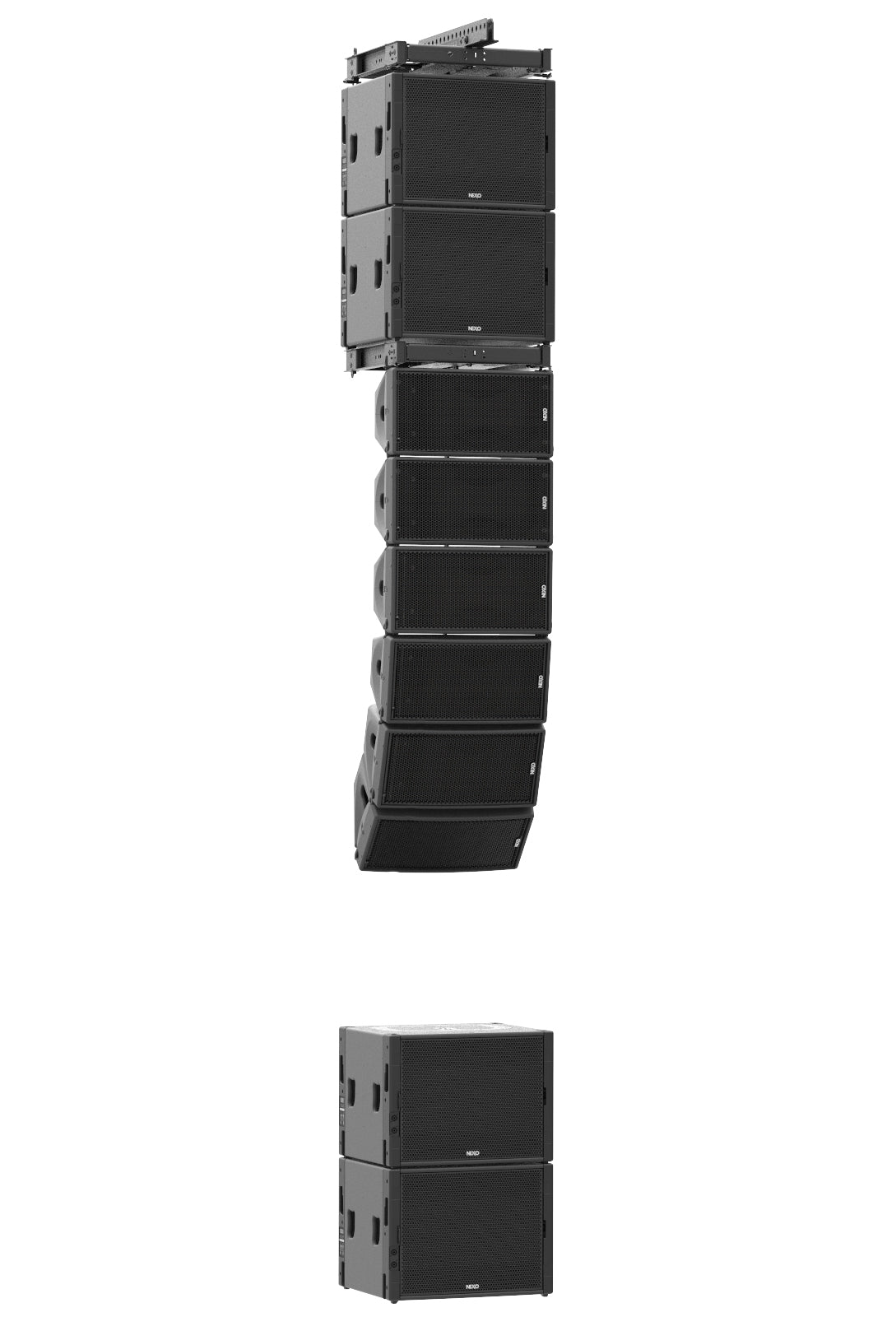

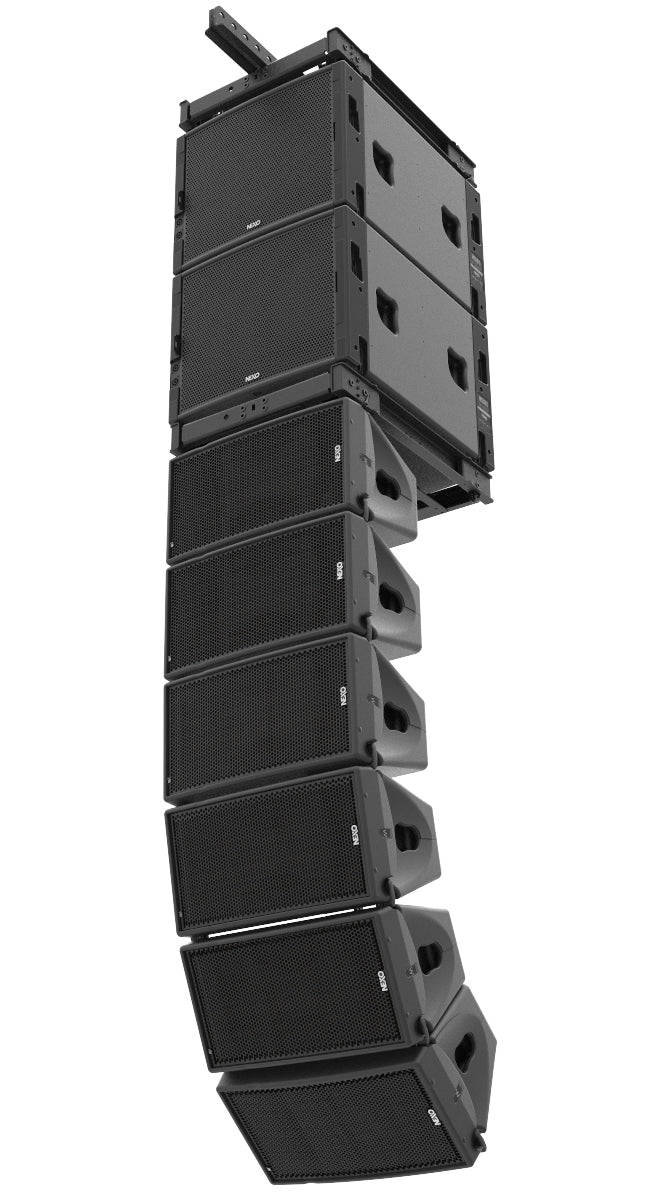

With a sensitivity of 100 dB and a maximum SPL of 136 dB over a frequency response of 59 Hz to 20 kHz, the GEO M1012 provides high output from a lightweight, honeycomb-structured enclosure. It can be stacked or flown, with or without its companion MSUB15 subwoofer, and features integrated rigging hardware with NEXO's AutoRig system for fast, tool-free deployment.

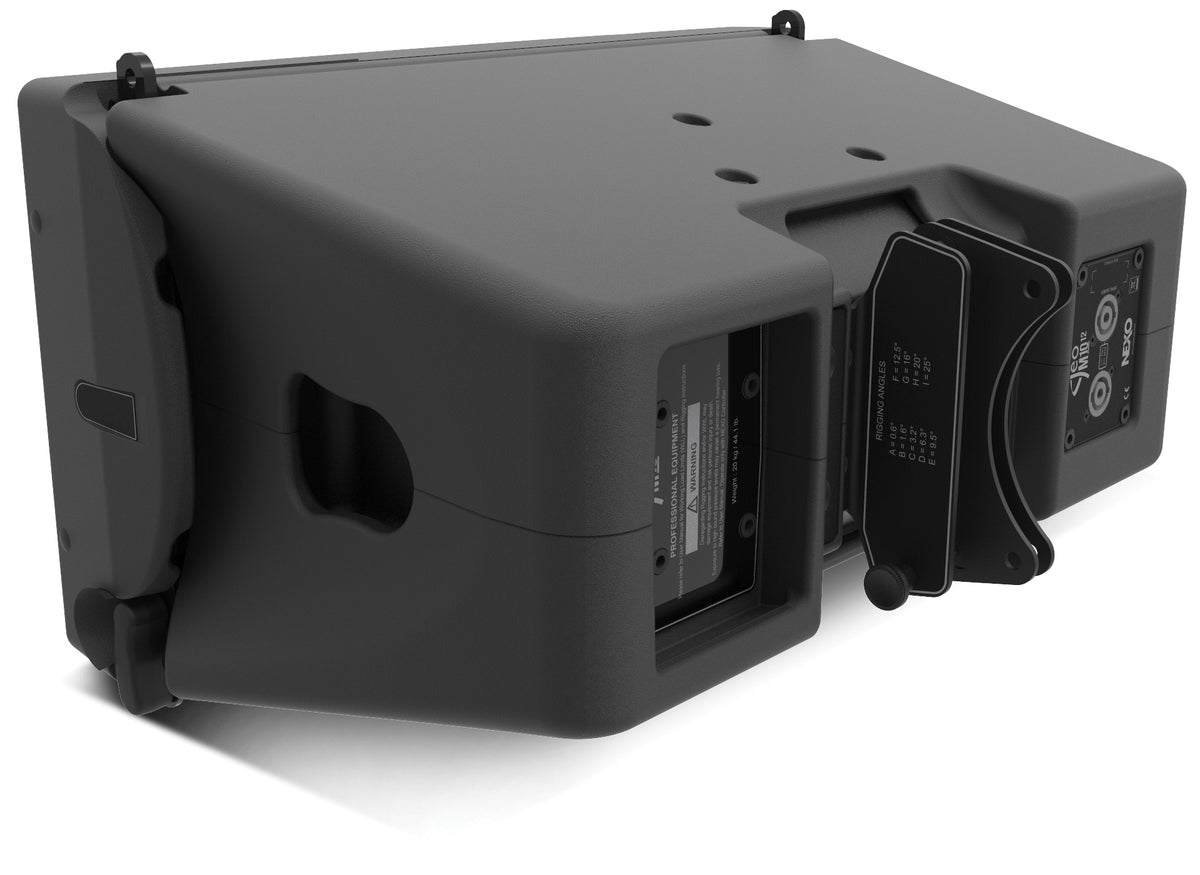

This Touring version is fitted with 2x NL4 connectors and is rated at 750 W into 8 ohm nominal impedance. Operating temperature range is 0°C to 40°C, and the cabinet measures 531 x 288 x 355 mm at 21 kg. The GEO M1012 is backed by a 2-year warranty.

• 10-inch Neodymium LF + 1.4-inch HF, 2-way passive
• 136 dB max SPL, 100 dB sensitivity
• 12° vertical / 80° horizontal dispersion
• 8 ohm, 750 W recommended power
• 531 x 288 x 355 mm, 21 kg
