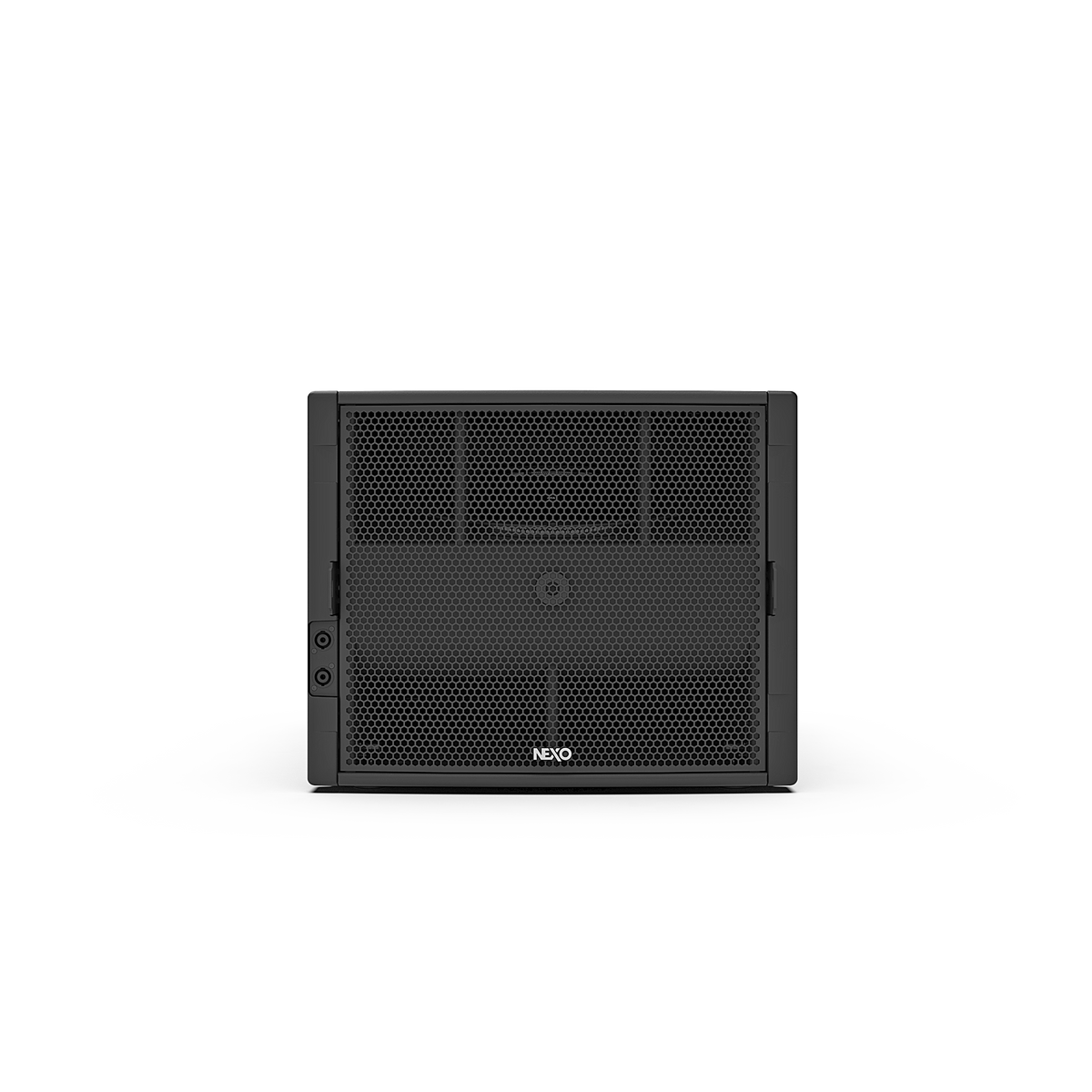

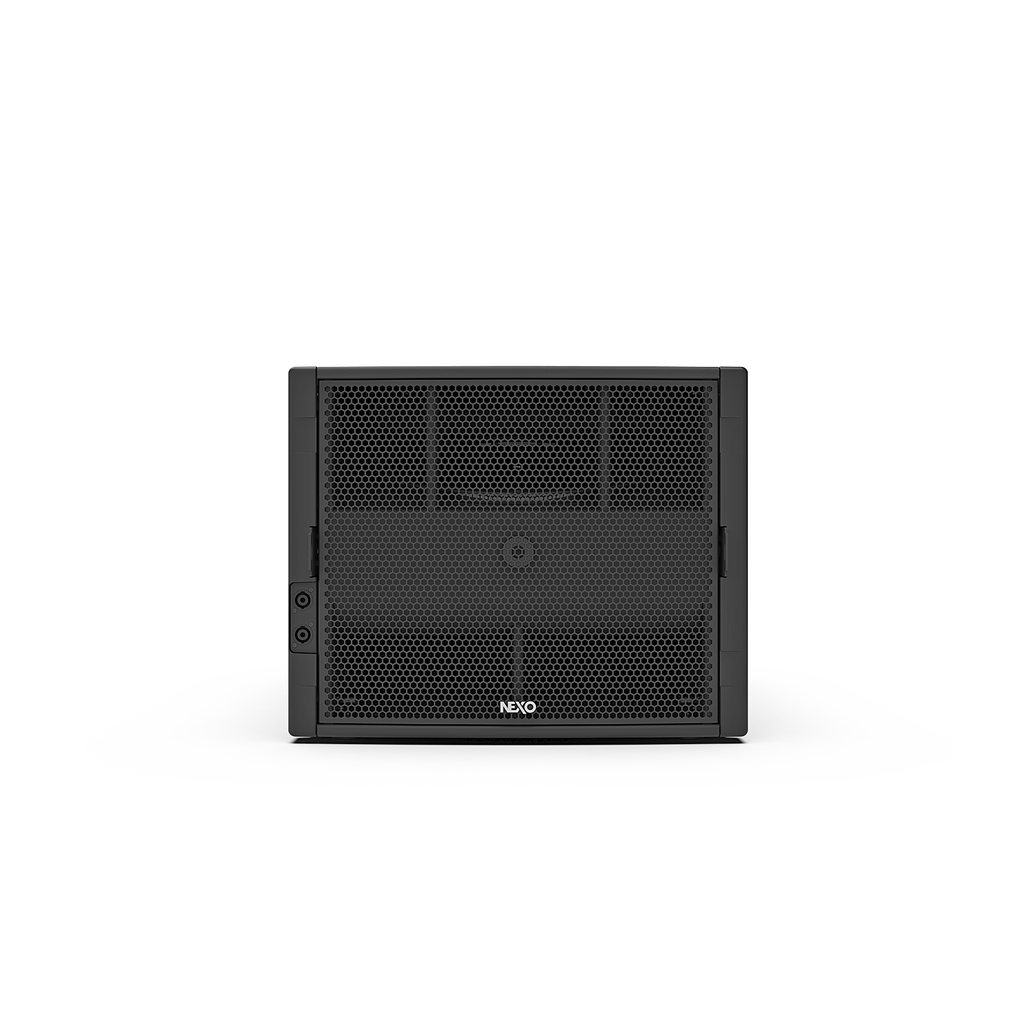

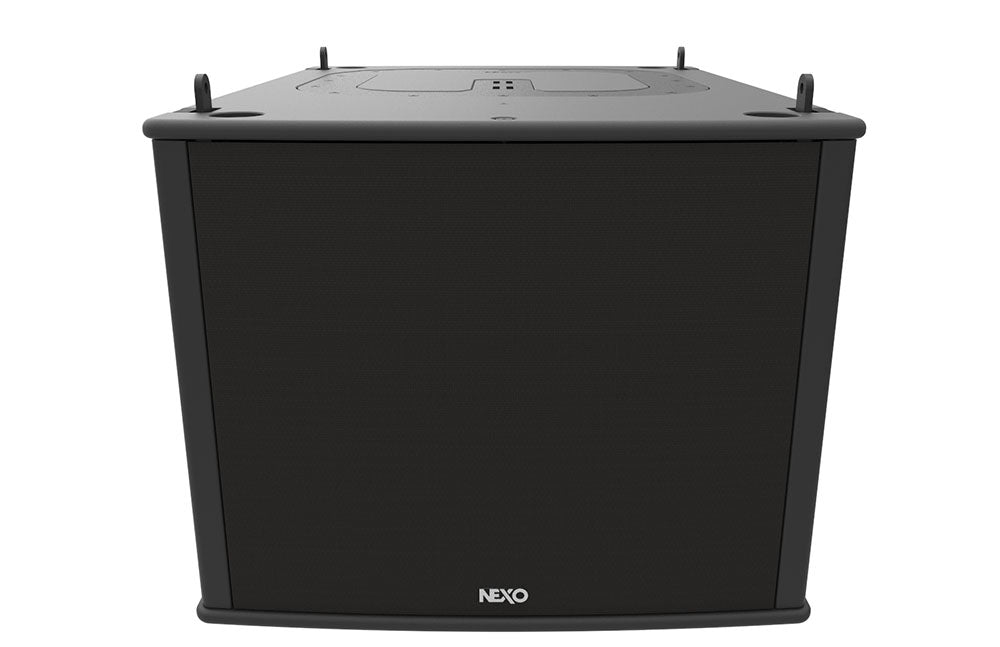

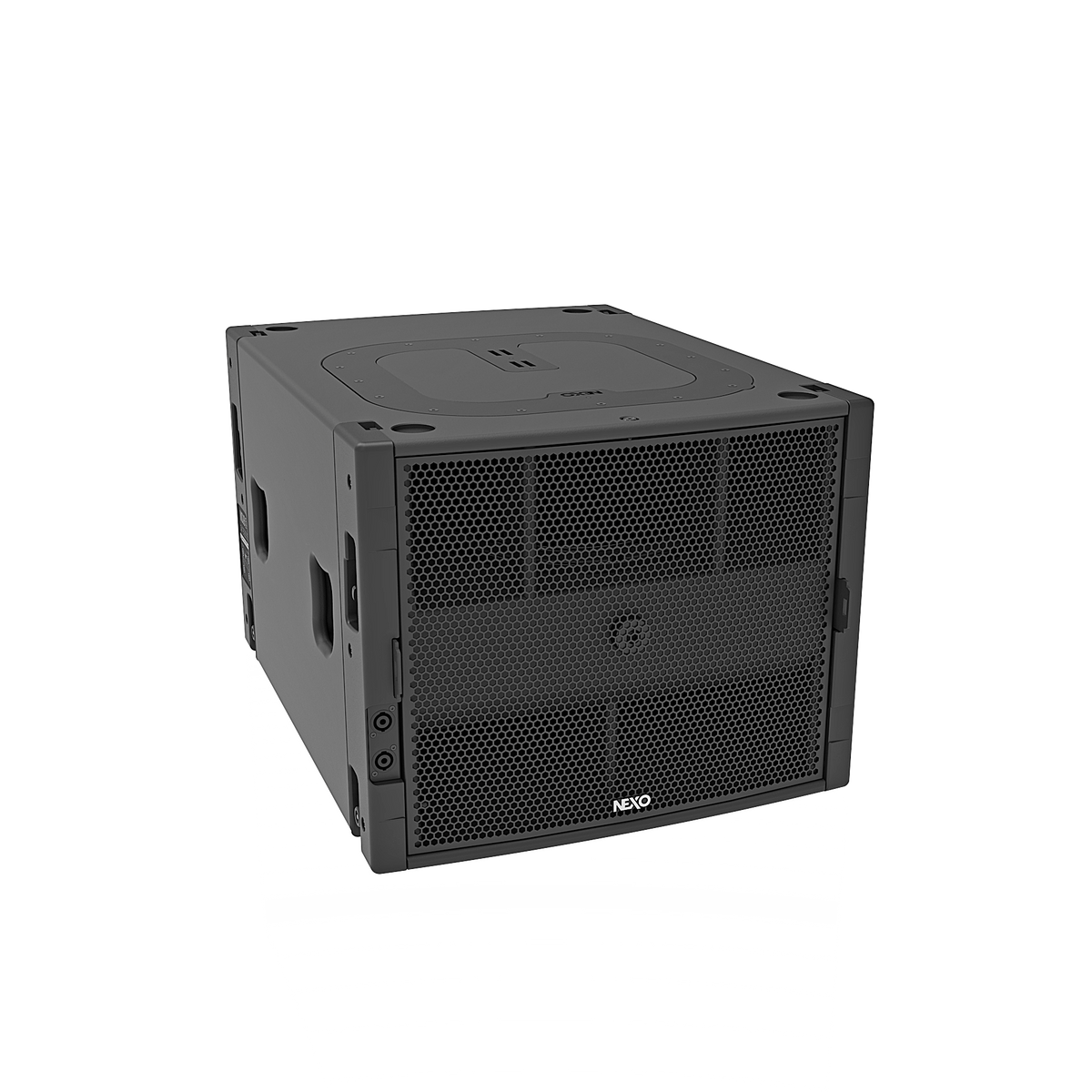

NEXO GEO M10 MSUB15 15-inch Band-Pass Subwoofer, Installation Version, Black

The NEXO GEO M10 MSUB15 is a 15-inch band-pass arrayable subwoofer built for the Installation version of the GEO M10 system, suited to fixed audio installations where low-frequency reinforcement needs to be compact, stackable or flown.

Built around a single 15-inch 8 Ohm long excursion Neodymium driver, the MSUB15 delivers a frequency response of 40 Hz to 120 Hz (+6 dB), 101 dB sensitivity and a maximum SPL of 136 dB, with a recommended amplifier power of 900 W into its 8 Ohm nominal impedance.

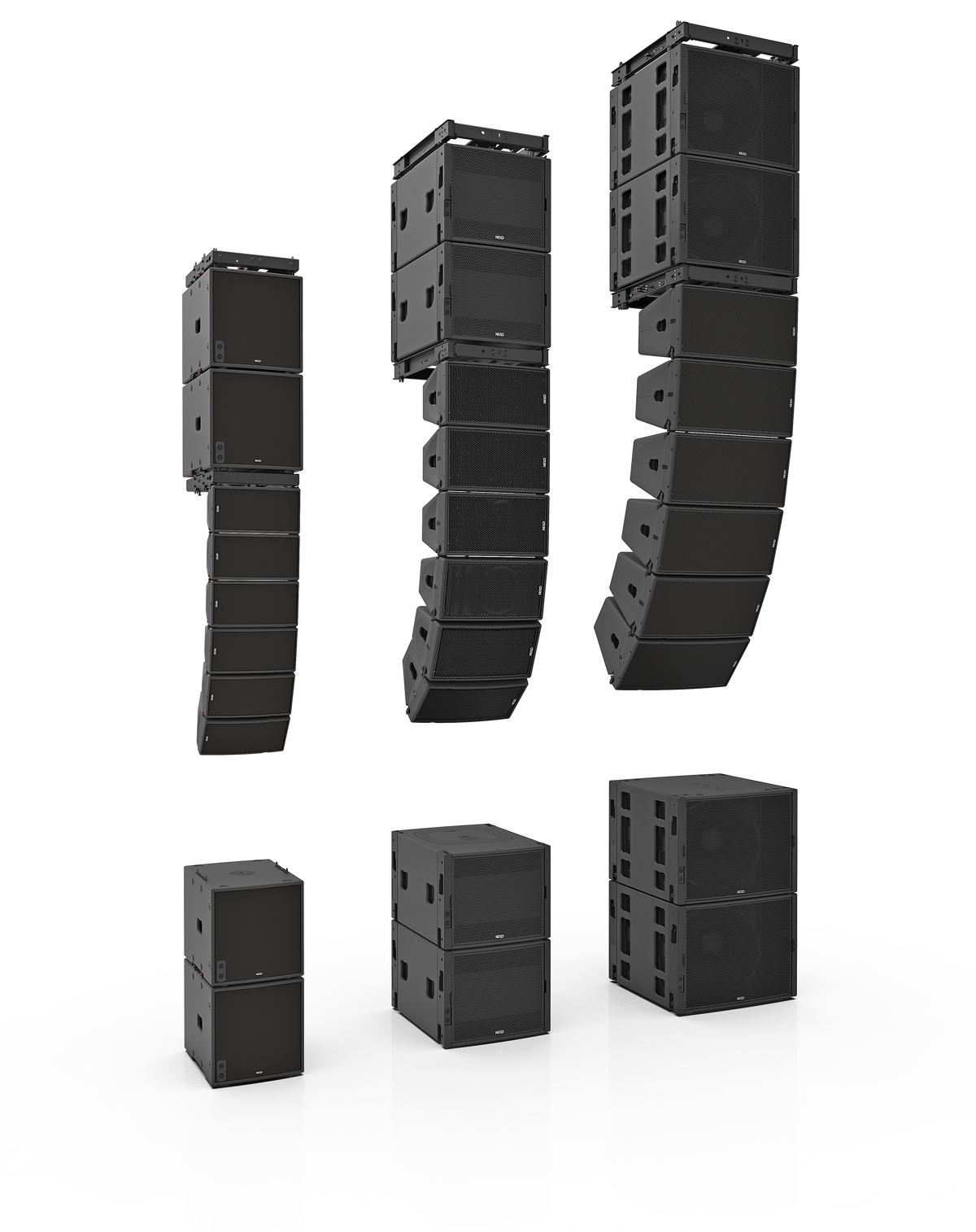

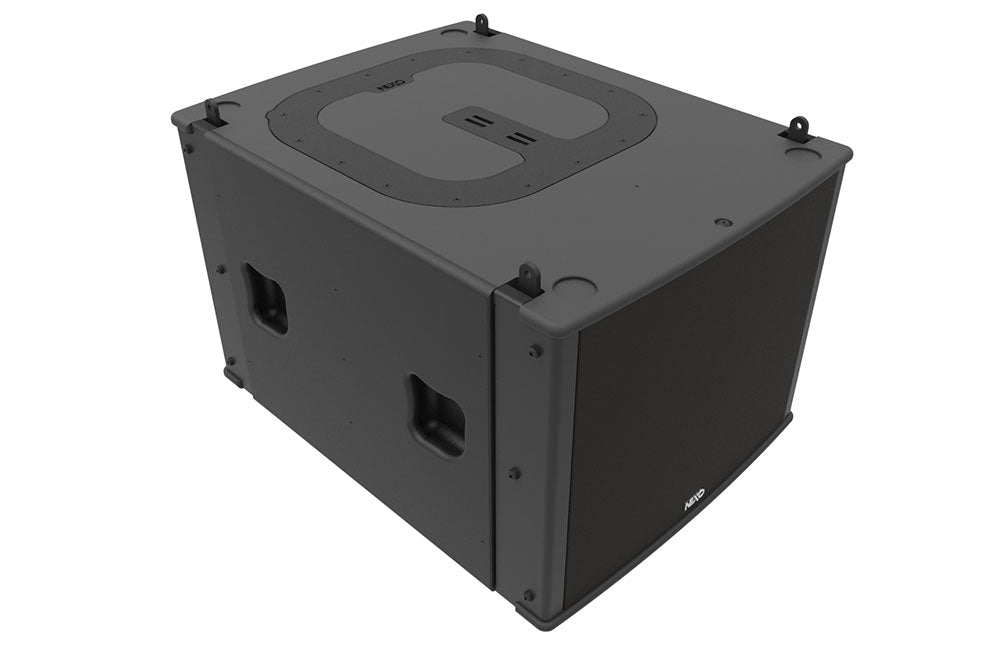

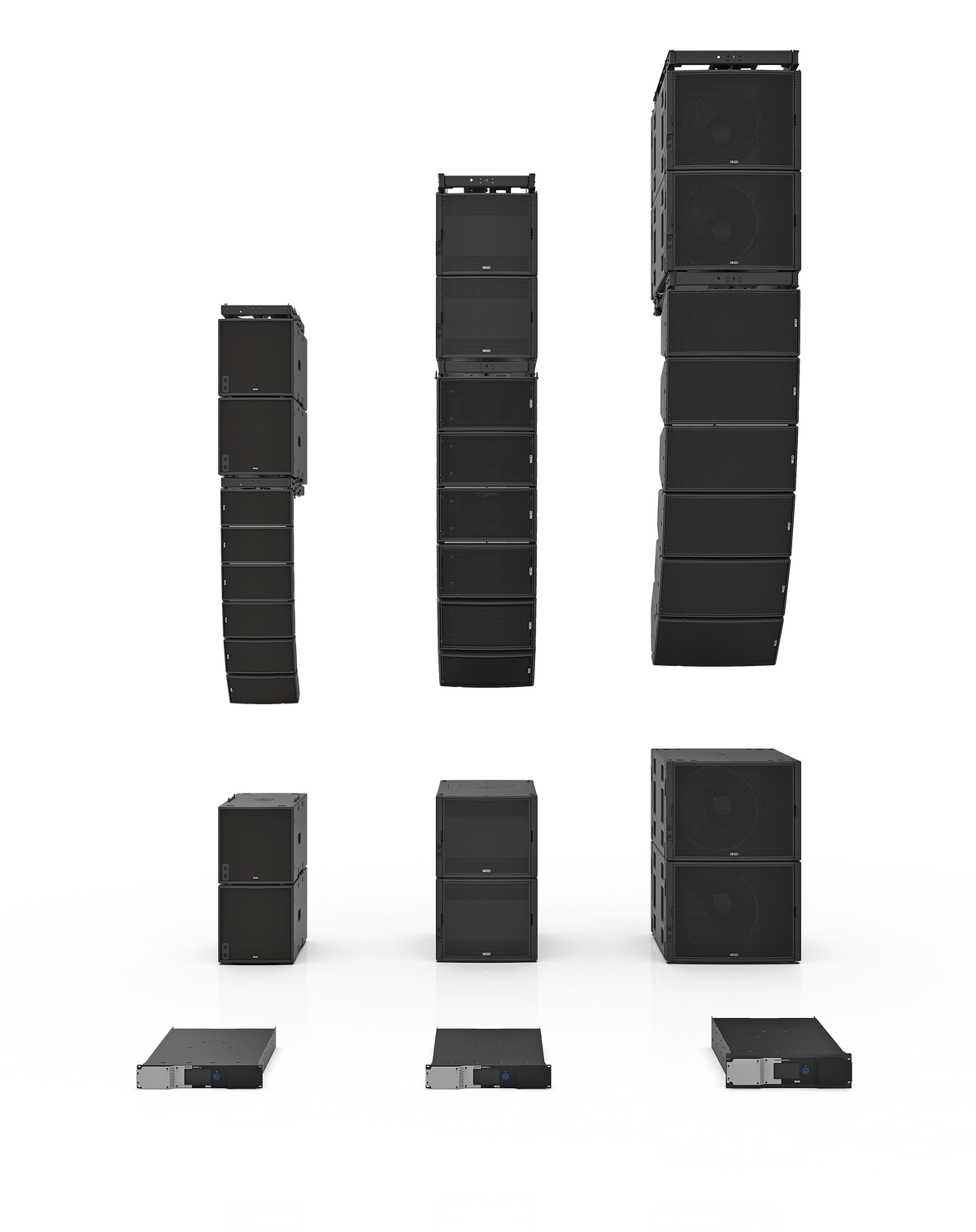

The Installation version is wired via 2x cable gland connectors with 2-core cables, and the enclosure integrates rigging hardware with no loose parts for stacking or flying with the companion GEO M10 main element. The cabinet is constructed from Baltic Birch Plywood with a textured black or white coating and ships with 4x side handles. Operating temperature range is 0°C to 40°C, and the product carries a 2-year warranty.

• 1 x 15-inch 8 Ohm long excursion Neodymium driver
• Frequency response: 40 Hz – 120 Hz (+6 dB)
• Sensitivity: 101 dB, Max SPL: 136 dB
• Recommended power: 900 W, 8 Ohm nominal impedance
• Dimensions: 531 x 437 x 704 mm, 40 kg
