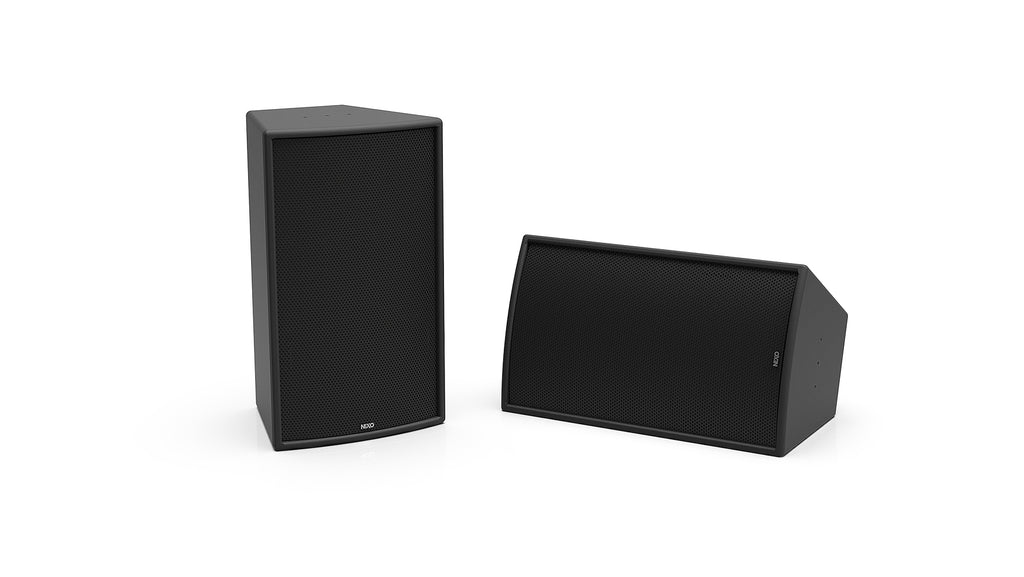

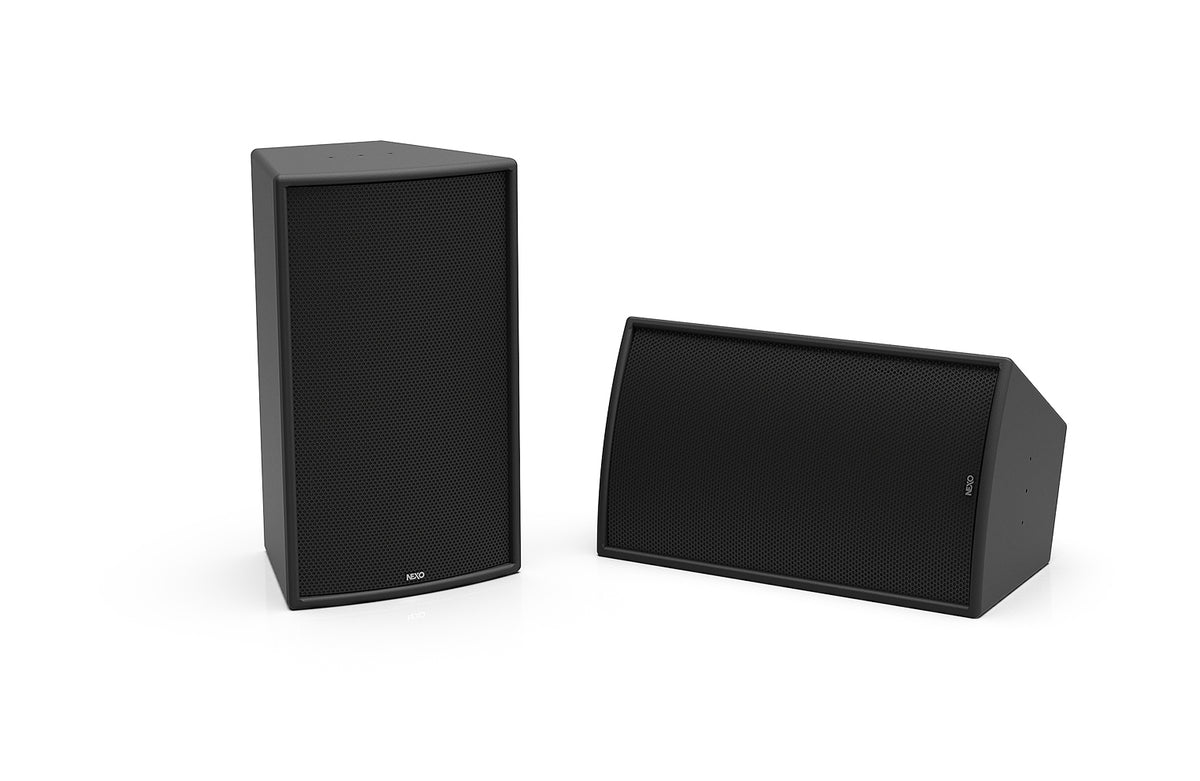

NEXO ePS10-EN54 10-inch Horn-Loaded 2-Way Loudspeaker, Installation Version, Black

The NEXO ePS10-EN54 is a 10-inch horn-loaded 2-way passive loudspeaker built for fixed installation projects that require EN54-24 life-safety certification, such as voice evacuation and emergency sound systems.

A 10" neodymium LF driver with a 2.5" voice coil is paired with a 1.4" HF compression driver mounted on NEXO's Asymmetrical Dispersion horn, delivering a maximum SPL of 130 dB and a frequency response of 70 Hz – 20 kHz (+6 dB) at a sensitivity of 101 dB.

The rotatable constant-directivity horn offers 50° to 100° horizontal and +25°/-30° vertical coverage, while connection is made via two pairs of 5 mm pitch push-in cage clamp terminal blocks. The IP55-rated enclosure is built from 15 mm birch plywood with a polyurethane coating and galvanized grille, rated for operation from -40°C to 70°C.

The ePS10-EN54 ships with an IP cover for the connectors and is covered by a 5-year warranty.

• EN54-24 certified for life-safety installations
• 130 dB max SPL, 101 dB sensitivity
• 10" LF + 1.4" HF horn-loaded 2-way design
• IP55-rated, -40°C to 70°C operating range
• 14.8 kg, 316 x 531 x 285 mm enclosure
