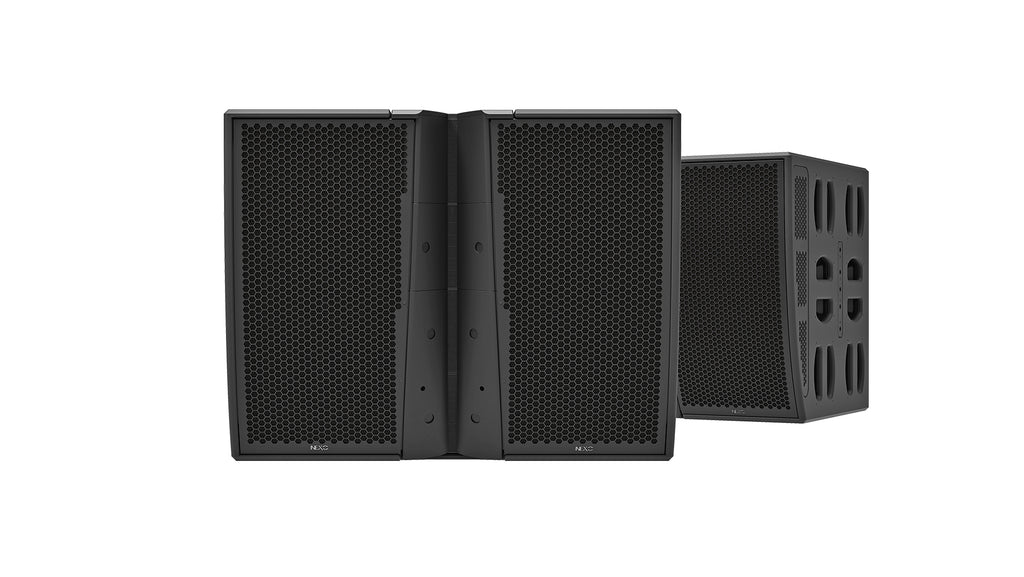

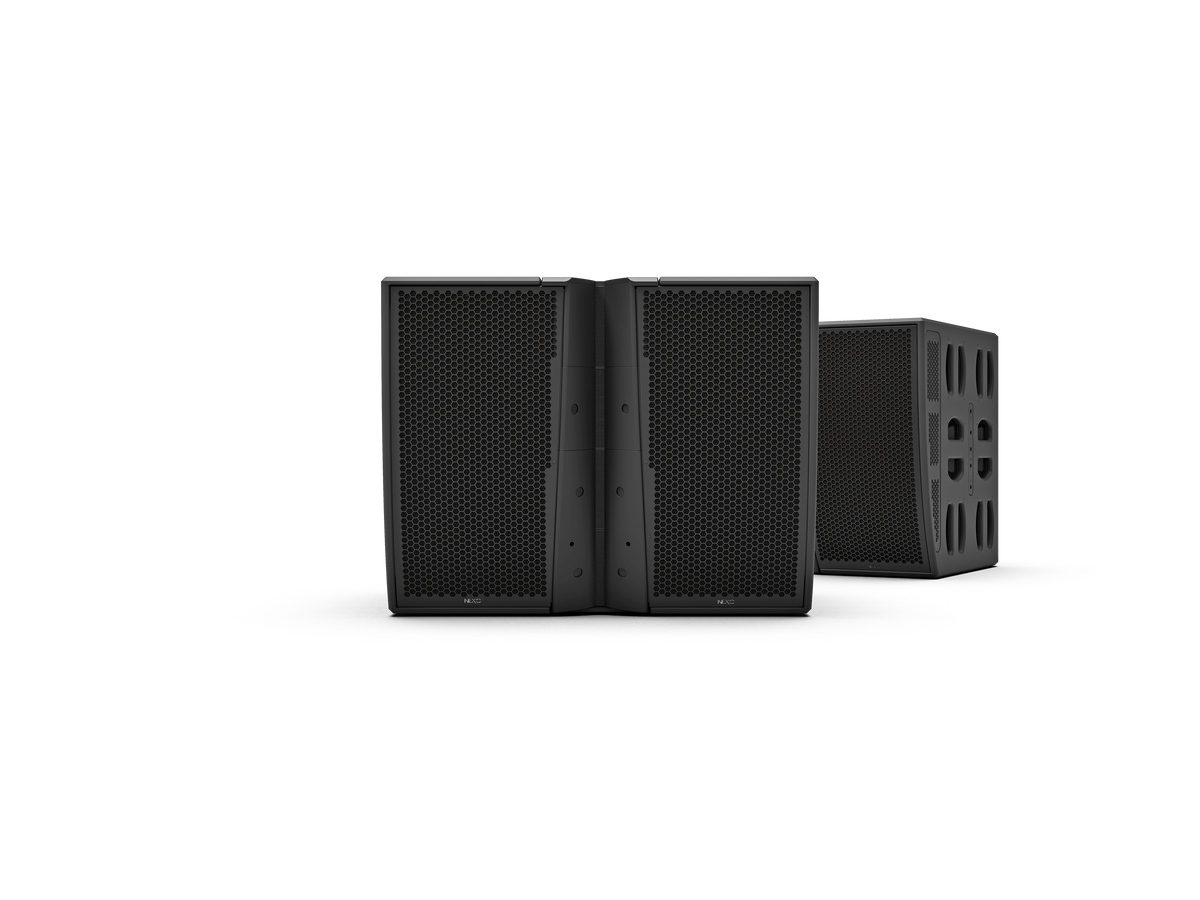

NEXO Alpha+ M210 10-inch Hybrid Horn-Loaded Main Module, Black

The NEXO Alpha+ M210 is a hybrid horn-loaded main module designed for the Alpha+ touring line array system, combining high output with a lightweight, road-ready enclosure for professional live events use.

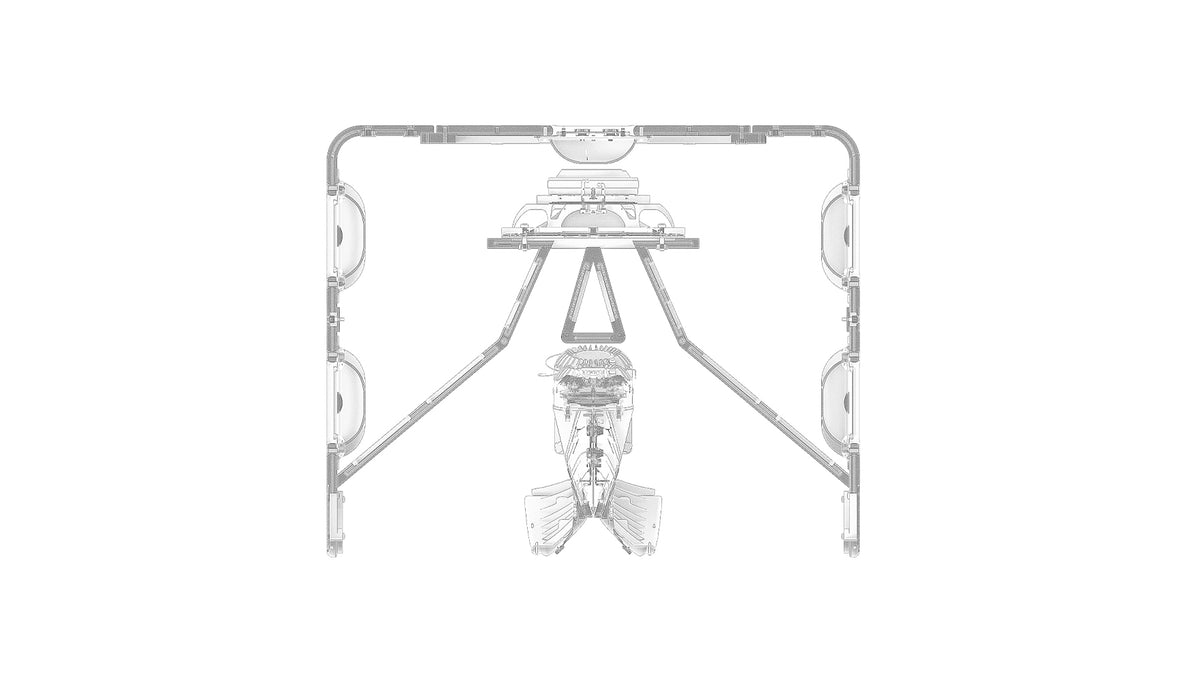

Its 2 x 10-inch MF neodymium woofers and 4 x 3-inch HF neodymium compression drivers are mounted on an articulated waveguide, producing a frequency response of 160 Hz to 20 kHz (±6 dB) and a maximum SPL of 148 dB peak, with continuously variable horizontal dispersion from 120° at the bottom to 60° at the top and adjustable vertical directivity.

The module connects via 2 x NL4 4-pole connectors at 45 Vrms (150 Vpeak) input voltage and operates across 0°C to 40°C. The enclosure is custom-made from bent plywood of Baltic birch and poplar, keeping weight to 53 kg despite its 4 + 4 ohm nominal impedance configuration.

• Driver configuration: 2 x 10-inch MF neodymium + 4 x 3-inch HF neodymium compression drivers
• Maximum SPL: 148 dB peak
• Frequency response: 160 Hz to 20 kHz (±6 dB)
• Dimensions: 755 x 598 x 632 mm, 53 kg
• Warranty: 5 years
