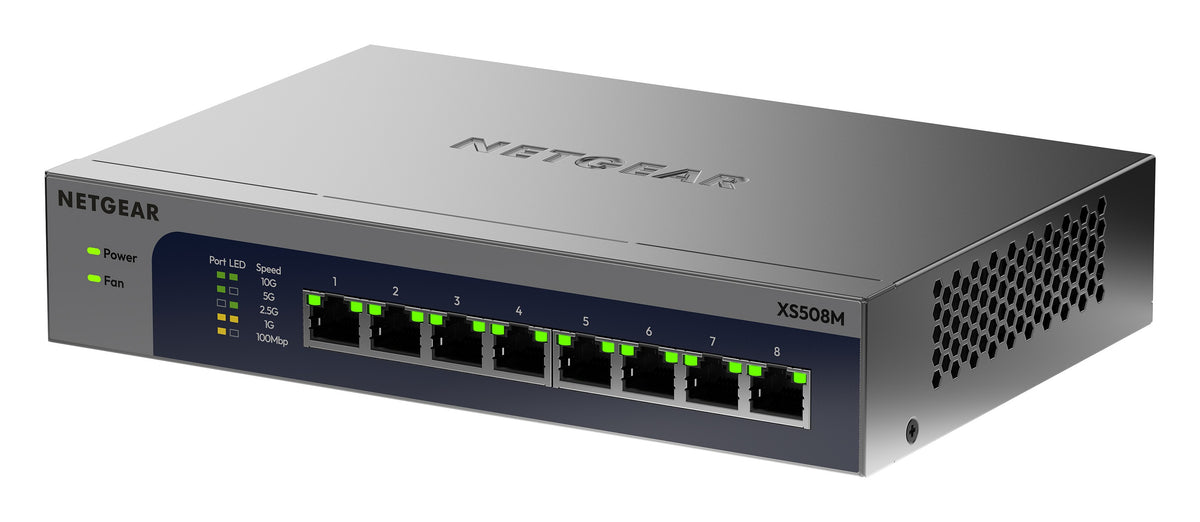

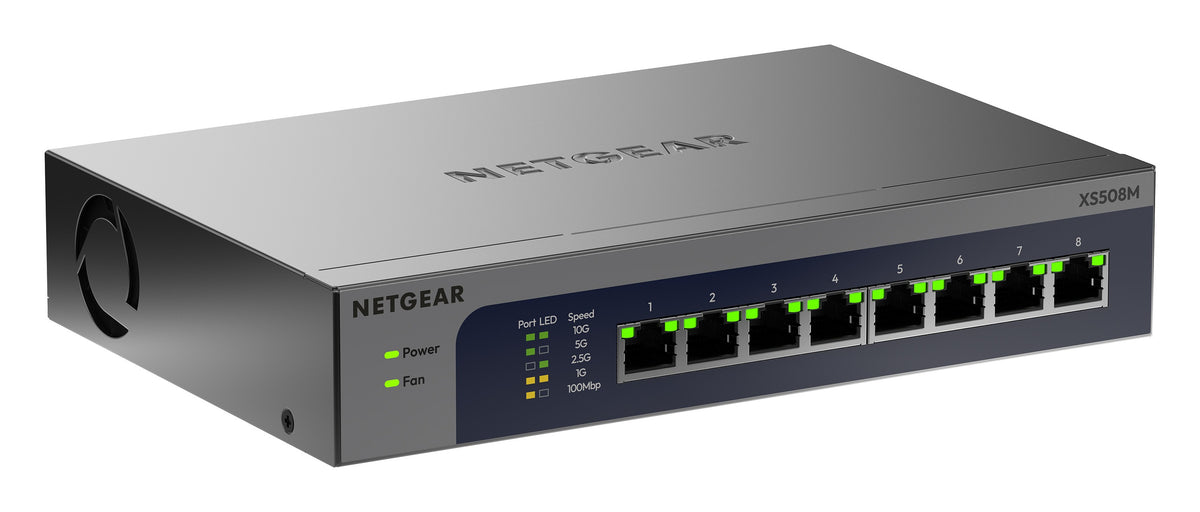

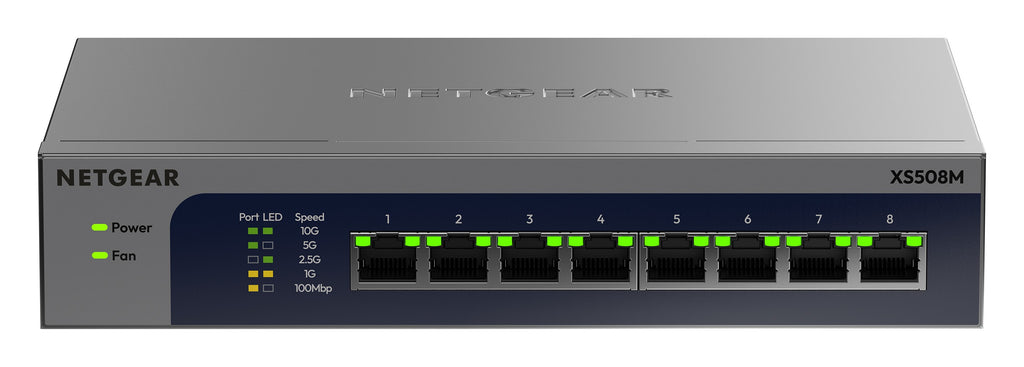

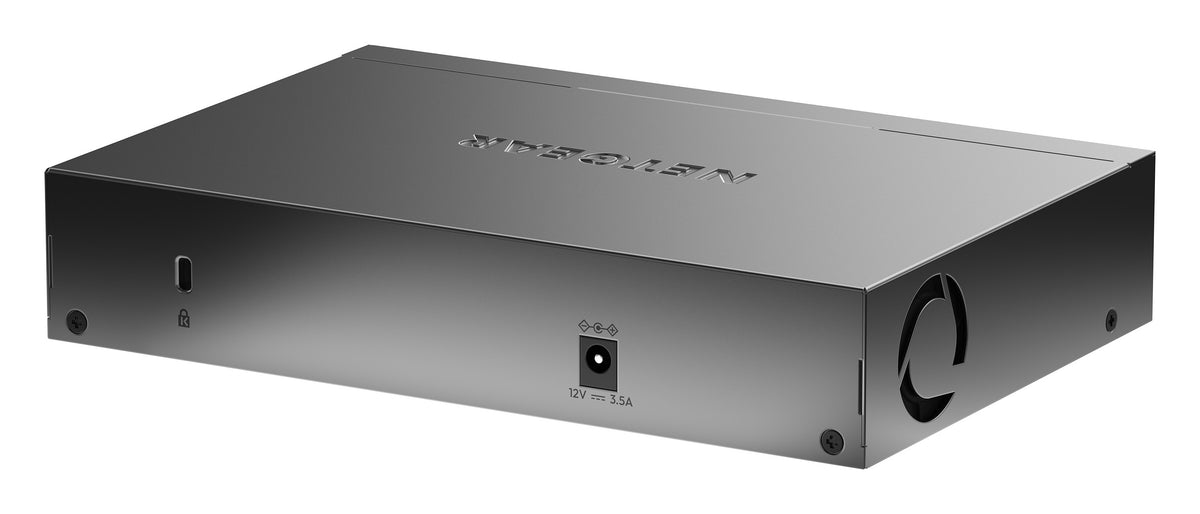

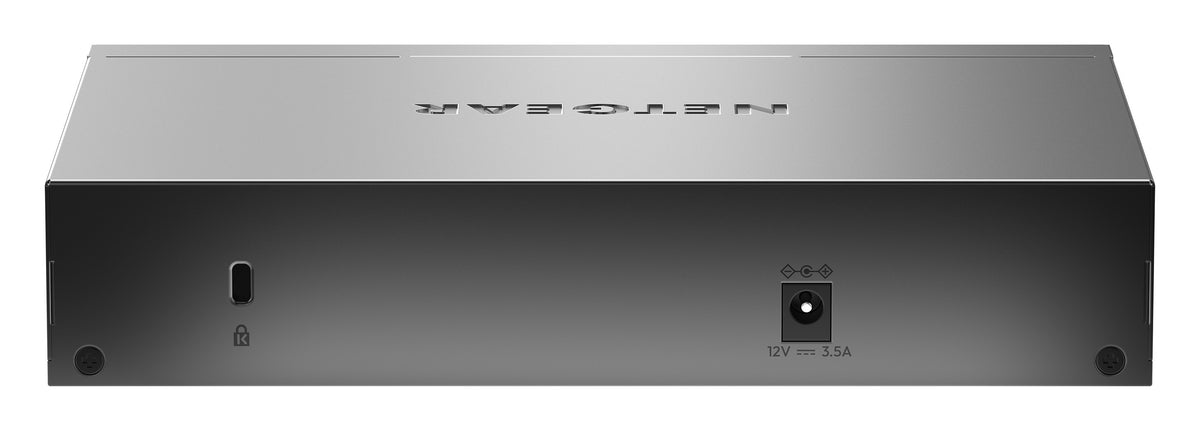

Netgear XS508M 8-Port 10G/Multi-Gig Ethernet Unmanaged Switch

Features

Plug-and-play simplicity

Expand your network instantly. Connect your hardware and enjoy immediate, high-speed performance with absolutely no software or setup required.

The ultimate WiFi 7 companion

Provide the massive backhaul bandwidth modern WiFi 7 and WiFi 6E access points required to keep your wireless network running seamlessly.

Compact and resilient design

A newly designed, small-footprint housing looks great desk-side and is engineered to operate flawlessly in warm environments up to 50°C.

Designed for lean IT teams and gamers

Eliminate lag and buffering in your office, creator studio, or gaming setup. Move massive video files to your NAS in seconds.

Flawless 10G and Multi-Gigabit speeds

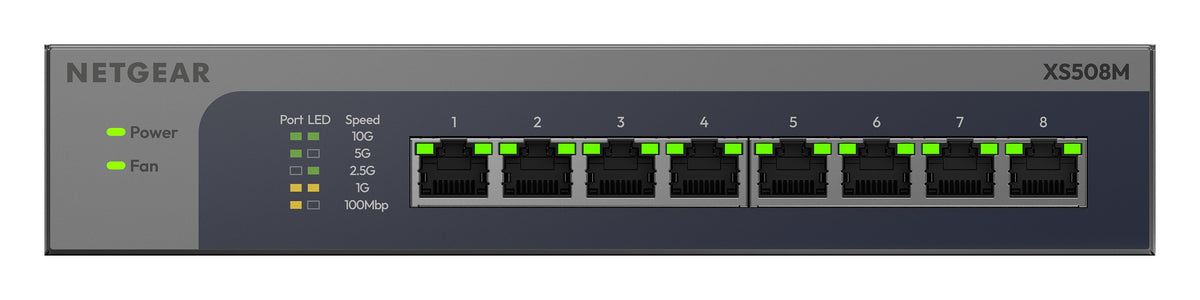

Eight copper ports that automatically adapt to deliver the fastest speed your devices can handle, up to 10Gbps.

Unmatched value and trust

Go beyond cheap budget alternatives. Invest in proven NETGEAR engineering to keep your network up and running when it matters most.

Product Specifications

Physical Specification

Dimensions (W x D x H)

210 × 140 × 40 mm (8.27 × 5.51 × 1.57 in)

Weight

0.947 kg (2.09 lb)

Technical Specs

Speed

100M / 1G / 2.5G / 5G / 10G (auto-sensing)

Number of Ports:

8

Jumbo Frame Support:

Up to 12 K bytes

MAC Table Size:

16 K

Packet buffer size:

1.5 MB

IEEE 802.1p QoS:

Yes

Max Power Consumption:

39 W

Fans:

1 active fan (low-noise)

Operating Temperature:

0-50°C (32°F - 104°F)

MTBF (hours)

519,995 hrs

FCC Class

Class A

Support & Warranty

​Warranty:

This product is backed by NETGEAR limited lifetime hardware warranty.​

​

Click here

for coverage, availability and terms and conditions.

Support:

NETGEAR Support offers a customizable support experience based on your operational needs:​

​

Sprint support

option with 24/5 Technical Support (phone, online) and Advance RMA Replacement​

​

Overdrive support

option with 24/7 Technical Support (phone, online, 2h SLA) and Next Business Day RMA Replacement​

Support coverage in one, three, or five year contracts​

Visit

http://www.netgear.com/enterprise-support

for more information.
