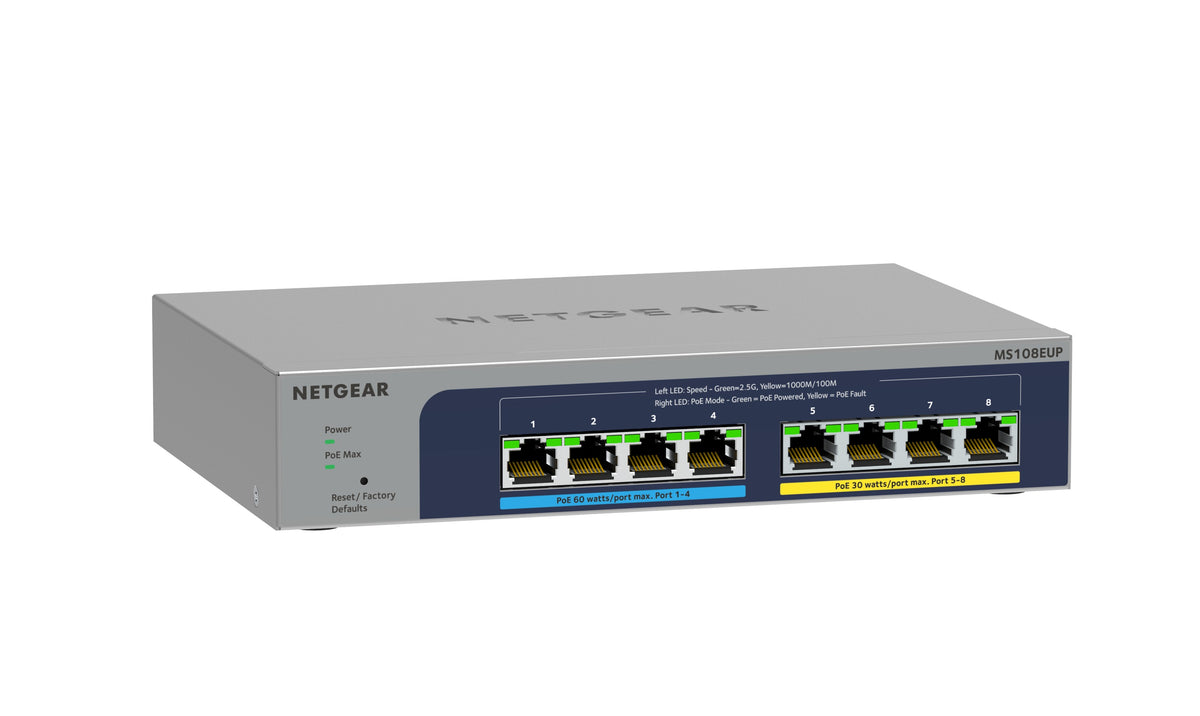

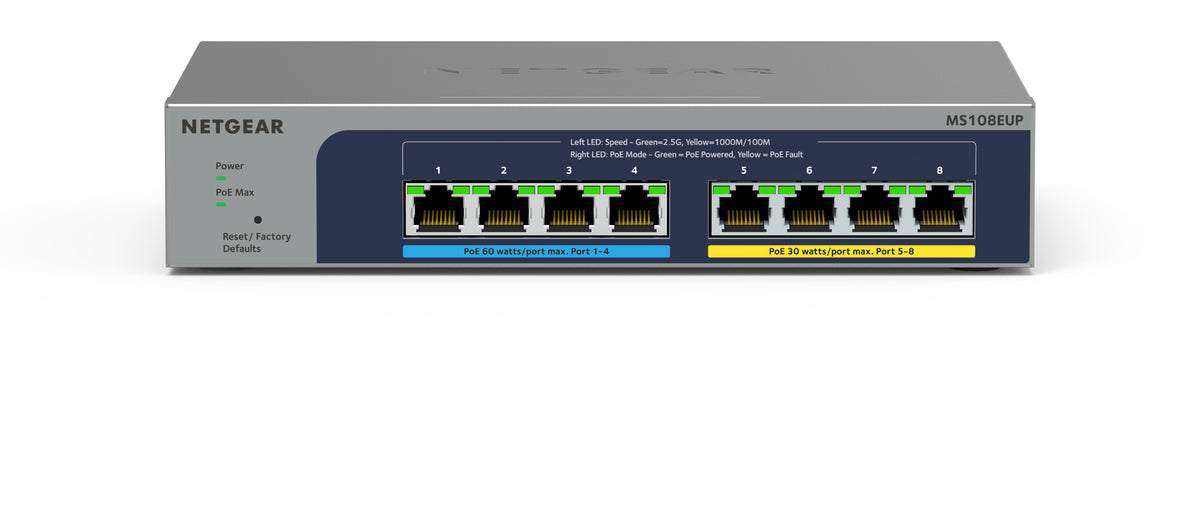

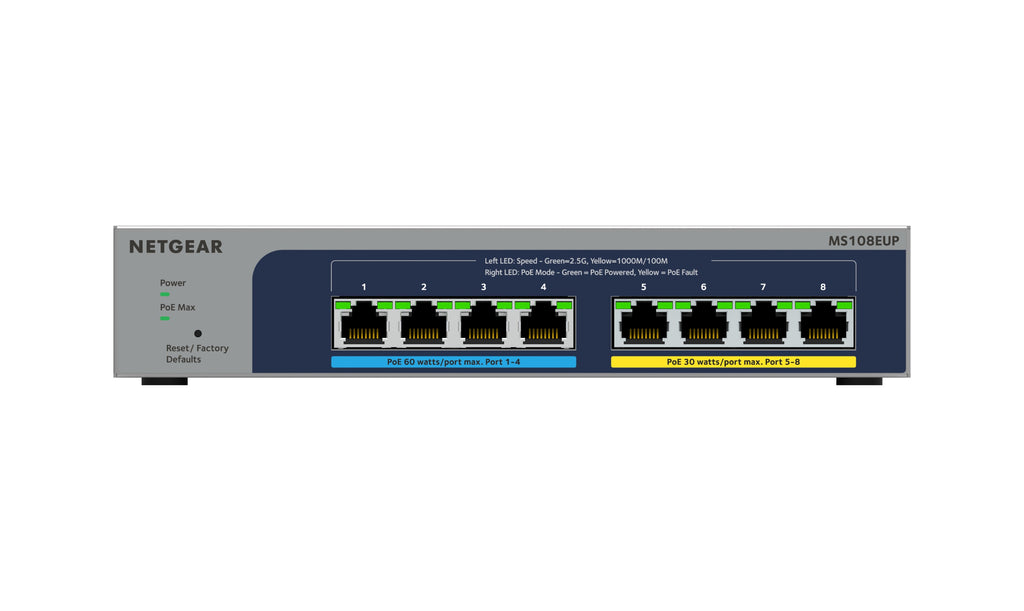

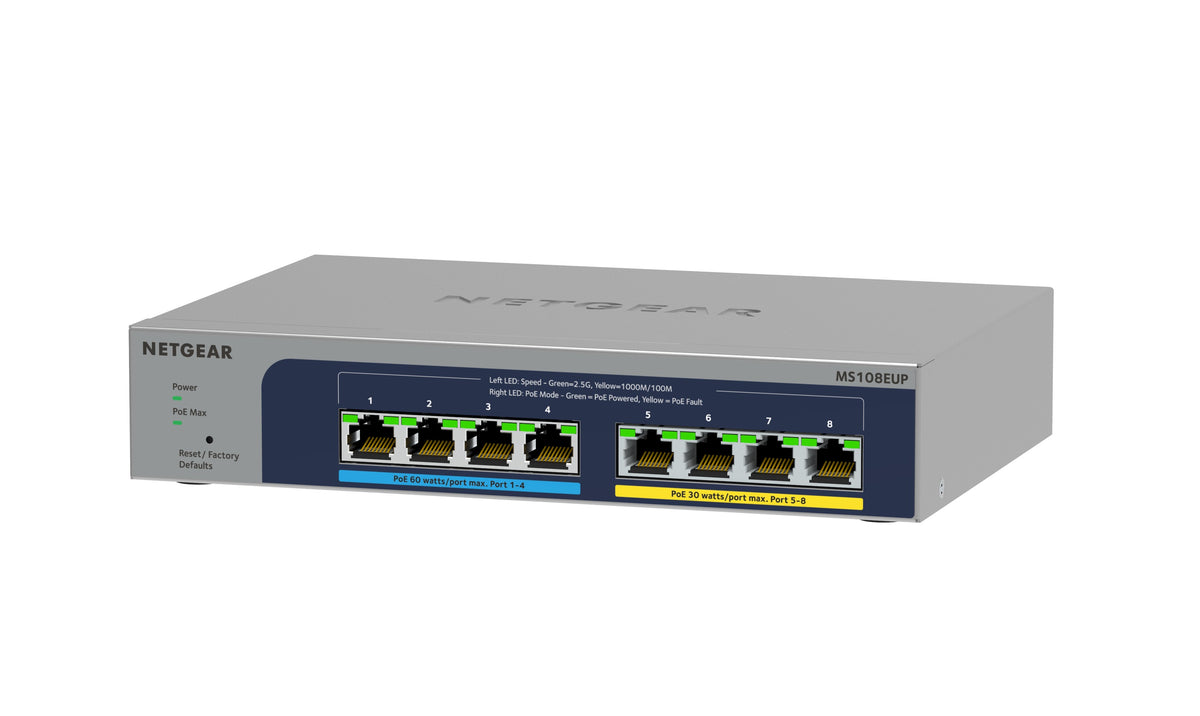

Netgear MS108EUP Multi-Gigabit Switch

Name: Netgear MS108EUP Multi-Gigabit Switch
Brand: Netgear
SKU: 34992

Producentens varenr.: MS108EUP-100EUSVarenr.: 34992

Kontakt os om dette produkt

Provides 8 ports 1G/2.5G with 4 PoE+ ports and 4 Ultra60 PoE++ ports making it a perfect switch for WiFi 6 AP connectivity, IP surveillance and more.

Multi-Gigabit Ethernet
8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each.

PoE Support
4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire.

Advanced PoE Controls
Manage PoE prioritization, scheduling, power limit per port, and more for simple control over all PoE-powered devices.

Non-Blocking Switching
40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.

Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.

Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box.

Key features

802.3bt standard offering up to 60W/port on Port 1-4, 802.3at (30W/port) on Port 5-8
Enable network configuration and management at the price point of Unmanaged Switches
Simple, yet useful network set-up on top of plug-and-play connectivity
Business-friendly and easy-to-use web browser-based management GUI
VLAN support for traffic segmentation
Quality of Service (QoS) for traffic prioritization

Specifications

Management features

Switch type: Managed
Switch layer: L2/L3
Quality of Service (QoS) support: Yes
Web-based management: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support: No
Copper ethernet cabling technology: 100BASE-T, 1000BASE-T
Port mirroring: Yes
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Rate limiting: Yes
VLAN support: Yes
Virtual LAN features: Port-based VLAN, Tagged VLAN
Number of VLANs: 64

Data transmission

Switching capacity: 40 Gbit/s
MAC address table: 16000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 12000
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP client
IGMP snooping: Yes
Password protection: Yes
Queue scheduling algorithms: Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes
Number of multicast groups filtered: 128

Design

Rack mounting: No
Stackable: No
Product colour: Grey
Housing material: Metal
LED indicators: Yes

Performance

Mean time between failures (MTBF): 373644 h

Power

Power source: PoE
Power supply included: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 230 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m
