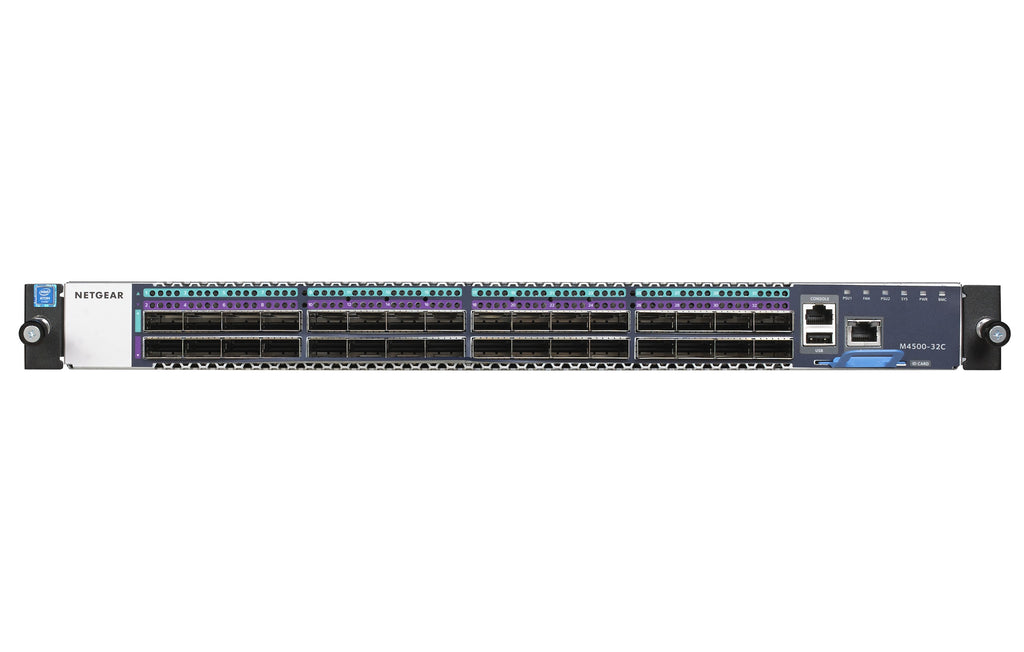

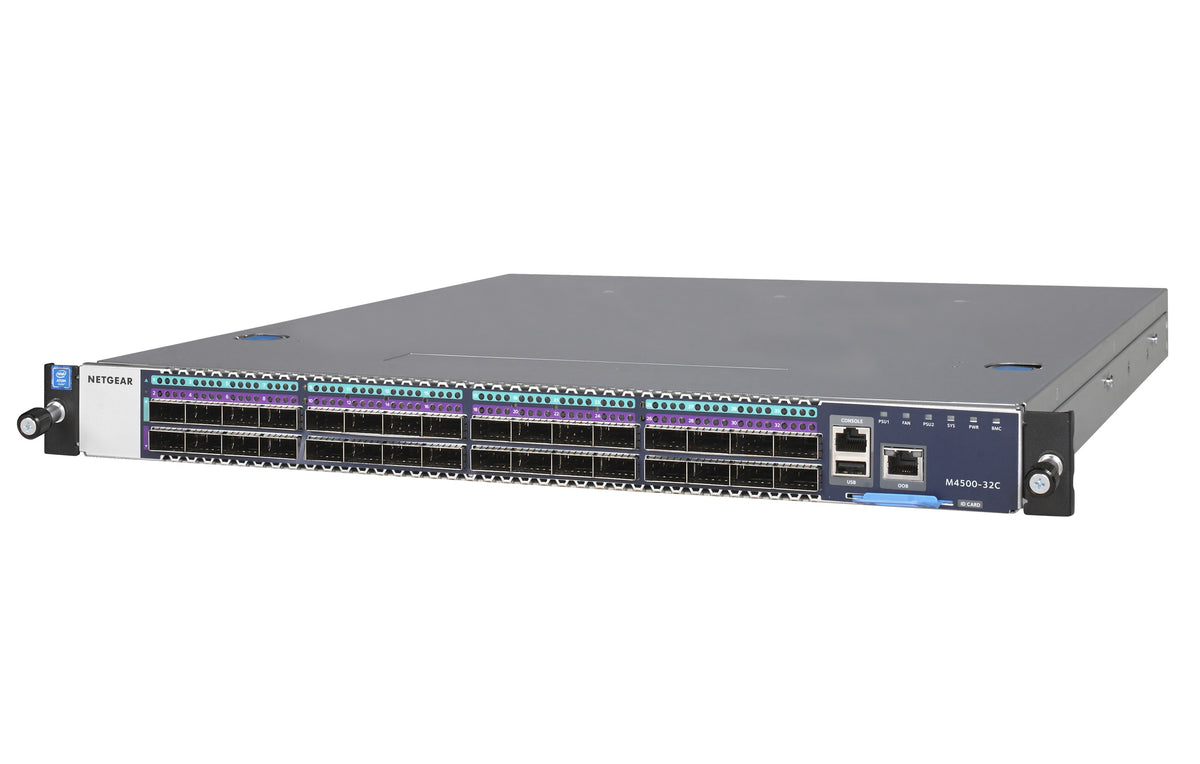

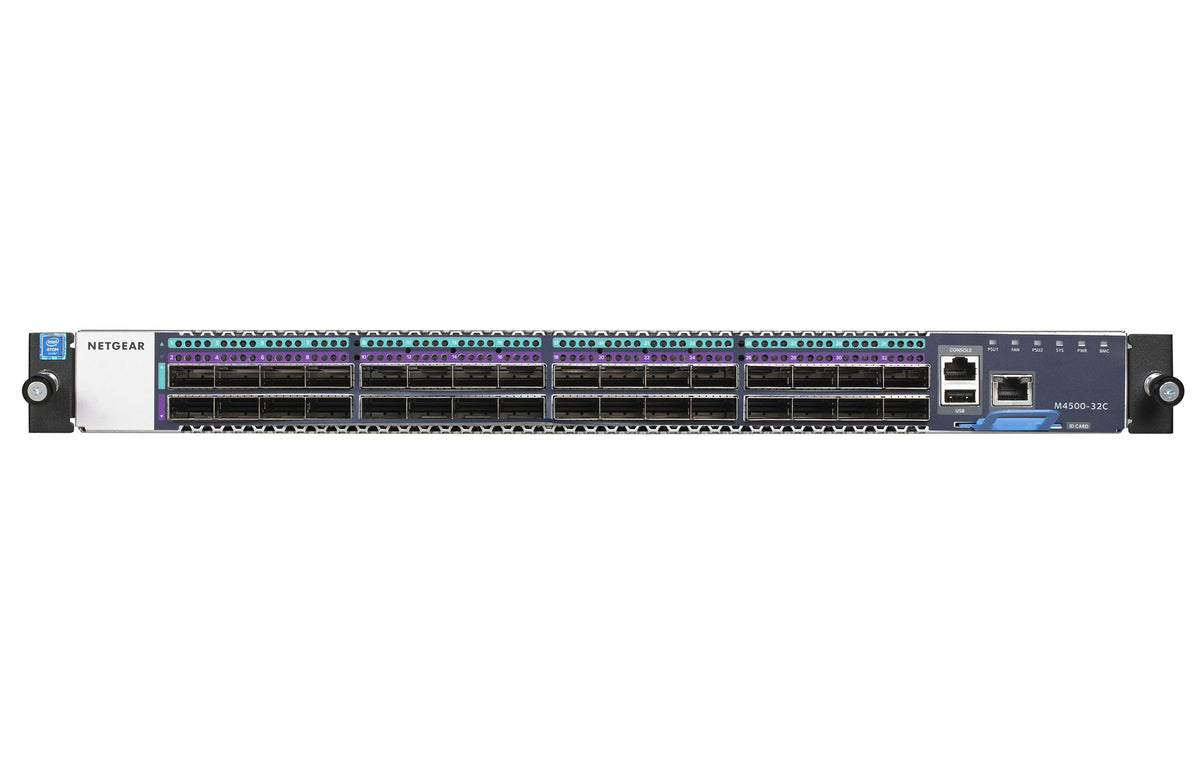

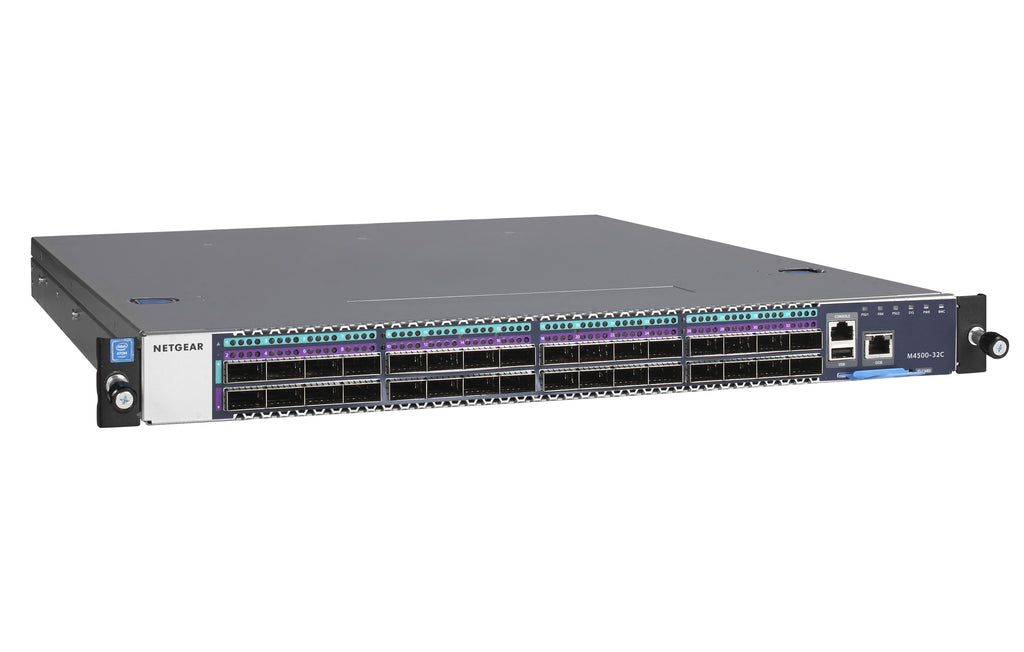

Netgear M4500-32C Managed Switch
0,00 kr
Gå til produktoplysninger
Kontakt os om dette produkt
Netgear
Netgear M4500-32C Managed Switch
Producentens varenr.: CSM4532-100EUSVarenr.: 11914
The trend of moving matrix switching into the Ethernet network is inevitable and SDVoE already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch using Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 Multicast Routing techniques, adding complexity and cost to the Ethernet infrastructure. As SDVoE systems become ever larger, a new class of switches has come to market. The M4500 switches combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known IGMP techniques across the entire AV over IP network.
Key features
- The M4500-32C switch provides 32-port QSFP28 (40G, 50G and 100G fiber)
- With 6.4Tbps non-blocking fabric and 2Bpps forwarding rate, M4500-32C delivers L2/L3/L4 and IPv4/IPv6 rich services for Professional AV-over-IP installations (SDVoE-ready certified)
- Two modular power supplies are pre-installed for 1+1 power redundancy

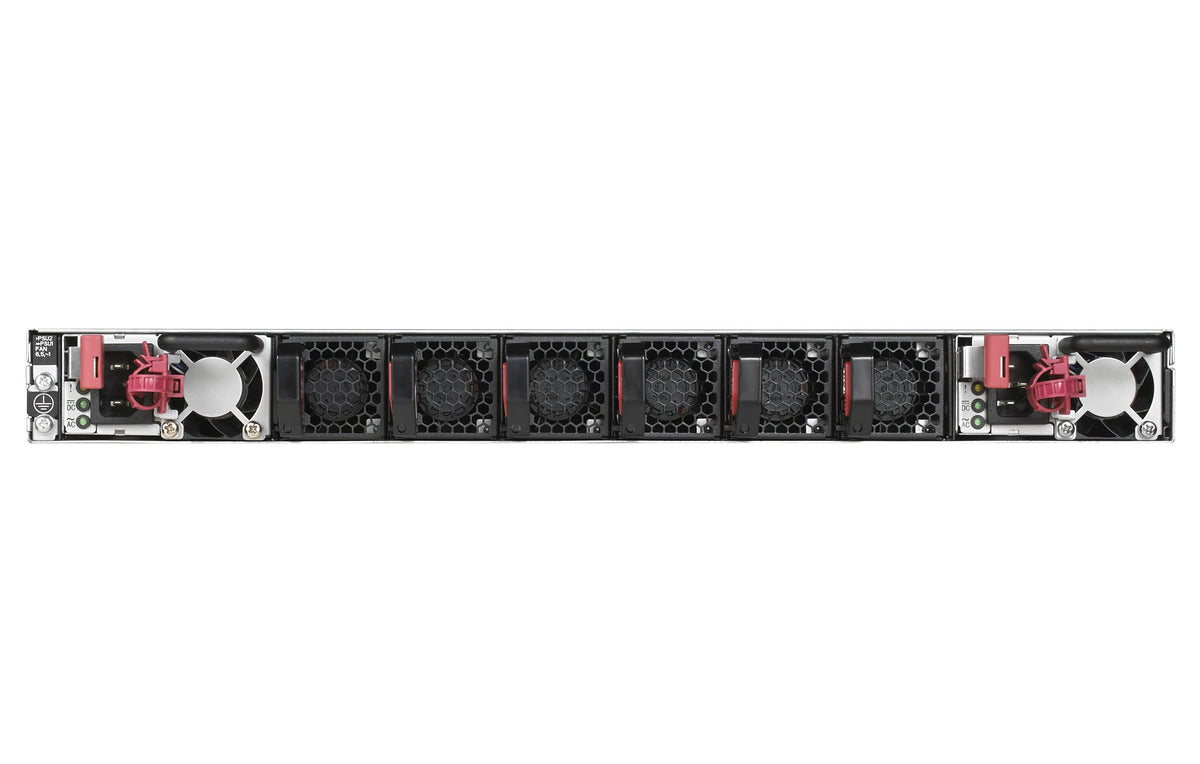

- Six modular fan trays are pre-installed for 4+2 fan redundancy
- Line-rate spine and leaf topologies with the M4500-48XF8C (32-port SFP28 and 8-port QSFP28)
- Layer 3 feature set includes static and dynamic routing with VRRP, OSPF, BGP, VRF-Lite and PIM
- Enhanced IGMP+ implementation for plug & play multicast at Layer 2 between M4300/M4500 switches
- Lifetime hardware warranty, Lifetime NBD and Lifetime online technical chat for investment protection and post-sales support
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3/L4
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- System event log: Yes
Ports & interfaces
- Fiber optic connector: QSFP+
- Console port: RJ-45
- QSFP28 ports quantity: 32
- USB 2.0 ports quantity: 1
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1AX, IEEE 802.3ad
- 10G support: Yes
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Rate limiting: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Auto-sensing: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs: 4000
Optical fiber
- Fiber ethernet cabling technology: 100BASE-X
Data transmission
- Switching capacity: 6400 Gbit/s
- MAC address table: 32000 entries
Security
- DHCP features: DHCP client, DHCP relay, DHCP server
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: HTTPS, SNMP, SSH
- SSH/SSL support: Yes
- BPDU filtering/protection: Yes
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: Web GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- Housing material: Metal
- Reset button: Yes
- LED indicators: Yes
- Electromagnetic compatibility: CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024
Performance
- Built-in processor: Yes
- Memory type: DDR3-SDRAM
- Internal memory: 8000 MB
- Flash memory: 256 MB
- Noise level: 64 dB
Power
- Power consumption (max): 426 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Weight & dimensions
- Weight: 9.78 kg
Packaging content
- User guide: Yes
- Manual: Yes
