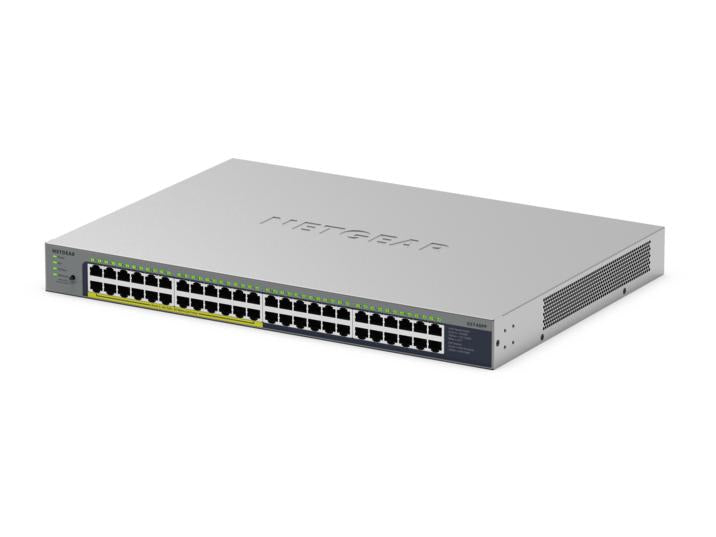

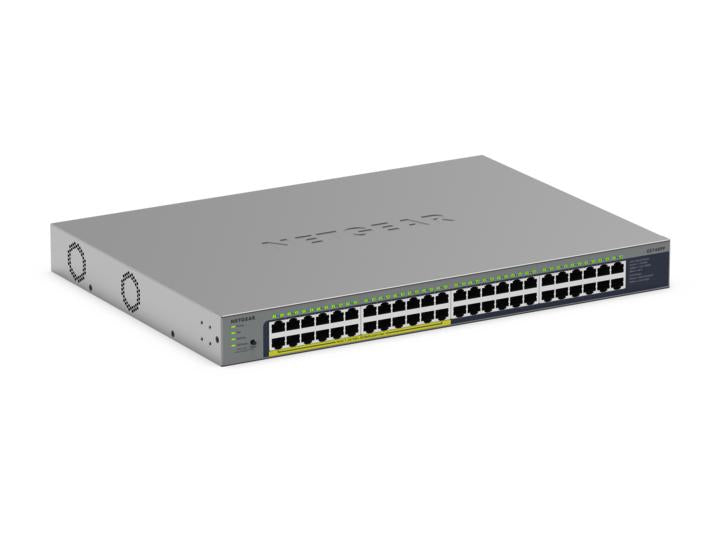

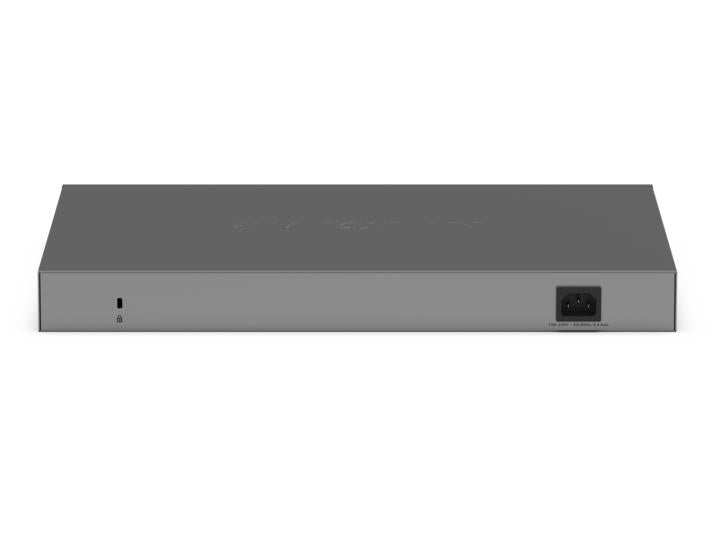

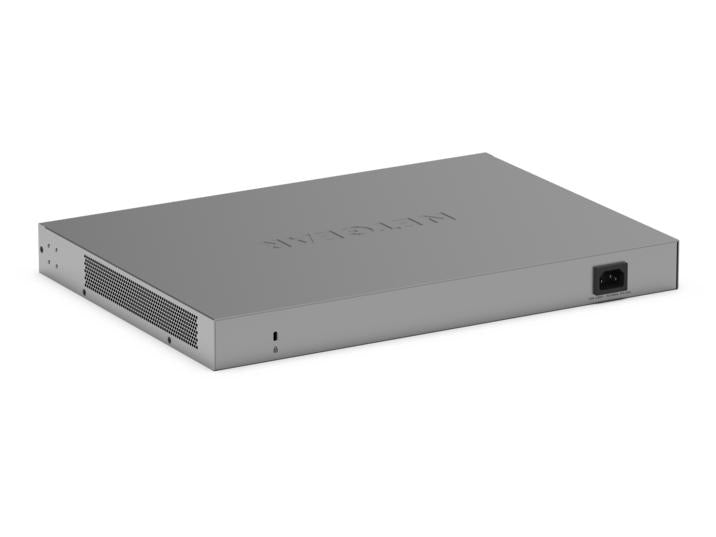

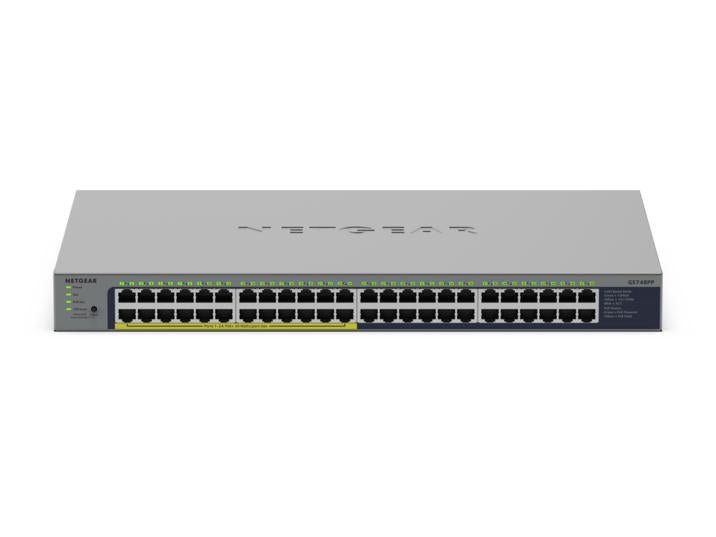

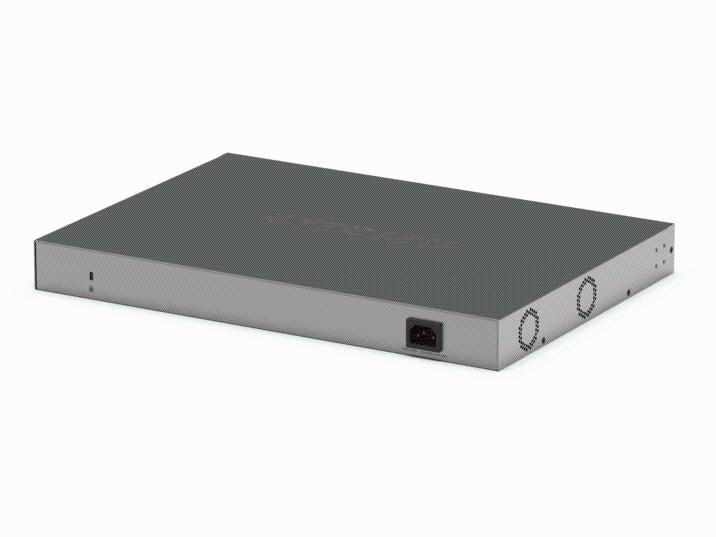

Netgear GS748PP 48-Port PoE++ Switch
Producentens varenr.: GS748PP-100EUSVarenr.: 35036
POWER-OVER-ETHERNET
24 PoE+ ports delivering up to 30W per port with a 380W total power budget for wireless APs, IP Cameras, IP Phones and much more. Dynamic PoE maximizes usage of PoE budget.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
DYNAMIC FANS
Optimal balance between noise and performance.
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your rack with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
24 PoE+ ports delivering up to 30W per port with a 380W total power budget for wireless APs, IP Cameras, IP Phones and much more. Dynamic PoE maximizes usage of PoE budget.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
DYNAMIC FANS
Optimal balance between noise and performance.
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your rack with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Key features
- 48 x Gigabit Ethernet ports with 24 ports of PoE+
- Plug and play switch, no management required
- Energy Efficient Ethernet for maximum power savings
- Dynamic fans for quiet operation
- Rackmount or desktop
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
- MIB support: RFC 1213 MIB II, RFC 1643, RFC 1493
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1p, IEEE 802.3az
- Copper ethernet cabling technology: 10BASE-T
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Ethernet LAN data rates: 1000 Mbit/s
Data transmission
- MAC address table: 8000 entries
- Maximum data transfer rate: 1 Gbit/s
- Jumbo frames support: Yes
- Jumbo frames: 12.288
- Packet buffer memory: 1.5 MB
Design
- Rack mounting: Yes
- Product colour: Grey
- Redundant fans support: Yes
- Number of fans: 2 fan(s)
- Safety: CE mark, cUL IEC950/EN60950
Performance
- Mean time between failures (MTBF): 570972 h
Power
- Power source: AC/DC
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 8 A
- Power consumption (max): 410 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 380 W
Other features
- Latency: 2,900ns
- Connectivity technology: Wired
- Bandwidth: 96 Gbit/s
- I/O ports: 48 x 10/100/1000 Mbps 4 x SFP
- Electromagnetic emissions: CE mark, FCC Part 15 Class A, VCCI Class A, C-Tick
- Authentication method: 802.1x
- Warranty period: 2 year(s)
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Operating altitude: 0 - 3000 m
- Heat dissipation: 34.2 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 310 mm
- Height: 43 mm
- Weight: 4.6 kg
Certificates
- Compliance certificates: CB, CE, Federal Communications Commission (FCC), KC, Low Voltage Directive (LVD), RCM, UL, VCCI
