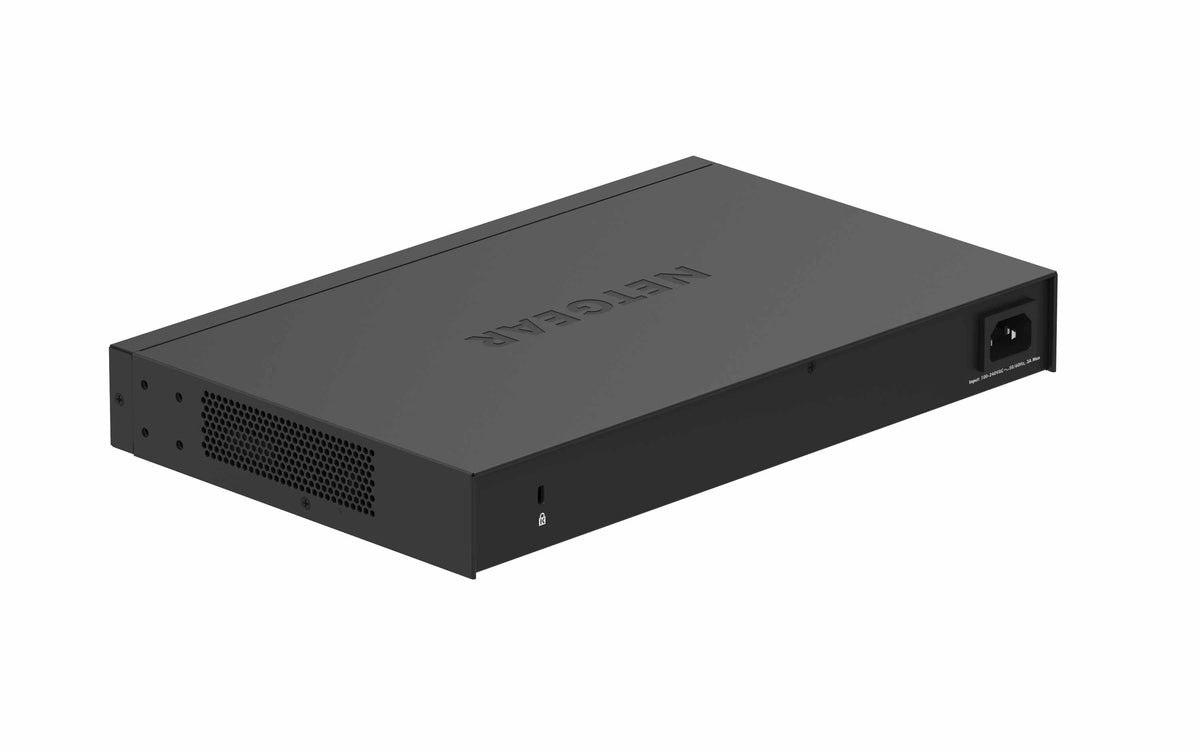

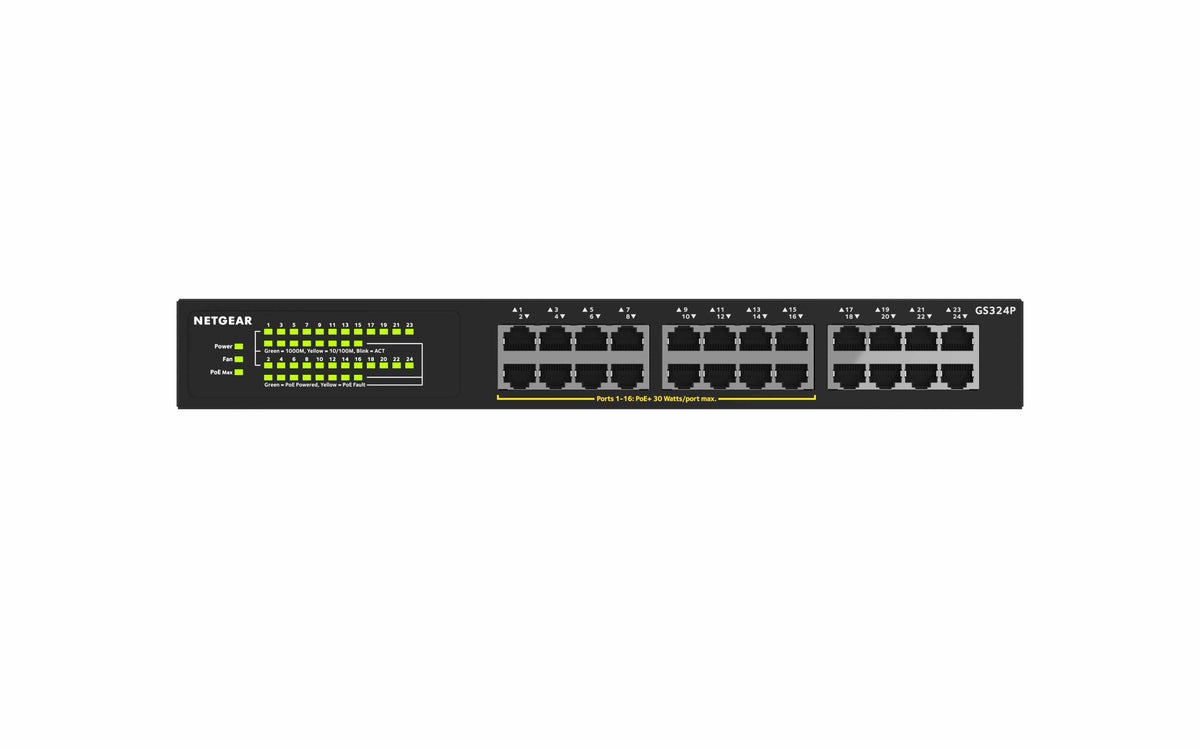

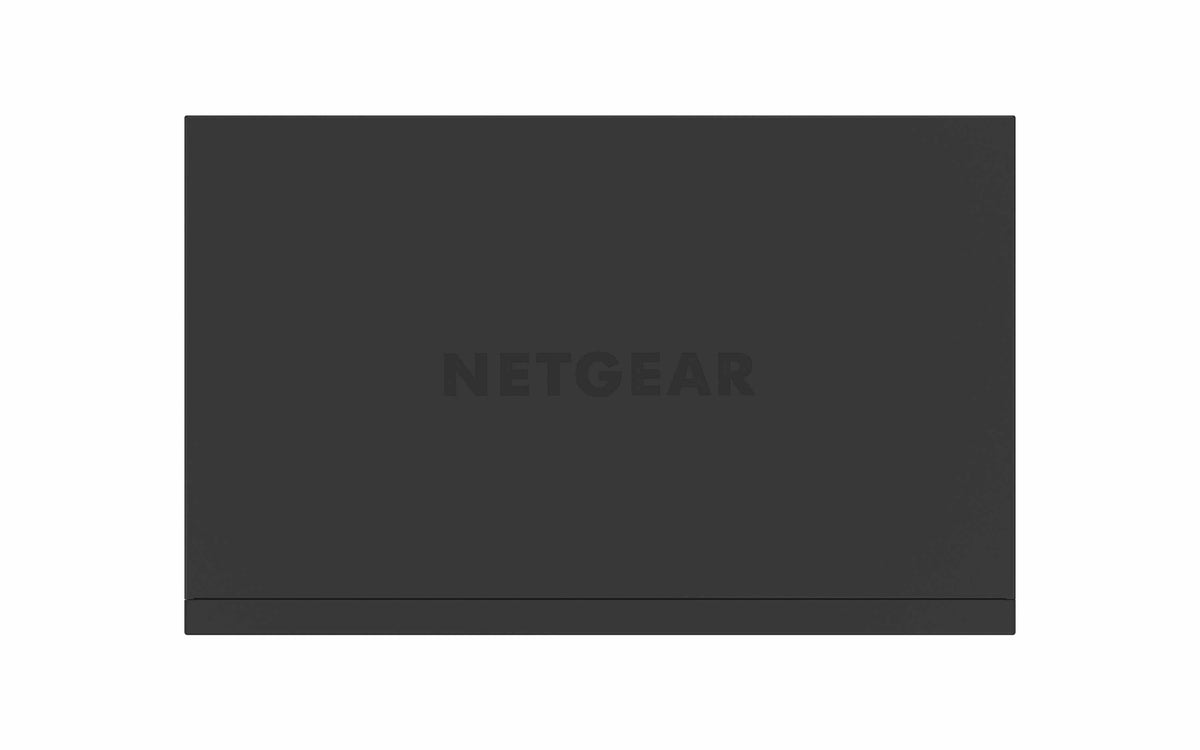

Netgear GS324P 24-Port Switch PoE+

Netgear

Netgear GS324P 24-Port Switch PoE+

Name: Netgear GS324P 24-Port Switch PoE+
Brand: Netgear
SKU: 35035

Producentens varenr.: GS324P-100EUSVarenr.: 35035

Kontakt os om dette produkt

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.

Key features

ETHERNET PORT CONFIGURATION: 24 Gigabit ports
POWER-OVER-ETHERNET: 16 PoE+ ports with 190W total power budget to power wireless AP, IP Cameras, IP Phones and much more
PLUG-AND-PLAY: Simple set up with no software to install or configuration needed
VERSATILE MOUNTING OPTIONS: Supports desktop, or rackmount placement, and includes all the necessary mounting hardware in the box
PoE POWER AUTO-BALANCE AND ALLOCATION - NETGEAR’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs
QUIET OPERATION: Ideal for noise-sensitive environments
ENERGY EFFICIENT: Designed to optimize power usage lowering its cost to operate. Compliant with IEEE802.3az Energy Efficient Ethernet mode
BUILT TO LAST: Every NETGEAR Network switch is rigorously tested for reliability, quality, and performance

Specifications

Management features

Switch type: Unmanaged
Quality of Service (QoS) support: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1p, IEEE 802.3at
10G support: No
Full duplex: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes

Data transmission

Switching capacity: 48 Gbit/s
MAC address table: 8000 entries
Latency (1 Gbps): 4 µs
Jumbo frames support: Yes
Jumbo frames: 10000
Packet forwarding rate (1 Gbps): 1448000 pps
Packet buffer memory: 0.192 MB

Security

Queue scheduling algorithms: Weighted Round Robin (WRR)

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, PoE, Power, Speed
Number of fans: 1 fan(s)
Electromagnetic compatibility: CE, FCC 15 A, IC A, RCM, VCCI, KC

Performance

Mean time between failures (MTBF): 1193574 h

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 3 A
Power consumption (max): 210 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 190 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 95%
Operating altitude: 0 - 3000 m
Heat dissipation: 718.2 BTU/h
