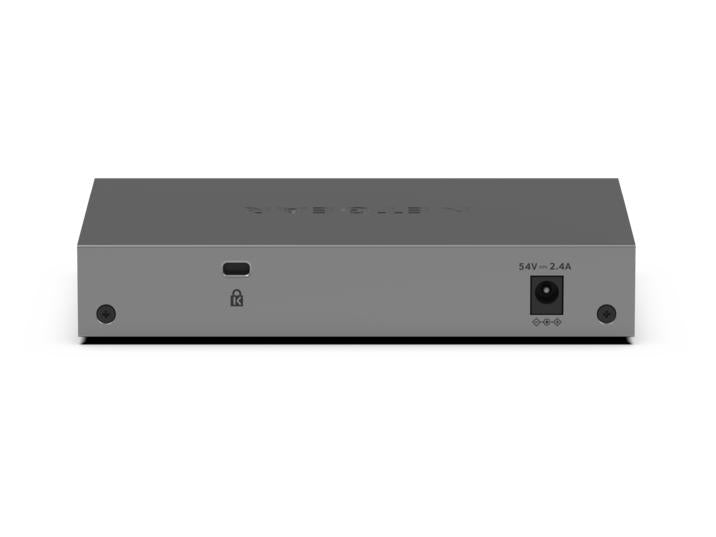

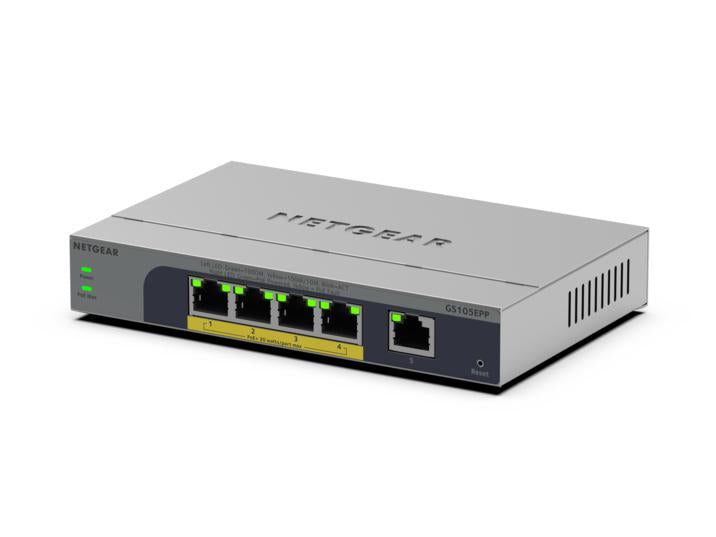

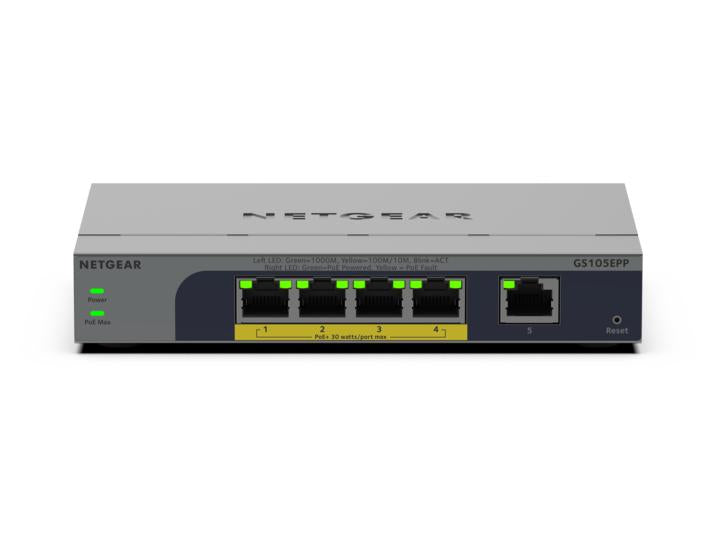

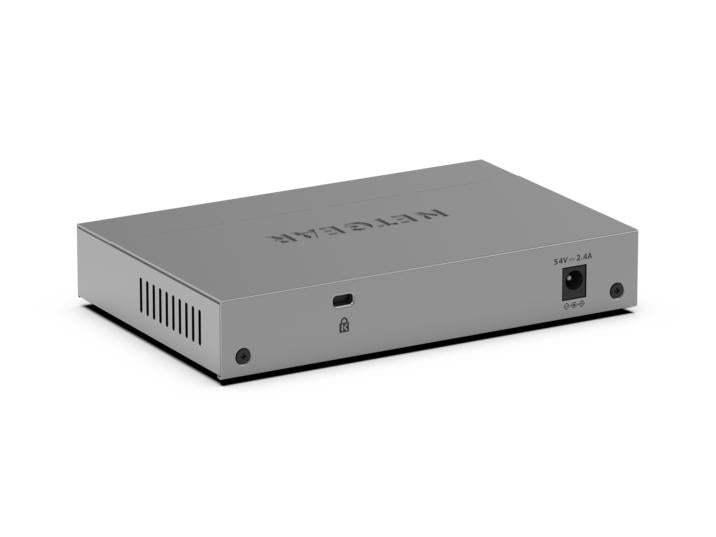

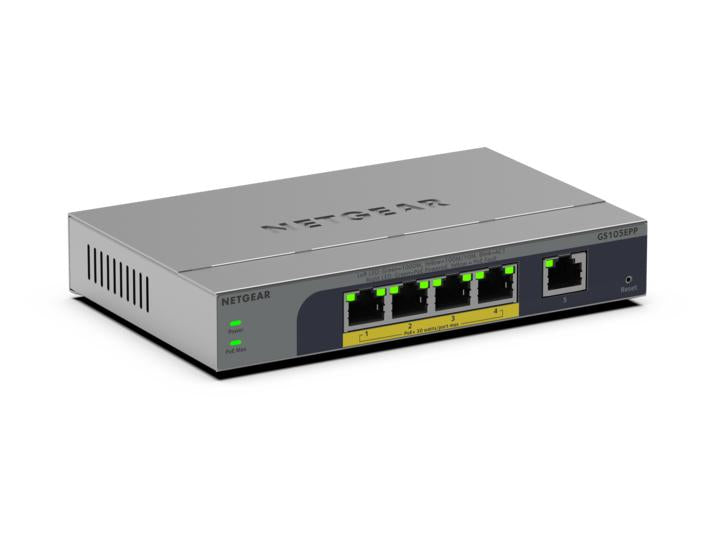

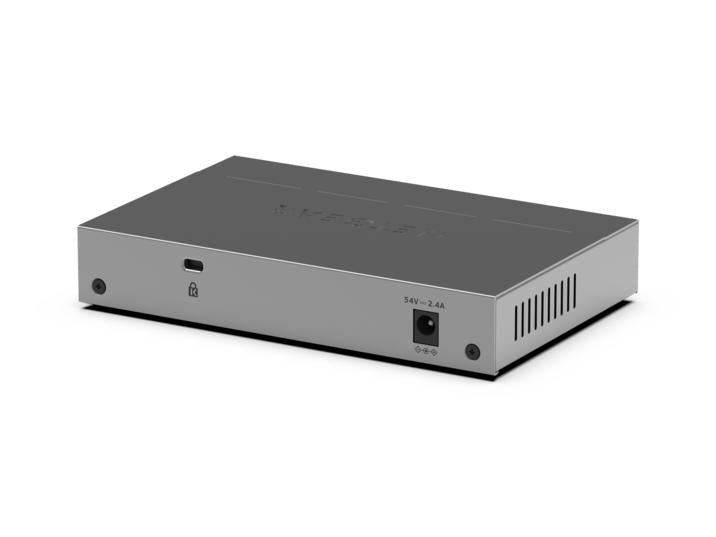

Netgear GS105EPP 5-Port Switch
Producentens varenr.: GS105EPP-100EUSVarenr.: 35004
EASY POE CONTROLS
Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for advanced control over all PoE-powered devices
GIGABIT ETHERNET
5 ports provide gigabit Ethernet connectivity to your devices
VLANS
Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Place your switch on your desktop or mount it to your wall with the hardware provided in the box. Silent operation makes this switch perfect for noise-sensitive environments
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for advanced control over all PoE-powered devices
GIGABIT ETHERNET
5 ports provide gigabit Ethernet connectivity to your devices
VLANS
Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Place your switch on your desktop or mount it to your wall with the hardware provided in the box. Silent operation makes this switch perfect for noise-sensitive environments
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Key features
- 5 x Gigabit Ethernet ports with 4 x PoE+ ports
- Plug-and-play with fundamental network management features
- QoS and VLAN management
- Fanless and silent
- Desktop or wall-mount
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
- 10G support: No
- Copper ethernet cabling technology: 1000BASE-T, 100BASE-T, 10BASE-T
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- VLAN support: Yes
Data transmission
- MAC address table: 2000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet buffer memory: 0.192 MB
Security
- DHCP features: DHCP client
- IGMP snooping: Yes
Design
- Rack mounting: No
- Stackable: No
- Form factor: Desktop/Wall-Mounting
- Product colour: Grey
- Housing material: Metal
- LED indicators: Activity, Link, PoE, Power, Speed, Status
Performance
- Fanless: Yes
- Mean time between failures (MTBF): 853770 h
Power
- Power source: AC/DC
- Power supply included: No
- DC input voltage: 54 V
- Input current: 1.66 A
- Power consumption (max): 137.8 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 4
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 120 W
Other features
- Bandwidth: 10 Gbit/s
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Heat dissipation: 3.24 BTU/h
Weight & dimensions
- Width: 158 mm
- Depth: 101 mm
- Height: 27 mm
- Weight: 400 g
Packaging content
- Quick start guide: Yes
- Manual: Yes
Certificates
- Compliance certificates: CB, CE, Federal Communications Commission (FCC)
- Certification: CB, CE LVD, CSA
