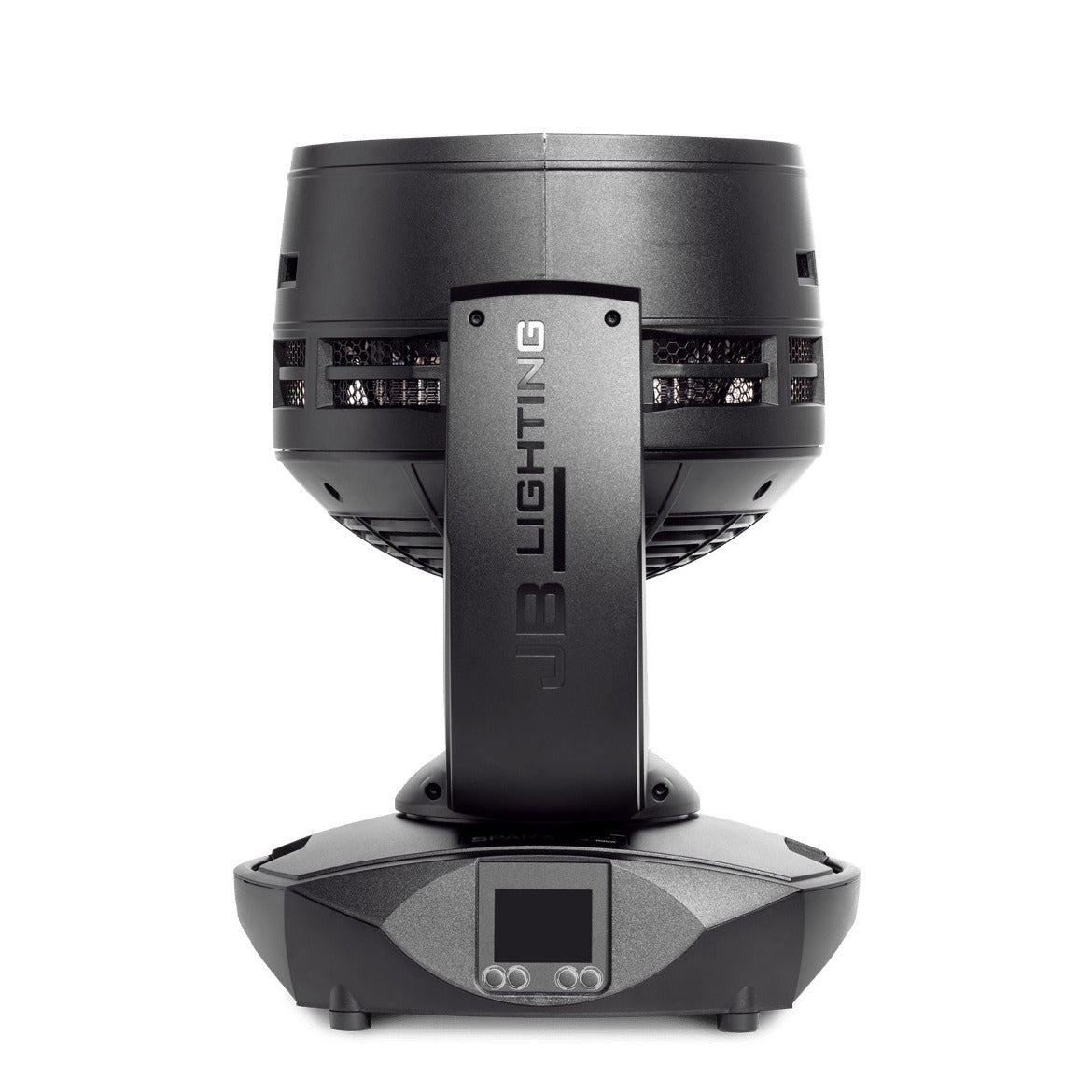

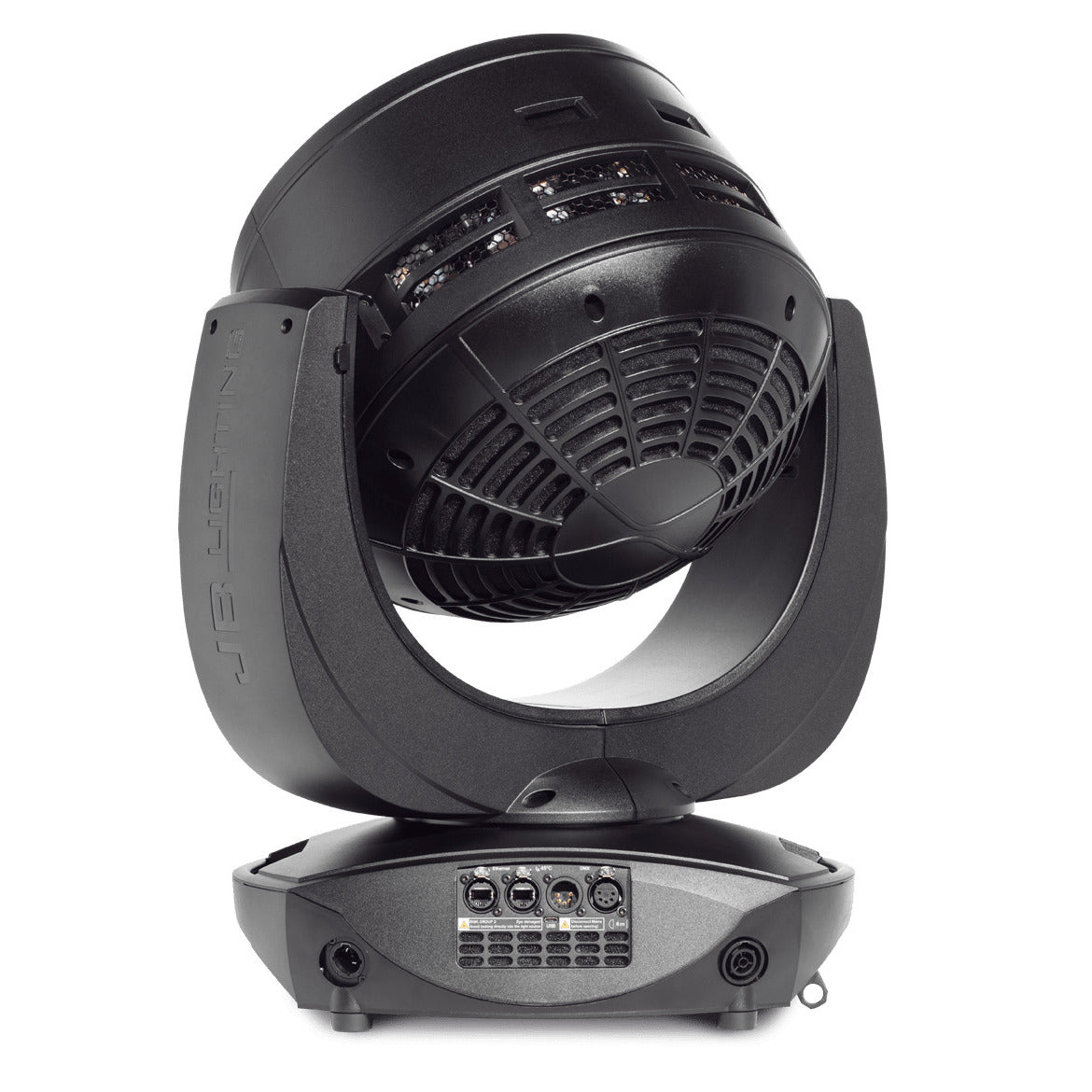

JB Sparx 18 RGBW Washbeam TwinZoom
0,00 kr
Gå til produktoplysninger
Kontakt os om dette produkt
The brilliant and versatile Sparx 18, with 37x 40W LED power, enables impressive washlight
applications in completely innovative dimensions thanks to the innovative TwinZoom.
The basic color temperature of the Sparx 18 is freely selectable and it
runs extremely quietly thanks to special heatpipe cooling.
The optical system guarantees perfectly homogeneous illumination and enables fascinating
color gradients with uniquely diverse beam effects and shapes from
Soft Edge to Hard Edge for lighting design at its absolute best.
Optical and lightsource
- 37 RGBW high-performance LEDs of 40 W each
- 23,000 lm; CRI > 85
- > 20,000 h LED life time
- camera mode up to 600 Hz
- TwinZoom zoom range: 3° to 70° (1:23)
- Highly efficient optics for perfect color mixing
Effects
- Individual LED control - Single pixel control
- Sparkle channel for dynamic effects
- Multiple layers with independent patterns can be stacked on top of each other
- Countless color and pattern combinations
- Glow channel and color spread channel as additional color effects
- Separate CTC channel
- Optimised color mixing behaviour
- High-resolution, steplessly variable dimmer 0–100%
- Color-accurate dimming
- Electronic strobe with pulse and random effects
- TwinZoom effects: Multicolor beams and innovative beam shapes
- Basic color temperature can be selected: 2700 K, 3200 K, 4200 K, 5600 K, 6000 K, 6500 K, 7000 K oder 8000 K
Movement
- High-resolution 3 phase stepping motors
- Precise, extreme fast and silent movement
- 540° Pan / 330° Tilt
Control
- Protocol: USITT DMX-512, RDM
- Ethernet / Artnet - sACN - Kling-Net
- Wireless DMX / RDM / CRMX TiMo - Lumen Radio
- Bluetooth, WLAN
- Color touch display with function keys and battery backup
- Mini USB for software update
- Stand-alone mode
- Master/slave function, Built-in DMX analyser
Construction
- Robust, roadworthy design
- Individually changeable LEDs
- Patented cooling system - super silent
- Fan control for virtually noiseless operation
- Graphical display, electronically rotatable
- Neutrik 5pin XLR IN / OUT
- Neutrik etherCON RJ45 IN/OUT
- Neutrik PowerCON TRUE1 IN / OUT
Rigging
- 2 omega brackets with original Camloc connectors for quick and comfortable mounting in any direction with four different mounting possibilities
Electrical
- Max. power consumption approx. 1300 VA
- Input voltage range 100 – 240 V, 50/60 HZ
Mechanical
- Dimensions: W 481 x H 580 x D 308 mm
- Weight: 22 kg
Made in Germany
