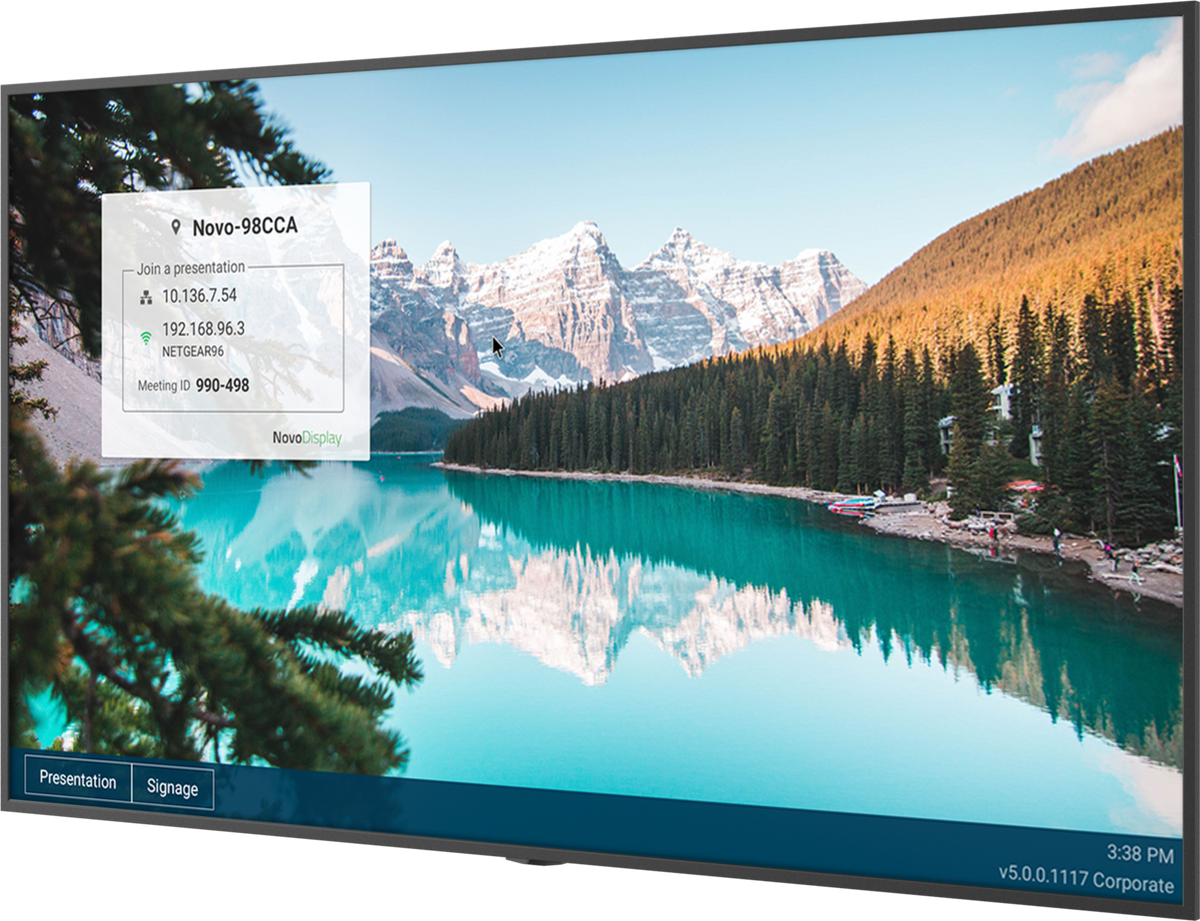

Vivitek DK553 NovoDisplay 55-inch Digital Signage Display

Digital Signage Display with Collaboration Functionality

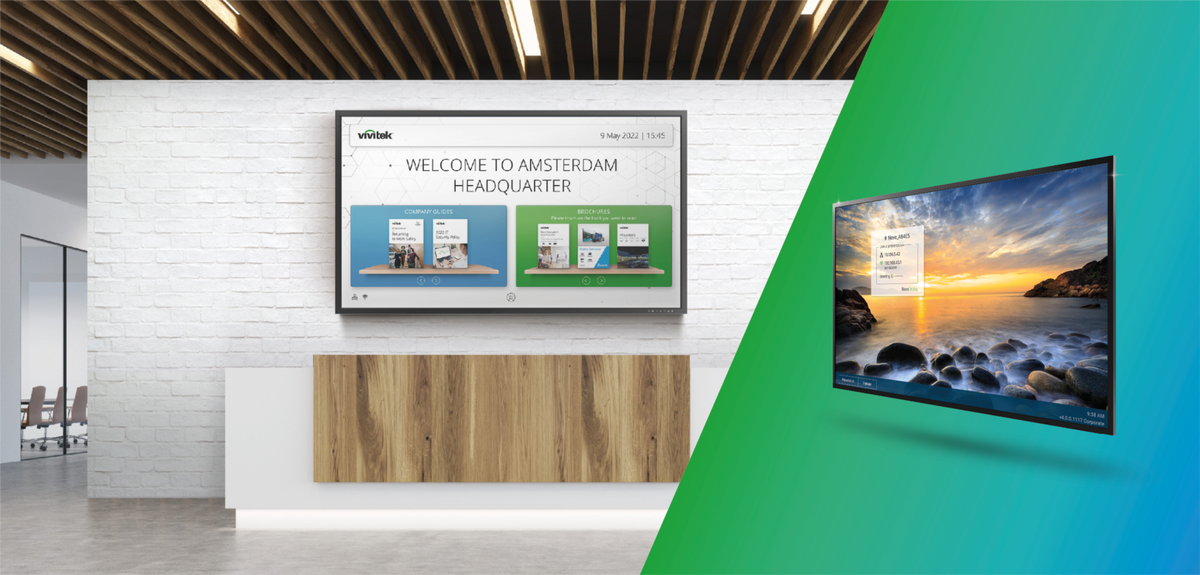

The NovoDisplay DK offers 4K Ultra-HD (3,840 x 2,160) resolution. With the included NovoDS Digital Signage software you will create, publish and manage content ranging from promotional announcements to company messages. With the added NovoConnect Wireless Collaboration solution, the NovoDsiplay can easily be switched to presentation mode. The NovoDisplay DK is suitable for commercial applications such as hospitality, retail, education and business.

Key features

• The embedded NovoDS digital signage allows for creating, publishing and managing promotional announcements and company messages.

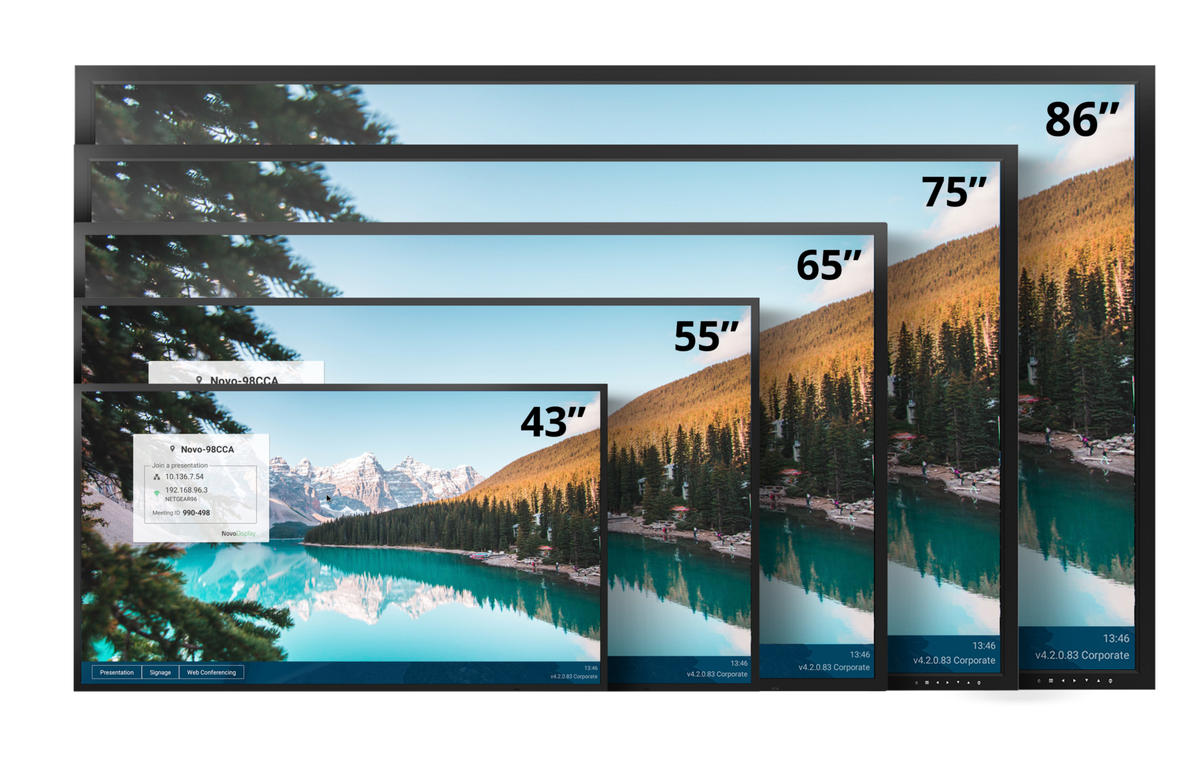

• The DK series is available in 43”/55”/65”/75”/86” display size with 4K Ultra-HD (3,840 x 2,160) resolution to deliver outstanding details and stunning visuals. The unparalleled display with 500 cd/m2 brightness and 50,000 hours of performance make this a truly professional signage display for many applications.

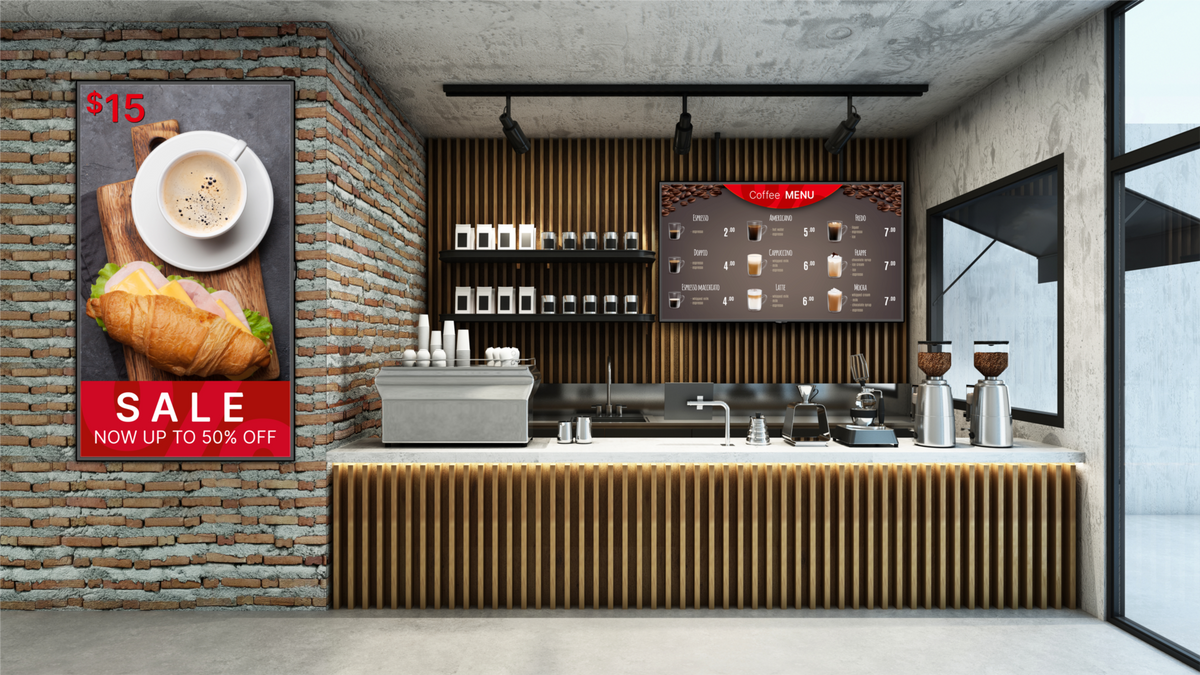

• Support Landscape & Portrait Installation.
• The optional NovoDS Cloud offers a Bulletin board template that allows for easy creation of a pin board layout and interactivity with documents.
• In-Plane Switching (IPS-ADS) panel technology offers outstanding details and stunning visuals with Hyper-Viewing Angle.

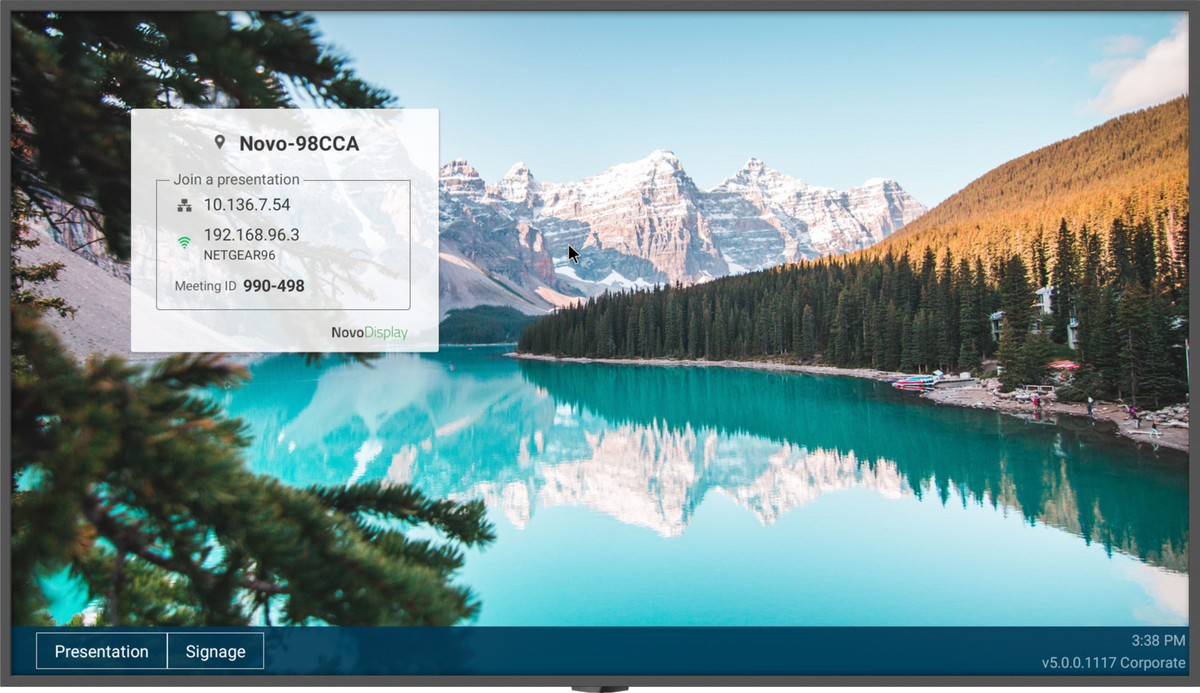

• The DK series has built-in NovoConnect Wireless Collaboration for wireless content sharing from laptop, tablet or smartphone to the central screen.

Specifications

• Panel Size: 55"
• Type/Technology: Backlit D-LED (IPS- ADS)
• Brightness: 500 cd/m2
• Native Resolution: 4K-UHD
• Viewing Angle (H/V): 178° / 178°
• Refresh Rate: 60 Hz
• Estimated Life Time: 50,000 hours
• Display Color (Bit): 1.07 Billion
• Installation Orientation: Portrait & Landscape
• Daily Operation (Hours/Days): 24/7
• Bezel Size: 9.9mm
• Internal Storage: 32GB (eMMC Flash)
• External USB: Yes (FAT32 / NTFS)

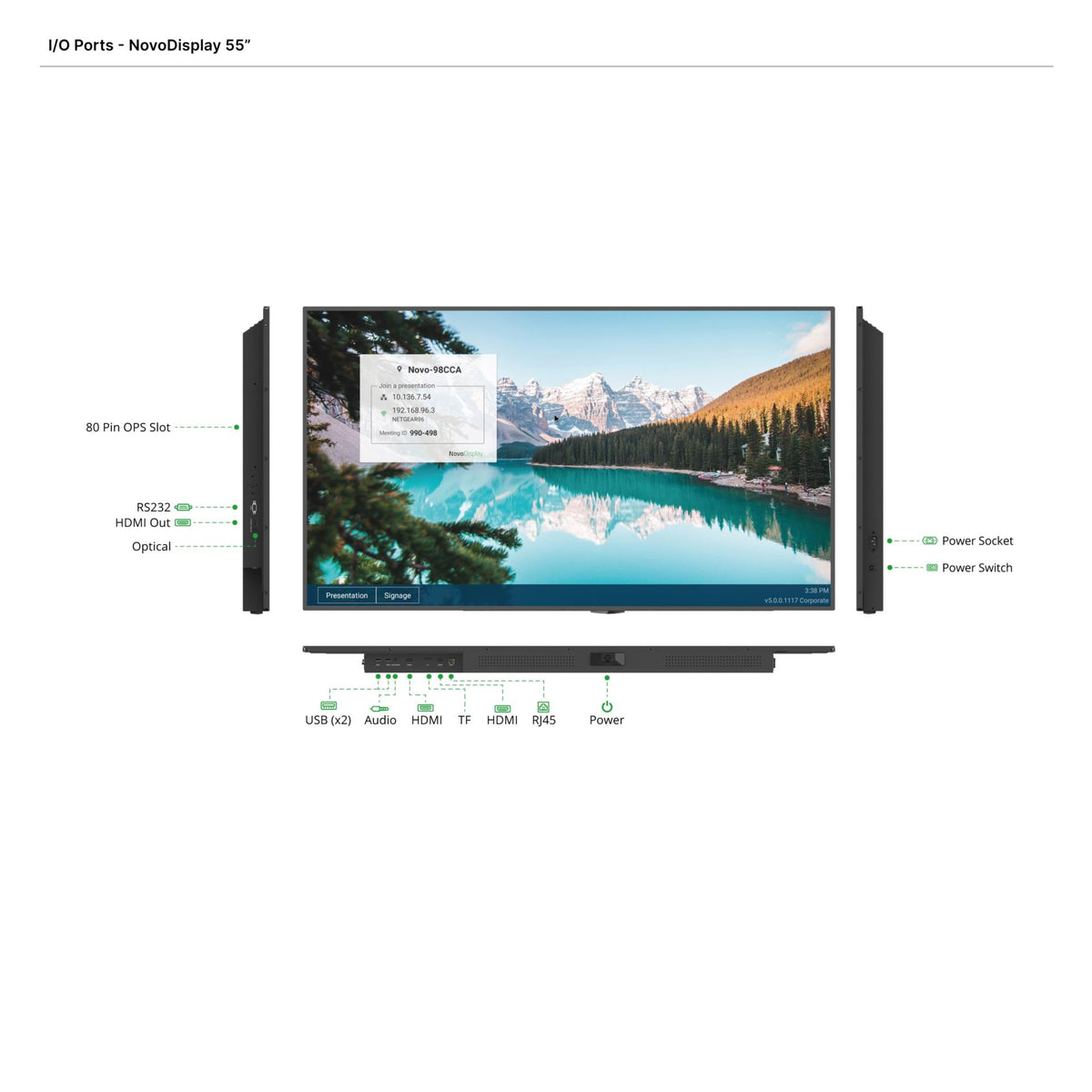

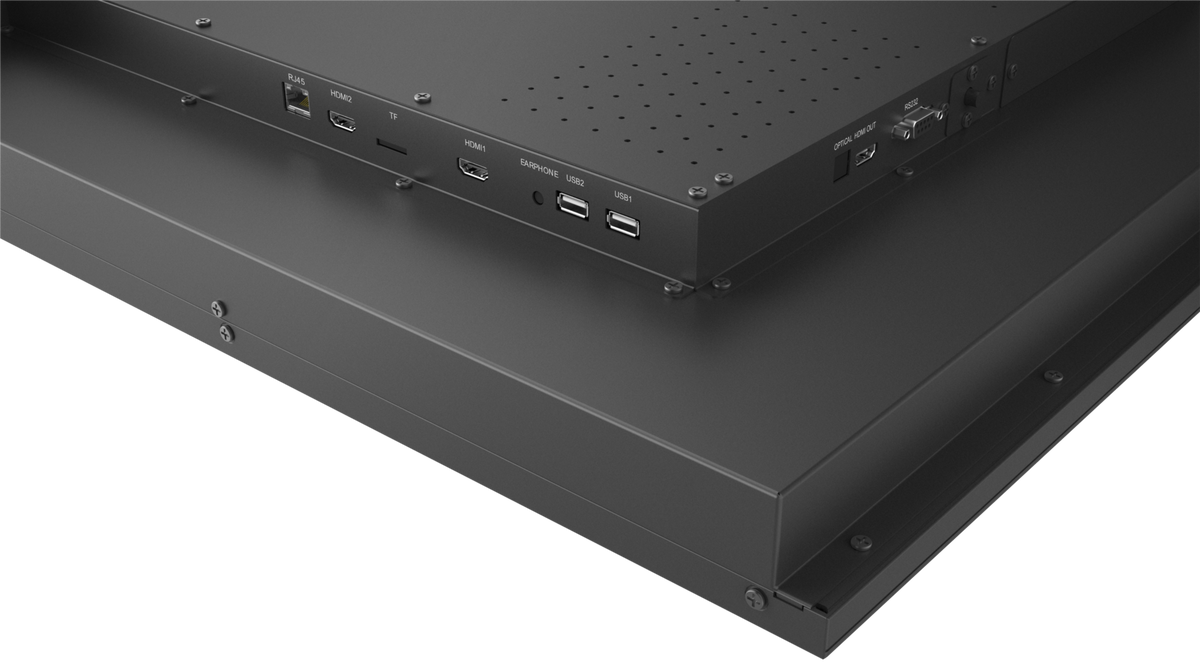

• I/O Connection Ports: HDMI-In (x2), HDMI-Out (x1), HDMI Version (2), Audio-In (3.5mm) x1, Audio-Out (3.5mm) x1, LAN (RJ45 x1), WiFi (WiFi 6; 802.11 a/b/g/n/ac/ax (2.4GHz/6GHz) USB dongle), RS-232 (RJ45) (1x), RS232-In (1x), USB A (3.0 x2), microSD (1x), IR Receiver (1x)
• Available Colors: Silver
• Dimensions (W x D x H): Dimensions (W x D x H) (1,243.2 ×714 × 69.6)
• VESA Mounting (FPMPMI): 4 – M6, 400 x 200mm
• Power: AC 100-240V, 50/60Hz ≤198W <0.5W (Standby)
• UPC Code: 813097025586
• Standard Accessories: HDMI Cable, Warranty Card (by region), Remote Controller (with battery), WiFi 6 USB Module (1x), AC Power Cord, Documentation Kit
• Optional Accessories: LauncherPlus (Optional), LauncherOne (Optional), OPS Package (Including NovoConnect full version, NT Live 2-way, and BYOM), VIVOTEK Camera (Optional)
• Warranty: Flat Panel Standard Warranty: 3 Years warranty for panel, accessories excluded (i.e. OPS), Flat Panel Education Warranty: Registration required, 5 years warranty for panel, accessories excluded (i.e. OPS)
