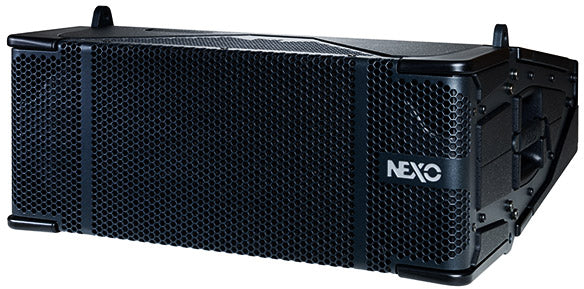

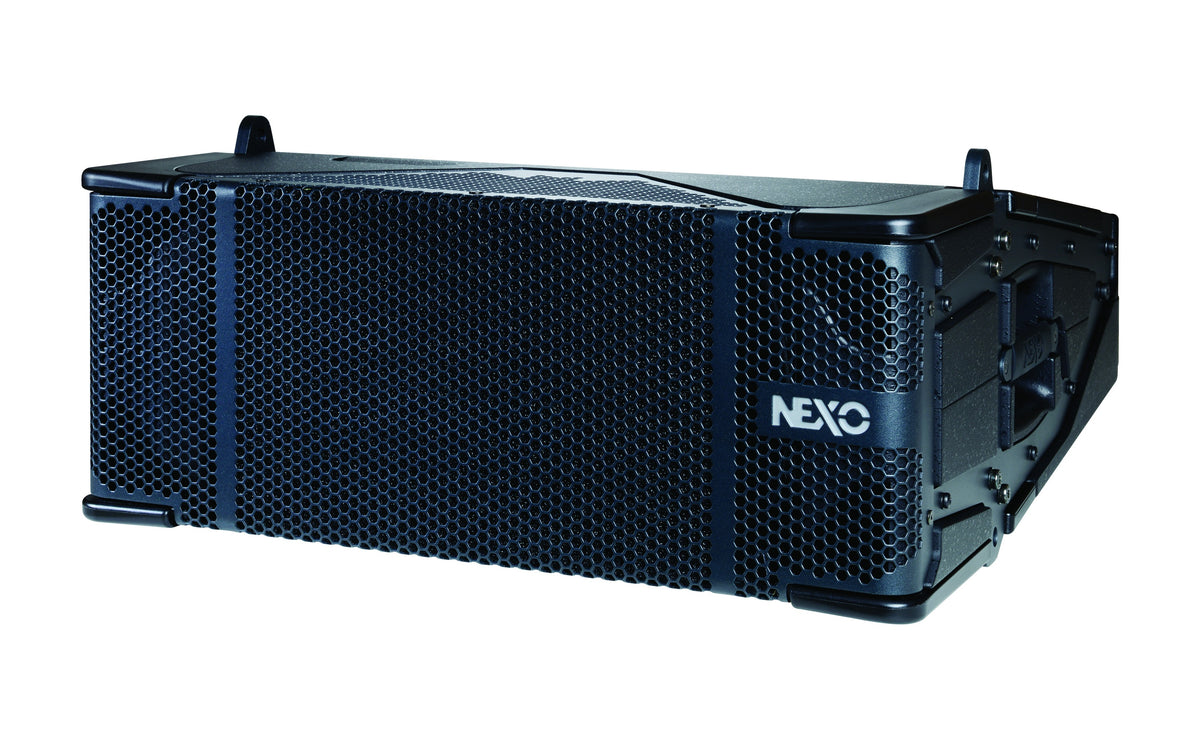

NEXO STM M28 8-inch 2-Way Omni Module Loudspeaker, Custom Paint

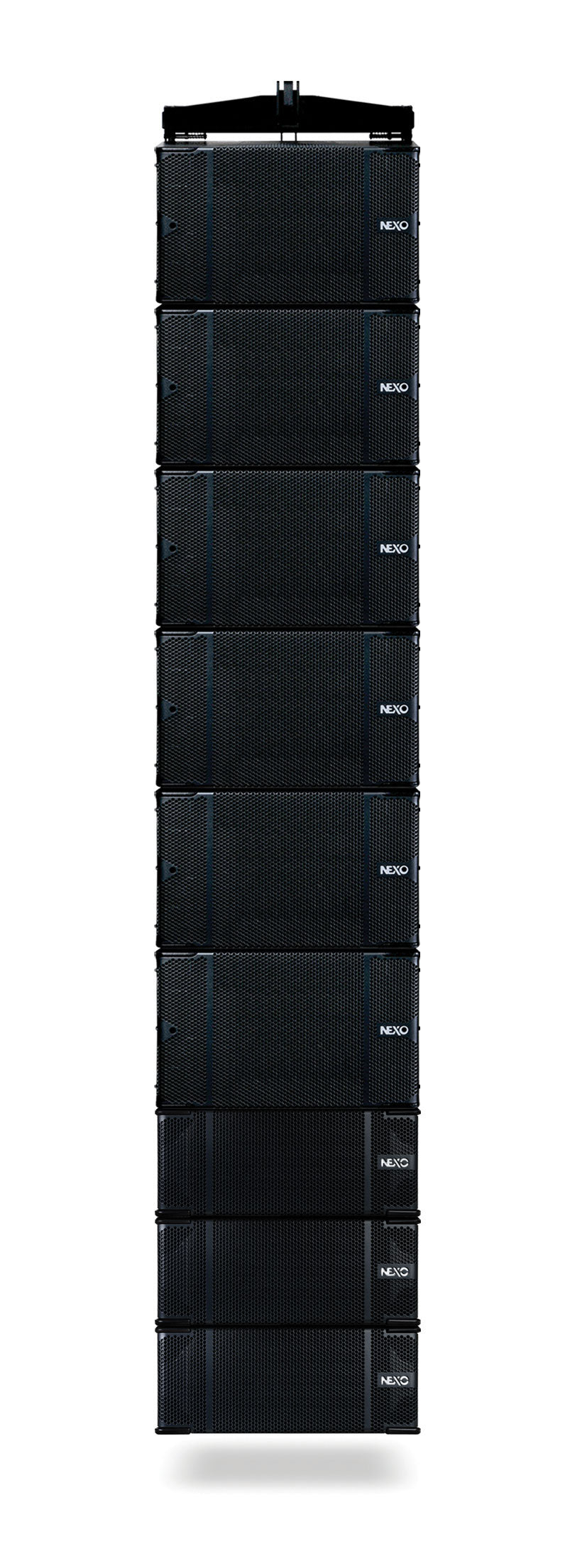

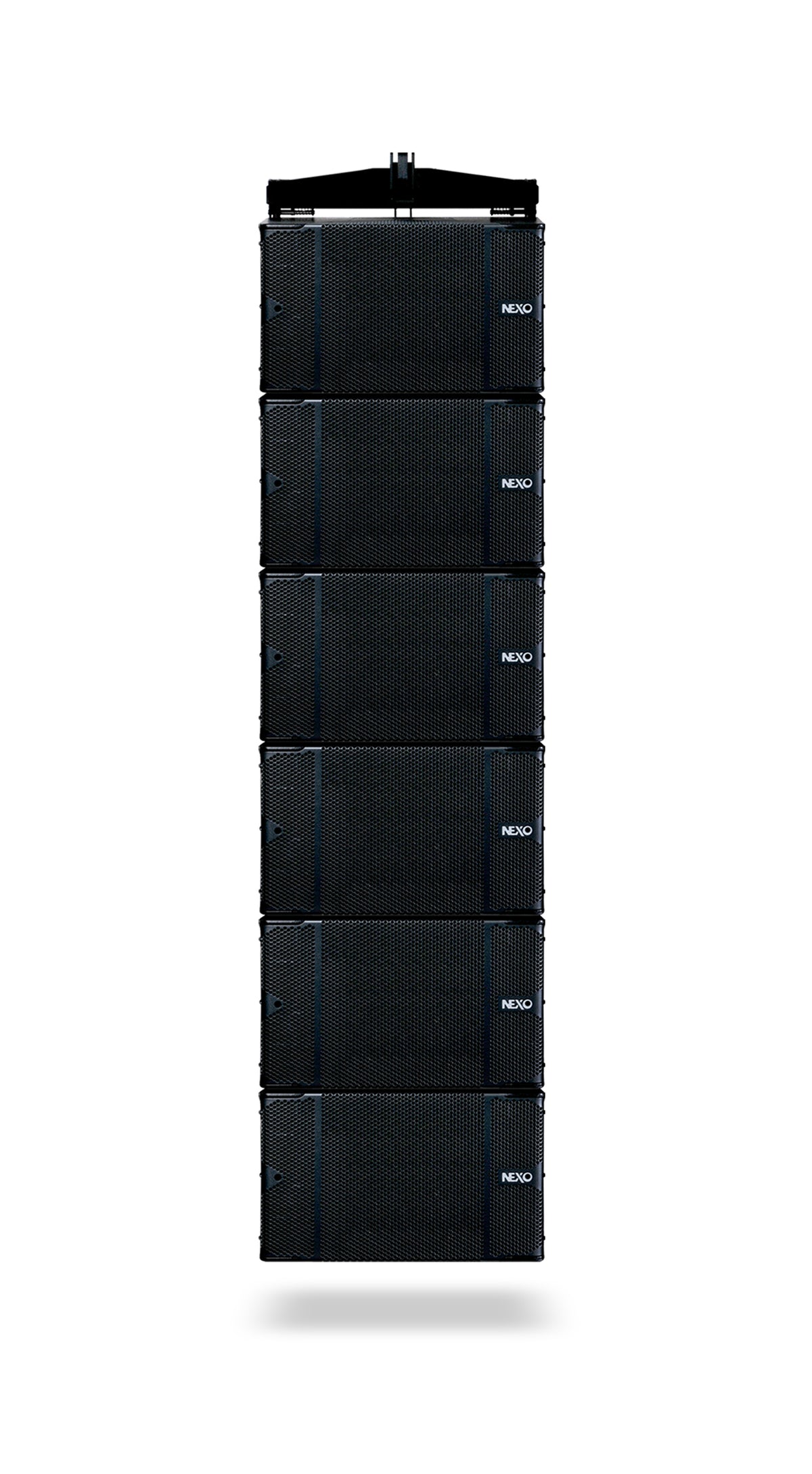

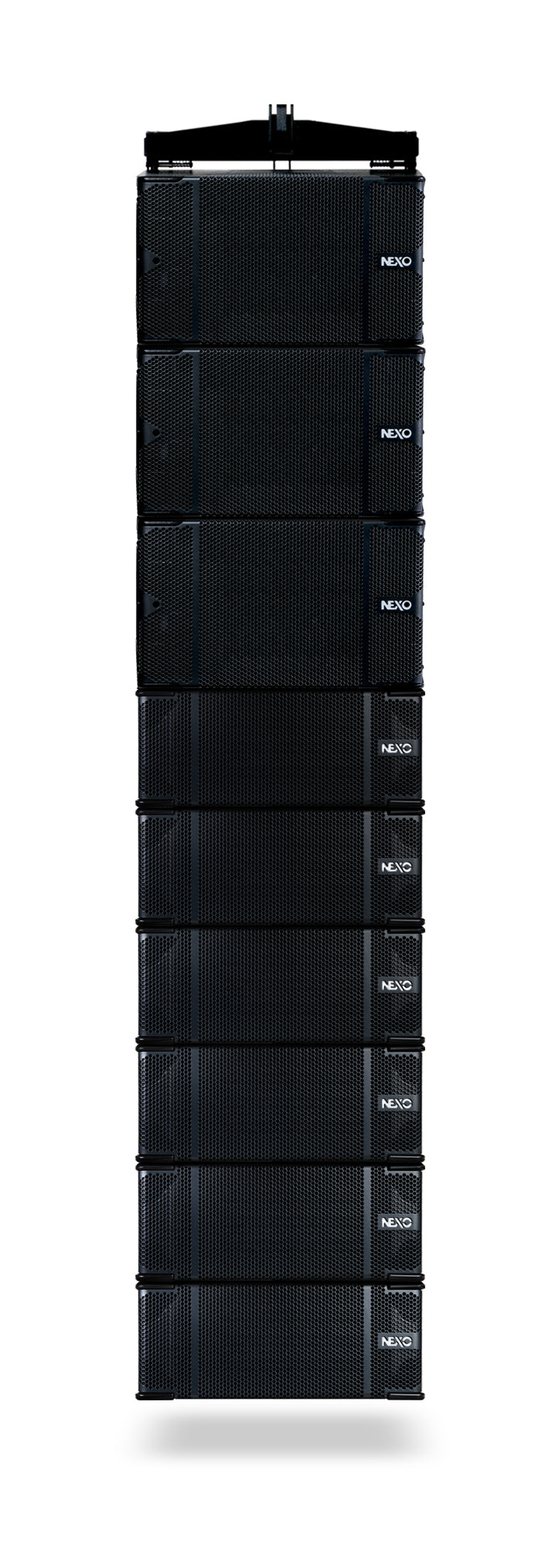

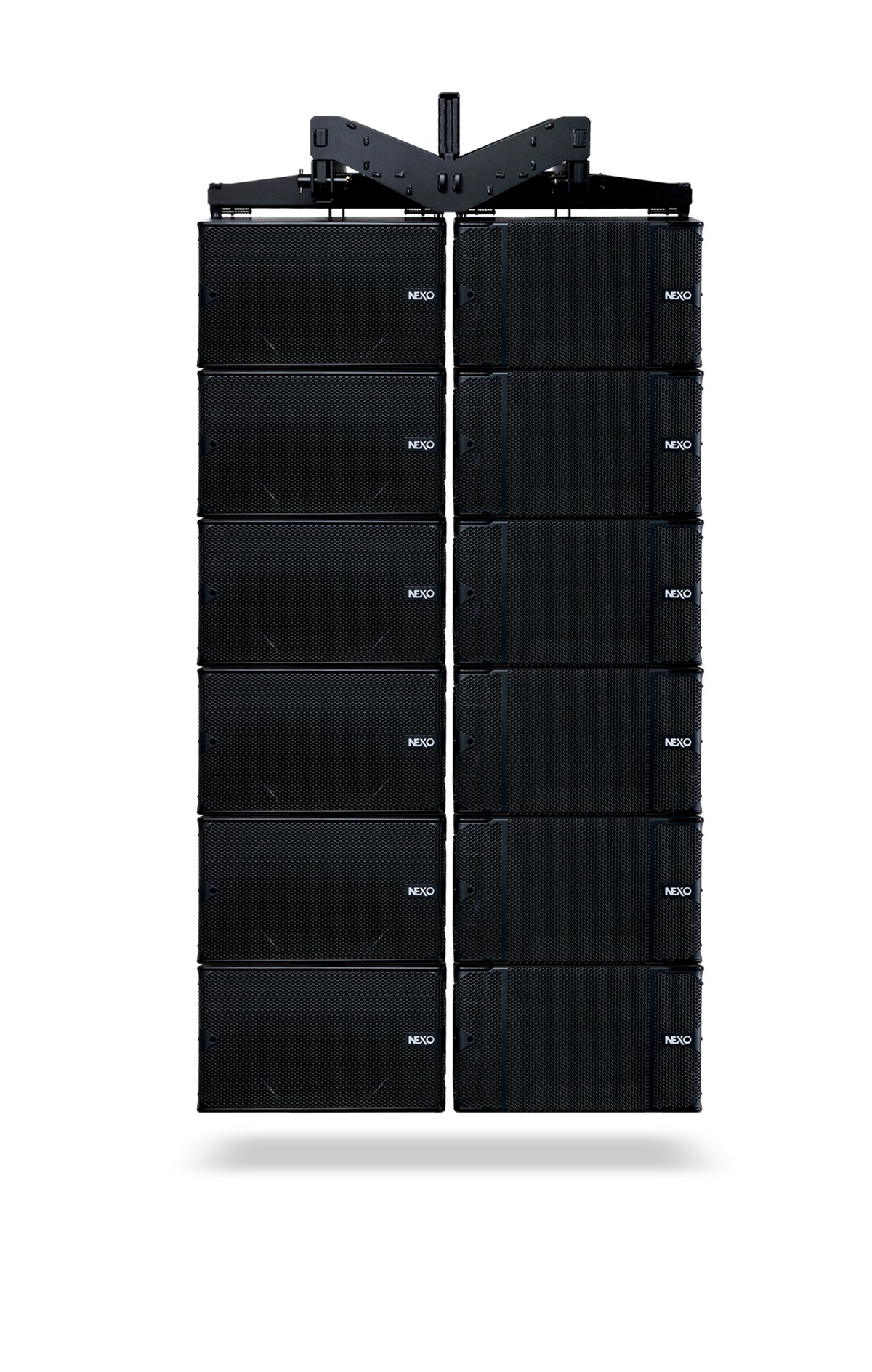

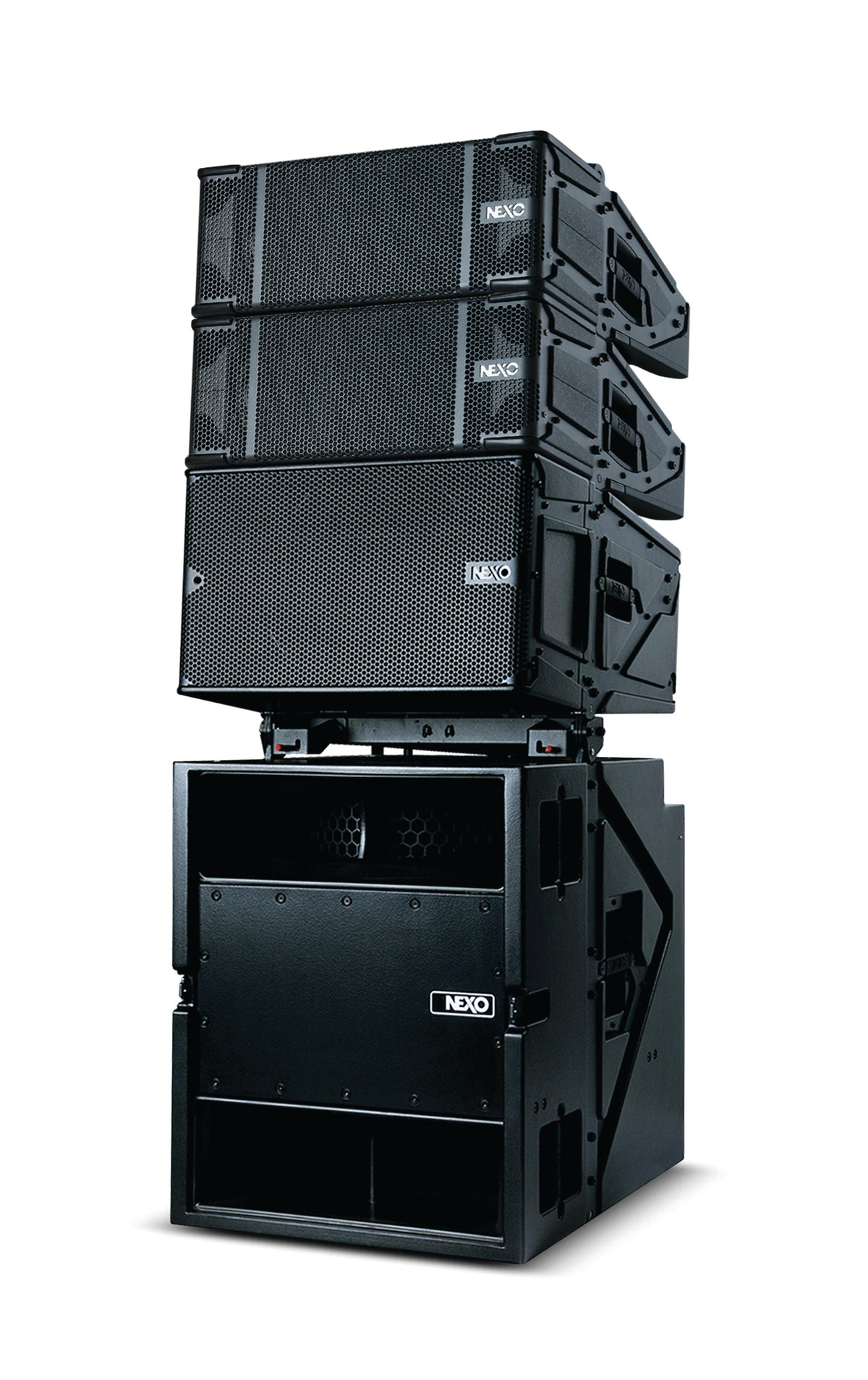

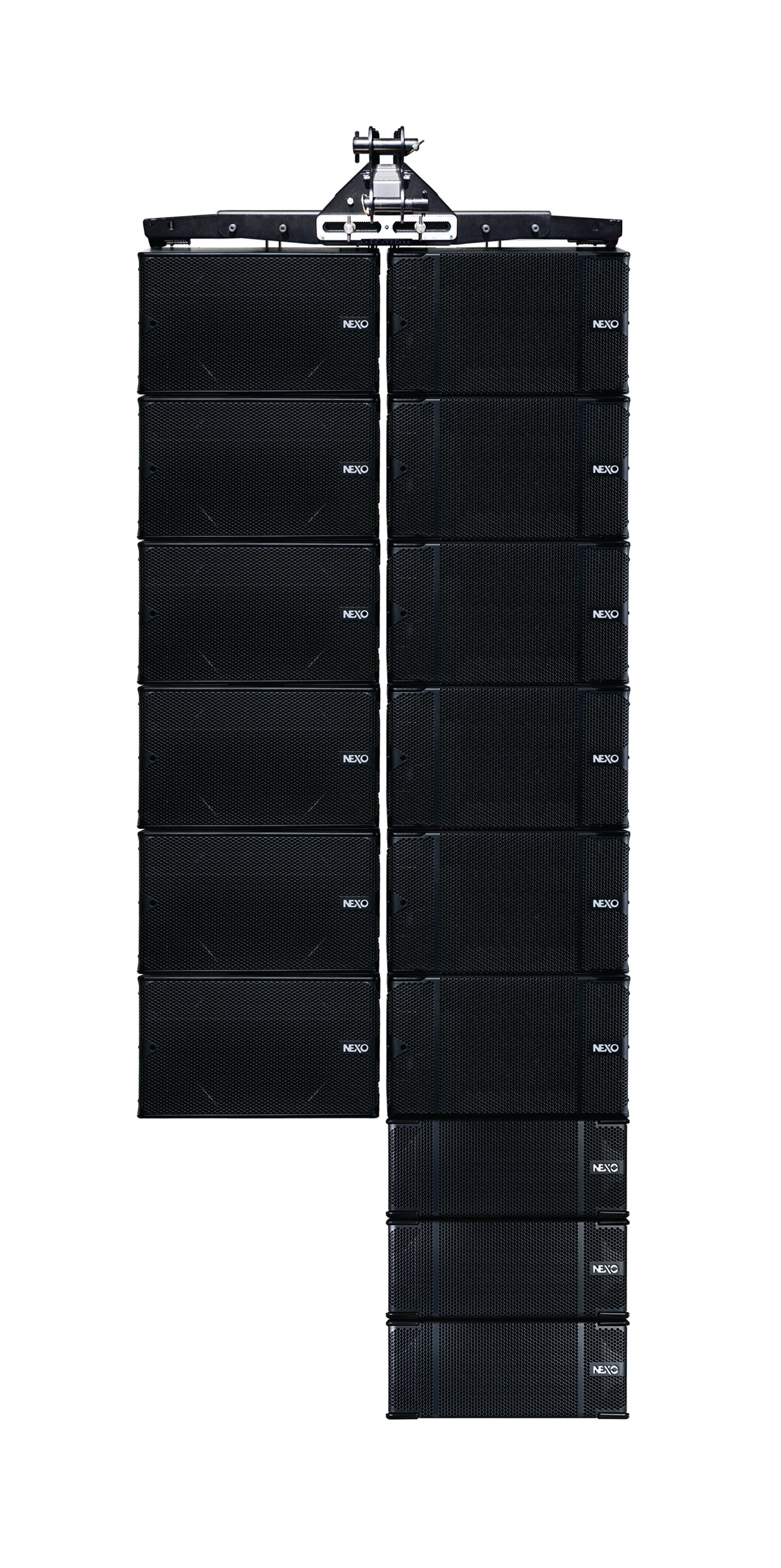

The NEXO STM M28 is an injection-moulded, omni-purpose 2-way loudspeaker module designed as part of the NEXO STM Series touring line array system. This custom paint variant offers 90° horizontal dispersion, configurable up to 120°, with a splaying angle of 0° to 15° between modules for flexible array configuration.

Equipped with 2x 8-inch LF neodymium drivers and 2x 2.5-inch HF compression drivers with Ketone Polymer diaphragms, the M28 delivers a frequency response of 65 Hz – 19 kHz ±3 dB, a sensitivity of 107 dB, and a maximum peak SPL of 141 dB, suitable for demanding live sound and touring applications.

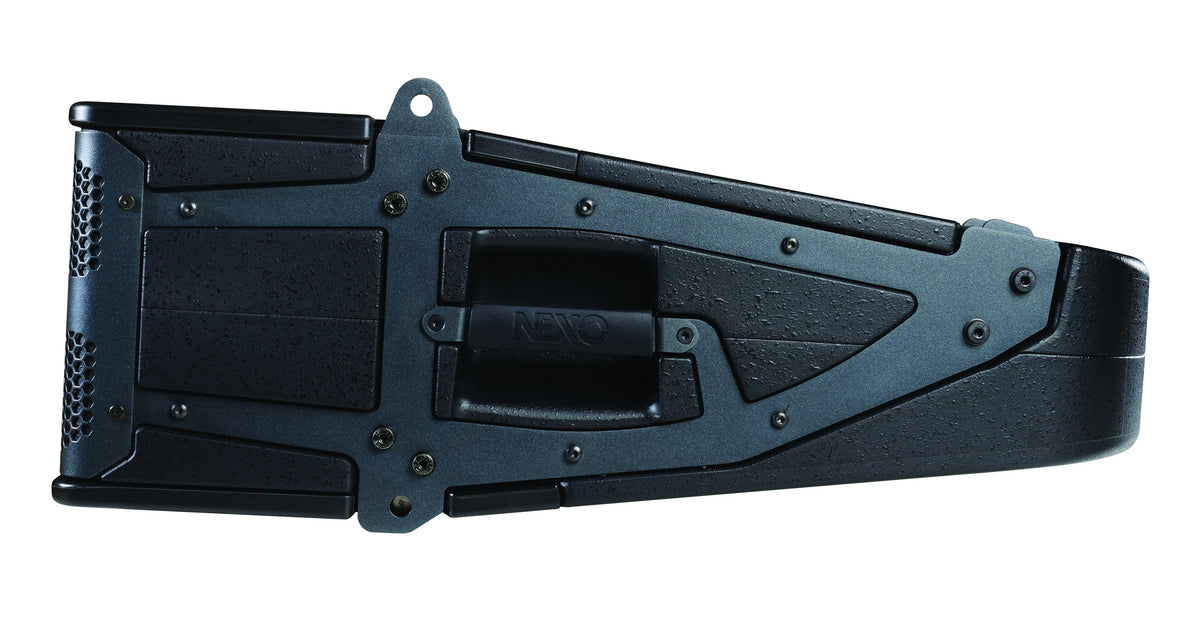

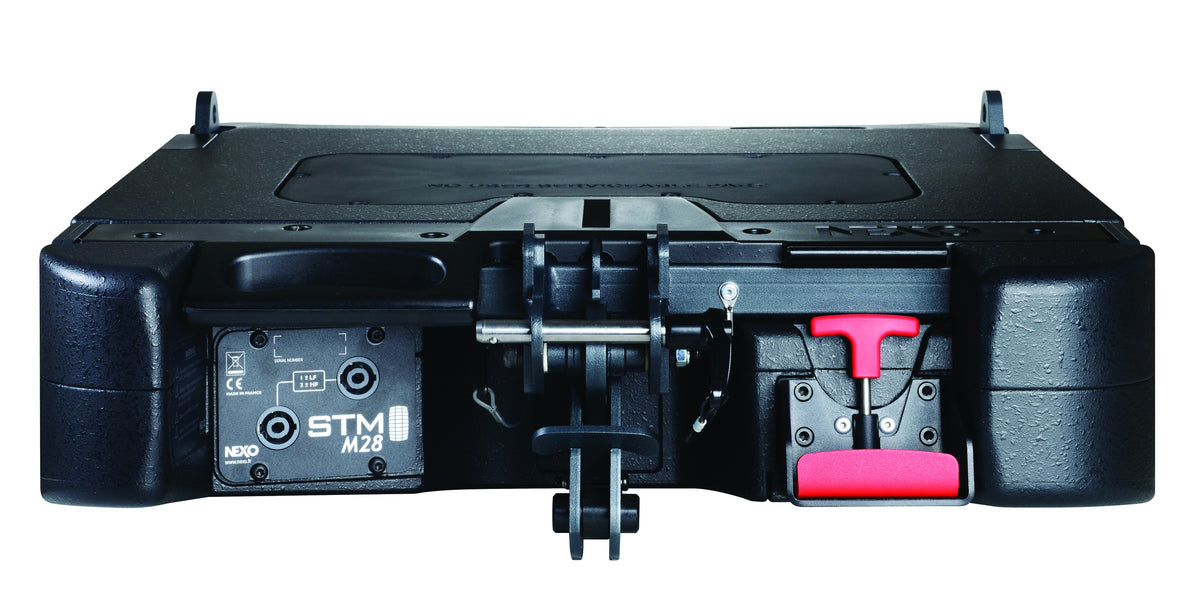

Connectivity is via 2x NLT4-MDV Speakon 4-pole connectors, with control handled through NXAMP4x4 presets matched to STM Series cabinets. The cabinet uses the CompassRig and REDLock rigging system for fast, secure array deployment.

• Driver configuration: 2x 8-inch LF + 2x 2.5-inch HF compression drivers
• Max SPL: 141 dB peak
• Dispersion: 90°-120° horizontal, configurable
• Dimensions: 575 x 234 x 653 mm, 37 kg
• Finish: custom paint over PU composite black coating

Backed by a 2-year manufacturer warranty.
