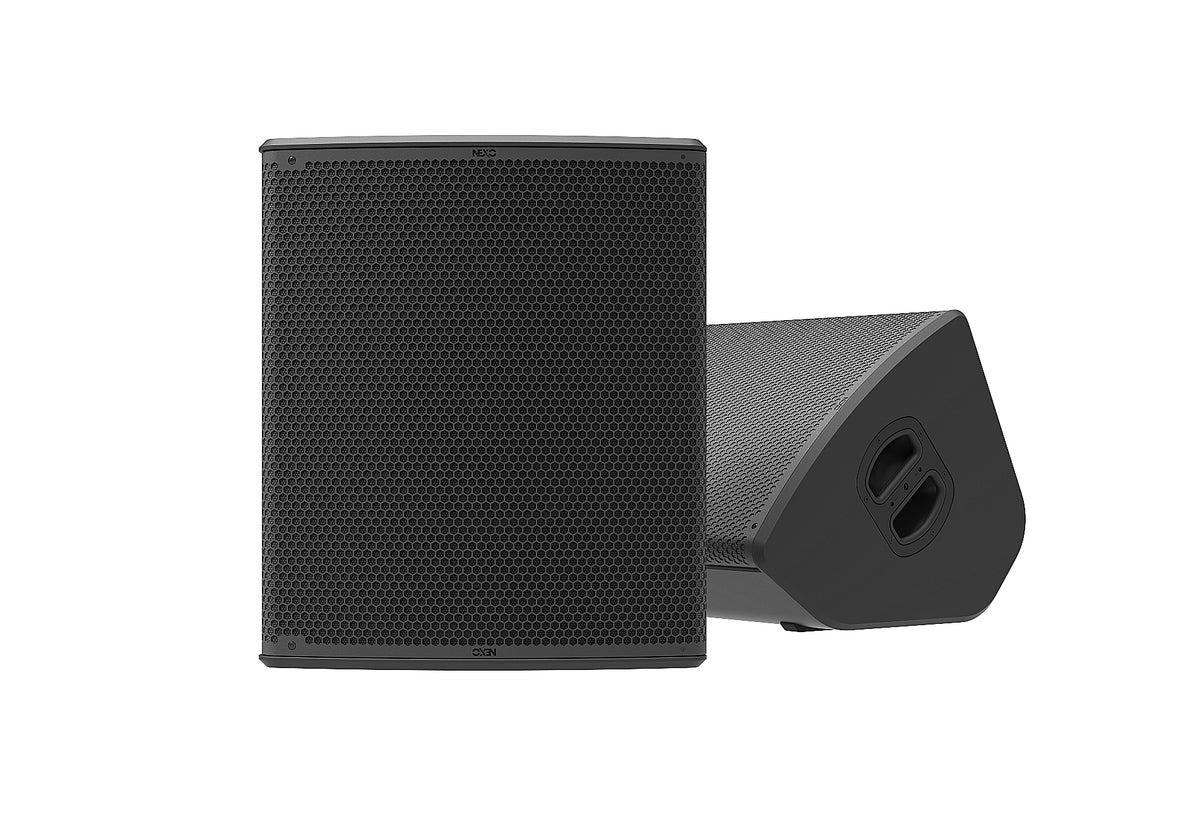

  • NEXO P18 point source speaker, close upright and floor monitor views

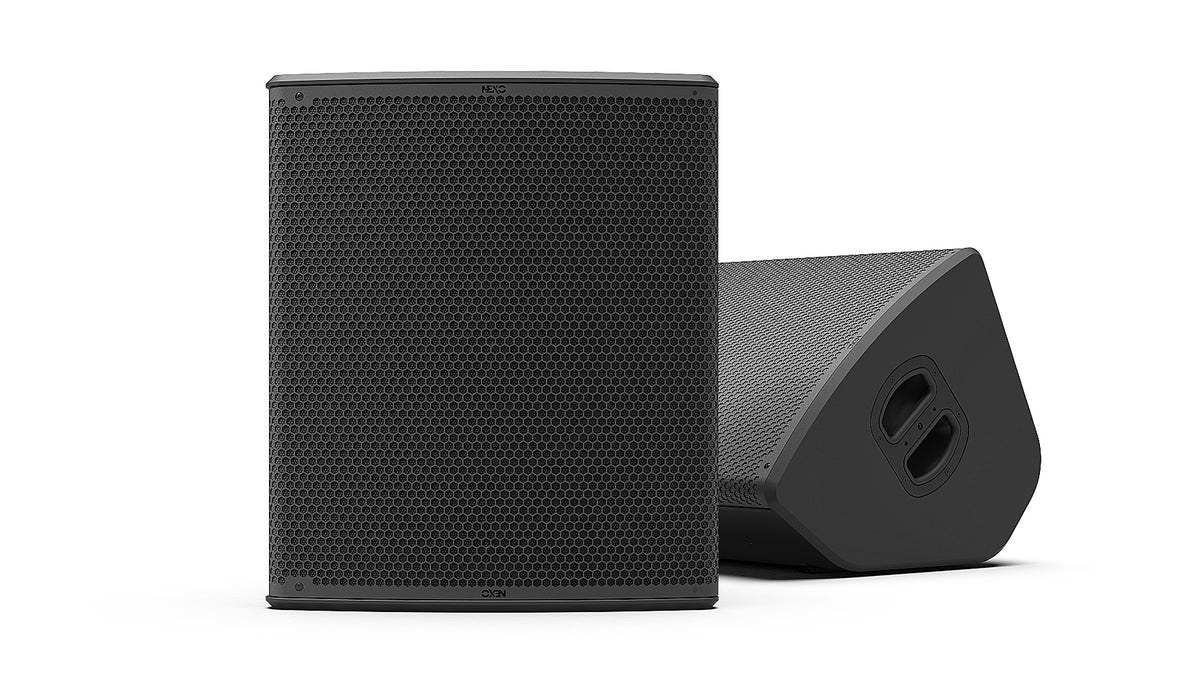

  • NEXO P18 point source speaker in black, upright and as a floor monitor

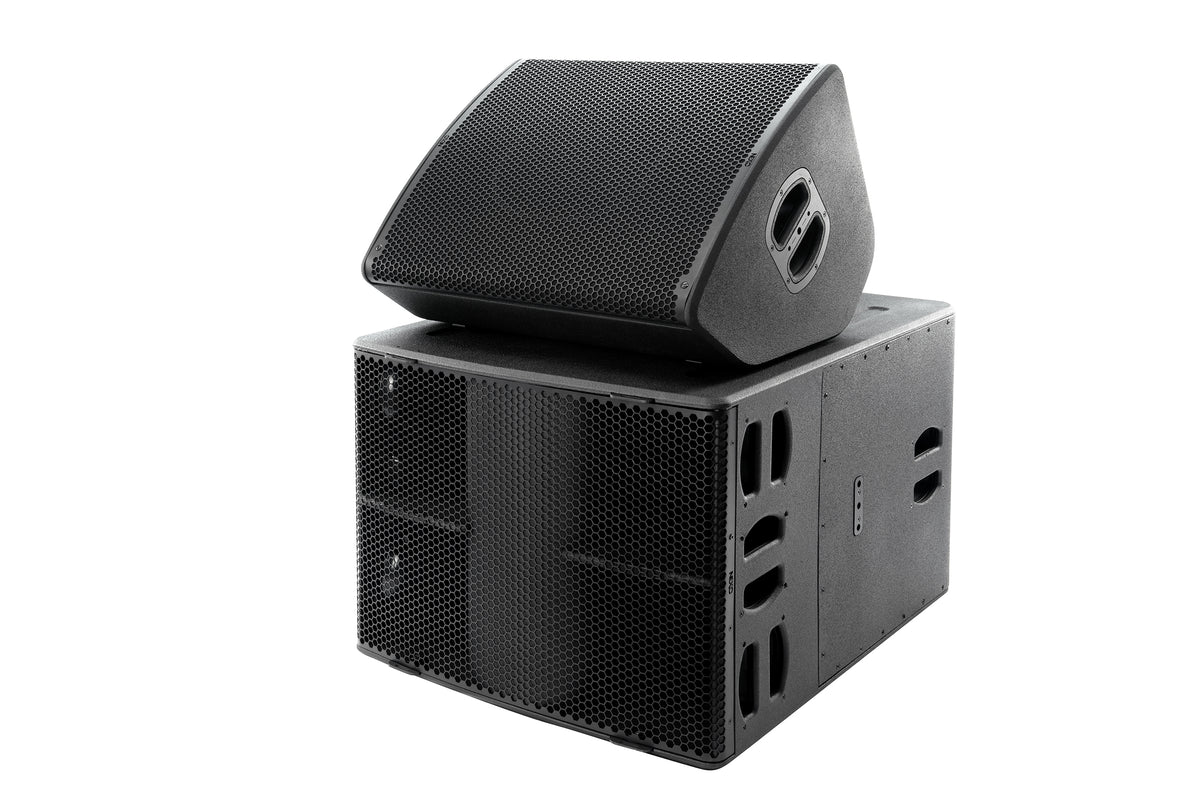

  • NEXO P18 as a floor monitor on top of an L20 subwoofer, angled view

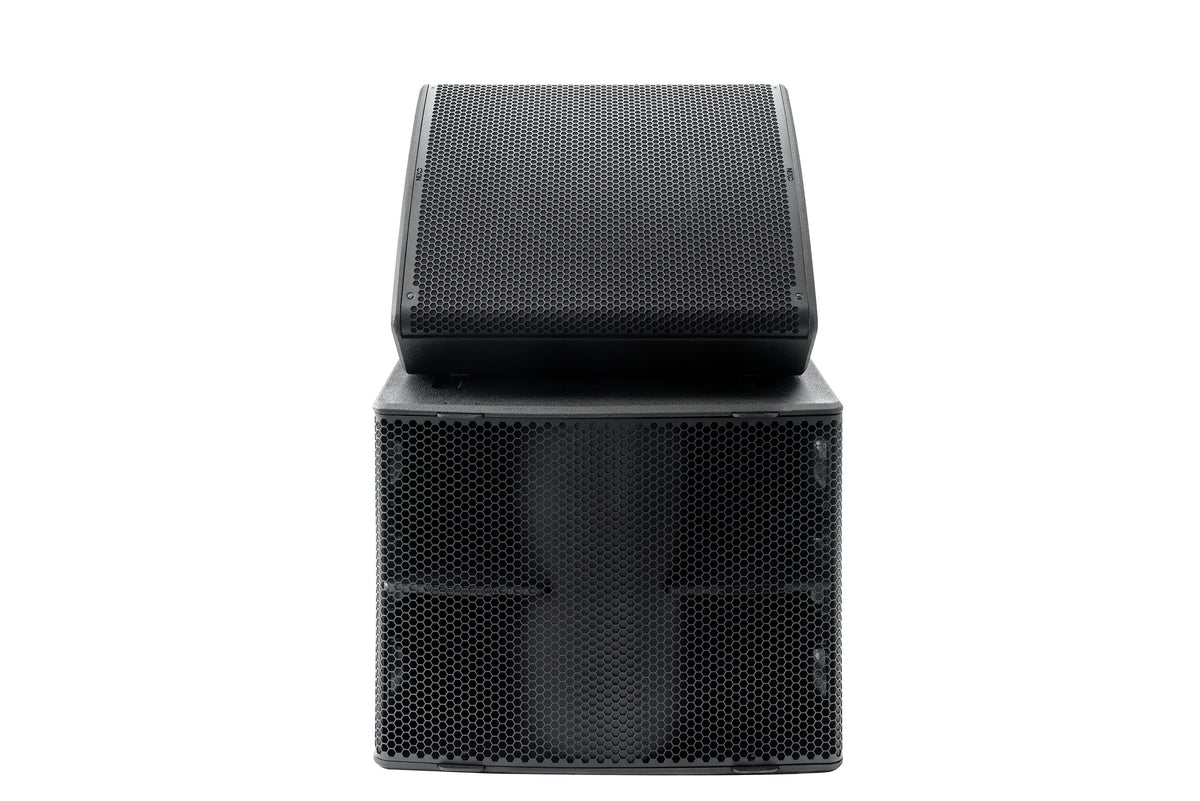

  • NEXO P18 as a floor monitor on top of an L20 subwoofer, front view

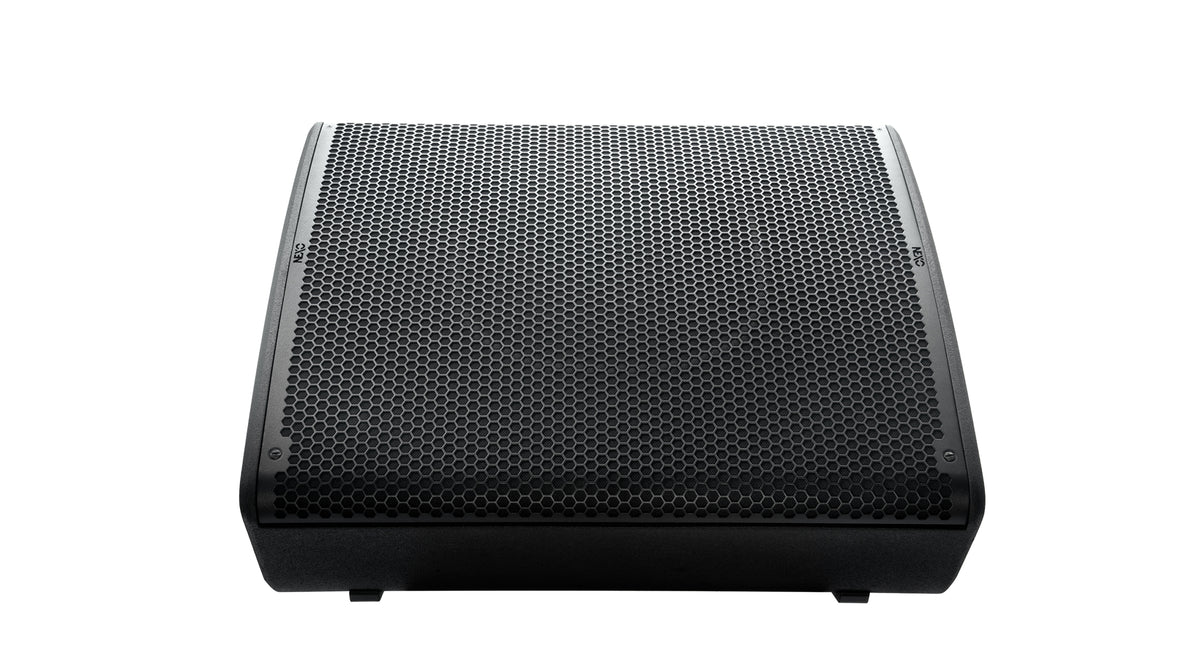

  • NEXO P18 point source speaker lying as a floor monitor, front view

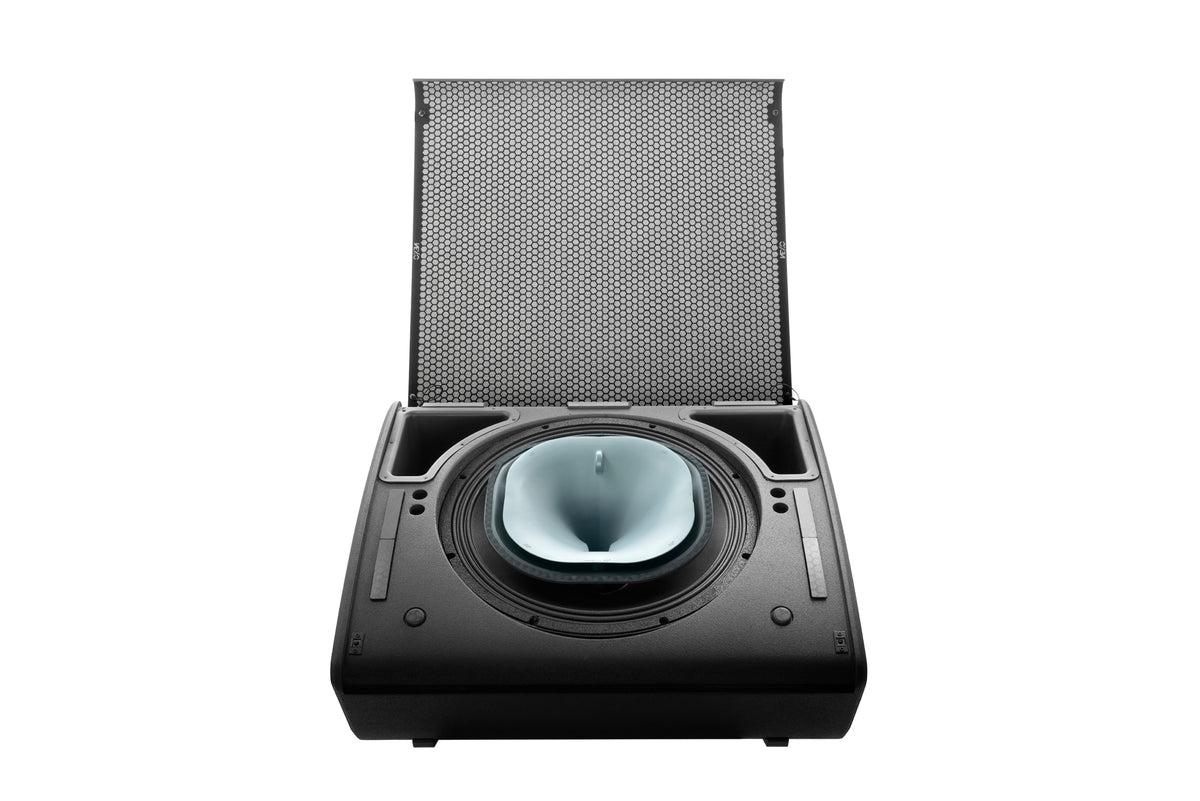

  • NEXO P18 with the front grille opened, showing the coaxial driver and horn

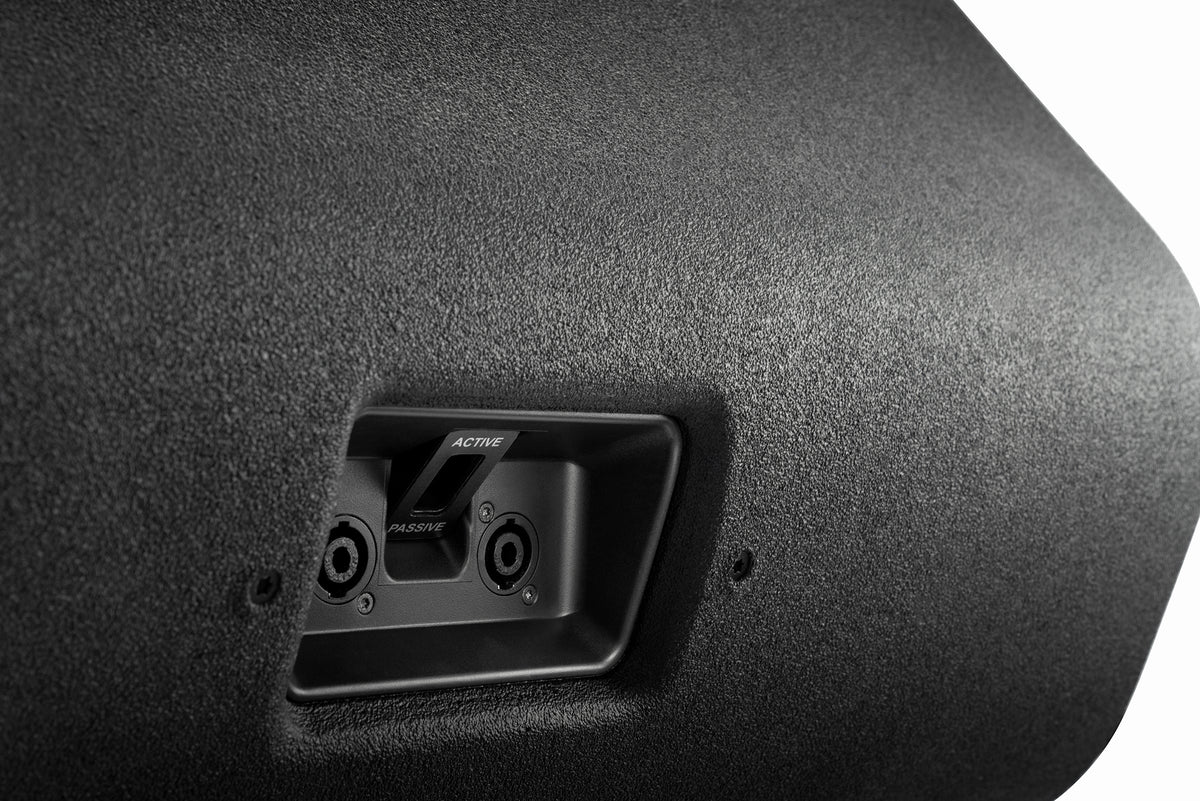

  • Close-up of the recessed connector panel on the NEXO P18

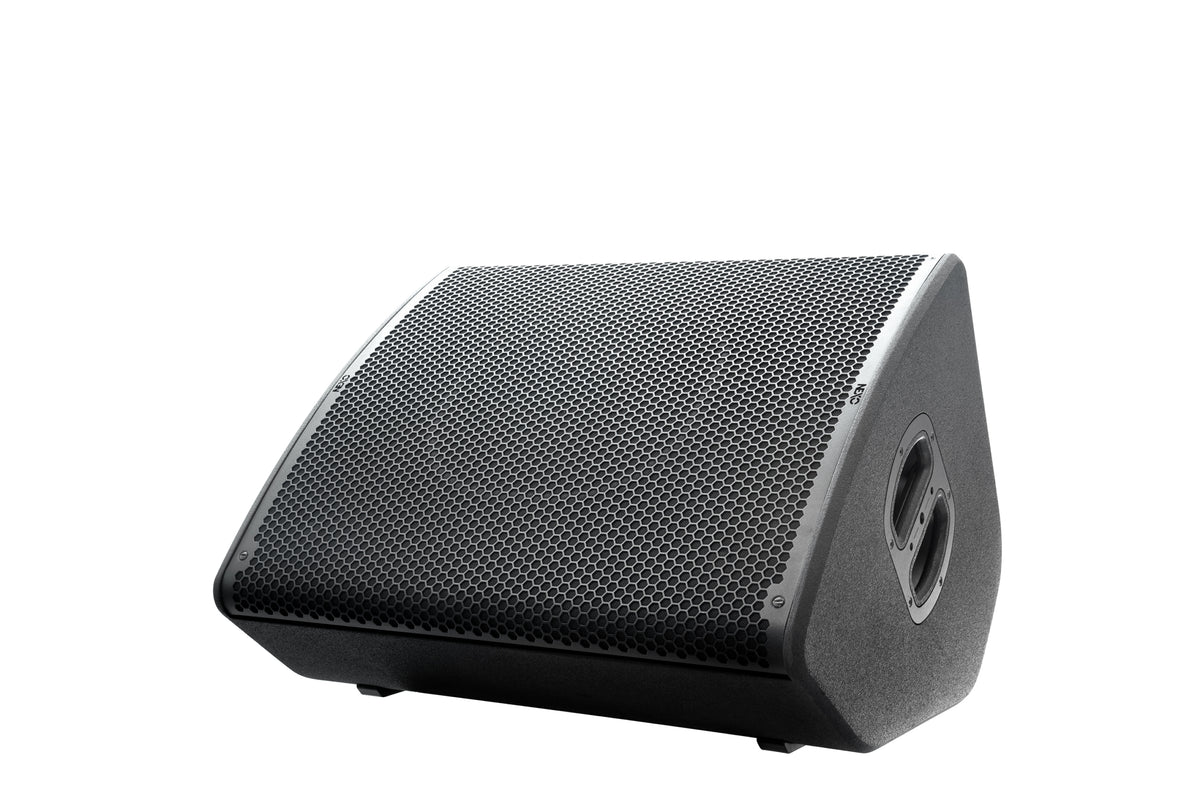

  • NEXO P18 point source speaker as a floor monitor, angled view

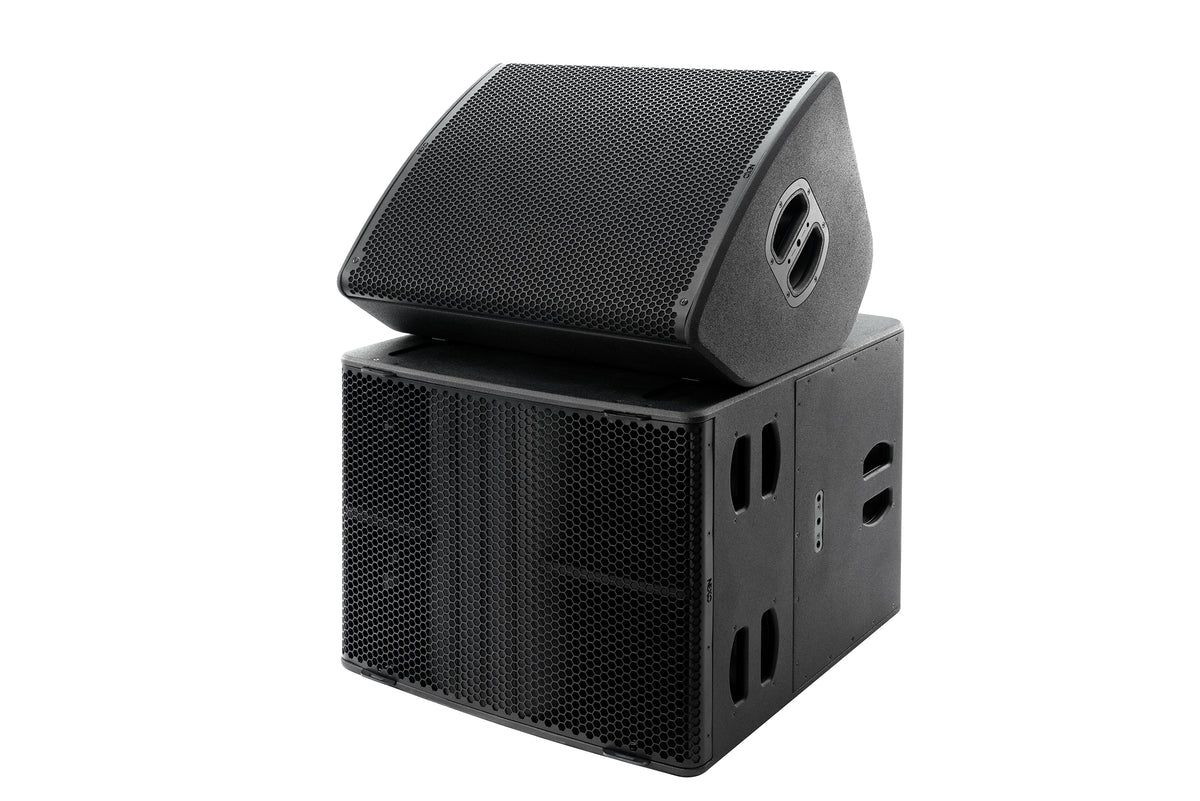

  • NEXO P18 as a floor monitor on top of an L18 subwoofer, angled view

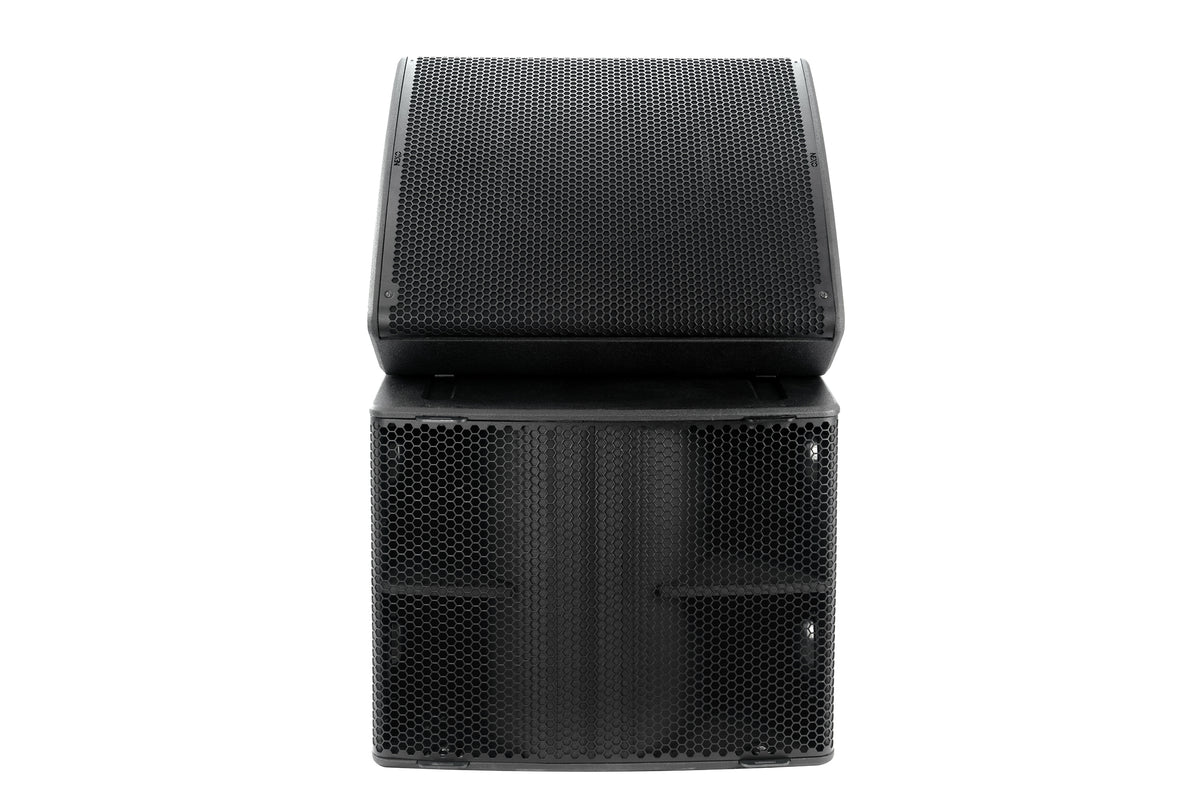

  • NEXO P18 as a floor monitor on top of an L18 subwoofer, front view

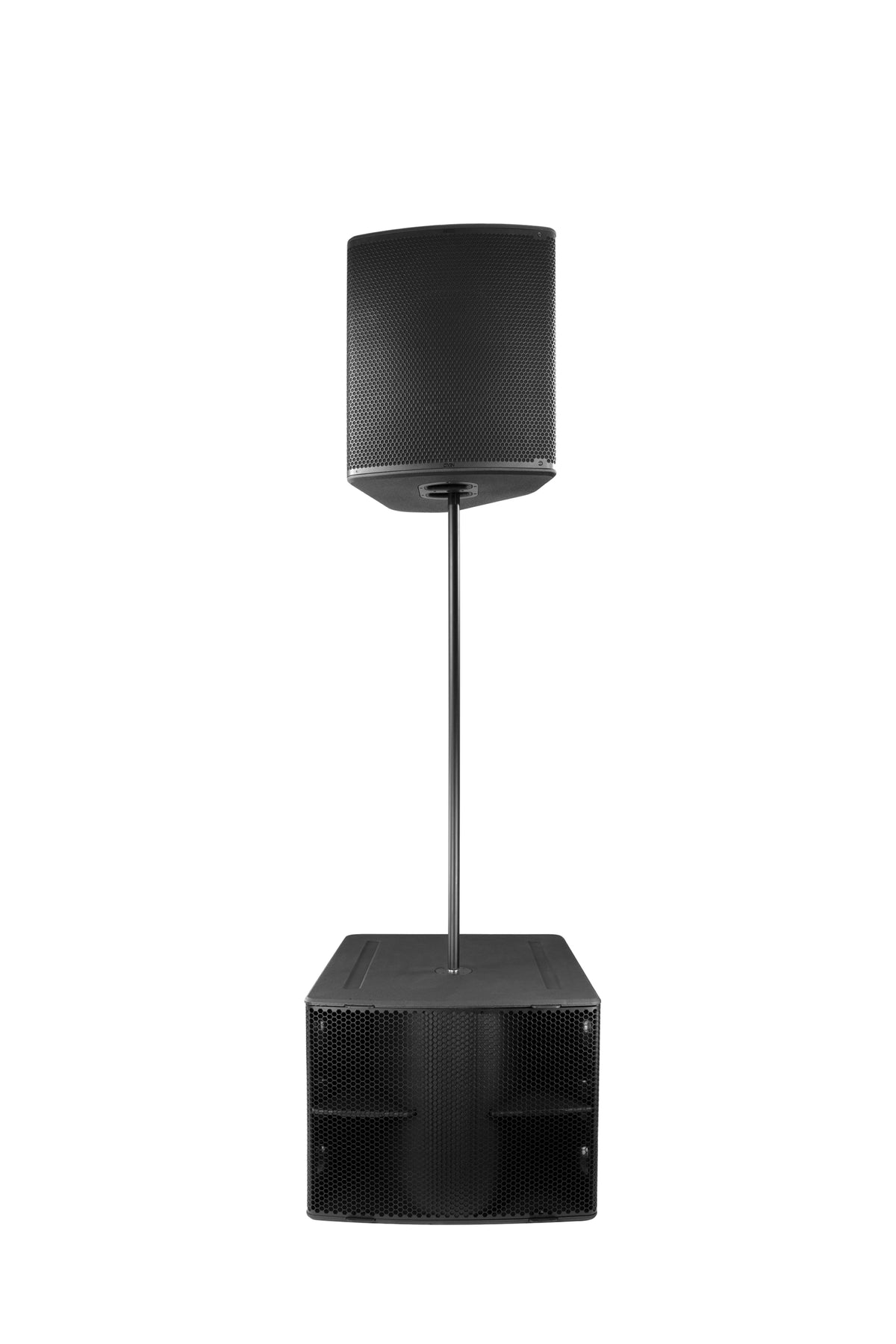

  • NEXO P18 on a pole above an L20 subwoofer, front view

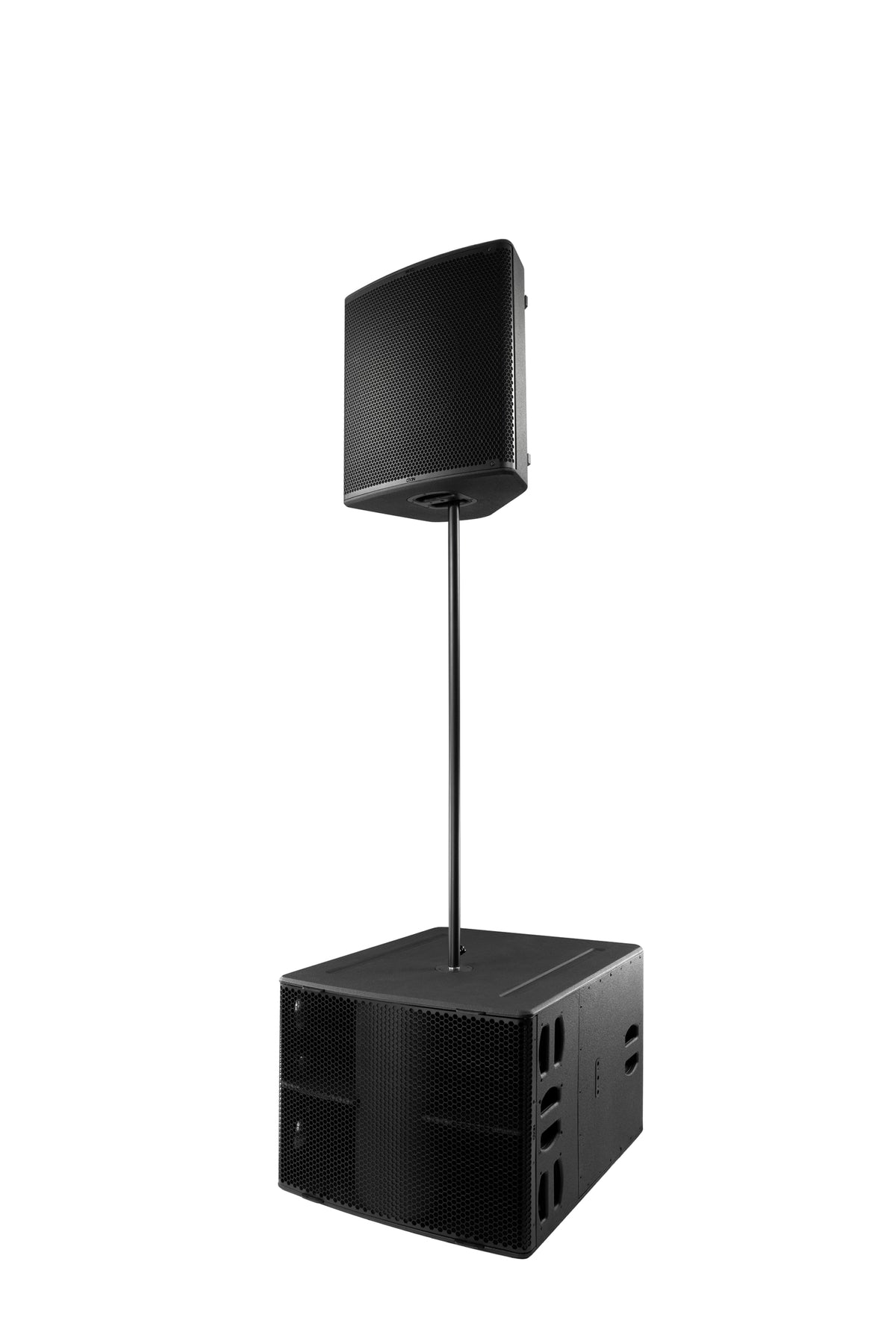

  • NEXO P18 on a pole above an L20 subwoofer, angled view

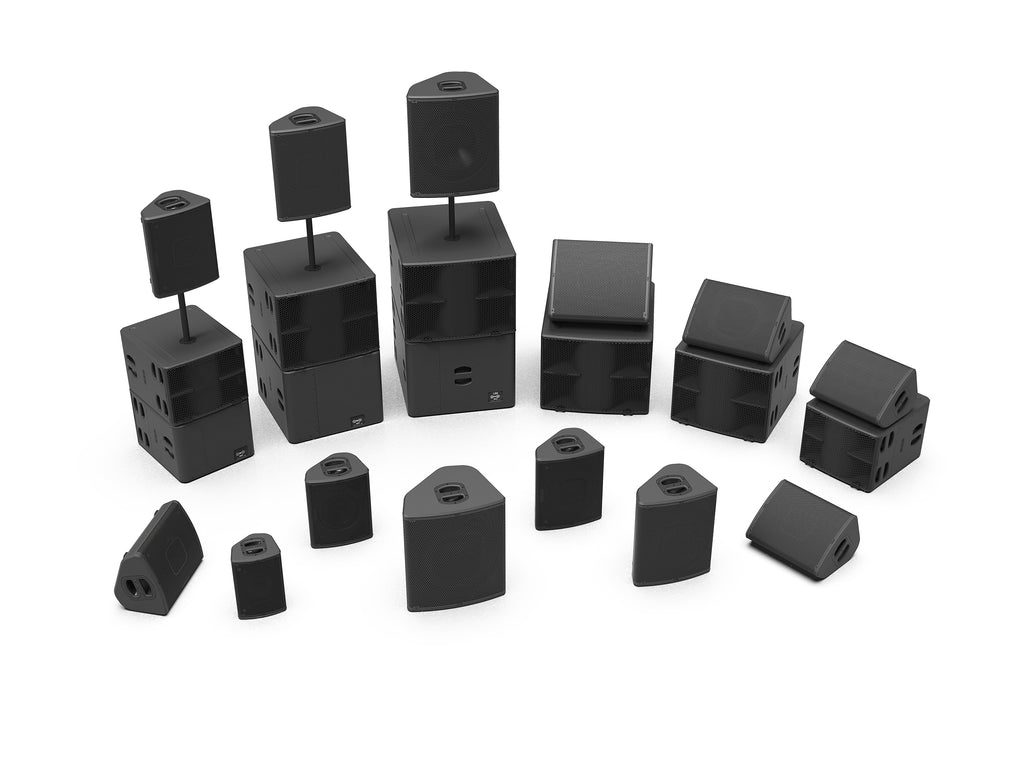

  • NEXO P Series and L Series family: point source speakers and subwoofers in various setups

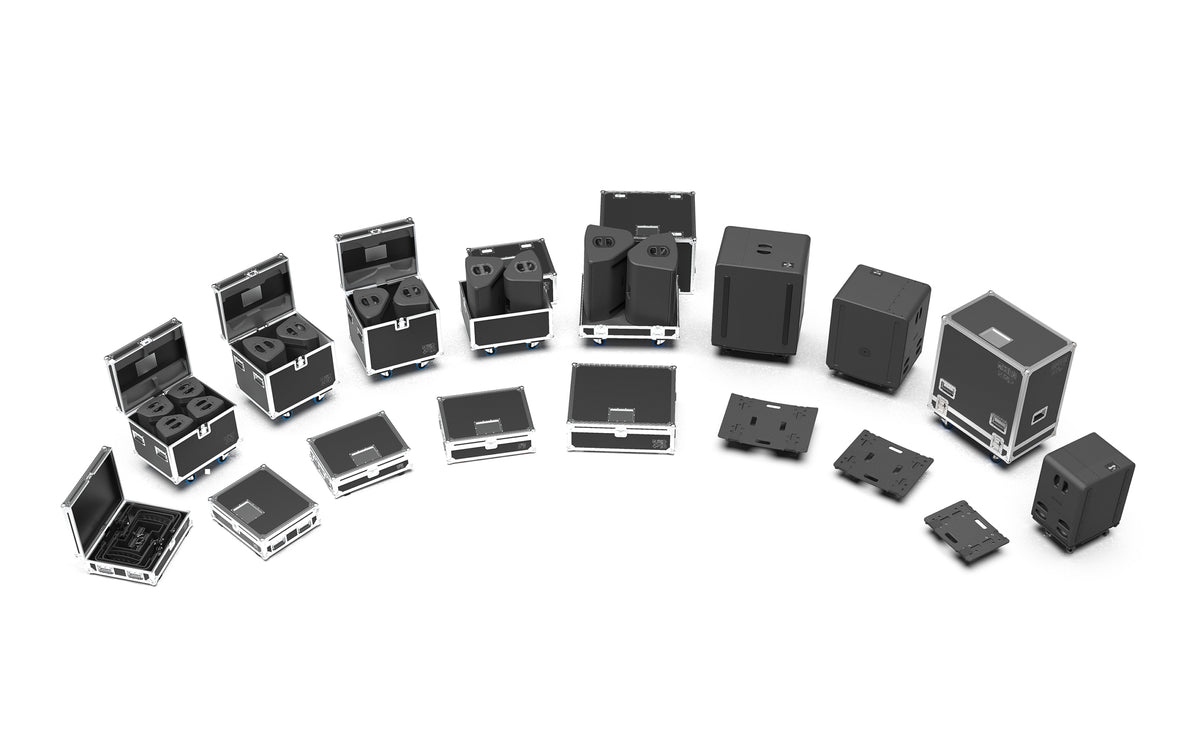

  • NEXO P Series flight cases and covers, range overview
NEXO P18 18-inch Coaxial 2-Way Point Source Loudspeaker, Touring Version, White

NEXO

NEXO P18 18-inch Coaxial 2-Way Point Source Loudspeaker, Touring Version, White

Manufacturer Part No.: 01P..18UTIS-PWSKU: 30228

Contact us about this product

The NEXO P18 is an 18-inch coaxial point source loudspeaker designed for touring and fixed installation, combining a long-excursion 18-inch LF driver with a 4-inch HF diaphragm in a single coaxial enclosure. Switchable between passive and active operation, the P18 is suited to FOH or monitor use, with or without its companion L20 subwoofer.

The cabinet delivers 107 dB sensitivity and up to 142 dB peak SPL in active mode, covering 50 Hz to 20 kHz (±6 dB). Dispersion is modular, moving from the standard 60°x60° horn to a rotating 90°x40° pattern or an asymmetric "PS-like" coverage in seconds, with a quick-release Magnelis steel grille for access to the horn flanges.

This Touring Version connects via 4x NL4 4-pole connectors and recommends 1,200–1,900 W for the LF section and 600–950 W for the HF section in active mode. The enclosure is built from custom bent plywood of Baltic birch and poplar, weighing 33 kg, and is backed by a 5-year warranty.

  • 18-inch coaxial neodymium LF with 4-inch HF driver
  • Sensitivity 107 dB, max SPL 142 dB peak
  • Frequency response 50 Hz – 20 kHz (±6 dB)
  • Modular dispersion: 60°x60°, 90°x40°, or asymmetric PS pattern
  • Dimensions 579 x 680 x 446 mm, 33 kg
