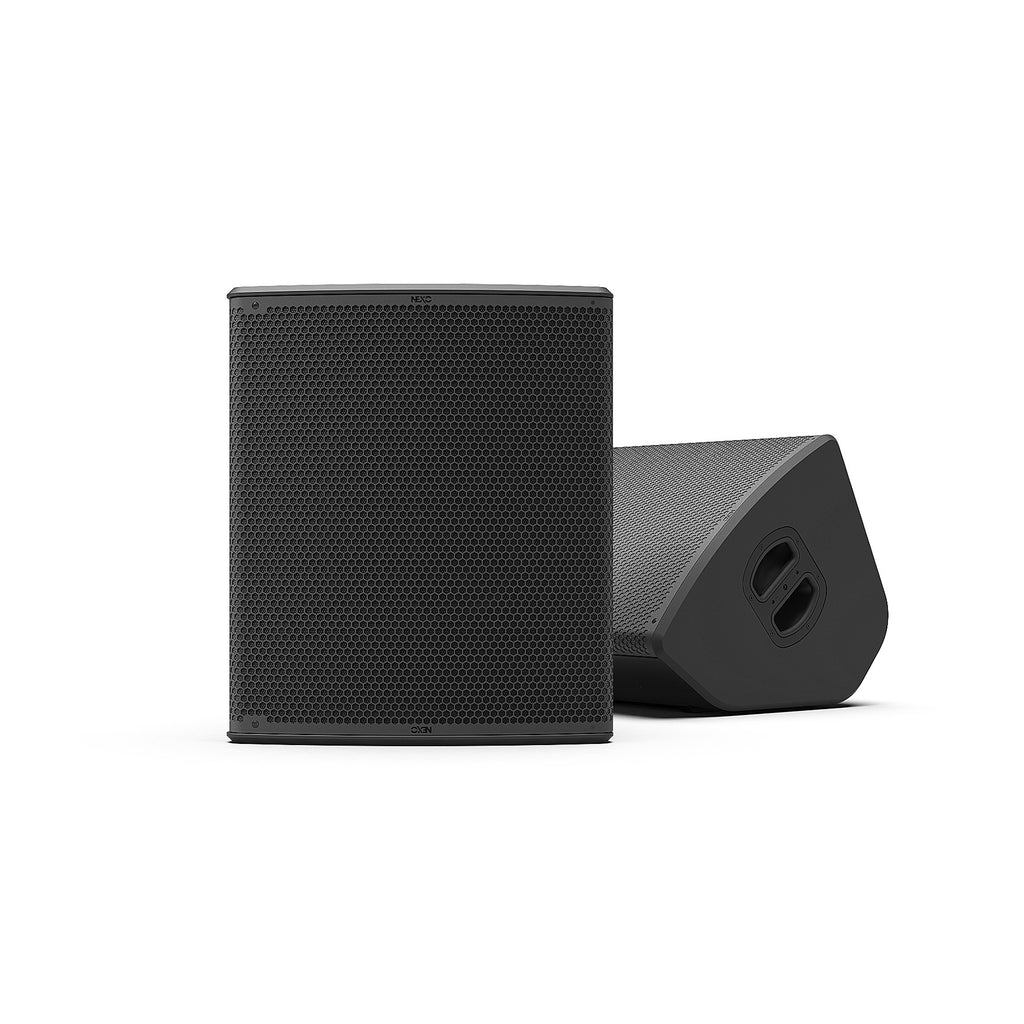

  • NEXO P18 point source speaker in black, upright and as a floor monitor

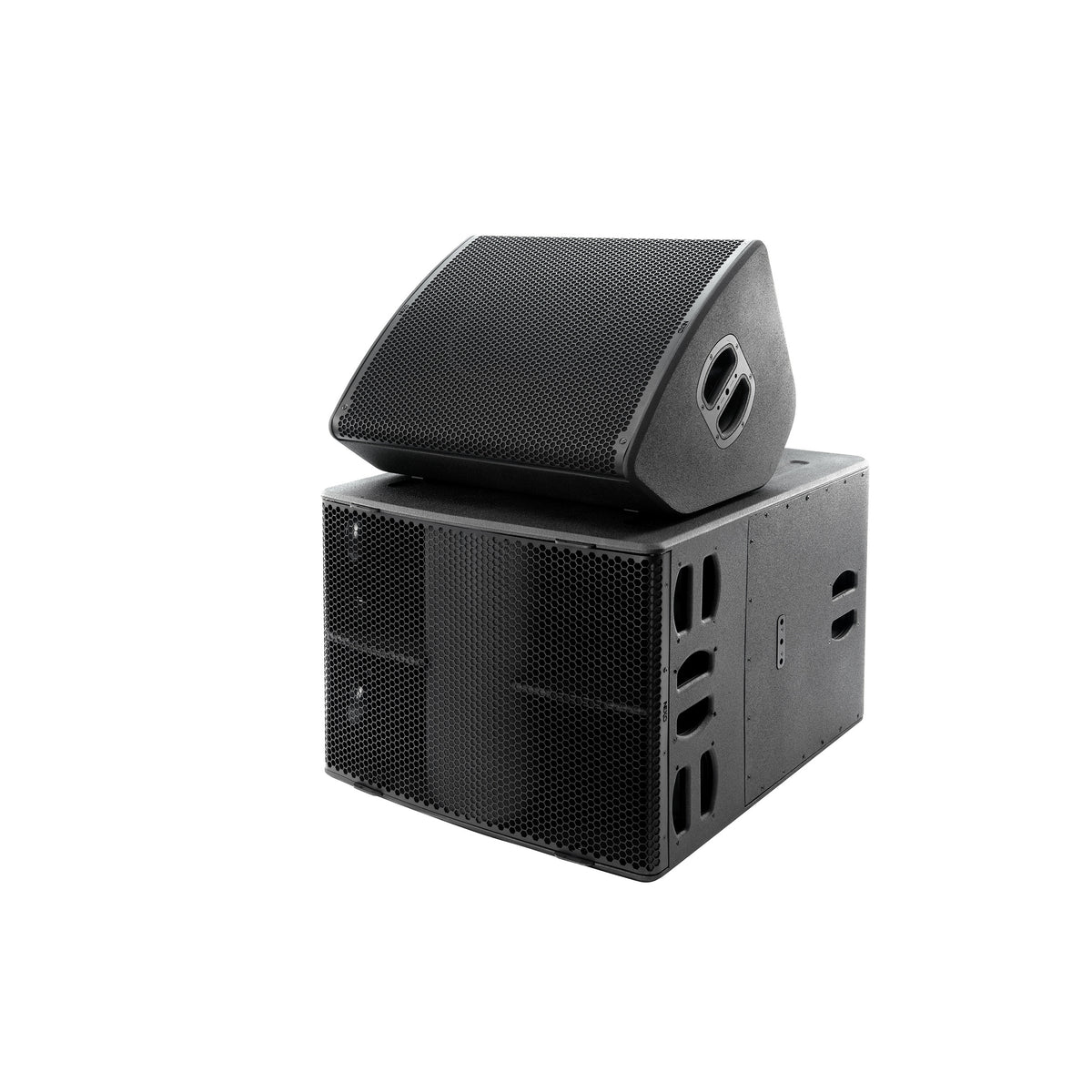

  • NEXO P18 as a floor monitor on top of an L20 subwoofer, angled view

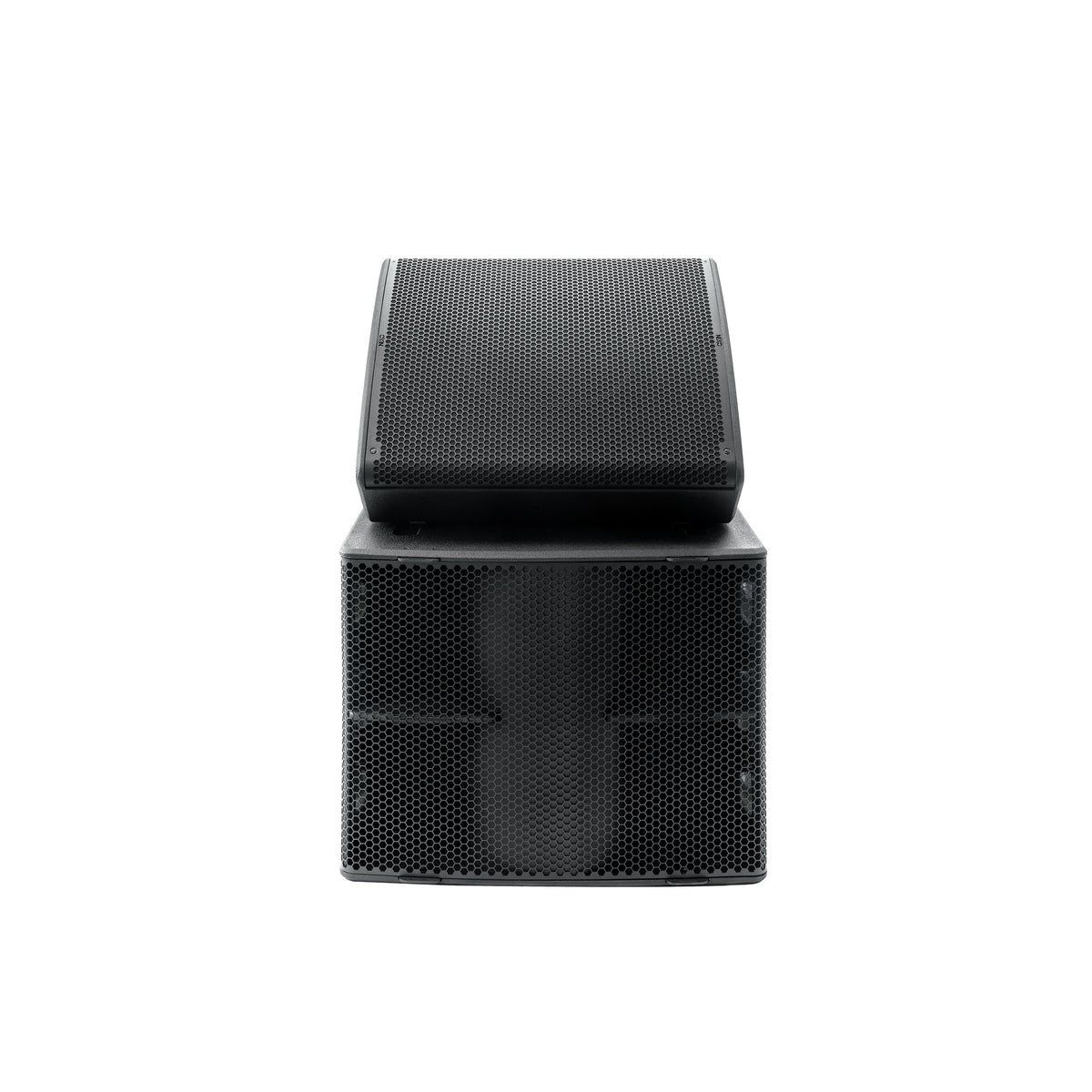

  • NEXO P18 as a floor monitor on top of an L20 subwoofer, front view

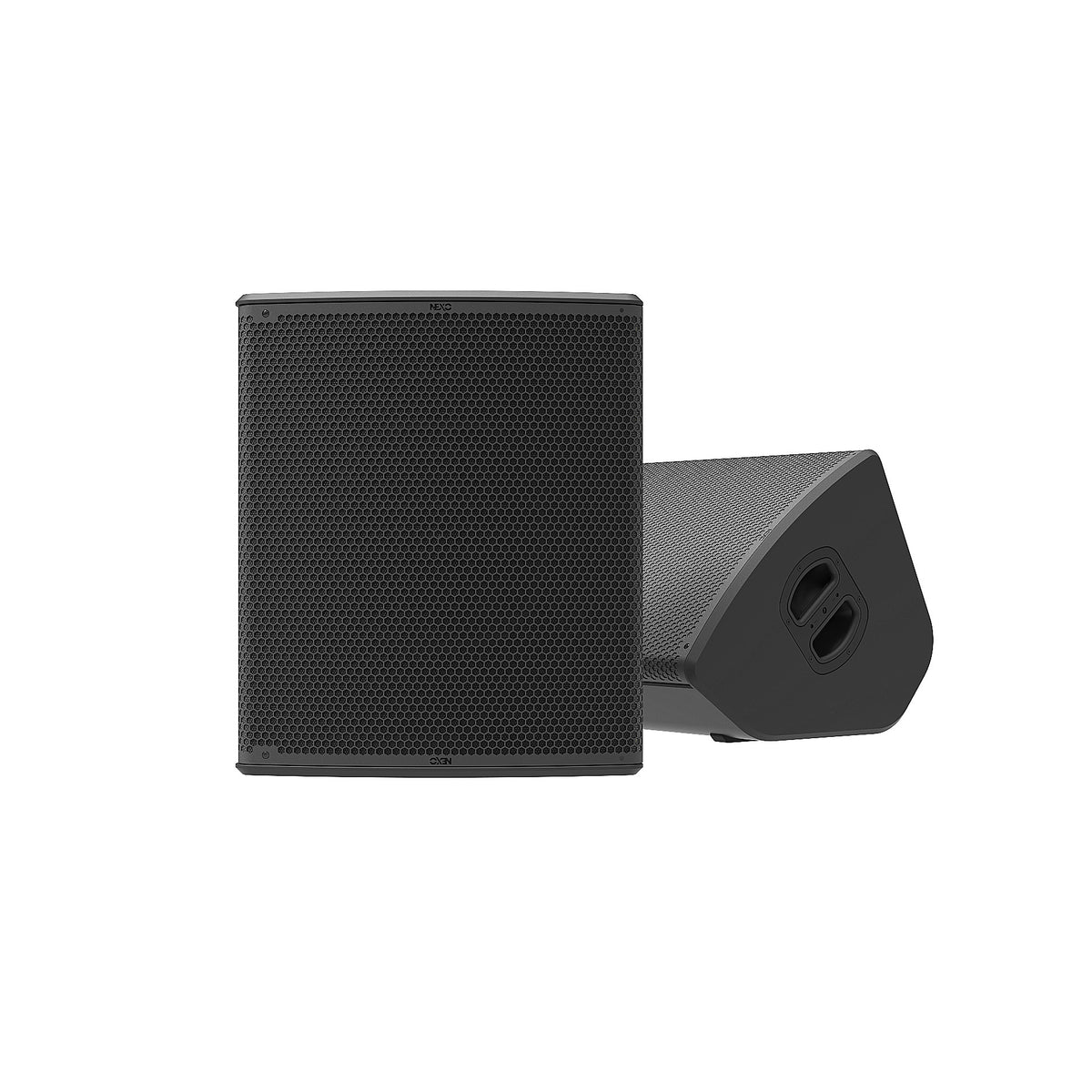

  • NEXO P18 point source speaker, close upright and floor monitor views

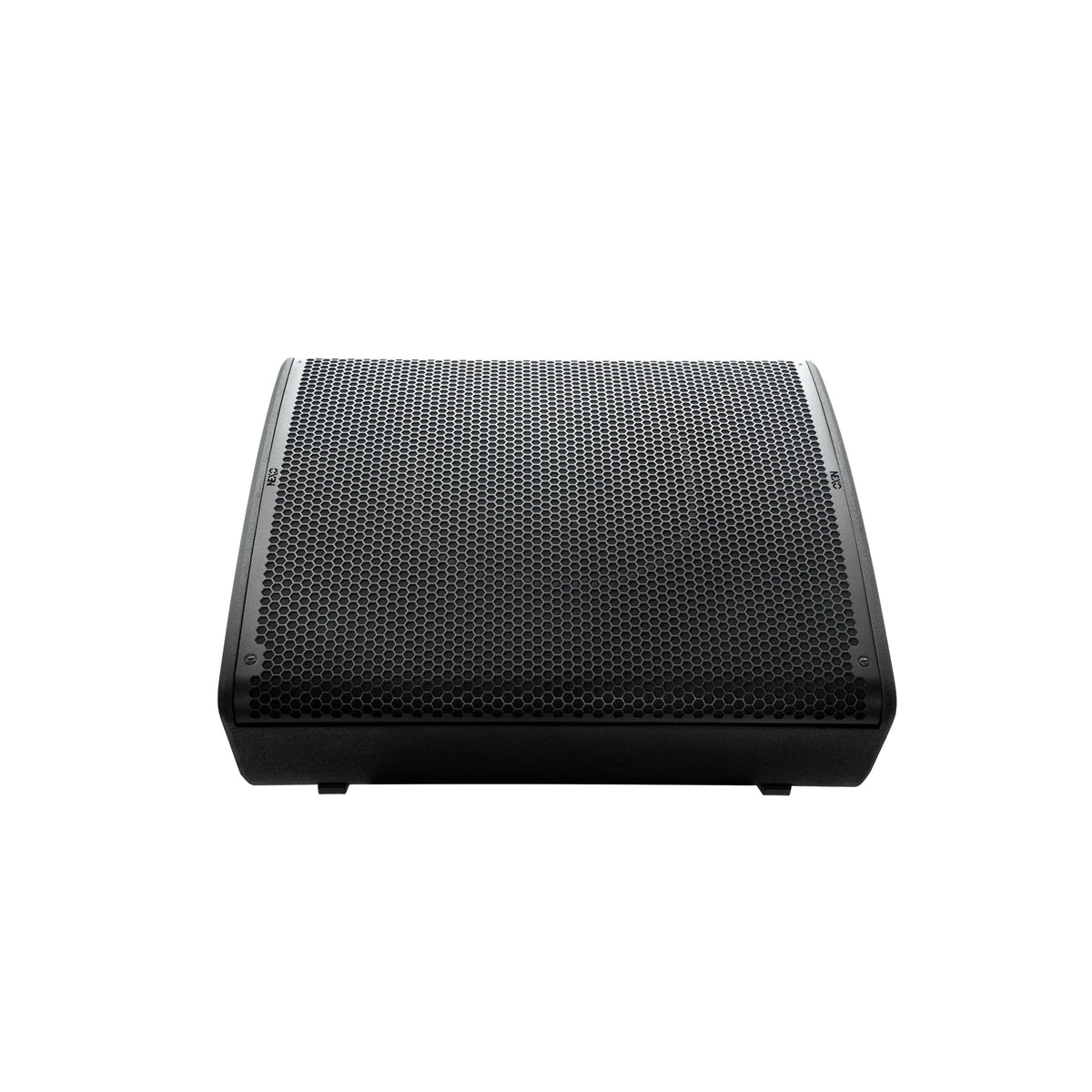

  • NEXO P18 point source speaker lying as a floor monitor, front view

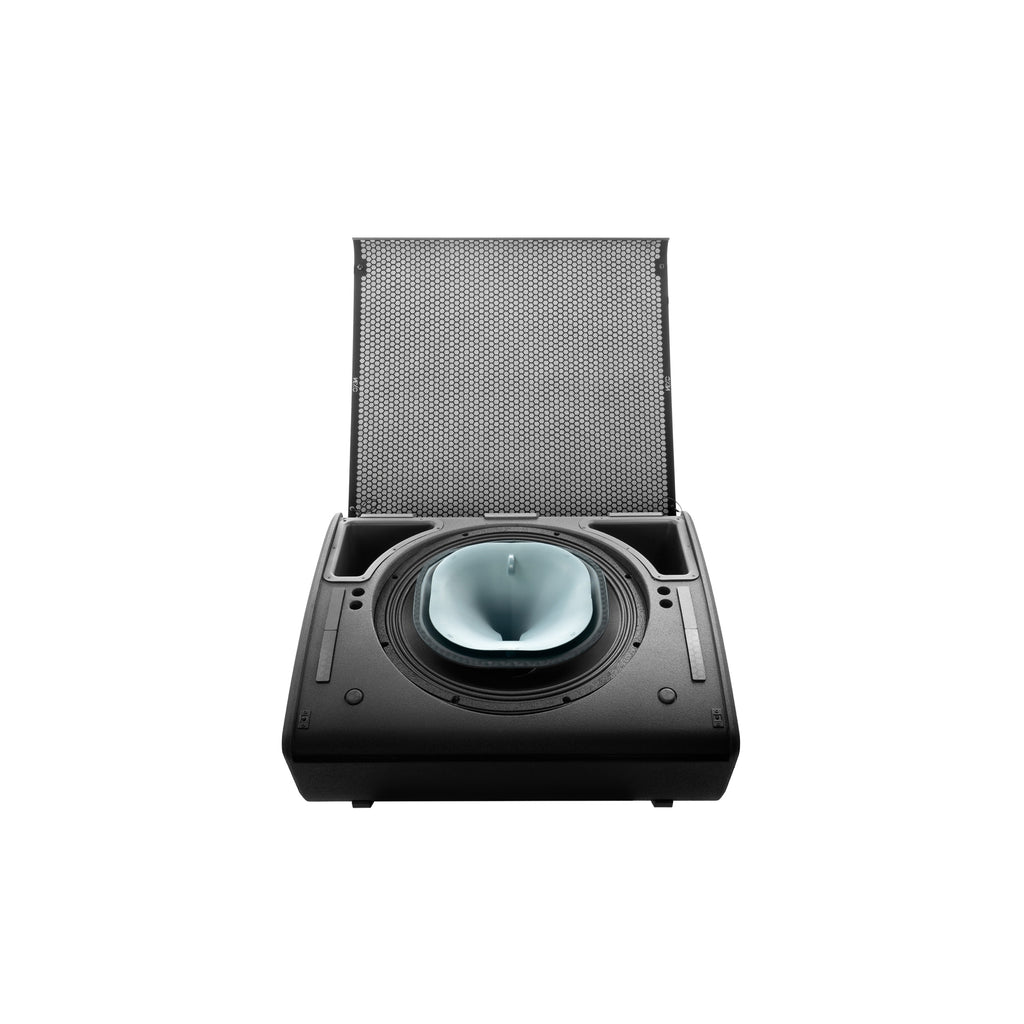

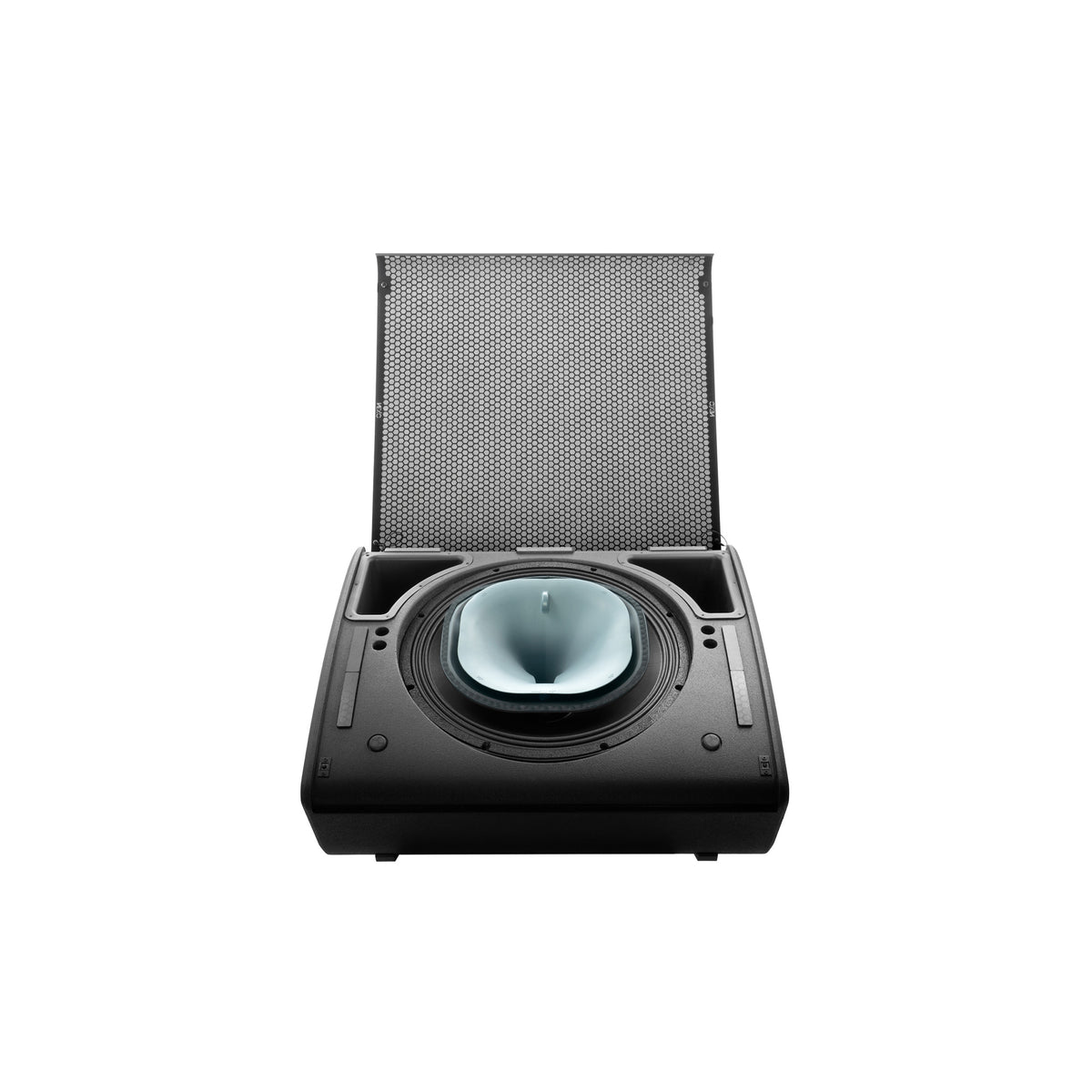

  • NEXO P18 with the front grille opened, showing the coaxial driver and horn

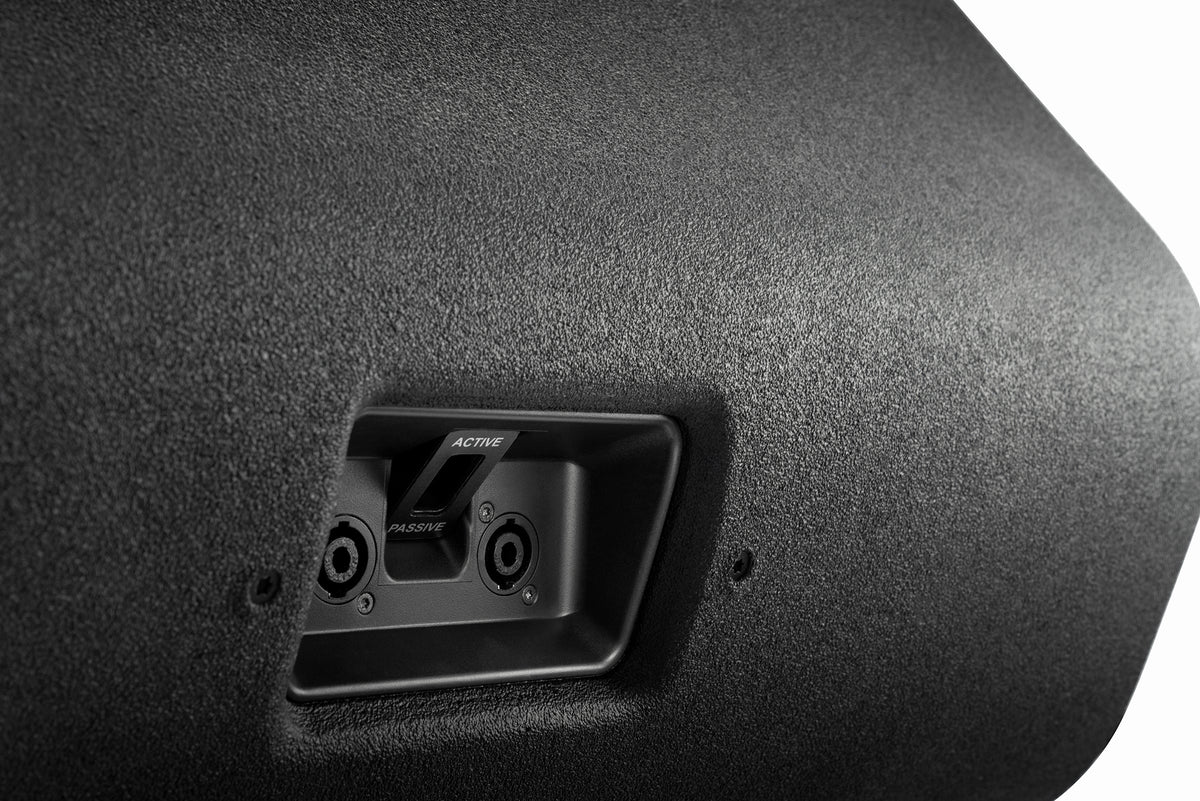

  • Close-up of the recessed connector panel on the NEXO P18

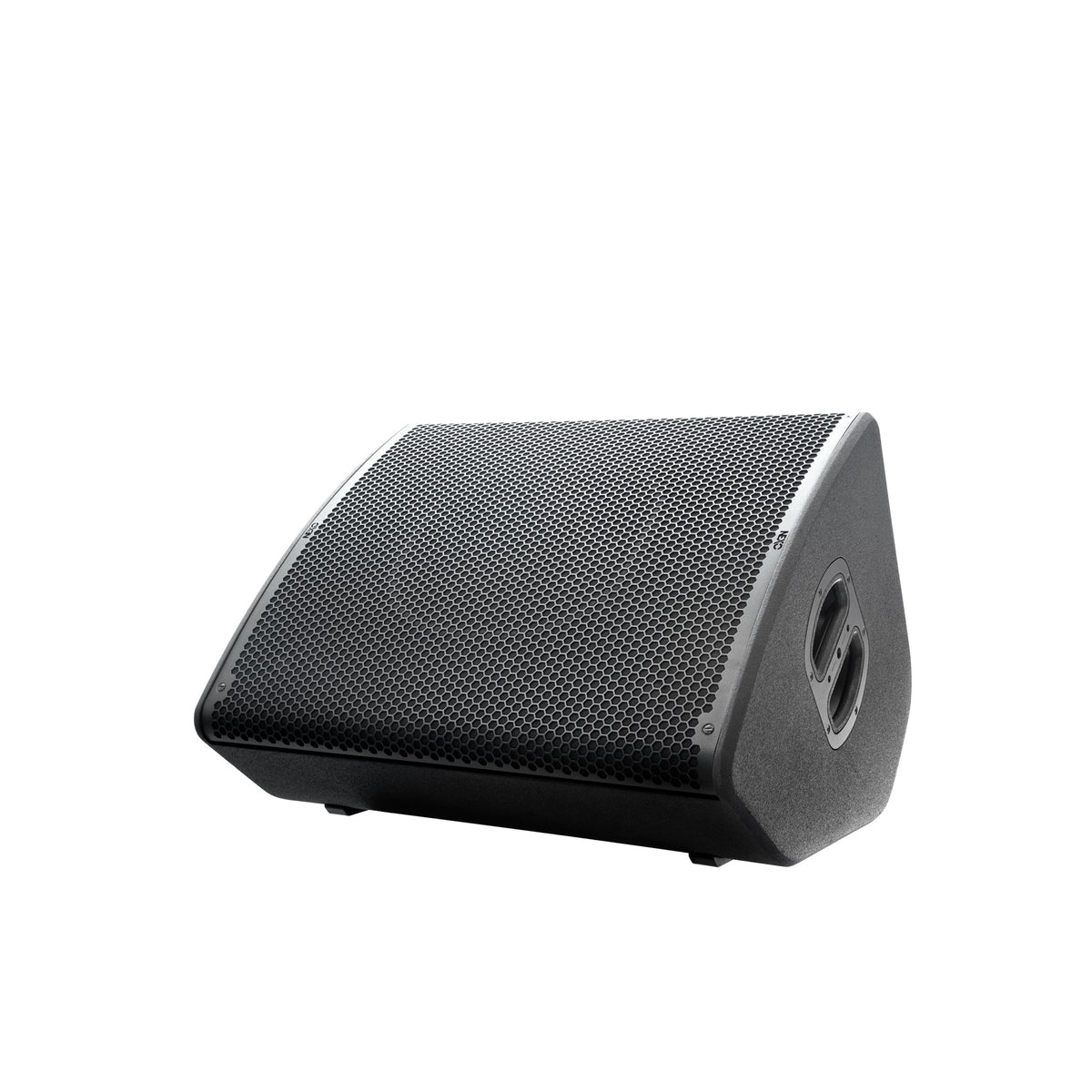

  • NEXO P18 point source speaker as a floor monitor, angled view

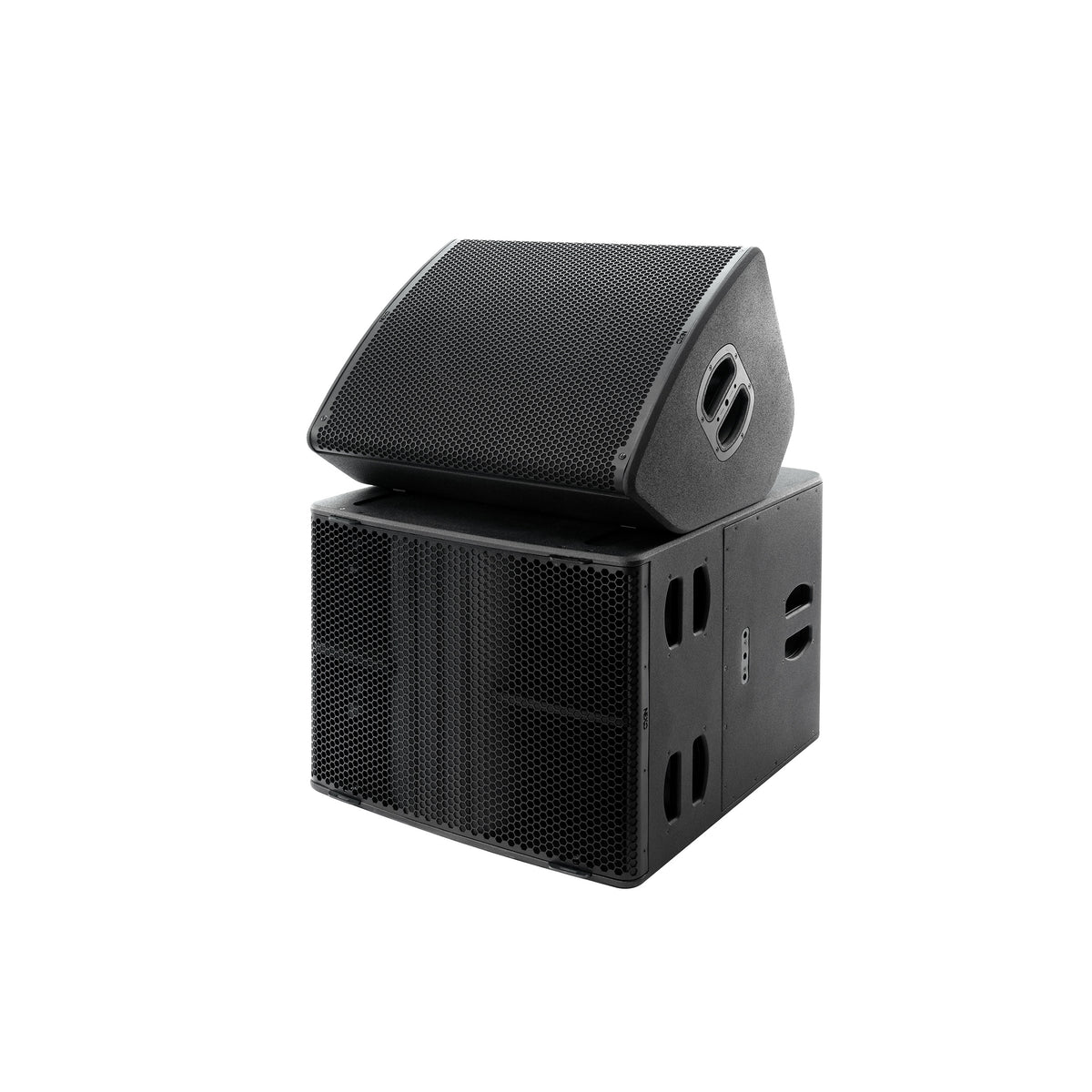

  • NEXO P18 as a floor monitor on top of an L18 subwoofer, angled view

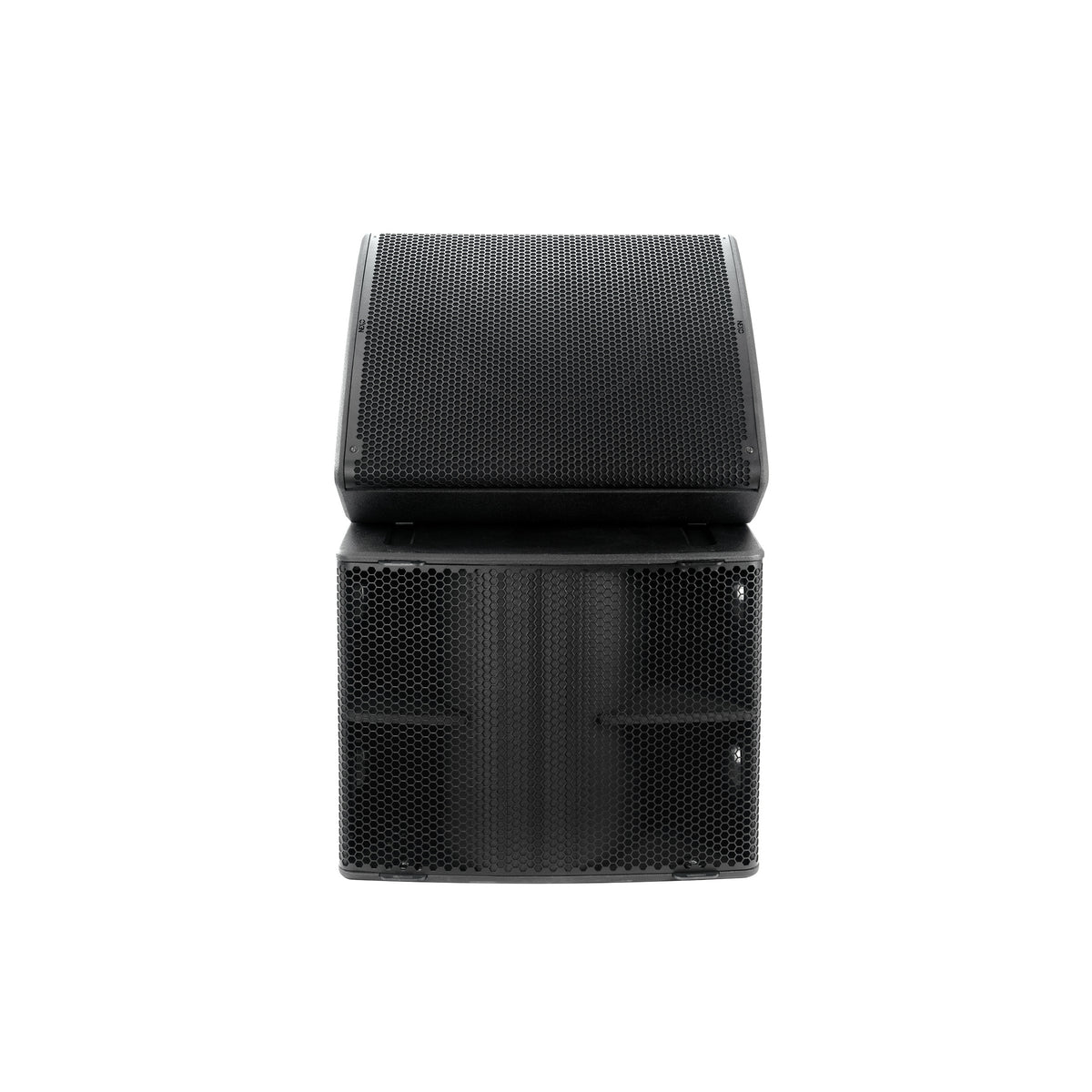

  • NEXO P18 as a floor monitor on top of an L18 subwoofer, front view

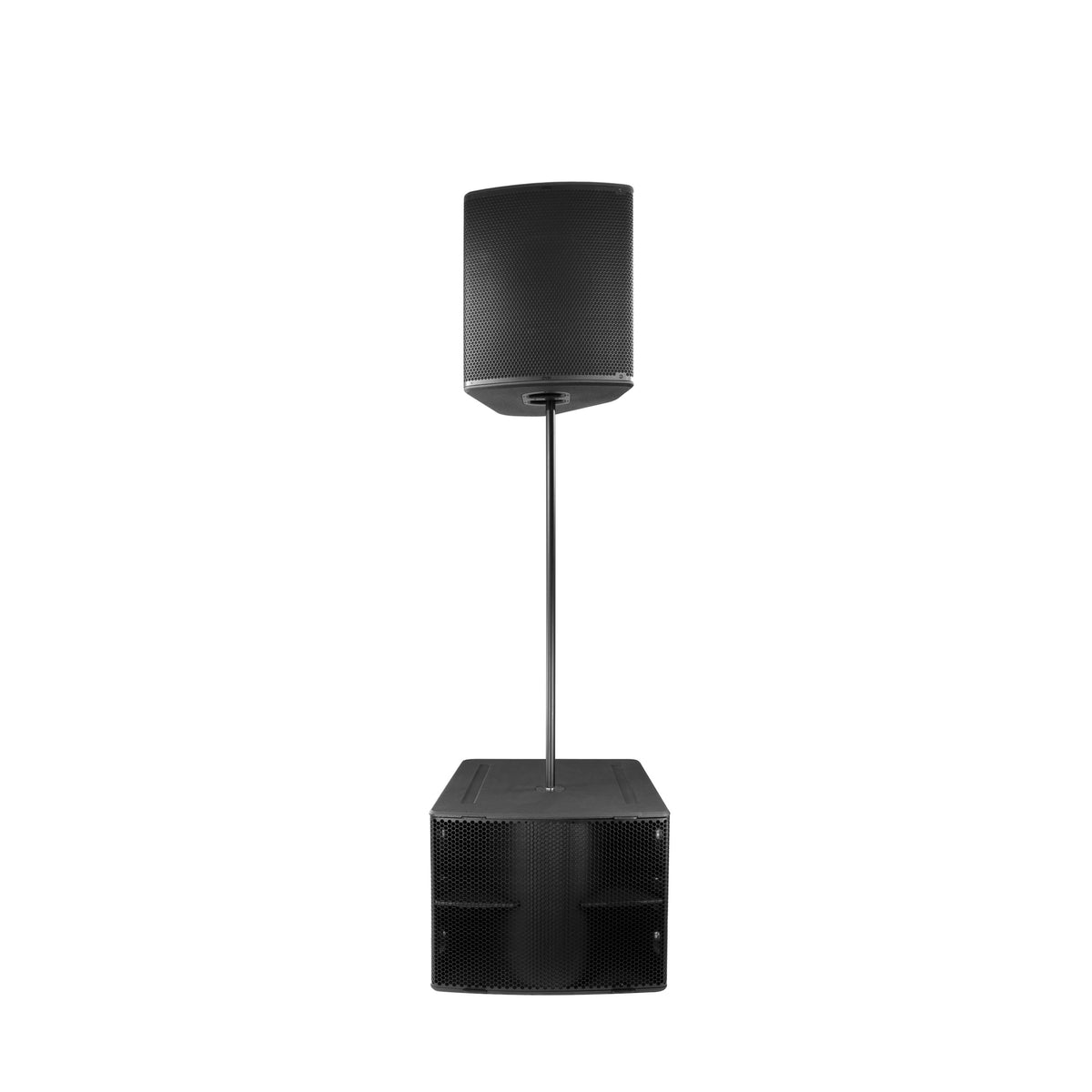

  • NEXO P18 on a pole above an L20 subwoofer, front view

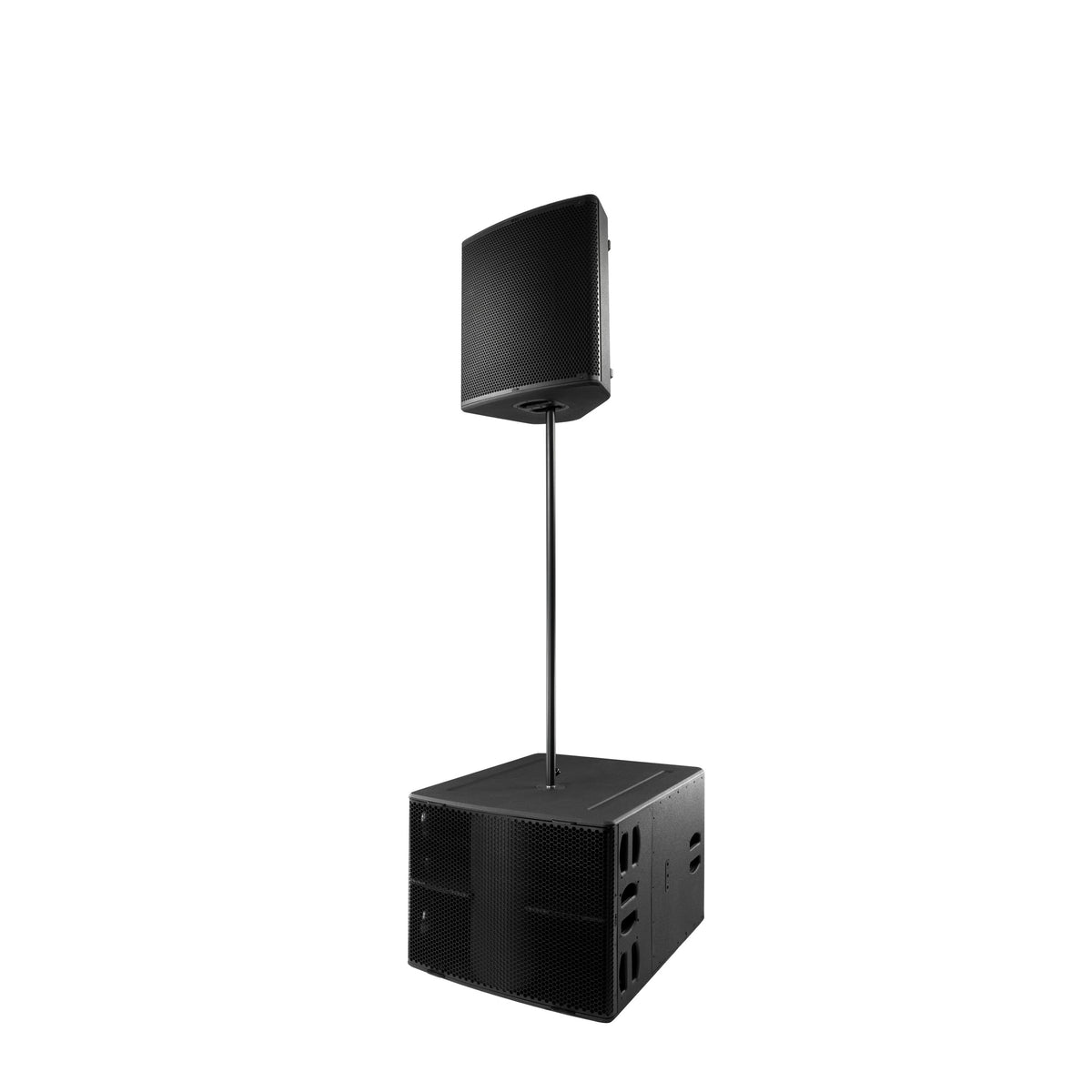

  • NEXO P18 on a pole above an L20 subwoofer, angled view

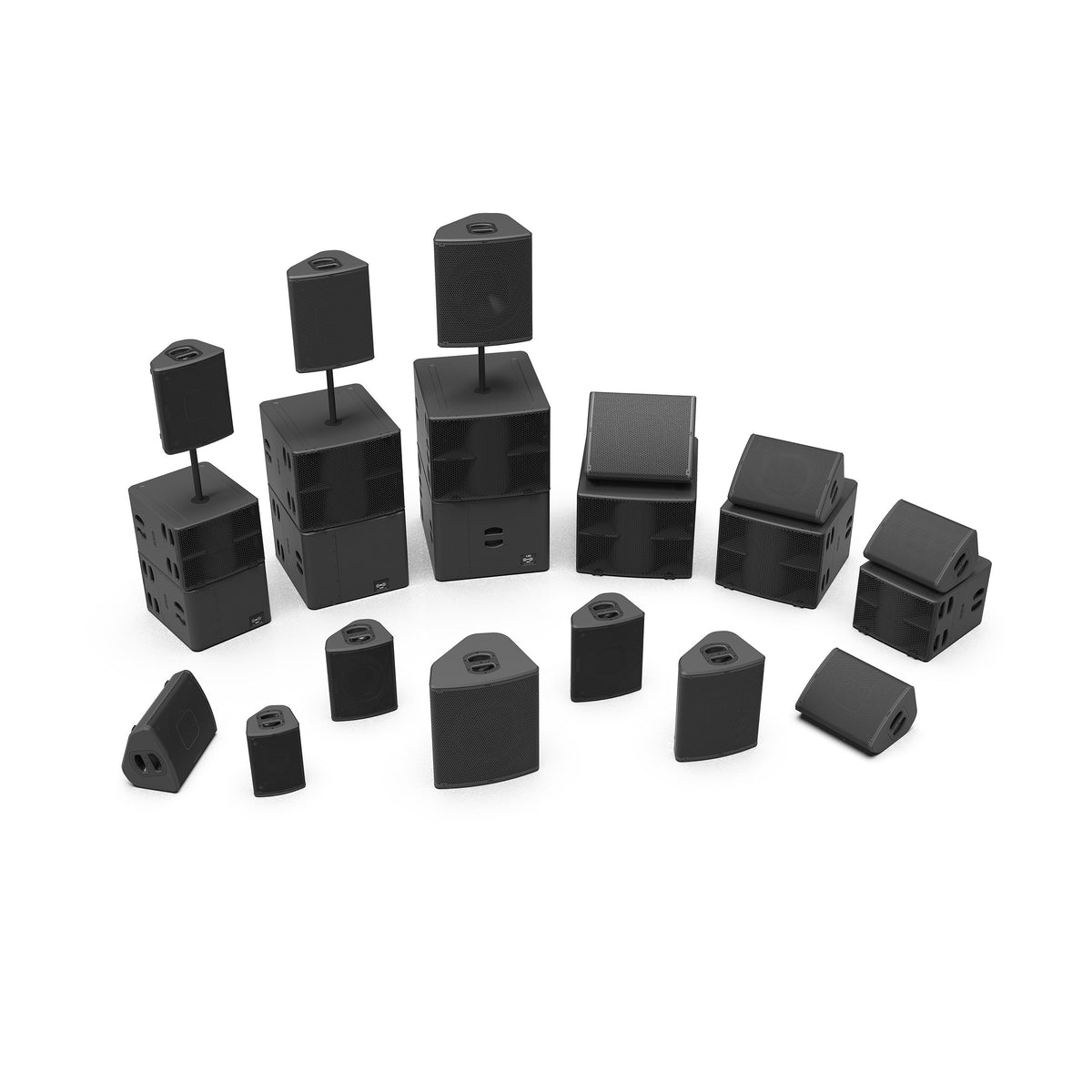

  • NEXO P Series and L Series family: point source speakers and subwoofers in various setups

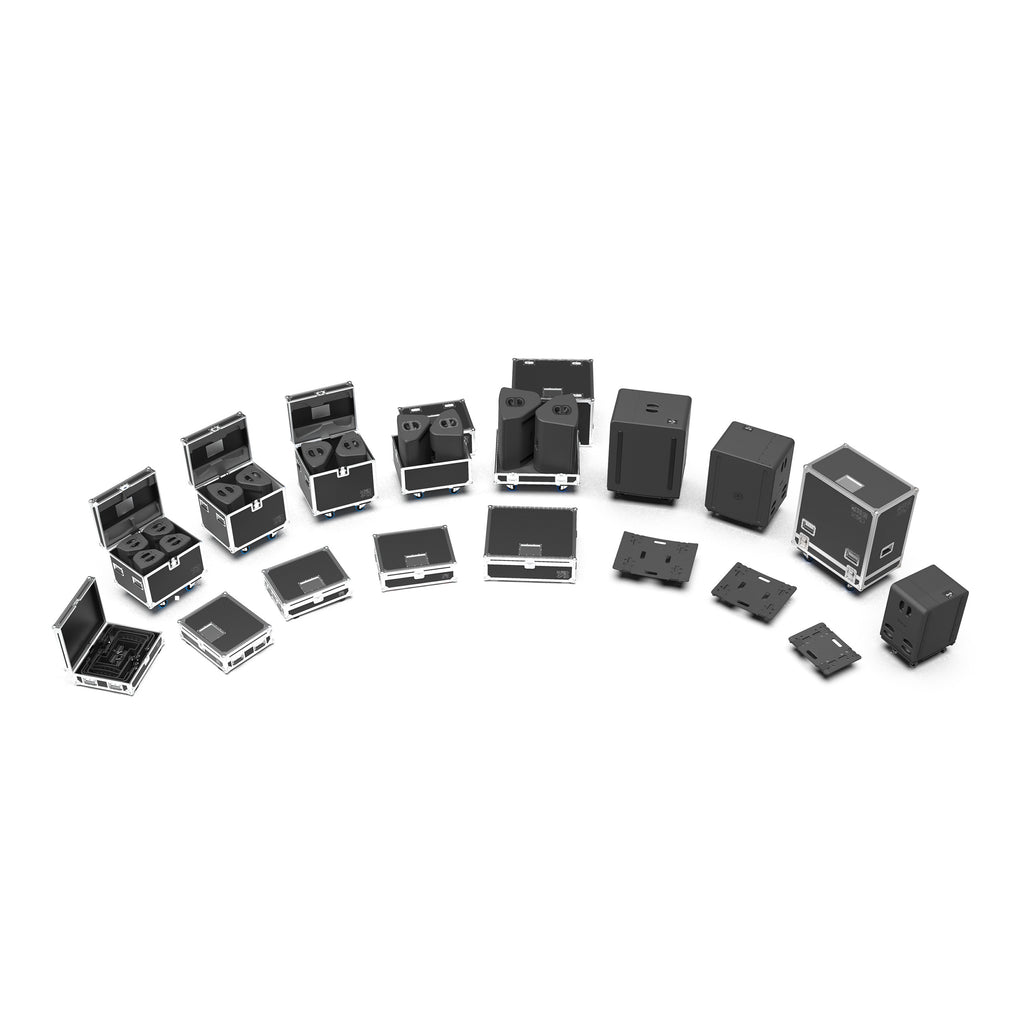

  • NEXO P Series flight cases and covers, range overview
NEXO P18 18-inch Coaxial 2-Way Point Source Loudspeaker, Touring Version, Black

NEXO

NEXO P18 18-inch Coaxial 2-Way Point Source Loudspeaker, Touring Version, Black

Manufacturer Part No.: 01P..18USKU: 30187

Contact us about this product

The NEXO P18 is a coaxial two-way point source loudspeaker built around an 18-inch neodymium LF driver and a 4-inch HF compression driver, delivering high output in a compact, portable enclosure suited to touring sound reinforcement and fixed installation.

With a frequency response of 50 Hz to 20 kHz (+6 dB), sensitivity of 107 dB and maximum SPL of 142 dB peak in active mode, the P18 can be used as a full-range FOH source, a monitor wedge, or paired with the companion L20 subwoofer for extended low-frequency reach.

The cabinet features a recessed switch for quick selection between 2-way passive and active configurations, 4x NL4 four-pole connectors for touring deployment, and modular directivity options ranging from the standard 60°x60° horn to a rotatable 90°x40° or asymmetric pattern using optional flanges.

  • 18-inch coaxial LF with 4-inch HF compression driver
  • 142 dB peak SPL (active) / 140 dB peak (passive)
  • Frequency response 50 Hz–20 kHz (+6 dB)
  • Recommended power 1,900 W
  • Enclosure: bent plywood, 579 x 680 x 446 mm, 33 kg
