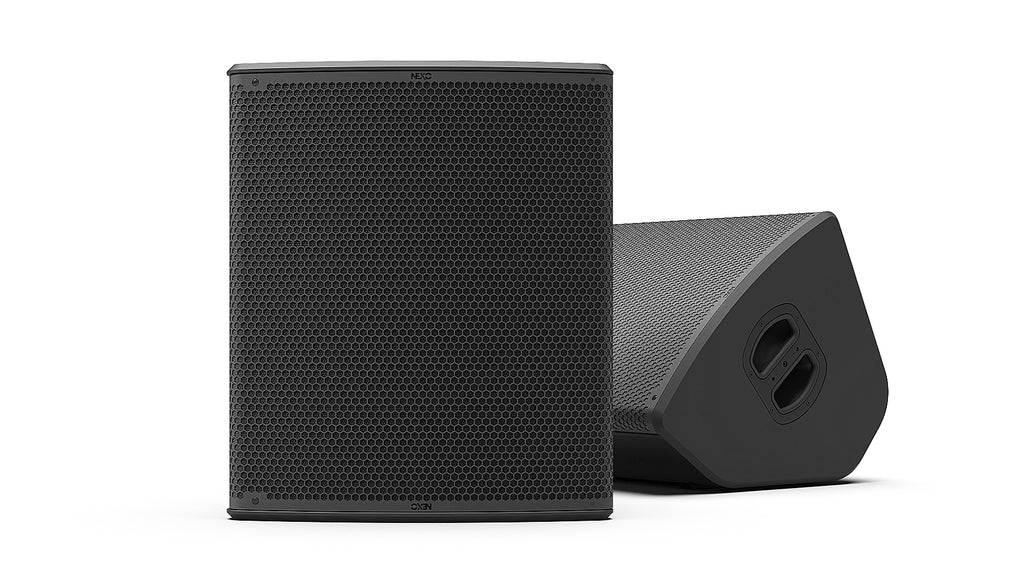

  • NEXO P18 point source speaker in black, upright and as a floor monitor

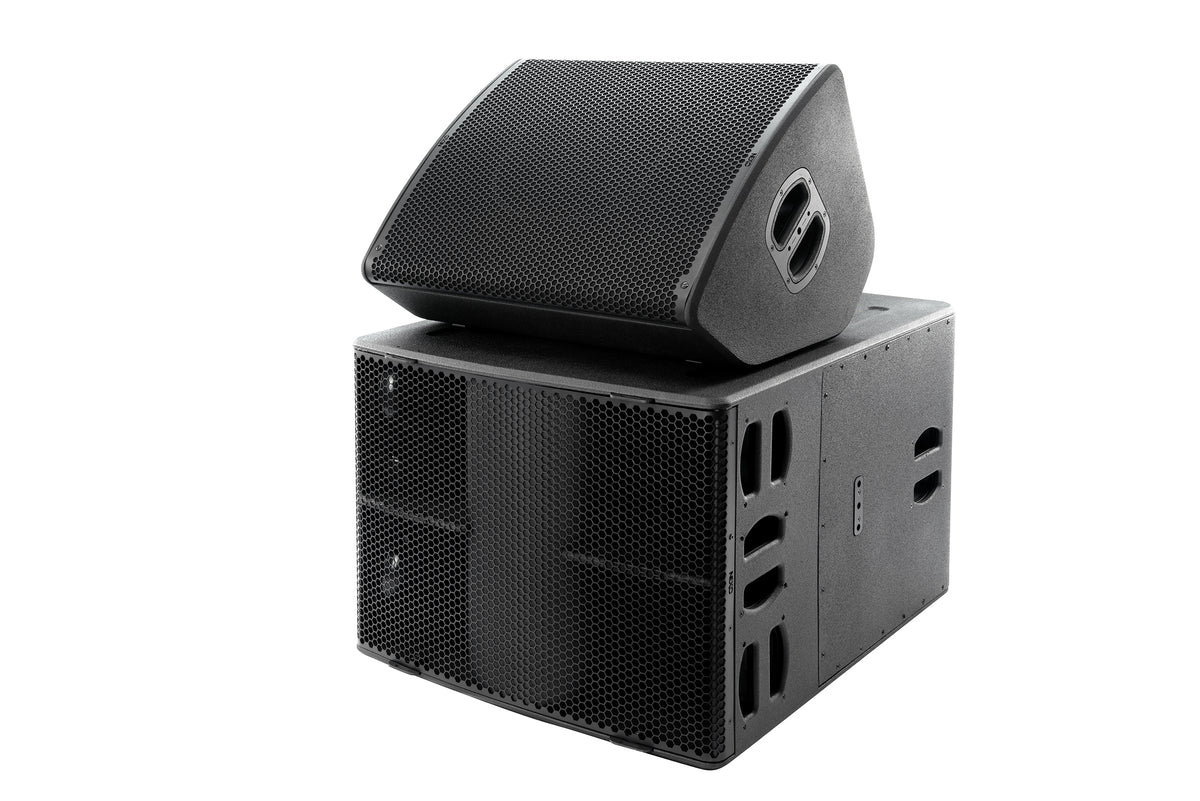

  • NEXO P18 as a floor monitor on top of an L20 subwoofer, angled view

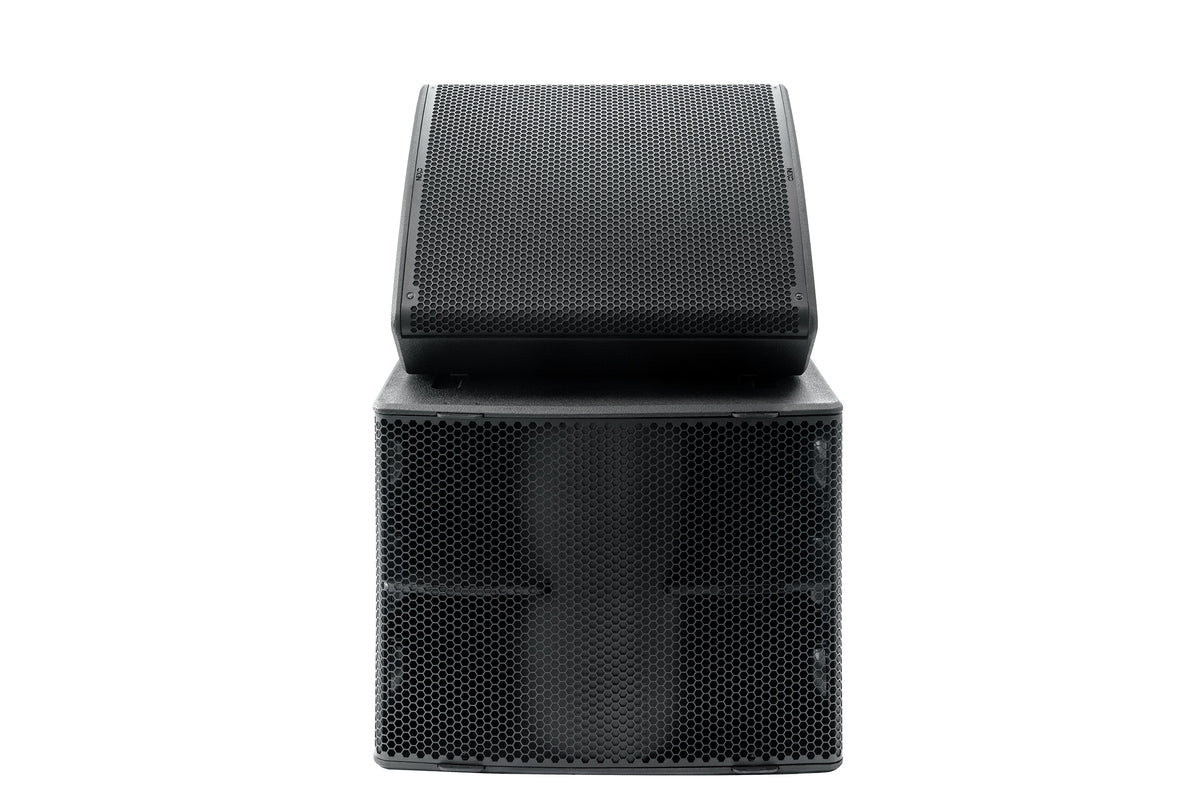

  • NEXO P18 as a floor monitor on top of an L20 subwoofer, front view

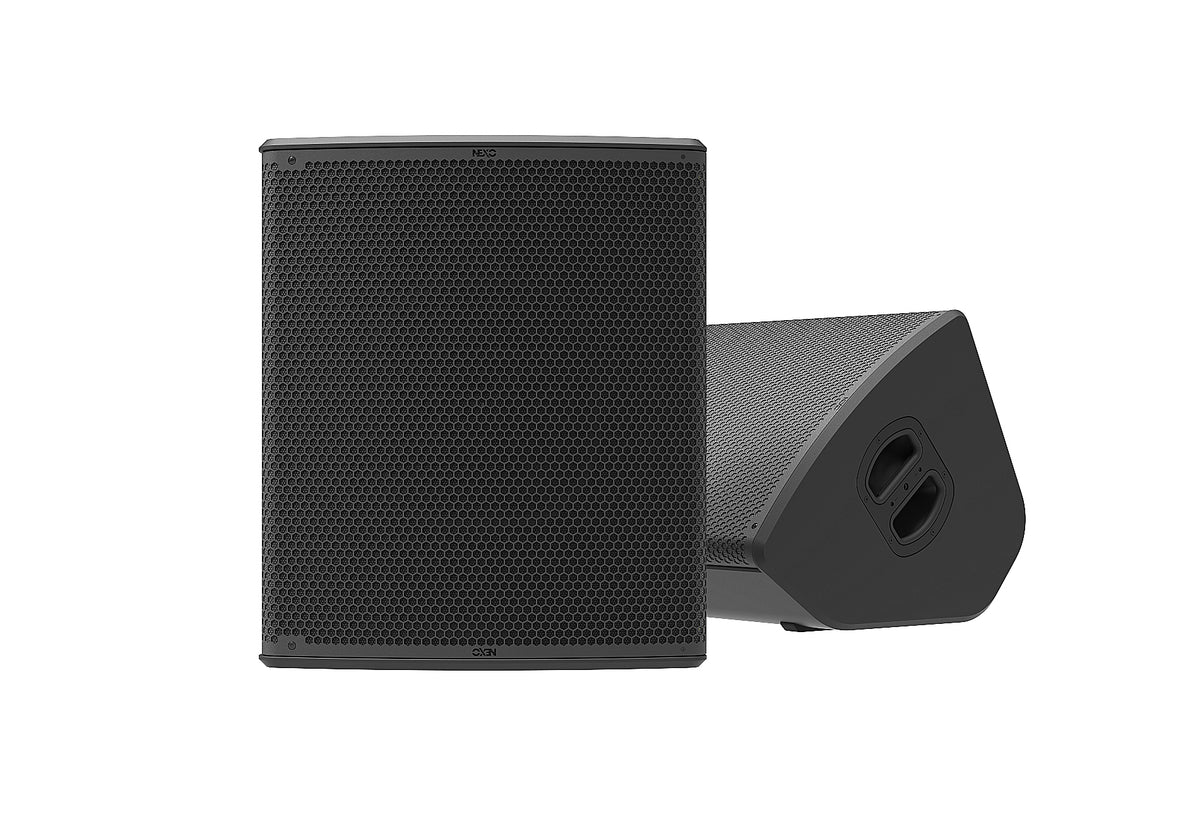

  • NEXO P18 point source speaker, close upright and floor monitor views

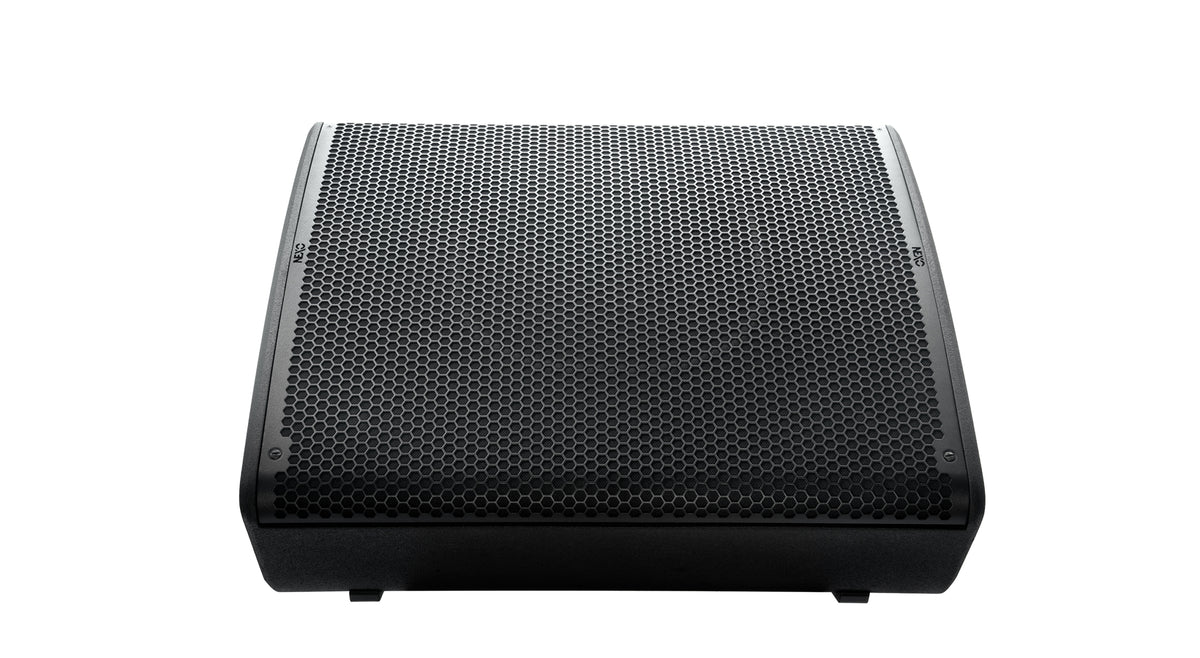

  • NEXO P18 point source speaker lying as a floor monitor, front view

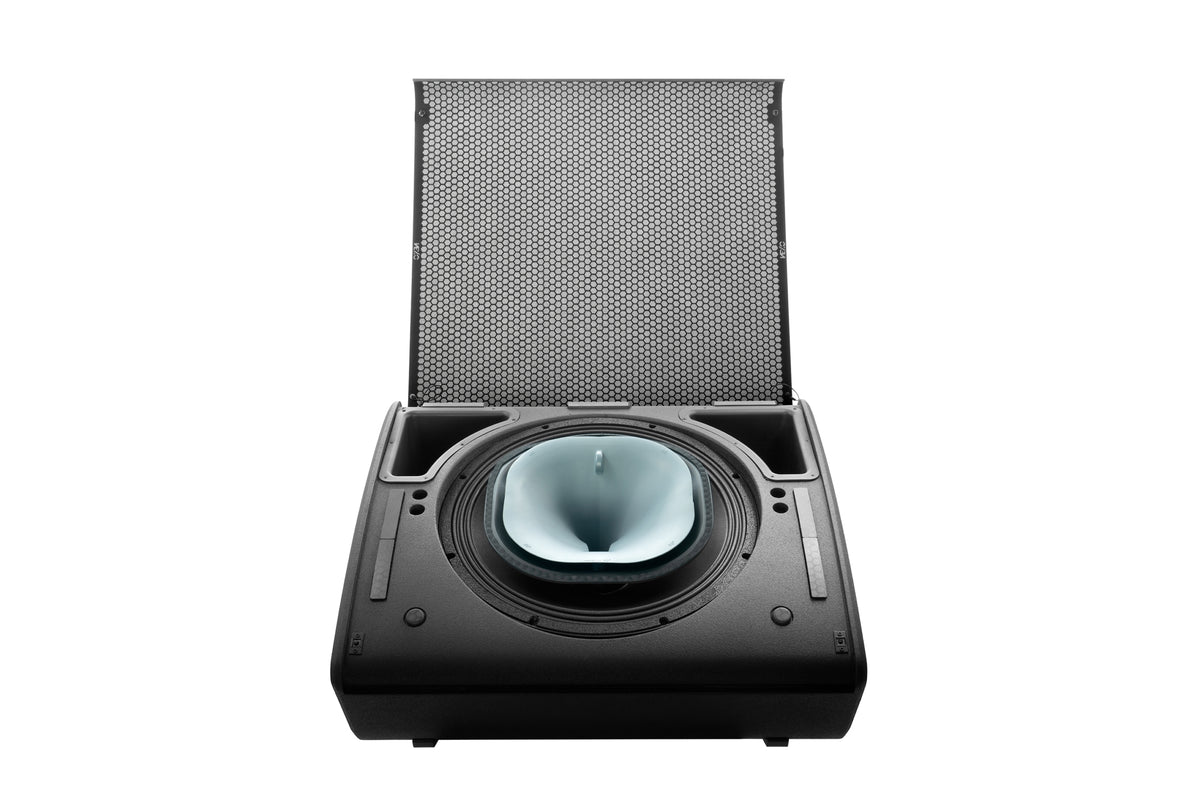

  • NEXO P18 with the front grille opened, showing the coaxial driver and horn

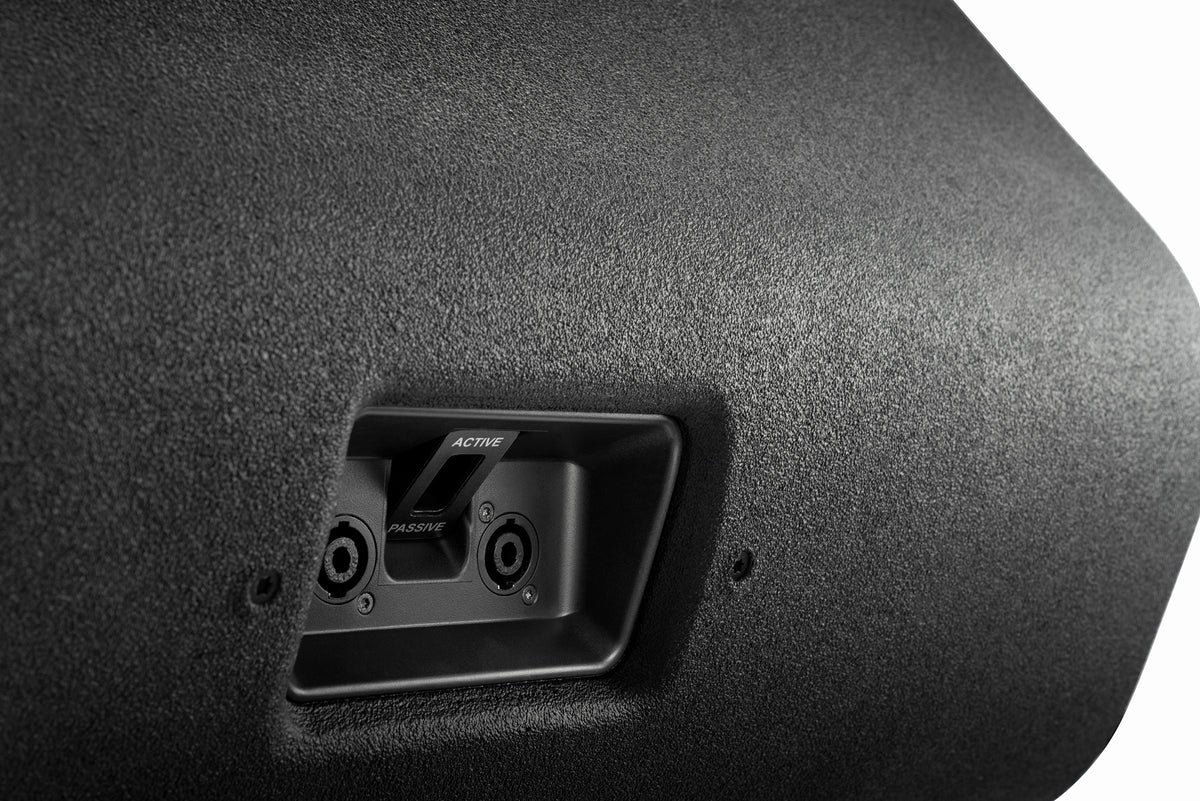

  • Close-up of the recessed connector panel on the NEXO P18

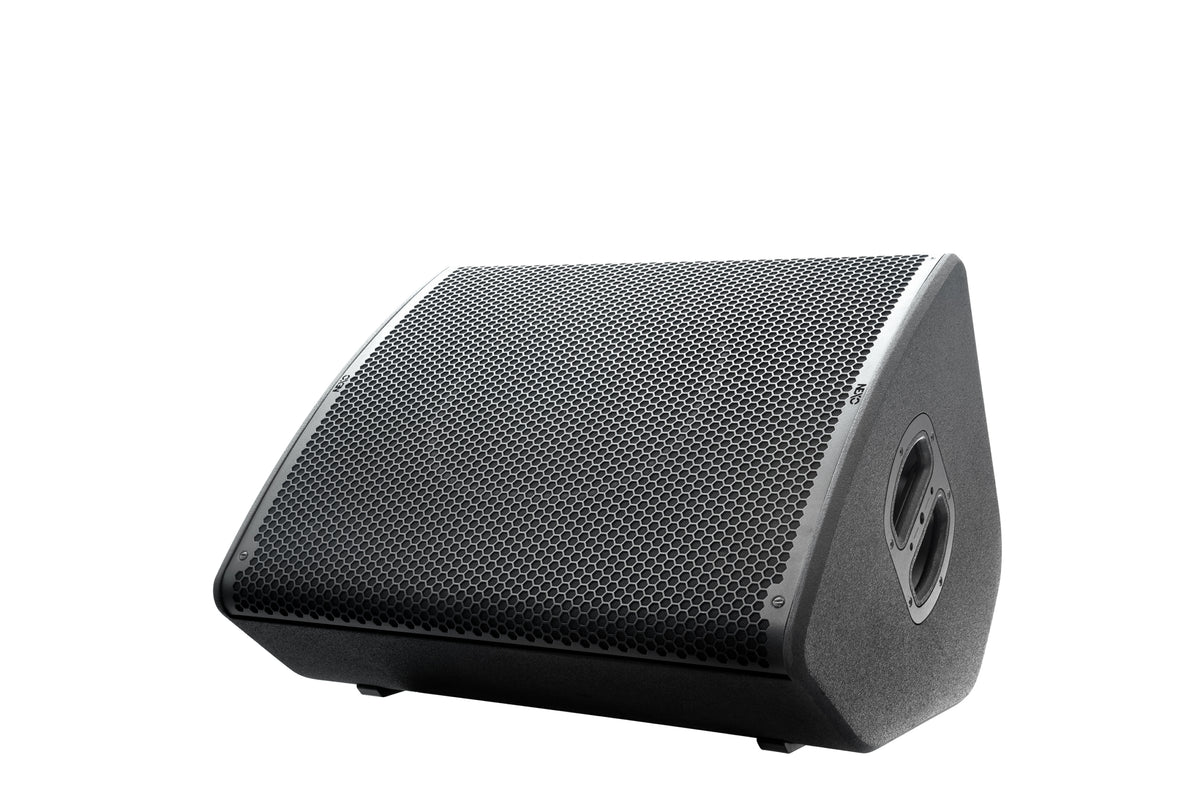

  • NEXO P18 point source speaker as a floor monitor, angled view
  • NEXO P18 as a floor monitor on top of an L18 subwoofer, angled view

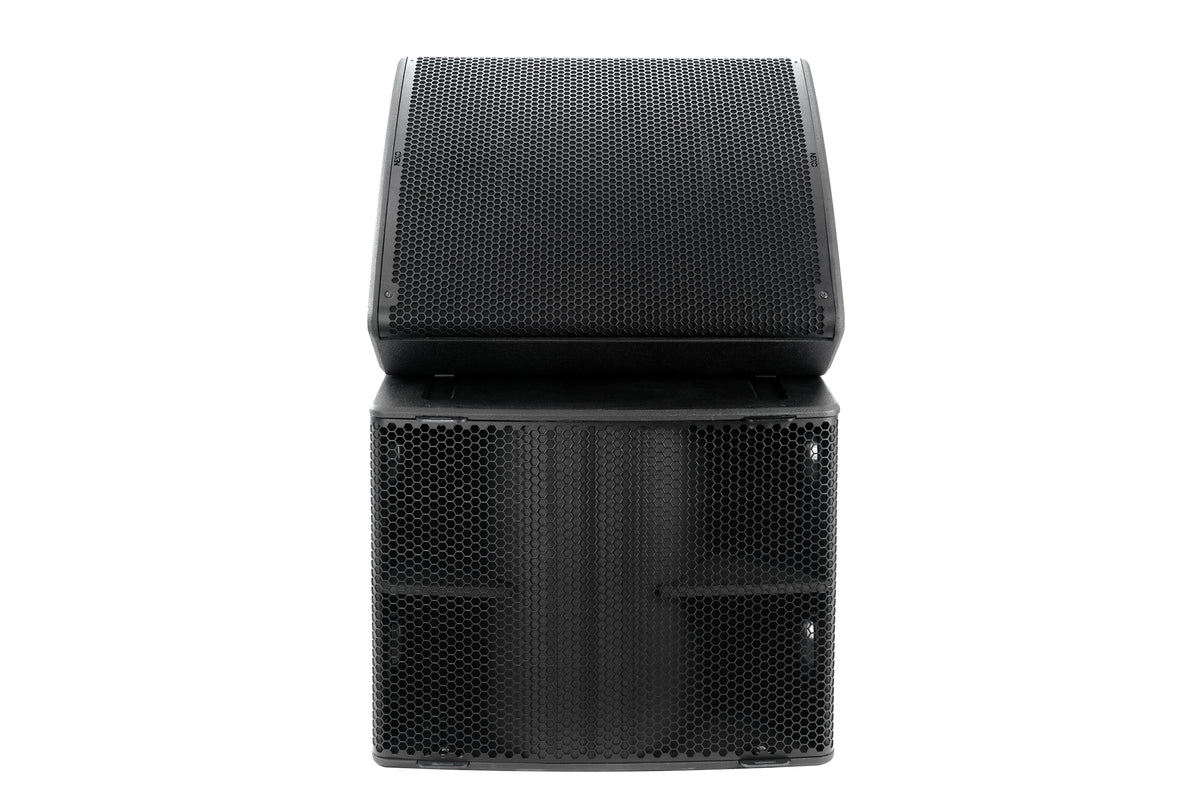

  • NEXO P18 as a floor monitor on top of an L18 subwoofer, front view

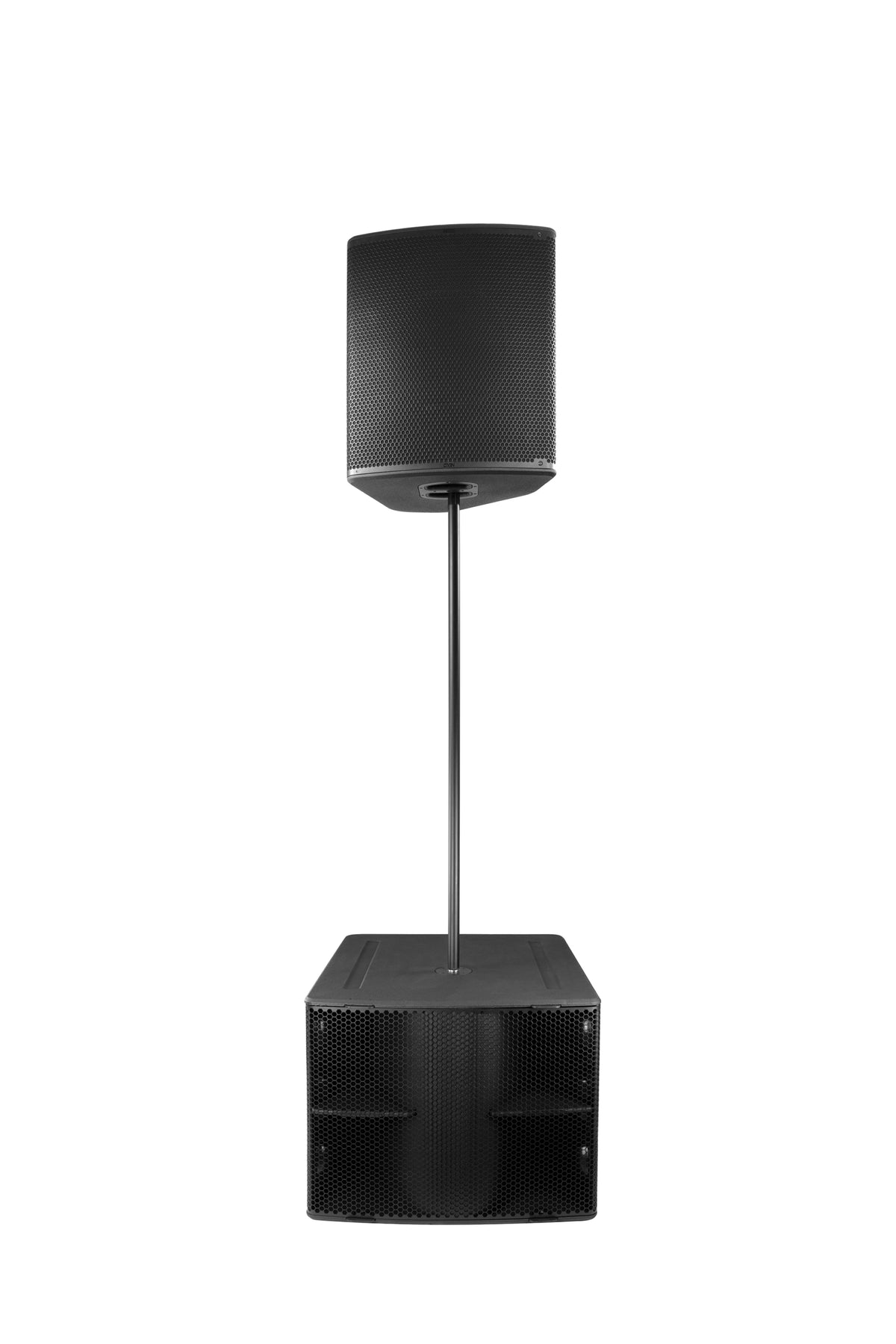

  • NEXO P18 on a pole above an L20 subwoofer, front view

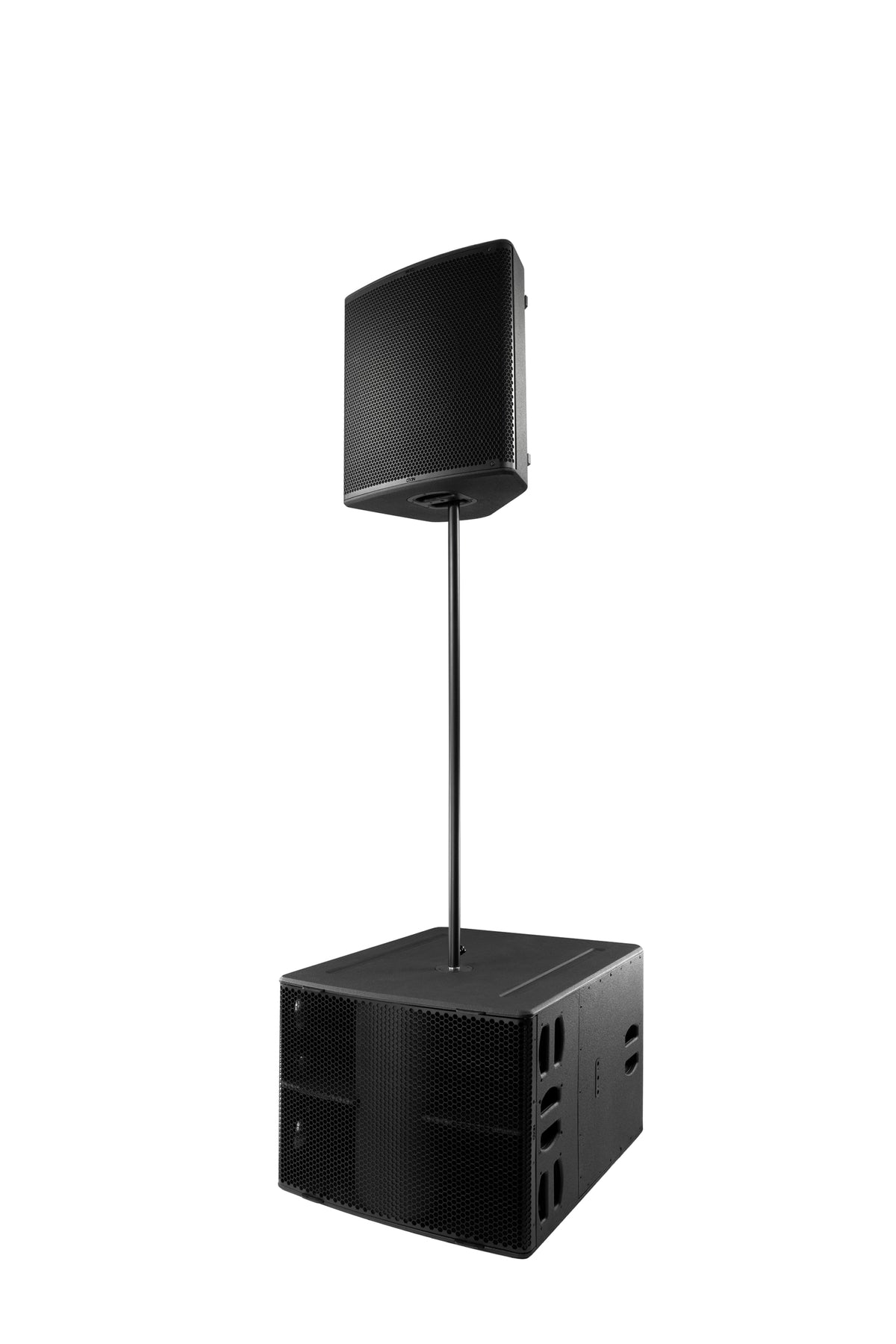

  • NEXO P18 on a pole above an L20 subwoofer, angled view

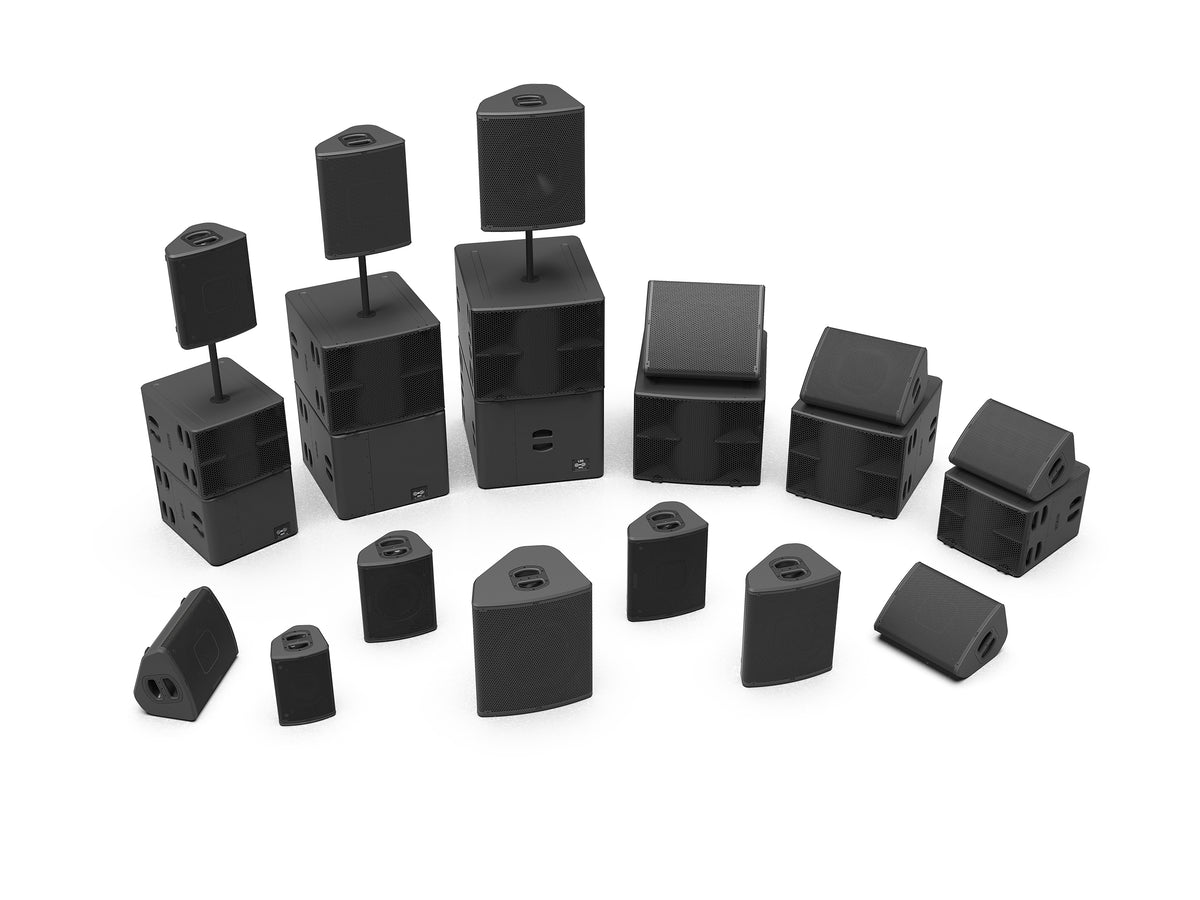

  • NEXO P Series and L Series family: point source speakers and subwoofers in various setups

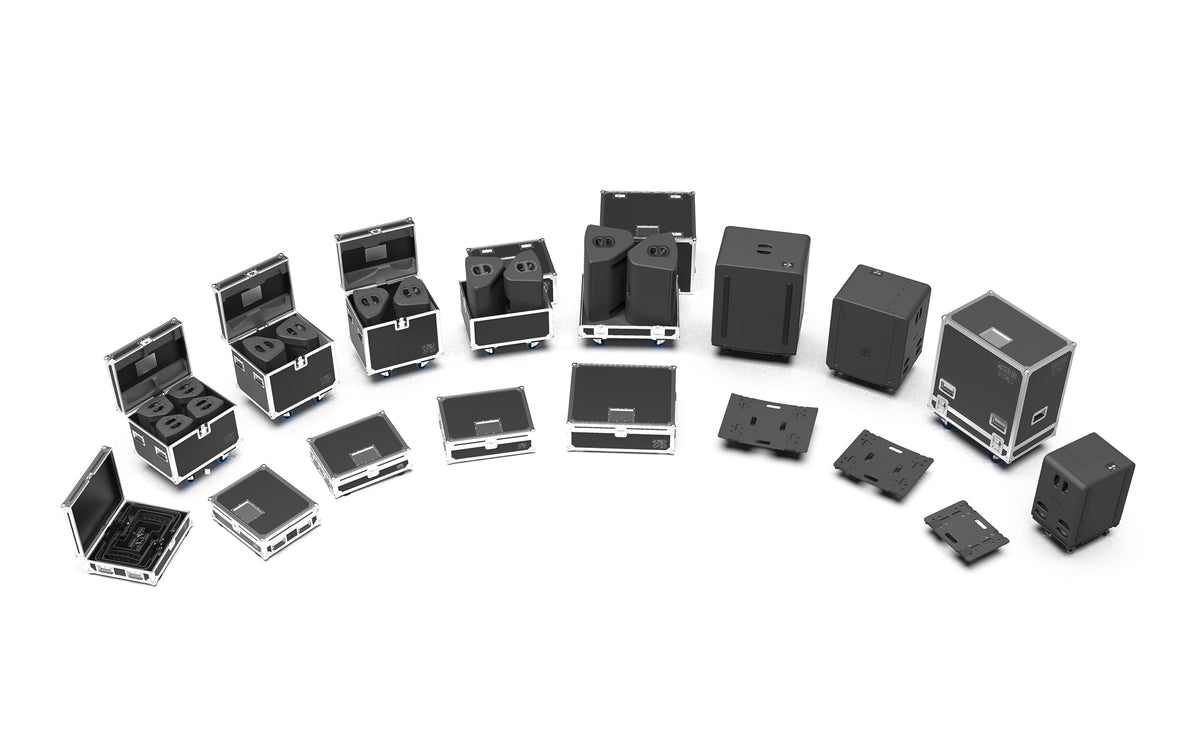

  • NEXO P Series flight cases and covers, range overview
NEXO P18 18-inch Coaxial 2-Way Loudspeaker, Touring Version, Black

NEXO

NEXO P18 18-inch Coaxial 2-Way Loudspeaker, Touring Version, Black

Manufacturer Part No.: 01P..18U-CPSKU: 30223

Contact us about this product

The NEXO P18 is a coaxial point source loudspeaker combining an 18-inch neodymium long-excursion LF driver with a 4-inch HF compression driver in a single enclosure, designed for both touring and fixed installation use as part of the P18 Touring Version Custom configuration.

With a maximum SPL of 142 dB peak and sensitivity of 107 dB, the P18 delivers high-output performance across a 50 Hz to 20 kHz frequency range, suitable for front-of-house or monitor applications, with or without its companion L20 subwoofer.

The cabinet can be switched between 2-way passive and 2-way active operation via a recessed switch, and dispersion can be adjusted from the default 60°x60° pattern to 90°x40° or an asymmetric "PS-like" pattern using optional flanges. Signal connection is made via four NL4 4-pole connectors, one per handle and two at the rear.

Built from custom bent plywood of baltic birch and poplar, the enclosure weighs 33 kg and features a quick-release Magnelis steel grille for access to the horn's magnetic flanges. The P18 is covered by a 5-year warranty and operates across 0°C to 40°C.

  • 18-inch coaxial LF driver with 4-inch HF compression driver
  • 142 dB peak SPL, 107 dB sensitivity
  • Frequency response 50 Hz to 20 kHz
  • Switchable passive/active 2-way operation
  • Dimensions 579 x 680 x 446 mm, weight 33 kg
