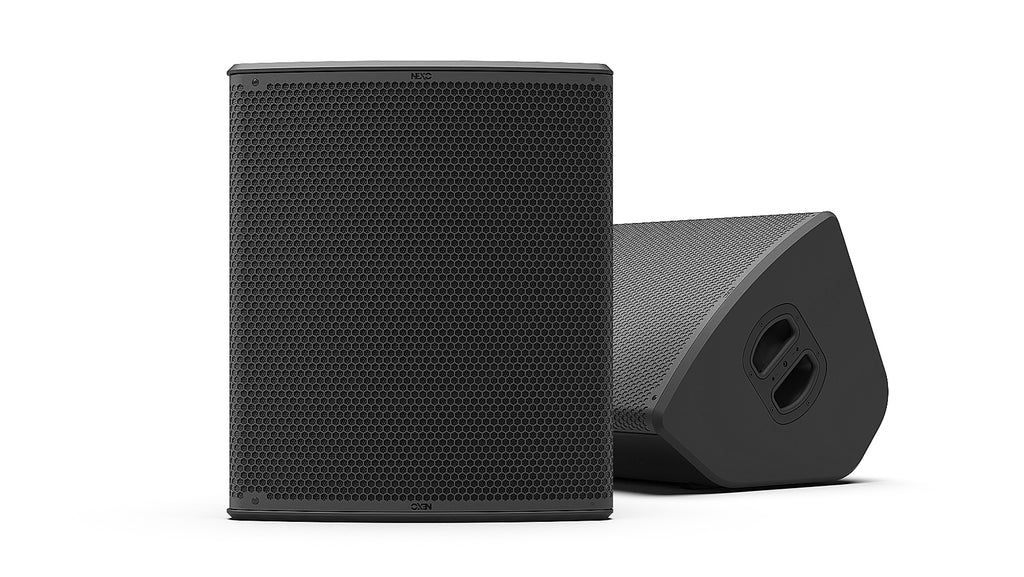

  • NEXO P18 point source speaker in black, upright and as a floor monitor

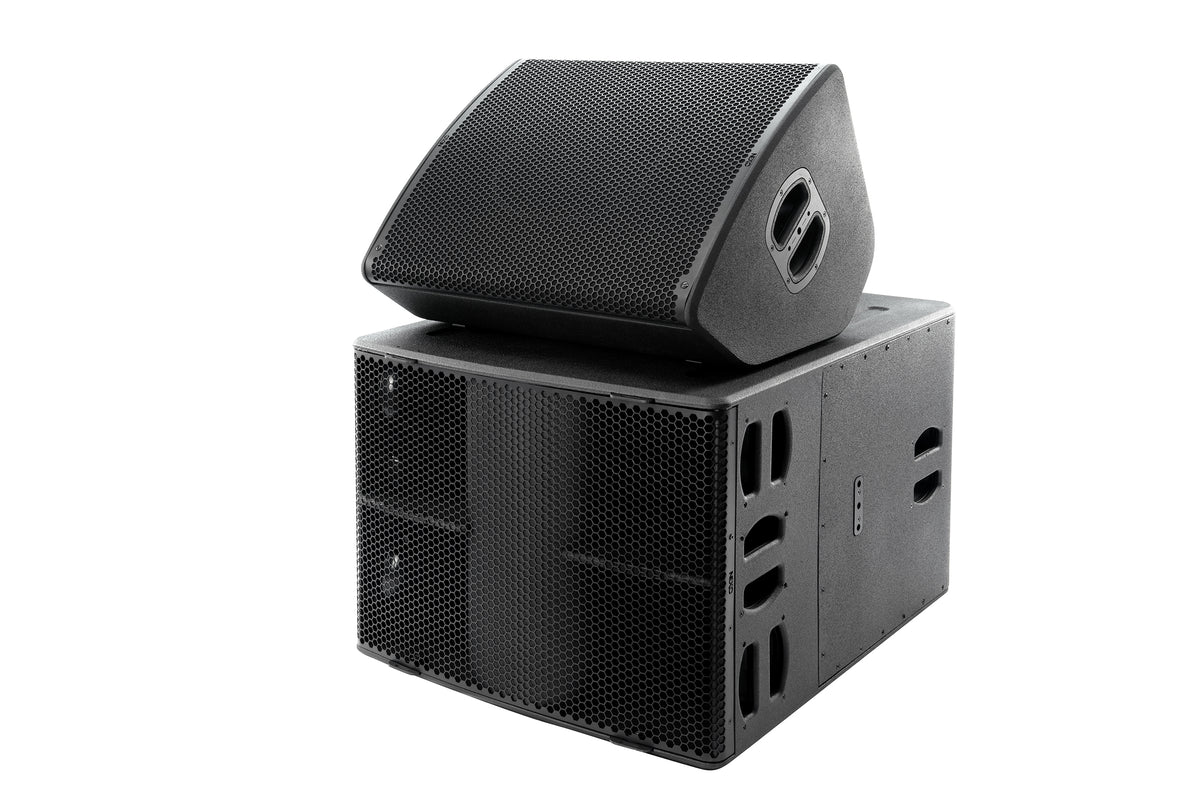

  • NEXO P18 as a floor monitor on top of an L20 subwoofer, angled view

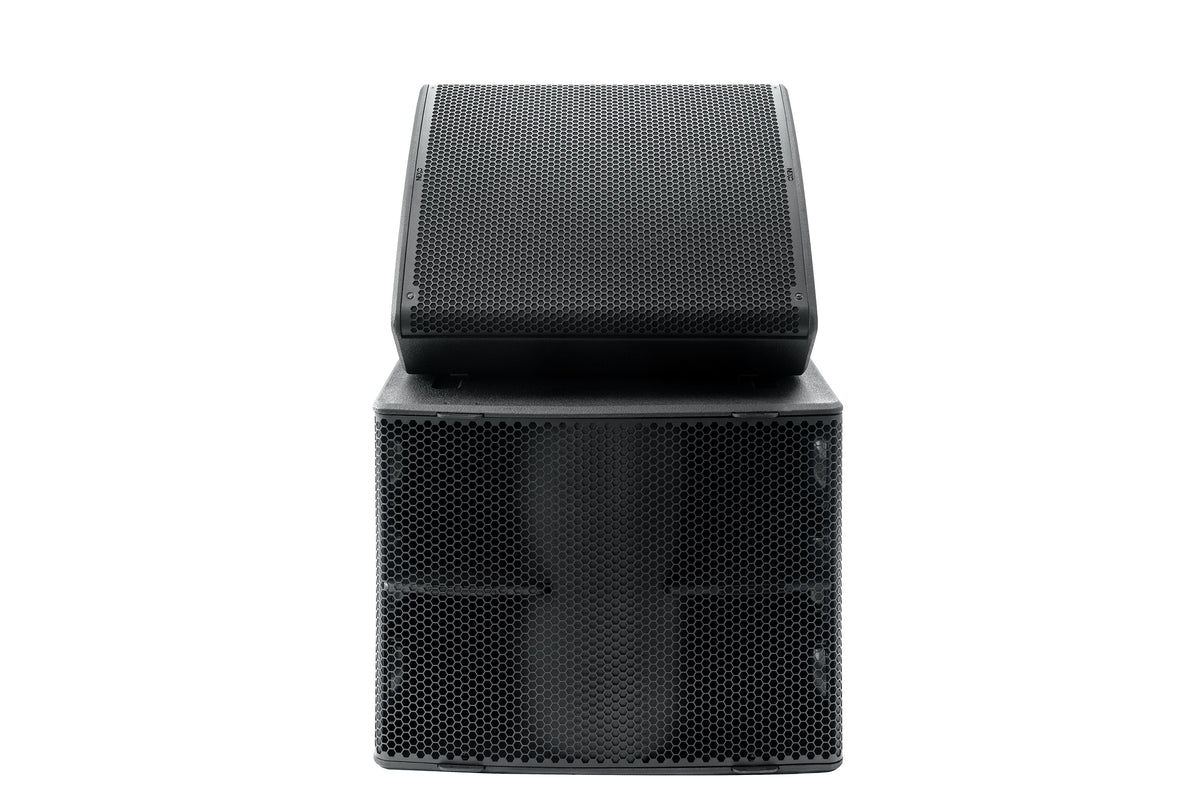

  • NEXO P18 as a floor monitor on top of an L20 subwoofer, front view

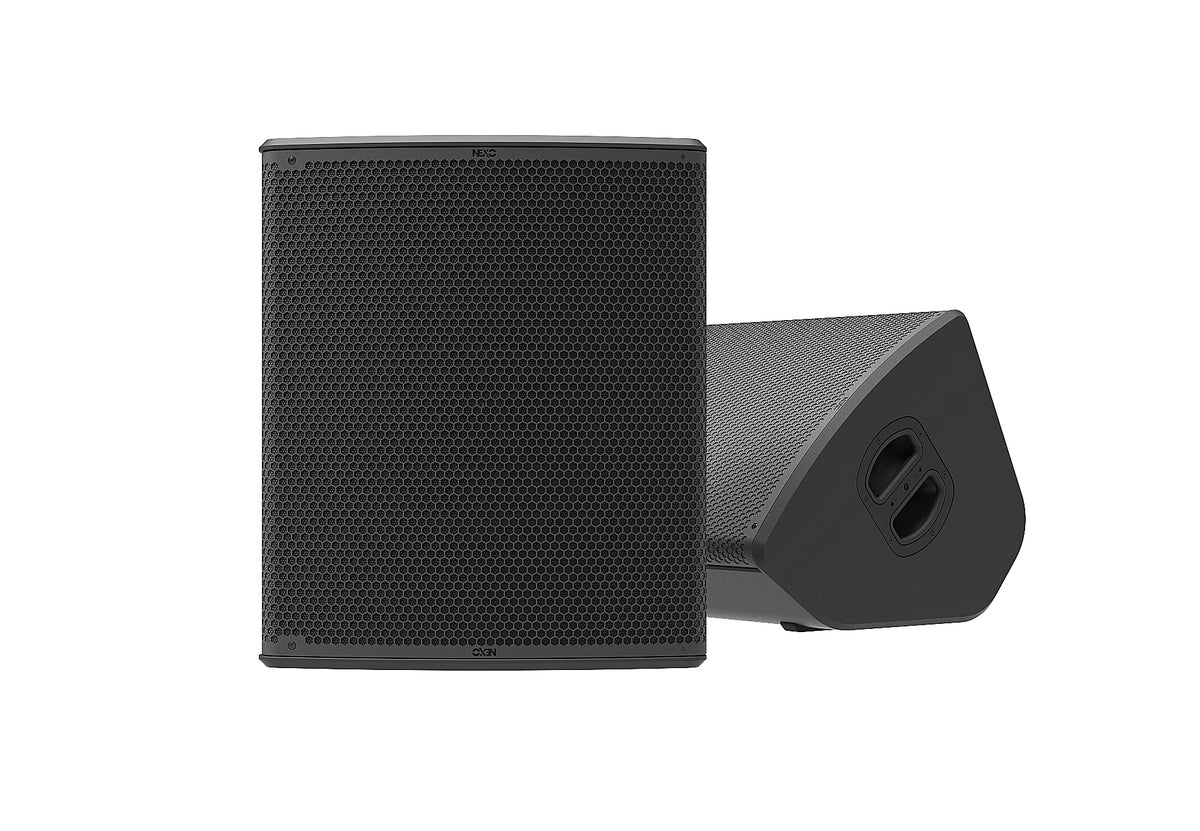

  • NEXO P18 point source speaker, close upright and floor monitor views

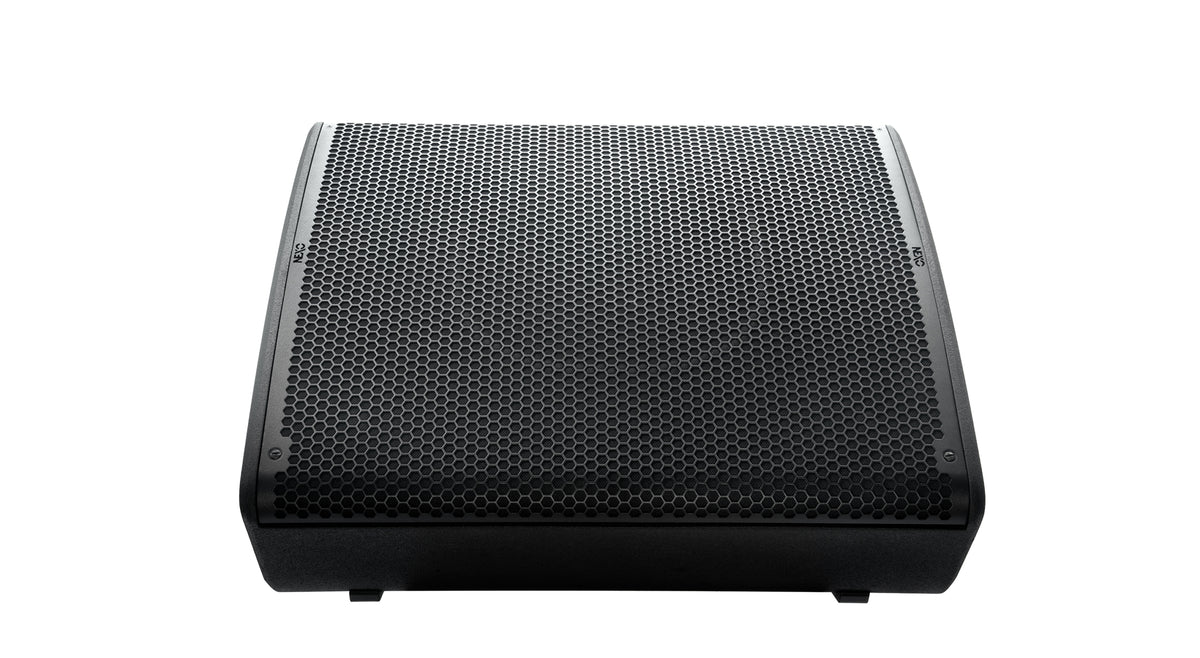

  • NEXO P18 point source speaker lying as a floor monitor, front view

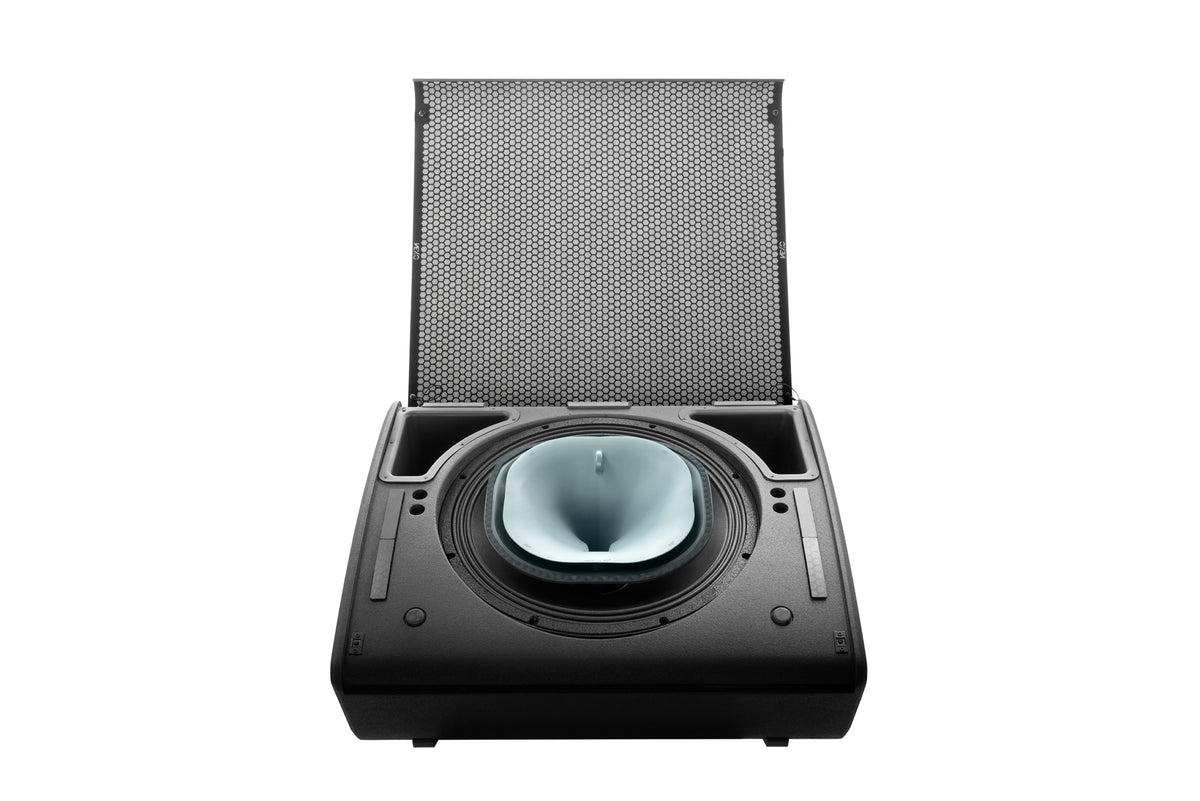

  • NEXO P18 with the front grille opened, showing the coaxial driver and horn

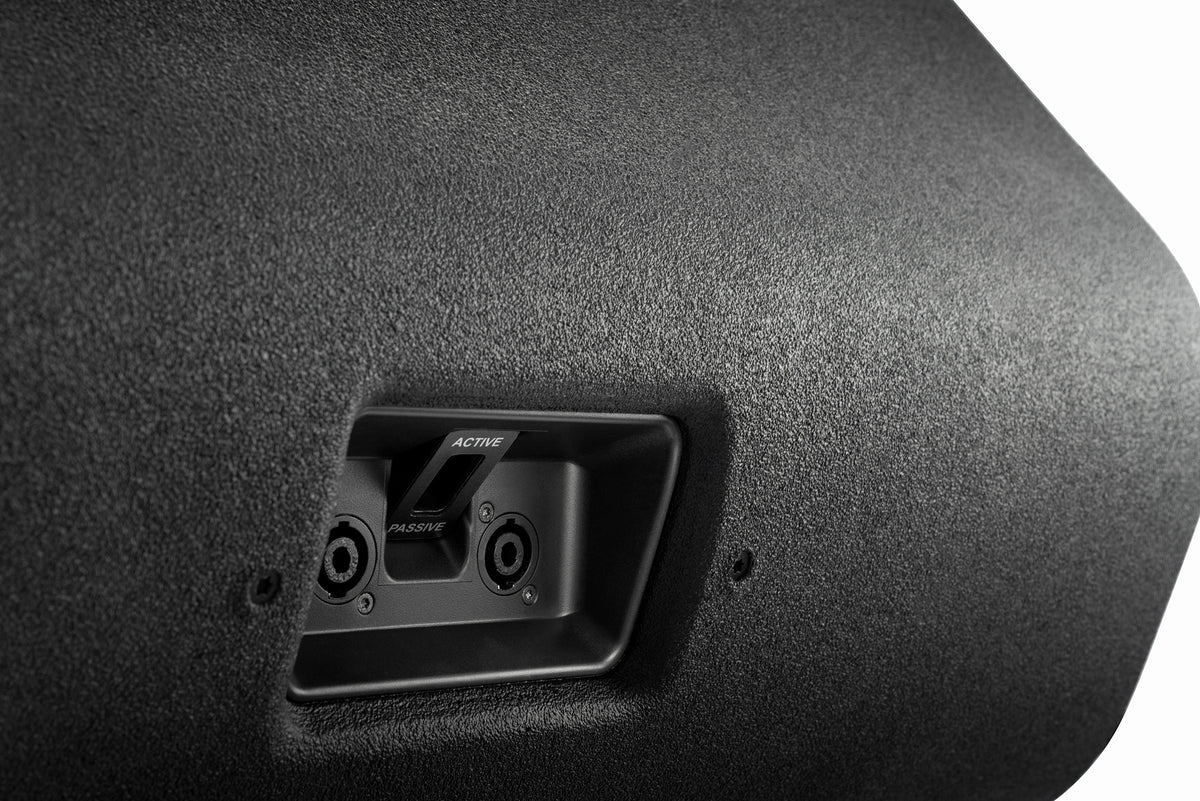

  • Close-up of the recessed connector panel on the NEXO P18

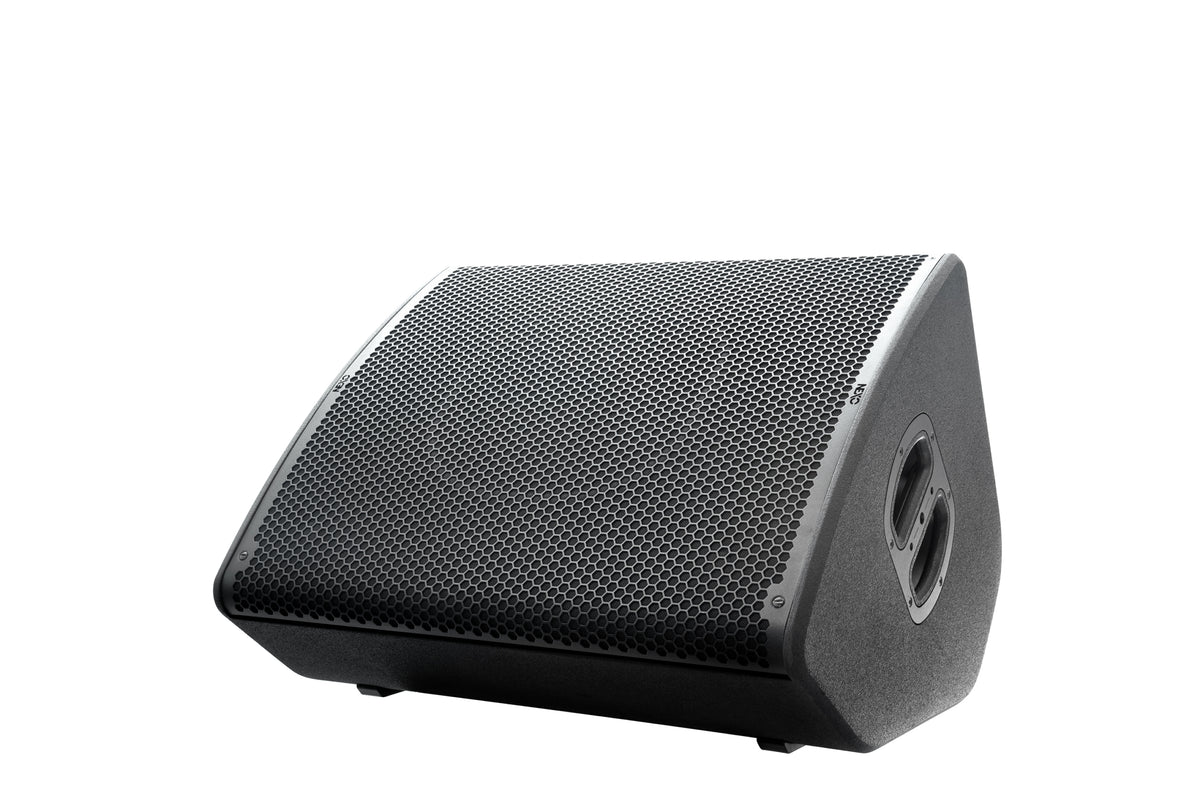

  • NEXO P18 point source speaker as a floor monitor, angled view

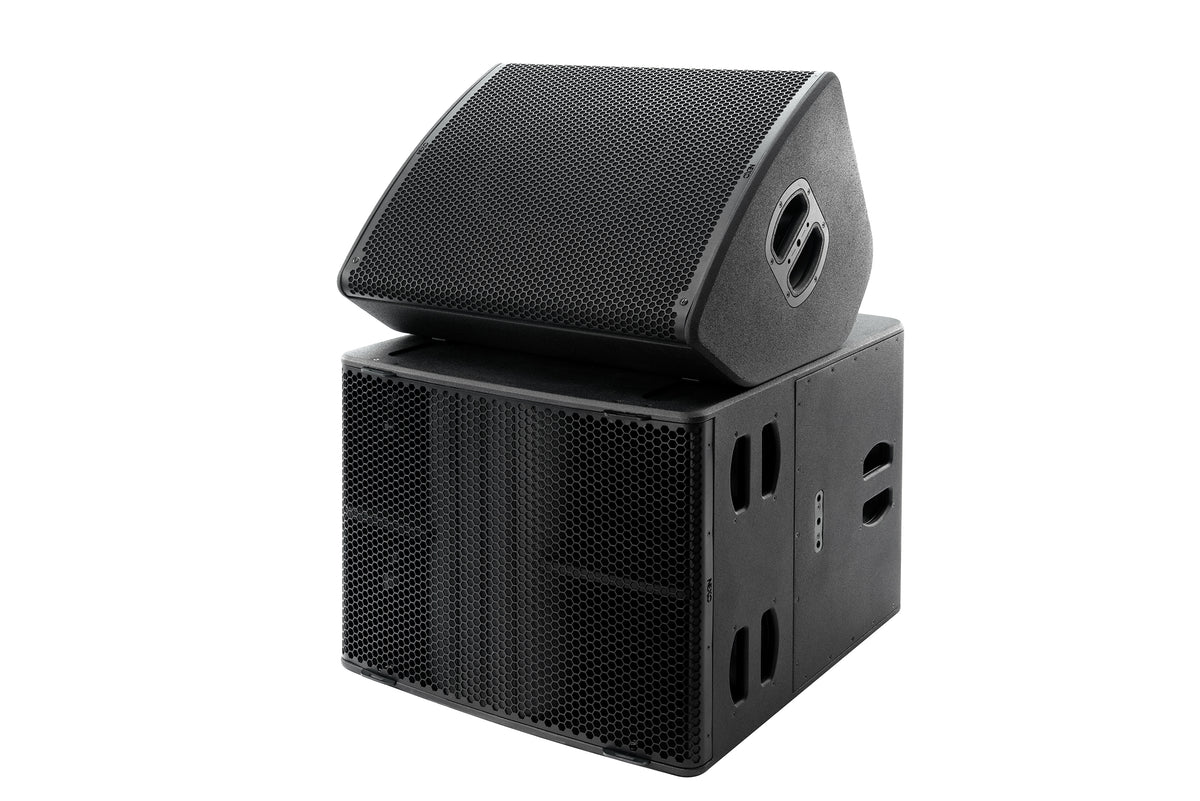

  • NEXO P18 as a floor monitor on top of an L18 subwoofer, angled view

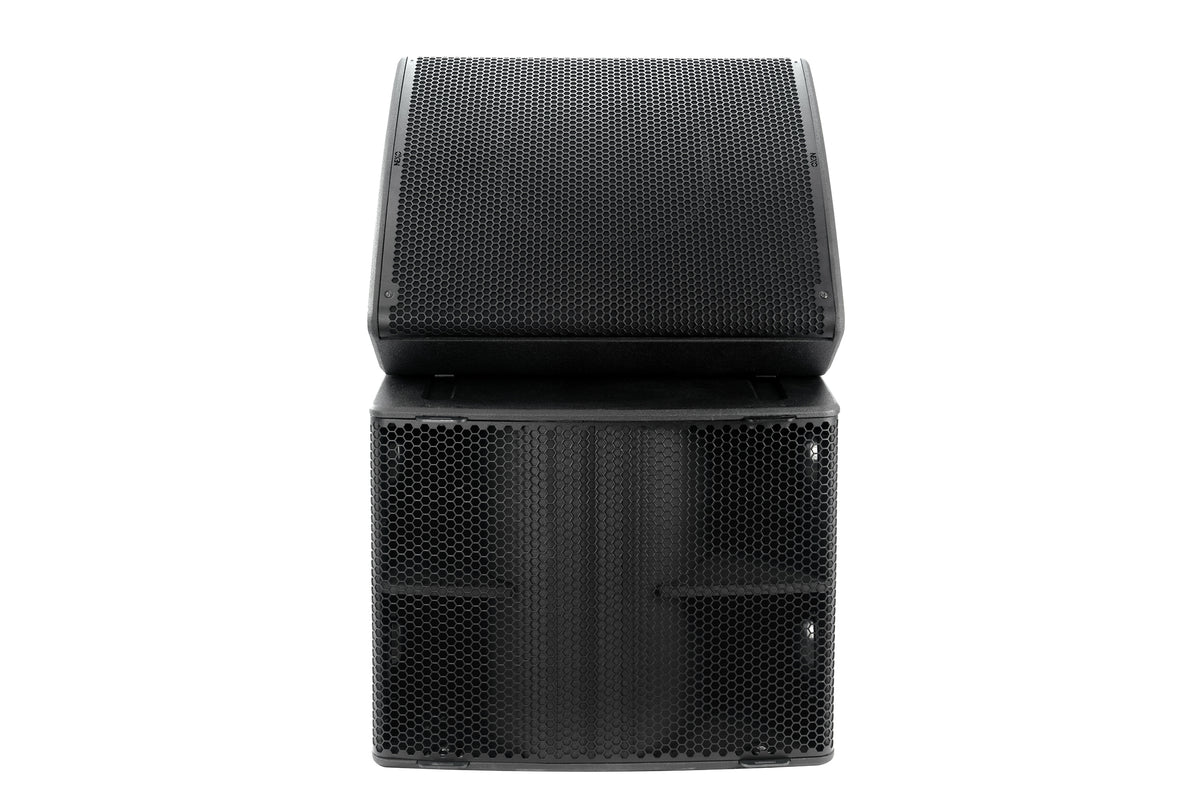

  • NEXO P18 as a floor monitor on top of an L18 subwoofer, front view

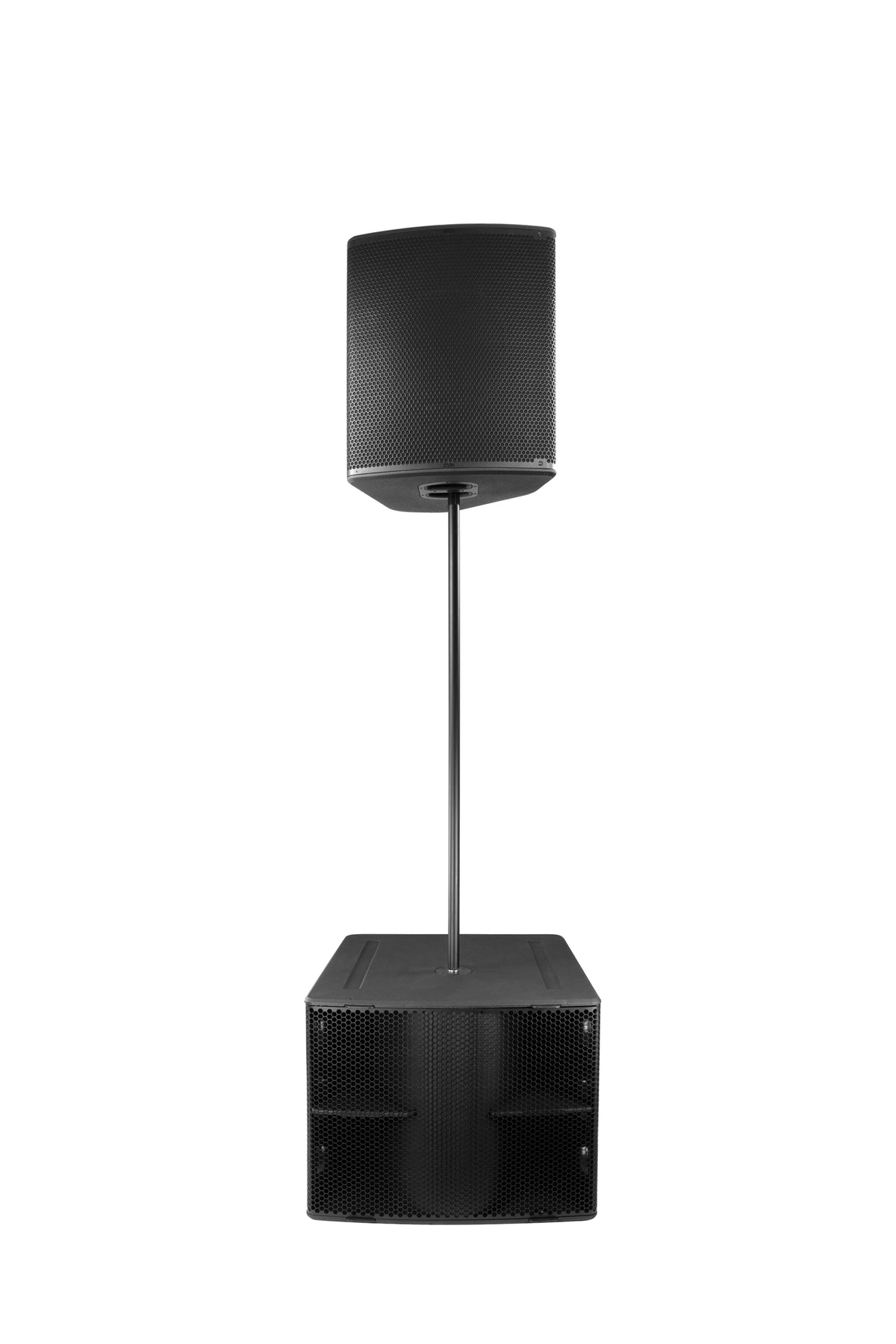

  • NEXO P18 on a pole above an L20 subwoofer, front view

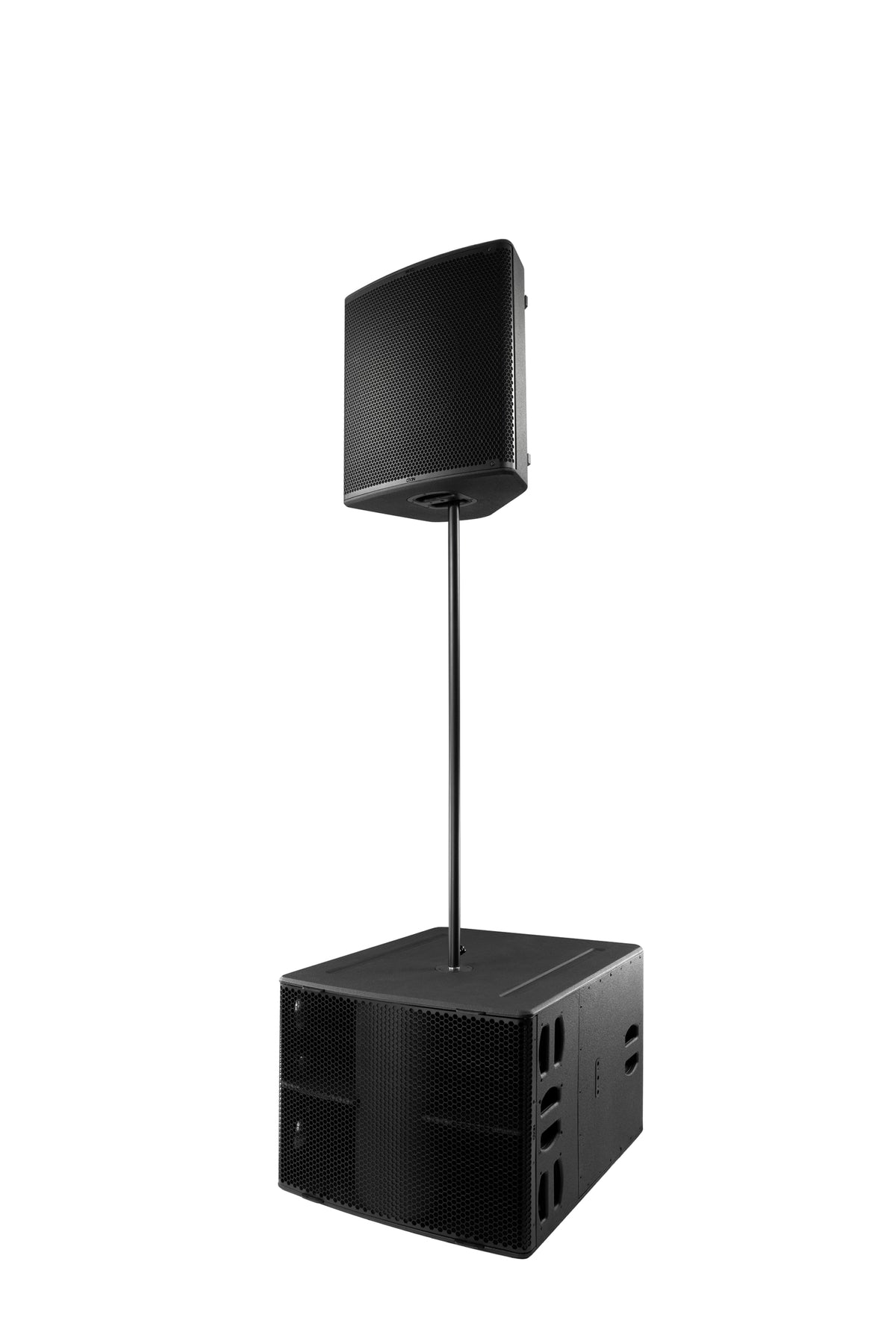

  • NEXO P18 on a pole above an L20 subwoofer, angled view

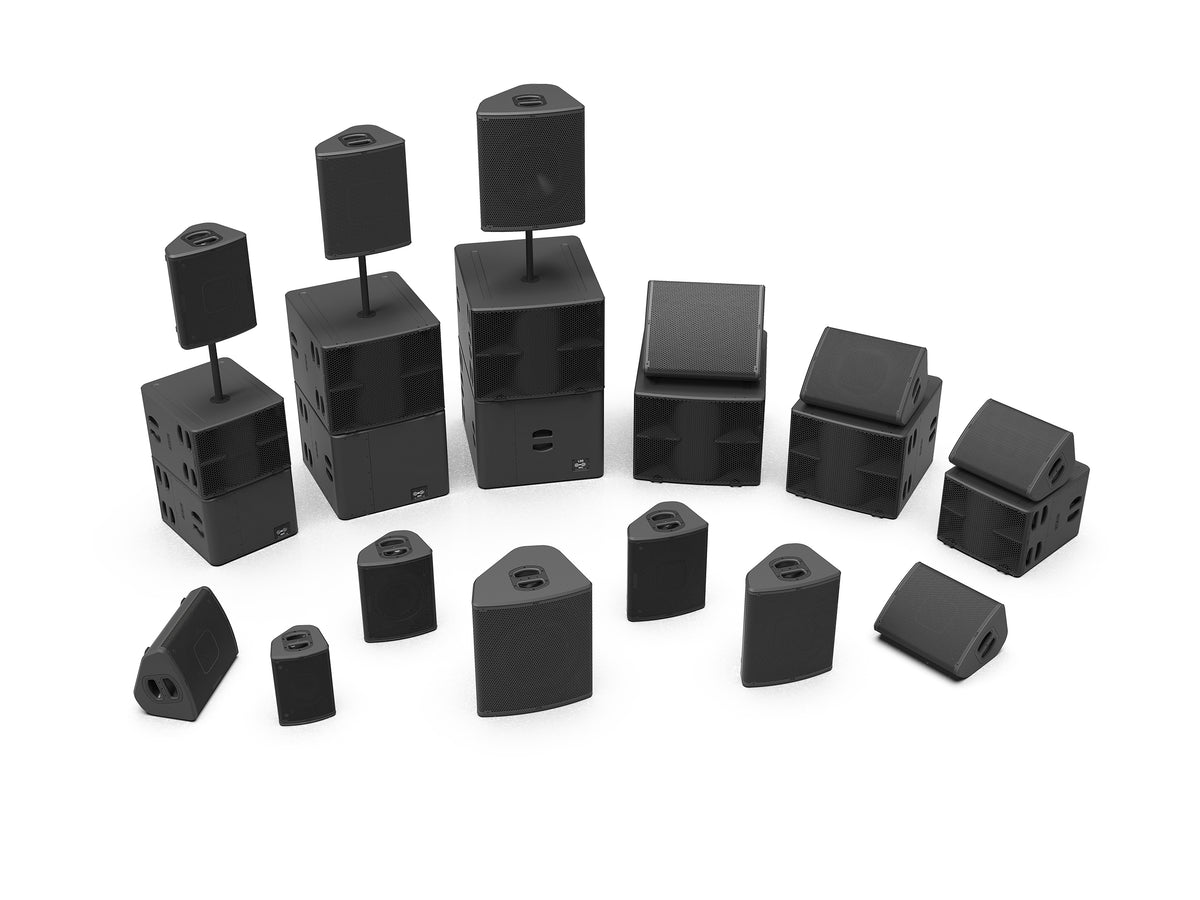

  • NEXO P Series and L Series family: point source speakers and subwoofers in various setups

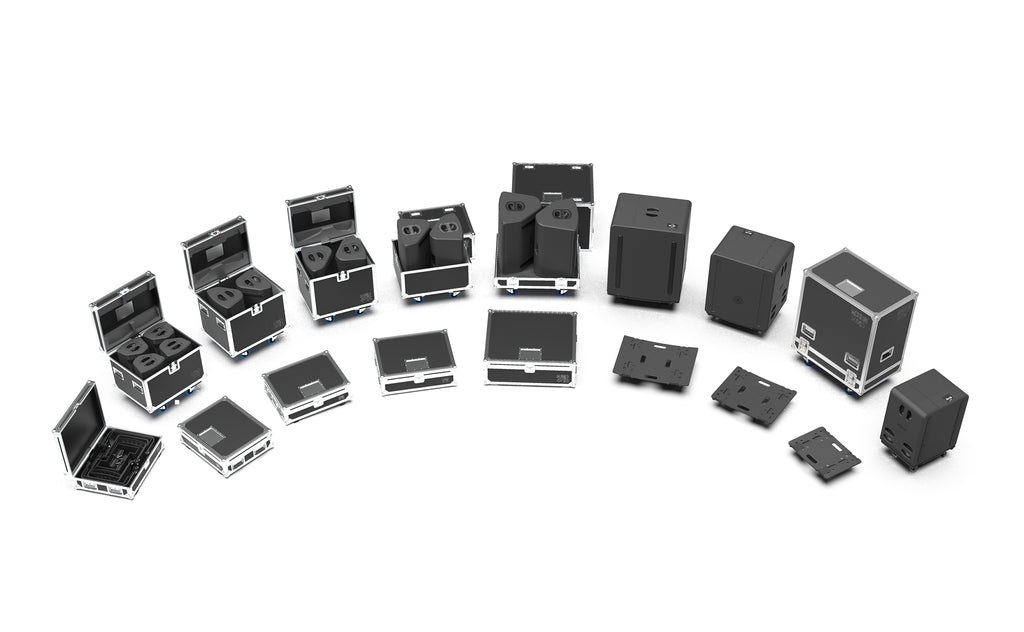

  • NEXO P Series flight cases and covers, range overview
NEXO P18 18-inch Coaxial 2-Way Loudspeaker, Touring Version

NEXO

NEXO P18 18-inch Coaxial 2-Way Loudspeaker, Touring Version

Manufacturer Part No.: 01P..18UTIS-CPSKU: 30229

Contact us about this product

The NEXO P18 is a point source loudspeaker built around a single 18-inch coaxial neodymium long-excursion LF driver paired with a 4-inch HF compression driver, offering a compact two-way solution for touring sound reinforcement. This Touring version can be switched between passive and active operation via a recessed control switch, giving engineers flexibility for FOH or monitor applications.

With a sensitivity of 107 dB and a maximum peak output of 142 dB, the P18 delivers high output from a portable 33 kg enclosure made from custom bent Baltic birch and poplar plywood. Modular horn flanges allow the dispersion pattern to be changed in seconds, from the standard 60°x60° coverage to a rotatable 90°x40° or asymmetric PS-like pattern.

Connectivity is handled via 4x NL4 four-pole connectors for touring and TIS deployments. The cabinet is rated for a recommended power of 1,900 W and operates across 0°C to 40°C, backed by a 5-year manufacturer warranty.

  • 1x coaxial 18-inch LF driver with 4-inch HF compression driver, 8 Ohms
  • Frequency response 50 Hz to 20 kHz (±6 dB)
  • Sensitivity 107 dB, max SPL 142 dB peak
  • Switchable passive/active operation, 4x NL4 connectors
  • Dimensions 579 x 680 x 446 mm, weight 33 kg
