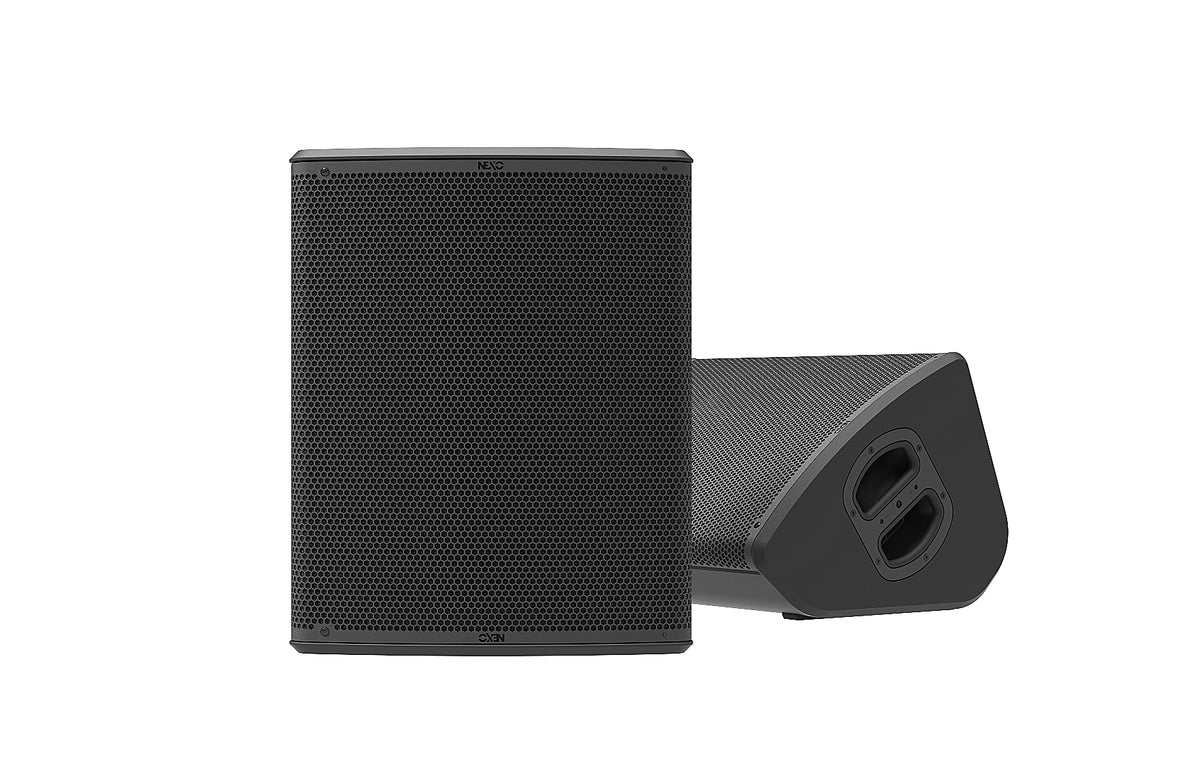

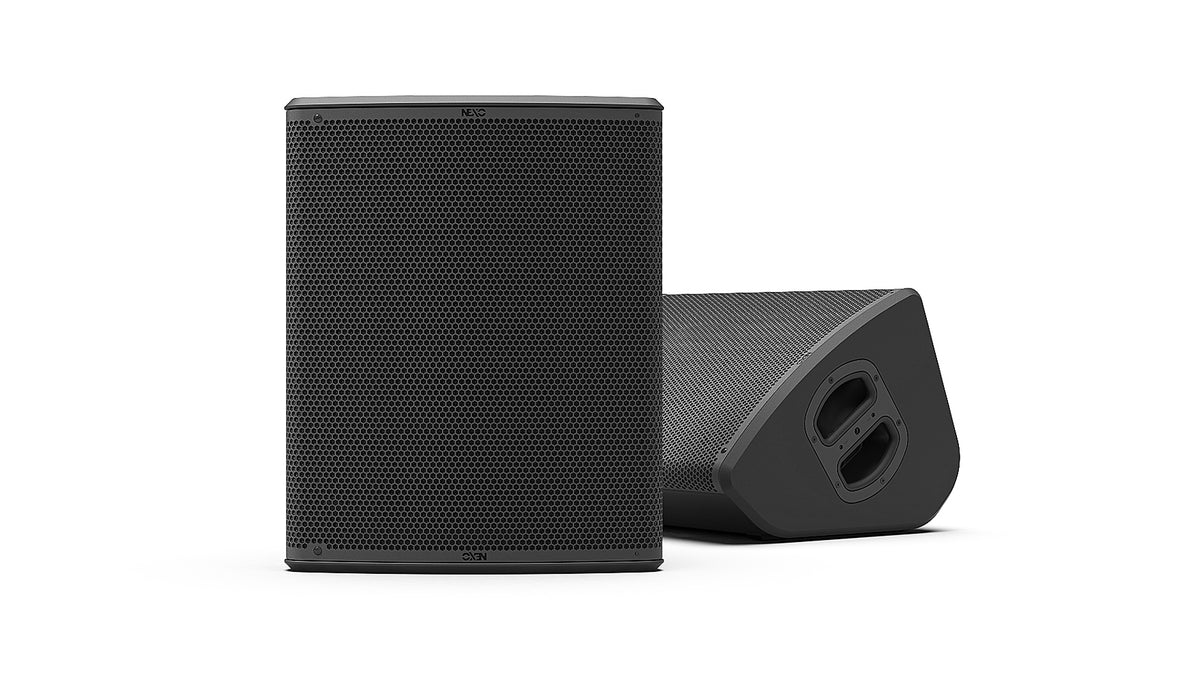

NEXO P15 15-inch Coaxial 2-Way Loudspeaker, Installation Version, Black

The NEXO P15 Installation Version is a coaxial point-source loudspeaker combining a 15-inch low-frequency driver with a 3-inch high-frequency diaphragm in a single 2-way passive cabinet. Finished in black, it is designed for fixed installation applications that call for a compact, high-output enclosure with flexible coverage options.

The coaxial driver arrangement delivers consistent dispersion across the frequency range, with a response of 57 Hz to 20 kHz (+6 dB) and a sensitivity of 108 dB. The cabinet can reach up to 139 dB peak SPL, making it suitable for demanding speech and music reinforcement tasks. Dispersion can be adapted on site, switching between a standard 60°x60° pattern and 90°x40° or asymmetric configurations using optional flanges.

Signal is carried via a single cable gland input accepting a 2-core cable at 55 Vrms (180 Vpeak), simplifying wiring for permanent installations. The enclosure is built from custom bent plywood using baltic birch and poplar, fitted with a quick-release Magnelis steel grille for easy access to the horn's magnetic flanges, and weighs 23 kg.

• 15-inch coaxial LF driver with 3-inch HF diaphragm, 8 Ohms
• Frequency response 57 Hz – 20 kHz (+6 dB)
• Maximum SPL 139 dB peak
• Recommended power 1,350 W
• Dimensions 483 x 600 x 352 mm, 23 kg

The P15 Installation Version is covered by a 5-year manufacturer warranty.
