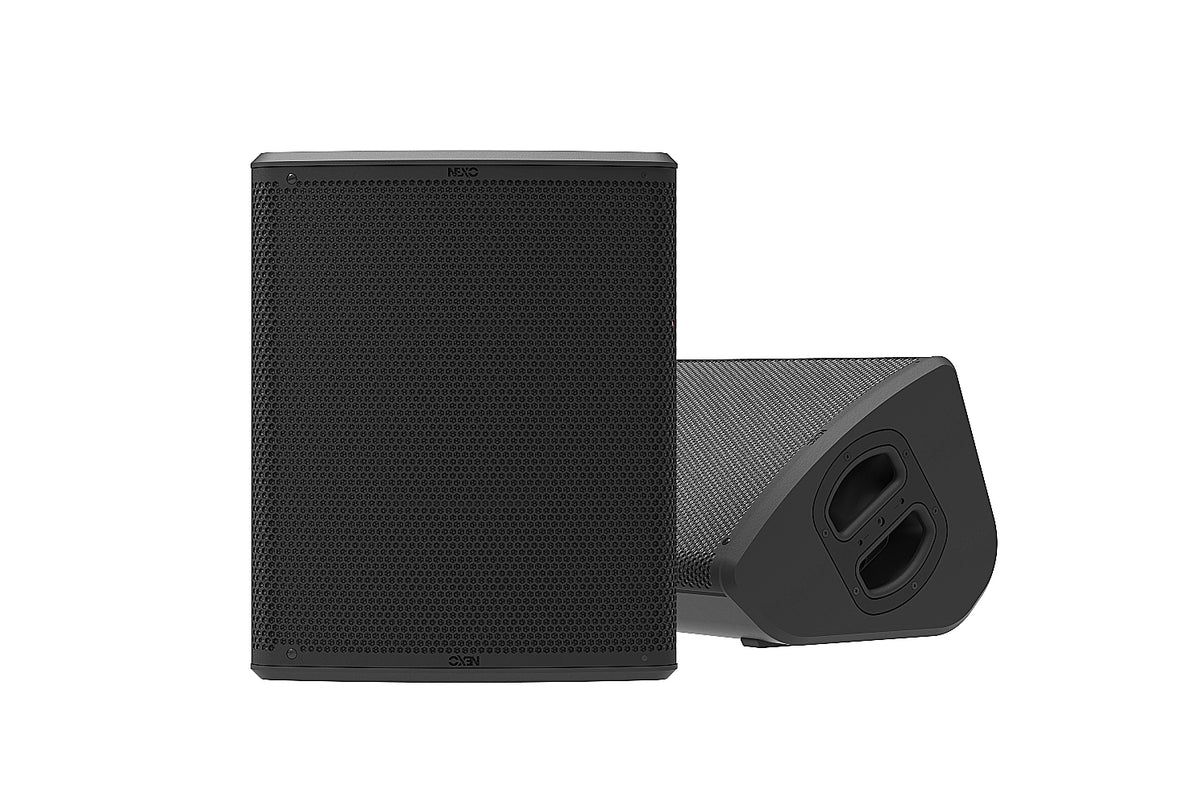

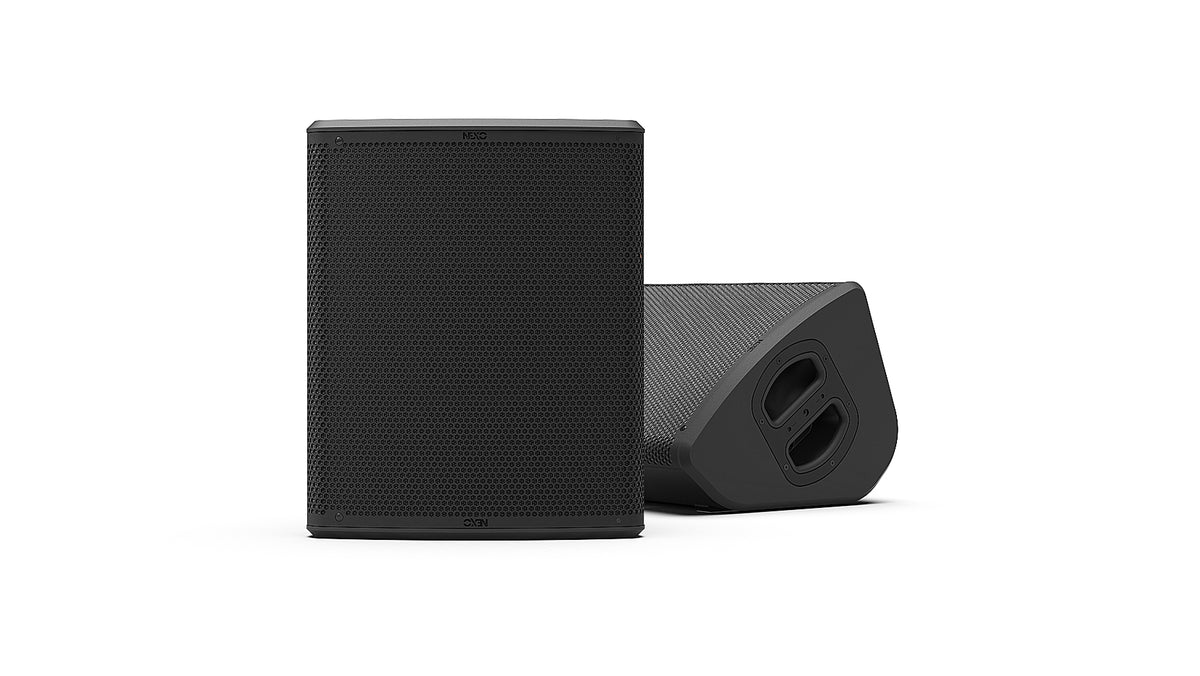

NEXO P12 140 dB Coaxial Point Source Loudspeaker, Touring Version, Black

Highlights

• 140 dB peak SPL coaxial point source loudspeaker
• 12-inch coaxial LF driver with 3-inch HF diaphragm for tight pattern control
• Modular dispersion: 60°x60°, 90°x40° or asymmetric 60°–100°x40°
• Lightweight 20 kg Baltic birch and poplar plywood enclosure
• 4x NL4 touring connectors for fast rigging
• 5-year manufacturer warranty

Key specifications

Nexo P12. Two-way passive or active coaxial point source loudspeaker. Driver configuration: 1 x coaxial neodymium 12" long-excursion LF driver with 3" HF diaphragm, both 8 Ω. Frequency response: 60 Hz to 20 kHz. Sensitivity: 107 dB. Maximum SPL: 140 dB peak (active mode), 138 dB peak (passive mode). Nominal impedance: 8 Ω + 8 Ω (active) or 8 Ω (passive). Recommended amplifier power: 800 to 1,270 W (LF), 400 to 630 W (HF). Dispersion: 60°x60° as standard, switchable to 90°x40° or asymmetric 60°–100°x40° with optional flanges. Inputs: 4x NL4 4-pole connectors (Touring version). Input voltage: 55 Vrms (150 Vpeak). Operating temperature: 0°C - 40°C. Dimensions: 432 x 534 x 314 mm; weight: 20 kg. Enclosure: custom bent Baltic birch and poplar plywood. Warranty: 5 years.
