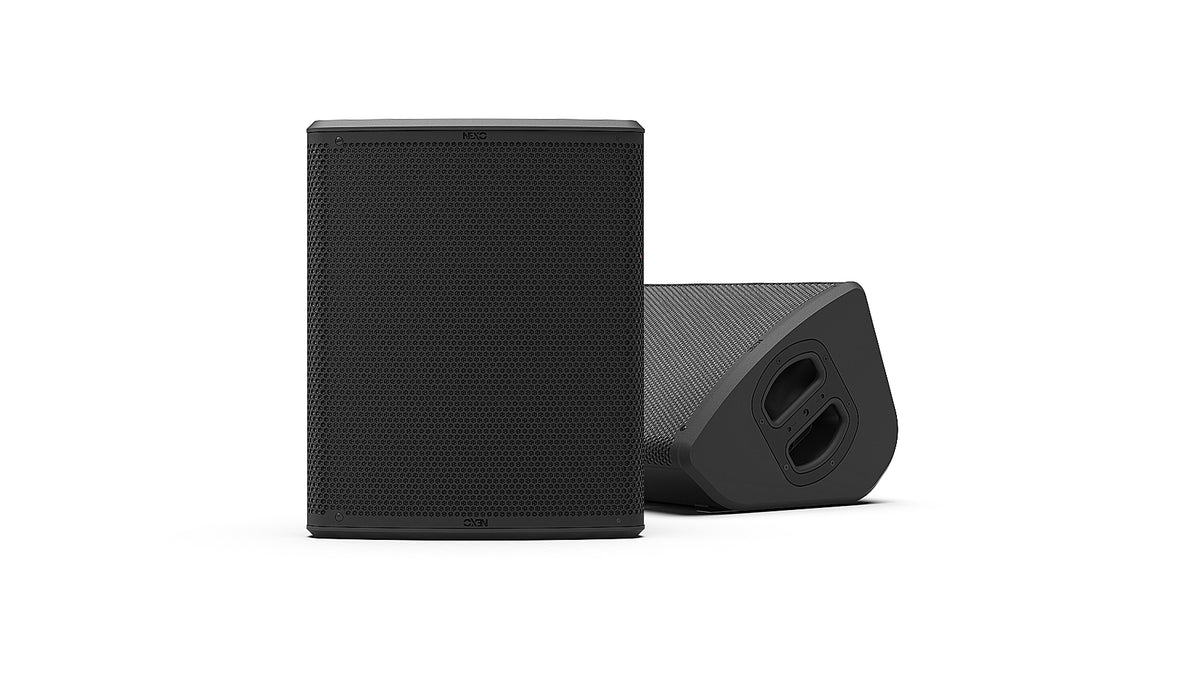

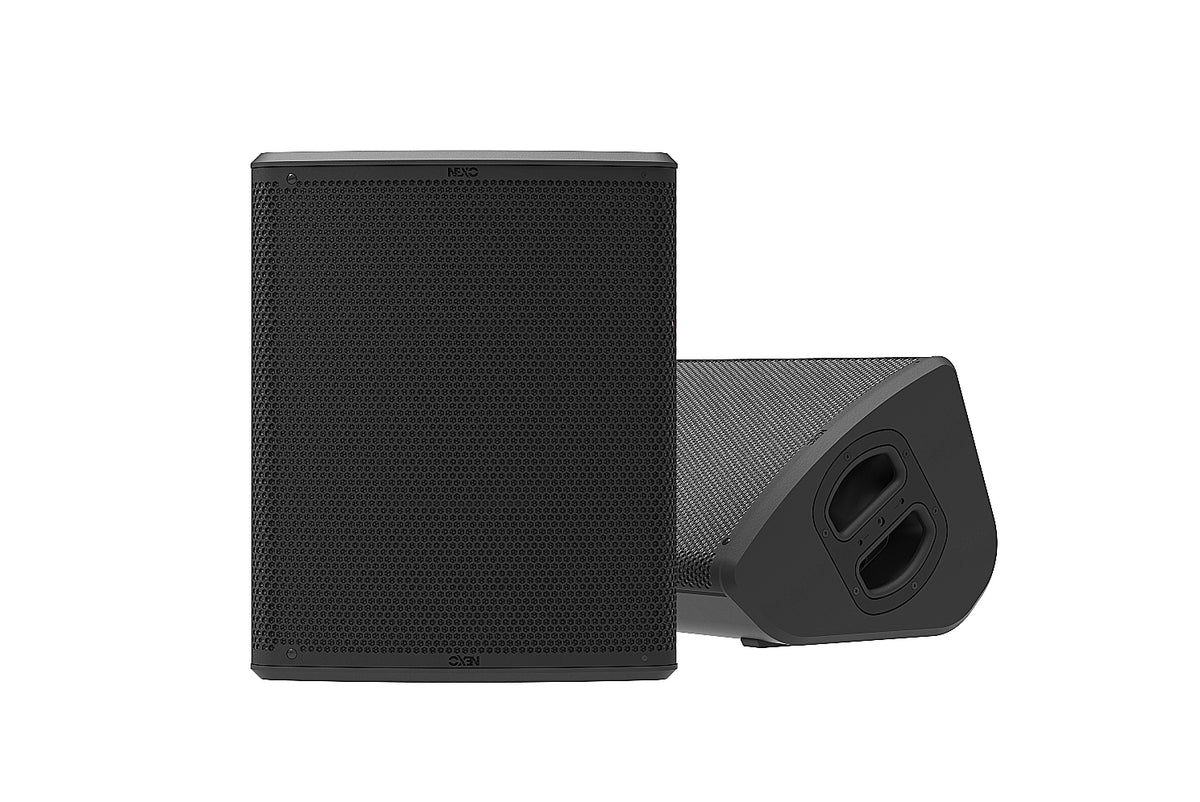

NEXO P12 12-inch Coaxial Point Source Loudspeaker, Installation, Black

Highlights

• Coaxial 12-inch neodymium LF driver with 3-inch HF diaphragm
• 138 dB peak SPL point source loudspeaker
• Modular dispersion from 60°x60° to 90°x40° or asymmetric PS pattern
• Lightweight 20 kg bent birch and poplar plywood enclosure
• Passive Installation version with cable gland input
• 5-year warranty

Key specifications

Nexo P12. Point source loudspeaker, 2-way, passive (Installation version). Driver configuration: 1x coaxial neodymium 12" LF + 1x 3" diaphragm HF. Frequency response: 60 Hz to 20 kHz (+6 dB). Sensitivity: 107 dB. Maximum SPL: 138 dB peak (passive mode). Nominal impedance: 8 Ω. Recommended amplifier power: 1,270 W. Dispersion: 60°x60° default, 90°x40° with flange, 60°–100°x40° with PS flange. Input: 1x cable gland with 2-core cable. Operating temperature: 0°C – 40°C. Dimensions: 432 x 534 x 314 mm; weight 20 kg.
