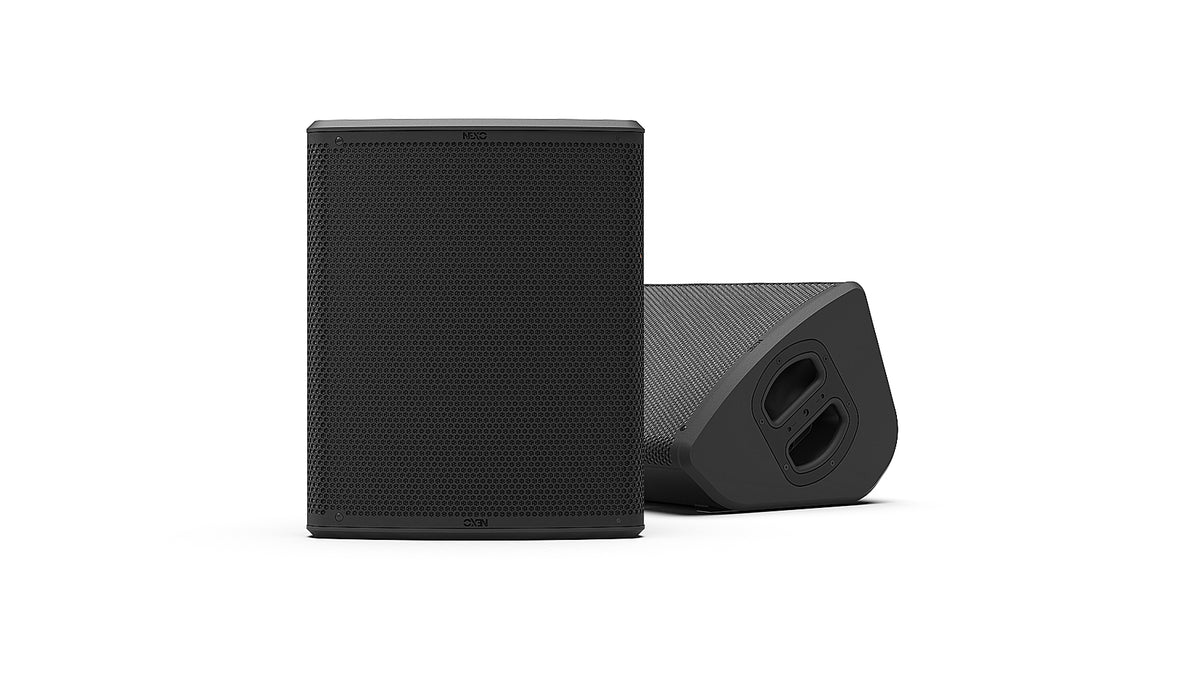

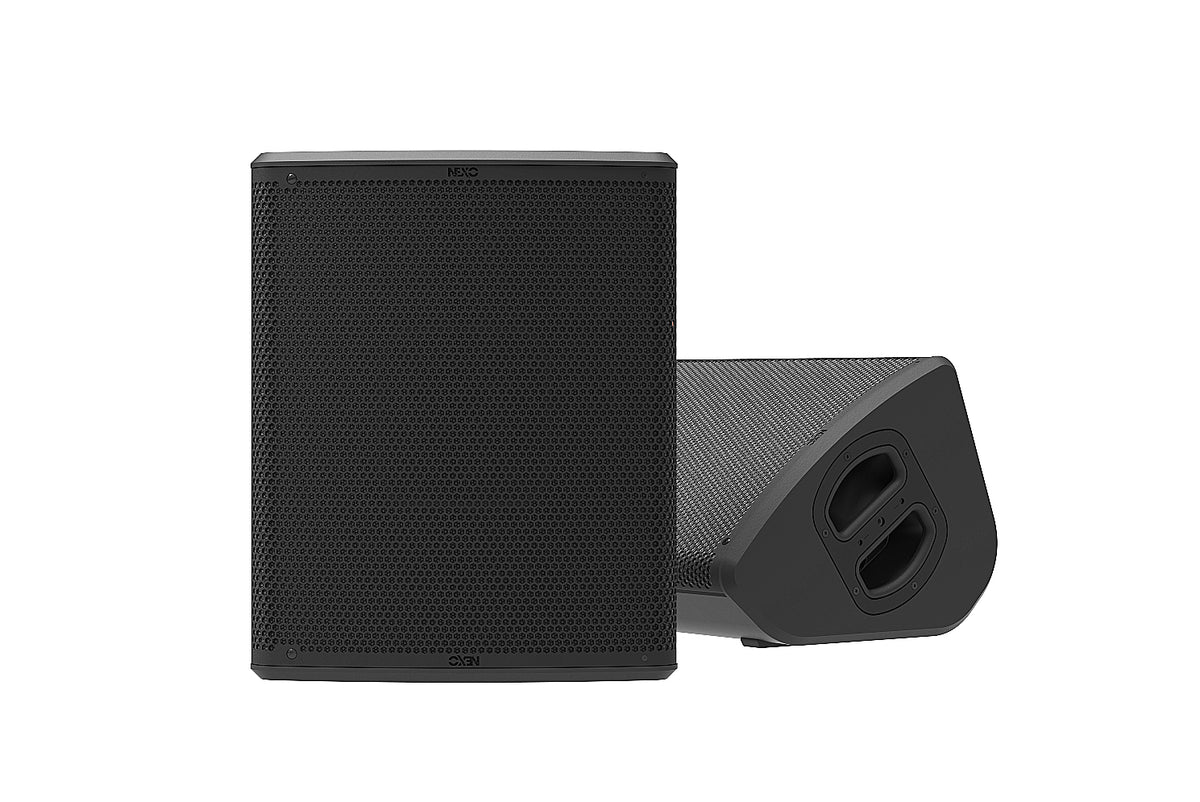

NEXO P12 12-inch Coaxial 2-Way Point Source Loudspeaker, Installation Version

The NEXO P12 is a two-way passive point source loudspeaker built around a coaxial 12-inch neodymium low-frequency driver and a 3-inch high-frequency compression driver, housed in a lightweight cabinet of custom bent Baltic birch and poplar plywood. This Installation Version is wired via a cable gland with two-core cable, making it suited to fixed audio deployments in venues that require discreet, permanent speaker runs.

With a sensitivity of 107 dB and a maximum SPL of 140 dB peak, the P12 delivers high-output performance across a frequency response of 60 Hz to 20 kHz (+6 dB). Its modular dispersion system allows coverage to be changed from the standard 60°x60° pattern to a 90°x40° or asymmetric "PS-like" pattern in seconds, giving installers flexibility to match coverage to room geometry.

The cabinet features a quick-release Magnelis steel grille for easy access to the horn's magnetic flanges and dual ultra-low distortion bass ports for extended low-frequency output. Recommended amplifier power is 1,270 W, with a nominal impedance of 8 Ω. The P12 operates across 0°C to 40°C and is backed by a 5-year manufacturer warranty.

• 12-inch coaxial neodymium LF driver with 3-inch HF compression driver
• 107 dB sensitivity, 140 dB peak SPL
• Frequency response 60 Hz–20 kHz (+6 dB)
• Recommended power 1,270 W, 8 Ω nominal impedance
• Dimensions 432 x 534 x 314 mm, weight 20 kg
