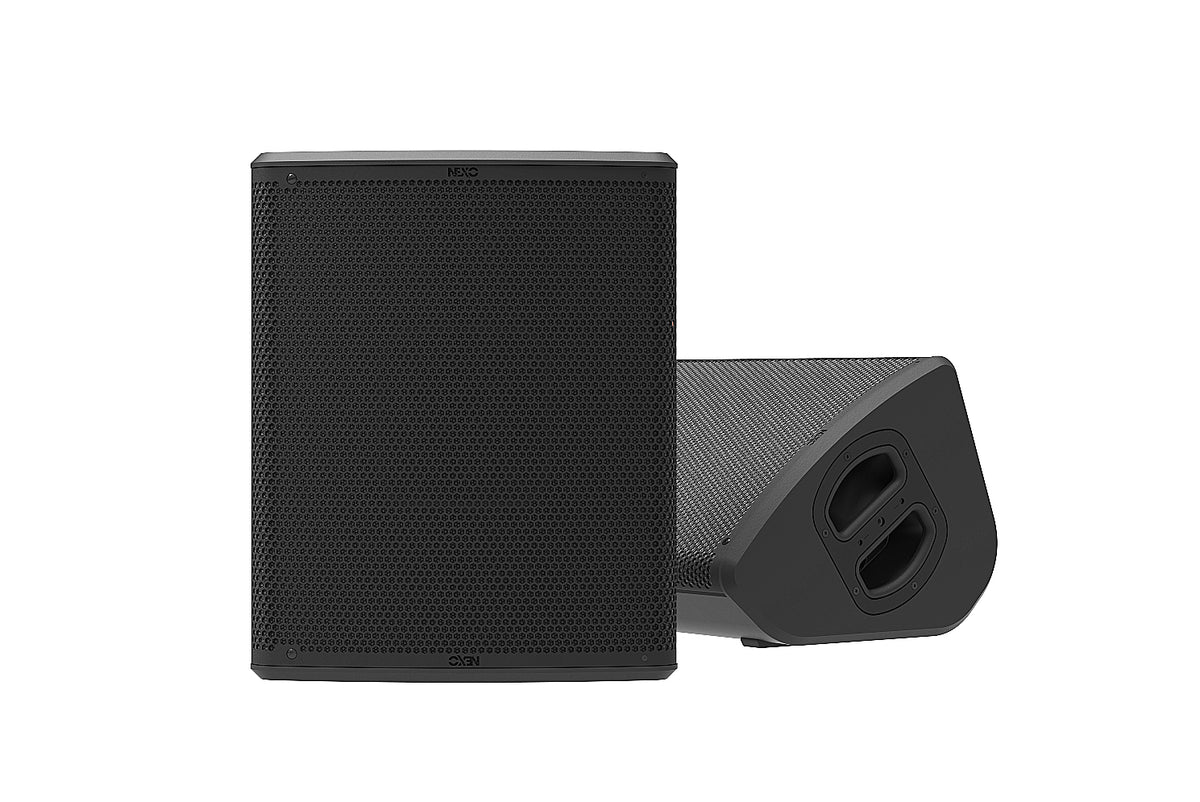

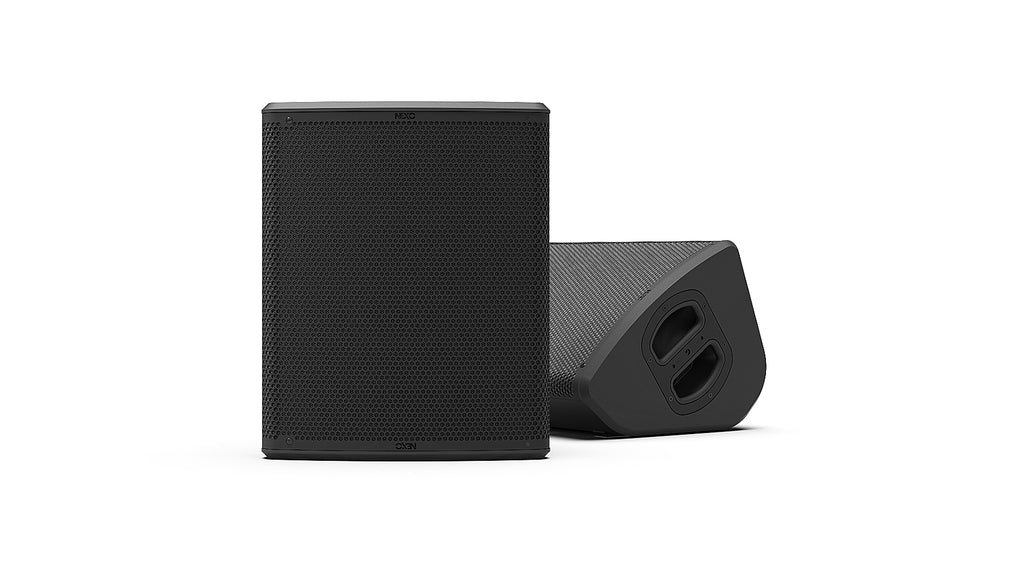

NEXO P12 12-inch Coaxial 2-Way Loudspeaker, Touring Version

The NEXO P12 is a 12-inch coaxial 2-way point source loudspeaker designed for touring and live sound applications, operating in either passive or active mode. Its coaxial driver arrangement combines a 12-inch long-excursion LF transducer with a 3-inch HF diaphragm for coherent, full-range coverage from a single enclosure.

The P12 delivers up to 140 dB peak SPL with a sensitivity of 107 dB and a frequency response of 60 Hz to 20 kHz. Modular directivity allows the horn pattern to be switched in seconds between a standard 60°x60° configuration, a rotatable 90°x40° flange, or an asymmetric 60°-100°x40° pattern for varied venue shapes.

Connections are made via four NL4 4-pole connectors, with one positioned on each handle and two at the rear for flexible cabling in rigging or ground-stack use. The cabinet is built from custom-bent Baltic birch and poplar plywood, keeping weight to 20 kg, and features a quick-release Magnelis steel grille for fast access to the horn's magnetic flanges.

• Coaxial 12-inch LF / 3-inch HF driver configuration
• Up to 140 dB peak SPL, 107 dB sensitivity
• Switchable 60°x60°, 90°x40° or asymmetric dispersion patterns
• 4x NL4 4-pole connectors, 55 Vrms (150 Vpeak) input
• Operating range 0°C to 40°C, 20 kg custom plywood cabinet
