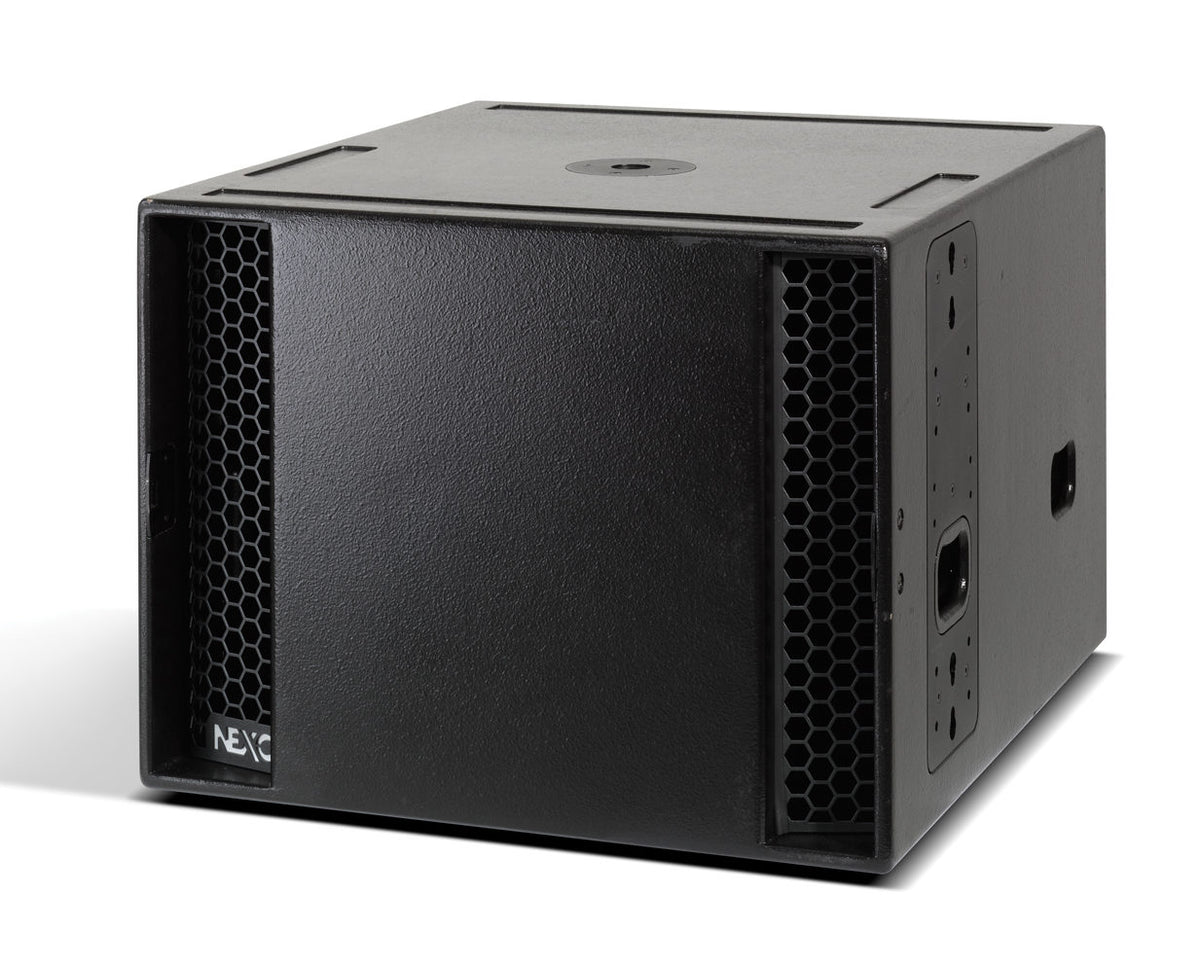

NEXO LS18 18-inch 140 dB SPL Passive Subwoofer, Black

Highlights

• 140 dB maximum SPL from a single 18-inch driver
• 35 Hz–120 Hz frequency response for extended low end
• 2x NL4MP Speakon inputs for flexible cabling
• Works with NXAMP4x1 and NXAMP4x4 controllers with protection algorithms
• Baltic Birch Ply cabinet with structured black coating

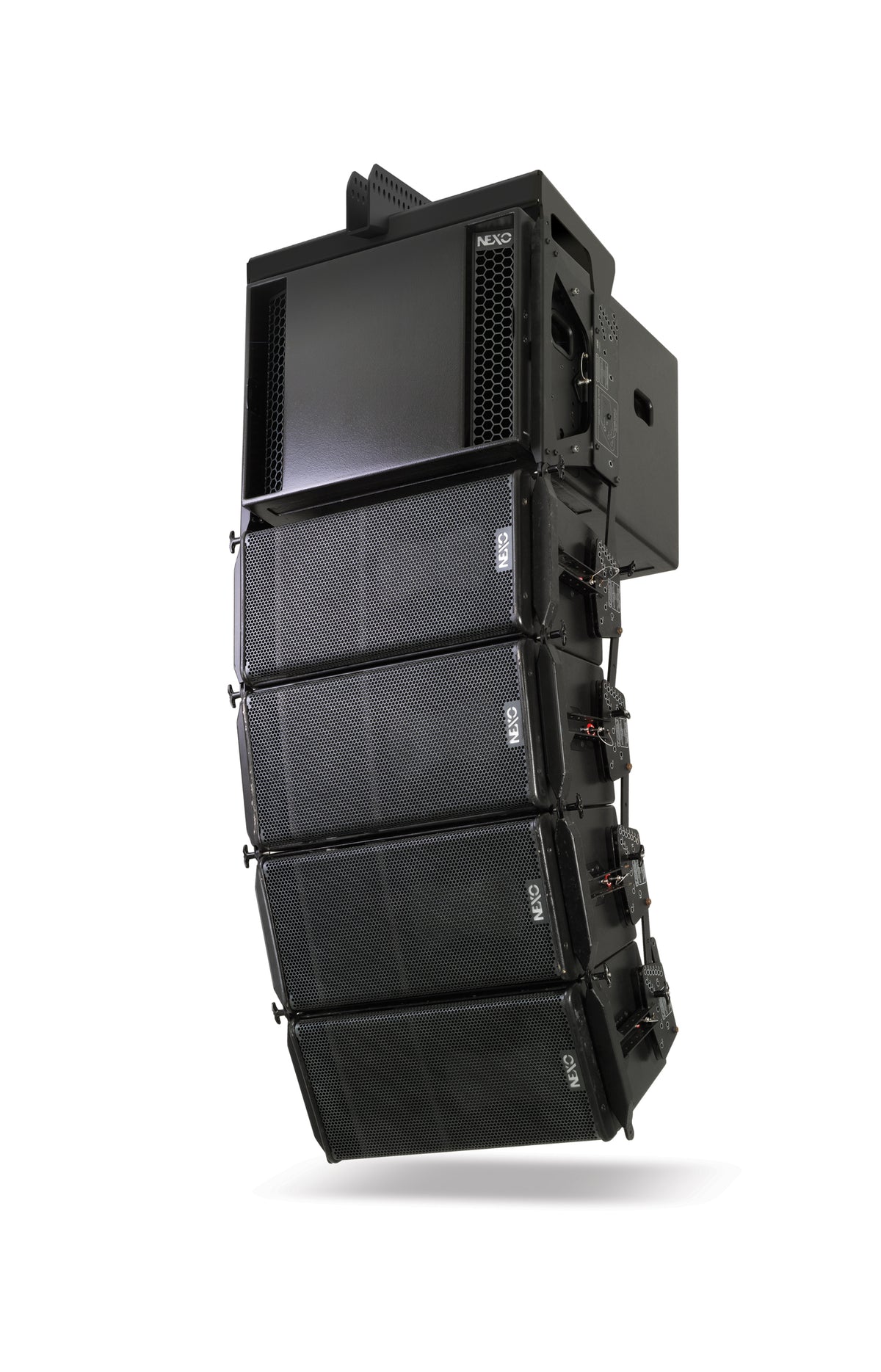

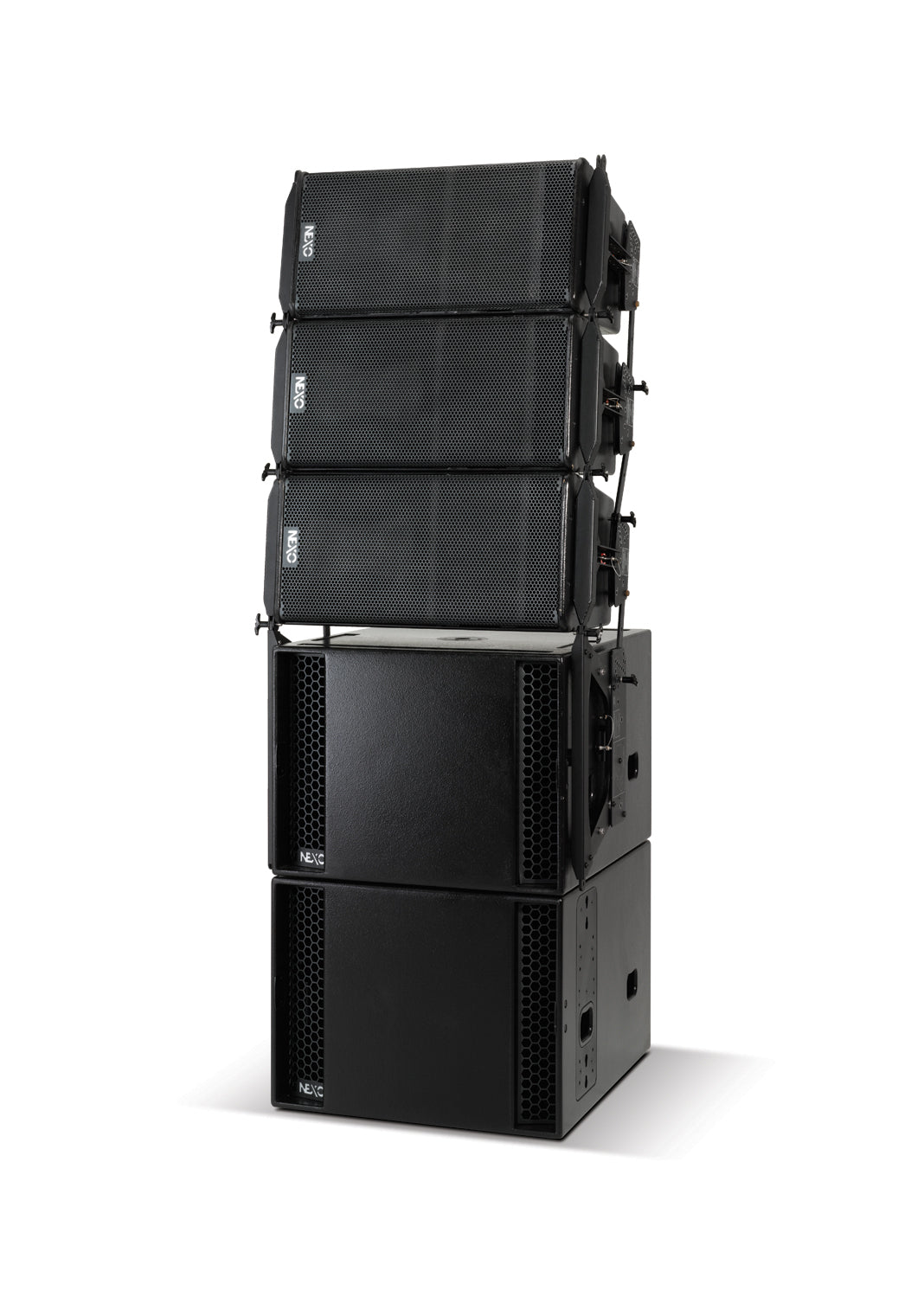

• Integrates with GEO S12 line arrays and PS Series systems

Key specifications

Nexo LS18. Product type: passive subwoofer cabinet. Driver configuration: 1 x 18'' (46cm) 4'' voice coil long excursion 8 Ω driver. Frequency response: 35 Hz–120 Hz ±3dB (usable range at -6dB: 32 Hz–130 Hz). Sensitivity: 107 dB. Maximum SPL: 140 dB. Nominal impedance: 8 Ω. Inputs: 2x NL4MP Speakon 4-pole connectors. Control: NXAMP4x1 or NXAMP4x4 electronic controller with protection algorithms. Dimensions: 675 x 510 x 775 mm; weight: 55.5 kg. Cabinet material: Baltic Birch Ply with structured black coating. Warranty: 2 years.
