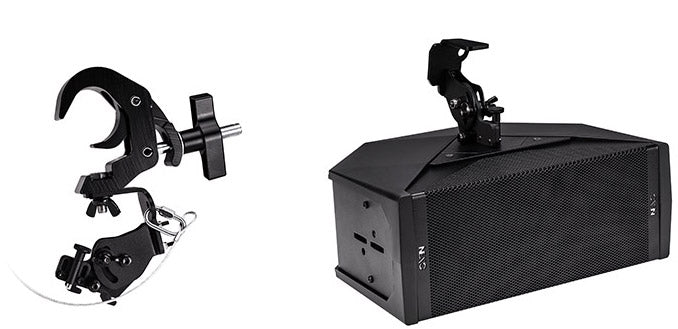

NEXO IDT-TCBRK3851-V2 Truss Clamp Adapter, 38-51mm

The NEXO IDT-TCBRK3851-V2 is a quick release truss clamp adapter designed for mounting NEXO loudspeakers onto truss with a diameter of 38-51 mm. It is intended for touring and live event rigging applications where fast, secure and adjustable speaker positioning is required.

The quick release adapter (QRA) can be fitted in two different positions across five locations on the bracket, with two positions available for horizontal use and three for vertical use. The clamp also allows the mounted speaker to be angled from -45° to +45°, giving technicians flexibility when aiming enclosures on a truss run.

Compact and lightweight at 204 x 224 x 79 mm and 0.9 kg, the adapter is supplied with the hardware needed for installation, including a QRA-V2 bracket, an M10x30 bolt and M10 nuts. The product is manufactured in France.

• Truss capacity: 38-51 mm
• 5 mounting positions: 2 horizontal, 3 vertical
• Angle adjustment: -45° to +45°
• Dimensions: 204 x 224 x 79 mm
• Weight: 0.9 kg
