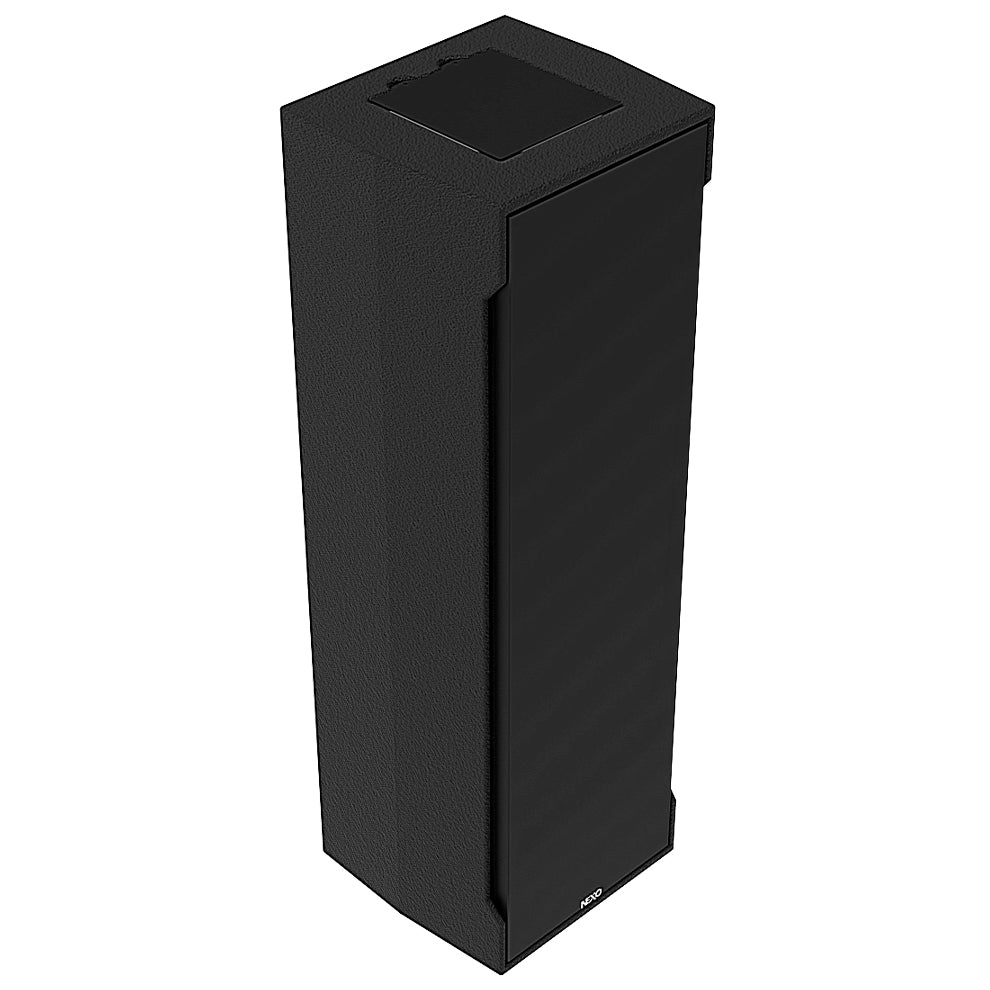

NEXO IDS312 3x12-inch Column Subwoofer

The NEXO IDS312 is a passive column subwoofer built around three 12-inch neodymium long-excursion woofers housed in a 15 mm Baltic birch plywood enclosure. It is designed to pair with the NEXO ID84 main speaker, raising its coverage to audience height while adding low-frequency reinforcement for touring, installation and TIS (Touring Installation Service) deployments.

The IDS312 delivers a frequency response of 40 Hz to 120 Hz, a sensitivity of 105 dB and a maximum SPL of 138 dB, with a nominal impedance of 2 Ω and a recommended amplifier power of 1,300–2,100 W. At 31 kg, the enclosure remains lightweight for its output thanks to its neodymium drivers.

Connection is made via 2x NL4 connectors (1+/1- & 2+/2-) together with a quick-connect system for the ID84, and the cabinet can be stacked horizontally or vertically. Two rubber mats are supplied for horizontal installation. The IDS312 operates from 0°C to 40°C and is covered by a 5-year warranty.

• 3x 12-inch neodymium long-excursion woofers
• 40 Hz–120 Hz frequency response
• 138 dB maximum SPL
• 2 Ω nominal impedance, 1,300–2,100 W recommended power
• 380 x 1160 x 350 mm, 31 kg
