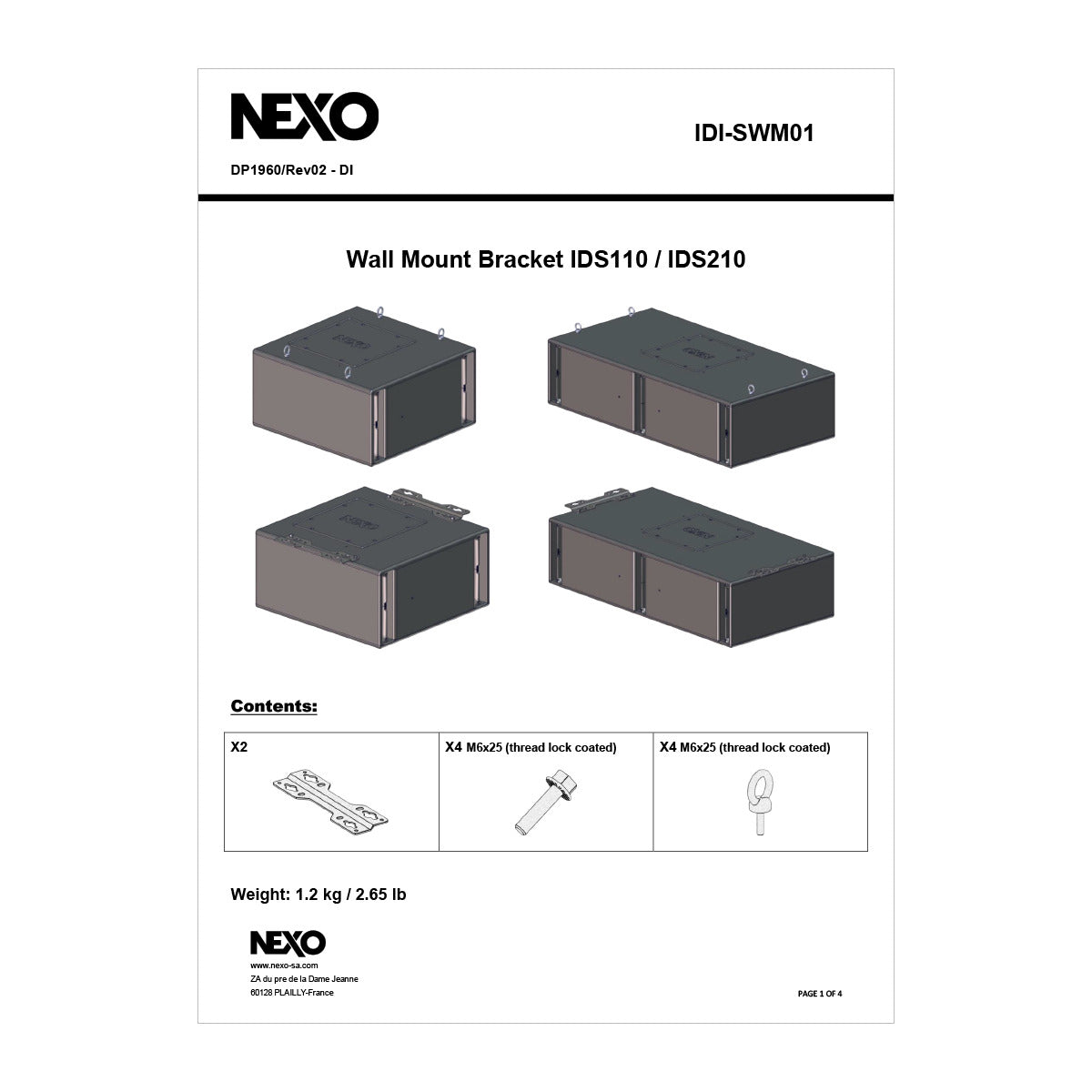

NEXO IDI-SWM01 Sub Bass Wall Mount Bracket

The NEXO IDI-SWM01 is a wall mount bracket designed for NEXO ID Series Sub Bass loudspeakers, allowing secure fixed installation of compatible subwoofers close to a wall surface.

The bracket is compatible with the ID110i, IDS110t, IDS210i and IDS210t models, and offers a choice of M8 or M10 wall fixation points to suit different installation requirements. Lift ring and wall plate mounting options are included, giving installers flexibility when positioning the loudspeaker.

A minimum clearance of 25 cm is required between the loudspeaker's vents and the wall to maintain correct acoustic performance. The bracket itself weighs 1.2 kg.

• Compatible with ID110i, IDS110t, IDS210i, IDS210t
• M8 or M10 wall fixation options
• Lift ring and wall plate mounting included
• Minimum 25 cm vent-to-wall clearance required
• Bracket weight: 1.2 kg

Ships with 2x lift rings and 4x M6x25 thread lock coated screws.
