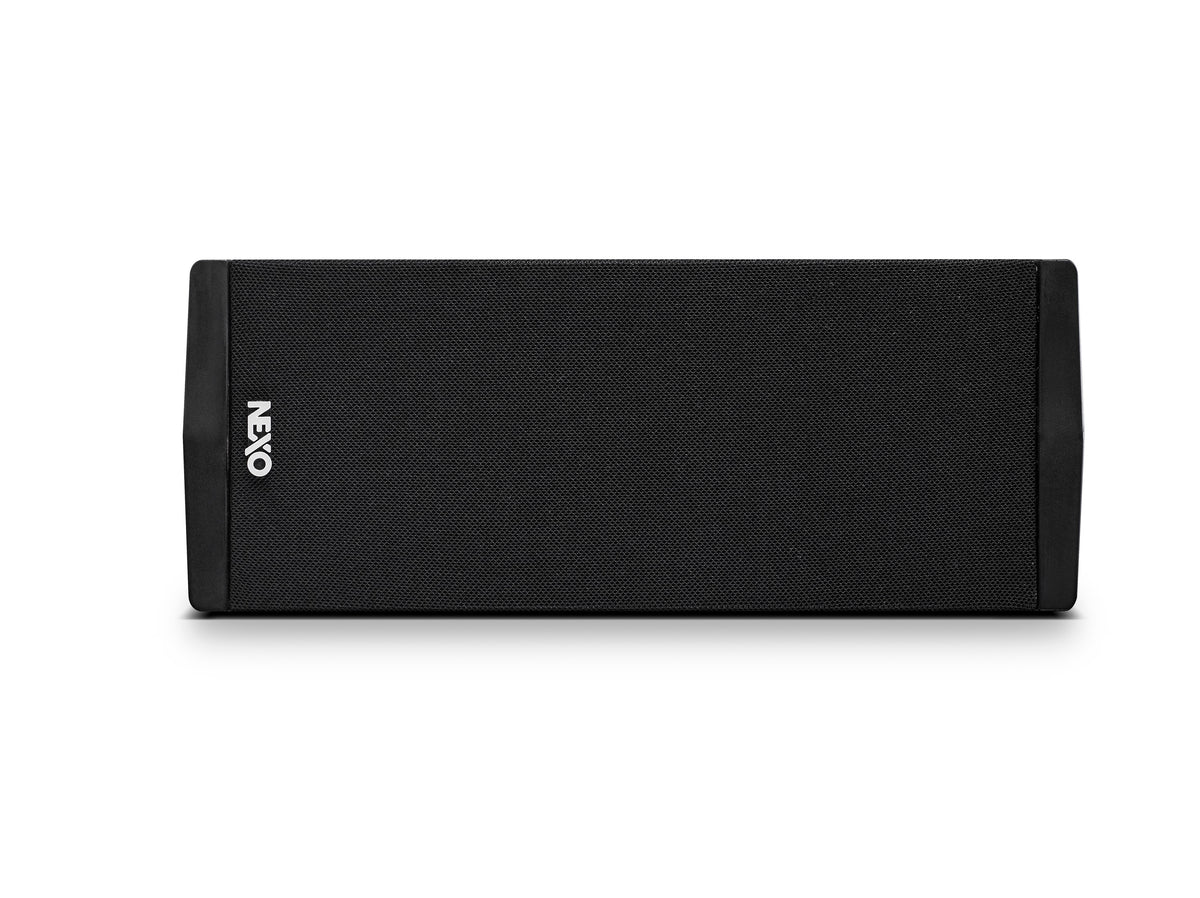

  • NEXO ID24 compact speaker, installation version in black, front view in horizontal orientation
  • NEXO ID24 compact speaker, touring version, hung horizontally from a clamp for under-balcony use
  • NEXO ID24 compact speaker, touring version, on a low stand as a stage front fill
  • NEXO ID24 compact speaker, touring version, on a pole mount
  • NEXO ID24 compact speaker, touring version, flown vertically from a clamp
  • NEXO ID24 compact speaker, touring version, used as a wedge monitor
  • NEXO ID24 compact speaker, installation version in white, angled front view
  • NEXO ID24 compact speaker, installation version in white, rear view with cable gland
  • NEXO ID24 compact speaker, installation version in white, front view in vertical orientation
  • NEXO ID24 compact speaker in a red custom colour, angled view
NEXO ID24 4-inch 2-Way Horn-Loaded Loudspeaker, Custom Version

NEXO

NEXO ID24 4-inch 2-Way Horn-Loaded Loudspeaker, Custom Version

Manufacturer Part No.: 01ID.24-C12040CPSKU: 30122

Contact us about this product

The NEXO ID24 is a compact 2-way horn-loaded loudspeaker designed for flexible sound reinforcement applications. This custom version features a 120° x 40° rotatable horn grille, allowing the horizontal and vertical coverage pattern to be swapped on site to suit the venue.

Fitted with dual 4-inch long-excursion neodymium LF drivers and a 1-inch HF compression driver on a ½-inch throat, the ID24 delivers a maximum SPL of 126 dB with a frequency response of 95Hz–20kHz (+/- 6dB) and a sensitivity of 100 dB. The cabinet is built from water-resistant polyurethane, suiting both indoor and outdoor installation or touring use, and is backed by a 2-year manufacturer warranty.

  • Frequency response: 95Hz – 20kHz (+/- 6dB)
  • Maximum SPL: 126 dB, sensitivity 100 dB
  • Nominal impedance: 16 Ω, recommended power 500 W
  • Dispersion: 120° x 40° rotatable horn (alternatives: 60°x60°, 90°x40°, 120°x60°)
  • Dimensions: 309 x 132 x 233 mm, weight 6 kg
