NEXO ID24 120°x60° Complete Horn Assembly

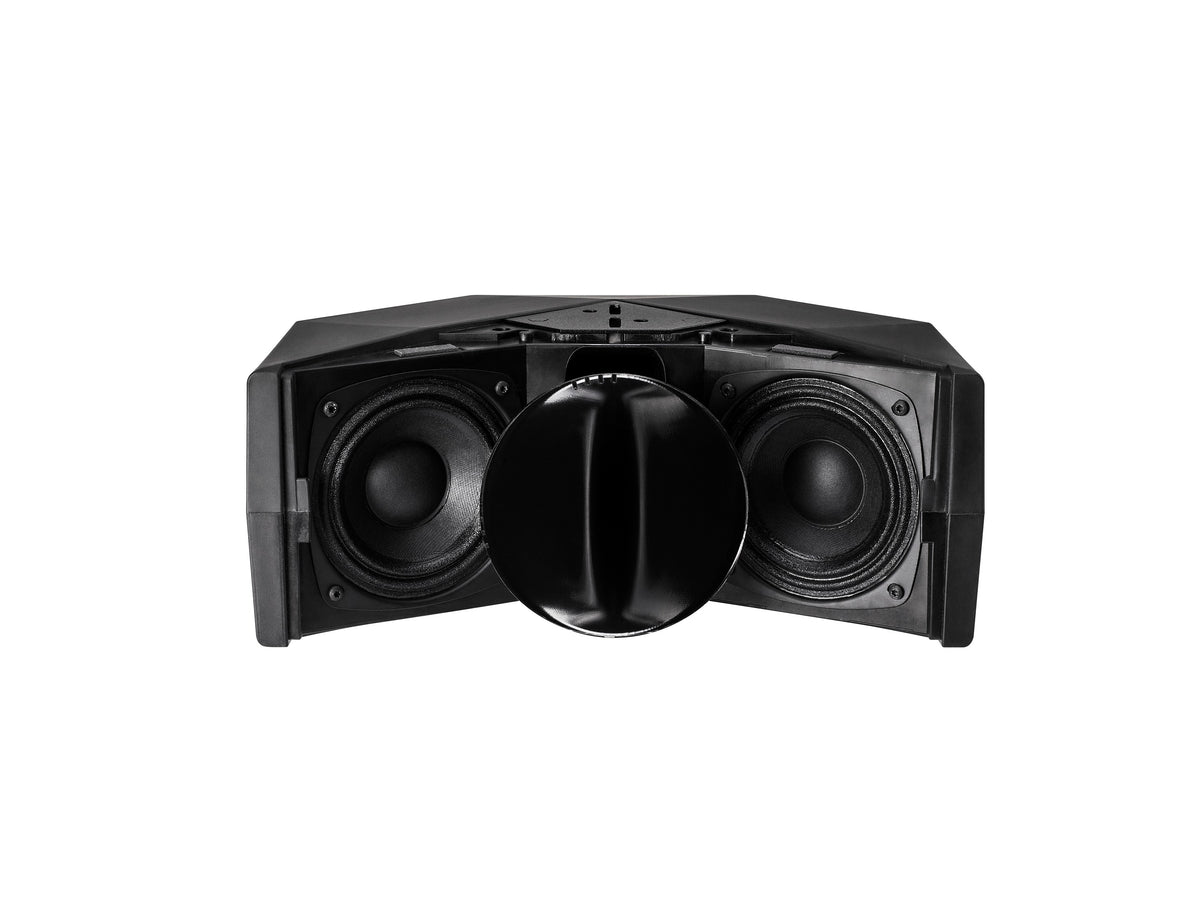

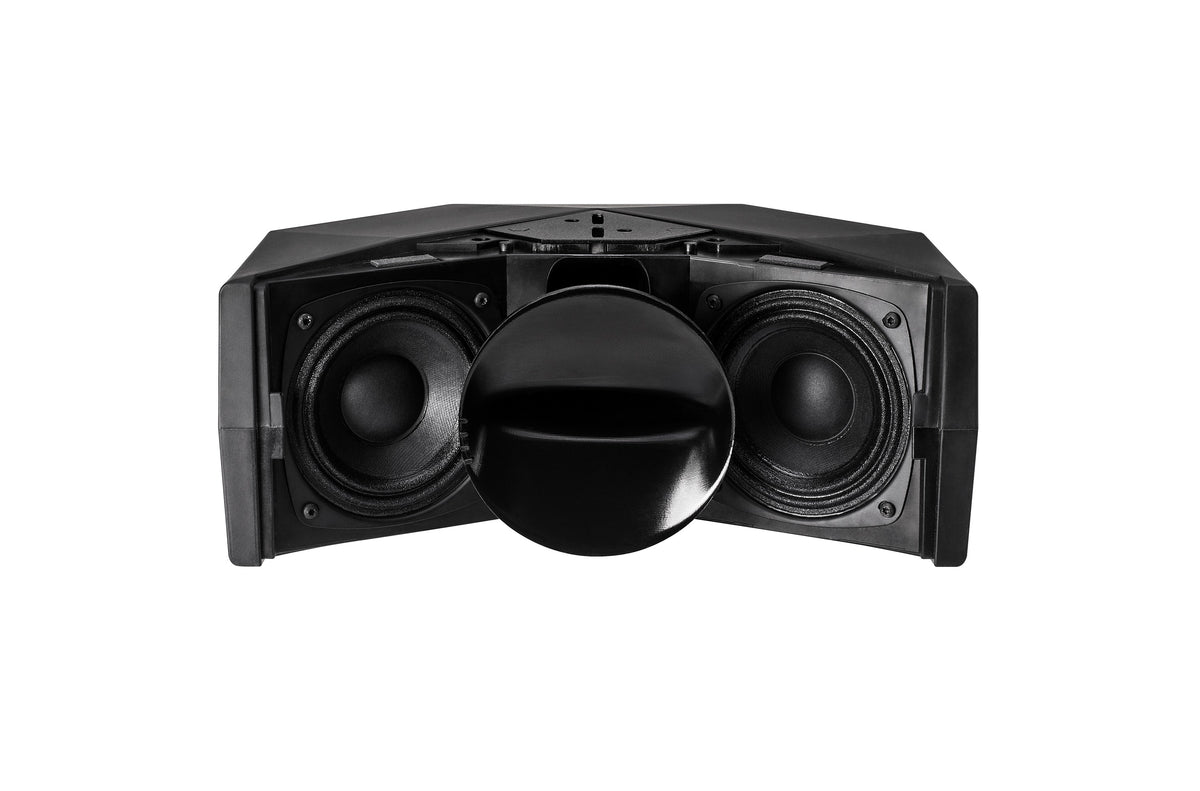

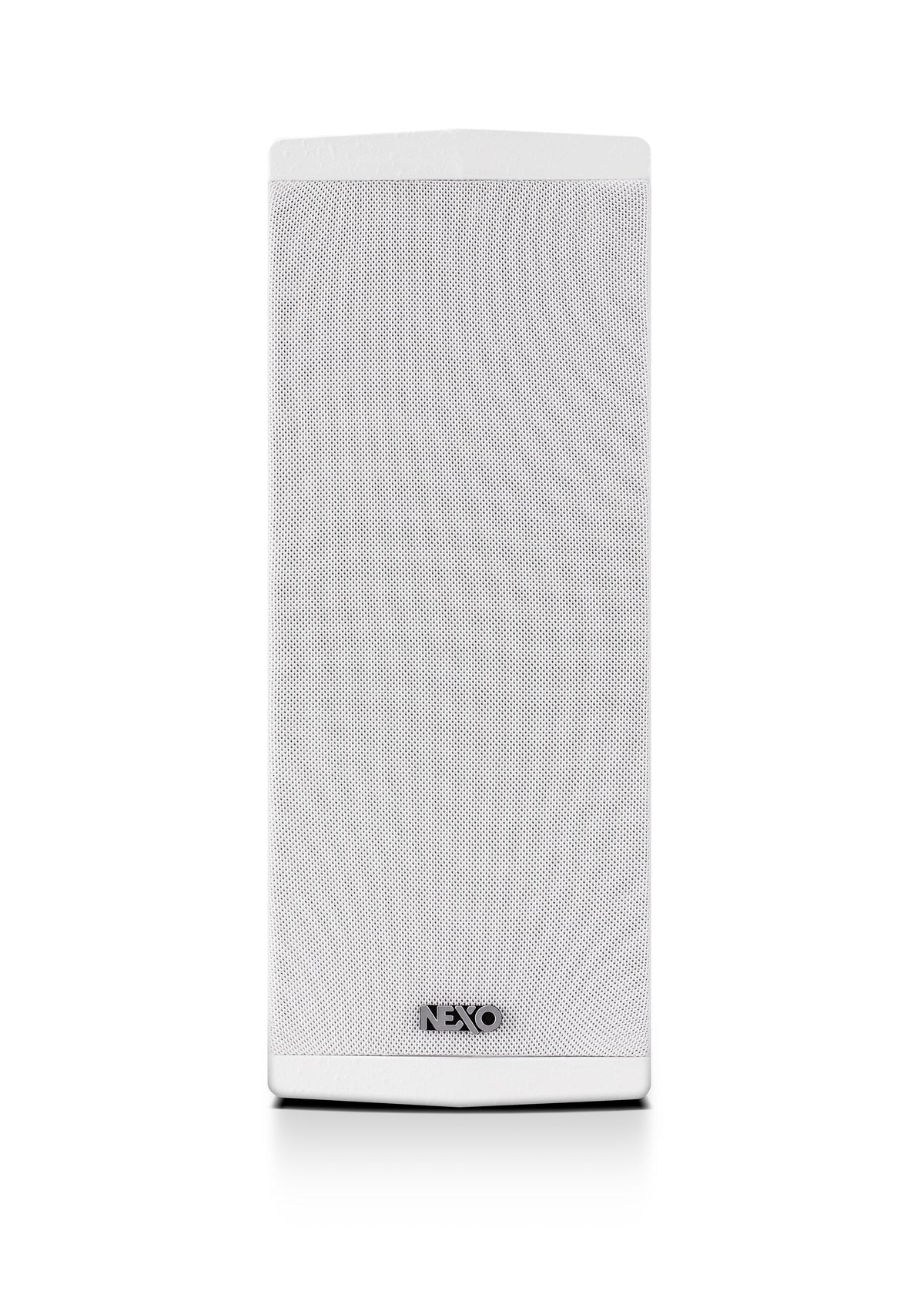

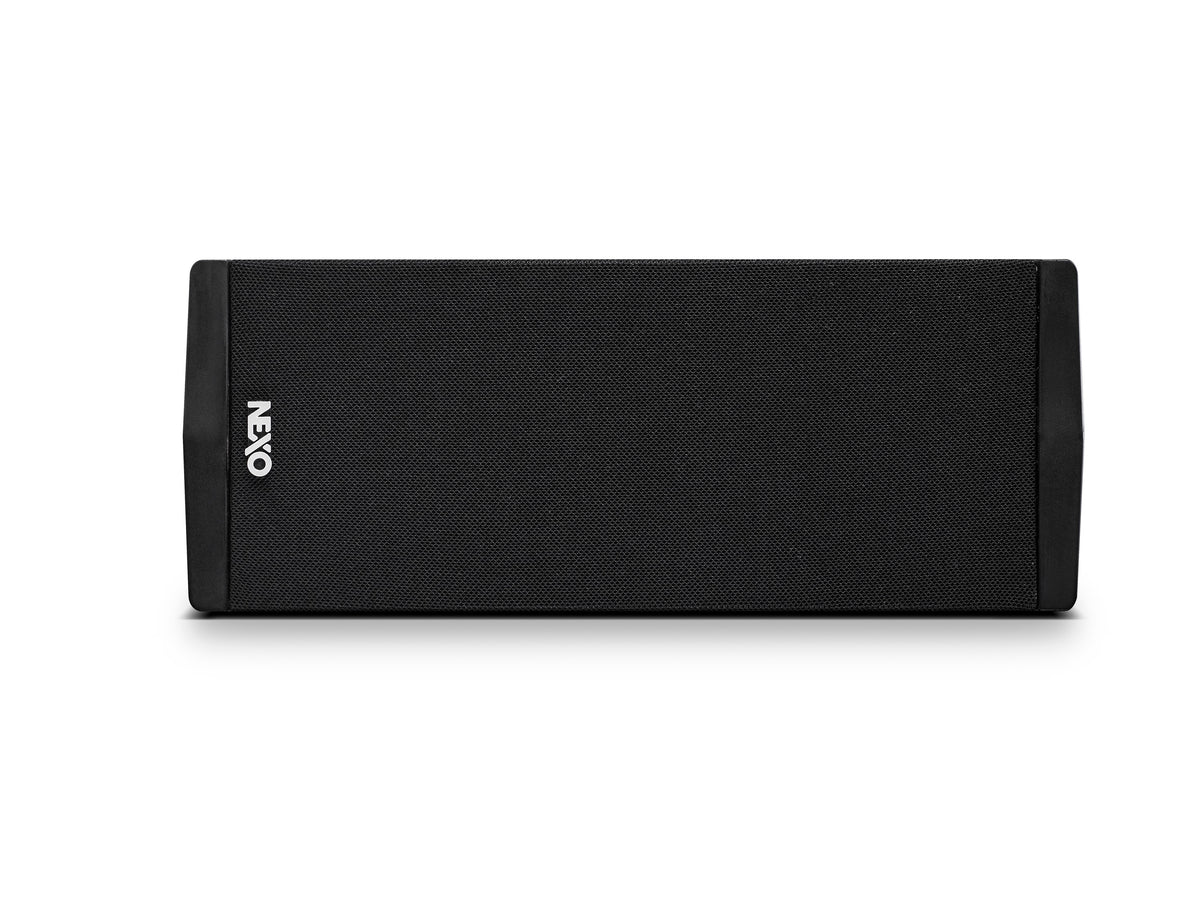

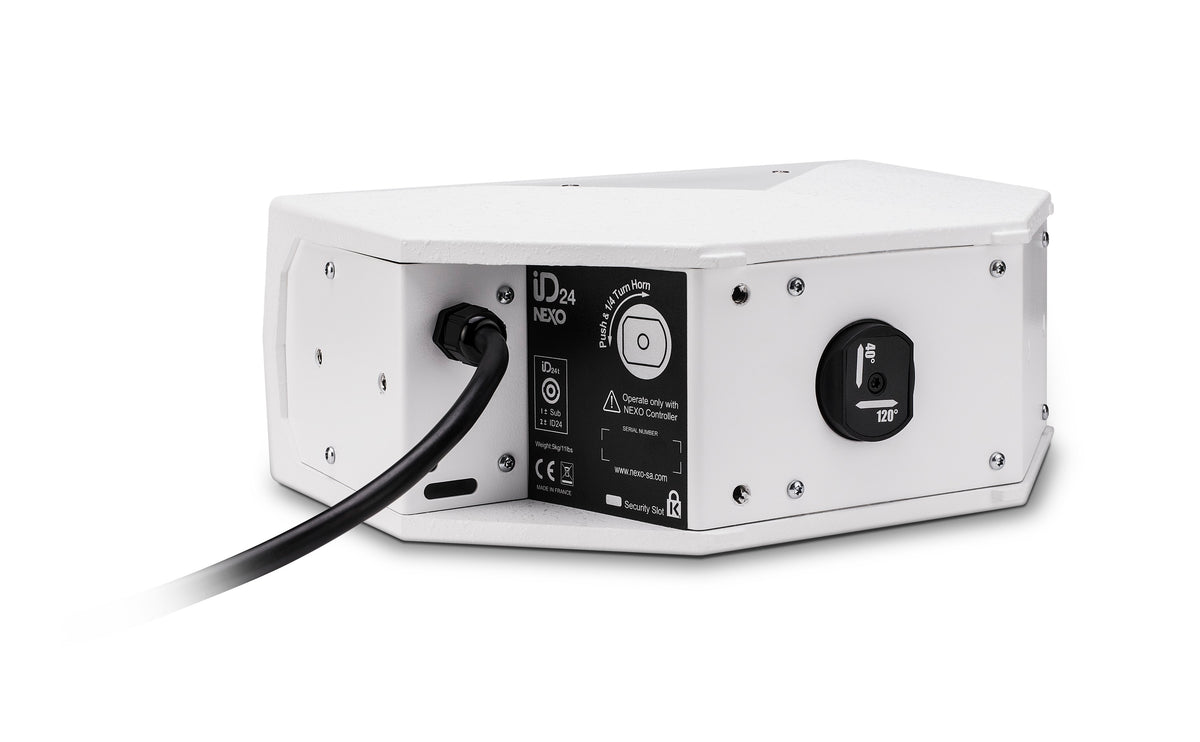

The NEXO ID24 120°x60° Complete Horn is a replacement horn assembly for the NEXO ID24 compact sound reinforcement loudspeaker, supplying a 120° horizontal by 60° vertical HF dispersion pattern. The horn is rotatable, allowing installers to adjust coverage on site, and forms part of NEXO's 'a la carte' ID24 system in which HF directivity, mounting type, connectivity, cabinet colour and grille can be specified to suit the venue.

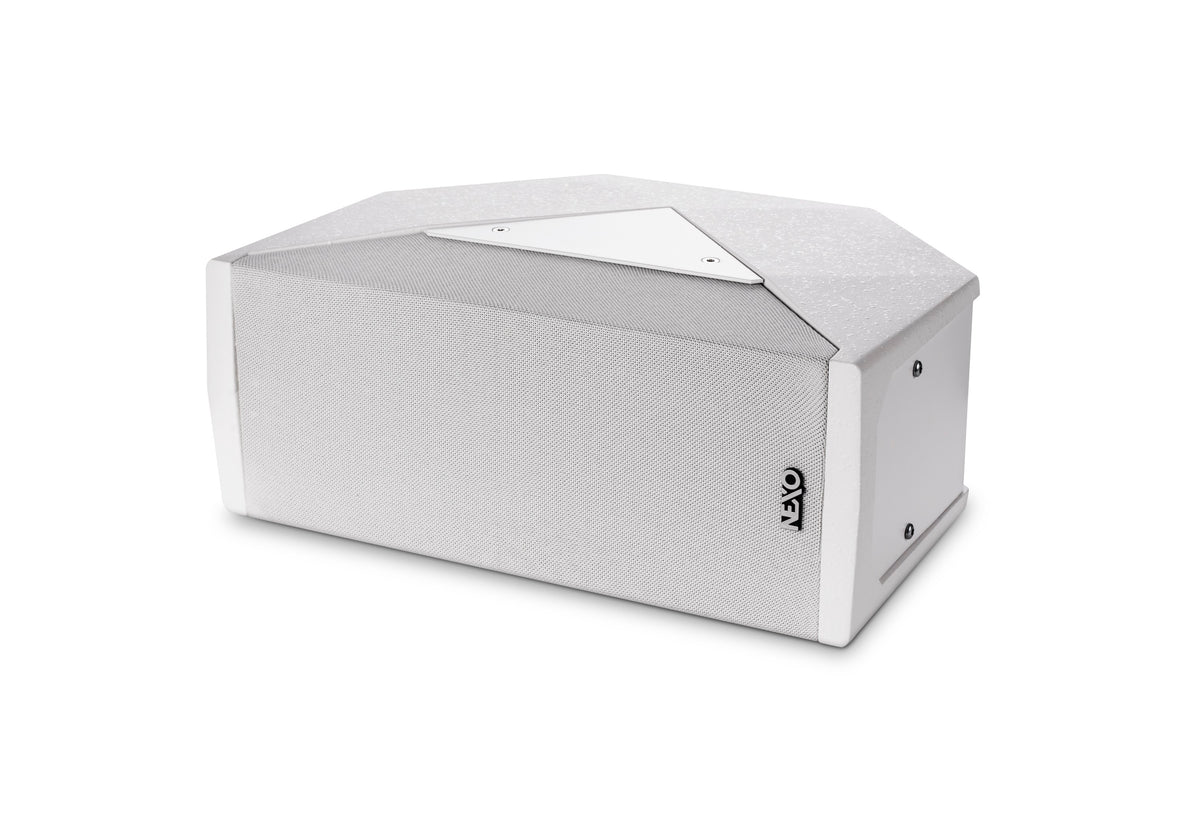

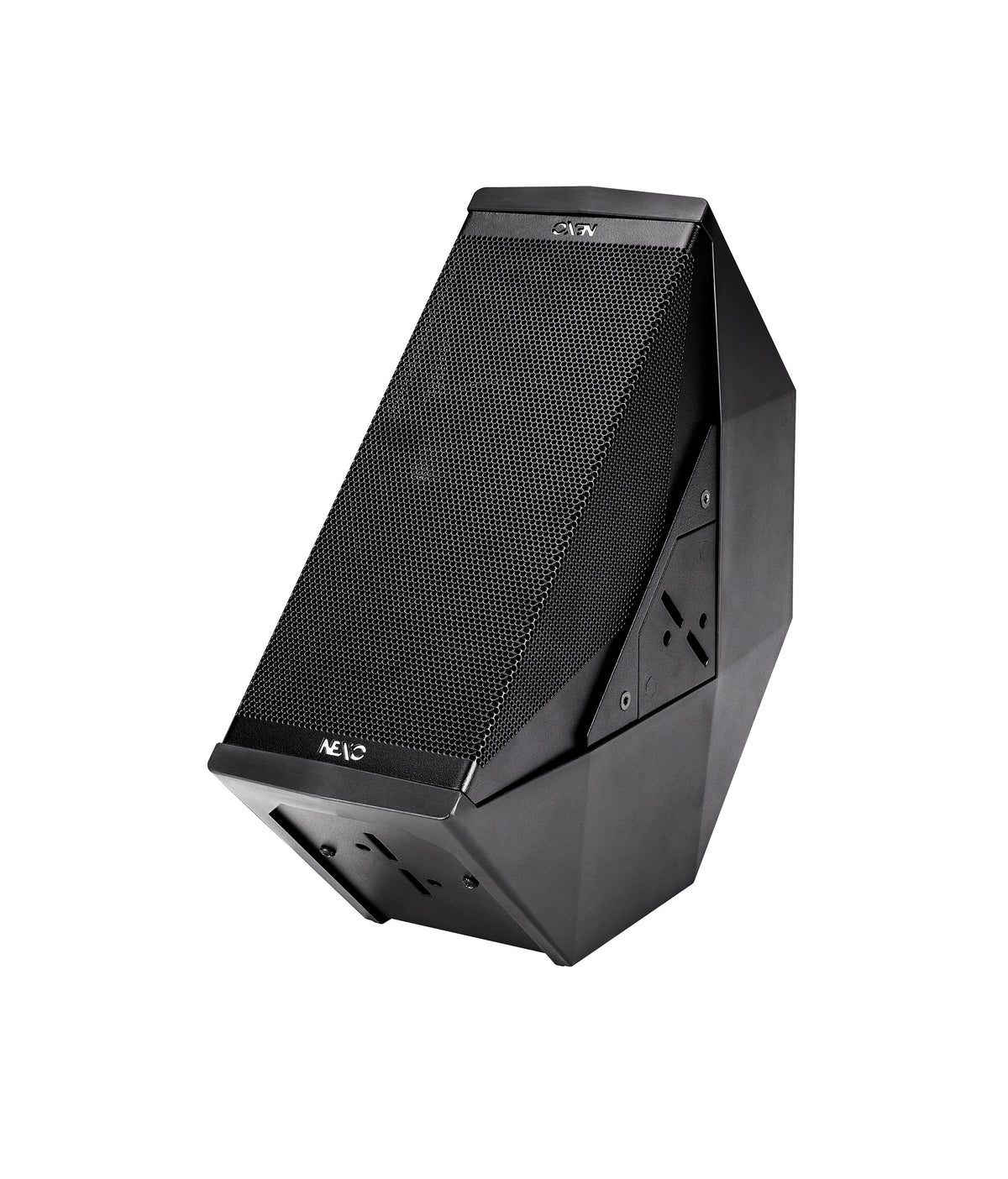

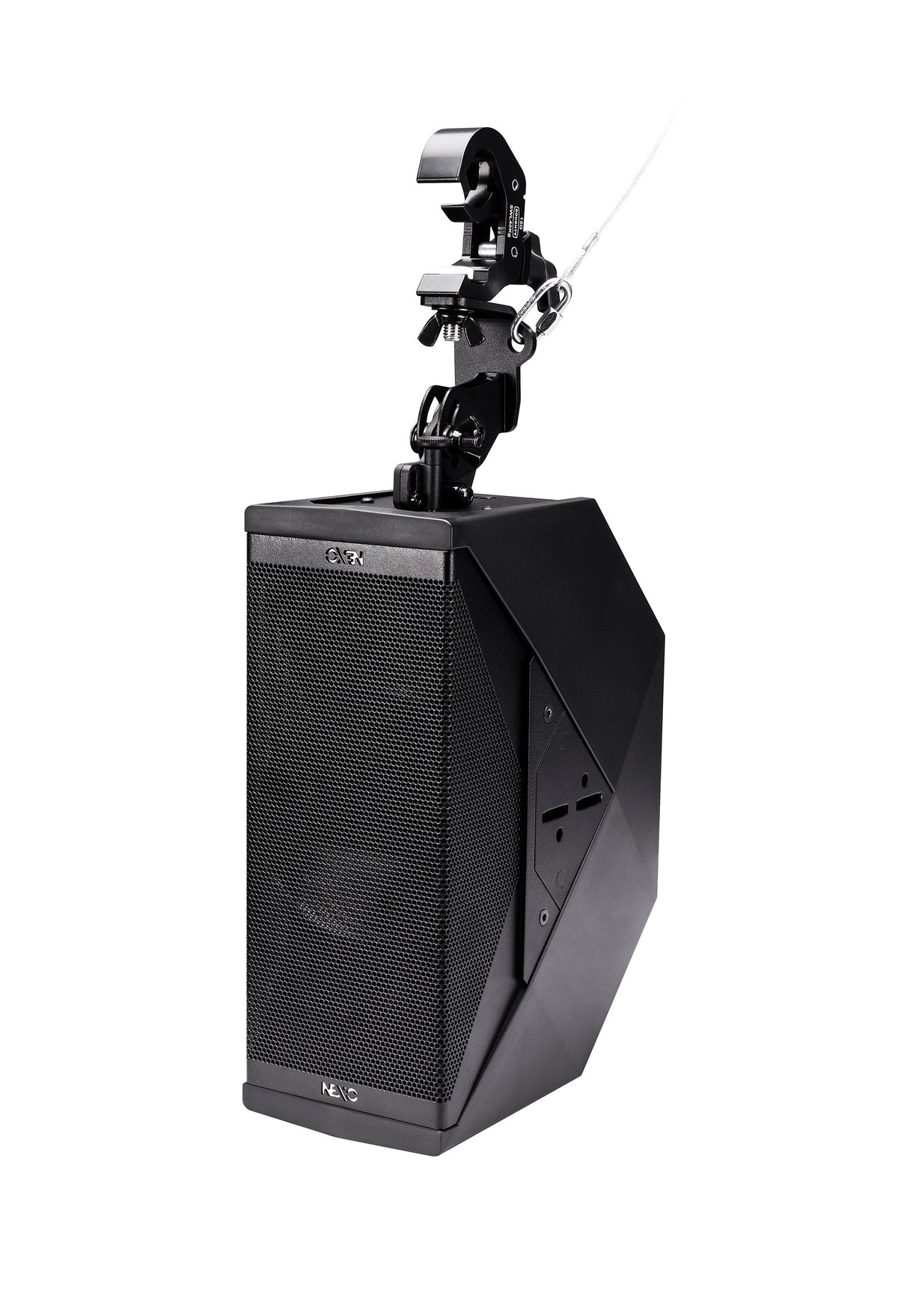

The horn loads a 1-inch voice coil, 1/2-inch throat compression driver fitted with a neodymium magnet, matched to the ID24 cabinet's 2x4-inch long-excursion neodymium LF drivers. Construction uses water-resistant polyurethane, suited to both permanent installation and touring applications where the ID24 is deployed in Install or Touring versions.

This assembly is intended as a spare or configuration-change part for existing ID24 systems; alternative dispersion options of 60°x60°, 90°x40° and 120°x40° are available within the same horn range for different coverage requirements.

• Dispersion: 120° x 60°, rotatable
• HF driver: 1-inch voice coil, 1/2-inch throat, neodymium magnet
• Material: water-resistant polyurethane

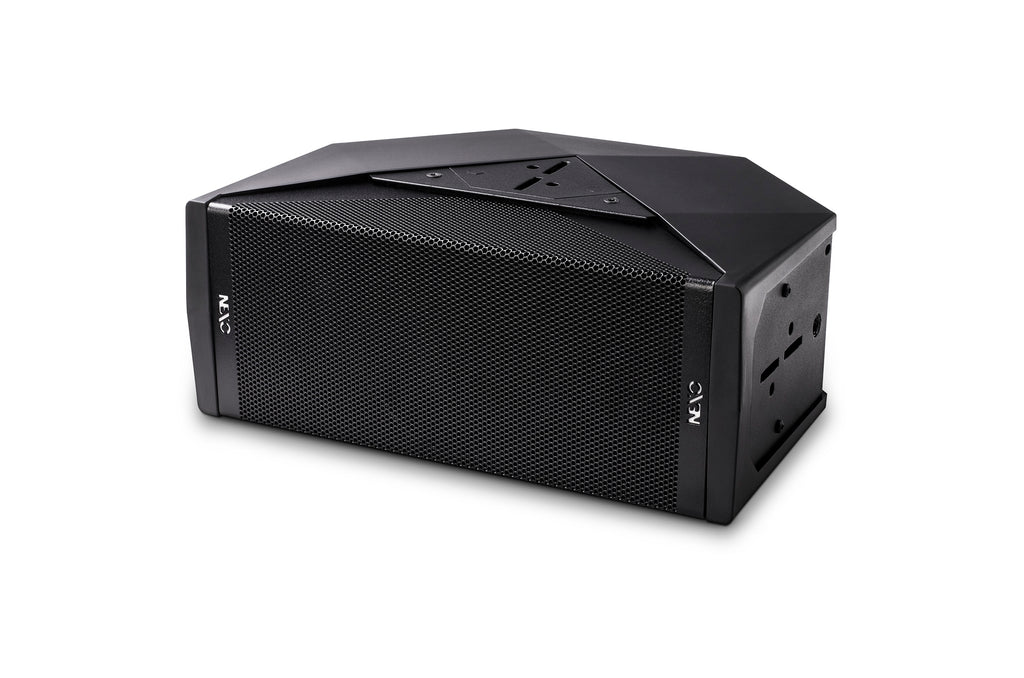

• For use with NEXO ID24 compact sound reinforcement loudspeaker
• Alternative dispersions: 60°x60°, 90°x40°, 120°x40°
