NEXO ID14 4-inch Coaxial 2-Way Loudspeaker, Installation Version

The NEXO ID14 is a compact 2-way passive coaxial loudspeaker combining a 4-inch long-excursion LF driver with a 1.4-inch HF diaphragm in a true point source design. This Installation version features a 90° x 140° dispersion pattern, extending the range's flexibility for fixed-installation applications as well as touring and fixed deployments.

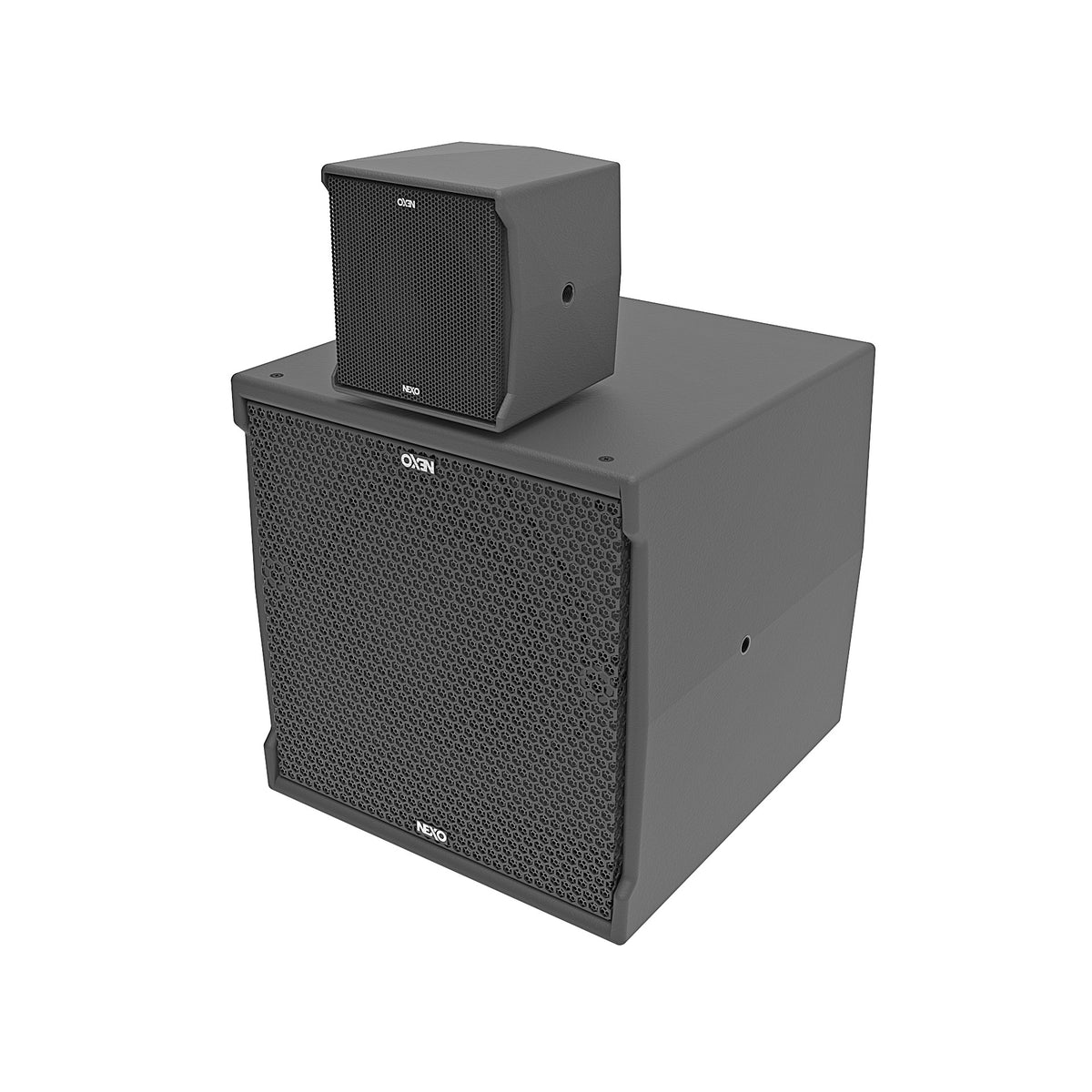

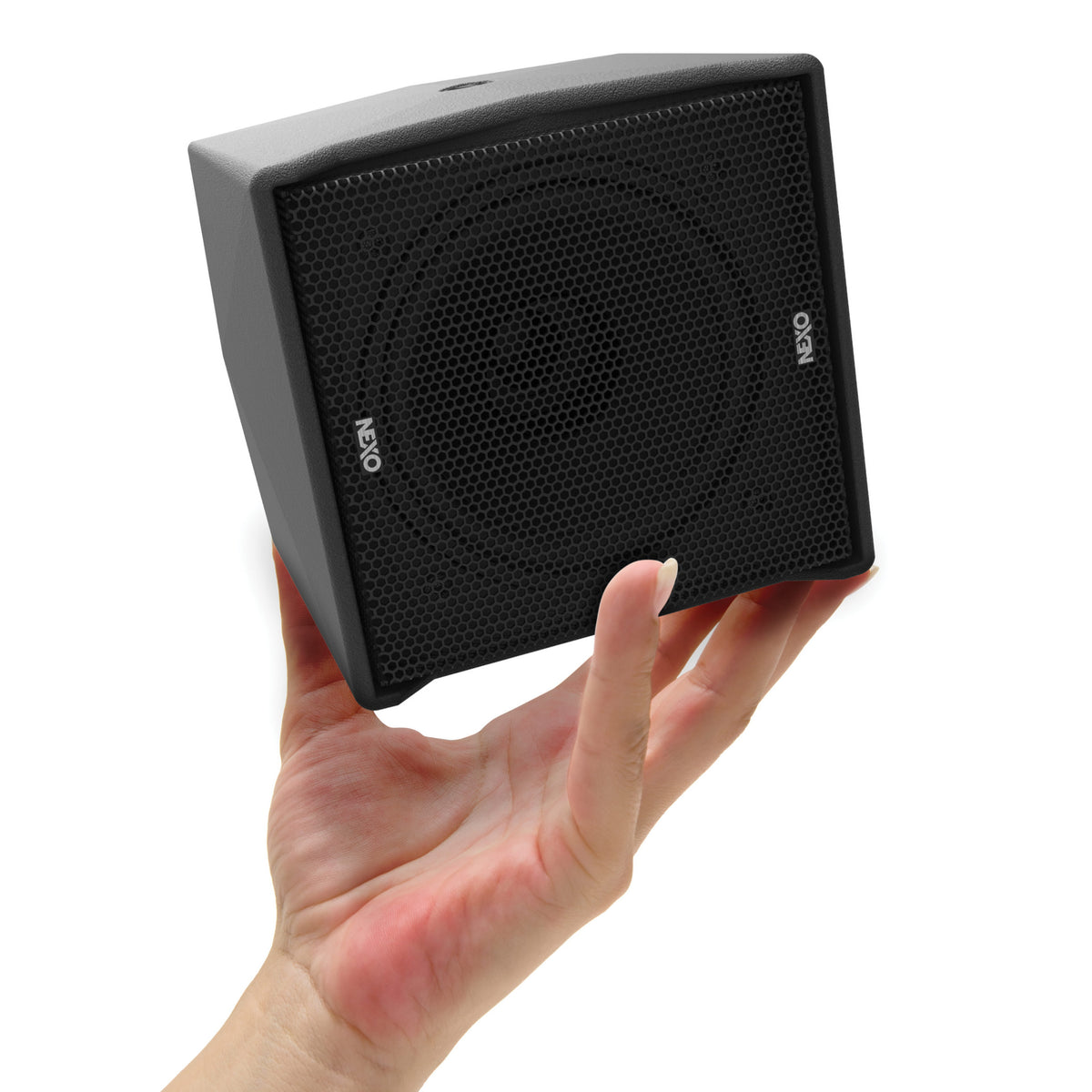

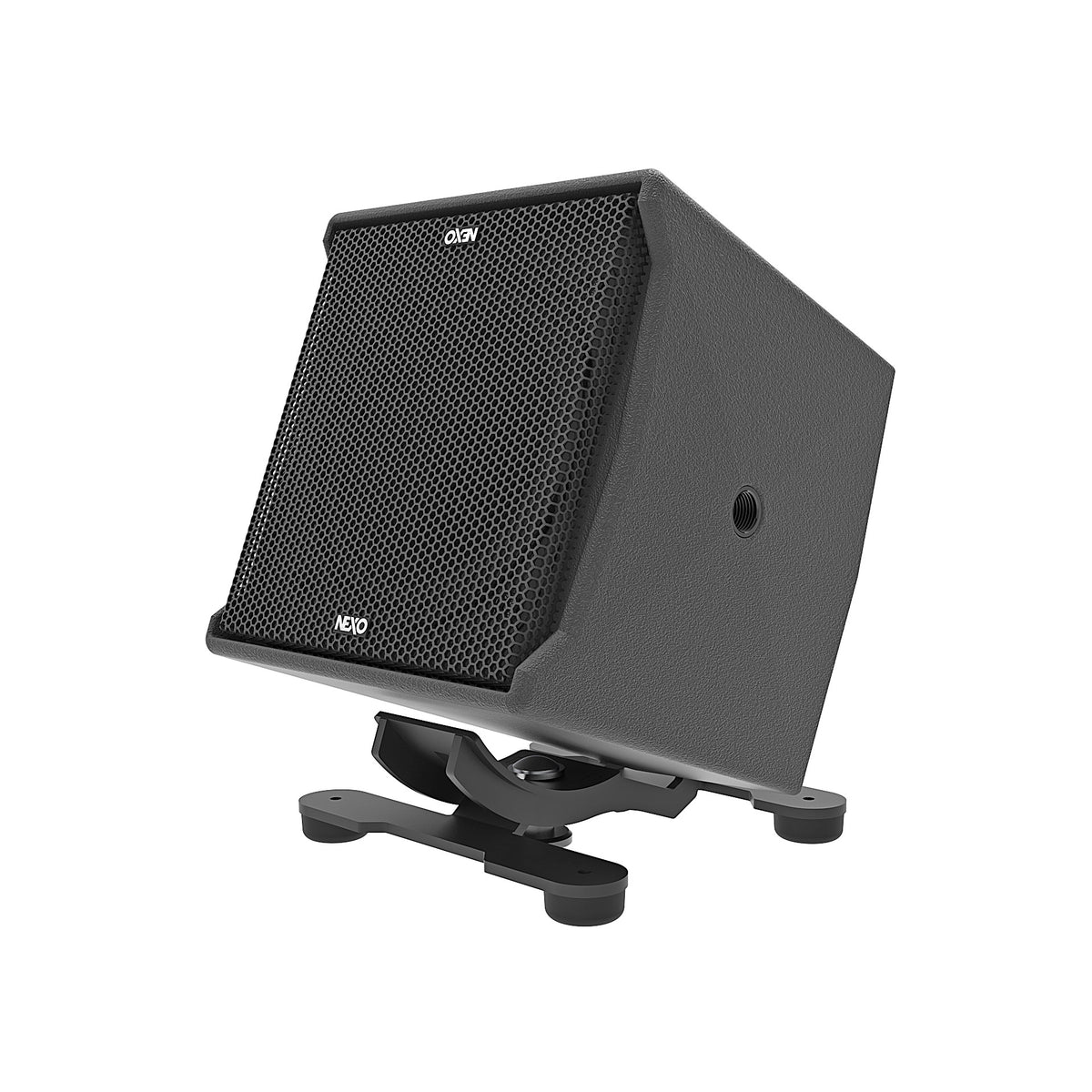

Despite its small 130 x 130 x 120 mm footprint and 1.7 kg weight, the ID14 delivers up to 116 dB maximum SPL with a sensitivity of 95 dB and a frequency response of 120 Hz to 20 kHz (±6 dB). A nominal impedance of 16 Ω and recommended amplifier power of 110–180 W make it easy to integrate into a wide range of systems, whether used standalone, distributed, or as front-fill, in-fill or delay speakers within a larger NEXO system.

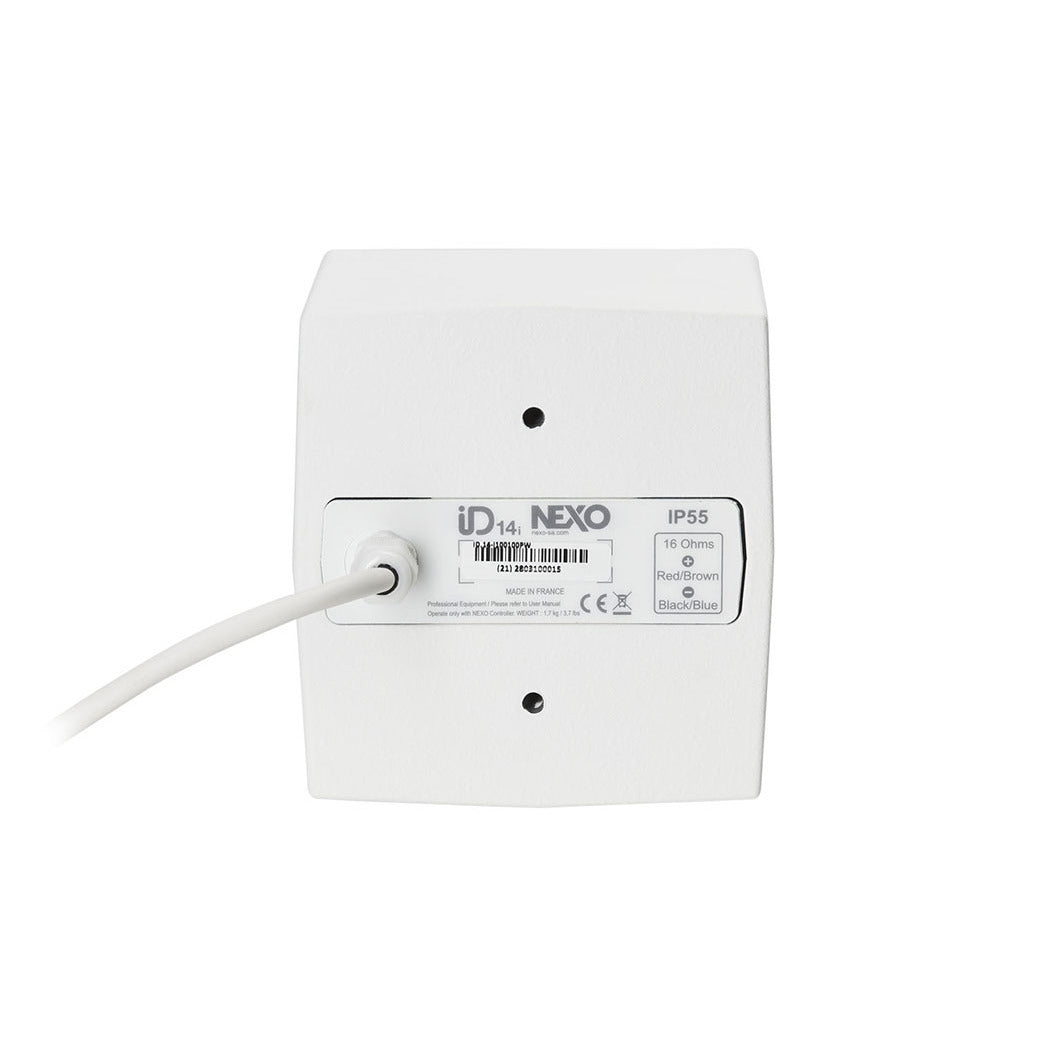

The closed polyurethane enclosure carries an IP55 rating on this Installation version, allowing use in demanding environments, and connection is made via a single cable gland with 2-core cable. The ID14 operates across 0°C to 40°C and is backed by a 5-year manufacturer warranty.

• 116 dB maximum SPL
• 90° x 140° dispersion
• 16 Ω nominal impedance, 110–180 W recommended power
• IP55-rated polyurethane enclosure
• 1.7 kg, 130 x 130 x 120 mm
